TRANSACTIONAL SUPPORT IN NATIVE XML DATABASES

Theo Härder, Sebastian Bächle and Christian Mathis

University of Kaiserslautern, Gottlieb-Daimler-Str., 67663 Kaiserslautern, Germany

Keywords: XML database management, concurrency control, logging and recovery, elementless XML storage.

Abstract: Apparently, everything that can be said about concurrency control and recovery is already said. None the

less, the XML model poses new problems for the optimization of transaction processing. In this position

paper, we report on our view concerning XML transaction optimization. We explore aspects of fine-grained

transaction isolation using tailor-made lock protocols. Furthermore, we outline XML storage techniques

where storage representation and logging can be minimized in specific application scenarios.

1 INTRODUCTION

When talking about transaction management, every-

body implicitly refers to relational technology. It is

true that the basic concepts of ACID transactions

(Härder and Reuter, 1983) were primarily laid in the

context of flat table processing and the related query

languages and later adjusted to object orientation. As

a major advance for transaction processing, Weikum

and Vossen (2002) unified concurrency control and

recovery for both the page and object model. Perfor-

mance concerns led to a refinement of the page

model to exploit records as more fine-grained units

of concurrency control. Their textbook used as the

“bible” in academic lectures “synthesizes the last

three decades of research into a rigorous and

consistent presentation” and it systematically

describes and “organizes that huge research corpus

into a consistent whole, with a step-by-step de-

velopment of ideas” (J. Gray in the foreword of this

textbook). It seemed that everything that can be said

about concurrency control and recovery is said in

this textbook already.

But new data models and processing paradigms

arrived in the recent past. The available types of

data, their modeling flexibility, and their contents

themselves have substantially evolved and more and

more surpass the realms where the relational model

is appropriate. Above all, the importance of efficient

XML query processing in multi-user environments

grows along with the rapidly increasing sizes and

volumes, the advanced applications and the

pervasiveness of XML. For semi-structured data,

XML together with its usages has become a (large)

set of standards for information exchange and

representation. It seems, the more domains are

conquered by XML (by defining schemas for

business cooperation), the more the relational

systems approach “legacy”.

Hence, efficient and effective transaction-pro-

tected collaboration on XML documents (XQuery

Update Facility) becomes a pressing issue.

Solutions, optimal in the relational world, may fail

to be appropriate because of the documents’ tree

characteristics and differing processing models.

Structure variations and workload changes imply

that transaction-related protocols must exhibit better

flexibility and runtime adjustment. “Blind” transfer

of relational technology would lead to suboptimal

solutions for storage and logging, because the

structure part of XML often exhibits huge

redundancies.

Because a number of language and processing

models are available and standardized for XML

(DOM, XQuery), general solutions for transaction

support have to consider protocols for concurrently

evaluating stream-, navigation-, and path-based

queries. For this reason, a flexible XML database

management system (XDBMS) has to support

XPath, XQuery, and DOM/SAX. DB requests

specified by different XML languages may be

scheduled and arbitrary transaction mixes may

occur. Therefore, serializability has to be guaranteed

for those applications.

In the following, we will outline that novel

approaches for XML concurrency control, document

storage, as well as logging and recovery may have

substantial saving and optimization potential.

368

Härder T., Bächle S. and Mathis C. (2008).

TRANSACTIONAL SUPPORT IN NATIVE XML DATABASES.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 368-373

DOI: 10.5220/0001725303680373

 SciTePress

2 LOCK PROTOCOLS

So far, there hardly exist any specific concurrency

control protocols for XML. Only some hierarchical

lock protocols are available from the relational

world by adjusting the idea of multi-granularity

locking (Gray, 1978) to the specific needs of XML

trees. Note, the well-known B-tree latch protocols

(Graefe, 2007) cannot be used to isolate XML

transactions; they only isolate concurrent read/write

operations on B-trees and preserve their structural

consistency. In contrast, locks isolate concurrent

transactions on user data and – to guarantee

serializability – have to be kept until transaction

commit. With similar arguments, index locking can

not cope with the navigational DOM operations

(Mohan, 1990).

When fine-granular access to document trees has

to be achieved, declarative requests have to be trans-

lated into sequences of navigating operations. There-

fore, the DOM model is considered, even for

declarative languages, an adequate representative as

far as locking requirements are concerned.

We repeat neither hierarchical lock protocols

used in all industrial-strength DBMSs (Gray and

Reuter, 1993) nor our own work on XML locking

(Haustein and Härder, 2008). Instead, we refer to

these well-known protocols and only emphasize

important properties for better comprehension.

2.1 Multi-Granularity Locking

Hierarchical lock protocols – also denoted as multi-

granularity locking (MGL) – are used “everywhere”

in the relational world. For performance reasons in

XDBMSs, fine-granular isolation at the node level is

needed when accessing individual nodes or

traversing a path, whereas coarser granularity is

appropriate when traversing or scanning entire trees.

Therefore, lock protocols, which enable the isolation

of multiple granules each with a single lock, are also

beneficial in XDBMSs. Regarding the tree structure

of documents, objects can be isolated acquiring the

usual subtree locks with modes R (read), X

(exclusive), and U (update with conversion option),

which implicitly lock all objects in the entire subtree

addressed. To avoid lock conflicts when objects at

different levels are locked, so-called intention locks

with modes IR (intention read) or IX (intention

exclusive) have to be acquired along the path from

the root to the object to be isolated and vice versa

when the locks are released. Hence, we can map the

relational IRIX protocol to XML trees and use it as a

generic solution.

- IRNRLRSR IXCXSUSX

IR+++++++- -

NR + + + + + + + - -

LR + + + + + + - - -

SR+++++- - - -

IX++++-++- -

CX + + + - - + + - -

SU+++++- - - -

SX+--------

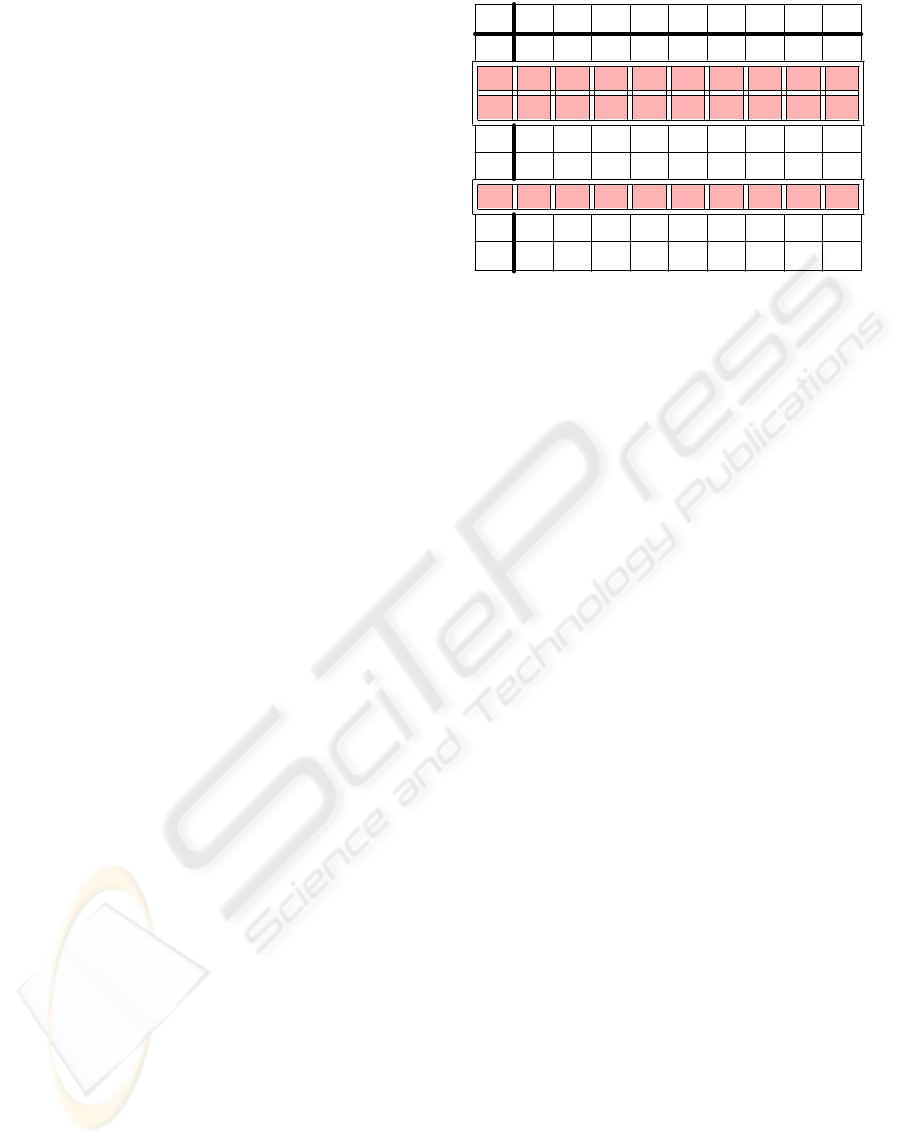

Figure 1: taDOM2 lock compatibilities.

Using the IRIX protocol, a transaction reading

nodes at any tree level had to use R locks on the

nodes accessed thereby locking these nodes together

with their entire subtrees. This isolation is too strict,

because the lock protocol unnecessarily prevents

writers to access nodes somewhere in the subtrees.

Giving a solution for this problem, we want to

sketch the idea of lock granularity adjustment to

DOM-specific navigational operations.

2.2 Fine-Grained DOM-Based Locking

To develop tailor-made XML lock protocols, Hau-

stein and Härder (2008) have introduced a far richer

set of locking concepts and developed a family con-

sisting of four DOM-based lock protocols called the

taDOM group. While MGL essentially rests on

intention locks and, in our terms, subtree locks,

these protocols additionally contain locking concepts

for nodes and levels.

We differentiate read and write operations and

rename the well-known (IR, R) and (IX, X) lock

modes with (IR, SR) and (IX, SX) modes,

respectively, to stress that subtrees (S) are locked.

As in the MGL scheme, the U mode (SU in our

protocol) plays a special role, because it permits lock

conversion. Novel concepts are introduced by node

locks and level locks whose lock modes are NR

(node read) and LR (level read) in a tree which, in

contrast to MGL, read-lock only a node or all nodes

at a level, but not the corresponding subtrees.

Together with the CX mode (child exclusive), these

locks enable serializable transaction schedules with

read operations on inner tree nodes, while

concurrent updates may occur in their subtrees.

While the remaining locks in Figure 1 coincide with

those of the URIX protocol, we highlighted these

three lock modes to illustrate that they provide a

kind of tailor-made XML-specific extension.

TRANSACTIONAL SUPPORT IN NATIVE XML DATABASES

369

publication

book

49.99The Title

First Name Last Name

author

title price

fname lname

LRQ: CX

bib IR

. . .. . .

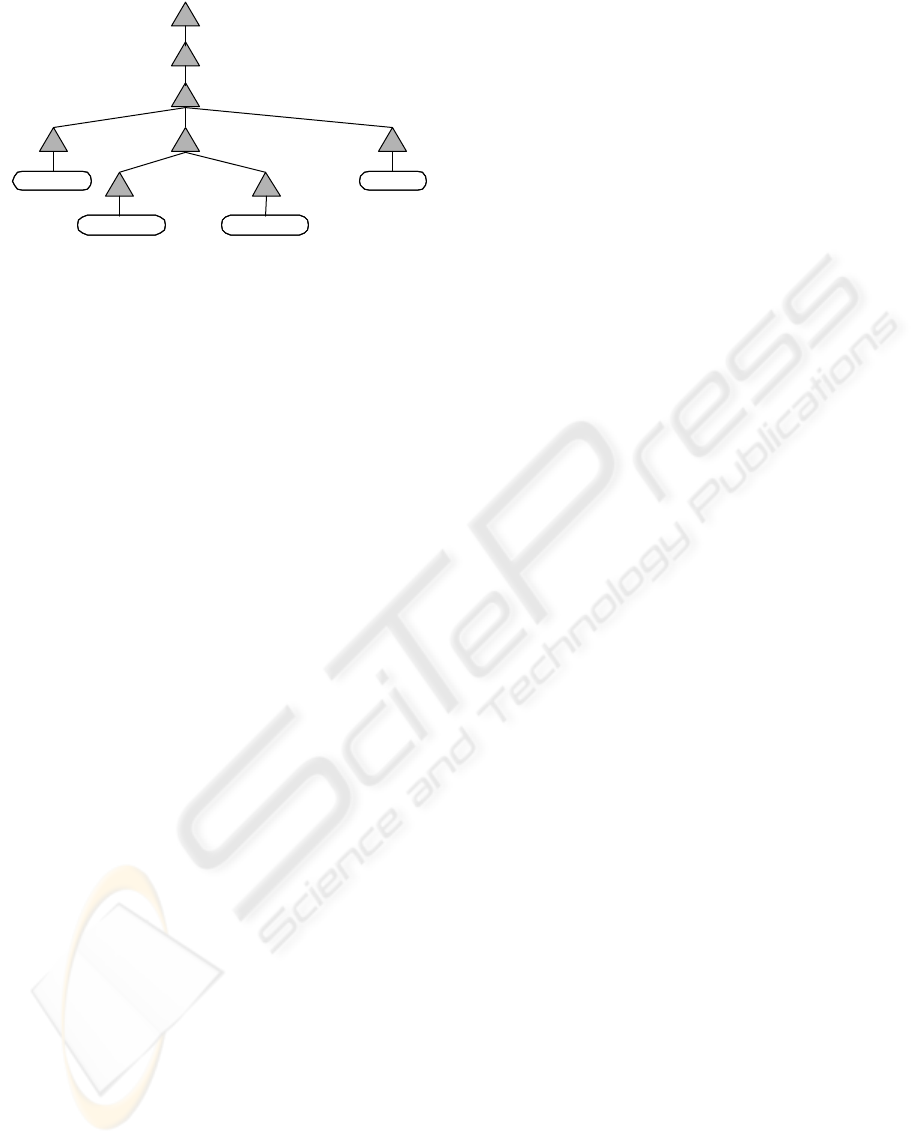

Figure 2: Application of the taDOM2 protocol.

Figure 1 contains the compatibility matrix for

the basic lock protocol called taDOM2. To illustrate

its use, let us assume that the node manager has to

handle for transaction T

an incoming request

GetChildNodes() for context node book in Figure 2.

This requires appropriate locks to isolate T

from

modifications of other transactions. Here, the lock

manager can use the level-read optimization and set

the perfectly fitting mode LR on book and, in turn,

protect the entire path from the document root by ap-

propriate intention locks of mode IR. After having

traversed all children, T

navigates to the content of

the price element after the lock manager has set an

NR lock for it. Then, transaction T

starts modifying

the value of lname and, therefore, acquires an SX

lock for the related text node. The lock manager

complements this action by acquiring a CX lock for

the parent node and IX locks for all further ances-

tors. Simultaneously, transaction T

wants to delete

the author node and its entire subtree, for which, on

behalf of T

, the lock manager must acquire IX locks

on bib and publication, a CX lock on book, and an

SX lock on author. The lock request on book cannot

immediately be granted because of the LR lock of

. Thus, T

– placing its request in the lock request

queue (LRQ: CX

) – must synchronously wait for

the LR lock release of T

on book.

Hence, by tailoring the lock granularity to the LR

operation, the lock protocol enhances transaction

parallelism by allowing modifications of concurrent

transactions in subtrees whose roots are read-locked.

Experimental analysis of taDOM2 led to some

severe performance problems in specific situations

which were solved by the follow-up protocol

taDOM2+. Figure 2 reveals that conversion of LR

can be very cumbersome, because individual node

locks have to be set for T

on all children of book.

As opposed to efficient ancestor determination of a

node – delivered for free by prefix-based node

labeling schemes (O’Neil et al., 2004) such as

SPLIDs (stable path labeling identifiers) –,

identification of its children is very expensive,

because access to the document is needed to

explicitly locate all affected nodes. By introducing

suitable intention modes, Haustein and Härder

(2008) obtained the more complex protocol

taDOM2+ having 12 lock modes. The DOM3

standard introduced a richer set of operations which

led to several new tailored lock modes for taDOM3

and – to optimize specific conversions – even more

intention modes resulted in the truly complex

protocol taDOM3+ specifying compatibilities and

conversion rules for 20 lock modes.

Lock manager and lock tables are designed along

the lines of (Gray and Reuter, 1993); its flexibility

and efficiency are greatly influenced by the use of

SPLIDs. The tree-organized locks are kept in a

main-memory buffer whose layout is independent of

the physical XML structures used (Section 3.1).

2.3 Results of a Lock Contest

To enable a true and precise cross-comparison of

lock protocols, we implemented in our prototype

system XTC (XML Transaction Coordinator

(Haustein and Härder, 2007)) 5 variants of the MGL

group together with 4 taDOM lock protocols. All of

them were run under the same benchmark using the

same system configuration parameters.

As it turned out by empirical experiments, lock

depth is an important and performance-critical pa-

rameter of an XML lock protocol. Lock depth n

specifies that individual locks isolating a navigating

transaction are only acquired for nodes down to

level n. Operations accessing nodes at deeper levels

are isolated by subtree locks at level n. Note,

choosing lock depth 0 corresponds to the case where

only document locks are available. In the average,

the higher the lock depth parameter is chosen, the

finer are the lock granules, but the higher is the lock

administration overhead, because the number of

locks to be managed increases. On the other hand,

lock conflicts typically occur at levels closer to the

document root such that fine-grained locks (and their

more expensive management) at levels deeper in the

tree do not pay off.

In our lock protocol competition, we used a doc-

ument of about 580,000 tree nodes (~8MB) and exe-

cuted a constant system load of 66 transactions taken

from a mix of 5 transaction types. For our dis-

cussion, neither the underlying XML documents nor

ICEIS 2008 - International Conference on Enterprise Information Systems

370

the mix of benchmark operations are important.

Here, we only want to show the overall results in

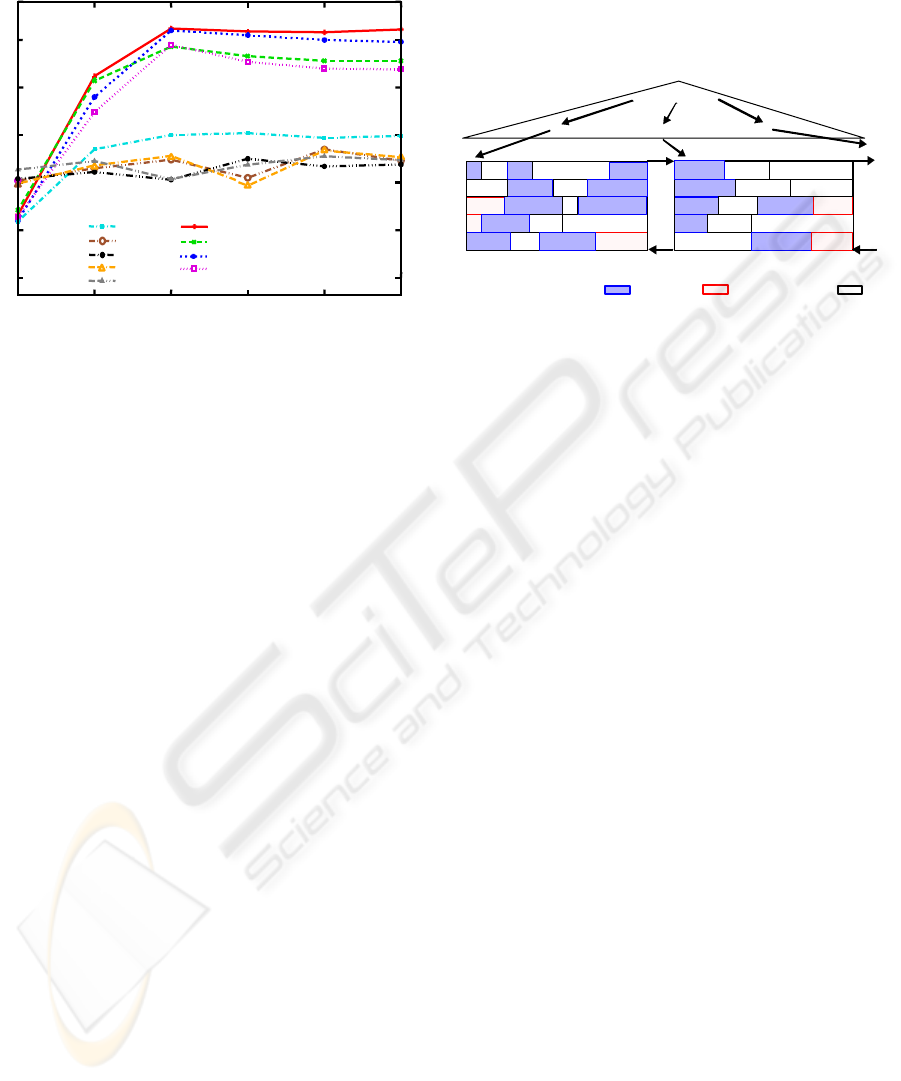

Figure 3: Number of committed transactions.

terms of successfully executed transactions

(throughput) and, as a complementary measure, the

number of transactions to be aborted due to

deadlocks.

Figure 3 clearly indicates the value of tailor-

made lock protocols. With the missing support for

node and level locks, protocols of the MGL group

provided only lock granules adjusted to the needs of

DOM operations in a suboptimal way. As a conse-

quence, they only reached about half of the taDOM

throughput. A reasonable application to achieve

fine-grained protocols requires at least lock depth 2,

which is also important for deadlock avoidance.

Hence, the impressive performance behavior of

the taDOM group reveals that a careful adaptation of

lock granules to specific operations clearly pays off.

3 STORAGE AND LOGGING

Besides the isolation mechanism, transaction support

adheres to logging and recovery which ensures re-

peatability and rollback of all transaction-protected

operations in regular and abnormal situations. There-

fore, logging has to provide the needed data re-

dundancy even after crashes or media failures. Fur-

ther, log propagation rules (WAL and Commit rules)

have to be observed (Härder and Reuter, 1983) often

leading to I/O-intensive processing modes.

In general, saving I/O is the major key to perfor-

mance improvements in DBMSs. Because write

propagation of modified DB objects causes a large

share of DB I/O and dependent log I/O, optimization

of storage structures reduces log I/O at the same

time. This is particularly true for storing, modifying,

or querying XML documents, because they may

contain substantial redundancy in the structure part,

i.e., the inner nodes of the document tree. Therefore,

optimization of XML storage representations may

also be meaningful and show great promise for

improving performance-critical transaction support.

1.3.3.9.3

1 bib 1.3

1.3.3.2.1

type1.3.3.3

title1.3.3.5

. . .

author

1.3.3.8.3

author

price

1.3.5

. . .

1.3.3.5.3 1.9

1.3.3.7

1.9.1 . . .

elem.&attrib.content(uncompr.) SPLIDs

document

index

document container

publication

year 1.3.3.1.3

id 1.3.3.2.1.3

1.3.3.7

book

. . .

1.3.3

book 1.3.3.1

1.3.3.5.3

1.3.3.9

1.3.5.9.3TCP/IP

1994

65.95

Figure 4: A completely stored XML document.

3.1 Complete vs. Elementless Storage

Efficient declarative or navigational processing of

XML documents requires a fine-granular DOM-tree

storage representation which is based on variable-

length files as document containers whose page sizes

varying from 4K to 64K bytes could be configured

to the document properties. We allow the

assignment of several page types to enable the

allocation of pages for documents, indexes, etc. in

the same container. To be flexible enough to adjust

arbitrary insertions and deletions of subtrees,

dynamic balancing of the document storage structure

is mandatory. Fast indexed access to each document

node, location of nodes by SPLIDs as well as

navigation are important demands, too. As il-

lustrated in Figure 4, we provide an implementation

based on B*-trees which cares about structural

balancing and which maintains the nodes stored in

variable-length format (SPLID+element/attribute

(dark&white boxes) or SPLID+value (dark&grey

boxes)) in document order; this lends itself to effec-

tive prefix compression of the SPLIDs reducing their

avg. size to ~20–30% (Haustein and Härder, 2007).

B*-trees – made up by the document index and

the document container – and SPLIDs are the most

valuable features of physical XML representation.

B*-trees enable logarithmic access time under arbi-

trary scalability and their split mechanism takes care

of storage management and dynamic reorganization.

In turn, SPLIDs provide valuable lock management

support and immutable node labeling such that all

modification operations can be performed locally.

Because of the typically huge repetition of ele-

ment and attribute names, getting rid of the structure

part in a lossless way helps to drastically save

100

150

200

250

300

350

1 2 3 4 5

taDOM3+,taDOM2+

taDOM3,taDOM2

URIX

RIX

(

)

,IRIX

(

)

lock de

lock

rotocols

taDOM2

taDOM3+

taDOM3

taDOM2+

URIX

IRIX

IRIX+

RIX

RIX+

TRANSACTIONAL SUPPORT IN NATIVE XML DATABASES

371

storage space and, in turn, document I/O. As a

consequence, log space and log I/O may be greatly

reduced, too. The combined use of a so-called path

synopsis (Goldman and Widom, 1997) storing only

path classes and SPLIDs as node labels makes it

possible to virtualize the entire structure part and to

reconstruct it or selected paths completely on

demand.

In an elementless layout of an XML document,

only its content nodes are stored in document order –

in the way as for the complete document. The stored

node format is of variable length and is composed of

entries of the form (SPLID, PCR, value) where PCR

(path class reference) refers to a node in the path

synopsis and enables the reconstruction of its entire

path to the root. Compared to the sample of

complete storage in Figure , the elementless XML

fragment exemplified in Figure saves enormous

space, but can, nevertheless, reconstructed without

any loss.

3.2 Logging and Recovery

Minimizing log I/O is important for transaction opti-

mization. Again, we could just consider the nodes of

an XML document as records and “blindly” apply

standard logging techniques, e.g., using

physiological logging as a salient method (Gray and

Reuter, 1993). Then, we had to write Undo/Redo log

entries for all modifications in the structure and

content part.

Instead, our XDBMS adheres to a three-level re-

covery providing hierarchically dependent DB con-

sistency qualities: block consistency, DML-operation

consistency, and transaction consistency. A very ex-

pensive method, a block-consistent state can be

guaranteed by reserving a block in each container

file for before-image logging. When propagating a

modified block back to disk, a copy of it is first

written to the before-image block. Because either the

new or the old block is available, recovery can

always rely on a block-consistent DB state. A more

optimistic attitude would not apply such an

overcautious method, but – if in extremely rare cases

a corrupted block is detected – enforce archive

recovery. Of course, such failure cases imply longer

processing delays, but substantial log-rated I/O is

saved in normal processing mode.

At the propagation level, the buffer manager ap-

plies entry logging for which each DML operation is

decomposed into so-called elementary operations

whose reaches are limited to a single block. Using

log sequence numbers (LSNs), the log entries can be

uniquely related to the blocks modified by these

operations and the attached LSNs enable the

decision whether or not the log entries have to be

applied to the related blocks during recovery. Hence,

restart can reconstruct in a kind of forward recovery

(repeating history) a DML-operation-consistent DB

state and for winner transactions even a transaction-

consistent DB state. Finally, the transaction manager

records the transaction boundaries and all inverse

DML operations (logical DML operation logging is

saving space and, thus, log I/O) to be prepared to

rollback all loser transactions thereby executing

DML operations on the reconstructed operation-

consistent DB state.

3.3 Various Optimizations

The combined use of entry and DML operation log-

ging already seems to require minimal log I/O in

normal situations. Therefore, we focussed on

operation- specific situations and improvement of

related components to gain further optimization

potential.

Reduced logging: For initially storing a docu-

ment, stepwise rollback is not needed and complete

rollback using entry logging is overly expensive.

Therefore, logging of the block numbers involved is

sufficient to empty the affected container pages.

Administration of Fix indicators: Blocks current-

ly accessed by transactions have to be pinned in their

buffer frames to avoid replacement. So-called Fix

marks set by the requesting transactions indicate for

the buffer manager that a block is not eligible for re-

placement. In the initial solution, these Fix marks

were kept in the lock table where checking

performed very poorly. Because search of

replacement candidates is an extremely frequent

task, a specialized structure recording the Fix state

of all frames was added to the buffer manager.

Improved lock table management: Reimplemen-

ting the lock manager avoided static lock table

allocation and large lock granules on the lock table

itself. Using a pool of predefined lock request blocks

1.3.7.3.3

1.3.7.5.3

. . .

1.3.3.9.3

. . .

1.3.9 1.3.11

1.3.3.1.3 1.3.3.9.3 1.3.11.1.3

. . .

PCR

content

(compr. not shown) SPLIDs

1.7.1.3

1.3.1.3

1.3.5.3

1.3.8.3.3.3

9 W.11

. . .

65.95

. . .

document

index

document container

1.3.7.1.3

1.3.3.1.3

1.3.3.5.3

1.3.3.8.3.3.3

4 1.3.3.2.1.3

1.3.3.7.3.3

1.3.3.7.5.3

. . .

W.11Stevens

TCP/IP

1994

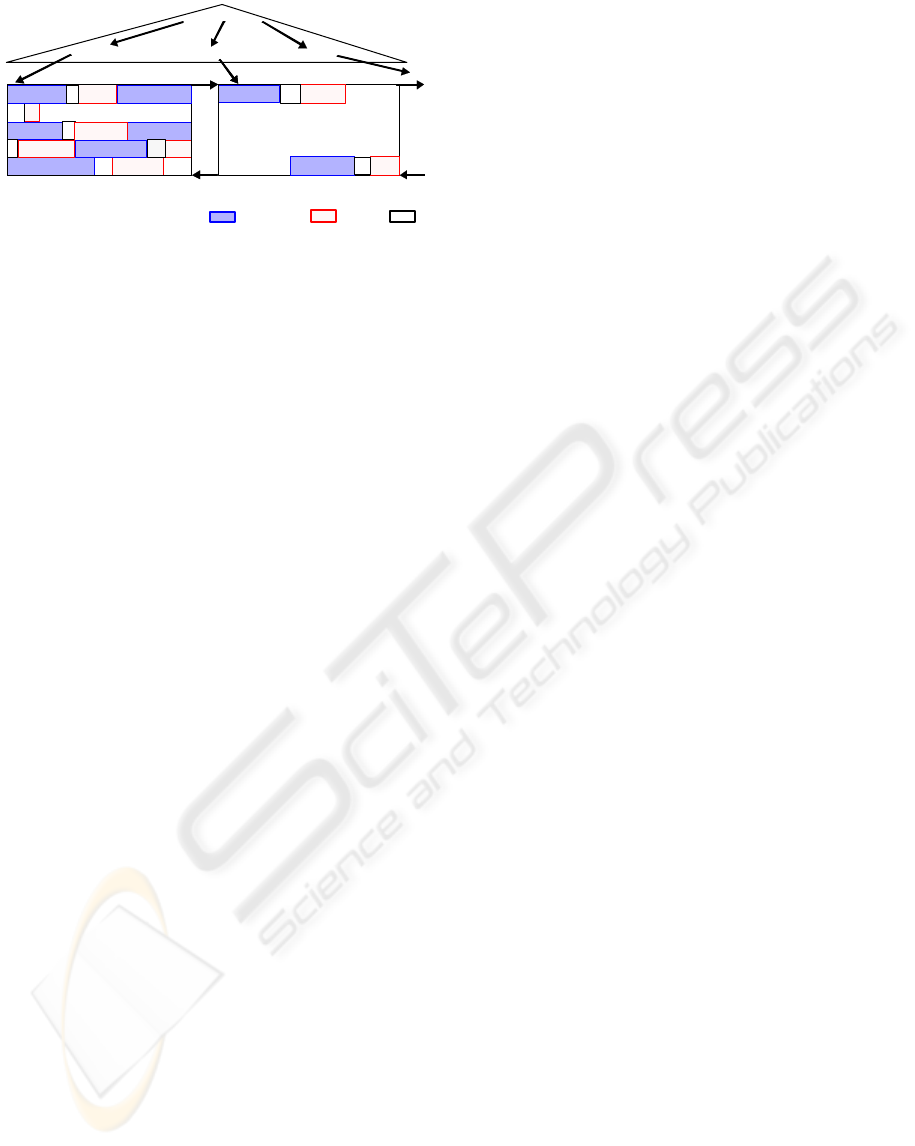

Figure 5: An XML document without elements stored.

ICEIS 2008 - International Conference on Enterprise Information Systems

372

and latches for hash table entries provided flexibility

and minimal blocking. Because blocks in the DB

buffer were also administrated by the lock manager,

buffer management and the related entry logging

immediately took advantage by this measure.

Blockwise writes: Single insertion of keys into

the document index is required for document update.

Document creation, in contrast, enables specialized

block handling outside the DB buffer. B-tree blocks

of the index can be entirely filled before transferring

them to the buffer. In turn, entry logging and block

propagation can be optimized by the buffer manager.

We have implemented these features in XTC

and derived some indicative results for a frequent

use case, i.e., the storage of a document (113 MB)

including indexes, auxiliary structures, and logging

provisions (Sommer, 2007). To enable comparison,

we have normalized all results to the cost of the

complete standard structure (100%). Hence, the

difference to 100% is the saving (gain) achieved by

a specific measure. In the results shown in Figure 6,

we have added our optimization measures step by

step such the plain effect of the indicated

optimization is the difference to the previous

quantities (bars). While elementless storage gains

>10% for the standard variant, the aggregated saving

of all measures applied reaches the level of ~40%,

i.e., optimization reduces the initial costs by ~60%.

4 SUMMARY AND OUTLOOK

XTC is – to the best of our knowledge – the only

(freely accessible) XDBMS offering full-fledged

transaction services. It was used to explore ACID

properties and served for all comparative experi-

ments. We outlined the state of our work in XML

concurrency control as well as logging and recovery.

Our taDOM approach guarantees serializability and

transaction isolation in multi-lingual XDBMSs and

even of multi-lingual transactions. Compared to less

adjusted lock protocols, the impressive performance

gains of the taDOM group reveal that a careful

adaptation of lock granules to specific operations

clearly pays off. Furthermore, the lion’s share of

XML processing costs is caused by all sorts of

document I/O including logging can be reduced by a

variety of measures.

Currently, we are working on lock manager ex-

tensions supporting lock escalation and tailor-made

locking on index structures. Another hot topic is

energy efficiency in XDBMSs including the use

flash memory, buffering and deferred updates,

specialized logging techniques and group commit.

REFERENCES

Document Object Model (DOM) Level 2 / Level 3 Core

Specifications, W3C Recommendation, http://www.

w3.org/DOM/ (2005)

Goldman, R. and Widom, J.: DataGuides: Enabling Query

Formulation and Optimization in Semistructured Data-

bases.

Proc. VLDB: 436-445 (1997)

Graefe, G.: Hierarchical locking in B-tree indexes.

Proc.

National German Database Conf. (BTW 2007)

, LNI P-

65, Springer, 18–42 (2007)

Gray, J.: Notes on Database Operating Systems. In

Operating Systems: An Advanced Course

. Springer,

LNCS 60: 393-481 (1978)

Gray, J. and Reuter, A.:

Transaction Processing: Concepts

and Techniques

. Morgan Kaufmann (1993)

Härder, T. and Reuter, A.: Principles of Transaction-

Oriented Database Recovery. In

Computing Surveys

15(4): 287-317 (1983)

Haustein, M. P. and Härder, T.: An Efficient Infrastructure

for Native Transactional XML Processing. In

Data &

Knowl. Eng.

61:3, 500–523 (2007)

Haustein, M. P. and Härder, T.: Optimizing lock protocols

for native XML processing. In

Data & Knowl. Eng.

65:1, 147-173 (2008)

Mohan, C.: ARIES/KVL: A Key-Value Locking Method

for Concurrency Control of Multiaction Transactions

Operating on B-Tree Indexes.

Proc. VLDB: 392-405

(1990)

O'Neil, P. E., O'Neil, E. J., Pal, S., Cseri, I., Schaller, G.,

and Westbury, N.: ORDPATHs: Insert-Friendly XML

Node Labels.

Proc. SIGMOD: 903-908 (2004)

Sommer, T.: Efficient and Transaction-Protected Storage

of Document Collections in XML Database Systems

(in German).

Master Thesis, TU Kaiserslautern (2007)

Weikum, G. and Vossen, G.:

Transactional Information

Systems.

Morgan Kaufmann Publishers (2002)

XQuery 1.0: An XML Query Language.

http://www.w3.org/ TR/xquery/ (2007)

standard

100

variant

reduced

logging

Fix

indicators

improved

lock table

lockwis

writes

complete storage

elementless storage

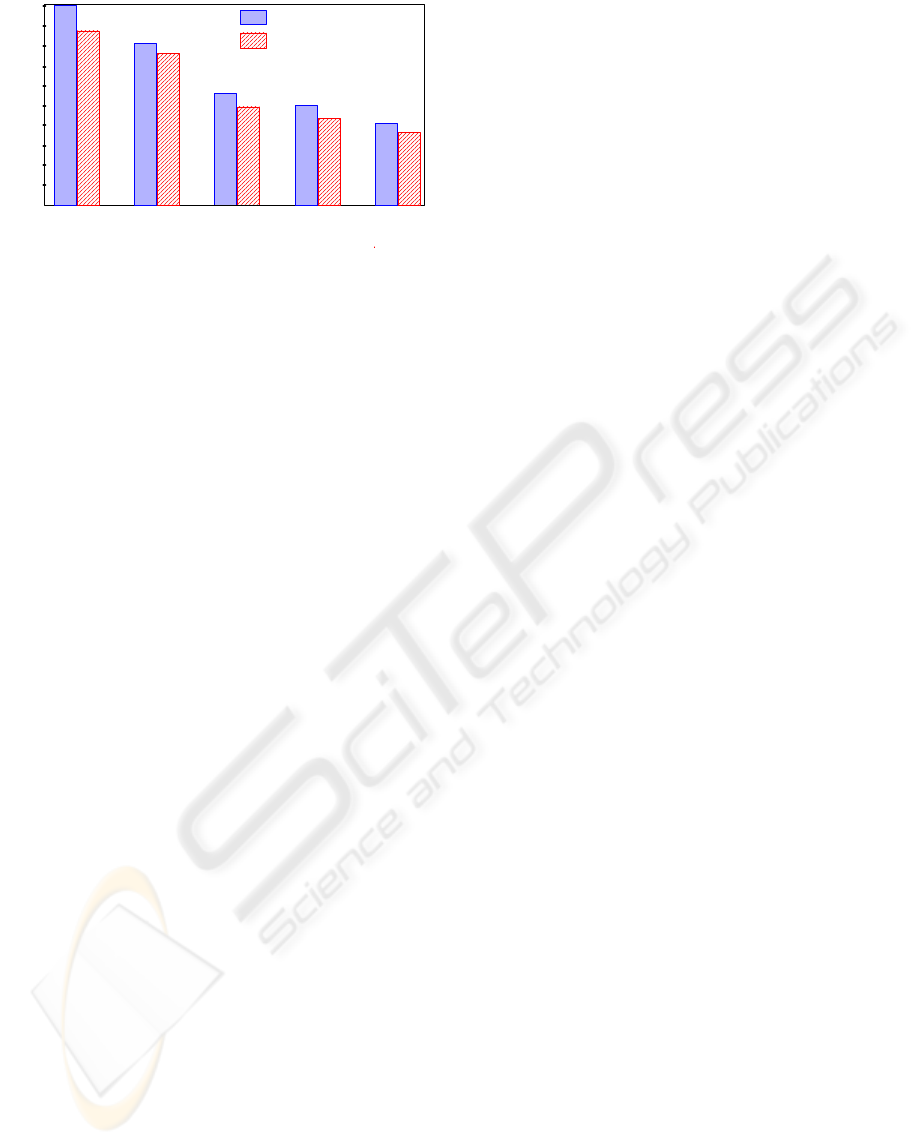

Figure 6: Effects of optimization measures.

TRANSACTIONAL SUPPORT IN NATIVE XML DATABASES

373
