NORM ANALYSIS SUPPORTING THE DESIGN OF

CONTEXT-AWARE APPLICATIONS

Boris Shishkov, Marten van Sinderen

Department of Computer Science, University of Twente, Drienerlolaan 5, Enschede, The Netherlands

Kecheng Liu

Informatics Research Centre, The University of Reading, Whiteknights, Reading, U.K.

Hui Du

School of Economics and Management, Beijing Jiaotong University, Beijing, China

Keywords: Business modelling, Application design, Context-Aware applications, Norm Analysis.

Abstract: In this paper, we consider the challenge of designing context-aware applications, stressing especially on the

usefulness of elaborating process models with semiotic norms. Such an elaboration can bring value in

specifying and elaborating complex behaviors that may include alternative (context-driven) processes (we

assume that a user context space can be defined and that each context state within this space corresponds to

an alternative application service behavior). Hence, the main contribution of this paper comprises an

adaptability-driven methodological support to the design of context-aware applications.

1 INTRODUCTION

Context-Aware (CA) applications are characterized

by adaptability which is the capability of adequate

derivation of user context states (this involves

sensing the user environment and transforming the

sensed raw data into context information) and

appropriate reaction to user context state changes

(A-MUSE, 2007). Such a reaction is to include

‘switching’ from one desirable behavior to another.

Even though the application would be supposed to

realize such a ‘switching’ at real time, it must be

foreseen at design time. This means that the designer

should not only specify each desirable behavior but

also determine the rule patterns that govern the

‘switching’ between behaviors. Thus, the issues to

be directly or indirectly addressed in this work are:

(i) how to define each of the alternative behaviors;

(ii) how to relate these alternative behaviors in an

overall behavior (including the ‘switching’ between

alternative behaviors); (iii) how to analyze these

behaviors, applying appropriate (rule-driven)

‘switching’ patterns (where correctness is

determined by the fact that an exhibited behavior

matches the desirable behavior for a given context

situation). We claim nevertheless that these

challenges are interrelated since we consider the

‘switching’ rule pattern as naturally complementing

the corresponding behavior flow patterns.

Hence, our particular focus is the design of CA

applications, with a stress particularly on the rule-

flow-driven elaboration of process models. We

consider as a starting point the CA-application-

design challenge in general, and we consider further

on the need for such elaboration as well as a

(proposed) possible way of realizing it.

Approaching this, we envision not only the

conceptual problem of such modeling and

elaboration but also the need to reflect a conceptual

model in possible realizations in terms of modeling

techniques. It might be that one modeling formalism

is suitable for defining each of the alternative

behaviors and for relating these alternative behaviors

in an overall behavior, while another modeling

formalism is suitable for analyzing these behaviors,

and still another formalism is suitable for defining

the ‘switching’, and so on. Maybe a language which

334

Shishkov B., van Sinderen M., Liu K. and Du H. (2008).

NORM ANALYSIS SUPPORTING THE DESIGN OF CONTEXT-AWARE APPLICATIONS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 334-337

DOI: 10.5220/0001713403340337

 SciTePress

is close to the architectural domain would be

suitable for high level behavior specification,

whereas for the aim of analysis, a language that

allows automated evaluation of the properties of

concern should be chosen. Hence, the design process

would comprise transformations between design

models and analysis models, in addition to

transformations between levels of abstraction. In

such complex modeling, it is essential to know

which exactly are the challenges and which

techniques are suitable for approaching them. We

take in this work only the perspective of a Norm

Analysis elaboration (Liu, 2000) to high-level

behavior models including such ones that reflect

context-driven behavior (characterized by alternative

processes).

Hence, the main contribution of the current paper

comprises an adaptability-driven methodological

support to the design of CA applications, inspired by

our addressing in combination several key issues

that concern such a design. Such issues are the

context-driven service delivery, the related

(alternative) application behaviors, as well as the

‘switching’ among different alternative behaviors.

The paper’s outline is as follows: Sect. 2

considers the design of CA applications. Sect. 3

addressed the added value of Norm Analysis in

elaborating application behavior modeling. Sect. 4

presents the conclusion and outlines further research.

2 ON THE DESIGN OF CA

APPLICATIONS

We will present our CA-application-design views on

top of a more general modeling background

concerning the specification of an automated

(software) system. Such a specification is claimed to

typically stem from a corresponding business model

(Shishkov et al., 2006b). Thus, we will firstly

consider the challenge of specifying an application,

based on business modeling, and we are going to

study secondly what else needs to be added for

achieving context-awareness.

2.1 Business-modeling-driven Software

Specification

Producing a sound relevant business model is

claimed to be a must in specifying an automated

(software) system (Shishkov et al., 2006a), and

considering from this perspective the notions of

system (the entities of main interest to us and their

relations) and environment (the other entities and

their relations) seems useful (Shishkov & Quartel,

2006).

request service

application

environment

business requirements

stemenvironm.

…

pr. consumer

bus. partner

gov. agency

ncbe

cbe

technical requirements

current situation new business model

application model

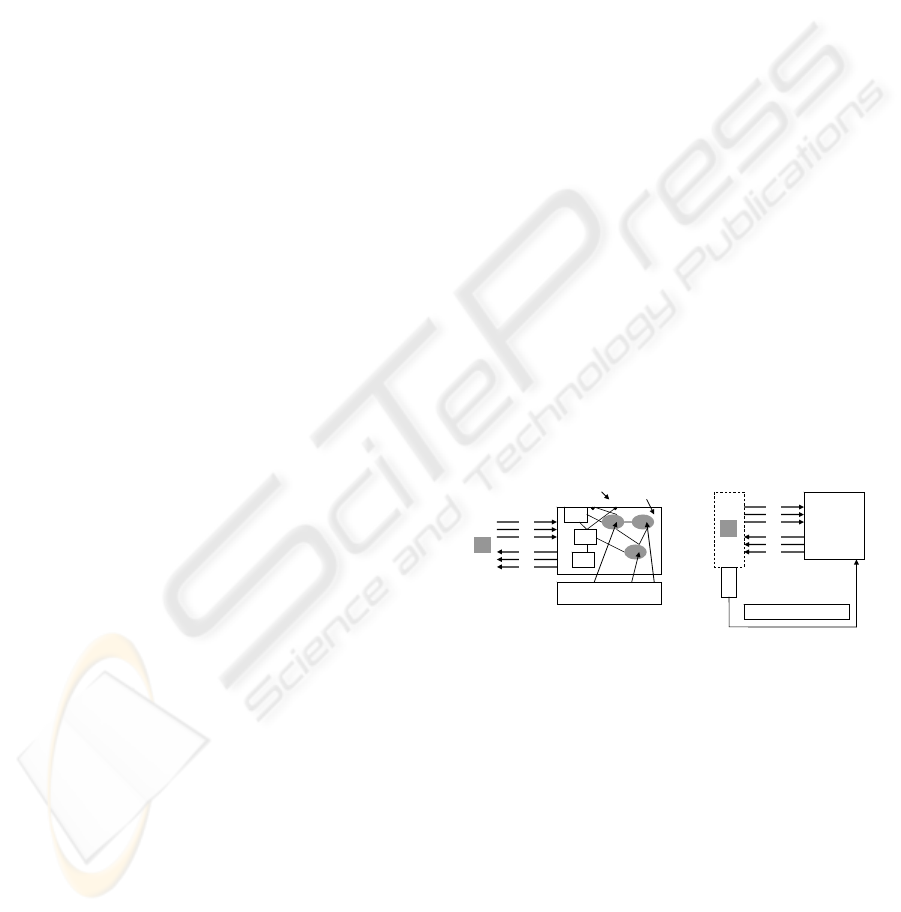

Figure 1: From business modeling to appl. modeling.

We have represented this in Figure 1 (1), as the

‘current situation’. There, we have, ‘within the

system’, some entities (entities could be humans,

could be machines, could be anything), represented

as squares. The entities have some relations among

themselves – this is represented by solid lines.

Assuming that the entities belonging to the system,

deliver some service to the outside (just as a broker,

an insurance company, or a hospital deliver services

to the outside), we consider all the outside entities as

belonging to the system environment; we might

identify there the entity(s) ‘consuming’ the service,

labelled as ‘primary consumer’ (represented as a

grey square), entities that have partnership relations

with entities belonging to the system, labelled as

‘business partners’, entities that have controlling

functions, such as government agencies, for

example, and so on. All these entities belong to the

environment, have relations among themselves, and

what is more important – they have relations with

the system, in particular – relations to entities

belonging to the system. These relations concern the

service(s) that the system provides to its

environment. These service(s) are restricted by

corresponding system/environmental demands, such

as quality standards, working hours, legal issues,

which demands are labelled as imposed

requirements – represented as ‘R’. It should be noted

that no automation is yet envisioned. Deciding to

introduce such automation, the system architect

typically abstracts from most entities belonging to

the environment and mainly focuses on the primary

consumer that turns out to become the main

environmental entity, while the service delivered to

the primary consumer is to essentially drive the

further design activities. Hence, the primary

consumer should ‘face’ all entities belonging to the

NORM ANALYSIS SUPPORTING THE DESIGN OF CONTEXT-AWARE APPLICATIONS

335

system. However, the architect not always envisions

automating all of them. Thus, the entities to be

automated should be distinguished from the entities

which are not going to be automated, as depicted in

Figure 1 (2). There, ‘(n)cbe’ stands for ‘(non)- to be

– computerized business entities’. The primary

consumer thus has relations not only to entities that

will be automated but also to ones that will not be

automated. These relations are to be restricted by the

imposed requirements (R) which are to be updated

nevertheless by the requirements presented to the

system architect by the future user of the automated

system under development – these requirements are

labelled as user requirements. Both the imposed

requirements and user requirements are reflected in

the overall business requirements, represented as R

Hence, we arrive at a ‘new business model’ that

might differ from what we associate with the

‘current situation’ not only because we have

introduced more requirements and we have grouped

the system entities but also because the entities from

the ‘current situation’ are not necessarily mapped

one-to-one to the entities in the ‘new business

model’. This is because often introducing software is

not only about efficiency (to replace human(s) by

software), it is also about innovation – the system

architect may wish to consider introducing new

services, re-arranging and/or updating the (observed)

entities and their relations, and so on. Figure 1 (2)

depicts therefore a new model that is only inspired

by the ‘current’ model (Figure 1(1)). Further, the

delimitation and representation of the entities that

are to be automated should be driven not only by

their relation to the primary consumer but also by

their relation(s) to the rest of the entities – those

entities that will not be automated – these ‘interface’

points are represented as black dots in Figure 1(2).

As for the software specification model, it is to be

derived from the new business model, and the

system architect may wish to abstract from the

entities that are not going to be automated –

abstracting from them however means that the future

software system will be adequately ‘accessible’

through the ‘interface points’ above mentioned, this

is what the system architect should take care of

(depicted in Figure 1(3) by the replication of the

black dots). The application model (Figure 1(3))

depicts hence software components (c) and their

relations – all mapped from the cbe entities (see

Figure 1(2)). However, some software components

may be introduced, which have no root in the new

business model, they are represented as black

square(s) – such components are introduced driven

by technical requirements, those requirements that

concern issues, such as platforms and operating

systems to be used, for example. We have thus (in

Figure 1(3)): (i) the application represented, as

consisting of components; (ii) the relation to the

primary consumer to whom the application should

deliver service(s), restricted by corresponding

business and technical requirements; (iii) the

‘interface points’ through which the outsider entities

(different from the primary consumer) can

collaborate with the application.

2.2 Towards Service Orientation and

Context Awareness

An application modeled in the way considered in

Sub-section 2.1, typically should not be expected to

support context-awareness. This is because, as

mentioned in the Introduction, supporting context-

awareness means ‘sensing’ the context of the user

and adapting (on this basis) the delivered behavior.

Such sensing is usually driven by technology – for

example, it is ‘sensed’ that Mary is at home or at

work, by receiving some GPS-related support. Such

kind of ‘support’ goes beyond the application and

concerns a service infrastructure. Further, to manage

context information through the infrastructure, one

would often need sensors, the context data

‘providers’ whose role in supporting CA

applications is very important. This all is illustrated

in Figure 2 and further elaborated.

sensor.. .

service

user within

context

application

context management

request

request service

environment

infrastructure

application

Figure 2: Towards service orientation and context

awareness.

2.2.1 Towards Service Orientation

As Figure 2 (1) suggests, when an application is

platform-dependent (this means that it runs on top of

a service infrastructure), it realizes some of its

functions not through its components but through

addressing the infrastructure (and receiving some

services from it) – this is depicted through the grey

discs in the figure.

2.2.2 Towards Context Awareness

A platform-dependent application is not necessarily

a context-aware application. To be context-aware, an

ICEIS 2008 - International Conference on Enterprise Information Systems

336

application should adapt its behavior, based on

information concerning the context of its primary

consumer (user), which information the application

receives usually through an infrastructure. This is

shown in Figure 2 (2) where a sensor is also

depicted – this is the entity that captures the context

information and makes it available to the

application.

3 MANAGING ALTERNATIVE

BEHAVIORS

Taking into account that the proper ‘switching’

between alternative behaviors is to be adequately

addressed by the designers of CA applications, an

issue insufficiently elaborated in current approaches

(Shishkov & Van Sinderem, 2007), we propose the

usage of Norm Analysis (Liu, 2000) combined with

Petri Net (Van Hee & Reijers, 2000), inspired by

well-known relevant advantages of these techniques

(introducing them is omitted for brevity), widely

considered in literature.

5 6

labels of transitions

s: start

1: register patient

2: check emergency status

3: list patient in ‘traffic-light’ (TL)

system

4: list patient in a queue

5: examine vital signs of patient

6: check health history of patient

7: analyze record of patient

8: prescribe emergency

treatment

9: examine patient

10: formulate diagnosis

11: treat patient

e: end

emergency

treatment

normal treatment

whenever a patient needs

emergency help

then the receptionist

is obliged

to list the patient in the TL

system.

whenever a patient does

not need emerg. help

then the receptionist

is obliged

to list the patient in a

normal queue.

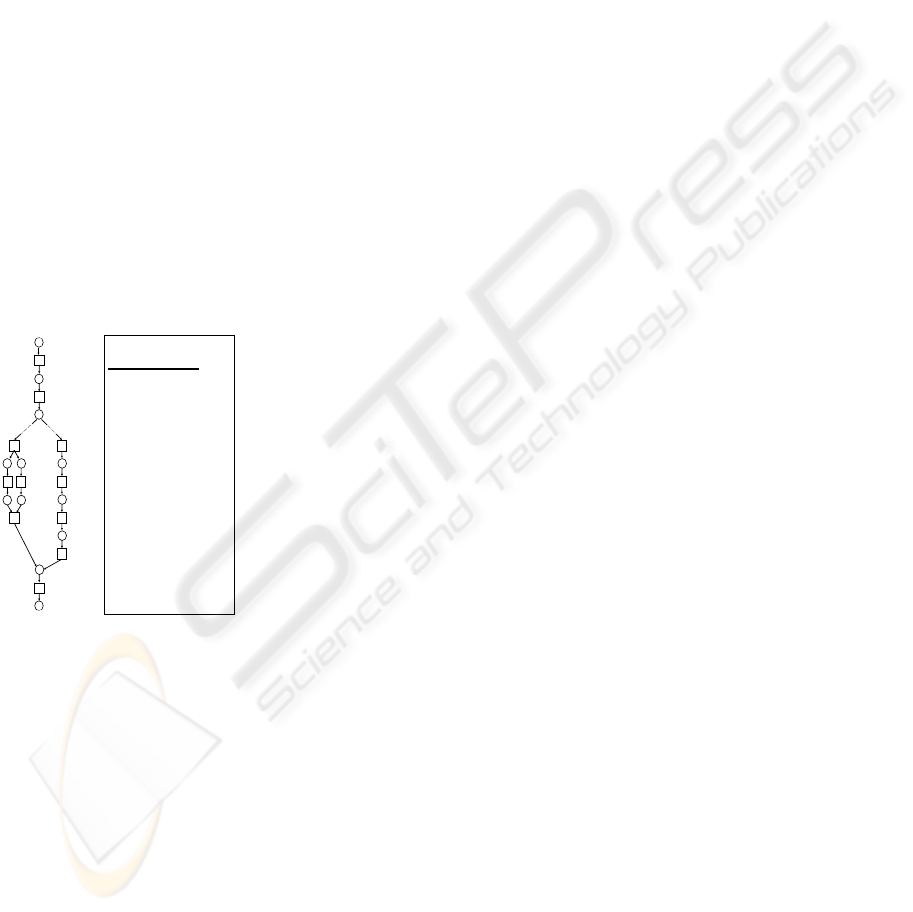

Figure 3: A typical health-care process.

Figure 3 (left) is presenting a typical health-care

process, using Petri Net, and it is seen easily that

there are two alternative behaviors, namely

emergency and normal treatment. We could use

Norm Analysis in such cases to usefully elaborate

the process model. For instance, two norms

corresponding to the choice construct in Fig. 3 (left)

can be identified and specified in detail – consider

Fig. 3 (right).

4 CONCLUSIONS

By analyzing the design of software applications

(and enriching this with innovative views that

concern particularly CA applications) and proposing

the combined use of two well-known modeling

techniques, for the purpose of facilitating a modeling

problem that is relevant especially to the design of

CA applications, we have delivered in this paper, as

a first step in an on-going research, some limited

adaptability-driven methodological support to the

design of such application. To further the reported

research, we plan to work on bridging the current

behavior-modeling-related results to previous results

on identifying entities and relationships (Shishkov et

al., 2007).

ACKNOWLEDGEMENTS

This work is part of the Freeband A-MUSE project

(http://a-muse.freeband.nl), sponsored by the Dutch

government under contract BSIK 03025.

REFERENCES

A-MUSE project, 2007: http://a-muse.freeband.nl

Liu, K., 2000. Semiotics in information systems

engineering, Cambridge University Press. Cambridge.

Shishkov, B. and van Sinderen, M.J. and Tekinerdogan,

B., 2007. Model-driven specification of software

services. In: IEEE Int. Conf. on e-Business

Engineering, ICEBE 2007, 24-26 Oct 2007, Hong

kong, China. pp. 13-21. IEEE Computer Society Press.

Shishkov, B. and van Sinderen, M.J., 2007. Model-Driven

Design of Context-Aware Applications. In ICEIS’07,

Int Conf on Enterprise Inf Systems. INSTICC

Press.

Shishkov, B., Quartel, D., 2006. Refinement of SDBC

business process models using ISDL. In ICEIS’06, 8th

Int. Conf. on Enterprise Inf. Systems. INSTICC Press.

Shishkov, B., Dietz, J.L.G., Liu, K., 2006. Bridging the

Language-Action Perspective and Org. Semiotics in

SDBC. In ICEIS’06, 8th Int. Conf. on Enterprise

Information Systems. INSTICC Press.

Shishkov, B., Van Sinderen, M.J., Quartel, D., 2006.

SOA-driven business-software alignment. In

ICEBE’06, IEEE Int. Conf. on e-Business

Engineering. IEEE Press.

Van Hee, K., H.A., Reijers, H., 2000. Using formal

analysis techniques in business process re-design. W.

van der Aalst et al. (Eds.): Business Proc.

Management, LNCS 1806.

NORM ANALYSIS SUPPORTING THE DESIGN OF CONTEXT-AWARE APPLICATIONS

337
