OVERVIEW OF WEB CONTENT ADAPTATION

J´er´emy Lardon, Mika¨el Ates, Christophe Gravier and Jacques Fayolle

DIOM Laboratory, ISTASE, University Jean Monnet, rue du Dr P. Michelon, Saint-Etienne, France

Keywords:

HCI, web content adaptation, limited browsing devices.

Abstract:

Nowadays Internet contents can be reached from a vast set of different devices. We can cite mobile devices

(mobile phones, PDAs, smartphones) and more recently TV sets through browser-embedding Set-Top Boxes

(STB). The diverse characteristics that deﬁne these devices (input, output, processing power, available band-

width, . ..) force content providers to keep as many versions as the number of targeted devices. In this paper,

we present the research projects that try to address the content adaptaption.

1 INTRODUCTION

Numerous devices allow the user to browse the Inter-

net these days. Nevertheless the resources found on

the Web are designed for personal computers. Tak-

ing into account all their characteristics : screen size,

resolution, mouse and keyboard, software installed

(ﬂash, video players, ...), it clearly appears that mo-

bile devices as well as browser-embedded Set-Top

Boxes offer less capabilities in terms of input, output,

processing power, or bandwidth. That’s the reason

why solutions must be found to unite internet con-

tents with the limitations of such devices, henceforth

referred as limited devices.

This paper lists previously imagined solutions to

solve the above problem above. As a side note and

in order to remain brief and revelant, we have made

the choice to focus on the last decade and to cite one

publication per research project.

In order to structure our presentation, we rely

on the Model-Driven Engineering (Gerber et al.,

2002). As ﬁgure 1 shows, there are two paths to

adapt an user interface (UI) to a new device: di-

rect code to code transformation (or transcoding) or

re-engineering which passes through three steps :

reverse-engineering, model to model transformation

and forward-engineering. The main difference be-

tween these two approachs is that the former tries to

address the transformation in a higher level of abstrac-

tion, while the later takes the web page code as sup-

port of the transformation.

Thus our paper is organized as follows: Sec-

tion 2 presents the publications using the reverse-

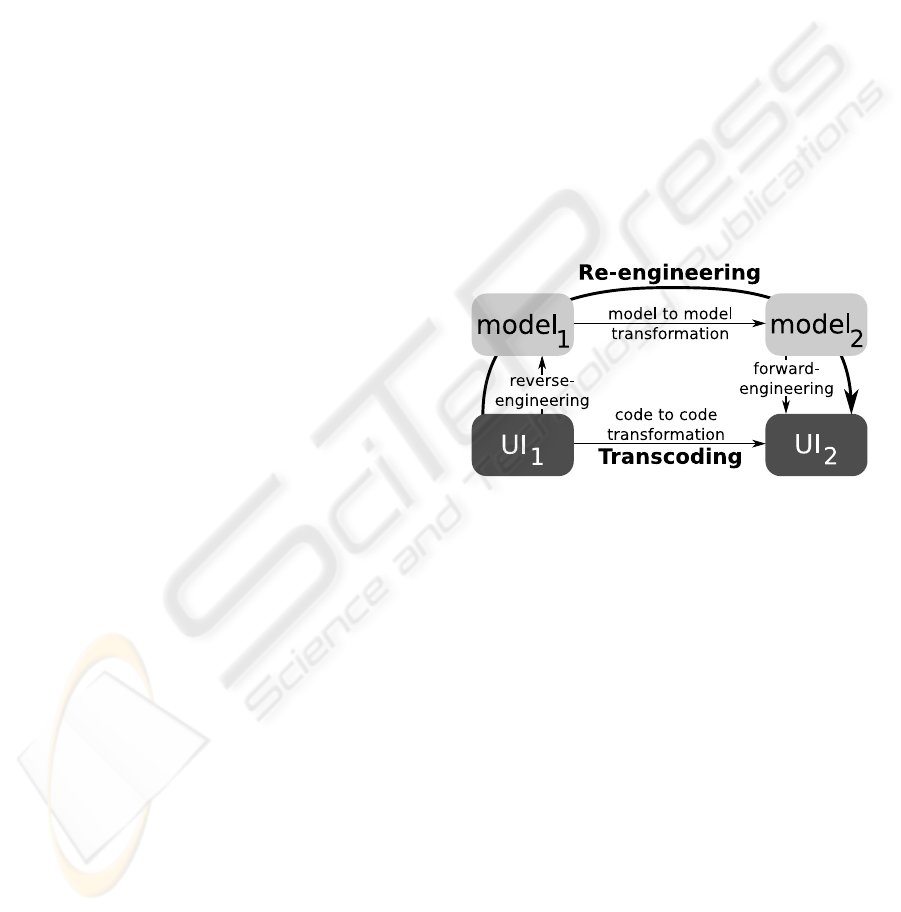

Figure 1: Re-engineering versus transcoding.

engineering process. Section 3 deals with the projects

in which adaptation techniques are directly used on

the code. Finally section 4 concludes.

2 RE-ENGINEERING OF USER

INTERFACES

In this section, we summarize what is, to our knowl-

edge, the major research on UI re-engineering in gen-

eral and the hard point that is reverse-engineering.

2.1 Omini

In (Buttler et al., 2001), the authors present the Omini

system that aims to extract objects of interest from

web pages. The Omini object extraction process is

divided in three phases. The ﬁrst is the preparation

of the web document: retrieval of the page, transfor-

mation to a well-formed web document, and conver-

tion to a tag tree representation. Afterwards objects

384

Lardon J., Ates M., Gravier C. and Fayolle J. (2008).

OVERVIEW OF WEB CONTENT ADAPTATION.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - HCI, pages 384-387

DOI: 10.5220/0001710503840387

 SciTePress

of interest are located in the page. This phase has

two steps: the object-rich subtree extraction and the

object separator extraction. Finally, objects of inter-

est are extracted thanks to the result of the previous

phase.

The main concern of this paper is the identiﬁca-

tion of object separators. In this goal, ﬁve heuristics

are compared with their combinaitions. As a conse-

quence, the combinaition of the ﬁve heuristics shows

the best results on the cached pages from 50 different

web sites.

2.2 More

(Gaeremynck et al., 2003) focus on discovering the

models behind web forms. The main challenge they

address is to discover the relationship between strings

and widgets. These relations are mutually exclusive

as they assume that each entity (string or interactor)

plays a unique role, for example a string can’t at the

same time a caption and a hint for a interactor.

The starting point of the study is a collection of

facts extracted from the web page: description of the

entities (“S

is a string” or “I

is an iteractor”), rela-

tionships between those entities (“S

is a caption for

” or “S

is a hint for I

”), .... Facts are then ma-

nipulated through a forward chain rule system. Three

types of rules are deﬁned : deduction rules to produce

new facts from selected facts, exclusion rules to deter-

mine if two facts are mutually exclusive and the scor-

ing rules to order facts depending on the properties of

the interactors involved.

The model recovery algorithm can be summed up

as follows. As long as there remains unprocessed

facts, facts are created thanks to the deduction rules.

Resulting facts that, when combined, haveless chance

to create future conﬂicts (or exclusions) are selected.

The second selection amongst them is based on the

scoring rules to get the larger set of compatible facts.

Only the ﬁnally selected facts expand the set. The re-

mainder of the created facts that do not pass the two

selections are discarded and the loop continues.

The result is a list of relations between strings and

interactors which then can be used to split a form.

2.3 Web RevEnge

Web RevEnge (Paganelli and Patern`o, 2003) was de-

velopped to automatically extract the task models

from a web application, i.e. multiple web pages.

In order to do so, they begin to compute each page.

The DOM of the page is parsed to ﬁnd links, interac-

tion objects (such as <input> tags), their groupings

(forms, radio button groups), and ﬁnally frames. As

the task models are represented in ConcurTasksTrees

(Patern`o, 2000), task model representations of each

page are graphs with a root element and link nodes to

other pages.

To build the task model of the whole web appli-

cation, the process uses the home page as its starting

point. All links being represented in the task model,

one replaces the internal links (in the same site) with

the task models of the targeted pages.

2.4 WARE and WANDA

Even though presented in the same publication (Lucca

and Penta, 2005), WARE and WANDA are web appli-

cation reverse-engineeringtools that were developped

independently. The former adresses the static analysis

of web applications. The latter intervenes upstream

by extracting information from the php ﬁles.

WARE implements a two-step process. Revelant

information is retrieved from the static code (mainly

HTML) by extractors. Then abstractors take the pre-

vious result as input and abstract them. The ﬁnal out-

put is a UML representation of the web application.

WANDA does the same work but on dynamic

data instead of static data. Dynamic information is

collected during web application executions and be-

comes the support of the extraction that creates UML

diagrams.

Bringing them together permits us to identify

groups of equivalent dynamically built pages if there

are enough execution runs.

2.5 ReversiXML and TransformiXML

ReversiXML and TransformiXML (Bouillon et al.,

2005) are respectively a tool to reverse-engineer web

pages and a tool to transform abstract representations

from one context of use to another.

For this purpose, Bouillon and al. takes Cameleon

framework (Calvary et al., 2003) as reference for

the development process. In order to express any

abstraction level of the UI, they rely on UsiXML

(http://www.usixml.org).

About the reverse-engineering part, the derivation

from code source to any abstraction level is done

thanks to derivation rules, functions interpreted at

design- and run-time. The output of this ﬁrst stage

is an UsiXML ﬁle that represents the graph of the UI

in the selected abstraction level.

The transformation takes place at any level of ab-

straction. As UsiXML has an underlying graph struc-

ture, the model transformation system is equivalent to

a graph transformation system based on the theory of

graph grammars.

OVERVIEW OF WEB CONTENT ADAPTATION

385

3 TRANSCODING

In constrast to the re-engineering, transcoding di-

rectly manipulates the code of the UI. So we put them

on the same level and ordered them chronologically.

3.1 Top Gun Wingman

This research project (Fox et al., 1998) was motivated

by the use of 3Com PalmPilot as a web browsing de-

vice. However the browser used on the PalmPilot is a

split web browser, i.e. that it needs a dedicated server

to run, in addition to the software on the device. The

server side, that operates as a proxy lets workers do

the adaptation, which is splited into 4 processes:

• image processing

• HTML processing

• aggregation to build contents from one or more

sites on a topic

• zip processor to list the archive contents in HTML

3.2 Digestor

Digestor (Bickmore et al., 1999) aims at ﬁltering and

automatically re-authoring web pages to display on

small screen devices. We focus on the re-authoring

use of this project. The implementation of Digestor

takes place between the client and the server, in a

proxy server. To perform the transformations on

pages, Bickmore and Schilit rely on ﬁfteen techniques

grouped in three groups:

1. Outlining: displays only section headers as links

that point to new pages displaying the texts under

the headers,

2. First Sentence Elision: uses the same technique

but the ﬁrst sentences of each block become links

to the rest of the block,

3. Indexed Segmentation: segments the page into

sub-pages containing a given number of items,

4. Table Transformation: splits a page between re-

gions, such as sidebars, headers and footers,

5. Image Reduction or Elision: reduces or sup-

presses images from the page, replaces images

with a reduced image or the ALT text pointing to

the original image.

Given these techniques, the question of which

techniques to use and in what order remains. The re-

sponse to this question is a heuristic planner which

explores all possibilities and gives them a score es-

timated from the screen area required to display the

new page. The process is recursive until the docu-

ment version is judged good enough or there is no

candidate. In this case the best estimated version is

returned.

3.3 Power Browser

(Buyukkokten et al., 2000) also take advantage of a

proxy architecture. In addition to transforming the

pages, Power Browser manages the navigation. That’s

why it is more drastic than the previous proxy-based

solution about the re-authoring.

Indeed all images are replaced by their ALT prop-

erty value. In the same way all white spaces are col-

lapsed to save screen space. Tables and lists are re-

formatted in text block.

In the other hand the navigation is made easier

by the use of shortcuts and of tree control to display

links.

3.4 Web Page Structure Detection

The approach exposed in (Chen et al., 2003) proposes

to facilitate navigation and reading on small screen

devices. To do so, a thumbnail is available when the

user ﬁrst requests a page. In the tumbnail, each se-

mantic block is colored and makes possible the choice

of what part of the web page the user wants to see in

detail.

This approach allows the page to be split into

blocks. The block identiﬁcation part of the process

parses the DOM tree to ﬁnd:

1. high-level content blocks such as <center> tags,

header, footer, and left/right side bars,

2. explicit separators: <hr> tags, rows in a table

(<tr>), <div>, any tag with border properties,

3. implicit separators by using pattern recognition

and clustering on tag names and properties.

4 CONCLUSIONS

As we saw in this paper, web UI adaptation comes in

two ﬂavours: transcoding and re-engineering.

While the former can be considered as more basic,

by acting directly on the code, transcoding techniques

are easier to implement.

On the contrary, the later relies on higher levels of

abstraction. A practical case, in which re-engineering

is more suitable, is the adaptation of a page with a

<select> list (without a multiple attribut) to a device,

on which only the <input type=“radio“> tag is sup-

ported. Both tags denote a list with one selectable

option, but staying at a concrete level doesn’t permit

to know that the underlying interaction object is the

ICEIS 2008 - International Conference on Enterprise Information Systems

386

same for both tags. Nevertheless the main drawback

of the re-engineering is its cost.

Therefore both approaches are complementary:

fast low level modiﬁcations through transcoding and

costly more abstract transformations thanks to re-

engineering.

What result would the combination of both ap-

proaches give? We plan to explore the possibility to

bring them together in our future work in order to an-

swer this question.

REFERENCES

Bickmore, T. W., Girgensohn, A., and Sullivan, J. W.

(1999). Web page ﬁltering and re-authoring for mo-

bile users. Computer Journal, 42(6):534–46.

Bouillon, L., Limbourg, Q., Vanderdonckt, J., and Mi-

chotte, B. (2005). Reverse engineering of web pages

based on derivations and transformations. In Web

Congress, 2005. LA-WEB 2005. Third Latin Ameri-

can.

Buttler, D., Liu, L., and Pu, C. (2001). A fully automated

object extraction system for the world wide web. In

Proceedings of the 2001 International Conference on

Distrubuted Computing Systems (ICDCS’01), pages

361–370, Phoenix, Arizona.

Buyukkokten, O., Garcia-Molina, H., Paepcke, A., and

Winograd, T. (2000). Power browser: efﬁcient web

browsing for pdas. In CHI ’00: Proceedings of the

SIGCHI conference on Human factors in computing

systems, pages 430–437, New York, NY, USA. ACM.

Calvary, G., Coutaz, J., Thevenin, D., Limbourg, Q., Bouil-

lon, L., and Vanderdonckt, J. (2003). A unifying ref-

erence framework for multi-target user interfaces. In-

teracting With Computers Vol. 15/3, pages 289–308.

Chen, Y., Ma, W.-Y., and Zhang, H.-J. (2003). Detecting

web page structure for adaptive viewing on small form

factor devices. In WWW ’03: Proceedings of the 12th

international conference on World Wide Web, pages

225–233, New York, NY, USA. ACM.

Fox, A., Goldberg, I., Gribble, S. D., and Lee, D. C. (1998).

Experience with top gun wingman: A proxy-based

graphical web browser for the 3com palmpilot. In Pro-

ceedings of Middleware ’98, Lake District, England,

September 1998.

Gaeremynck, Y., Bergman, L. D., and Lau, T. (2003). More

for less: model recovery from visual interfaces for

multi-device application design. In IUI ’03: Proceed-

ings of the 8th international conference on Intelligent

user interfaces, pages 69–76, New York, NY, USA.

ACM.

Gerber, A., Lawley, M., Raymond, K., Steel, J., and Wood,

A. (2002). Transformation: The missing link of mda.

In ICGT ’02: Proceedings of the First International

Conference on Graph Transformation, pages 90–105,

London, UK. Springer-Verlag.

Lucca, G. A. D. and Penta, M. D. (2005). Integrating static

and dynamic analysis to improve the comprehension

of existing web applications. In WSE ’05: Proceed-

ings of the Seventh IEEE International Symposium on

Web Site Evolution, pages 87–94, Washington, DC,

USA. IEEE Computer Society.

Paganelli, L. and Patern`o, F. (2003). A unifying reference

framework for multi-target user interfaces. Interna-

tional Journal of Software Engineering and Knowl-

edge Engineering, World Scientiﬁc Publishing 13(2),

pages 169–189.

Patern`o, F. (2000). Model-based design of interactive appli-

cations. Intelligence, 11(4):26–38.

OVERVIEW OF WEB CONTENT ADAPTATION

387
