A GUIDED INTERFACE FOR WEB INTERACTION

Juan Falgueras, Antonio Carrillo, Daniel Dianes and Antonio Guevara

Dpto. Lenguajes y Ciencias de la Computación, Málaga University

Campus de Teatinos 29071, Málaga, Spain

Keywords: User interfaces, Interaction styles, Human-Computer Interaction, Web applications, Web usability.

Abstract: Many Web sites are for one use only and need to guide users through paths of decisions and data entering.

Users use to feel insecure entering data in not well-known sites and don’t mind at all being guided in their

first try. Goals Driven User Interfaces (GDUI) are based on an interaction style specially conceived for this

type of users (occasional users). The traditional method that still prevails in the field of Web design makes it

difficult to create neither usable user interfaces nor GDUI. Modern paradigm of Web use through Web 2.0

applications encourages the development of this interaction style as can be seen in this paper.

1 INTRODUCTION

The evolution of programming standards and

behaviour as well as the increasing processing power

and speed of the communications has brought about

the birth of a new type of application, the Web

application. Most users consulting a Web site do so

in order to perform one, or more, well defined

objectives and wish to do so quickly. They have no

user manuals or any other type of documentation.

The user profile is difficult to determine a priori. On

the other hand, Web applications are not wrapped

and sold, instead, the software provided by the

service is in a machine and the interaction interface

is loaded onto the user’s computer in a remote way.

Web applications can be executed on any

computer, without any special software installation

requirements and using the same personal document

base, independently of the machine being used.

The applications may be viewed as Web pages

but they have a much richer functionality with

respect to the response to the user, which has been

named the Rich Client Interface.

In traditional applications written for a specific

operating system (or for the desktop applications),

both the client and the server are in the same

machine. This is the fundamental point that the web

applications are changing. In such applications, the

user’s browser is a kind of “terminal” very different

from the command terminal and capable of a high

level of interaction:

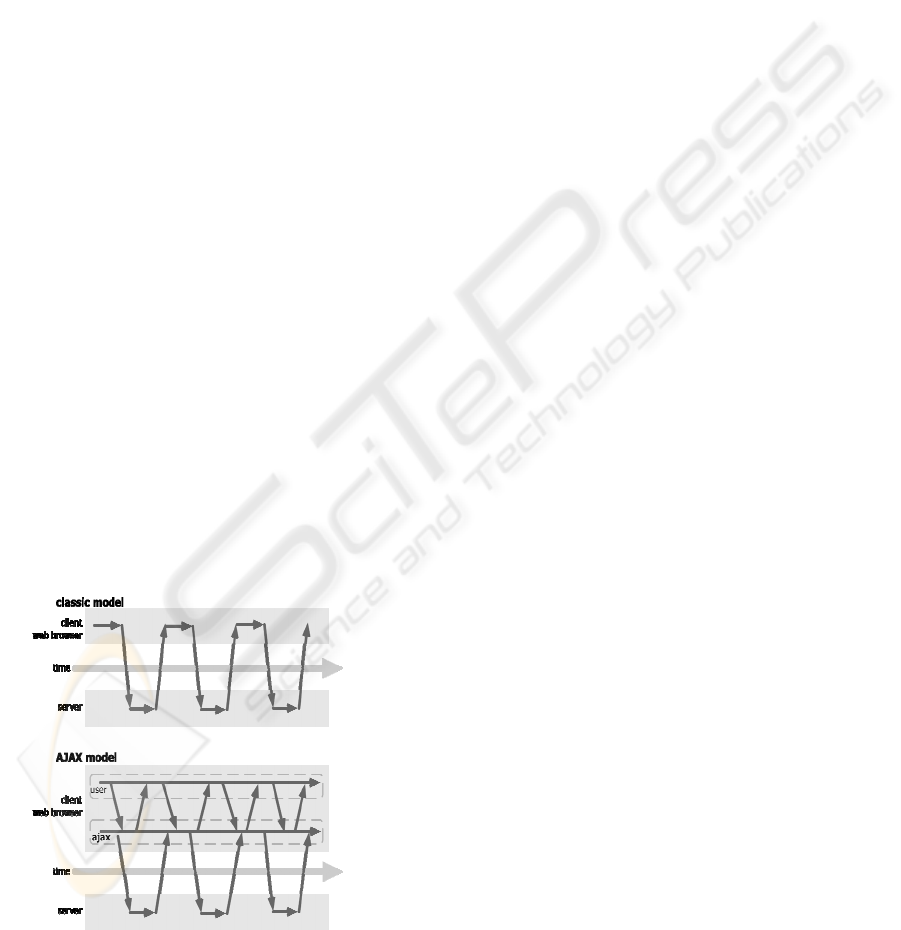

 The browser can initiate a complex transaction

using arbitrary data, communicating with the

Server using AJAX. The importance of this

should be noted, as before the existence of

AJAX, transactions initiated by the client were

limited to the sending of a Web form, with the

inherent limitations.

 All the elements of the interface may be

modified without the necessity for

communicating with the server, using the

DOM and the JavaScript programming

language.

The main advantage of these two technologies

(DOM and AJAX) is that of a direct and

asynchronous communication, via arbitrary data

structures, both server-client and client server; this is

real bidirectional communication.

Using these technologies in the web applications

increases the sensation of working with a desktop

application, as it is unnecessary to call the server in

order to make changes to the interface. An additional

advantage is that the use of these technologies

decreases the server load and the broadband

necessities in the communication channel.

The Web applications in operation before the

appearance of AJAX and DOM constitute an

“abuse” of the basis of the WWW, as invented by

Tim Berners Lee, which was intended as a means of

sharing hypertext documents linked via a computer

network. Since the advent of these new technologies,

giant steps forward have been made in the usability

Falgueras J., Carrillo A., Dianes D. and Guevara A. (2008).

A GUIDED INTERFACE FOR WEB INTERACTION.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - HCI, pages 70-77

DOI: 10.5220/0001706700700077

 SciTePress

of what are becoming the real desktop applications

via the Web.

Apart from the advantages obtained in relation to

the ease of use and in the server time, the main

advantage, and of particular interest to us in this

work, is that AJAX and DOM help us to apply the

studies in the field of HCI or Human-Computer

Interaction (Dix, Finlay, Abowd, and Beale, 2003) to

web applications.

2 THE USERS OF WEB

APPLICATIONS

The Object-Action Syntactic-Semantic model

proposed by Shneiderman (Shneiderman, 1980,

2005) suggests that user behaviour is based on two

types of knowledge, syntactic knowledge about

device-dependent details (e.g. which action erases a

character, which action inserts a new line, which

icon scrolls text forward, which abbreviations are

permissible…), and semantic knowledge about

concepts. The semantic knowledge is separated into

task concepts (objects and actions) and computer

concepts (object and actions).

By computer semantics, we are referring to

common actions and objects, such as the knowledge

that computers can keep information (action) in files

(object). For users, the semantic knowledge of a task

domain (for example the accounts in an accountancy

program) can normally be associated to familiar

concepts and should be relatively stable in the user’s

memory. A person can be an expert in the computer

concepts, but a novice in the task concepts, and vice

versa. Semantic knowledge is structured, device

independent, and acquired by learning.

Based on this model, Shneiderman (Shneiderman,

2005), proposed three categories or types of users:

experts, intermittent users and new users.

The first group of users are very well acquainted

with the syntactic and semantic aspects of the

system, and their objective is to complete their work

quickly. They demand fast response times and to be

able to execute actions with only a few strokes of the

keyboard.

Intermittent users can handle the semantic

knowledge about the task to be performed, and

remember the computer concepts, but they have

more difficulty dealing with syntactic

knowledge/aspects of the specific applications.

Finally, it is assumed that the novice users have

no experience working with computers and no

syntactic knowledge about the use of the system and

probably little semantic knowledge of computers in

general. Among these users, there may be some

degree of knowledge about the task domain (for

example, accountancy knowledge) but others may

have only a superficial understanding of it. These

users may feel somewhat uncomfortable when faced

with the prospect of having to use computers and

this will get in the way of their using the system.

However, we are going to consider a fourth

category of user: occasional users (OU). These users

need to use an application or operating system only

occasionally, and in most cases, only once.

Although we could almost consider the OU as a

novice, there is an important difference between the

two: the OU is not interested in extending his/her

interactive experience any further than that which is

necessary to achieve his/her objective, and is not

interested in becoming a frequent user or an expert.

There can be no learning curve, as the result must be

an immediate response to the user interaction at that

particular time.

This is one of the largest groups of Web users. In

general, the OU deliberately chooses not to or else

have any time to practise, either learn or study how

to use a system. Their main requisites are: being able

to use it and not to have to spend time on learning to

do so. For this, they will need ongoing assistance,

and to be guided step by step, both in the process of

carrying out the tasks and in the actual interaction

with the system (i.e., in both syntactic and semantic

knowledge). Normally such users refuse to spend

any time on reading user manuals or even using the

interactive help systems. This further strengthens the

case for considering the web application user as an

occasional user, since these applications are

distributed without user manuals.

3 INTERACTION STYLES

Human-Computer Interaction or HCI (Dix, Finlay,

Abowd and Beale, 2003,) (Lores, 2001) is the study

of the interactive dialogue between people and

computers. It analyses which dialogues are the most

efficient, in the effort to minimize errors, increase

user satisfaction by reducing their frustration, and

therefore making the tasks involving people with

computers more productive. It is a scientific research

area related to Ergonomics, Psychology, and

Software engineering, and includes various tools and

techniques, which help in the development of usable

and good quality user interfaces (UI).

The very diverse interaction styles are frequently

the subject of discussion in the HCI literature. For

example, in the works of (Shneiderman, 2005), (Hix

and Hartson, 1993), (Nielsen, 1993), (Preece,

A GUIDED INTERFACE FOR WEB INTERACTION

Rogers, Sharp, Benyon, Holland and Carey, 1994),

(Ziegler, 1996), (Dix, Finlay, Abowd and Beale,

2003), both the types of user interfaces and the most

common interaction styles were presented and

categorized. Among which are the Command

Languages, Forms fill-in, Natural Language, Point

and Click, Direct Manipulation, Menu, and Question

and Answer.

Our immediate objective is to look for the most

appropriate UI for the OU, and, as we will see later,

to examine whether its use and application are

possible in the Web applications.

Because the application users are mainly OUs,

the use of interfaces based on Command languages

can be ruled out. Functionalities such as Form

filling, the natural language and point and click,

have their limitations and can only be used for

simple or restricted task domains, or to complement

another basic interaction style.

Currently, Direct Manipulation is the most

common type of interaction in desktop applications.

However, in spite of all of its advantages and its

considerable functionality and usefulness, it is not

necessarily intuitive or obvious enough for an OU.

This is because these users would need to know or to

learn the meaning of the visual representations, and

the actions they can perform. Furthermore, in

general these applications incorporate a large

number of commands, menu options, toolbars and

other independent semantic components, and

normally these do not follow a hierarchical time

structure which is suitable for the tasks or the

objectives which the user is trying to accomplish at

the specific moment of the interaction.

Probably, in most cases, Menu selection, and

Questions and answers are the most useful to the

OU, because they require only minimal expertise

and guide users better than the alternative interactive

styles. Nevertheless, these too have limitations as

regards their functionality and usefulness.

In conclusion then, none of the traditional

interaction styles have been specifically conceived

for, nor are explicitly oriented to, the OU and

therefore for a large portion of Web application

users. Thus, in this work we present an interaction

style conceived especially for the OU, which we

have called Goal Driven Interaction (GDI) and we

will analyze whether its use is possible in the Web

applications.

4 GOAL DRIVEN INTERACTION

Goal Driven Interaction or GDI (Carrillo, Guevara

and Gálvez, 2002) is a human-computer interaction

style that is especially suitable for the type of

interactive applications to be used by the OU.

This style, which has a conversational and

sequential nature, can be considered a kind of

combination of Menus, Direct manipulation and

Wizards interaction styles. The aim is to guide, help

and lead the user, step by step in a hierarchical and

progressive way through the process of interacting

with the application, based on the objectives and

sub-objectives that the user has at a particular point.

In order to accomplish these goals satisfactorily, the

actions and tasks that must be carried out are

described. All this must be done via a mechanism

that holds simple and coherent at all times, using a

simple UI with a well defined and organized

structure (this will be described in section 5).

The goal is to simplify as much as possible the

syntactic knowledge necessary to use the system and

to provide the user both with the semantic domain

concepts both of the task and of the computer so as

to be able to perform the tasks successfully.

As a consequence, all the tasks and actions that

the user must carry out, both internal and external to

the application, must be specified in a hierarchical

way, and in enough detail so that any potential user

will be able to understand them and carry out the

tasks correctly. The aim is to eliminate or reduce the

possibility of making mistakes as much as possible.

In any case, it will be necessary to establish and to

offer mechanisms for rectifying mistakes, undoing

actions, and cancelling goals already initiated.

The fundamentals of the GDI originate in the

works of Newell and Simon (Newell and Simon,

1972) on the human reasoning mechanism for

resolving problems. Their vision of problem

resolution (as in GDI) was based on the breaking

down or analysis of the main or general objective,

into a hierarchical tree of sub-objectives, whose

branch lengths would depend on the degree of

subdivision within the sub-objectives. In the leaves

of the tree, we would find fundamental sub-

objectives reachable via basic information processes.

Based on this work, Card, Moran and Newell

(1980, 1983), developed the most important of the

existing cognitive models, the Human Processor

Model. That starting paradigm (as in GDI) considers

the interaction process as a task of resolving

problems. On the other hand, a psychological model

of the humans is defined as consisting of three

interactive systems: the perceptive, the motor and

ICEIS 2008 - International Conference on Enterprise Information Systems

the cognitive, each one having its own memory and

its own processor. The perceptive system is that

which manages the external sensory stimuli, the

motor system controls the actions, and the cognitive

system provides the knowledge to be able to connect

the two.

This vision of the user as an information

processing system allows the formalization of the

activities (physical and mental) involved in the task,

and gave rise to some of the methods for modelling,

specification and evaluation of the user interface that

are widespread today, the GOMS (Goals, Operators,

Methods, and Selection rules) methods (John and

Kieras, 1994, 1996, 1996b). These allow the

description of the sequences of behaviour and

knowledge that the user needs to have in order to

correctly interact with the system.

Therefore as the GOMS model corresponding to

an interface gathers the knowledge users must have

and the procedures they must follow, the aim of GDI

is that the user should not have to dedicate time to

acquiring this type of knowledge, but instead, the

interface should provide it, at the same time as the

interaction process is taking place. All this will be in

accordance with the specification or the (GOMS

type) model of the interface that the analyst will

have developed in the analysis and design phase.

In order to accomplish the information gathering

and the modelling task for this type of UI, we have

devised a methodology and a specific notation based

on NGOMSL (Kieras, 1997), which can be

consulted in (Carrillo, Falgueras and Guevara,

2005).

Another important aspect is the possibility of

using an automatic tool which, from the model or

specification previously developed, will allow a

prototype to be obtained quickly (even though it

may be very basic), which will reflect the result of

the modelling process. This tool will even allow

tests to be done with users to check the suitability of

the mental model of the users to the conceptual

model of the interface. For this purpose, we have

developed the GDIT tool (Carrillo, Falgueras and

Guevara, 2006).

5 GOAL DRIVEN INTERFACES

As we will see in the next section, unlike what

normally happens in the normal WIMP interfaces, a

Goal Driven User Interface (GDUI), in its strictest

version, does not include the standard application

menu bar, nor the toolbar, nor the icons nor the

quick access buttons for the main functions or

commands, nor contextual menus, etc. Instead, in a

GDUI, to reduce the complexity, different system

commands or functions will be presented to the user

(gradually and in a veiled way) while he/she is

“browsing” the hierarchy of goals and actions being

offered. This will happen in a specific area of the

interface (the GDW), as the user initiates new sub-

tasks or performs new actions.

For this purpose, and so that users are presented

with a simple user interface with a well defined and

organized structure and an interaction mechanism

which is simple and consistent throughout the whole

application, the GDUI will be structured in the

following three parts (Fig.1): the Goals Driver

Window (GDW), the Working Window (WW), and

the Active Goals Hierarchy Bar.

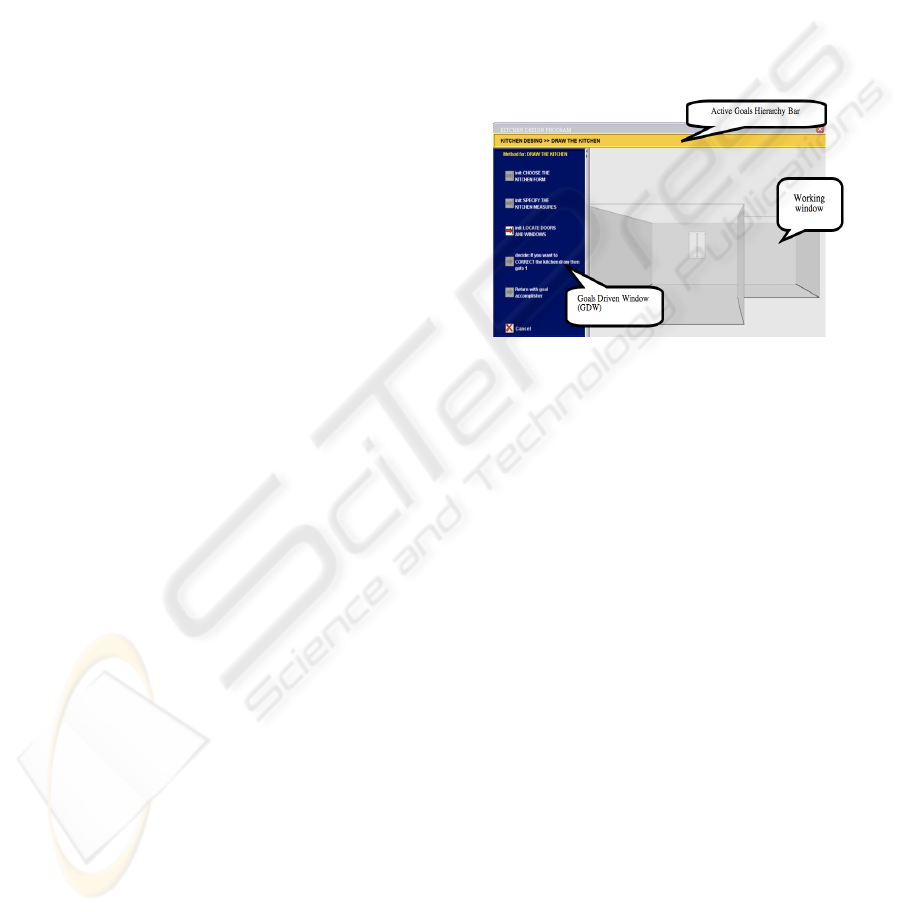

Figure 1: General structure of a GDUI.

5.1 Goals Driver Window (GDW)

The GDW is the area of a GDUI (situated on the left

hand side) where the main interaction takes place.

This is the part of the interface where the user is

guided and led by the hierarchy of objectives to be

reached and the actions to be carried out, and where

the different functions of the application can be

accessed. It is a substitute (or an alternative) to the

usual menus, access icons, toolbars or other typical

elements of the direct manipulation WIMP type

interfaces (as can be seen in Figure 1).

5.1.1 Methods and Selections

The GDW will begin with the goal of the highest

level that can be reached with the application, the

highest abstraction level and will always present and

offer the user, either the method or the selection

which allows him/her to achieve the current goal at

any given moment.

If the current goal can be reached by following a

specific method, the GDW will show the set of steps

that constitute the method (Figure 2, left). The GDW

will always clearly indicate the next step to be taken,

and the system will only allow this step to be

performed.

A GUIDED INTERFACE FOR WEB INTERACTION

The steps constituting a specific method may be

one of the following:

a) The step may involve the initiation of a new

sub-goal (which at the same time we have

another method or another selection

associated).

b) Or the step may require the user to perform a

specific action.

c) A third type of step exists (which is mainly

used for the repetition of sequences of steps,

and for rectifying errors) which consists of the

user deciding if he/she wishes to skip (within

the method) to the specific step indicated, or to

continue with the next one in the sequence.

d) Finally, all the methods will finish with an

step which indicates that the goal has been

accomplished and after which, the control

flow will be returned to the next step after the

previous method in the active hierarchy.

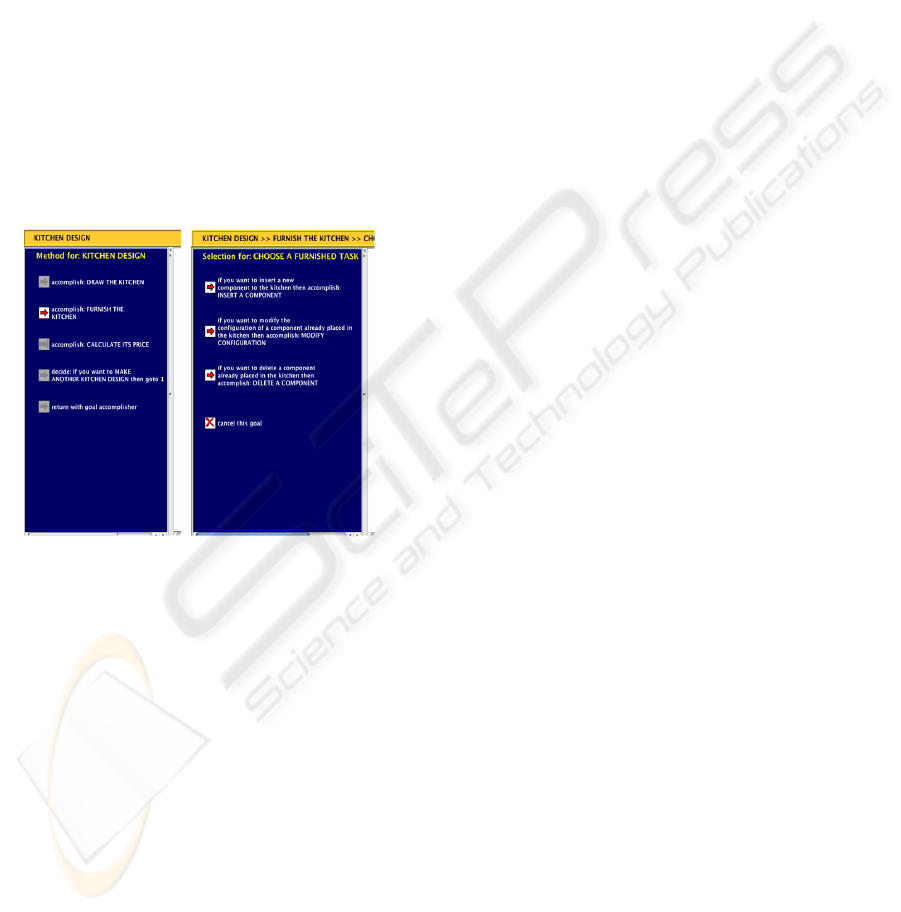

Figure 2: Example of GDW, of a GDUI, offering a method

(left) and a selection (right).

Otherwise, if in order to reach a current objective the

user must perform a selection, the GDW will show

the different alternatives that the selection consists

of, in such a way that the user can choose one

(Figure 2, right). Although somewhat unusual here,

the user may also be offered the usual choices

existing in the direct manipulation WIMP type

interfaces, although they are not actually in the

GDW, but are in the WW. In this case, the GDW

must provide the user with the method to be

followed in order to perform the selection properly.

Regarding the basic user interaction mechanism

in the GDW, if the current step of the method shown

in the GDW (or the alternative to be chosen in a

selection) involves initiating a new sub-goal, the

user must click on the aforementioned step to initiate

it. The GDW will then show the method or the

selection that allows the said sub-objective to be

accomplished. Otherwise, if the step requires an

action or a task to be performed by the user, this

must be carried out first. Once this has been done,

the system must be informed (in the case where the

system cannot detect it automatically) by clicking

with the mouse on the corresponding step in the

GDW.

5.1.2 Goal Cancellation

By default, all the methods and selections (or to be

more precise, all the goals that can be accomplished

following a method or performing a selection) can

be cancelled by the user. As illustrated in Figure 1,

and 2, this possibility can be seen in the interface by

adding, after the last step of the method shown in the

GDW (or after the last alternative if it is a selection)

an additional and always active step that allows the

user to request the cancellation of the

aforementioned method.

Although other ways of cancellation may be

considered, the one we propose by default is what

we call cancellation at method level (or high grade

cancellation). In this case, when a method (or a

selection) is cancelled, independently of whichever

step the user is at, the system will return to the

method one level higher (i.e., the previous one) in

the active hierarchy and the same state and step

(within that previous method) which led him/her to

the method (or selection) cancelled.

However, in some situations, the system will

have to act on other external systems over which it

does not have complete control. In these cases, for

example when sending an email it would be

impossible to “undo” an action or to cancel it (the

email would already have been sent). In the

hierarchy of objectives, a non-cancellable method

represents a fixed node of no return for the rest of

the interaction with the system. Obviously, if a not

cancellable method is processed/ (OR a non

cancellable method occurs), when the sub objective

reaching the father method is returned, it cannot then

be cancelled. These cases occur when it is

impossible to go back to a previous state of the

system once this type of external action has taken

place.

5.1.3 Forward and Backward Navigation

We have just presented the concept of cancellable

and not cancellable goals. It is possible to go one

step further and where appropriate, to “complicate”

the interface and the interaction even more, in order

to make it more flexible. This involves offering the

user the possibility of “browsing” among the steps

already performed (in the cases where these are

reversible), i.e., going one step backwards or going

ICEIS 2008 - International Conference on Enterprise Information Systems

forwards to the next step. This could be achieved in

the interface by placing the corresponding buttons

on the lower part of the GDW.

5.2 Work Window (WW)

The GDUI will assign most of the interface to what

is called the work window (WW). In this part of the

interface the visual representation of the work

performed by the user and by the system will be

presented, also the state of the task in progress, the

state of the system, the representation of the objects

of interest etc.

5.3 Active Goals Hierarchy Bar

This small area of the interface (normally situated in

the upper region) is responsible for showing the

hierarchy of goals at all times, i.e. the hierarchy of

objectives that the user has followed from their

initial goal to the present point in time.

6 APPLICATION OF THE GDI TO

THE WEB

The traditional method that still prevails in the field

of Web design make it difficult to create usable user

interfaces for the applications. The fact that the logic

of the application is separate from the interface and

is connected by a network that does not guarantee a

certain communication speed or stability, such as the

Internet, means that interacting with a Web

application is normally a continuous sequence of

pages being updated.

Once the connection is established and

depending on the connection speed, the server will

eventually return the related content, which may

have a lot, a little or nothing to do with the content

actually on display. Here, to facilitate the process, a

series of cache mechanisms come into play. These

are established by the HTTP protocol and are

specified using server-client communication

headers. This method is an improvement on some

situations, especially when the page that is the result

of an update shares some elements with a previously

loaded page.

Nevertheless, without the capacity to make

changes in the application appearance as quickly as

is possible in the desktop applications, a browser and

the Internet cannot compete with these applications

in spite of being accessible from any location.

There are two technologies that will solve this

limitation, and which will allow the GDI to be used

in Web applications. Their acronyms are DOM

(Document Object Model) and AJAX (Asynchronous

JavaScript and XML). Each of these has an

important role to play.

6.1 DOM

The Document Objective Model (LePera, 2002) is a

way of structuring documents downloaded onto a

browser. An interesting feature is that this structure

has properties that can be consulted and changed and

methods to be invoked. In this way, everything that

is uploaded at any given time in a browser may be

changed. Elements may be displayed or hidden, the

colour or type of letter may be changed, and even

advanced animations may be performed without the

need to refresh the whole page in the server or with a

plug-in. Any value defined in a HTML document

may be modified. This includes attribute values and

label values. It is possible to go even one step

further, changing the labels of a HTML document,

reordering them, making them disappear, creating

new ones, or even making a completely new

document.

6.2 AJAX

Traditional communication, be it either by activating

links or filling out and sending forms is synchronous

(Fig.3). In other words, the browser blocks any

attempt at communication or any update of the

interface while it is awaiting the response to a

request being processed. Therefore, there is a

waiting period in which depending on the browser,

the screen may or may not remain blank. In any

case, once the server responds, the phenomena

known as updating or reloading the interface

occurs, including those elements already previously

loaded and which have not changed from one page

to the other.

AJAX (Garrett, 2005) breaks this barrier by

introducing asynchronous communication (Fig.3).

Using this API, the programmer can perform

asynchronous calls to the server without waiting for

the response. While this is being done, the user can

continue using the interface as normal (executing

steps or carrying out selections in the GDW of a

GDI interface, filling in data, unfolding lists, writing

information, etc) and even making new

asynchronous calls. When the response to the

browser is available, a callback type function

(similar to the Java listener style) will obtain the

information.

The callback function is defined by the

programmer who uses AJAX in the JavaScript

language. With this function, the programmer has

codes that are the result of a call to the server and

A GUIDED INTERFACE FOR WEB INTERACTION

these can be consulted in order to find out if the call

has been successful, and also to obtain access to the

results in either the text version or as a DOM

fragment.

Here the two worlds of DOM and AJAX

coincide. Where there is only a response from the

server, nothing happens, the interface remains

unchanged. Callback function completed their

purpose and finishes when there is nothing to be

done with the result.

However, it is possible to perform modifications

on the DOM document based on what is returned by

the server. If the format of the data transmitted is

HTML, we may simply use the inner HTML

property of some element of the document to change

its content. The change will be effective

immediately. Interestingly, all the other elements

outside the element we change remain the same. We

have managed to modify a specific aspect of the

interface without needing to reload all the other

elements that have nothing to do with the operation

performed by the user.

These two technologies open the door to much

localized changes in the interface which improve the

user experience, and in particular, allow the GDI to

be applied to Web applications in spite of the large

number of modifications that this type of user

interface requires.

In any case, evidently, Web applications will

never be able to be as fast as those in the desktop

application, because although with AJAX only

essential data are transmitted (asynchronously), this

transmission is done using the Internet and is

therefore subject to variations in speed and even

power failures in the system.

Figure 3: The synchronous interaction pattern of a

traditional web application (top) compared with the

asynchronous pattern of an Ajax application (bottom).

7 CONCLUSIONS

Although the initial objective of GDI was not to

guide or lead the Web user (via objectives and

tasks), its use and application to the pages and Web

applications is as natural and effective that this

might appear to have been the intention. In fact, the

most frequent users of Web pages and many types of

applications are occasional users. The most common

type of Web interaction is precisely one without a

learning curve and the frequency of use of many

Web pages is relatively low. AJAX-DOM however

covers perfectly the interactive necessities required

to apply and use the GDI.

Furthermore, the maintenance of modified

NGOMSL specifications required for the GDI

specification (Carrillo, Falgueras, and Guevara,

2005), even allows dynamic building of interfaces

from models on Apache servers for example, or of

simple PHP interpreters of GDI language

specification grammar.

GDI could be considered the ideal dialogue or

interaction style to guide users through new and

unknown tasks, especially for typical Web users

who require quick results.

In relation to the representation in the Work

Window of a GDUI, using AJAX allows us to

directly update the content without having to act at

the normal Web level.

Most of the bureaucratic procedures that have

nowadays eliminated the use of paper, and can be

done via Web sites, can be easily performed via GDI

type interfaces. The user of this type of bureaucratic

and administrative task is, in most cases a perfect

occasional user, without semantic knowledge of the

steps to be followed in order to accomplish the

necessary steps in this typical use of the Web.

REFERENCES

Card, S., Moran, T., Newell, A. 1980. Computer text-

editing: An information processing analysis for a

routine cognitive skill. Cognitive Psychology, 12, 32-

74.

Card, S., Moran T., Newell A. 1983. The Psychology of

Human-Computer Interaction. Hillsdale, New Jersey:

Erlbaum.

Carrillo, A., Guevara, A., Gálvez, S. 2002. Goal Driven

Interaction. III congreso Internacional Interacción

Persona Ordenador, pp 68-75.

Carrillo, A., Falgueras, J., Guevara, A., 2005. A notation

for Goal Driven Interfaces specification. Raquel

Navarro-Prieto & Jesús Lores, Interacción 2004,

Springer, Dordrecht, The Netherlands.

ICEIS 2008 - International Conference on Enterprise Information Systems

Carrillo, A., Falgueras, J., Guevara, A., 2006. GDIT: Tool

for the design, specification and generation of Goal

Driven User Interfaces. ICEIS’06.

Dix, A., Finlay, J., Abowd, G., Beale, R. 2003. Human-

Computer Interaction. Second edition. Prentice hall.

Garrett, J.J. 2005. Ajax: A New Approach to Web Applications.

http://www.adaptivepath.com/ideas/essays/archives/00038

5.php

Hix, D., Hartson, H. 1993. Developing user interfaces:

ensuring usability through product & process. New

York, New York, United States of America. John

Wiley & Sons.

John, B.E., Kieras, D.E. 1996. Using GOMS for User

Interface Design and Analysis: Wich Technique?

ACM Transactions on Computer-Human Interaction,

Vol3, No.4, December 1996, pp 287-319.

John, B.E. & Kieras, D.E. 1994. The GOMS family of

analysis techniques: Tools for design and evaluation.

Carnegie Mellon University School of Computer

Science Technical Report No. CMU-CS-94-181. Also

appears as the Human-Computer Interaction Institute

Technical Report No. CMU-HCII-94-106.

John, B.E., Kieras, D.E. 1996. The GOMS family of user

interface analysis techniques: Comparison and

contrast. ACM Transactions on Computer-Human

Interaction, Vol3, No.4, December 1996, pp 320-351.

Kieras, D. 1997. A Guide to GOMS Model Usability.

Evaluation using NGOMSL. In M.Helander & T.

Landauer (Eds.), The handbook of human-computer

interaction. (Second Edition) Amsterdam: North-

Holland, pp 733-766.

LePera, S.A. 2002. Scripting For The 6.0 Browsers.

http://www.scottandrew.com/weblog/articles/dom_1

Lores, J. 2001. (Ed.): Human Computer Interaction. Libro

electrónico editado por AIPO. Versiones disponibles

en la red (http://griho.udl.es/ipo/) y en CD-ROM

(ISBN Versión CD-ROM 84-607-2255-4).

Newell, A., Simon, H. 1972. Human Problem Solving.

Prentice-Hall.

Nielsen, J. 1993. Usability engineering. San Diego,

California, United States of America. Academic Press.

Preece, J., Rogers, Y., Sharp, H., Benyon, D., Holland, S.,

Carey, T. 1994. Human computer interaction. Harlow,

Essex, England. Addison Wesley Longman Limited.

Shneiderman, B. 1980. Software Psychology: Human

Factors in Computer and Information Systems. Little,

Brown, Boston, MA.

Shneiderman, B. 2005. Designing the User Interface:

Strategies for effective Human-Computer Interaction.

Four edition. Addison-Wesley Publishers.

Ziegler, J. 1996. Interactive techniques. ACM Computing

Surveys, Vol. 28, No. 1, March.

A GUIDED INTERFACE FOR WEB INTERACTION
