IT GOVERNANCE FRAMEWORKS AS METHODS

Matthias Goeken and Stefanie Alter

Frankfurt School of Finance and Management, IT-Governance-Practice-Network, Sonnemannstraße 9-11, Frankfurt

Keywords: IT Governance, IT Management, Method Engineering, Metamodel, COBIT (Control Objectives for

Information and Related Technology).

Abstract: IT management of today only to a surprisingly low degree is based on sound methods. Rather it is consid-

ered still as an art attributed to the capabilities of individual managers. On the other hand, there is little aca-

demic support for the challenges of IT management. To fill this obvious gap, various best practice frame-

works have been developed. These frameworks cover both support of management tasks and improvement

of compliance with regulations. Both areas can be subsumed under the topic IT governance. Whereas the

frameworks reflect best practice experience, they do not provide prove of e.g. completeness and coherence

with respect to the application area they were designed for. To undertake a step in this direction we will ex-

plore, to what degree the well known IT governance framework COBIT may be classified as a method. By

analyzing the underlying logical and semantically rich structure of this framework we gain insights on how

to compare and integrate further frameworks with COBIT. We will conclude by giving indications on how

we intend to implement IT governance frameworks into a toolset based on semantic nets.

1 INTRODUCTION

Unfortunately there is little academic guidance for

the management of IT in general and for specific

challenges, especially for business/IT alignment or

risk management (Booth/Philip, 2005; p 395; Avison

2004, p 224). The better part of computer science

research deals with system development and related

issues. Given the fact that in enterprises usually a

higher percentage of expenditure is spent on ‘run-

ning IT’ rather than on systems engineering and de-

velopment of new systems, it is obviously critical to

offer guidance for governance challenges, i.e. long

term management and compliance with regulations.

Due to the fact, that there is a clear need for

methodological support for the actual tasks and

challenges of IT management and IT governance, it

is surprising, that little attention is paid to these

questions. Chan et al. (1997) and Reich/Benbasat

(1996) censured researchers for the lack of effort put

into evaluating e. g. how business and IT can be

properly aligned, how IT related risks can be man-

aged and how IT (Information Technology) can

contribute to the overall value of the enterprise.

In recent years, there were some associations and

public institutions like ISACA (Information Systems

Audit and Control Association) and CCTA (Central

Computer and Telecommunication Agency)/OGC

(British Office of Government Commerce) which

developed frameworks (e.g. COBIT and ITIL) to

support management and governance of IT. These

frameworks are well established in practice (KPMG

2004; ITGI 2006). However, these frameworks are

lacking of theoretical foundation which would allow

conclusion with regard to e.g. completeness and co-

herence.

This paper takes steps towards the theoretical

foundation of best practice frameworks by proposing

to model them as methods. We will discuss frame-

works as ‘methods’ for IT management. Due to the

fact, that ‘method engineering’ and ‘method con-

struction’ can be seen as the core of a design science

oriented information systems research (Hevener

2004; Braun et al. 2005), we argue, that methods for

IT management should be based on these well elabo-

rated approaches.

We therefore derive an adapted method meta-

model for IT governance from a discussion of well

established method engineering approaches (part 2).

These we propose to extend, in order to capture

management and governance related aspects. Fur-

thermore we present a method metamodel of

COBIT, the popular governance framework of the

ISACA (part 3). This will be compared with the

theoretically derived method metamodel. Afterwards

331

Goeken M. and Alter S. (2008).

IT GOVERNANCE FRAMEWORKS AS METHODS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 331-338

DOI: 10.5220/0001705403310338

 SciTePress

we discuss the advantages of this approach and pre-

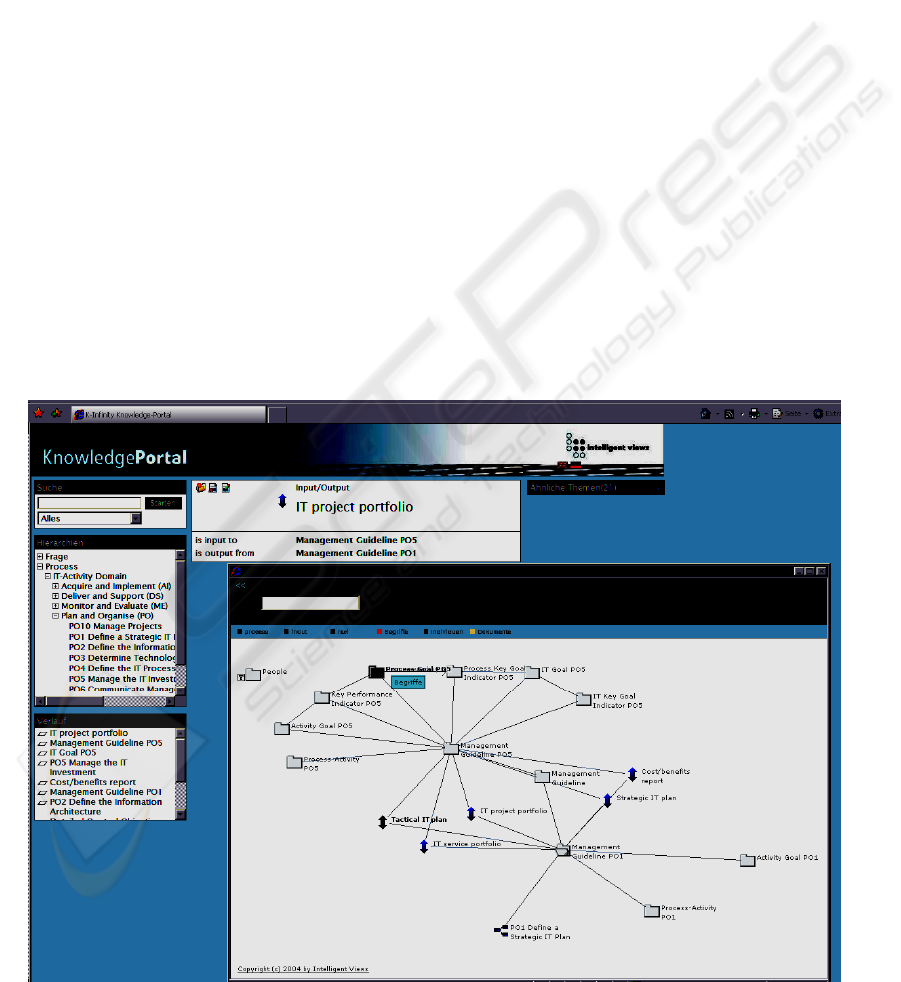

sent some research in progress – e.g. a prototype

with which we modeled COBIT.

2 METHOD ENGINEERING

In IS/CS research, the notion of the term ‘method’ is

mainly related to system development and similar

disciplines. In general ‘method’ is being used as a

quite generic term – coming from Greece

“méthodos” (way/procedure). Henceforth we will

relate it to IT management only. The following sec-

tion will give a brief introduction of the terms

method and method engineering and will provide the

foundation for the discussion about the notion of

methods in IT management / IT governance.

Methods are usually comprehensive approaches,

structuring the whole process of system develop-

ment. Therefore, a method typically has a holistic

scope and covers all tasks and activities, necessary

to plan, design and implement a system. Although

there is much research on the topics of methods and

method engineering (e.g. Ralyté et al. 2007), a gen-

erally accepted definition of ‘method’ including its

components is still missing. As a result, ‘process

model’, ‘lifecycle model’ as well as ‘technique’ are

often used synonymously or interchangeable.

An often cited definition has been coined by

Brinkkemper: „A method is an approach to perform

a systems development project, based on a specific

way of thinking, consisting of directions and rules,

structured in a systematic way in development ac-

tivities with corresponding development products.”

Method engineering deals with the engineering-

based and systematic construction of methods as

well as with their comparison and integration. Thus,

methods themselves are objects of development.

Brinkkemper (1996) defines: „Method Engineering

is the engineering discipline to design, construct and

adapt methods, techniques and tools for the devel-

opment of information systems.”

According to the method engineering approach

of the University of St. Gallen, a method is the

“systematic and structured process of the develop-

ment, modification and adaptation of software de-

velopment methods through the description of

method components and their relationships” (Heym

1993, translated). In this perspective, the compo-

nents of a method are of central importance: Heym

specifies the components ‘metamodel’, result, activ-

ity, technique and role.

A comparable approach is the one of Karlsson

(2002). He represents his definition also as a UML

diagram (fig. 1): “A method is normative prescribed

actions performed by human actors in order to reach

the actors’, or a subset of the actors’, goals”. A

method aims at creating a product, e.g. models, as

the final result or an intermediate milestone in the

development process. This is called artifact by

Karlsson: “An artifact is either a final or intermedi-

ate work product that is produced and used by actors

during a system engineering project.”

Concept

Notation

Artifact

is used in

Prescribed Action

Role

inpu

is used durring

modifies

carry out

Actor

act in a

Business Context

related to

part of

Purpose

has

System

Engineering

Method

exists in a

Figure 1: Method Metamodel (Karlsson 2002).

Despite the differences in the various approaches,

many similar method components could be identi-

fied. Table 1 shows a comparison of the components

in three selected approaches.

Table 1: Components of System Development Methods –

Comparison (Goeken 2006).

Metamodel

Technique

Result / Model

Role

Activities

Reason / Purpose

Concept

Notation

Principle

Tool

St. Gallen X X X X X

Brinkkemper X X X X X X

Karlsson X (X) X X X X X

We conclude that methods of systems development

describe who (role) carries out activities in order to

create a product (final or intermediate). The activi-

ties are supported by techniques and tools; the prod-

uct (usually a document, a model or the final tech-

nical system) is created using a specific notation.

The whole method is affected by principles. In a

broader sense, Braun et al. (2005) characterize

methods like follows: “a method is a process for

systematically acquiring, representing and imparting

knowledge.”

ICEIS 2008 - International Conference on Enterprise Information Systems

332

An (sub-) area of research, which might be of

importance for IT governance related aspects, is the

“situational method engineering”. It treats the con-

text-related adaptation and configuration of meth-

ods. The adaptation of methods in the area of system

development happens in general via metamodeling

and method fragments (Hofstede, Verhoef 1997;

Brinkkemper et al. 1999; Saeki 1994). Brinkkemper

et al (1999) build a framework for the classification

of method fragments. It contains the three dimen-

sions ‘perspective’, ‘level of abstraction’ and

‘granularity’. The dimension perspective is divided

into product and process, the abstraction into a con-

ceptual and a technical level. Additionally, an ontol-

ogy is proposed as an anchoring system. The classi-

fied fragments can be combined rule-based into

methods.

It has to be discussed, if the notion and the un-

derstanding of methods can be used for IT manage-

ment as well, or if methods of IT management are

generally of different characteristics and thus, ideas

of method engineering can not be transferred into

this area. The notion of method, which currently is

mainly affected by system development, possibly

has to be extended in order to capture the rather

management-driven tasks and processes of IT gov-

ernance.

It seems that the components presented in fig. 1

and tab. 1 are sufficient generic. A method for IT

management should be able to specify results and

the techniques as well as the activities to reach them.

Furthermore it should define responsibilities and

roles for the defined activities. On the other hand,

e.g. the component ‘notation’ is of particular impor-

tance in a method for system development. If this

component is of the same importance in IT govern-

ance, and if the significance of the superior control

in management-orientated methods has to be distin-

guished to a greater extent, remains to be seen.

Furthermore, the situational adaptation to a spe-

cific context, which is developed in “situational

method engineering”, seems to be relevant for IT

governance. Having identified the “one-fits-

all-”method as unreachable in the 1990s, also the

different requirements and needs of companies in the

IT management aspects can not be satisfied via one

static method. Accordingly, an attribute-based

approach to situational adaptation and configuration

of the presented frameworks is desirable.

3 BEST PRACTICE

FRAMEWORKS

3.1 Basics

As indicated, science offers little guidance to IT

management and IT governance issues. Therefore, in

the last ten years a range of open best practice

frameworks (ITIL, COBIT) as well as proprietary

frameworks were developed (Microsoft Operations

Framework (MOF), IT-Service-Management

(ITSM) of Hewlett-Packard, or the IBM IT Process

Model (ITPM)).

These frameworks which are also subsumed un-

der the developing topic “IT governance”, describe

goals, processes and organizational aspects of IT

management and control.

One point regarding the development of best

practice models is very interesting: practitioners

from the business world consolidate their knowledge

aiming to define generally accepted rules, processes,

and characteristics. Despite the fact that a few scien-

tists participate in the development of already men-

tioned frameworks such as COBIT, especially prac-

titioners are members of the relevant committees and

boards. (Johannsen, Goeken 2006, 2007)

From an academic viewpoint these best practice

frameworks can be seen as an interesting object of

research, not only because the models are widely

spread but also because they incorporate a huge

amount of consolidated knowledge. As mentioned

before, a sound scientific discussion and foundation

of these models is missing but could be fruitful.

3.2 COBIT

In the following we will focus on COBIT (Control

Objectives for Information and Related Technol-

ogy). COBIT describes a generic process model, that

defines relevant processes and activities which

should be found – according to the idea of best

practice – in every well managed IT department or

organization. Whereas earlier versions put the main

focus on IT audits, the COBIT framework mean-

while developed to a full-blown support of IT man-

agement covering most relevant tasks and areas of

this topic. (ITGI 2003, 2007)

In a macro-perspective the IT processes are ar-

ranged by grouping them into four so called control

areas which are structured similar to the well known

Deming cycle (plan, build, run, monitor) (figure 2)

IT GOVERNANCE FRAMEWORKS AS METHODS

333

MONITOR AND

EVALUATE

DELIVER AND

SUPPORT

ACQUIRE AND

IMPLEMENT

IT RESOURCES

INFORMATION

CRITERIA

PLAN AND

ORGANISE

PO1 Define a Strategic IT Plan

PO2 Define the Information Architecture

PO3 Determine Technological Direction

PO4 Define the IT Processes, Organization

and Relationships

PO5 Manage the IT Investment

PO6 Communicate Management Aims

and Direction

PO7 Manage IT Human Resources

PO8 Manage Quality

PO9 Assess and Manage IT Risks

PO10 Manage Projects

AI1 Identify Automated Solutions

AI2 Acquire and Maintain Application

Software

AI3 Acquire and Maintain Technology

Infrastructure

AI4 Enable Operation and Use

AI5 Procure IT Resources

AI6 Manage Changes

AI7 Install and Accredit Solutions and

Changes

DS1 Define and Manage Service Levels

DS2 Manage Third-party Services

DS3 Manage Performance and Capacity

DS4 Ensure Continuous Service

DS5 Ensure Systems Security

DS6 Identify and Allocate Costs

DS7 Educate and Train Users

DS8 Manage Service Desk and Incidents

DS9 Manage the Configuration

DS10 Manage Problems

DS11 Manage Data

DS12 Manage the Physical Environment

DS13 Manage Operations

ME1 Monitor and Evaluate IT Processes

ME2 Monitor and Evaluate Internal Control

ME3 Ensure Regulatory Compliance

ME4 Provide IT Governance

BUSINESS OBJECTIVES

GOVERNANCE

OBJECTIVES

COBIT 4.1

Figure 2: The COBIT Framework – Macro Perspective.

3.3 The Method Metamodel of COBIT

Beside the application area of COBIT we identified

two further reasons to start metamodeling with

COBIT.

 First, this framework is well structured in chap-

ters and components, and therefore closed in it-

self and self-contained.

 Second, COBIT is comprehensive and covers

(nearly) all tasks and processes an IT organiza-

tion should carry out.

For example, ITIL (OGC 2007) is – like COBIT –

comprehensive, but lacks of structure. On the other

hand, e.g. CMMI (1999) focuses on a specific task

(development), but has a coherent structure.

However, these existing structures primarily

serve the purpose to present the framework consis-

tently and structured. It supports the navigation and

the usage of the framework but may not be mixed up

with a metamodel. A goal of metamodeling the

framework is to extract and present the underlying

logical and semantically rich relationships.

Generally spoken, a metamodel is a model of a

model. That means that initially there might be a

model, which represents the real world or some part

of it. The metamodel is the illustration of this model

on the next higher level of abstraction. Here we use

an abstraction mechanism which extracts the compo-

nents of the underlying model. (This must be distin-

guished from the most common language abstract-

tion, which is used when the abstract syntax of a

modeling language is represented in the metamodel).

We use the well known ER notation to represent

our version of the COBIT metamodel. The analysis

is stepwise and takes place in fragments which are in

the end combined to one model. Initial point of the

partial analysis is the entity type ‘process’ and thus,

it is also the later necessary entity which integrates

the fragments.

3.3.1 Control Objectives, Activities and

Results

In COBIT, the 34 IT processes produce outputs

which vice versa are used as inputs in other process-

ses. Input and output are results. According to this,

the entity type result ‘is-a’ output or input of a pro-

cess. Typical results on instance level are documents

like reports on costs, risks or plans on IT strategy.

Moreover, a process consists of control objec-

tives, which are statements of desired results or pur-

poses to be achieved by implementing control pro-

cedures in a particular process. These control proce-

dures should provide ‘reasonable assurance’, that

business objectives will be achieved.

ICEIS 2008 - International Conference on Enterprise Information Systems

334

Furthermore, a process includes activities, which

give a detailed description of what is done. These

activities are carried out by specific persons like the

CFO, the CIO, or an architect. Therefore, we link

activities to the concept role (fig. 3).

Result

creates

Process

OutputInput

uses

contains

Control

Objective

Activity

assigned

Role

isa

Figure 3: Control Objectives, Activities and Results.

3.3.2 Goals and Metrics

Each process of the framework has goals, which can

be divided into business goals, IT goals, process

goals and activity goals. As well these goals are in

relationship with each other.

Goal

measured

Process GoalIT Goal Activity Goal

Metric

supported

Process

adressed

Information

Criteria

Level of Support

isa

Figure 4: Goals and Metrics.

Thus, IT goals activate process goals, which in

turn end up in activity goals (e.g. IT goals define

what the business expects from IT; Process goals

define what the IT process must deliver to support

IT’s objectives etc.). Each goal is measured with the

aid of different metrics.

Furthermore, a process contains information

criteria, which are abstract business goals. The in-

formation criteria proposed by COBIT are effective-

ness, efficiency, confidentiality, availability, com-

pliance and reliability. For every process COBIT

indicates, if these criteria are supported. It is distin-

guished between a primary and a secondary relation-

ship. Goals as well as metrics usually are neither

considered as components in the usual method de-

scriptions. Both are therefore candidates for the ad-

vancement of the metamodel (fig 4).

3.3.3 Maturity Model, IT Resource, Domain

Each process is assigned to one of four domains,

which are arranged according to the life cycle (see

above, fig. 2). Further components of COBIT are a

maturity model, four domains and IT resources.

Each process can be assessed by a maturity model to

determine its level of maturation. This is the starting

point for a continuous improvement of the process

maturity and its controls.

In order to achieve results, a process needs the

entity type IT resource. Implicit components as the

life cycle orientation of COBIT could enter the

metamodel as principles. This component is intro-

duced by Brinkkemper, who mentions the “way of

thinking”. However, a principle can not be dedicated

to a single entity type. Implicit basic principles form

the framework as a whole and thus have to be put in

another level of the metamodel.

Process

Maturity Level

belongs to

Domain

Maturity Model

has

determined

IT Resource

is used by

Figure 5: Maturity Model, IT-Resource and Domain.

3.3.4 IT Governance Focus Areas

Finally, each process has the attributes process code

and description. The process code is a unique identi-

fier of the process (e.g. PO5, see fig. 2). It consists

of the abbreviation of the domain and a current

number. Furthermore, each process supports a spe-

cific IT governance focus area. These IT governance

focus areas “describe the topics that executive man-

IT GOVERNANCE FRAMEWORKS AS METHODS

335

agement needs to address to govern IT within their

enterprises” (ITGI 2007).

Process

supports

IT Governance

Focus Area

Level of Support

Abbreviation

Description

Figure 6: IT Governance Focus Areas.

For each process there is an indication if it addresses

the focus area. Like above it is distinguished be-

tween a primary and a secondary relationship.

Figure 8 shows the integrated metamodel. The

entity type process is used for the integration of the

partial models presented above.

To conclude, by building the metamodel of COBIT,

a lot of components could be identified, which can

be found in the method metamodel presented in sec-

tion 2 as well.

A method for IT governance also will define

certain actions (processes) which generate specific

results. In order to organize work and to assign re-

sponsibilities, it is necessary to relate roles to proc-

esses or activities.

In contrast to a development method, the as-

signment of roles to results often is of central im-

portance, in order to represent more complex re-

sponsibility structures and decision rights. There-

fore, the relationship ‘assigned to’, which connects

‘Role’ and ‘Result’, should be considered as a fur-

ther, governance related extension.

Important components, which are not covered by

systems development methods, are goals and met-

rics. Both are of central importance in governance

frameworks.

In the following we will present some applica-

tions which demonstrate various benefits of the

method metamodel.

4 APPLICATION AND USAGE OF

THE METAMODEL

Several advantages accrue from representing IT

governance frameworks like COBIT, ITIL or CMMI

as method metamodels. In this section we will dis-

cuss some of the benefits and possible applications.

First, the representation allows the comparison

of different frameworks on an abstract level. Once

the components are extracted, frameworks can be

examined and analyzed. Thus, other frameworks can

be checked for completeness with the aid of the

metamodel. Accordingly, one can deduce that ITIL -

in contrast to COBIT - does not provide metrics and

Result

is created

is used by

Process

Maturity Level

belongs to

Domain

Maturity Model

fulfils

determined

IT-Resource

uses /

needs

supports

IT Governance

Focus Area

Goal

measured

Process Goal

IT Goal

Activity Goal

Metric

adresses

Information

Criteria

contained

Control

Objective

Activity

Role

assign

OutputInput

isa

Figure 7: The Method Metamodel of COBIT.

ICEIS 2008 - International Conference on Enterprise Information Systems

336

other components for assessment to the extent

COBIT does.

Another benefit of the metamodel is the integra-

tion of new or existing processes in the COBIT

framework. This becomes apparent in the following

example: Given the vast extend to which outsourc-

ing is being practiced in today’s IT departments it is

an underrepresented issue in COBIT. With the aid of

the metamodel a ‘Control of the outsourcing’-proc-

ess can be developed under guidance. In order to

develop this process, the metamodel has to be in-

stantiated.

In addition, the integration of the process into

other existing IT processes can for example occur by

linking the results. When inputs flow to the process

and the output is used elsewhere, the new process

becomes an integrated part of the overall IT process

landscape.

One step further, a metamodel could be used to de-

scribe and analyze the linkage of various frame-

works like COBIT, ITIL and CMMI with the aim of

integrating them.

Besides, the metamodel can be the starting point

for the representation of COBIT in an application

system. The components and the logical and seman-

tic relationships are necessary, e.g. for the imple-

mentation in a semantic network. We are currently

developing a framework representation with this

technology which allows the flexible navigation

within the framework structures and the implemen-

tation of various views over the components (see fig.

9).

With a tool like this, we hope to support the im-

plementation of governance frameworks in practice

significantly.

5 CONCLUSIONS AND FUTURE

RESEARCH

From our point of view, it is possible and fruitful, to

interpret IT governance frameworks as methods. IT

governance methods can learn from method engi-

neering with respect to the engineering-based and

systematic approach the latter follows.

In the article, we extracted the relevant compo-

nents performing some kind of ‘framework re-engi-

neering’ on COBIT. The resulting metamodel brings

some benefits for comparing and integrating

different frameworks. Furthermore, frameworks can

be checked for completeness against the model. An

interesting application might be the representation of

IT governance frameworks in a tool which was

Figure 8: Representation of COBIT as a Semantic Net.

IT GOVERNANCE FRAMEWORKS AS METHODS

337

demonstrated in the previous section.

To give a widespread and holistic support for IT

governance, it is not sufficient to metamodel one

framework like COBIT. Instead, it is necessary to

complement it with the knowledge of other frame-

works and the findings of academic research (Steen-

bergen et al. 2007, Weill, Ross 2004). Therefore, the

mapping of COBIT can only be the first step in the

process of building a wider metamodel covering

more than one framework and, therefore, covering

various tasks and challenges of IT governance.

Another interesting area of development is the

situation specific and/or enterprise specific adoption

and configuration of governance models. We pro-

pose, that the mentioned approach of „situational

method engineering“ might be applicable to them as

well. Because frameworks like COBIT and ITIL are

seldom implemented completely and without

modification, a methodological support for model

adoption and configuration would be useful.

REFERENCES

Avison, D., Jones, J., Powell, P., Wilson, D., 2004.. Using

and Validating the Strategic Alignment Model. In

Journal of Strategic Information Systems, 13 (3), pp.

223-246.

Booth, Marilyn, E., Philip, G., 2005: Information Systems

Management: Role of planning, alignment and

managerial responsibilities. In Behaviour and

information Technology vol.24 no.5.

Braun, C., Wortmann, F., Hafner, F., Winter, R., 2005.

Method construction - a core approach to

organizational engineering. SAC 2005: pp. 1295-1299.

Brinkkemper, S., Saeki, M., Harmsen, F.,1999. Meta-

modeling based assembly techniques for situational

method engineering. In Information Systems 24

(1999) 3, pp. 209-228.

Brinkkemper, S., 1996. Method engineering: engineering

of information systems development methods and

tools. In Information and Software Technology 38

(1996), pp. 275-280.

Chan, Y. E., Huff, S. L., Barclay, D. W., Copeland, D. G.,

1997. Business Strategy Orientation, Information

Systems Orientation and Strategic Alignment. In

Information Systems Research 8.

CMMI 1999 The Evolution of Process Improvement.

Dezember 1999. Under:http://www.sei.cmu.edu/

newsatsei/features/1999/december/Background.dec99.

htm, at July 4th 2003.

Goeken, M. 2006. Entwicklung von Data-Warehouse-

Systemen. Anforderungsmanagement, Modellierung,

Implementierung. Wiesbaden 2006. [in german]

Heym, M. 1993. Methoden-Engineering - Spezifikation

und Integration von Entwicklungsmethoden für

Informationssysteme. Dissertation, Institut für

Wirtschaftsinformatik, Universität St. Gallen, St.

Gallen. Hallstadt 1993.

Hevner, A. R., March, S. T., Park, J., Ram, S., 2004.

Design Science in IS Research. In MIS-Quarterly 28

(2004) 1, pp.. 75-105.

Hofstede, A. H. M. T., Verhoef, T. F. 1997. On the

feasibility of situational method engineering. In

Information Systems 22 (1997) 6-7, pp. 401-422

ITGI 2003, IT Governance Institute. COBIT

Implementation Guide, 2003, o.O.

ITGI 2006, IT Governance Institute. IT Governance

Global Status Report, 2006. Under: www.isaca.org, at

March 3rd of 2007.

ITGI 2007, IT Governance Institute. COBIT 4.1, 2007,

o.O.

Johannsen, W., Goeken, M., 2006. IT-Governance - neue

Aufgaben des IT-Managements, In HMD - Praxis

Wirtschaftsinformatik, 250, 2006,pp. 7-20. [in

german]

Johannsen, W., Goeken, M., 2007. Referenzmodelle für

IT-Governance. dpunkt.verlag, Heidelberg. [in

german]

Karlsson, F., 2002. Meta-Method for Method

Configuration - A Rational Unified Process Case.

Promotion, Linköping University, Faculty of Arts and

Sciences, Thesis 61.

KPMG 2004. Summary of KPMG IS Governance Survey.

KPMG LLP, London, September 2004.
