MODELLING AND DISTRIBUTING INDIVIDUAL

AND COLLECTIVE ACTIVITIES IN A WORKFLOW SYSTEM

Saïda Boukhedouma and Zaia Alimazighi

University of Sciences and Technologies Houari Boumédiene (USTHB)

Faculty of Electronics and Computer Science, Department of Computer Science

LSI Laboratoiry – ISI Team, USTHB, El Alia BP n°32, Bab Ezzouar, Alger, Algeria

Keywords: Collective activity, Individual activity, Workload, Workflow, Resource manager.

Abstract: This paper deals with the modelling and the dispatching of individual and collective work in a workflow

system. It particularly, focuses on workflow processes of organizations where actors are organized by

teams. In such a system, participants must interact with each other, coordinate, exchange informations,

cooperate and synchronize their work. To do that, it is essential to define firstly, the way of dispatching

individual and collective parts of work to all participants in the system. We describe some static and

dynamic aspects of the system and we propose a simple algorithm for managing human resources at the

runtime of the process. The algorithm aims to balance the workload between human actors in the system, it

is based on a workload criteria computed according to the activities durations.

1 INTRODUCTION

With the advent and the evolution of global scale

economies, organizations need to be more

competitive, efficient, flexible and integrated in the

value chain at different levels.

The human activity is never isolated, humans

need to cooperate and communicate with each other,

from that is born the concept of collective work.

The domain of collective work covers many areas of

study, it has a technological dimension which aims

to carry out computing devices and a human

sciences dimension which focuses on sociological,

psychological, economical and organizational

aspects.

In the clover model, three perspectives for

supporting the collective work are given:

production, communication and coordination.

These three perspectives are supported by the

groupware technologies and partially by workflow.

Workflow technologies have been used to

support various types of business processes,

allowing a partial or a global automation of them. A

workflow management system covers three main

functionnalities which are: modelling the process,

managing resources (human, material, software) and

supervising the execution of process instances.

Depending on the type of workflow process,

actors (participants) may work individually or

collectively, in a synchronous or an asynchronous

way, to perform their parts of tasks. This paper deals

with the modelling and the distribution of individual

and collective work of actors in a workflow system.

It particularly concens workflow processes of

organizations where actors are organized by teams,

and have to accomplish individual and collective

activities. For example, a workflow process for

planing and tracking software development, can be

divided into individual and collective parts of work

which are performed by individuals or teams. In this

context, we establish a workflow meta-model

allowing the support of concepts attached to the

individual and the collective work. At runtime of the

process, actors receive activities instances

materialized by work-items in their individual or

their collective worklists.

In such a system, participants must coordinate,

exchange informations, cooperate and synchronize

their work. To do that, it is essential to fairly

dispatch parts of work to all actors in the system.

The affectation of work-items to actors (or

teams) is done by a resource manager according to

an algorithm that we propose. The algorithm takes

into account the workload (quantity of work) of each

290

Boukhedouma S. and Alimazighi Z. (2008).

MODELLING AND DISTRIBUTING INDIVIDUAL AND COLLECTIVE ACTIVITIES IN A WORKFLOW SYSTEM.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 290-297

DOI: 10.5220/0001701302900297

 SciTePress

actor or team based on two parameters: the

collective load and the individual load, in order to

guarantee a load balancing in the system.

The rest of this paper is structured as follows:

Section 2 describes some related works dealing with

the collective aspect of work, also the question of

load balancing and managing resources in workflow

systems.

Section 3 gives some basic definitions of

workflow concepts manipulated in this paper.

Section 4 presents the workflow meta-model,

highlighting the three aspects of the process: the

organizational aspect, the informational aspect and

the process aspect. In the same section, we give

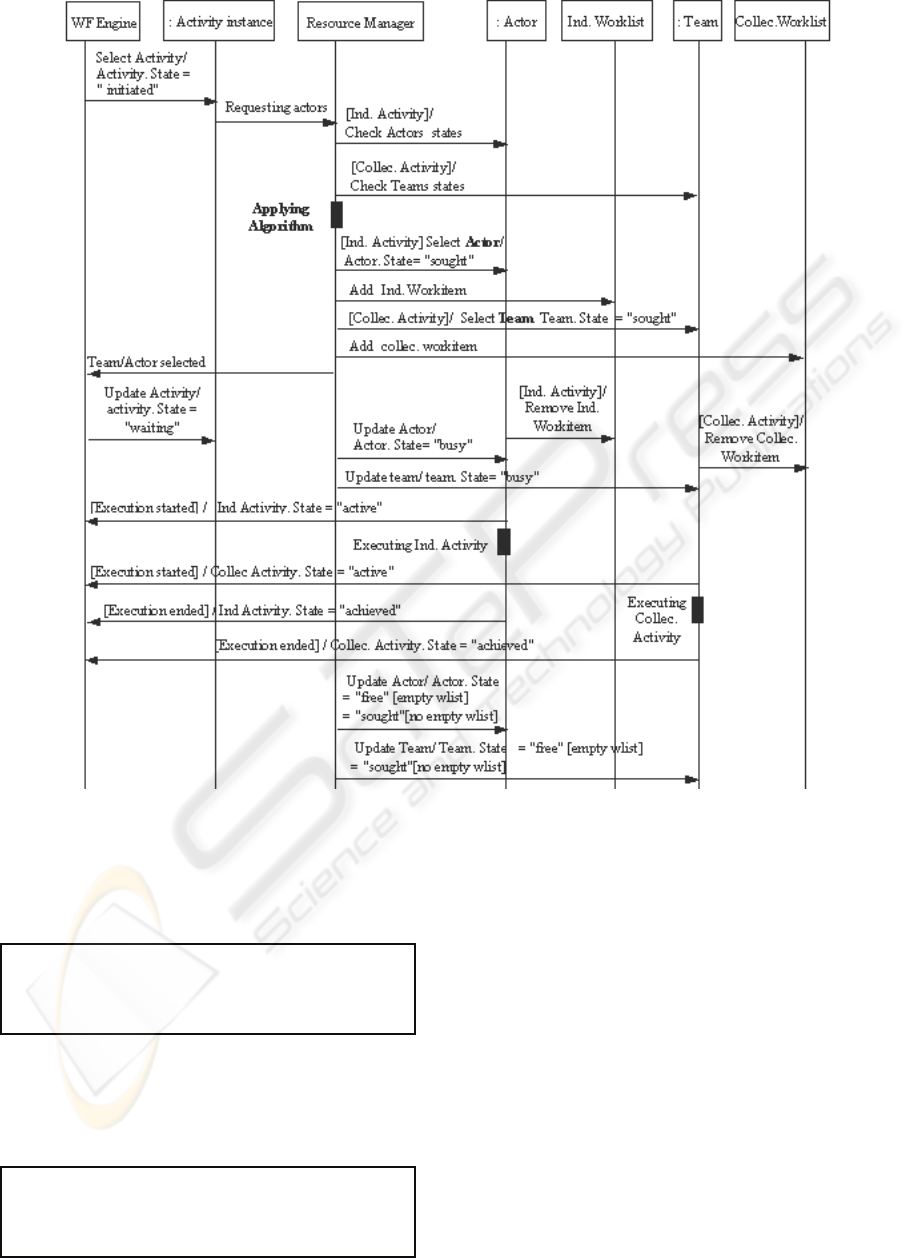

some dynamic views of the system, illustrated by a

sequence diagram of UML.

Section 5 describes an algorithm of affecting

individual and collective activities to individuals and

teams.

Section 6 concludes the paper and gives some

future works.

2 RELATED WORKS

The concept of collective activity has given rise to

some research in the 90’s, increasing with the

emergence of communities of practices. In (Lorino,

2001), the author affirms that organizations are

formed particularly for practical reasons, in order to

implement processes that require the coordinated

intervention of multiple actors.

The modelling and implementing of collective

activities find their origins essentially, in the

educational domain. For example, (Betbeder &

Tchounikine, 2003a) and (Betbeder & Tchounikine,

2003b) present a framework that aims at supporting

collective activities in a learning context. (Draheim,

2003) presents a web enabled tool for the learning

methodology EASE.

In the domain of managing electronic

documents, (Cabanac & al, 2006) propose an

integated architecture allowing a collective

management of electronic documents.

Many researchers such as (Soulier &

Lewkowicz, 2004) and (Takamaya & al, 2007) have

focused on the collaborative aspect in workflow

systems.

For the problem of load balancing in workflow

systems, a mention may be made on (Jin & al,

2001), (Wang & Zhang, 2004) and (Katoh & al,

2004). These authors were concerned with the

problem of load balancing in distributed workflow

management systems, where several workflow

engines must interoperate and share the execution

and the control of the process activities.

Other works such as (Li & al, 2003), (Li &

Yang, 2005) and (Senkul & al, 2002) focused on the

management of conflict access to the same resource

by multiple activities. They define a model for

scheduling, comprising a component for solving

constraints to guarantee a proper allocation.

In this work, we focus on the problem of

assigning individual and collective activities to

actors and teams with the aim of securing a load

balancing in the system. After modelling some static

and dynamic views of the system, we propose an

algorithm for affecting activities to individuals and

teams, based on the workload criteria.

3 BASIC DEFINITIONS

This section outlines the definitions of key concepts

handled in this paper:

 Workflow Process - Workflow Sub-process

A workflow process is the automation of all or part

of a business process in which information flows

from one activity to another (respectively, one

participant to another) according to a set of

predefined rules

A workflow sub-process is a step in the overall

process, requiring inputs and producing results

(outputs). We mean that a sub-process is any internal

procedure which takes part in the achievement of the

overall process.

 Individual Activity and Collective Activity

An activity is a step in a sub-process, requiring

inputs and producing outputs. We distinguish two

kinds of activities: an individual one which must be

performed by one actor, and a collective one which

must be performed by a team.

It should be noted that individual and collective

phases of work are done on a more or less alternated

way, as shown in figure 3.1.

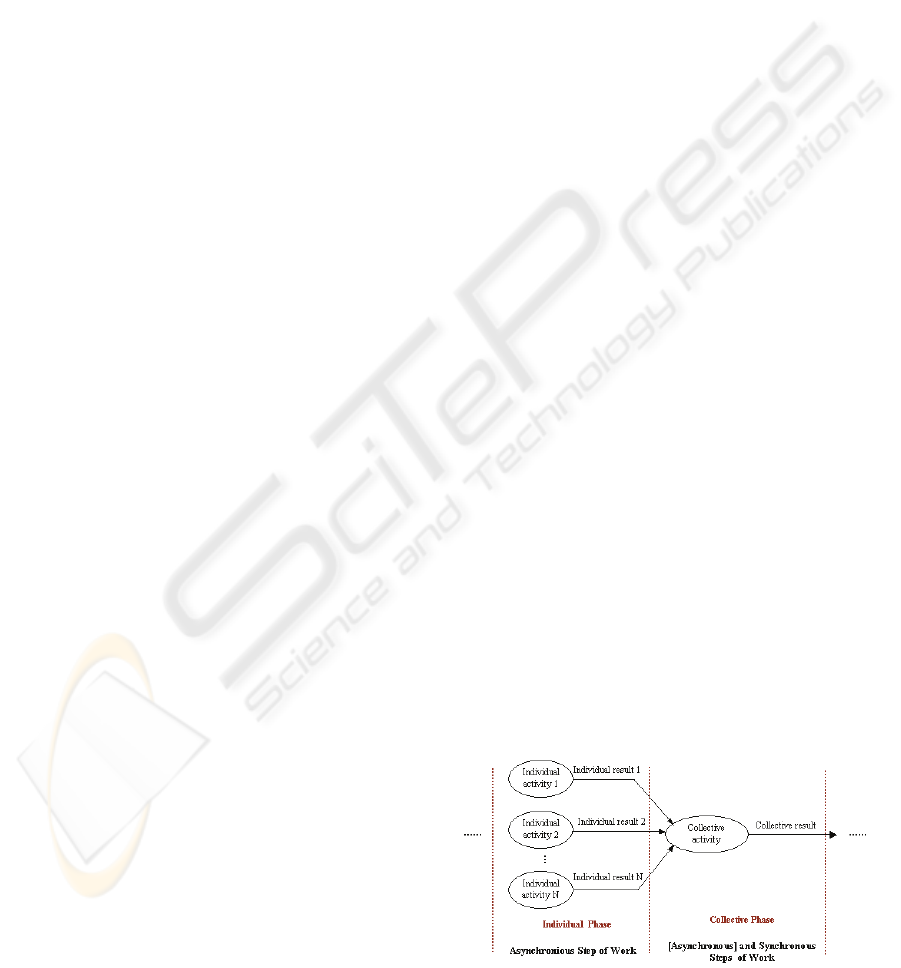

Figure 3.1: General schema of individual and collective

phases of work.

MODELLING AND DISTRIBUTING INDIVIDUAL AND COLLECTIVE ACTIVITIES IN A WORKFLOW SYSTEM

291

An individual phase of work is done

asynchronously and each actor must deliver his

individual result. A collective phase may possibly,

contain some asynchronous steps and must have

inevitably, a synchronous step allowing the team

members to deliver their collective result.

 Resource- Resource Manager

A resource is any human, material or software

needed by an activity to be accomplished. In this

paper we consider particularly the organization and

the affectation of human resources to activities

instances.

A resource manager is a component of the

workflow system which has an overview on system

resources (identifiers, roles, states, localisation, …).

It is responsible for allocating adequate resources to

activities initiated by the workflow engine, and

releasing them at the end of activities executions. In

this work, we essentially, focus on human resources.

 Actor, Team and Role

An actor is a human resource which participates

alone or conjointly with other members of a team in

the accomplishement of individual or collective

activities in the process.

A team is a set of two or more actors taking the

same roles in the organization. Members of a team

work collectively in order to perform collective

activities, in a synchronous (and eventually an

asynchronous) manner.

A role is a qualifier assigned to an actor or a

team designating its competency in the organization

and so in the workflow process.

 Worklist and Work-item

A worklist is a "basket" where the activities

instances assigned to an actor or a team are

deposited, in order to be executed. Each activity

instance is materialized by a work-item. We assume

that each actor accesses to its own worklist to

perform individual activities. For collective

activities, we assume that each team has access to a

shared worklist called collective worklist.

 Workload

The workload of an actor (resp. a team) corresponds

to the sum of the activities durations performed or

affected to the actor (resp. the team).

Formulas for computing the individual workload and

the collective workload are given in the sub-section

5.1.

4 MODELLING STATIC

AND DYNAMIC ASPECTS OF

THE SYSTEM

In this section, we describe some static and dynmic

aspects of the system using UML diagrams. First,

we present a meta-model for defining workflow

processes, which serves as a framework for

modelling processes including individual and

collective parts of work.

4.1 The Workflow Meta-model

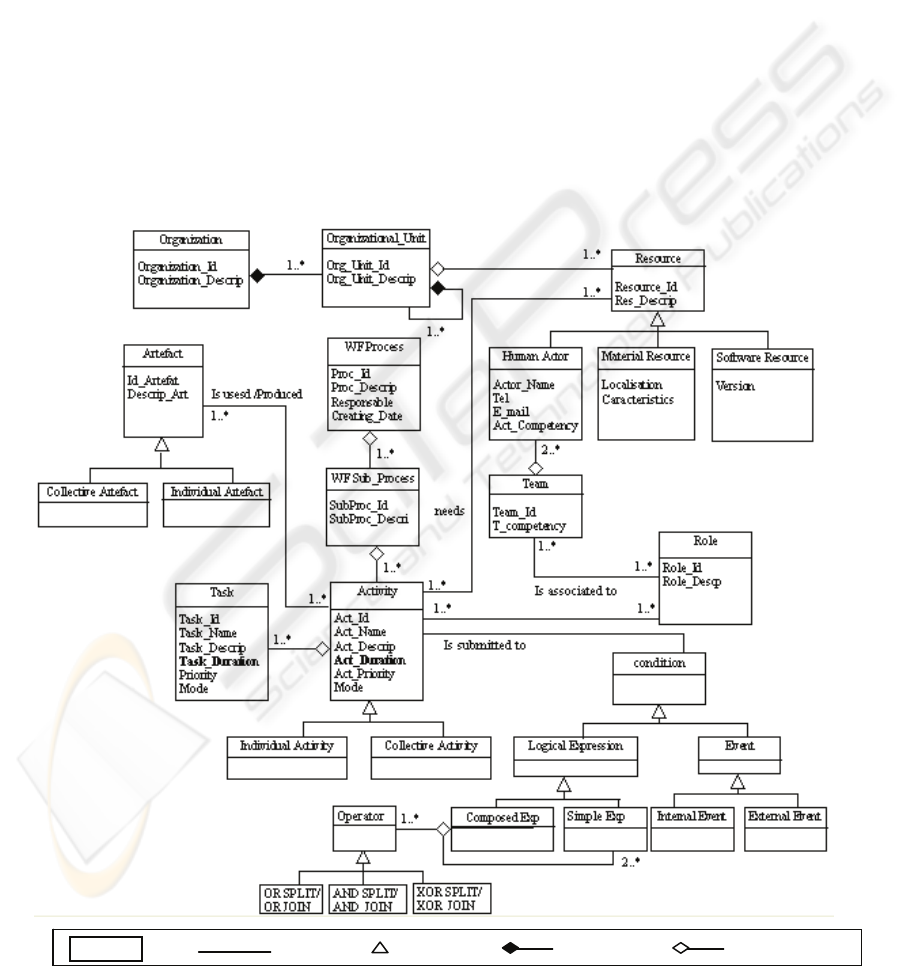

The meta-model shown in figure 4.1 highlights the

main concepts of workflow processes defined by the

WFMC

standard such as: actor, role, process, sub-

process, artefact, etc.. We add some concepts to

support the collective aspect of the process like:

team, collective activity, collective artefact,…etc.

The meta-model covers three aspects: the

organizational aspect, the process aspect and the

informational aspect which are detailed in the

following :

4.1.1 The Process Aspect

This aspect describes in one hand, the cutting of the

process in terms of sub-processes, activities and

tasks. The task is considered as the smallest entity of

work, (see figure 4.1).

In the other hand, this aspect focuses on the

intrinsic flow of control in the process, it shows the

states of activities and tasks (an activity is a

succession of executable tasks). An activity may be

triggered by one or several events, and submitted to

simple or complex conditions. The class "Activity"

is specialized in two sub-classes which are

"Individual activity" and "Collective activity". The

first one is a part of work that must be done by one

actor in a asynchronous way and which delivers an

individual result. The second one is a part of work

that must be done by a team in a synchronous and

possibly an asynchronous way, and delivers a

collective result.

4.1.2 The Informational Aspect

The informational aspect characterizes the

information system part containing all data needed

or produced by the execution of the process

instances. In the current work, we just exhibit the

concepts of individual and collective artefacts. Let’s

Workflow Managment Coalition : http ://www.wfmc.org

ICEIS 2008 - International Conference on Enterprise Information Systems

292

notice that an individual artefact is produced by an

individual activity but can be used by an individual

or a collective one. In the same way, a collective

artefact is produced by a collective activity but can

be used by an individual or a collective one.

4.1.3 The Organizational Aspect

This aspect represents the organizational units

composing the full organization. Furthermore, it

describes the affectation of resources (human actors,

material and software) to these units. To support

collective activities, we define the concept of team,

all members of a team take the same roles in the

process. A role is a concept designating the

competency of actors (or teams) in the organization.

Consequently, it favours a flexible distribution of

activities in the system.

In figure 4.2, we present a part of the workflow

meta-model at the runtime level, in order to exhibit

changes affecting some classes.

Some new classes like "Process Instance", "Sub-

pocess Instance", "Activity Instance" and "Task

Instance" are defined. They inherit from classes

"Process", "Sub-pocess", "Activity" and "Task",

respectively. Also, additional attributes such as

"Process_state", "Sub_proc state", "Act_state",

"Actor_state", "Team_state" are defined to describe

the changing state of dynamic objects in the system.

Furthermore, in classes "Actor" and "Team", we

define two attributes "Actor_wload" and

"Team_wload" in order to store the workload of

actors and teams at the runtime of the process.

Figure 4.1: Workflow Meta-mode.

aggregation: composition

: class

association : inheritance

MODELLING AND DISTRIBUTING INDIVIDUAL AND COLLECTIVE ACTIVITIES IN A WORKFLOW SYSTEM

293

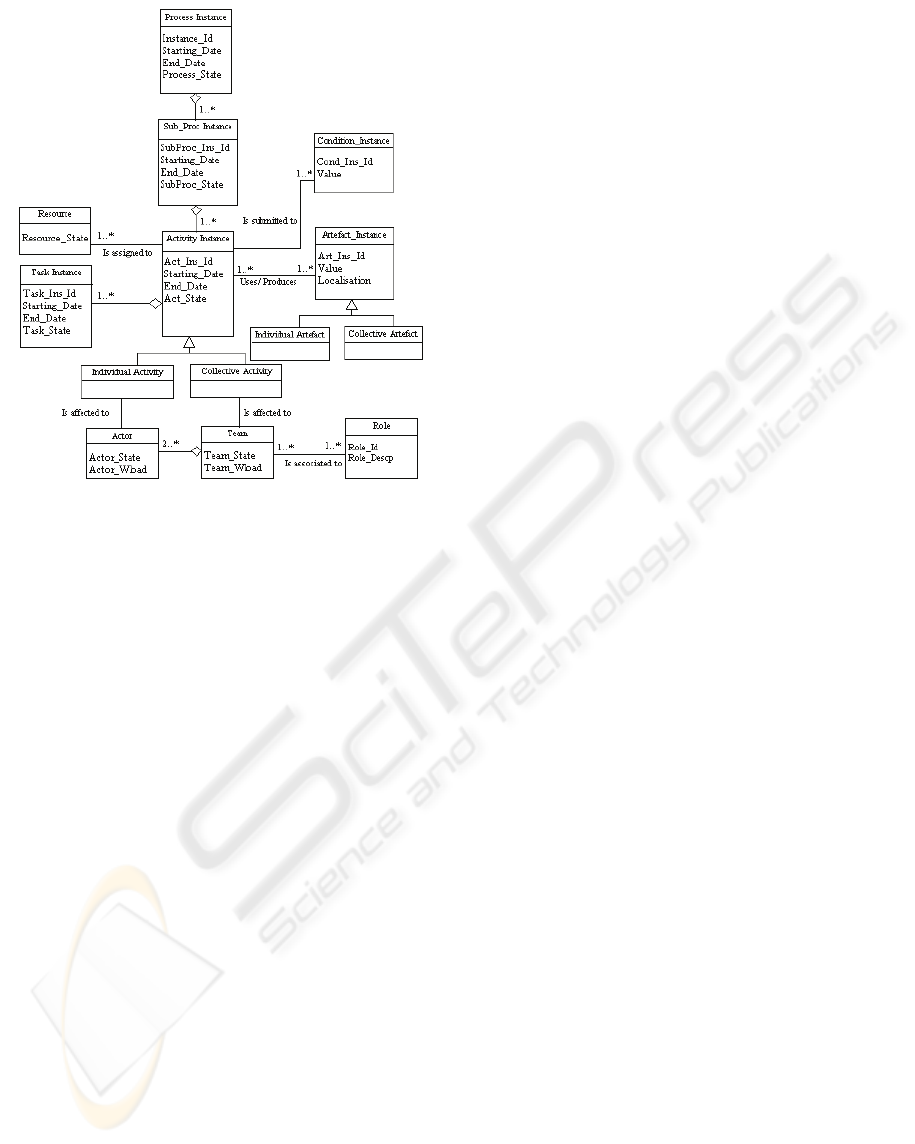

Figure 4.2: Part of the workflow meta-model at Runtime.

During the process execution, a collective activity

instance is affected to a team selected by the

resource manager, and an individual one is assigned

to an actor selected also by the resource manager.

We suppose that the necessary material and

software resources are available and assigned to the

activity instance for its execution. An activity

instance produces one or several artefact instances, it

is submitted to a well defined condition which has a

logical value.

In the following sub-section, we give some

dynamic views of the system.

4.2 Dynamic Aspects of the System

At any moment, an activity instance (or a task

instance) may be in one possible state "initiated",

"waiting", "active", "blocked", "completed" or

"resumed". We say that an activity is completed if

all the tasks composing it are performed.

When an activity instance is selected by the

workflow engine, it lies on the state "initiated", it

goes to the state "waiting" when it is placed in the

worklist of the selected actor or team (the selection

is done by the resource manager), it is in the state

"active" when its execution begins, until the end

when it goes to the state "completed". In exceptional

situations, an activity instance may pass throught

"blocked" and "resumed" states. The life cycle of a

sub-process is deduced from the life cycle of an

activity, since a sub-process is completed if all its

activities are completed. This can be generalized to a

process instance.

An actor is in a "free" state if his individual

worklist and the collective worklist of his team are

empty, he goes to the state "sought", if a workitem is

placed in his individual or collective worklist, he is

in the state "busy" when he removes a workitem

from its worklist and starts the execution of the

corresponding activity. In the same manner, a team

is in a "free" state if its collective worklist is empty

and all its members are "free". It goes to the state

"sought", if a workitem is placed in its collective

worklist, it is in the state "busy" when it removes a

workitem from its worklist and starts the execution

of the corresponding activity.

Figure 4.3 presents a sequence diagram

highlighting interactions between the resource

manager, the workflow engine and some objects

manipulated by the system, throughout the life cycle

of an individual or a collective activity instance.

To affect activities instances to actors or teams, a

resource manager applies an algorithm that we

describe in section 5. The algorithm operates at the

runtime level and aims to guarantee load balancing

of work for human actors in the system. The solution

is based on a property that we call Wload

designating a quantity of work (workload) assigned

to an actor or a team, and computed by aggregating

durations of activities affected, during a given period

which may be fixed by the organization managers.

Formulas for computing the workload of an actor

or a team are given in the sub-section 5.2.

If n is the number of activities in the process, and

m is the number of human resources, the algorithm

operates for each process instance in O(n* m).

5 AN ALGORITHM FOR

AFFECTING INDIVIDUAL AND

COLLECTIVE ACTIVITIES

5.1 Notations and Formulas

Ai : designates an actor identified by Ai

Actj : designates an activity instance

Tk : designates a team number k.

Roles(Ai) : designates the set of roles of actor Ai

Roles(Tk) :

designates the set of roles of the team Tk

Roles(Actj) designates the set of roles associated to

Actj (i.e roles capable of performing Actj)

WL (Ai) : is the individual worklist of the actor Ai.

WL (Tk) : is the collective worklist of team Tk.

ICEIS 2008 - International Conference on Enterprise Information Systems

294

Ind: Individual Collec: Collective

Figure 4.3: Modelling Interactions in the system.

Associate (Actj,Ai): indicates if the actor Ai can

execute the activity Actj. It’s defined as follows:

if ( Roles(Ai) ∩Roles(Actj) ≠ ∅)

Then Associate (Actj,Ai) = 1

Else Associate (Actj,Ai) = 0

In the same manner, we define an association

between activity Actj and a team Tk, as follows :

Associate (Actj,Tk) : indicates if a team Tk can

execute the activity Actj

if ( Roles(Tk) ∩Roles(Actj) ≠ ∅)

Then Associate (Actj,Tk) = 1

Else Associate (Actj, Tk) = 0

At the runtime of the process

Affect (Actj,Ai) = 1 if the activity instance Actj is

affected to actor Ai.

= 0 otherwise

Affect (Actj, Tk) = 1 if the activity instance Actj is

affected to the team Tk.

= 0 otherwise

Wload(Ai): designates the workload of an actor Ai,

it is computed according to the durations of

activities affected individually to the actor and those

affected collectively to his team (because he takes

part in performing collective activities of his team).

MODELLING AND DISTRIBUTING INDIVIDUAL AND COLLECTIVE ACTIVITIES IN A WORKFLOW SYSTEM

295

j = n1

Wload (Ai) = ∑

j=1

duration (Actj)

where Affect (Actj, Ai) =1

j = n2

+ (∑

j=1

duration (Actj)) /N

where Affect (Actj, Tk) =1 and Ai ∈Tk.

N is the number of members in the team Tk.

Formula 5.1: Computing a workload of an actor Ai.

Wload(Tk): designates the workload of the team

Tk, it is computed according to the durations of

collective activities affected to the team Tk and

those affected individually to its members.

j = n2

Wload (Tk) = ∑

j=1

duration (Actj)

where Affect (Actj, Tk) =1

j=n1

+ ( ∑

j=1

duration(Actj)) /N

where Affect (Actj, Ai) =1 and Ai∈Tk

N is the number of members in the team Tk.

Formula 5.2: Computing a workload of a team Tk.

5.2 Assumptions

All data manipulated by the algorithm are stored in a

data base which is accessible by the workflow

engine and the resource manager. For the algorithm,

we put two assumptions As1 ans As2:

As1 : Actors are organized by teams. Two actors

Ai1 and Ai2 appartain to the same team if

Roles (Ai1) = Roles(Ai2).

As2 : It is assumed that teams are "stored" in

queues, a queue Qk is constructed for all teams

having the same set of roles. At any moment, Each

queue is ranged in ascending order according to the

teams workloads. The team at the head of the queue

has a smallest (minimal) workload, in fact it is the

first candidate to do the next activity associated to its

roles.

5.3 The Algorithm

BEGIN

For each Activity instance Actj such as

Actj.state = "initiated"

Do Begin

If (Actj.Type = "Individual") Begin

Construct the set E of Actors Ai / Associate

(Actj, Ai) =1 /* i. e all actors who can

execute the activity Actj */

E = { Ai, where Associate (Actj, Ai) =1};

Construct the subset E_Wload_Min of E,

containing all actors in E having a minimal

workload.

E_Wload_Min={Ai, such as

Wload(Ai) = Min (wload(Ai)), Ai ∈ E}

If (|E_Wload_Min| =1) /* there is one

potential actor Ai whith a minimal workload */

Then

Affectation1 (Actj, Ai, Qk) ;

Else /* two or more actors Ai have a minimal

workload */

Begin

If exists an actor Ai ∈ E_Wload_Min

And Ai.State = "free"

Then Affectation1 (Actj, Ai, Qk) ;

Else

Begin

Select an actor Ai ∈ E_Wload_Min

Affectation1 (Actj, Ai, Qk) ;

End; End ; End;

Else /* Actj.type = "Collective" */

Begin

Construct the set F of teams Tk / Associate

(Actj, Tk) =1 /* i. e all teams who can

execute the activity Actj */

Construct the subset F_Wload_Min of F

F_Wload_Min = {Tk, and Wload (Tk)

= Min (wload(Tk)), Tk ∈ F}

If ( |F_Wload_Min| =1 ) /* there is one potential

team Tk which has a minimal workload */

Then

Affectation2 (Actj, Tk, Qk) ;

Else /* two or more teams Tk have a minima

workload */

Begin

If exists a team Tk ∈ F_Wload_Min

And Tk.State = "free"

Then Affectation2 (Actj, Tk, Qk) ;

Else

Begin

Select a team Tk ∈ F_Wload_Min

Affectation2 (Actj, Tk, Qk) ; End ;

End; End;

End;

END

/* functions Affectation1 and Affectation2 */

ICEIS 2008 - International Conference on Enterprise Information Systems

296

Affectation1 (Actj : Activity, Ai : Actor, Qk : Queue)

Begin

Add Actj in WL (Ai); Affect (Actj, Ai) =1 ;

Wload (Ai) = Wload (Ai) + duration(Actj);

If (Ai ∈ Tk) then

Wload (Tk) = Wload (Tk) + duration(Actj)/ N;

/* N is the number of the team members Tk */

Update (Qk) ; /* to maintain ascending order of

workloads */

End;

Affectation2

(Actj : Activity, Tk : Actor, Qk : Queue)

Begin

Add Actj in WL (Tk); Affect (Actj, Tk) =1 ;

Wload (Tk) = Wload (Tk) + duration(Actj);

For each actor Ai ∈ Tk,

Wload (Ai) = Wload (Ai) + duration(Actj)/N;

Update (Qk) ; /* to maintain ascending order of

workloads */

End;

6 CONCLUSIONS

In this paper, we were interested by modelling and

dispatching individual and collective work in

workflow systems. We have given some modelling

aspects based on a workflow meta-model which we

have extended with concepts like team, collective

activity and collective artefact, to support collective

aspects of work.

At the organizational level, we assume that

actors are organized by teams. A team is a restricted

group of individuals which have the same roles in

the process and so, can perform the same kind of

activities. We have proposed a simple algorithm for

distributing individual and collective activities to

actors in order to guarantee a load balancing work

between actors in the system.The algorithm is based

on a workload criteria, which is computed according

to the duration of activities.

As future works, we intend to implement the

algorithm on a workflow system in order to check its

efficiency in practice. We also aim to define an

approach for scheduling activities particularly in

exceptional situations such as blocking, annulation,

and re-affectation.

REFERENCES

Betbeder, M.-L.; Tchounikine, P (2003), « Structuring

collective activities with tasks and plans » Advanced

Learning Technologies. In Proceedings.of the 3rd

IEEE International Conference on Volume Issue 9-11

July 2003 Page(s): 432 – 433

M.-L.; Tchounikine, P (2003) «Symba: a Framework to

Support Collective Activities in an Educational

Context» in proceedings of the Intenational

Conference on Computers in Education (ICCE) dec 2-

5. Hong Kong. pp 88-196

Cabanac G., Chevalier M., Chrisment C., Julien C. (2006),

«L’architecture CoMED pour la gestion collective de

documents électroniques dans l’organisation »,

Rapport de recherche, IRIT/SIG- IUT Paul Sabatier,

Toulouse-France.

Draheim D. (2003) “A CSCW and Project Management

Tool for Learning Software Engineering”, 33rd ASEE/

IEEE Frontiers in Education Conference S2C-32 Nov

5-8, Boulder, CO.

Jin L. j., Casati F., Sayal M., Shan M. C. (2001), “Load

balancing in distributed workflow management

system”, in Proceedings of the ACM symposium on

Applied computing,.

Katoh H., Ben Lakhal N., Kobayashi T., Koyota H.

(2004), “OXTHAS: A Method for Balancing Loads in

Workflow Management Systems with Web Services”,

Department of Computer Science Tokyo, Japan ,

Technical Report, ISSN 0918-2802

Li H., Yang Y., Chen T.Y (2003) “Resource Constraints

Analysis of Workflow Specifications”. Journal of

Systems and Software, Dec.

Li H.,Yang Y. (2005): “Dynamic Checking of Temporal

Constraints for Concurrent Workflows” in journal of

Electronic Commerce Research and Applications

pages 124-142.

Lorino P. (2001) , « Recherche sur les organisations et

théorie de l'activité collective » Rapport de recherche,

Essec, France.

(Senkul & al, 2002): Senkul P., Kifer M., Toroslu I. H.

(2002), “A Logical Framework for Scheduling

Workflows Under Resource Allocation Constraints”,

in Proceedings of the 28

VLDB Conference, Hong

Kong, China.

(Soulier & Lewkowicz, 2004): Soulier E., Lewkowicz M.

(2004) “L’intégration des pratiques collaboratives

dans la modélisation des processus métier – Une

approche centrée humain de la conception du SI ”,

Rapport de recherche CNRS ISTIT/ UTT. Troyes-

France.

Takayama Y., Ghiglione E., Wilson J., Dalzie J. (2007),

«Collaborative Activity Human Workflow (CAHW) in

eResearch», Research report, Macquarie University-

Australia & Centre for Educational Technology &

Interoperability Standards (CETIS), UK.

Wang B. Y., Zhang S. M. (2004), “ Research on the load

balancing model in the distributed workflow

management system based on CORBA” in the

Proceedings of The 8th International Conference on

Computer Supported Cooperative Work in Design,

Vol.1 Page(s): 423 - 427 May 2004

MODELLING AND DISTRIBUTING INDIVIDUAL AND COLLECTIVE ACTIVITIES IN A WORKFLOW SYSTEM

297
