A NOVEL TERM WEIGHTING SCHEME FOR A FUZZY LOGIC

BASED INTELLIGENT WEB AGENT

Ariel Gómez, Jorge Ropero, Carlos León and Alejandro Carrasco

Department of Electronic Technology,University of Seville, Seville, Spain

Keywords: Term Weighting, Information Extraction, Information Retrieval, Vector Space Model, Intelligent Agent.

Abstract: Term Weighting (TW) is one of the most important tasks for Information Retrieval (IR). To solve the TW

problem, many authors have considered Vector Space Model, and specifically, they have used the TF-IDF

method. As this method does not take into account some of the features of terms, we propose a novel

alternative fuzzy logic based method for TW in IR. TW is an essential task for the Web Intelligent Agent we

are developing. Intelligent Agent mode of operation is also explained in the paper. An application of the

Intelligent Agent will be in operation soon for the University of Seville web portal.

1 INTRODUCTION

The spectacular advance of Information Technology

and especially of the internet has caused an

enormous increase of the available information for

the users. Nowadays, it is not only a question of

finding the information but of selecting the essential

one.

For a long time researchers have faced the

problem of managing this high amount of

information. IR research deals mainly with

documents. Achieving both high recall and precision

in IR is one of its most important aims. IR has been

widely used for text classification (Aronson et al.,

1994; Liu et al., 2001) introducing approaches such

as Vector Space Model (VSM), K nearest neighbour

method (KNN), Bayesian classification model and

Support Vector Machine (SVM) (Lu et al., 2002).

VSM is the most frequently used model. In VSM, an

object – i.e., a document - is conceptually

represented by a vector of keywords extracted from

the object, with associated weights representing their

importance in the document. Typically, the so-called

TF-IDF method is used for determining the weight

of a term (Lee et al., 1997). Term Frequency (TF) is

the frequency of occurrence of a term in a document

and Inverse Document Frequency (IDF) varies

inversely with the number of documents to which

the term is assigned. A usual formula to describe the

weight of a term j in document i is w

= tf

x idf

This formula has been modified and improved by

many authors to achieve better results in IR (Lee et

al., 1997; Liu et al., 2001; Zhao & Karypis, 2002;

Xu et al., 2003), but it was never taken into account

that some other aspects of keywords may be

important for determining term weights apart from

TF and IDF.

In this paper, we introduce a novel fuzzy logic

based Term Weighting (TW) scheme. This scheme

bears in mind some other features that we consider

important for calculating the weight of a term, taking

advantage of fuzzy logic flexibility.

2 INTELLIGENT WEB AGENT

In previous investigations, we have proposed the use

of a fuzzy logic based intelligent agent for

Information Extraction (IE) (Ropero et al., 2007).

This proposal came from the need of approaching to

the contents of an extensive set of accumulated

knowledge and it is based on the fact that a set of

objects may be qualified on closely related families.

The generality of the proposed method is a

consequence of the substitution of the objects for

their representations in Natural Language (NL).

Therefore, the same techniques may be applied to

sets of any nature and, particularly, to sets of

accumulated knowledge of any kind.

As described below, one of the most

controverted tasks that are held to build the

496

Gómez A., Ropero J., León C. and Carrasco A. (2008).

A NOVEL TERM WEIGHTING SCHEME FOR A FUZZY LOGIC BASED INTELLIGENT WEB AGENT.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 496-499

DOI: 10.5220/0001700604960499

 SciTePress

intelligent agent is TW. This paper describes how to

improve the intuitive TW method that was proposed

in our previous investigations by means of an

automated process.

2.1 NL Object Representation

As mentioned above, it is necessary to associate a

NL representation to every object in a set of

accumulated knowledge. The process consists of two

steps.

The first step is to build a question in NL, i.e. the

object. Its answer is the desired to be represented.

This is what we call a standard-question. Knowledge

Engineer’s expertise with regard to object field

jargon is important provided that the higher

knowledge the higher reliability of the standard-

questions proposed for the representation of the

object. This is because they are more similar to

possible user consultations. Nevertheless, it is

possible to re-define object representations or to add

new definitions analyzing user consultations and

studying their syntax and their vocabulary.

Consequently, the system can refine its knowledge

by means of the Knowledge Engineer.

The second step is keyword selection. These

keywords are selected from the words in a standard-

question whose meaning is strongly related to the

represented object.

2.2 Hierarchic Structure

The standard-question collection generated from the

whole set of knowledge must be organized in

hierarchical groups. This offers the advantage of

easier handling. The proposed method classifies

objects in a completely vertical way forcing every

object to be accessible in only one way across the

classification tree, that is to say, classifying it under

a unique criterion or group of criteria. Group

assignment decision is adopted by a Knowledge

Engineer on the basis of common subject matter.

This way objects are classified under an only root

tree structure where several levels are established.

Figure 1: Mode of operation of the system.

The mode of operation of the system is shown in

Figure 1. Table 1 shows an example of how

keyword extraction takes place.

Table 1: Keyword Extraction Example.

Term Content Example

Object

Information to

Retrieve

We introduce a novel

fuzzy logic based term

weighting scheme

Standard-

question

NL sentence Which is the topic of the

conference paper?

Keywords

Selected words

from Standard-

questions

Topic, conference, paper.

3 TERM WEIGHTING

3.1 Term Weighting Parameters

The classification of the objects in the set of

knowledge has to be performed according to the

structure and the criteria proposed above. A set of

keywords representing one or several objects is

available. In addition, the degree of belonging of

every keyword to the sets where it appears does not

have to be the same. Thus, there are several sets for

every level. Keywords can belong to more than one

set or subset in the same level. It is then necessary to

define a term weight to specify a keyword degree of

belonging for every set in every level. These weights

indicate the degree of belonging of every keyword to

the corresponding subset.

The relation between keywords and objects –

term weight – is determined on the basis of 4

parameters that are described below:

The first parameter is the number of objects in a

considered set containing a keyword. This parameter

is related to IR concept of Term Frequency (TF).

The more objects in a set a keyword belongs to, the

higher value for the corresponding term weight.

The second parameter is the number of objects in

different sets to the considered containing a

keyword. This parameter is related to IR concept of

Inverse Document Frequency (IDF). The more

objects in different sets a keyword belongs to, the

lower value for the corresponding term weight.

The third parameter is the degree of

identification of the object if only the considered

keyword is used. This parameter has a strong

influence on the final value of a term weight. The

more a keyword identifies an object, the higher

A NOVEL TERM WEIGHTING SCHEME FOR A FUZZY LOGIC BASED INTELLIGENT WEB AGENT

497

value for the corresponding term weight.

Nevertheless, this parameter creates two

disadvantages in terms of practical aspects when it

comes to carrying out a term weight automated and

systematic assignment. On the one hand, the degree

of identification is not deductible from any

characteristic of a keyword, so it must be specified

by the Knowledge Engineer. The assigned values

could be neither univocal nor systematic. On the

second hand, the same keyword may have a different

relationship with every object. The solution to both

problems is to create a table with all the keywords

and their corresponding weights for every object.

This table will be created in the phase of keyword

extraction from standard-questions. Imprecision

practically does not affect the working method due

to the fact that both term weighting and information

extraction are based on fuzzy logic, what minimizes

possible variations of the assigned weights. In the

example set in section 2.2, this parameter would rise

to a higher value for the word ‘topic’, but it would

not be so high for the word ‘conference’.

The fourth parameter is related to what we have

called join terms. In the example set in section 2.2,

‘conference paper’ would constitute two join terms.

Join terms have lower weights provided that the

appearance of these join terms is what really

determines the object with major certainty whereas

the appearance of only one the words may refer to

another object.

The consideration of these parameters

determines the weight of a keyword for every subset

in every level. We have to consider that some

systems size may change, so that it will be necessary

to modify the weights. For this reason, it is a good

idea to consider term weighting as an automated

task. As the rules for determining term weights are

not mathematically precise, this process is a good

candidate for a solution by means of fuzzy logic.

3.2 Term Weighting

In order to automate term weighting on the basis of

the above described parameters, a set of rules have

been defined. These rules are expressed on the

If…Then way. Once the values of the above

mentioned parameters have been determined, they

are taken as the input to a fuzzy logic engine which

considers the relative weight of each one and returns

a value which corresponds to proposed term weight.

Logically, the more inputs the engine has, the

more rules there are. Inputs can take three values:

Low, Medium and High. Outputs can take the values

of Low, Medium-Low, Medium-High and High.

Some examples of the defined inference rules are:

- If all inputs are Low, Then output is Low.

- If input2 is Low, input1 is Medium or High and the

others are High, Then output is Medium-Low.

- If input2 is High and one of parameters 3 and 4 is

High, Then output is Medium-High.

- If inputs 2, 3 and 4 are High, Then output is High.

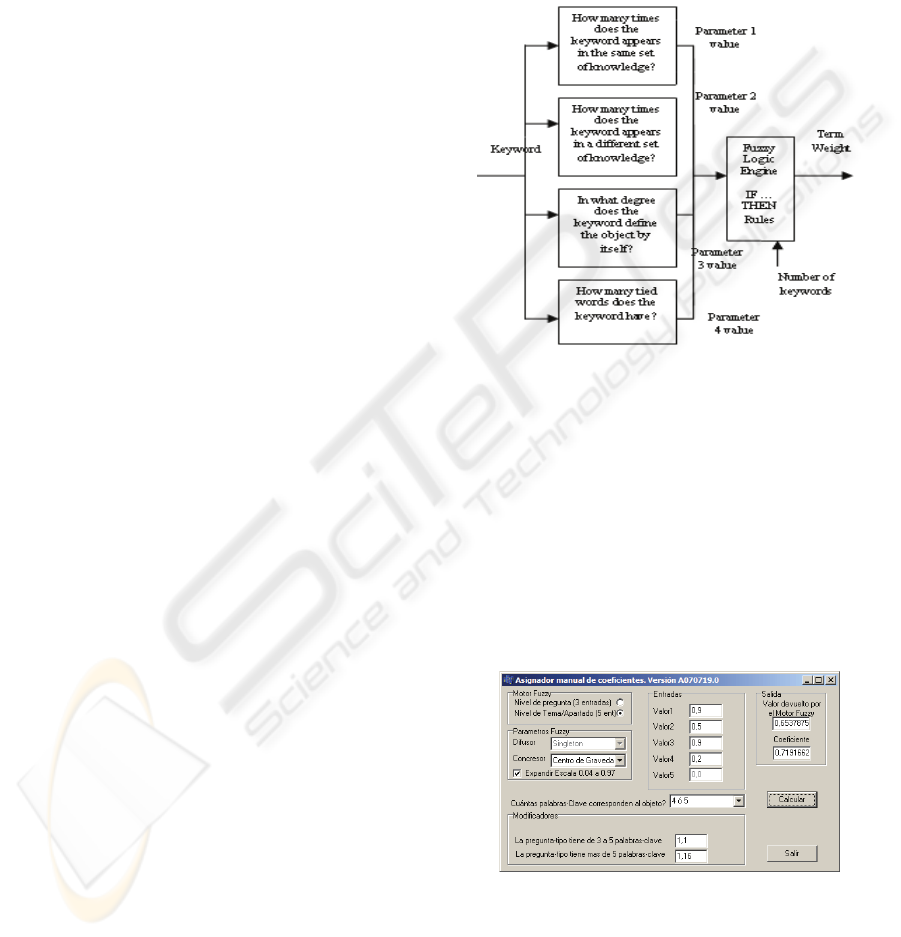

Figure 2: Term weighting process.

The possible combinations generate 81 rules.

The fuzzy engine uses triangular fuzzy sets, a

singleton fuzzifier and centroid defuzzifier. The

whole process is shown in Figure 2.

Besides, due to the fact that IE system uses two

fuzzy engines which do not work in the same way as

it depends on the number of keywords, (Ropero,

2007) the proposed weight suffers a later

modification depending on the number of keywords

that represent the object.

Figure 3: Term Weight Generator interface.

For the comparative study of the automatically

obtained weight values and the ones that were

proposed intuitively by the Knowledge Engineer, a

specific application has been developed. Weights are

generated according to the described parameters and

ICEIS 2008 - International Conference on Enterprise Information Systems

498

rules managing to fit fuzzy logic rules and verifying

that equivalent results are obtained. In Figure 3, the

interface for the term weight generator is shown.

4 RESULTS

As we did in (Ropero et al., 2007) tests are based on

the use of standard-questions as user consultations.

The first goal of these tests is to check that the

system makes a correct identification of standard-

questions with an index of certainty higher than 0.7.

The use of fuzzy logic makes it possible to identify

not only the corresponding standard-question but

others as well. This is related to recall, though it

does not match that exact definition (Ruiz &

Srinivasan, 1998). The second goal is to check if the

required standard-question is among the three

answers with higher degree of certainty. These three

answers should be presented to the user, with the

correct one among these three options. This is

related to precision. The obtained results are shown

in Table 2.

Table 2: Obtained Results.

Type of system First

answer

Among

the first

three

answers

Out of

the first

three

answers

Failed

answer

Intuitive Term

Weighting

77 %

20.5 %

1 %

1.5 %

Automatic Term

Weighting

79 %

17 %

2 %

Comparative tests between the results obtained

with the fuzzy logic engine and the ones proposed

by the Knowledge Engineer System are very

satisfactory as it is observed that rules fit correctly to

produce a few functionally equal coefficients to the

wished ones.

Besides, there are two important advantages for

the new method: on the one hand, term weighting is

automatic; on the second hand, the level of required

expertise is much lower, as there is no need for an

operator to know very much about the way fuzzy

logic engine works, but only to know how many

times a keyword appears in every set and the answer

to some simple questions – Does a keyword

undoubtedly define an object by itself? Is a keyword

tied to another one? - .

5 CONCLUSIONS

As said above, comparative tests between the results

obtained with the fuzzy logic engine and the ones

obtained by Knowledge Engineer System’s expertise

are very similar. Taking into account that there are

two fundamental advantages with our new method -

automation and less level of expertise required – we

must conclude that the method is suitable for Term

Weighting in Information Retrieval. This method

will be used for the design of a Web Intelligent

Agent which will soon start to work for the

University of Seville web page.

ACKNOWLEDGEMENTS

The work described in this paper has been supported

by the Spanish Ministry of Education and Science

(MEC: Ministerio de Educación y Ciencia) through

project reference number DPI2006-15467-C02-02.

REFERENCES

Aronson, A.R, Rindflesch, T.C, Browne, A. C., 1994.

Exploiting a large thesaurus for information retrieval.

Proceedings of RIAO, pp. 197-216.

Lee, D.L., Chuang, H., Seamons, K., 1997. Document

ranking and the vector-space model. IEEE Software,

Vol. 14, Issue 2, p. 67 – 75.

Liu, S., Dong, M., Zhang, H., Li, R. Shi, Z., 2001. An

approach of multi-hierarchy text classification

Proceedings of the International Conferences on Info-

tech and Info-net, 2001. Beijing. Vol 3, pp. 95 – 100.

Lu, M., Hu, K., Wu, Y., Lu, Y., Zhou, L., 2002. SECTCS:

towards improving VSM and Naive Bayesian

classifier. IEEE International Conference on Systems,

Man and Cybernetics, Vol. 5, p. 5.

Ropero J., Gomez, A., Leon, C., Carrasco, A. 2007.

Information Extraction in a Set of Knowledge Using a

Fuzzy Logic Based Intelligent Agent. Lecture Notes in

Computer Science. Vol. 4707, pp. 811-820.

Ruiz, M.E., Srinivasan, P., 1998. Automatic Text

Categorization Using Neural Networks. Advances in

Classification Research vol. 8: Proceedings of the 8th

ASIS SIG/CR Classification Research Workshop. Ed.

Efthimis Efthimiadis. Information Today,

Medford:New Jersey. 1998. pp 59-72.

Xu, J., Wang, Z. 2003. TCBLSA: A new method of text

clustering. International Conference on Machine

Learning and Cybernetics. Vol. 1, pp. 63-66.

Zhao, Y., Karypis, G., 2002. Improving precategorized

collection retrieval by using supervised term

weighting schemes. Proceedings of the International

Conference on Information Technology: Coding and

Computing, 2002. pp 16 – 21.

A NOVEL TERM WEIGHTING SCHEME FOR A FUZZY LOGIC BASED INTELLIGENT WEB AGENT

499
