SIMILARITY MATCHING OF BUSINESS PROCESS VARIANTS

Noor Mazlina Mahmod, Shazia Sadiq and Ruopeng Lu

School of Information Technology and Electrical Engineering, The University of Queensland

St Lucia, QLD 4072, Brisbane, Australia

Keywords: Similarity Matching, Business Process Variants, Flexible Work Practice.

Abstract: Evidence from business work practice indicates that variance from prescribed business process models is

not only inevitable and frequent, but is in fact a valuable source of organizational intellectual capital that

needs to be captured and capitalized, since variance is typically representative of preferred and successful

work practice. In this paper, we present a framework for harnessing the value of business process variants.

An essential aspect of this framework is the ability to search and retrieve variants. This functionality

requires variants to be matched against a given criteria. The focus of this paper is on the structural criteria

which is rather challenging as query process structures may have different levels of similarity with variant

process structures. The paper provides methods for undertaking the similarity matching and subsequently

providing ranked results in a systematic way, as well as a reference architecture within which the methods

may be deployed.

1 INTRODUCTION

Instance adaptation of business processes is an

ongoing issue due to various reasons such as the

frequent change in underlying business objectives

and operational constraints, and the emergence of

unexpected events that cannot be handled by

predefined exception handling policies, collaborative

and/or knowledge intensive work, and gap of

process models from preferred work practices.

Consequently, the execution of process instances

needs to be changed at runtime causing different

instances of the same business process to be handled

differently according to instance specific conditions.

The typical consequence of instance adaptation

is the production of a large number of process

variants. An executed process instance reflects a

variant of realization of process constraints, and

provides valuable knowledge of organization at the

operational level. There is evidence that work

practices at the operational level are often diverse,

incorporating the creativity and individualism of

knowledge workers and potentially contributing to

the organization’s competitive advantage. Such

resources can provide valuable insight into work

practice, help externalize previously tacit

knowledge, and provide valuable feedback on

subsequent process design, improvement, and

evolution.

In this paper, we propose building a repository to

systematically capture, structure and subsequently

deliberate on the decisions that led to a particular

design. The focus is on providing a means to search

and retrieve process variants on the basis of their

structural similarity to a user defined query. In the

subsequent sections, we will first present the related

work for this topic. We then discuss the overall

variant management framework. Then, in section 4

we will introduce the notion of structural similarity.

This notion is used to conduct the matching analysis

as well as the ranking computation process, which

are respectively presented. Finally in section 5, we

conclude with a summary of contributions of this

work and its interesting extensions.

2 RELATED WORK

The goal of the work presented in this paper is to

find an effective means to facilitate the search and

retrieval of process variants that have total or partial

structural match with a given process query i.e. we

want to produce an effective method to find the

degree of structural similarity and to compute the

structural similarity rank between the process

variants.

The notion of similarity matching analysis is in

general a hard problem. It has been addressed from

234

Mazlina Mahmod N., Sadiq S. and Lu R. (2008).

SIMILARITY MATCHING OF BUSINESS PROCESS VARIANTS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 234-239

DOI: 10.5220/0001691002340239

 SciTePress

various aspects e.g. string matching (Koudas et al,

2004) image and video matching (Shen et al, 2007),

and graph matching (Chen et al, 2005). For business

processes, notable work has been reported on

process equivalence (van der Aalst et al, 2006) that

takes into account execution sequences to conduct

the similarity analysis. Another approach is

presented in (Chen et al, 2005) to detect semantic

business process variants using ontology approach.

In (Lu & Sadiq, 2006), a selective reduce

technique has been introduced to reduce process

variants that can be visually compared to conduct

the structural matching between the process variant

and the process query. This process graph reduction

technique introduced in (Sadiq & Orlowska, 2000)

will be used and applied in the structural matching

analysis carried out by this paper as well. More

over, the flows counting algorithm introduced in (Lu

& Sadiq, 2006) is enhanced and modified to produce

an improved algorithm to compute the total

structural match and the different types of partial

structural match as presented in section 4.

3 VARIANT MANAGEMENT

A prerequisite to utilizing process variance for the

benefit of instance adaptation and process

improvements is the creation of the variants, such

that they can described, captured and eventually

utilized. We rely on an instance adaptation

framework (Sadiq et al, 2005) based on the principle

of late modelling (Weber et al, 2007) to achieve a

systematic creation of process variants. The

framework allows variants to be created under well

defined but minimal constraints, thus ensuring that

variant representations do not have drastic

differences that makes querying and eventually

learning from them practically infeasible.

Process Variant Repository (PVR) provides a

well-formed structure to store past process designs,

as well as an instrument to utilize process variants as

an information resource (Lu & Sadiq, 2006). The

capture of executed process variants in the

repository and the subsequent retrieval of preferred

process variants are the two major functions of PVR.

Fig. 1 presents an overview of PVR reference

architecture, details in (Lu & Sadiq, 2007).

We observe that a process variant at least

contains information from the following dimensions:

Structural dimension contains the process model

based on which the process instance is executed.

Behavioral dimension contains execution

information. Contextual dimension contains

descriptive information (annotations) from the

process modeller.

In this paper, we primarily focus on the search

and retrieval of variants based on its structural

dimension. However, there is evidence (Lu & Sadiq,

2007) that multi-criteria search and retrieval can

allow further refinement.

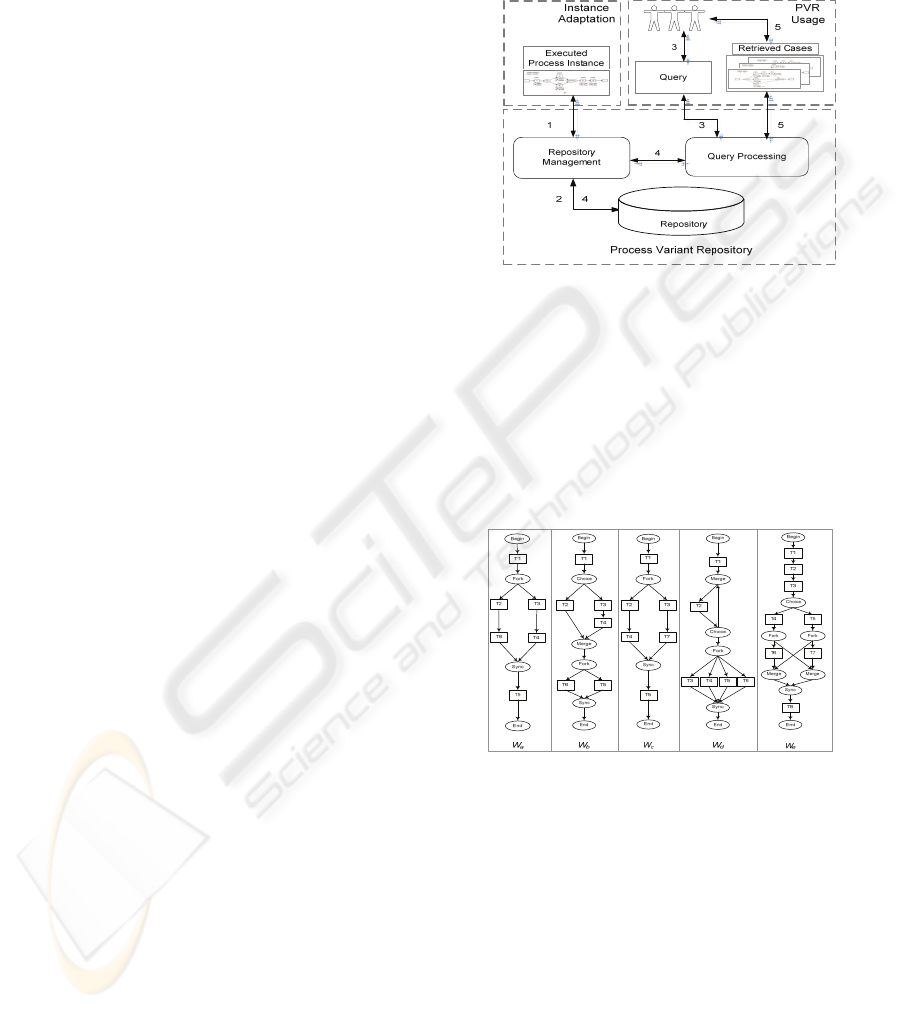

Figure 1: Reference architecture of PVR.

Definition 1 (Process Model). A process model W

is a pair (N, E), which is defined through a directed

graph consisting a finite set of nodes N, and a finite

set of flow relations (edges) E⊆N×N. Nodes are

classified into tasks T and coordinators C, where

N=C∪T, and C∩T=∅. Task is the set of tasks in W,

and C contains coordinators of the type {Begin, End,

Fork, Synchronizer, Choice, Merge}, which have

typical workflow semantics.

Figure 2: Example process models of process variants.

Figure 2 presents example process models of

different process variants. Suppose these process

variants belong to a network diagnosis process in a

Telco company as described above, and tasks

T1,…,T8 correspond to a list of network testing

activities. For example, T1 represents “Send Test

Message”, T2 represents “Test Hub201”, and T3

“Test ExchangeA30” etc. In the rest of this paper, we

omit the full task names for clarity.

Definition 2 (Process Variant). A process variant V

is defined by (id, W, B, T, C, M),

where

– id is the identifier for the process variant;

SIMILARITY MATCHING OF BUSINESS PROCESS VARIANTS

235

– W is the process model (N, E) for V defined on

the task set T⊆N;

– B is a set of behavior properties defined for the

process which may include execution sequences,

resources utilized, time durations etc (see (Lu &

Sadiq, 2007)0 for more details on behavior

properties for variants)

– T={T

, …, T

} is the set of tasks in V. Each task

may also contain task level behavior properties.

– C is an annotation that textually describes the

design of the variant;

– M is the set of modeler(s) who participated in the

instance adaptation for V.

The schema for process variants contains instance

level (id, W, B, T, C, M) and task level features (T).

The id can be combined with the variant symbol V,

i.e., V

denotes variant V with the feature (id, 10).

Occasionally we omit the subscript i for V when

there is no ambiguity. Each element in V is referred

to as a feature of V. In this way, the schema of

process variant is defined by a list of features from

structural, behavioral and contextual dimensions.

The process variant repository is the set of all

collected process variants, that is PVR={V

, …, V

4 STRUCTURAL MATCHING

The notion of structural similarity for business

processes is rather involved. There have been some

notable attempts to define structural relations, e.g.

see equivalence, subsume and transform relations in

(Sadiq & Orlowska, 2000), as well as similarity

based on execution sequences in (van der Aalst et al,

2006). Due to the labelling of nodes in process

graphs, as well as the specialized semantics of

modelling constructs, the equivalence notion in

process graphs is somehow computationally

simplified.

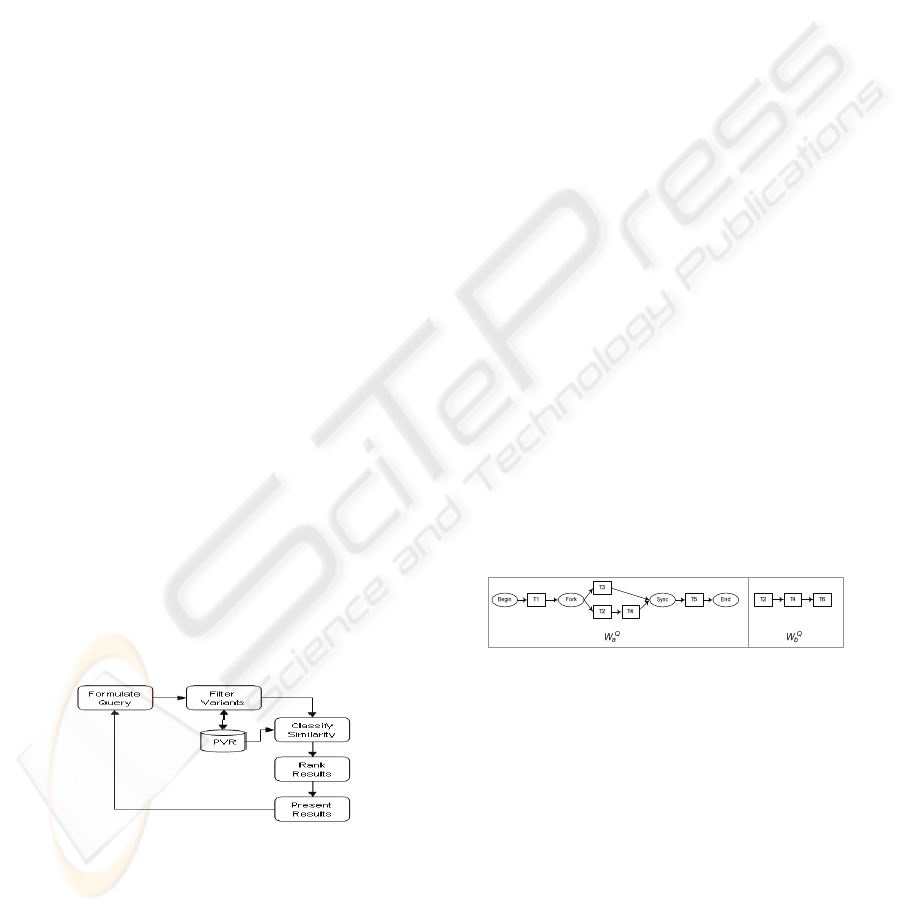

Figure 3: Approach for Structural Matching.

However, the question of degree of similarity still

remains. For example, two graphs may have same

task set, but arranged in different sequences (A, B, C

vs. A, C, B). Should such a difference be classified

as “similar”. If yes, to what degree. In the

remaining section, we will present our approach to

address the above question in a systematic way as

summarized in Fig. 3.

4.1 Formulate Query

A query is a structural expression of search criteria

representing partial or complete description for a

process variant, or multiple process variants sharing

similar features. Unlike traditional query systems

however, the search criteria for process variants may

also include reference to complex structural features

as well as multi-dimension features e.g., tasks T1, T2

and T3 were performed by a senior engineer in

sequence, and finished execution within 1 day (cf.

in Fig. 3), or having execution sequence <T1, T3,

T4, T5, T6> and tasks T5 and T6 were in parallel

branches in the process model (cf. W

in Fig. 2).

We propose that the structural query requirement

be expressed in a way that is in like with the query-

by-example (QBE) paradigm, where a process

model W

is presented in the query containing the

desired structural features, and the objective is to

retrieve all process variants with a process model W

similar to W

. W

can resemble a complete process

model (cf. W

in Fig. 4), which specifies the exact

structure required for the process variants to be

retrieved; or a partial process model (cf. W

in Fig.

4), which contains a fragment of the process model

characterizing the desired structural features to be

retrieved. Based on the above discussion, we define

the schema for a query as follows:

Definition 3 (Query). Let F be the set of all features

in PVR. A query Q is defined by the set of query

features {F

, …, F

}, where ∀F

∈F, F

corresponds to a feature defined in schema of V.

Figure 4: Example of structural query features, W

as a

complete process model and W

as a partial process

model.

As mentioned before, the focus of this paper is on

the structural dimension, and hence in the discussion

below, the query feature is assumed to represent the

process model W, and set of tasks T from the variant

schema (id, W, B, T, C, M).

4.2 Filter Variants

As variant repositories can potentially be very large,

we propose a pre-processing step through which

variants that are totally dissimilar to the submitted

query can be filtered out of the similarity analysis

ICEIS 2008 - International Conference on Enterprise Information Systems

236

and ranking steps. The filtering process consists of

two steps. Firstly, task set T for each variant is

compared with the task set of the submitted query,

and only those variants are filtered out where the

intersection of the two sets is above a certain

threshold.

Upon this filtered set of variants, a method of

select reduce (Lu & Sadiq, 2006) is applied, which

allows process variant models to be reduced to

graphs containing only the tasks present in the

query, while preserving the structure of the original

variant model.

Figure 5: Reduced process models against query feature

Figure 5 provides an illustration of the select reduce

method for the variants given in Fig. 2.

The select reduce method provides a visual

capability of identifying equivalent or similar

variants. Although in large variant repositories, the

visualization will not assist and hence further

analysis is required as described below.

Variants may have different levels of similarity

to the given query. The overview of the structural

similarity types is described in Fig. 6.

Figure 6: Types of Structural Similarity.

“Total Match” type represents the process variant

that is totally similar to the process query (e.g. RW

in Fig 5). Meanwhile, “Partial Match” type

represents the process variant that is similar to the

process query.

The partial match is split into two categories where

“All Tasks Exist” and “Partial Tasks Exist”. “All

Tasks Exist” represents the reduced process variant

that consists of all of the query tasks. Meanwhile

“Partial Tasks Exist” represents the reduced process

variant that contains only some of the query tasks.

Subsequently, each of these two categories of the

partial match type is divided into two more specific

categories where SC indicates “Same Construct” and

DC “Different Construct”. The ATSC category

signifies that the reduced process variants are

exactly similar to the process query. The PTSC

category denotes that although the reduced process

variant does not contain all the tasks existed in the

process query, however, the structural constructs are

similar to the process query. Similarly ATDC and

PTDC refer to the different structural constructs of

the reduced process variant against the process

query.

4.3 Rank Results

Except for the case of the “Total Match” all other

cases, namely ATSC, ATDC, PTSC and PTDC will

need to be somehow ranked to determine the degree

of structural similarity with the submitted query.

Before we proceed with the structural similarity rank

computation for partial match, some structural

elements of process variants should be considered

and should be assigned a dissimilarity weight/degree

(DD) in order to distinguish the difference between

the types of structural elements and to specifically

formulate the computation.

In this paper, we only focused on selected

structural elements in order to illustrate the rank

computation, namely (1) extra task, (2) extra fork or

(3) synchronizer, (4) missing task and (5) missing

fork or (6) synchronizer within process variants in

comparison to a process query.

The following sections present a justification or

rationale of the dissimilarity degree (DD) of various

structural elements representing the dissimilarity of

the process variant. DD will be applied in the

structural similarity rank computation algorithm for

partial matches later.

(1) Dissimilarity Element: Extra Task:

The DD

of 0.5 is given to every extra task that exists in the

process variant under the intuition that if the task is

extra, the process variant might be a bit less

effective (i.e. the process will have to run more tasks

or unnecessary tasks, thus it will consume more

resources).

(2) Dissimilarity Element: Extra Fork:

The DD

of 0.8 is given to every fork split that exists in the

process variant. An extra fork split contributes more

DD than the extra task because each fork split

involves a different strategy in process execution.

(3) Dissimilarity Element: Extra Synchronizer:

The DD of 1.0 is given to every extra Synchronize

Similarity Type

Total Match Partial Match

All Tasks Exist

Partial Tasks Exist

Same Construct

(ATSC)

Different Construct

(ATDC)

Same Construct

(PTSC)

Different Construct

(PTDC)

SIMILARITY MATCHING OF BUSINESS PROCESS VARIANTS

237

Coordinator existing in the process variant. The

higher weight is assigned to the extra synchronizer

as it contributes more DD than the extra task and

fork Coordinator since rationally the synchronizer

may involve more than a task with several incoming

transitions.

(4) Dissimilarity Element: Missing Task:

The

DD of 1.5 is given to every missing task in process

variant because we believe that if a task is missing, it

contributes more DD than the extra task and the

extra fork/synchronizer coordinator because

reasonably if a task is missing, the process variant

will not execute the task which was deemed

important for the query formulation.

(5) Dissimilarity Element: Missing Fork:

The

DD of 1.8 is given to every missing fork split in

process variant since a missing fork contributes

more DD than the missing task as logically some

important strategies in process execution are missing

that might lead to a different result.

(6) Dissimilarity Element: Missing Synchronizer:

The DD of 2.0 is given to every missing

synchronizer in process variant because if any

synchronizer is missing, it contributes more DD than

the missing task and fork split since logically the

synchronizer may involve dissimilarity of due to

other branches in addition to the differences found in

above two cases.

To compute the structural similarity rank of

partial match, we assume that the filtering (based on

task sets and select reduce) as well as the

classification of similarity type (i.e. ATSC, ATDC,

PTSC, PTDC), has been completed. Then, we

formulate a different computation formula for every

partial match category by combining the DD

calculation and flow match count to provide a

reasonable structural similarity rank for every partial

match category. Intuitively, it can be observed that

the ATSC rank should be the highest partial match

rank, the ATDC and PTSC rank will be in the next

and the PTDC rank should be lowest rank amongst

the partial match categories.

This algorithm is used to compute the rank of

structural similarity between process variants. The

total match is computed based on the flow counting

of the same task type. For partial match, instead of

calculating only the matching flows between the

process variant, the DD of different structural

elements as introduced earlier should be included to

specifically formulate the computation in order to

distinguish the different types and different levels of

structural similarity between the process variants.

For ATSC computation presented in the

algorithm, the DD calculation for extra tasks, forks

and synchronizers are included. The ATSC

computation is enhanced and added with the DD

calculation for missing fork and synchronizer to

compute ATDC partial match. Meanwhile, the rank

computation for PTSC and PTDC has included the

DD calculation for all missing and extra tasks, forks

and synchronizers.

Structural_Similarity_Rank_Computation

Input reduced process graph P, query graph Q

Output Structural Similarity Rank

rank ← 0

totalMatch ← 0

count ← 0

for each task t ∈ T[P], taskType[t] ∈ {task, coordinator} do

if InFlows[t] ∈ F[Q] then

count ← count + 1

end if

if OutFlows[t] ∈ F[Q] then

count ← count + 1

end if

matchFlow = 100% ∗ (count / |F[P]| )

if matchFlow =100% then

totalMatch = matchFlow

else if T[P]

∩

T[Q] > 0

matchTask = (#(T[P]

∩

T[Q]) / T[P] )* 100%

end if

if taskType[t] = task

extraTask = (#(t[P]-T[Q]) *0.5 / T[P]

end if

if taskType[t] = coordinator and

coordinatorType[t] = fork

extraFork = (#(t[P]-T[Q]) *0.8 / T[P]

end if

if taskType[t] = coordinator and

coordinatorType[t] = Synchronizer

extraSync = (#(t[P]-T[Q]) *1.0 / T[P]

end if

missingTask

← 0

missingFork

← 0

missingSync

← 0

for T[Q] - T[P] do

if taskType[t] = task

missingTask = (#(t[Q]-T[P]) *1.5 / T[Q]

end if

if taskType[t] = coordinator and

coordinatorType[t] = fork

missingFork = (#(t[Q]-T[P]) *1.8 / T[Q]

end if

if taskType[t] = coordinator and

coordinatorType[t] = Synchronizer

missingSync = (#(t[Q]-T[P]) *2.0 / T[Q]

end if

return

(matchFlow + matchTask) – ((extraTask + extraFork + extraSync) *

(# (T[P]-T[Q])/ (T[P] *100%)) – ((missingTask + missingFork +

missingSync) * (# (T[Q]-T[P])/ (T[Q] *100%))

4.4 Present Results

Using the above approach, the user can be presented

with a concrete set of results from the process

variant repository. In Table 1, we provide an

example based on the variants presented in Fig 2 and

the query W

presented in Fig 4. It is assumed that

the threshold for task set intersection between the

variants and query graph is set at 5 (i.e.

#(T[P]

∩

T[Q]) ≥ 5, thus all variants listed in Fig 2

will be included in the first filtering step (see section

4.2).

ICEIS 2008 - International Conference on Enterprise Information Systems

238

Table 1: Result of Structural Similarity Rank

Computation.

Variant Similarity Rank

80.47%

74.22%

35.79%

28.1%

8.63%

Based on the rank result in Table 1, process variant

(ATSC) carries the highest structural similarity

rank which is 80.47%. The reasons for the high rank

can be visually observed from Figs 2 & 5. A more

subtle difference exists between W

and W

. The

constructs of W

seems visually more similar to W

than the process variant W

. However, if we look

closer, the matching flows between process variant

and the process query W

are higher. For

example, there is a matching flow from task T4 to

synchronizer in process variant W

and there is also

a matching flow from fork coordinator to task T3 but

there is no such matching flows in process variant

, and thus the higher structural similarity rank for

5 CONCLUSIONS

It is a challenging issue to find the degree of

structural similarity between process variants and a

given process query due to the complexity of the

process graph semantics and different levels of

structural similarity and partial match criteria that

need to be taken into account. We have proposed a

means to facilitate the search and retrieval of process

variants that satisfy the structural criteria of a given

process query. The dissimilarity degree

rationalization introduced in this paper gives an

intuitive weighting scheme to compute the different

rankings between the process variant.

The results of the proposed method can be

enhance the capability of process designers in their

instance adaptation and process improvement

endeavours due to the additional knowledge of

precedent preferred and successful work practice

embedded in process variants. In our future work we

intend to utilize the proposed algorithm within a

larger framework of multi-criteria. Although these

extensions hold several challenges, it is envisaged

that by providing querying capabilities across

various properties of the variants will further

improve the experience of process designers.

REFERENCES

Aalst, W. M. P. van der, Alves de Madeiros, A.K. and

Weijters, A. J. M. M., Process Equivalence:

Comparing Two Process Models Based on Observed

Behaviour, BPM 2006, vol. 4102, 2006, pp. 129-144.

Chen, L., Gupta, A., Kurul, M. E., Efficient Algorithms for

Pattern Matching on Directed Acyclic Graphs, IEEE

Int. Conf. on Data Engineering (ICDE), Tokyo, Japan,

March. 2005.

Koudas, N., Marathe , A., Srivastava D., Flexible string

matching against large databases in practice. Proc. of

the 13

VLDB, Morgan Kaufmann, 2004.

Koschmider, A., and Oberweis, A., How To Detect

Semantic Business Process Model Variants?, In Proc.

Of SAC ‘07, Korea, 2007.

Leymann, F. and Altenhuber W., Managing Business

Processes as an Information Resource, IBM Systems

Journal, vol. 33, 1994, pp. 326-348.

Lu, R., and Sadiq, S., On the Discovery of Preferred Work

Practice through Business Process Variants. 26th

International Conference on Conceptual Modeling (ER

2007) Nov 05-09, 2007.

Lu, R., and Sadiq, S., A Reference Architecture for

Managing Business Process Variants. Proceedings of

the 9th International Conference on Enterprise

Information Systems (ICEIS2007) Funchal, Portugal,

2007.

Lu, R., and Sadiq, S., Managing Process Variants as an

Information Resource. 4th International Conference

on Business Process Management (BPM2006),

Vienna, Austria, 2006.

Sadiq, S., Sadiq, W., Orlowska, M., A Framework for

Constraint Specification and Validation in Flexible

Workflows. Information Systems Vol.30/5, Jul 2005.

Sadiq,W. and Orlowska, M.E., Analyzing Process Models

using Graph Reduction Techniques, Information

System, vol.25,no.2, 2000, pp.117-134.

Shen, H.T., Zhou, X., Huang, Z., Shao, J., and Zhou, E.,

UQLIPS: A Real-time Near-duplicate Video Clip

Detection System, In Proceedings of 33rd VLDB,

2007. (demo)

Weber , B., Rinderle, S., Reichert, M., Change Patterns

and Change Support Features in Process-Aware

Information Systems. CAiSE 2007: 574-588.

SIMILARITY MATCHING OF BUSINESS PROCESS VARIANTS

239
