COMBINATORIAL BUSINESS TRANSACTIONS

A Way for Increasing the Flexibility and Reliability of Electronic Marketplaces

Juha Puustjärvi

Lappeenranta University of Technology, Skinnarilankatu 34, Lappeenranta, Finland

Keywords: e-Business, B2B, Web services, advanced transaction models.

Abstract: Electronic marketplaces are virtual places that reside somewhere in the Internet. Through electronic market

places buyers and sellers are able to interact with each other inside an architecture that is easy to use and

maintain. Recent research on electronic marketplaces and electronic auctions has focused on new formats

such as on negotiation based business transactions, combinatorial business transactions and multi-attribute

business transactions. These new formats of business transactions set new requirements on the software that

runs the business transactions in the marketplace. Unfortunately due to the lack of appropriate transaction

models and software that support them these new forms of business transactions cannot be processed in a

transactional way. This is regrettable since only by guaranteeing transactional properties these business

transactions can be processed in a reliable and correct way. In this article we introduce a new transaction

model, called Combinatorial business transaction, which is tailored for supporting a variety of new formats

of business transactions processed in electronic marketplaces. Within Combinatorial business transactions

failure atomicity is achieved through splitting the Combinatorial transaction into two successive

transactions, called reservation transaction and certification transaction, and execution atomicity is enforced

through semantic locks.

1 INTRODUCTION

In electronic business buyers and sellers should be

able to interact with each others inside an

architecture that is easy to use and maintain

(

Wurman, 2005). Electronic market-places are an

interesting approach to achieve this goal by bringing

together business in the web. Further the greatest

benefits lie in cost reduction for buyers and sellers.

Technically, an electronic marketplace is a virtual

place that resides somewhere in the Internet. They

can provide several types of business processes

depending upon their target audience. Recent

research on electronic marketplaces and auctions has

focused on new formats such as on negotiation

based business transactions, combinatorial business

transactions and multi-attribute business

transactions. In a negotiation based business

transaction dealing is made by first requesting the

offer(s) and then making the deal. In combinatorial

auctions bidders are allowed to place offers on sets

on items whereas in multi-attribute auction price is

not the only negotiable parameter.

The new formats of business transactions set new

requirements on the software that runs the business

transactions in the marketplace. Unfortunately due to

the lack of appropriate transaction models and

software that support them these new forms of

business transactions cannot be processed in a

transactional way. This is regrettable since only by

guaranteeing transactional properties these business

transactions can be processed in a correct and

reliable way. By the transactional properties

(Bernstein et al., 1987) we (as well as many other

articles of transaction processing) refer to failure

atomicity and execution atomicity. Failure atomicity

means that all or none of the tasks of the transaction

are executed while execution atomicity means that

concurrent transaction instances will not interfere

with each others (Puustjärvi, 2001).

Traditional transactions (usually called ACID-

transactions) (Lynch, 1983) are supported by

database management systems. This transaction

model has evolved over time to in-corporate more

complex transaction structures and to selectively

relax the failure atomicity and execution atomicity

(isolation) properties (Puustjärvi, 2006). The failure

477

Puustjärvi J. (2008).

COMBINATORIAL BUSINESS TRANSACTIONS - A Way for Increasing the Flexibility and Reliability of Electronic Marketplaces.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 477-482

DOI: 10.5220/0001513504770482

 SciTePress

atomicity property is usually enforced by some form

of compensation

(Garcia-Molina, 1983).

A problem with compensation is that other

transactions may access dirty (i.e., uncommitted

data). Accessing dirty data is acceptable in many

applications (Puustjärvi, 2004). However, accessing

dirty data in electronic marketplaces may cause

serious consequences (e.g., selling the same products

twice), and therefore advanced transactions models

based on compensating transactions are not suitable

for electronic marketplaces

In this article we introduce a new transaction

model, called Combinatorial business transaction,

which is tailored for supporting (in a transactional

way) a variety of new formats of business

transactions processed in electronic marketplaces. In

particular, Combinatorial business transactions can

be used for three purposes:

• achieving the atomicity of the purchases of

many products,

• providing alternative products for the

products that are not available, and

• for supporting competitive offers.

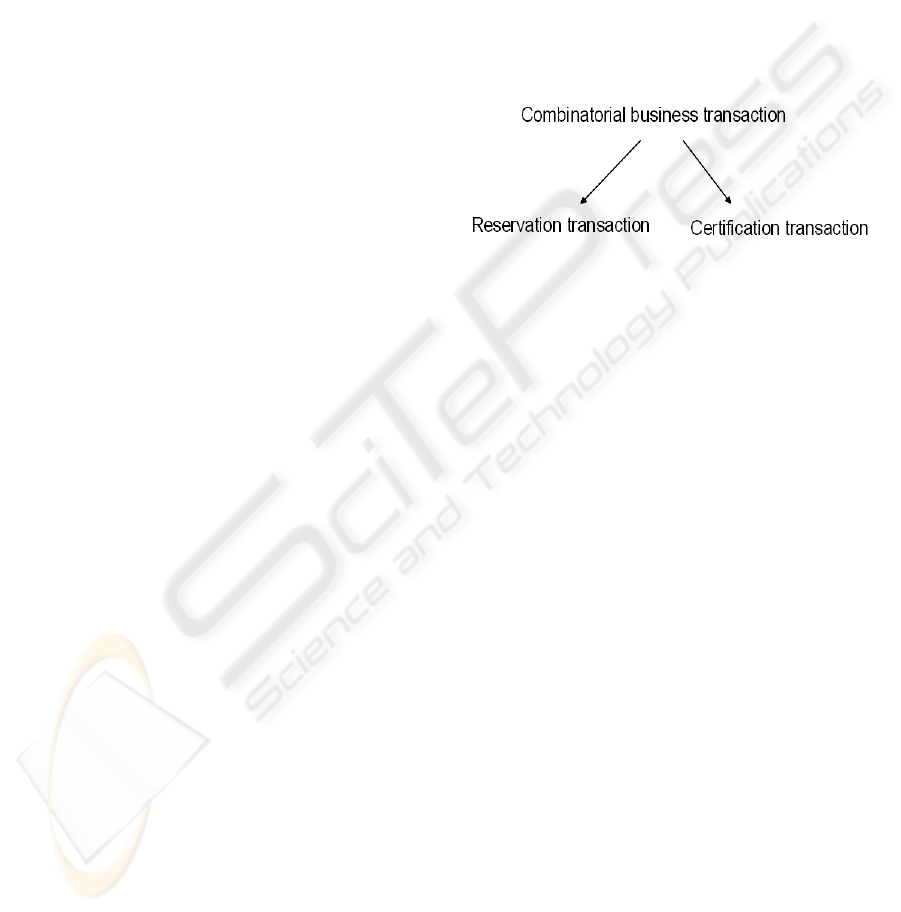

Within Combinatorial business transactions

failure atomicity is achieved through splitting the

Combinatorial transaction into two successive

transactions, called reservation transaction and

certification transaction, and execution atomicity

(i.e., concurrency control) is enforced through

semantic locks.

The rest of the paper is organized as follows.

First, in Section 2, we present the operational model

of the marketplace that we are developing. Then, in

Section 3 we motivate the use of Combinatorial

business transactions by a travel planning example.

In Section 4, we focus on the transactional properties

of the Combinatorial business transaction model.

First, in Section 4.1, we present how the execution

atomicity can be achieved by using semantic locks,

and in Section 4.2, we present the protocol which

ensures the failure atomicity of Combinatorial

business transactions. Finally, Section 5 concludes

the paper by discussing the advantages and

limitations of the Combinatorial business

transactions.

2 THE OPERATIONAL MODEL

OF THE MARKETPLACE

Our model of electronic marketplace has three types

of users: sellers, buyers and the system administrator

(Figure 1). Sellers and buyers communicate with the

market-place through Web service interfaces

(Newcomer, 2002; Daconta et al., 2003). The

function of the Buyer application and Seller

application is to carry out the protocols needed to

support Combinatorial transactions (discussed in

Section 4). In addition, they provide user friendly

interfaces foe accessing the marketplace.

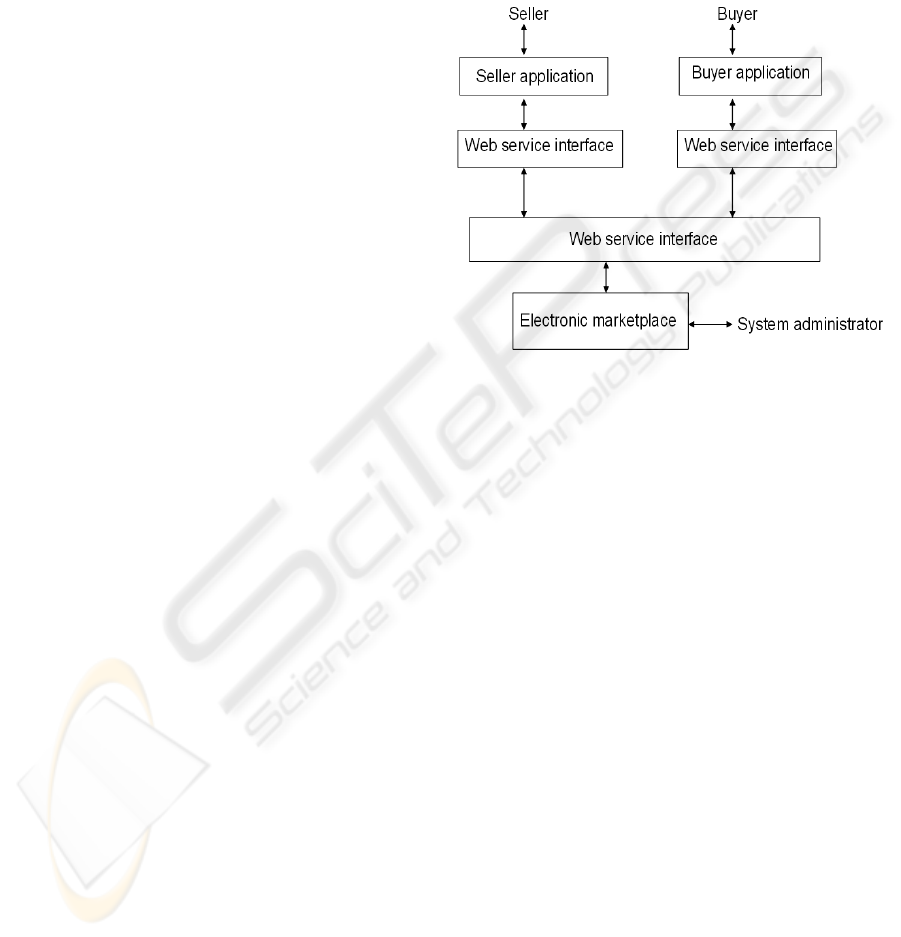

Figure 1: The architecture of the system.

The seller sets products for sale by sending for-sale-

message to the marketplace’s Web service interface.

This message includes the following information:

• seller identification (denoted by SI),

• the product identifier (denoted by PI),

• the number of units to be sold (denoted by

NU), and

• the price of the product (denoted by PR),

which is a function of the number of

products.

The price of the product may be static or dynamic

and it may be dependent on the number of products

to be sold and it may also be buyer specific.

The buyer purchases products by sending the

purchase-request-message to the marketplace’s Web

service interface. The message includes:

• buyer identification (denoted by BI), and

• shopping list (denoted by SL)

Shopping list is a list of products and the number

attached to each product. Formally a shopping list of

k products is of the form:

{(n1, p1), (n2, p2), …., (nk, pk)}

WEBIST 2008 - International Conference on Web Information Systems and Technologies

478

The marketplace also has a database, which includes

information about sellers, buyers and products. This

information is collected and stored to marketplace’s

database when buyers and sellers have made their

registration to the marketplace. Further, product

information is classified according to the product

taxonomy, which is maintained by the system

administrator.

After receiving the purchase-request-message

the marketplace analyses whether the requested

products are available and after analyzing the

message the marketplace sends the availability-

message to the buyer. This message indicates which

of the items of sellers shopping list are available and

the prices of the available products. If a product of

the shopping list is not available the number

attached to the product is zero.

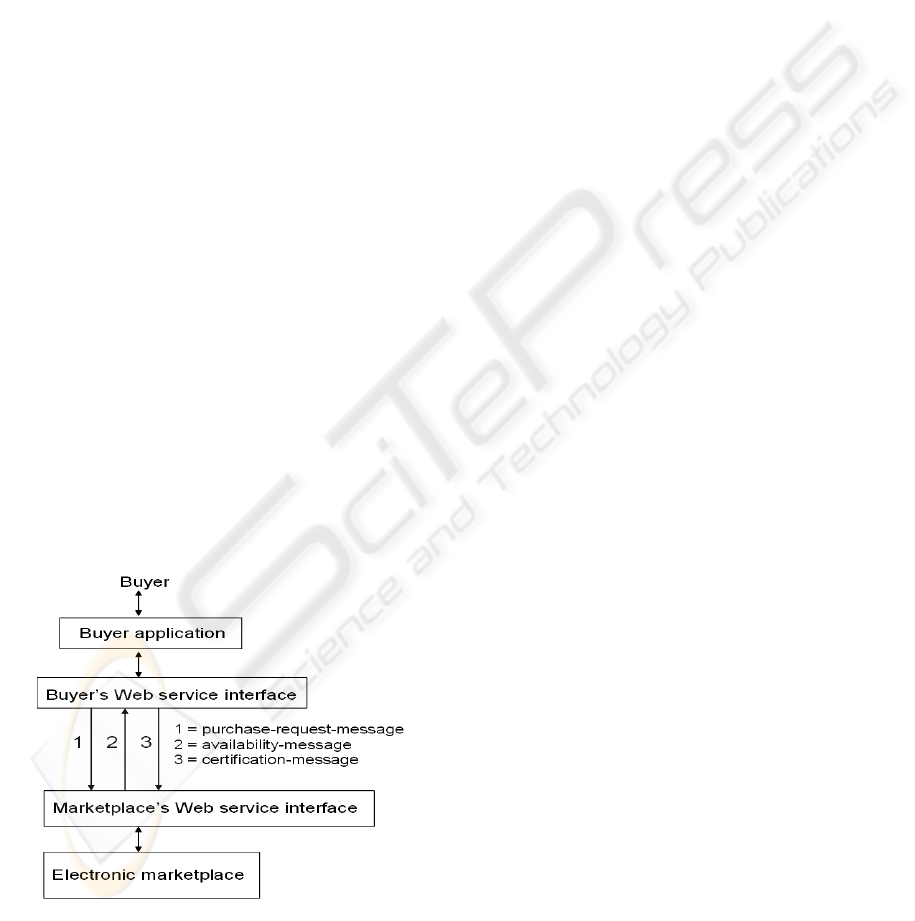

After the buyer has received the availability-

message and analyzed the message, it sends the

certification-message to the marketplace. In this

message, the buyer certificates which and how many

of the available products (none, some or all) it will

buy. However, decreasing the number of products

requires that the price given in the availability-

message concerns one unit.

3 THE UTILIZATION OF

COMBINATORIAL BUSINESS

TRANSACTIONS

Basically there are four ways how the features of the

Combinatorial business transactions can be utilized:

to ensure the atomicity of a purchase, changing the

shopping list, to provide replacing products, and to

support competitive offers. We will illustrate the

differences between these cases by a travel planning

example. In this example the products that the buyer

purchases are flight reservations and hotel

reservations. For simplicity we assume that there are

only two airlines, say KLM and SAS and two hotels,

say Sheraton and Hilton.

• Achieving Atomic Purchases: the buyer

sends the purchase-request-message

concerning a specific two-way KLM-flight

and a room reservation in Hilton. The buyer

certifies the reservations (flight and room)

only if they both are available.

• Changing the Shopping List: the buyer

sends the purchase-request-message

concerning ten rooms for a group of ten

players, but due to the high prices the buyer

decides to place two players for each room,

and thus only certifies five rooms.

• Providing Alternative Products: the

buyer sends the purchase-request-message

concerning a KLM flight and a SAS flight

and hotel reservation to Hilton and to

Sheraton. Both flights are on the same date

an on the same lane, and also the hotel

reservation are alternatives for the buyer.

The marketplace informs (through the

availability-message) that all but the Hilton

reservation is available. Then the buyer

prefers and confirms the KLM flight

(because the buyer has a bonus card on

KLM but not on SAS) and the Sheraton

reservation.

• Supporting Competitive Offers: Buyers

purchase-request-message concerns both

airlines and both hotels and the buyer s

does not prefer any of the airlines or hotels.

Then the marketplace informs that flights

are available for both airlines and also

rooms are available in both hotels. Then the

buyer chooses a flight and a hotel based on

a choice criterion (e.g., chooses the

cheapest one).

The above illustrative examples belong to B2C and

are taken for illustrative purposes. However, it is

turned out that the most useful application areas of

Combinatorial business transactions are in B2B.

4 MANAGING COMBINATORIAL

BUSINESS TRANSACTIONS

A natural and sufficient criterion for transactions

correctness is to support ACID-transactions

(Bernstein, 1987). They have the following

properties:

• Atomicity (failure atomicity) means that

either all of a transaction be executed or

none of it is.

• Consistency means that the state of a

database satisfies the consistency

constraints of the database.

• Isolation (execution atomicity) means that

concurrently executed transactions do not

interfere with each others.

• Durability means that if a transaction has

completed its work, then its effect should

not get lost even if the system fails.

COMBINATORIAL BUSINESS TRANSACTIONS - A Way for Increasing the Flexibility and Reliability of Electronic

Marketplaces

479

Though ACID-properties are suitable for traditional

short lasting transactions (

Gray & Reuter, 1993) they

would overly restrict the performance of long lasting

activities such as Combinatorial business

transactions. On the hand, it is well know that by

using semantic information of specific transaction

types it is possible to weaken the ACID-properties

(Lynch, 1987; Garcia-Molina, 1987; Daconta et al.,

2003). For example, with Combinatorial business

transactions the requirements of execution atomicity

and failure atomicity significantly deviates from

traditional database transactions. These issues are

considered in the following Sections 4.1 and 4.2.

4.1 Ensuring the Execution Atomicity

of Combinatorial Business

Transactions

A natural and sufficient criterion for transaction

isolation correctness (execution atomicity) is that the

executions of transactions are serializable, i.e.,

equivalent to a serial execution

(Bernstein &

Newcomer, 1997). This criterion is also intuitive and

clear. However, though it is suitable for traditional

transactions it would overly restrict the concurrency

of long lasting activities such as Combinatorial

business transactions.

Within Combinatorial business transactions

concurrency control is only required to ensure that

concurrent Combinatorial transactions will not

interfere with each others. That is, if the marketplace

has informed the availability of certain products, and

if the buyer certifies the request, then the seller must

still be able to realize the purchase.

In order to illustrate this let us assume that a

seller has placed for sale120 units of product P.

Then buyer A makes a request including 100 units of

product P, and the marketplace sends the availability

message to the buyer A. Then buyer B makes a

request including 40 units of product P, and buyer C

makes a request including 10 units of product P.

What should the marketplace do?

The marketplace should now send the

availability message (i.e., message in-forming that

the 10 units of product P is available) to the buyer

requesting 10 units of product P, but not with the

buyer requesting 40 units of product P. Otherwise, if

the buyers A and B would certify their requests on

product P, then the marketplace does not have

enough units of product P to deliver to both A and

B, i.e., the execution atomicity would not be

preserved. And so other concurrent activities

jeopardized the execution atomicity of

Combinatorial business transactions.

The actual problem here is that how correct

actions can be determined automatically. If the

execution is ensured by traditional data item locks,

then the data item indicating the amount of

requested products is locked in the marketplace

before sending the availability-message to the buyer,

and the lock is not released until the certification

from the buyer is received. However, as the time for

waiting the certification may be arbitrary long this

kind of solution is not acceptable. Instead, according

to our approach the execution of the Combinatorial

business transactions is divided into two transactions

(Figure 2).

Figure 2: The structure of a Combinatorial business

transaction.

• The first transaction, called reservation

transaction, is executed after the

availability of the products is checked and

before the availability-message is sent to a

buyer. It ensures (e.g., by making a

preliminary reservation on the products)

that the products that are available will also

be available until the certification-message

has been received, i.e., other concurrent

activities cannot reserve or sell the product.

• The second transaction, called certification

transaction, is executed after the

marketplace has received the certification-

message. It has two functions: it marks the

products sold that the buyer certified (if

any) and it cancels the reservations of the

products that the buyer did not certified (if

any).

Note that, the reservation transaction and the

certification transactions are traditional database

transactions, i.e., they are so called ACID-

transactions, which either commit or abort. Also

note that the reservation transaction ensures that the

certification transaction cannot semantically fail. By

a semantic failure we mean a case where a product

cannot be sold as it is no more available. So within

the Combinatorial transaction the reservation

transaction behaves like the write–lock of a

WEBIST 2008 - International Conference on Web Information Systems and Technologies

480

traditional database transaction and the certification

transaction releases the lock.

4.2 Ensuring the Failure Atomicity of

Combinatorial Business

Transactions

The failure atomicity of Combinatorial business

transactions means that the execution tolerates

system and communication failures. That is, if all

existing failures are repaired and no new failures

occur for a sufficiently long time period, then the

Combinatorial business transaction will eventually

be executed.

Before considering the failure atomicity protocol

of the Combinatorial business transaction we will

exactly state the correctness criterion of the

Combinatorial business transaction.

Correctness Criterion. If the reservation

transaction of the Combinatorial business

transaction is successfully executed (i.e., the

reservation transaction is committed and one or

more reservation on products have been done), then

the certification transaction is also successfully

executed (i.e., all the reserved products are either

sold or released).

Enforcing this constraint requires the coordination

between the Buyer application and the Electronic

marketplace (Figure 3). Technically this

coordination is carried out through Web service

interfaces (Newcomer, 2002;

Pashtan, 2005) by

sending SOAP-messages (SOA, 2007P).

Figure 3: The architecture of the system.

For simplicity we first present the protocol assuming

that there are no communication failures. In such a

case the protocol goes as follows:

1. The transaction coordinator (a module in

Buyer’s application) writes a purchase-

request-record to the log and then sends the

purchase-request-message to marketplace’s

web service.

2. After the transaction participant (a module

of the marketplace) has received the

purchase-request-message, it executes the

reservation transaction. If the execution

failed, then the transaction participant sends

to the transaction coordinator the failure-

message and writes the failure-record to the

log; otherwise it sends the availability-

message and writes the availability-record

to the log.

3. After the transaction coordinator has

received the availability-message, it

transmits the message to buyer’s

application which analyses the message.

Then the transaction coordinator writes the

certification-message to the log and sends

the certification-message to the transaction

participant

Note that, this protocol will terminate only if all

messages are received. There are two places where a

service is waiting for a message: in the beginning of

steps 2 and 3. In the beginning of step 2, the buyer

(transaction coordinator) waits for the availability-

message from the marketplace (transaction

participant). In step 3, the marketplace (transaction

participant) is waiting for the certification-message

from the buyer.

We say that when a service must await the repair

of failures before proceeding, the service is blocked.

Blocking is undesirable, since it can cause services

to wait for an arbitrarily long period of time, and so

also the reserved products cannot be sold or reserved

for other buyers.

In order that a blocked service (transaction

participant) can proceed it must communicate with

the transaction coordinator. This kind of

communication is carried out in the termination

protocol. Marketplace activates the termination

protocol when it has been waiting a predetermined

time for a message. The termination protocol goes as

follows:

1. Marketplace’s termination coordinator

sends decision-request-message to the

transaction coordinator.

COMBINATORIAL BUSINESS TRANSACTIONS - A Way for Increasing the Flexibility and Reliability of Electronic

Marketplaces

481

2. The transaction coordinator sends the

response-message to the participant web

service.

The marketplace’s termination coordinator repeats

the request if it has not received the response in a

predetermined time period. Note that the transaction

coordinator is always able to response to the request

as it has no uncertainty period. Uncertainty period is

the time period between the moment marketplace’s

transaction participant sent the availability-message

to the transaction coordinator and the moment it has

received the certification-message. During the

uncertainty period the marketplace does not know

whether the buyer will eventually buy any of the

reserved products.

5 CONCLUSIONS

In this article we have considered electronic

marketplaces from transaction’s point of view. On

the other hand, the automation of electronic

marketplaces is another important goal of electronic

marketplaces: ideally, by introducing appropriate

ontologies (Gruber, 1993;

Antoniou, & Harmelen,

2004)

and business process models (BPEL4WS, 2007;

White, 2007) it is possible to replace buyers or sellers

or both by software modules, i.e., introduce software

programs that place bids on behalf of the user.

The greatest benefits of this kind of automation

lie in cost reduction for buyers and sellers. In

addition, it shortens the time required for processing

business transactions. And most importantly, from

Combinatorial business transactions’ point of view

this means that the time the products are reserved for

buyers will significantly decrease. This in turn will

increase the throughput of the marketplaces

supporting Combinatorial business transactions.

REFERENCES

Antoniou, G. & Harmelen F., 2004. A semantic web

primer. The MIT Press.

Bernstein, P., Hadzilacos, V &. Goodman N., 1987.

Concurrency Control and Recovery in Database

Systems. Addison-Wesley

Bernstein, P. & Newcomer E., 1997 Principles of

Transaction Processing. Morgan Kaufmann Publisher.

BPEL4WS, 2007. Business Process Language for Web

Sevices. http://www.w.ibm.com/developersworks/

webservices/library/ws-bpel/

Daconta, M.,. Obrst, L. & Smith K., 2003. The semantic

web. Indianapolis: John Wiley & Sons.

Garcia-Molina, H., 1983. Using semantic knowledge for

transaction processing in a distributed database. ACM

Transactions on Database Systems, 8(2):186-313.

Gray, J. & Reuter A. 1993. Trasaction Processing:

Concepts and Techniques. Morgan Kaufman.

Gruber, T. 1993. Toward principles for the design of

ontologies used for knowledge sharing. Padua

workshop on Formal Ontology..

Lynch N., 1983. Multilevel atomicity – a new correctness

criterion for database con-currency control. ACM

Transactions on Database Systems, 8(4):65-76.

Marinescu, D., 2002. Internet-based workflow

management. John Wiley & Sons.

Newcomer, E., 2002. Understanding Web Services

Addison-Wesley.

Pashtan, A., 2005. Mobile Web Services. Cambridge

University Press. Cambridge.

Puustjärvi, J., 2001. Workflow concurrency control. The

Computer Journal, 44(1)

Puustjärvi, J., 2004. Concurrency control of Internet-based

workflows. In Proc of the Sixth International

Conference on Information Integration and Web-based

Applications & Services (iiWAS2004), pages 647-654.

Puustjärvi, J., 2006. CWS-transactions: a transaction

model for composed web services. In Proc. of the

Second International Conference on Web Information

Systems and Technologies (WEBIST2006). pages 69-74.

SOAP, 2007. – Simple Object Access Protocol.

http://www.w3.org/TR/SOAP/

White, A., 2007, Introduction to BPMN, IBM Corporation

http://www.bpmn.org/Documents/Introduction%20to%2

0BPMN.pdf

Wurman, P., 2005. Online Auction Site Management.

http://www.csc.ncsu.edu/faculty/wurman/Papers/Wur

man-article.pdf

WEBIST 2008 - International Conference on Web Information Systems and Technologies

482
