BEHAVIOR BASED DEPENDABILITY ESTIMATION

Estimating the Dependability of Autonomous Mobile Systems using Predictive Filter

Jan R¨udiger, Achim Wagner and Essam Badreddin

Automation Laboratory, University of Mannheim, B6, 23-29, Building B, EG, 68131 Mannheim, Germany

Keywords:

Fault-tolerant systems, Autonomous systems, Behavioral systems.

Abstract:

Dependability is getting a more important non-functional property of a system. Measuring and predicting the

dependability is especially important for autonomous or semi-autonomous and safety-critical systems. Since,

at least for (semi-) autonomous systems, those systems are usually described by their behavior, a deﬁnition for

dependability based on the behavior of the system is evident. In this paper the behavioral based deﬁnition of

dependability was used together with a particle ﬁlter to estimate the dependability of an autonomous mobile

system.

1 INTRODUCTION

Non-functional properties reﬂect the overall quality

of a system. Beside performance the dependability is

getting a more important non-functional requirement

of a system. The general, qualitative, deﬁnitions for

dependability used in the literature so far are (in his-

torical order):

Military Standard. (Department of Defense,

1970) A measure of the degree to which an

item is operable and capable of performing its

required function at any (random) time during

a speciﬁed mission proﬁle, given item avail-

ability at the start of the mission.

Carter. (Carter, 1982) A system is depend-

able if it is trustworthy enough that reliance

can be placed on the service it delivers.

Laprie. (Laprie, 1992) Dependability is that

property of a computing system which allows

reliance to be justiﬁably placed on the service

it delivers.

Badreddin. (Badreddin, 1999) Dependability

in general is the capability of a system to suc-

cessfully and safely fulﬁll its mission.

Dubrova. (Dubrova, 2006) Dependability is

the ability of a system to deliver its intended

level of service to its users.

All deﬁnitions have in common that they deﬁne de-

pendability on the service a system delivers and the

trust that can be placed on that service. The service a

system delivers, however, is the behavior as it is per-

ceived by the user, which in our case will be called

the mission of the system. They also have in com-

mon that they don’t deﬁne a system independent way

of how the measure or evaluate the dependability of

a system. Comparing the dependability of different

systems, even if a dependability measure for speciﬁc

systems exists (see (Wilson et al., 2002; Kanoun et al.,

2002; Brown et al., 2002; Rus et al., 2002; Cukier and

Smidts, 2002; Mukherjee and Siewiorek, 1997; Arlat

et al., 1990)), is almost impossible.

According to (Avizienis et al., 2004b; Avizienis et al.,

2004a; Randell, 2000) dependability is understood as

an integrated concept that further consists of different

attributes, threads and means (see Fig. 1). This set

of attributes is, however, application speciﬁc and thus

not ﬁx. In (Candea, 2003) and (Dewsburyet al., 2003)

different sets of attributes for evaluating the depend-

ability were proposed. In (R¨udiger et al., 2007b) a

reduction of the dependability tree was proposed for

the application of autonomous mobile systems. The

reduced dependability tree is presented in Fig. 2.

This paper is outlined as follows: In Section 2 a

short introduction to the framework of dynamic sys-

tems described by their behavior is presented leading

to a deﬁnion for a system together with a mission, de-

ﬁned in this framework. The section concludes with a

deﬁnition for a measure for the dependability of this

system. Section 2.5 describes different methods of

how to apply this deﬁnition to actually measure the

137

Rüdiger J., Wagner A. and Badreddin E. (2008).

BEHAVIOR BASED DEPENDABILITY ESTIMATION - Estimating the Dependability of Autonomous Mobile Systems using Predictive Filter.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 137-142

DOI: 10.5220/0001495801370142

Copyright

c

SciTePress

dependability. The results of a simulation using par-

ticle ﬁlter are then presented in Section 4. The paper

ends with a discussion of the results in Section 5.

2 BEHAVIOR BASED

DEPENDABILITY DEFINITION

2.1 System Deﬁnition

In the framework of Willems (see (Willems, 1991))

a system is deﬁned in an universum U. Elements of

U are called outcomes of the system. A mathemati-

cal model of a system from a behavioral or black-box

point of view claims that certain outcomes are possi-

ble, while others are not. The model thus deﬁnes a

speciﬁc subset B ⊂ U. This subset is called the be-

havior of the system.

A (deterministic) mathematical model of a system is

then deﬁned as:

Deﬁnition 1. A mathematical model is a pair (U, B)

with the universum U - its elements are called out-

comes - and B the behavior.

A dynamical system is a set of trajectories describ-

ing the behavior of the system during the time instants

of interest in W.

In contrast to the state space representation, like ˙x =

f ◦x, Willems (see (Willems, 1991)) deﬁnes a dynam-

ical system as:

Deﬁnition 2. A dynamical system

∑

is a triple

∑

=

(T, W, B) with T ⊆ R the time axis, W the signal

space, and B ⊆ W

T

the behavior.

Furthermore an autonomous system is deﬁned as:

Deﬁnition 3. (Autonomous System) Let Σ =

(T, W, B), T = Z or R, be a time-invariantdynamical

Dependability

Attributes

Availability

Reliability

Safety

Conﬁdentiality

Integrity

Maintainability

Threats

Faults

Errors

Failures

Means

Fault Prevention

Fault Tolerance

Fault Removal

Fault Forecasting

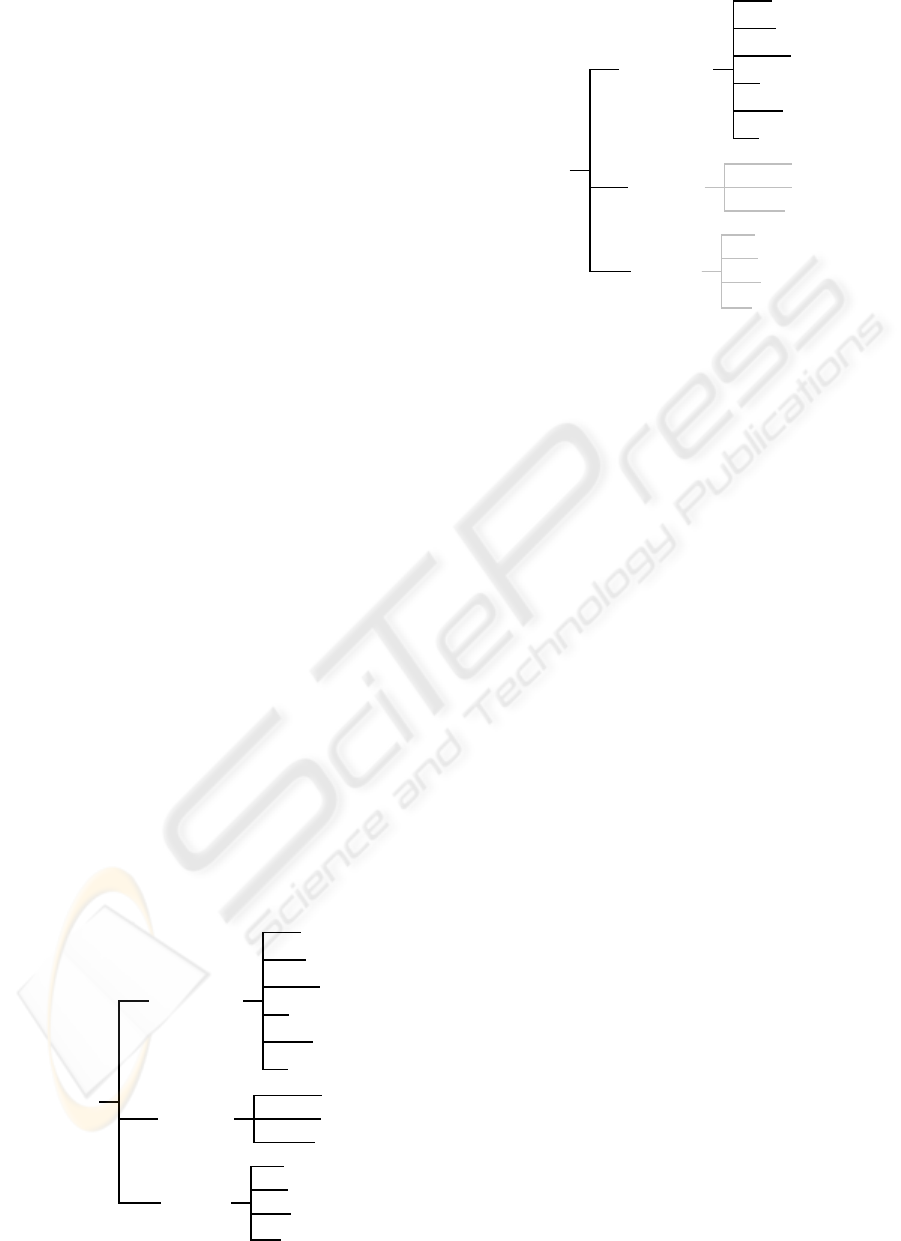

Figure 1: The dependability tree.

Dependability

Attributes

Availability

Reliability

Safety

Conﬁdentiality

Integrity

Maintainability

Threats

Faults

Errors

Failures

Means

Fault Prevention

Fault Tolerance

Fault Removal

Fault Forecasting

Figure 2: Reduced dependability tree for autonomous mo-

bile systems.

system. Σ is said to be autonomous if

n

w

1

, w

2

∈ B and w

1(t)

= w

2(t)

for t < 0

o

⇒ {w

1

= w

2

}

The deﬁnition of an autonomous systems states

that the future behavior of the system is completely

deﬁned by its past trajectory.

This aspect is an important assumption for modeling

the system later.

2.2 Behavior and Mission of

Autonomous System

To accomplish its task an autonomous system is usu-

allay given a set of behaviors. In (R¨udiger et al.,

2007a) the behavior set of the system was deﬁned as:

Deﬁnition 4. (Behavior) Let Σ = (T, W, B) be a

time-invariant dynamical system then B ⊆ W

T

is

called the set of basic behaviors w

i

(t) : T → W, i =

1...n and B the set of fused behaviors.

Likewise the mission of the system was deﬁned

as:

Deﬁnition 5. (Mission) Let Σ = (T, W, B) be a time-

invariant dynamical system. We say the mission w

m

of this system is the map w

m

: T → W with w

m

∈ B.

The mission, as deﬁned in (R¨udiger et al., 2007a),

is thus just a special trajectory or behavior in B. Hav-

ing the system together with a mission mathemati-

cally deﬁned is important for a deﬁnition of depend-

ability.

2.3 Safe Area S

Before presenting a deﬁnition for dependability, at

least the deﬁnition for the attribute safety in a behav-

ioral context is needed.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

138

BS

w

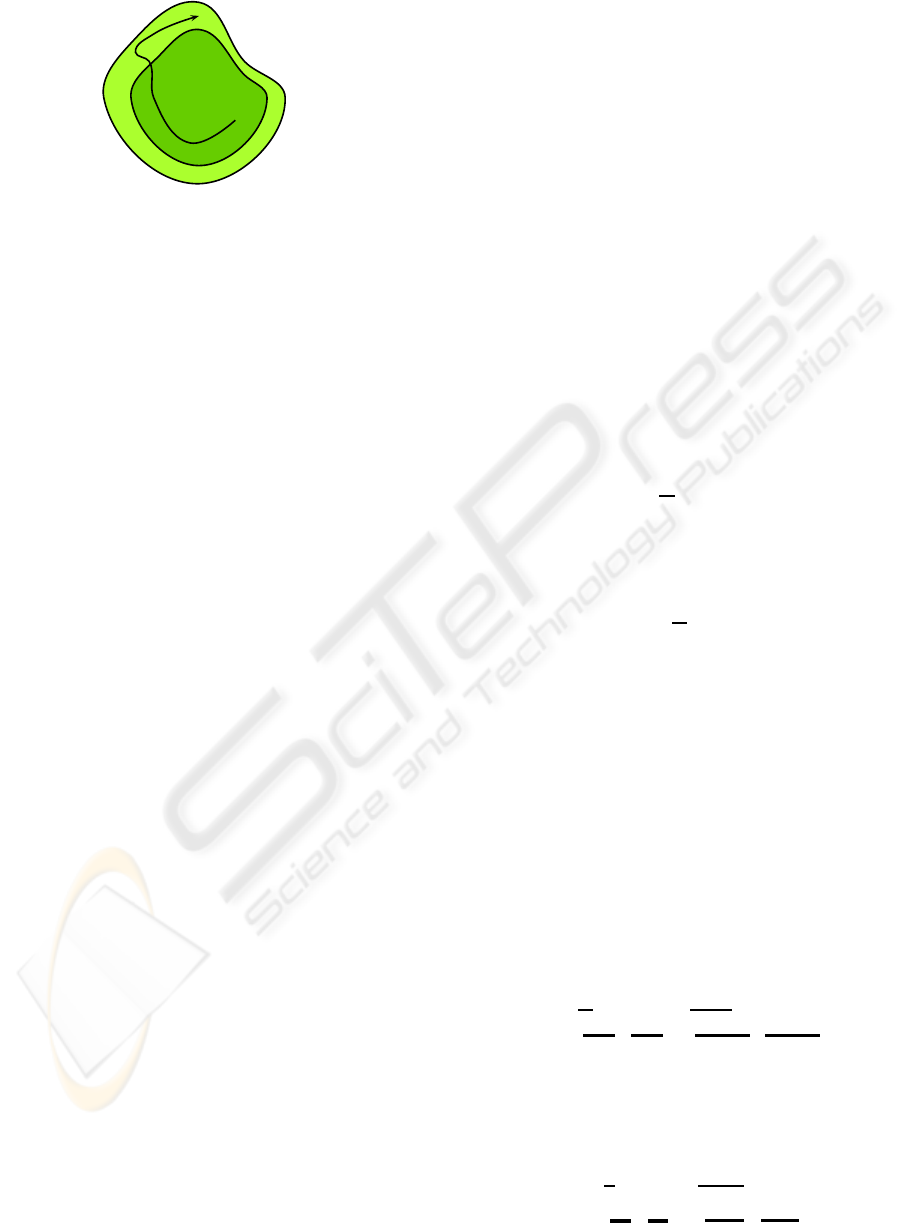

Figure 3: Safety: The system trajectory w leaves the set of

admissible trajectories B but is still considered to be safe

since it remains inside S

While the other attributes of dependability, like avail-

ability, reliability etc., will only be indirectly included

in the dependability deﬁnition (see Section 2.4 be-

low), the attribute safety, since it is also included in

the dependability deﬁnitions seen in Section 1, is di-

rectly included in the deﬁnition (see (R¨udiger et al.,

2007a) for a deﬁnition of the remaining attributes in a

behavioral context).

From a reliability point of view, all failures are equal.

In case of safety, those failures are further divided

into fail-safe and fail-unsafe ones. Safety is reliabil-

ity with respect to failures that may cause catastrophic

consequences. Therefore safety is unformaly deﬁned

as (see e.g. (Dubrova, 2006)):

Safety S(t) of a system is the probability that

the system will either perform its function cor-

rectly or will discontinue its operation in a

fail-safe manner.

For the formal deﬁnition of safety an area S was in-

troduced in (R¨udiger et al., 2007a) and further dis-

cussed in (R¨udiger et al., 2007b), which leads to

catastrophic consequences when left. This safety

area, however, must not be fully contained in the sta-

bility region of the system, but S is deﬁned to be

around B (B ⊂ S). This margin is, like B, highly

system speciﬁc, but can be set equal to B for a re-

strictive system.

Deﬁnition 6. Let Σ = (T, W, B), T = Z or R, be a

time-invariant dynamical system with a safe area S ⊇

B. The system is said to be safe if for all t ∈ T the

system state w(t) ∈ S.

The deﬁnition is illustrated in Fig. 3. Leaving

the safe area S does not necessary render the system

un-operable for the rest of the mission. The above

deﬁnition of safety permits that the systems trajectory

returns to B thus making the system fully operable

again. This could be achieved be reconﬁguration etc.

2.4 Dependability Deﬁnition

In (R¨udiger et al., 2007a) the dependability of a sys-

tem was deﬁned as:

Deﬁnition 7. A time-invariant dynamical system Σ =

(T, W, B) with the behaviors B and a mission w

m

∈

B is said to be (gradually) dependable in the period

T ∈ T if, for all t ∈ T, the mission w

m

can be (gradu-

ally) accomplished.

To actually measure the dependability of a given

system, this deﬁnition needs, however, to be further

sophisticated. The main idea behind this deﬁnition is

to look at the dependability as the difference between

the mission trajectory w

m

and the system trajectory

w, which is the evolution of the system state. This,

together with the distance to the safety area S will be

the main idea of a measure for the dependability.

After the system Σ has completed its mission the de-

pendability D of this system with this mission w

m

can

be deﬁned to as:

D

m

= 1−

1

t

∗

Z

t

∗

0

d(τ)dτ (1)

for the continuous case and for the non-continuous

case

D

m

= 1−

1

t

∗

t

∗

∑

0

d(τ). (2)

Where t

∗

is an appropriate normalizing faktor and

d is an appropriate measure of the difference between

the mission trajectory w

m

and the system trajectory w

and as such a combination of different distance mea-

surements. Those distance measurements will be dis-

cussed in the following.

More important than knowing the dependability

of a system after the completion of the mission is to

know the dependability during the mission. For this

the equation 1 and 2 is split up into a past and a future

part. With this the dependability can be computed to

be

D(t) = 1−

1

t

∗

Z

t

0

d(τ)dτ

| {z }

Past

+

1

t

∗

+ δ

Z

t+δ

t

d(τ)dτ

| {z }

Future

(3)

in the continuous case and for the non-continuous

case

D(t) = 1 −

1

t

t

∑

0

d(τ)

| {z }

Past

+

1

t

m

− t

t

m

∑

t+ε

d(τ)

| {z }

Future

(4)

BEHAVIOR BASED DEPENDABILITY ESTIMATION - Estimating the Dependability of Autonomous Mobile Systems

using Predictive Filter

139

Computing the d

i

(t) is, of course, system and ap-

plication speciﬁc. For the simulation only the distance

between the mission trajectory and the system tra-

jectory (d

m

(t)) and the relative distance between the

system trajectory and the safe area d

S

(t) were used,

since these both will be used in most of the depend-

ability measures.

The distance between the mission trajectory and the

system trajectory was chosen to be the minimum eu-

clidian distance between system state and the mission

trajectory.

d

m

(t) = 1 − e

−a∗

w(t)−w

m

(t)

w

m

(t)

2

(5)

The distance measure for safety d

S

(t) was chosen to

be a reliable measure even when the mission trajec-

tory w

m

itself is close to the safe area S. The d

S

is

deﬁned as follows:

d

S

(t) = 1− e

min|S −w

m

(t)|

min|S −w(t)|

2

(6)

2.5 Measuring the Dependability

For computing the dependability of a system the ac-

tual state of the system and for adequate time horizon

the future states must be available with sufﬁcient ac-

curacy. To achieve this different techniques are found

throughout the literature, among them:

• Using a model of the system and its environment

or

• probabilistic approaches like

– Kalman Filter or

– Particle Filter

If for the accomplishment of the mission a set of basic

behaviors B rather than only one behavior is available,

the minimum d of those behaviors needs to be taken

and the future part of dependability thus computes to:

Z

t

m

t+ε

min(d(t))

2

t

m

dt

| {z }

Future

(7)

If the System is further divided into sub-systems, the

different measures of those sub-systems needs also to

be joined according to the topology of the system.

3 DEPENDABILITY

MONITORING AS RECURSIVE

STATE ESTIMATION

The formulation of dependability presented above re-

quires estimating the state of the autonomous mobile

0 0.5 1 1.5 2 2.5

−1.5

−1

−0.5

0

0.5

1

1.5

X−Distance

Y−Distance

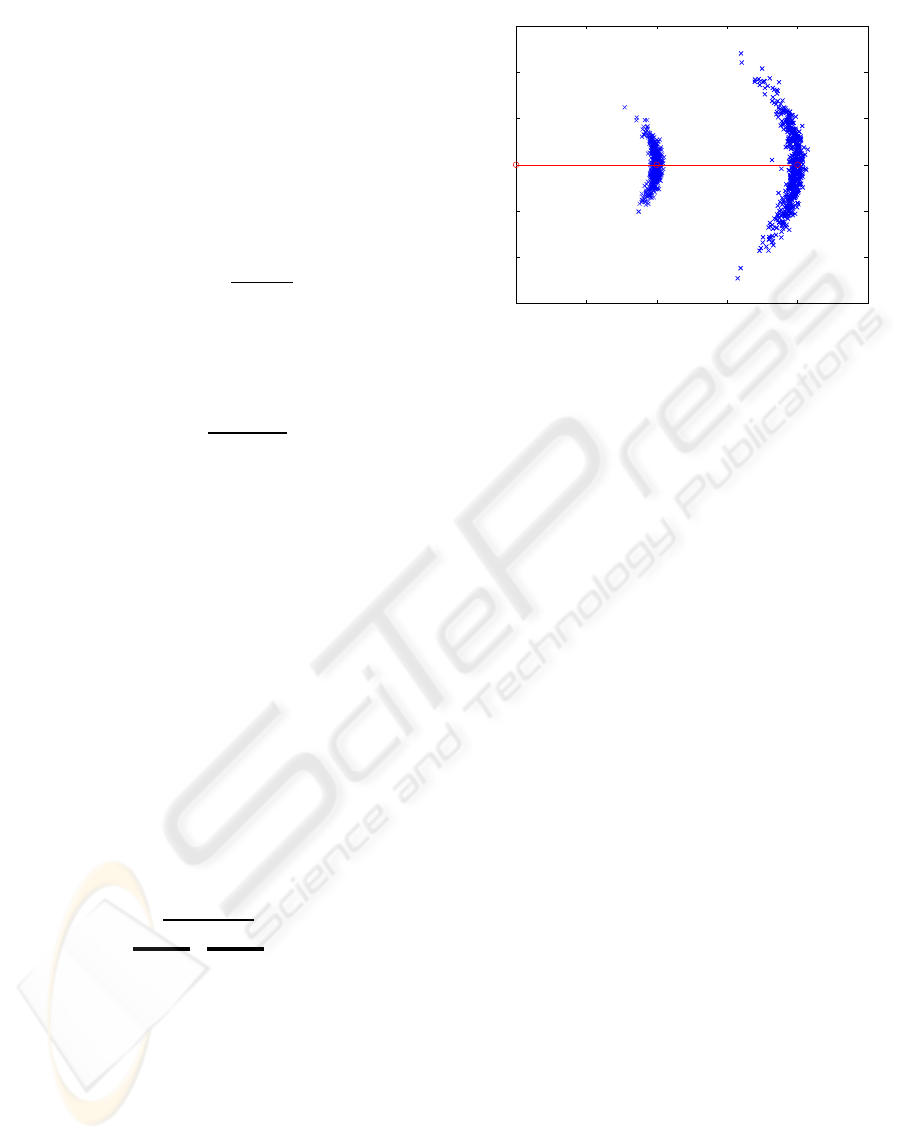

Figure 4: Prediction model of the robot for a translatory

movement of 1m and 2m used to predict the dependability

of the autonomous mobile system

system and the environment as it changes over time.

This information must then be compared to the mis-

sion trajectory w

m

to compute the dependability of the

system.

3.1 Model based State Estimation

Using the mathematical model to compute the de-

pendability of the system is the simplest way. This

method, however, can only insufﬁcient deal with

changes in the system, which could happen due to

system degeneration etc., or changes in the environ-

ment. Furthermore mathematical models usually fo-

cus on a speciﬁc aspect of the system and as thus

aren’t adequate for computing the dependability. A

more sophisticated model of the robot and the envi-

ronment could compensate this disadvantage with the

cost of higher computation time.

3.2 Particle Filter based State

Estimation

Since Kalman Filter restricts the state transition and

the observation model to be linear functions of the

system state, particle Filter are used here to track the

state of the autonomous mobile system.

To be able to estimate the dependability with a par-

ticle ﬁlter, the system is modeled as Markovian, non

linear, non-Gaussian. A Sample Importance Resam-

pling Filter (SIR) (see e.g. (Arulampalam et al.,

2002),(Chen, 2003)) was then used in a simulation de-

scribed in the following section to estimate the system

state.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

140

ω

1

ω

2

ω

3

rr

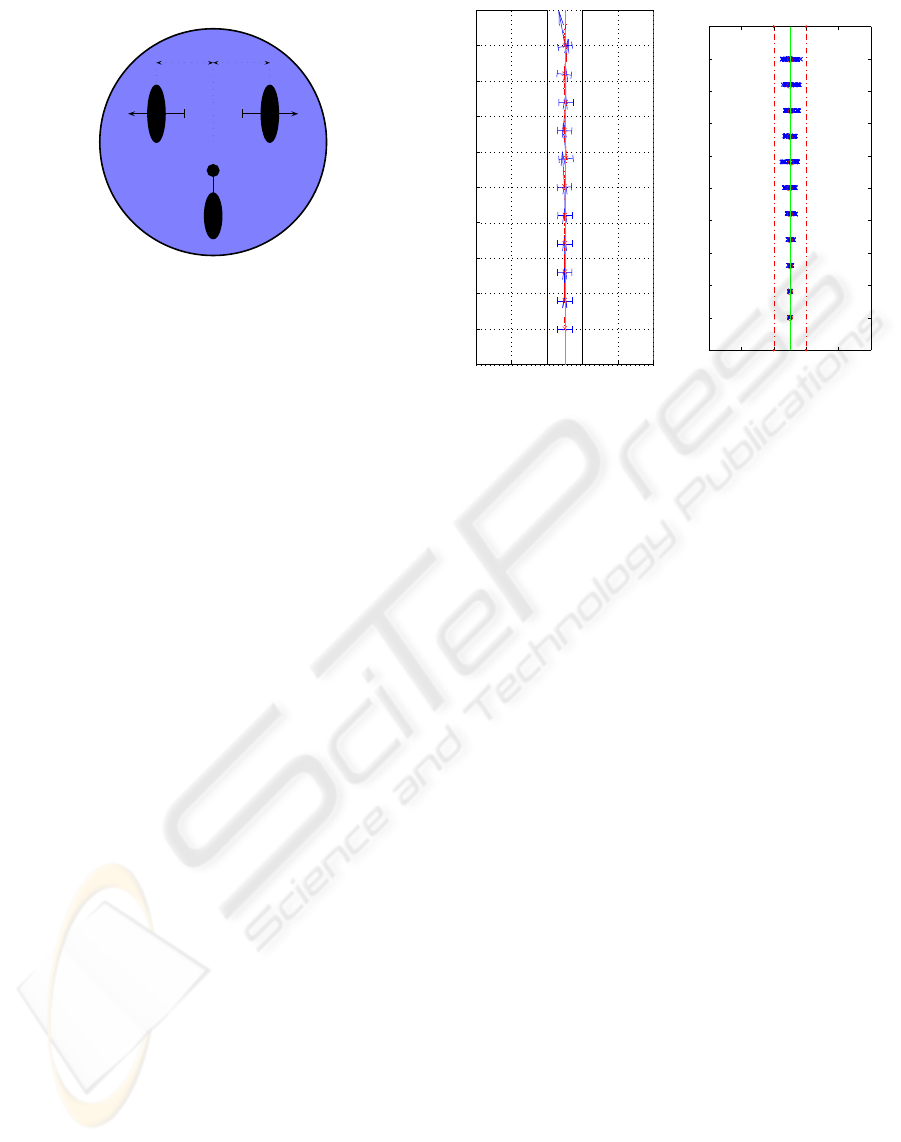

Figure 5: Drawing of the robot used in the simulation.

Wheel ω

1

and ω

2

are two independently driven and mea-

sured conventional wheels. Wheel ω

3

is an undriven and

unmeasured castor wheel.

4 SIMULATION RESULTS

The robot in the simulation has two degree of free-

dom (DOF) as shown in Fig. 5. For evaluating the

dependability of this robot the state (pose)

x(t) =

x

y

φ

(8)

was estimated using a particle ﬁlter. The kinematic

model of the robot presented in Eq. 9 was used to

obtain the prediction model for the movement of the

robot.

x

k

y

k

φ

k

=

x

k−1

+ δ

s

cos(φ

k−1

)

y

k−1

+ δ

s

sin(φ

k−1

)

φ

k−1

+ δ

φ

(9)

In this equation δ

s

and δ

φ

where computed using the

movement of the wheels ω

1

and ω

2

. A Gaussian noise

modell is applied separately to each of the two types

of motion because they are assumed to be indepen-

dent. The resulting prediction model can be seen in

Fig. 4 for a translatory movement of 1m and 2m.

The observation model used in the simulation is

shown in the following equation.

y

k

=

ω

1

ω

2

=

δ

X

− rδ

φ

δ

Y

+ rδ

φ

Where r isthe distance between the center of the robot

and the contact point of the wheels (see Fig. 5) and

δ

X

, δ

Y

are the motion of the robot in X and Y direc-

tion according to the robot coordinate system.

The mission w

m

of the system in the simulation (light

green line in Fig. 6) was to follow a hallway with-

out colliding with the wall. Noise was added to the

wheels to simulate slippage and/or actuator degener-

ation.

0 1 2 3 4 5

0

1

2

3

4

5

6

7

8

9

10

(a)

0 1 2 3 4 5

0

1

2

3

4

5

6

7

8

9

10

X−Distance

Y−Distance

(b)

Figure 6: Simulation Setup. Left image shows the mission

trajectory (light green line) of the robot traveling down a

hallway (red line). Right image shows the particles used

for the state estimation for every 40th time step (blue stars)

together with the safe area (dotted red line).

To compute the dependability the distance between

the mission trajectory and the robot trajectory (d

m

(t))

together with the distance between the robot trajec-

tory and the safe area (red line in Fig. 6) relative to

the distance between the mission trajectory and the

safe area (d

S

(t)) was used to compute the depend-

ability as proposed above. The resulting dependabil-

ity can be seen in Fig 7. Since a diverge from the

mission trajectory also always decreases the distance

to the safe area both effects sum up.

In addition to just estimating the system state, the par-

ticle ﬁlter was also used to predict the future values of

the system state and as thus the future dependability

of the system. In this setup only the prediction for the

next time step was used.

5 CONCLUSIONS

Dependability is of great importance for autonomous

mobile systems. Not only for measuring the depend-

ability, but also for comparing it to other missions of

the same system or other systems aswell, a formal

deﬁnition of dependability is important. The deﬁni-

tion of dependability used in this paper is based on a

mathematical description of the system and its behav-

ior. This property was used in this paper to propose

a method for estimating the dependability of an au-

tonomous mobile system using a particle ﬁlter.

BEHAVIOR BASED DEPENDABILITY ESTIMATION - Estimating the Dependability of Autonomous Mobile Systems

using Predictive Filter

141

0 5 10 15 20 25 30 35 40 45

0.93

0.94

0.95

0.96

0.97

0.98

0.99

1

Time

Dependability

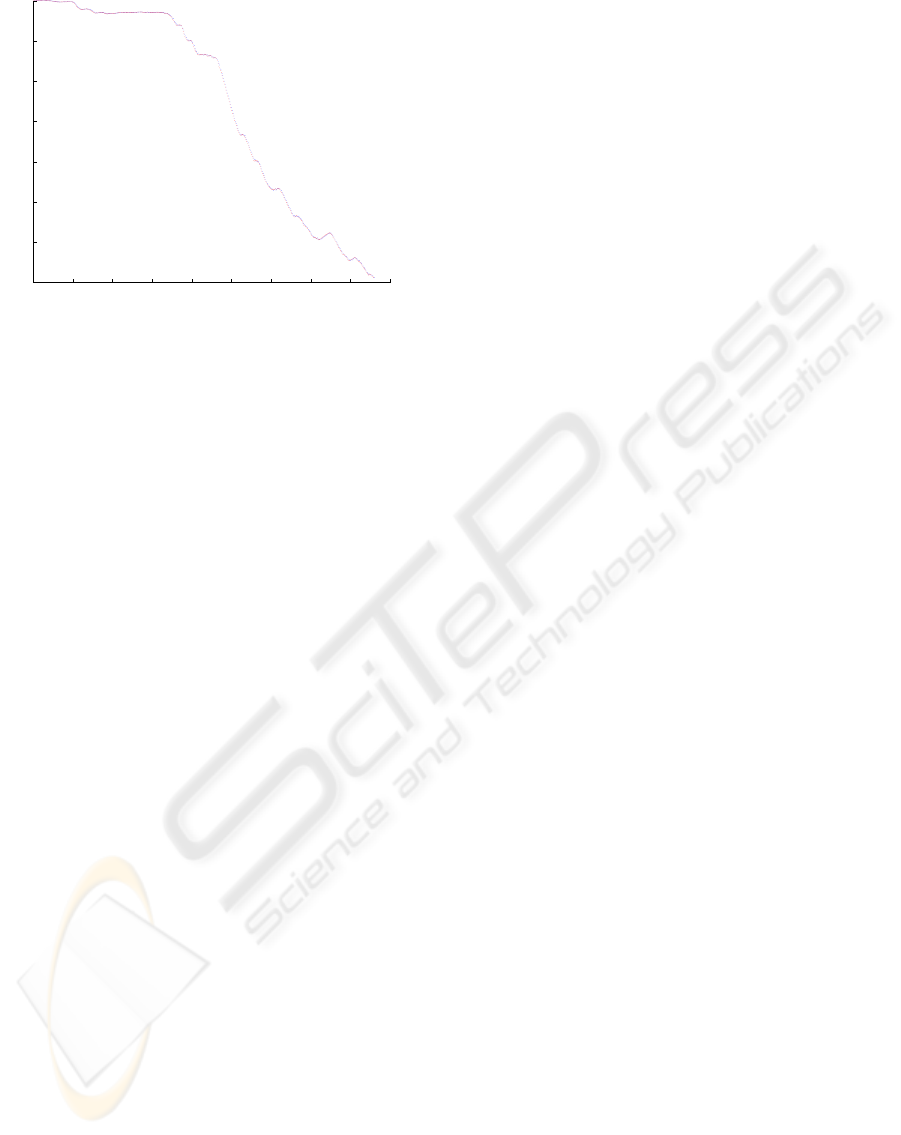

Figure 7: Measured (red) and predicted (blue) dependability

of the autonomous mobile system.

REFERENCES

Arlat, J., Aguera, M., Amat, L., Crouzet, Y., Fabre, J.-C.,

Laprie, J.-C., Martins, E., and Powell, D. (1990). Fault

injection for dependability validation: A methodology

and some applications. IEEE Transactions on Soft-

ware Engineering, 16(2):166–182.

Arulampalam, M. S., Maskell, S., Gordon, N., and Clapp,

T. (2002). A tutorial on particle ﬁlters for on-

line nonlinear/non-gaussian bayesian tracking. Signal

Processing, IEEE Transactions on [see also Acous-

tics, Speech, and Signal Processing, IEEE Transac-

tions on], 50(2):174–188.

Avizienis, A., Laprie, J.-C., and Randell, B. (2004a). De-

pendability and its threats: A taxonomy.

Avizienis, A., Laprie, J.-C., Randell, B., and Landwehr, C.

(2004b). Basic concepts and taxonomy of dependable

and secure computing. IEEE Trans. on Dependable

and Secure Computing, 1(1):11–33.

Badreddin, E. (1999). Safety and dependability of mecha-

tronics systems. In Lecture Notes. ETH Z¨urich.

Brown, A., Chung, L., and Patterson, D. A. (2002). Includ-

ing the human factor in dependability benchmarks. In

Proceedings of the DSN Workshop on Dependability

Benchmarking.

Candea, G. (2003). The basics of dependability.

Carter, W. (1982). A time for reﬂection. In Proc. 12th

Int. Symp. on Fault Tolerant Computing (FTCS-12).

FTCS-12) IEEE Computer Society Press Santa Mon-

ica.

Chen, Z. (2003). Bayesian ﬁltering: From kalman ﬁlters to

particle ﬁlters, and beyond. Technical report, McMas-

ter University.

Cukier, M. and Smidts, C. S. (2002). Using bayesian theory

for estimating dependability benchmark measures. In

Proceedings of the DSN Workshop on Dependability

Benchmarking.

Department of Defense, U. S. o. A. (1970). Military stan-

dard - deﬁnitions of terms for reliability and maintain-

ability. Technical Report MIL-STD-721C.

Dewsbury, G., Sommerville, I., Clarke, K., and Rounce-

ﬁeld, M. (2003). A dependability model for domestic

systems. In SAFECOMP, pages 103–115.

Dubrova, E. (2006). Fault tolerant design: An introduction.

Draft.

Kanoun, K., Madeira, H., and Aria, J. (2002). A framework

for dependability benchmarking. In Proceedings of

the DSN Workshop on Dependability Benchmarking.

Laprie, J. C. (1992). Dependability. Basic Concepts and

Terminology. Ed. Springer Verlag.

Mukherjee, A. and Siewiorek, D. P. (1997). Measuring

software dependability by robustness benchmarking.

IEEE Trans. Softw. Eng., 23(6):366–378.

Randell, B. (2000). Turing Memorial Lecture: Facing up to

faults. 43(2):95–106.

R¨udiger, J., Wagner, A., and Badreddin, E. (2007a). Behav-

ior based deﬁnition of dependability for autonomous

mobile systems. European Control Conference 2007.

Kos, Greece.

R¨udiger, J., Wagner, A., and Badreddin, E. (2007b). Be-

havior based description of dependability - deﬁning a

minium set of attributes for a behavioral description

of dependability. ICINCO.

Rus, I., Basili, V., Zelkowitz, M., and Boehm, B. (2002).

Empirical evaluation of techniques and methods used

for achieving and assessing software high dependabil-

ity. In Proceedings of the DSN Workshop on Depend-

ability Benchmarking.

Willems, J. (1991). Paradigms and puzzles in the theory of

dynamical systems. Automatic Control, IEEE Trans-

actions on, 36(3):259–294.

Wilson, D., Murphy, B., and Spainhower, L. (2002).

Progress on deﬁning standardized classes for compar-

ing the dependability of computer systems.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

142
