USE OF SPATIAL ADAPTATION FOR IMAGE RENDERING

BASED ON AN EXTENSION OF THE CIECAM02

Olivier Tulet, Mohamed-Chaker Larabi and Christine Maloigne Fernandez

SIC Laboratory, University of Poitiers

Bat. SP2MI, Téléport 2, BP 30179, 86962 – FUTUROSCOPE Chasseneuil Cedex, France

Keywords: Rendering model, image quality, subjective assessment, spatial frequencies, s-CIECAM.

Abstract: With the development and the multiplicity of imaging devices, the color quality and portability have

become a very challenging problem. Moreover, a color is perceived with regards to its environment. In

order to take into account the variation of perceptual vision in function of environment, the CIE

(Commission Internationale de l'éclairage) has standardized a tool named color appearance model

(CIECAM97*, CIECAM02). These models are able to take into account many phenomena related to human

vision of color and can predict the color of a stimulus, function of its observations conditions. However,

these models do not deal with the influence of spatial frequencies which can have a big impact on our

perception. In this paper, an extended version of the CIECAM02 was presented. This new version integrates

a spatial model correcting the color in relation to its spatial frequency and its environment. Moreover, a

study on the influence of the background’s chromaticity has been also performed. The obtained results are

sound and demonstrate the efficiency of the proposed extension.

1 INTRODUCTION

In order to answer the constant evolution in the

domain of color appearance and image rendering,

many rendering models have appeared. These

models become more and more complex and give a

good simulation of the human vision. They are often

based on color appearance models (CAM) that allow

the decomposition of a color into perceptual features

based on the environment.

Several CAMs exist and are dedicated to

different applications. They take into account several

visual phenomena like chromatic adaptation,

simultaneous contrast, crispening, spreading…

These models answer the request of industries

which asked for standardized tools. It is for this

reason, that the CIE has normalized in 1997 the

CIECAM97 which has been thereafter improved in

order to lead to the CIECAM02 (Fairchild 1997).

Thus, these models allow correcting many

phenomena that modify the appearance of a color

stimulus (Moroney, Fairchild, Hunt, C.J Li, Luo, and

Newman 2002, Luo and Hunt 1997). However they

do not take into account the spatial aspect that can

be contained in a stimulus (Johnson 2005, Wandell

1995).

As a first contribution to the CIECAM02, we

have integrated a model that deals with both spatial

frequencies and background luminance. The

obtained results were very encouraging since the

appearance of the stimuli was adapted to the

contained spatial frequency. However, this model

addressed only a single input color and was unable

to correct the content of an image which is more

complex (Larabi and Tulet 2006).

It is to respond to this lack that an image

extension of this model is proposed in this paper.

This extension is carried out by using Fourier

decomposition in different frequency bands. Indeed,

in this space, it is possible to have a direct access to

the orientation and the energy for all the frequencies.

A study of the neighborhood and the orientation of a

pixel allow extracting the background luminance

that will be used to correct the pixel.

The main difference between the proposed model

and the other rendering models like the iCAM

developed by Fairchild et al. (Fairchild and Johnson

2004) lies in the fact of taking into account the

spatial repartition of a pixel in addition to its

environment. The others rendering model are just

using a general CSF filter to take into account the

spatial information and are not looking to the

128

Tulet O., Larabi M. and Maloigne Fernandez C. (2008).

USE OF SPATIAL ADAPTATION FOR IMAGE RENDERING BASED ON AN EXTENSION OF THE CIECAM02.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 128-133

DOI: 10.5220/0001086101280133

 SciTePress

environment of each pixel.

The remainder of this paper is organized as follows:

Section 2 describes the model already developed and

the experiments which allowed its construction. A

recent study of the influence of background

chromaticity, on spatial frequencies, is exposed.

Section 3 is dedicated to the extension of this s-

CIECAM model to images. In this last section some

results are described and different tests to validate

our method are realized. We finish by some

conclusions and we introduce some future works.

2 S-CIECAM FRAMEWORK

An extension of the CIECAM02 has been developed

in order to allow this color appearance model takes

into account the influence that can have the spatial

frequencies on our vision.

For that a study based on psychophysical

experiments has been realized in a dedicated room.

This room respects standardized conditions

(lightness, display calibration…).

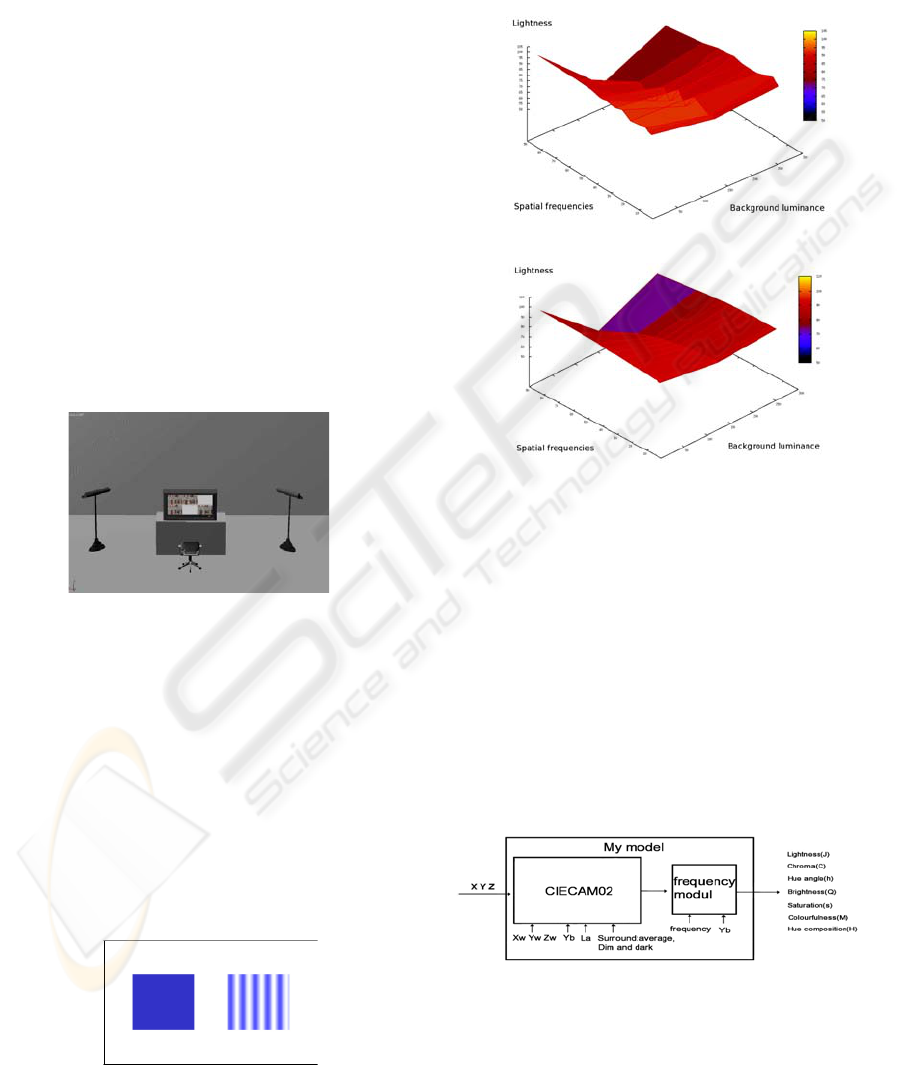

Figure 1: Psychophysical test room.

With regards the recommendations given by

standards ISO 3664 (ISO3664 2005) and ITU-R

500-10 (ITU-R Recommendation 2000) this

environment should respect many conditions as for

example the color of walls which should be neutral

or the background chromaticity which should

correspond to the illuminant D65.

The experiment realized was based on the

adjustment of the hue angle, the lightness and the

chroma of the stimuli in order to appear similar to

the input color. The figure 2 gives a snapshot of the

tests run for blue stimulus.

Figure 2: Example of test pattern.

Thanks to this test, the influence of the spatial

frequency on our perception has been measured for

several frequencies on three different achromatic

backgrounds with different luminance.

The figure 3 illustrates the results obtained for the

red lightness.

-a-

-b-

Figure 3: Results for red lightness: a-measured, b-

modeled.

The obtained results from the described experiments

represent the difference perceived on the hue angle,

the lightness and the chroma according to the spatial

frequency and the background luminance.

For modeling the results, curves of degree two were

chosen and have been fitted using the least square

method. An example is given by figure 3-b for the

red lightness.

The figure 4 shows the diagram of the s-CIECAM. It

represents the integration of a spatial module in the

standard CIECAM02

Figure 4: Diagram of input/output of s-CIECAM.

Thus, this model is able to predict all effect

predicted by the CIECAM02 in addition to the

spatial adaptation.

USE OF SPATIAL ADAPTATION FOR IMAGE RENDERING BASED ON AN EXTENSION OF THE CIECAM02

129

-a- -b- -c-

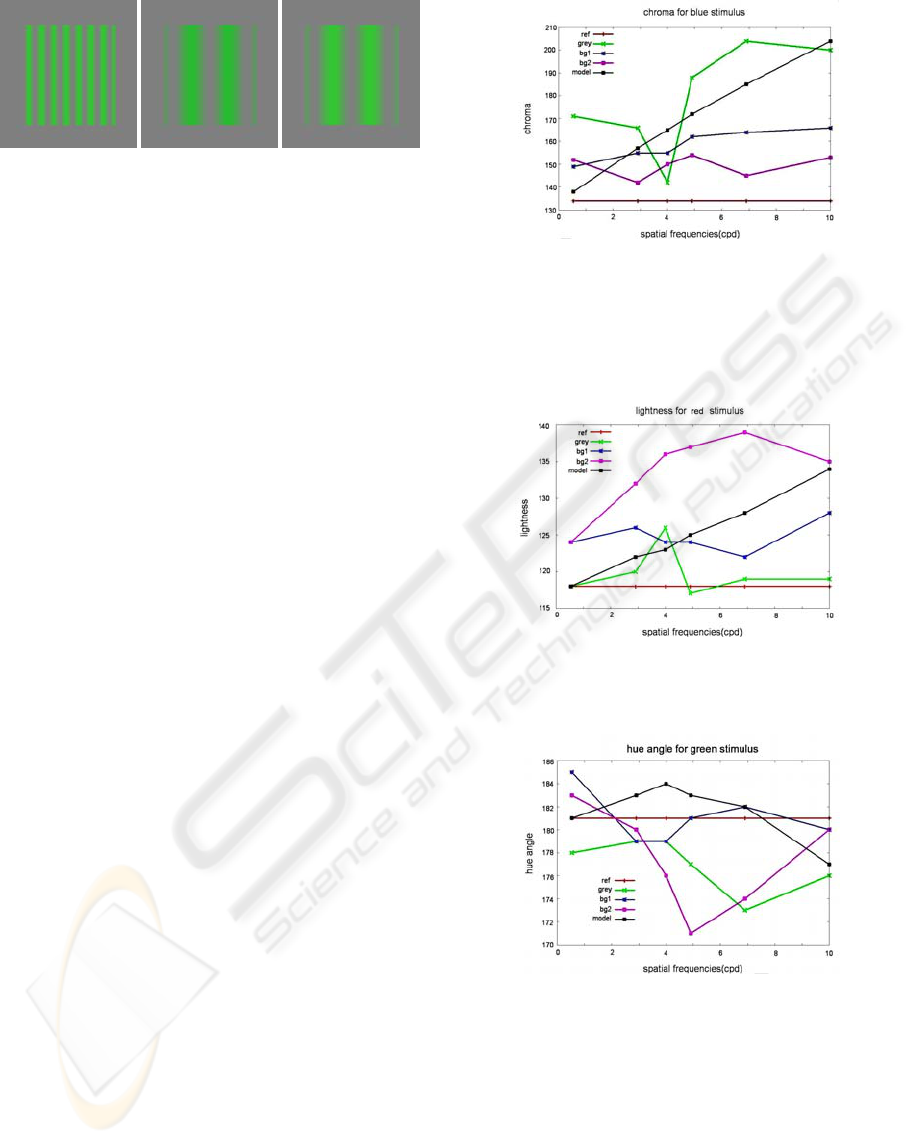

Figure 5: Example of corrected pattern. a- input stimulus

at frequency f. b- stimulus at frequency f’ and same color

as (a). c- Spatially corrected stimulus from f to f’.

In figure 5, an example of correction for a green

stimulus on a grey background is given. The input

stimulus is at a given frequency f. When this

frequency is decreased to f’, we obtain the stimulus

of figure 5-b. It is easy to notice that the two colors

seem different. By using the s-CIECAM, for the

spatial correction, the corrected stimuli (figure 5-c)

are closer to the input one.

Even if the obtained results are quite encouraging,

the s-CIECAM is designed to correct only one

stimulus and is not adapted to the correction of

images.

2.1 Influence of Background’s

Chromaticity

At this stage, the S-CIECAM is only taking into

account the frequency and of the background

luminance. New experiments have been conducted

in order to study the influence of background’s

chromaticity on human perception. In these

experiments, the background of a stimulus is no

longer achromatic but really chromatic.

The preparation and the conduction of subjective

experiments are tedious and time consuming. Our

selection of background has lead to two colors

having same luminance as the grey used in

precedent campaign to have a maximum of different

chromaticity with the same luminance.

Thus the perceived difference between a flat

stimulus and a stimulus modulated by a spatial

frequency, on three different backgrounds which

have the same luminance , is measured on the three

perceptual components J, C and h. An example of

results is shown by the figures 6, 7, 8:

Figure 6: Average of chroma perceived on a blue pattern,

on different backgrounds with the same luminance on

several frequencies (ref : reference color, grey :

achromatic background, bg1: 1st chromatic background,

bg2: 2nd chromatic background and model: s-CIECAM

predicted values).

Figure 7: Average of lightness perceived on a red pattern,

on different backgrounds with the same luminance on

several frequencies (same labels than figure 6).

Figure 8: Average of hue angle perceived on a green

pattern, on different backgrounds with the same luminance

on several frequencies (same labels than figure 6).

The obtained results show that the perceived

differences are quite similar for the hue angle and

the lightness comparatively to their scale. But the

figure 7 presents an important gap in the chroma for

high frequencies.

These figures show also that the s-CIECAM model

has a sound prediction of the spatial effect related

for the hue angle and the lightness.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

130

3 IMAGE APPLICATION

In order to use this spatial model for image

rendering, an extension was necessary because the

S-CIECAM is able to correct single stimuli only.

3.1 Model Description

It is very important to deal with image correction

since it is the main material we use in different

applications. The extension of the s-CIECAM to

images is not obvious. Indeed, the image is

composed by pixels where each of them could be

considered as a stimulus. Moreover, there is a

different meaning to be given to background

luminance, to surround and so on.

Starting from these remarks, we have to retrieve

for each pixel its inherent frequency and its

background.

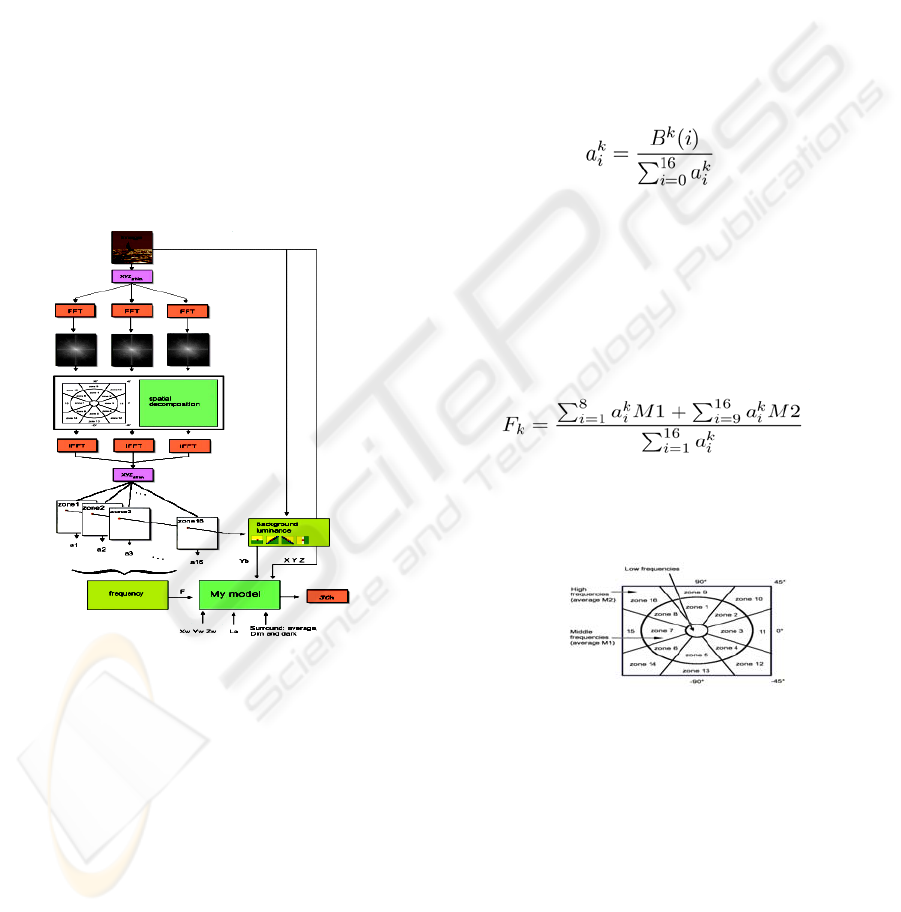

Figure 9: Flowchart of the images s-CIECAM.

The approach that we have adopted could be

summarized by figure 9. The input image is

transposed in the XYZ color space and then in the

Fourier domain. After that, the Fourier space is

decomposed in 17 frequency bands as shown in

figure 10. It corresponds to low, medium and high

frequencies and 8 major orientations.

As a first step, the low frequencies are removed

from the frequency domain in order to preserve the

quality of the image. The other zones with higher

frequencies will be processed using a methodology

that will be discussed hereafter.

• For each of the 16 frequency bands, an

average value is defined based on the size of

the picture and the distance between the

display and the observer.

• Then the inverse Fourier transform is applied

separately for each of these frequency bands

to obtain 16 different pictures representing

the content of each band with the dedicated

frequency and orientation.

For example, the first zone gives an image which

has a high correlation with horizontal medium

frequencies whereas the 11th zone gives an image

with a high correlation with high vertical

frequencies.

For each pixel and for each component (J, C and

h), 16 coefficients are calculated in function of the

frequency band like describe by the equation 1:

(1)

where k represents the perceptual component (J,

C or h) and the B

(i) are the value of the component

k at the considered point, for the frequency band i.

These coefficients will be used after to balance

the background luminance and the average

frequency of the pixel area.

The equation 2 describes how a component

frequency is obtained for a given pixel.

(2)

where M1 and M2 are the average frequencies of

the medium and the high frequencies computed

using the image size and the distance

display/observer.

Figure 10: Decomposition in Fourier domain.

The final frequency F is obtained with an

average of the three frequencies F

, F

and F

At this stage, for each pixel we have determined a

spatial frequency that could be used directly to

correct it using the s-CIECAM. However, we need

to know the other inputs of this model such as the

background luminance that depends on the

neighborhood of this pixel. The other inputs are

considered as fixed values because they are common

to the whole pixels of the image. It concerns the

tristimulus values of the source white in the source

conditions (X

), the luminance of the adapting

USE OF SPATIAL ADAPTATION FOR IMAGE RENDERING BASED ON AN EXTENSION OF THE CIECAM02

131

field (L

) and the viewing conditions (F

,c,n

As the same manner to the frequency, a

background luminance is calculated for each pixel

and the same coefficients a

balance the value of the

background luminance. This value is taken directly

from the input image and is depending on the

orientation of the considered neighborhood like

shows the figure 11.

Figure 11: The pixel (in red) and its neighborhood

function of processed band.

For example, in the first area there is a high

correlation with the horizontal frequencies. So, to

specify a background luminance, the pixels which

are above and below are considered for the

computation. If the average luminance of the pixels

above the processed one is close to its luminance,

the average luminance of the pixels below is

considered as the background luminance. If the two

averages are very different from the processed pixel,

the background luminance is considered as their

medium value.

After the background luminance computation, we

can consider that we have the necessary inputs for s-

CIECAM in order to correct the image appearance.

So the first step will be to transpose each pixel into

the perceptual color space composed by the

lightness, the chroma and the hue angle. Then, from

the perceived values for each pixel, it is possible to

apply the inverse s-CIECAM to obtain the corrected

pixel with regards to the input values depending on

varying viewing conditions

In order to obtain a better image and so to validate

the advantages of this proposed approach, we opted

for varying the spatial frequency only. To do that,

the input pixel is considered as belonging to a flat

stimulus at zero-frequency and the inverse model is

used with the frequency obtained by equation1.

3.2 Results

The figure 12 shows an example of the obtained

results using the s-CIECAM adapted to images. In

this figure, we can compare the original picture

(figure 12-a) and its correction with our model

(figure 12-b). It is easy to notice that the corrected

image seems more natural than the original one.

We have done a lot of tests in order to quantify

the improvement done by our approach. Among the

tests, we have performed a similarity measurement

between the original and the corrected images using

the SSIM (Wang, Bovik, Sheikh, and Simoncelli

2004) metric that evaluate the fidelity of the

reproduction. Table 1 gives the fidelity values for

the image of figure 12.

The model has been applied on 17 images

coming from the Kodak image database and the

fidelity between the corrected and the original

images is always high. The CIE ∆E2000 (Sharma,

Wu, Dalal 2005) was also used and the results are

similar to SSIM.

-a-

-b-

-c-

-d-

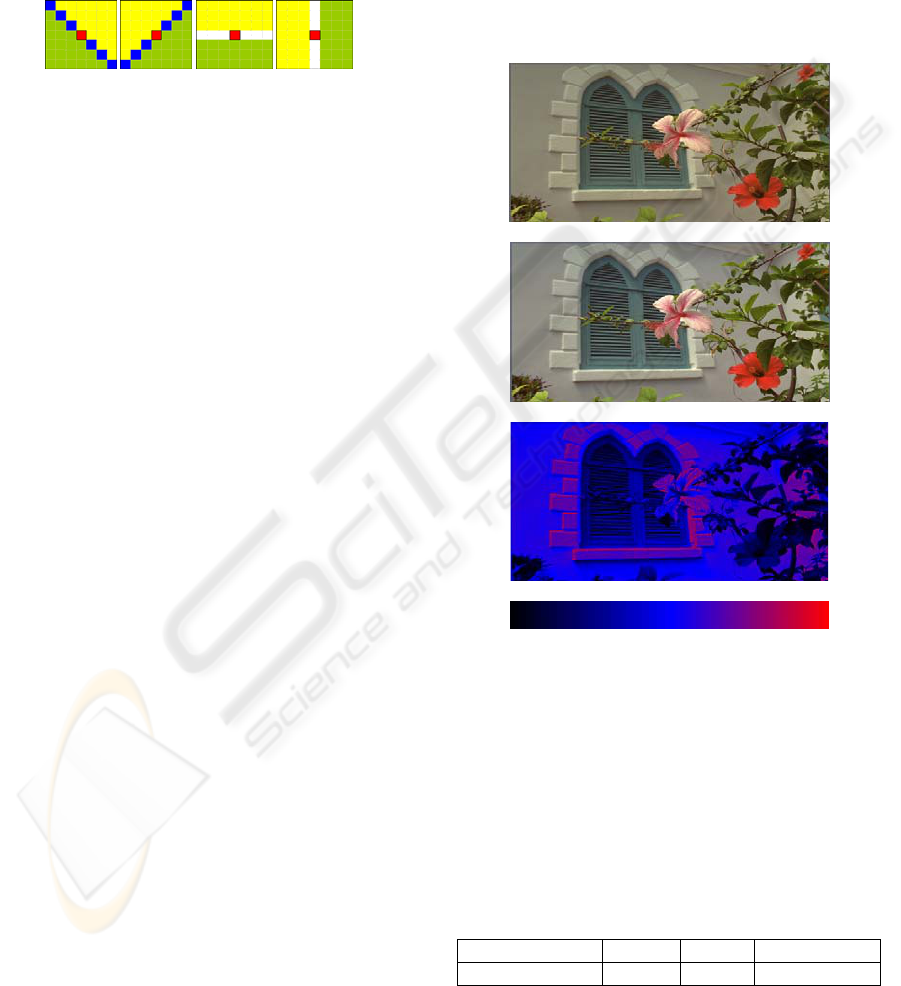

Figure 12: Example of results. a- original picture. b-

Picture corrected.c-∆E2000 differences between a and b.

d-∆E2000 scale increasing from black to red.

The Figure 12-c shows the error generated by the

correction using the CIE ∆E2000. In this figure,

black represents unmodified pixel, blue represents

zones with a medium difference and red zones have

higher differences.

Table 1: Fidelity measures between original and corrected

images of figure 12 on the three components RGB.

Component Red Green Blue

Fidelity 99.5% 99.4% 97.9%

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

132

From this figure, one can remark that the

textured areas are corrected whereas the relatively

uniform zones.

Another statistical measure has been performed

to prove the consistency of our method which is not

only based on lightness adjustment. Table 2 gives

the average adjustment performed on the 3

perceptual components (J, C and h) for the image of

figure 12.

The values of this table demonstrate that not

only lightness is adjusted but also the chroma and

the hue even if for this latter the deviations are

small.

Table 2: Average adjustment values obtained from the

corrected image of figure 12.

Component J C h

Average adjustment 2.64 9.25 0.05

3.3 Validation

In order to validate our adaptation of s-CIECAM to

images, we have managed a psychophysical

experiments based on a forced choice paradigm.

These subjective experiments were performed on 17

images from the Kodak database. They were

performed with a panel of 15 observers which were

evaluated for the visual acuity and a normal color

vision.

The observers were only asked to choose the

image that seems to them better (more natural)

between an original and a corrected image in a blind

way. Three repetitions are made for each of the 17

pictures to see if the observer has a stable opinion.

The obtained results are presented by figure 13

which shows number of choice of corrected image

against original.

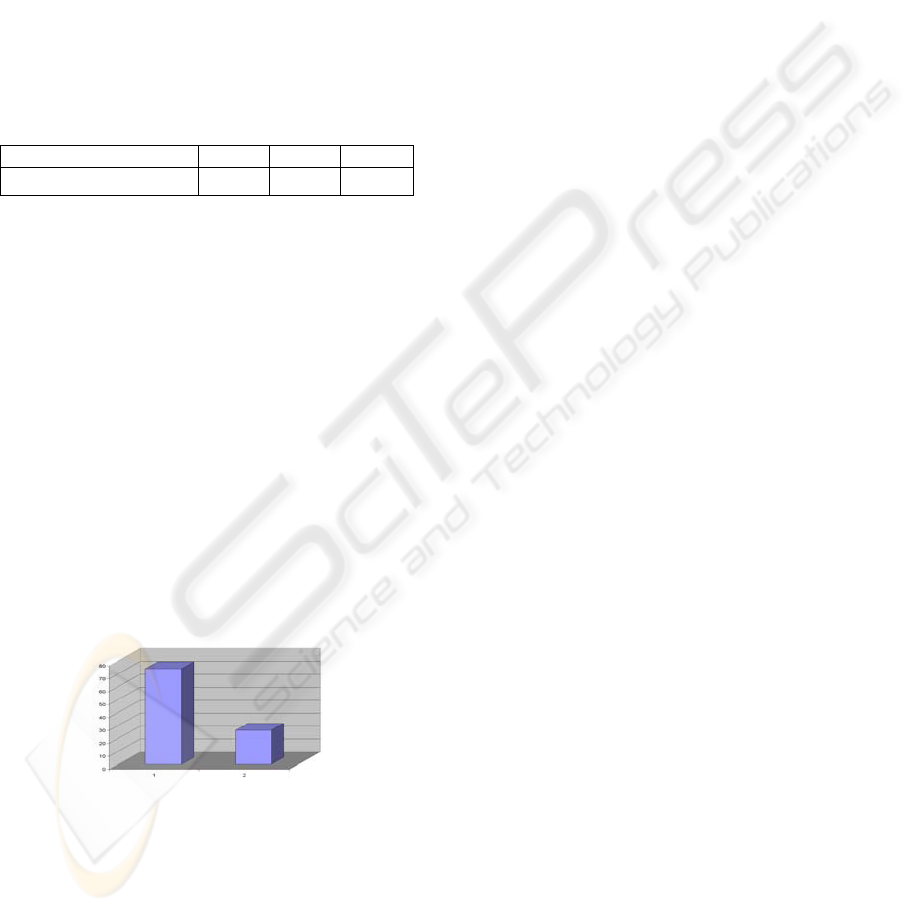

Figure 13: Diagram which show the percentage of choice

for the corrected image (1) against the original (2).

On this histogram we can see that in 75% of case the

image corrected by our model was preferred by the

observers.

The standard deviation is very weak and no

observers have been rejected because of the stable

evaluation they have given.

4 CONCLUSIONS

In this contribution a model based on

psychophysical experiments has been described. A

study of the influence of the chromaticity of the

background was realized with the same experiment.

This s-CIECAM was extended to images with a

method allowing taking into account spatial

information.

Different tests to validate our results were

presented and corrected pictures seem more

naturally than the original. Those results are very

encouraging and the future direction of this work is

its inclusion for High Dynamic Range rendering.

Finally another prospect is the study and the

integration of the temporal frequencies with digital

cinema as an application.

REFERENCES

M.D.Fairchild, “Color appearance model”. Addison-

Wesley, Massachussets (1997).

N. Moroney, M.D. Fairchild, R.W.G. Hunt, C.J Li, M.R.

Luo, and T. Newman, "The CIECAM02 color

appearance model," IS&T/SID 10th Color Imaging

Conference, Scottsdale, 23-27 (2002).

ITU-R Recommendation BT.500-10, “Methodology for

the subjective assessment of the quality of television

pictures “, ITU, Switzerland (2000).

ISO3664, “Viewing Conditions for Graphic Technology

and Photography”, ISO (1999).

M.R. Luo and R.W.G. Hunt, "The Structure of the CIE

1997 Colour Appearance Model (CIECAM97s),"

Color Res. Appl., 23, (1997).

G.M. Johnson, “The quality of appearance”, AIC 2005,

Granada Spain, (2005).

B.A. Wandell “Foundations of vision”, Sinauer

Associates, Inc, Sunderland, Massachussetts(1995).

C. Larabi and O. Tulet, “Study of the influence of

background on colour appearance of spatially

modulated patterns”, CIE, Paris(2006)

G. Sharma, W. Wu, E. N. Dalal, “The CIEDE2000 Color

difference Formula: Implementation Notes,

Supplementary Test Data, and Mathematical

Observations,” CR&A, 30(1), pp. 21-30, 2005.

M.D. Fairchild and G.M. Johnson, “The iCAM framework

for image appearance, differences, and quality,”

Journal JEI 13, 126-138 (2004).

Z. Wang, A. C. Bovik, H. R. Sheikh, and E. P. Simoncelli,

“Image quality assessment: From error visibility to

structural similarity”, IEEE TIP 13 pp.600-612, Apr.

2004.

USE OF SPATIAL ADAPTATION FOR IMAGE RENDERING BASED ON AN EXTENSION OF THE CIECAM02

133
