BUILDING DETECTION IN IKONOS IMAGES FROM

DISPARITY OF EDGES

Charles Beumier

Signal & Image Centre,Royal Military Academy, 30 Avenue de la Renaissance, 1000 Brussel, Belgium

Keywords: Remote sensing, building detection, security, disparity, stereo, edges.

Abstract: The availability of very high resolution satellite images has enabled the automatic remote detection of man-

made structures for applications such as damage assessment or change detection. In particular, stereo pairs

of Ikonos or Quickbird images allow for the estimation of the third dimension so distinctive for buildings.

Since the areas to be studied may be quite large we propose a simple, fast and possibly accurate approach

for building detection. This approach consists in a three step procedure which first detects linear segments

independently in the left and right images, then matches segments according to their mutual coverage,

orientation and plausible disparity, and finally identifies building areas thanks to the presence of elevated

segments. The solution is fast as only pixels of high gradient connected into linear segments are considered.

Modelling object parts with linear segments is valid for the vast majority of man-made objects and allows

for rapid segment pairing for disparity computation with possible sub-pixel accuracy. This approach has

been applied to an Ikonos pair for the detection of large buildings in the context of risk assessment within

GMOSS, a European Network of Excellence.

1 INTRODUCTION

Although building detection or reconstruction from

aerial images has been the research topic of many

studies since more than two decades as exemplified

by the surveys of Mayer (Mayer, 1999) and Shufelt

(Shufelt, 1999), the use of very high resolution

satellite images for building detection started six or

seven years ago, when these images became

available (end 1999 for Ikonos and end 2001 for

Quickbird). In (Fraser, 2001) for instance, the

authors present an evaluation of Ikonos imagery for

geo-positioning accuracy and radiometric quality. In

(Jin et al., 2005), buildings are automatically

extracted in urban areas using structural, contextual

and spectral information. The practical advantages

of satellite image acquisition concerns the geo-

positional accuracy, large coverage, automatism and

small revisit time making satellite image analysis an

ideal candidate for risk or damage assessment and

change detection. In particular, stereo pairs available

from Ikonos and Quickbird sensors allow for the

estimation of the third dimension so distinctive for

elevated man-made structures like buildings (Fraser,

2001 and Vozikis, 2004).

Since the geographical areas to be studied are

quite large we propose in this paper a simple, fast,

though possibly accurate approach for building

detection which computes the disparity at pixels of

sufficient gradient and highlights linear segments so

representative of building outlines. In comparison

with the work published before (Beumier, 2007), the

author considers here matching linear segments

instead of individual pixels to improve the coherence

and quality of estimated disparities. This principle is

not new (Medioni et al., 1985) but the interest of the

current paper lies in application to VHR imagery for

risk assessment.

The rest of the paper is organized as follows.

Section 2 presents the methodology, detailing how

linear segments are detected in each image and

matched to derive a disparity measure on which to

assess the building presence. Section 3 gives results

of building detection from an Ikonos stereo pair in

the context of risk assessment and section 4

concludes the paper, highlighting perspectives.

2 METHODOLOGY

2.1 Approach

Buildings are characterized by linear edges related to

walls, roof edges or ridges and possibly linear

shadow casts. As other man-made structures like

road or parking lots also contain linear shapes,

317

Beumier C. (2008).

BUILDING DETECTION IN IKONOS IMAGES FROM DISPARITY OF EDGES.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 317-322

DOI: 10.5220/0001083303170322

 SciTePress

buildings may be distinguished by their height

attribute. In very high resolution satellite images

buildings exhibit clear linear features, especially for

large constructions. The little houses which may

appear rounded are of smaller interest for security

applications.

We propose to detect buildings automatically in

a pair of very high resolution satellite images in a

three step procedure. First, linear segments related to

edges are looked for independently in the left and

right images. Secondly, segments of both images are

matched according to segment orientation, vertical

coverage and plausible disparity. Thirdly, areas

populated with elevated segments are selected as

potential built-up areas.

This goal directed approach, focusing on linear

segments which characterize buildings, is

computationally efficient since it considers only a

small fraction of pixels (edges) agglomerated into

segments. Matching elements for disparity

estimation is done at the segment level, reducing the

number of possible associations and taking

advantage of filtering criteria like segment length

and orientation. The modelling of edges with linear

segments also allows for the sub-pixel estimation of

the underlying lines, leading to increased disparity

precision. In particular, nearly horizontal image

lines, bringing disparity confusion when single

pixels are to be matched, may still have accurate

disparity estimation thanks to sub-pixel localization

of the corresponding segments.

Detected segments are selected according to their

disparity values to retain elevated linear parts. Up to

now, no building model has been used. The density

of detected segments matched in both images and

assigned to valid disparities (elevation) defines

geographical areas where built-up areas are likely to

be found.

2.2 Linear Segment Detection

The left and right images of the stereo pair are

processed independently with the same procedure to

extract linear segments.

First a low-pass filter (a 3x3 uniform average) is

applied to reduce image noise. Then the gradient

magnitude and orientation are estimated from

horizontal and vertical differences of grey-level

values with 2-pixel of distance. Thirdly, an edge

follower is initiated for each pixel whose gradient

magnitude exceeds threshold start_grad. Following

edge proceeds in the direction perpendicular to the

gradient, picking the neighbouring pixel (three

candidates) with maximal gradient magnitude and

compliant with the original gradient orientation. A

segment is completed as soon as the current gradient

magnitude becomes lower than threshold min_grad.

Details are given in (Beumier, 2007).

After constraining segment construction by

magnitude and rough orientation criteria, candidate

segments are filtered based on geometrical

constraints. Small segments (min_length) are

rejected as they do not offer enough confidence and

linear robustness. Winding segments are rejected

based on the standard deviation of segment pixel

distance relative to the minimal inertia axis. This

deviation is easily computed with second order

moments as presented in (Beumier, 2006). The

proposed implementation enforces straightness

thanks to an incremental computational model

ensuring efficiency and presents an intuitive

interpretation of the straightness parameter.

Although edge magnitude could be a measure of

segment confidence, the similarity of segment edge

magnitude was not used since the difference in

viewpoint for the left and right images implies large

gradient variations.

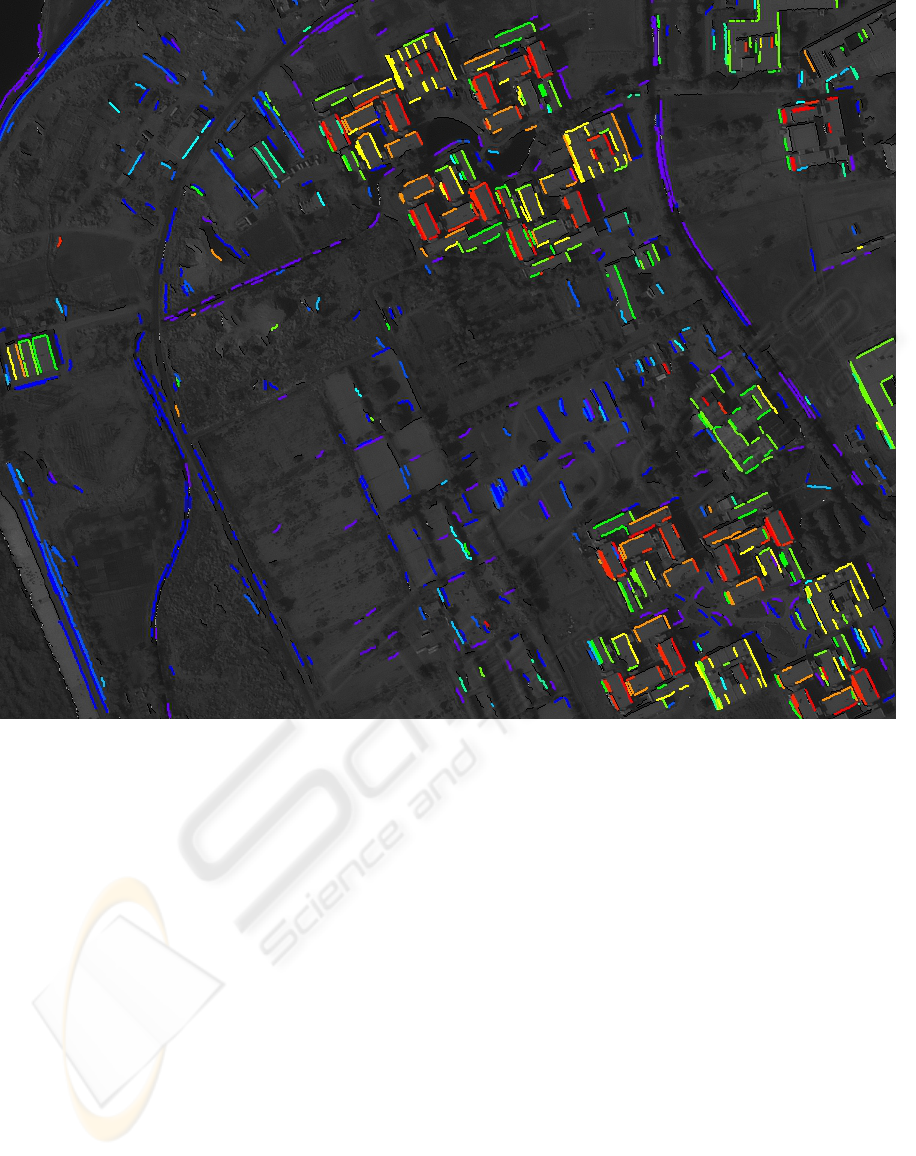

Figure 1: Segments highlighted in left image with colour

based on orientation.

2.3 Segment Matching

In a stereo pair of images, the two images are taken

from a different point of view, allowing for the

depth recovery by triangulation. To recover precise

x, y and z coordinates, positional (camera optical

axes) and camera parameters (focal length, principal

point, distortion) are necessary.

Image providers mostly perform a rectification of

stereo pairs which aims at warping the images based

on positional and camera parameters so that any

scene point is visible at the same vertical position in

the left and right images (epipolar constraint). In that

case, the search of corresponding pixels in left and

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

318

right images is reduced to 1-D (horizontal) search,

simplifying and speeding up the matching

procedure.

In the specific case of building detection for

security application like change detection or damage

assessment, an accurate z coordinate (elevation) is

often not necessary. An approximated value or

measure relative to the neighbourhood suffices. In

this case, the disparity is a valid cue for rough

elevation estimation.

To derive disparity values, corresponding left

and right segments must be paired. Segment

matching considers the following properties:

2.3.1 Vertical Overlap

The segments corresponding to a same object are

displaced horizontally in the left and right images.

However, due to differences in images originating

from viewpoint changes, occlusion, shadow or noise,

the correspondence may be partial or inexistent. We

retain segments for matching if their vertical overlap

has a minimum length of only 2 pixels, arguing that

purely horizontal linear segments cannot receive a

reliable disparity measure.

Even though a larger overlap normally increases

the confidence we have in a match, we have not used

any confidence rating related to the vertical overlap

as the length of segment is probably more pertinent

than its vertical projection. Similarity in length is

however a difficult concern as many segments

appear differently in left and right images due to

occlusion, perspective or edge detection conditions.

2.3.2 Consistent Orientation

The segments in the left and right images

corresponding to one scene object often have a

similar orientation (the same if the object has a

constant elevation). This orientation has a possible

range of 360°, including the sign of the gradient,

because rising and falling edges correspond to a

different grey-level neighbourhood and thus

probably to a different underlying object. The

segment orientation is estimated thanks to the

segments points and is quite accurate, as the retained

segments are straight. Perspective effects, different

in images due to the viewpoint change, may cause

some difference in segment orientation. Parameter

orient_thres accounts for orientation flexibility in

segment matching. A typical value for this

parameter is 10°.

No confidence factor has been associated to

orientation. The segment pair is either rejected or

accepted based on the orient_thres parameter.

2.3.3 Valid Disparity

Due to image capture, geometry constraints and

scene continuity, the range of allowable disparities is

restricted to a given interval. This interval may be

limited to minimum (min_disp) and maximum

(max_disp) values when looking for a specific

elevation range. Until now, these values are entered

by the operator, but are later supported by a

histogram of disparities measured on the images.

2.3.4 Matching Confidence

Each segment pair satisfying the 2.3.1, 2.3.2 and

2.3.3 conditions is given a confidence measure in

order to filter pair candidates, especially for

ambiguous associations (segment associated to

several segment candidates). This measure could

integrate a factor promoting vertical overlap or

segment length similarity and a factor decreasing

with orientation difference. So far, the confidence

measure is based on the histogram of disparities of

possible matching pairs of segments.

For ‘left’ segments contained in a rectangular

area of the left image and ‘right’ segments of the

corresponding rectangular area of the right image,

the matrix of segments association is filled in with

the disparity of valid segment pairs. The histogram

of disparities is computed and segment pairs are

given as confidence the occurrence of the disparity

as collected by the histogram.

This simple method was designed to take the

segment topology with no explicit topology

description, as consistent disparities are often

present in the structure of built up areas. It is also

based on the principle that false disparities are likely

to present non-typical values spread out in the

histogram.

2.4 Disparity Estimation

As explained in the previous section, for rectified

images, we look for the horizontal disparity between

matching segments. As scene objects are not

necessarily horizontal (with a constant elevation)

disparity values might vary along the segment.

Fortunately, as we paired linear segments, the

disparity also varies linearly along the segments,

corresponding to a linear variation of a linear object

in the scene.

Thanks to the linearity of searched scene objects

and straightness of detected segments, we can use

sub-pixel approximation of the segments and derive

a sub-pixel estimation of the disparity. When the

straightness constraint is sufficiently high, the

BUILDING DETECTION IN IKONOS IMAGES FROM DISPARITY OF EDGES

319

segment is perfectly approximated by a slope and a

reference point with sub-pixel coordinates. The

disparity along the segment can be obtained from the

difference in slope and the difference in horizontal

coordinate of the reference point. That computation

scheme for disparity estimation is also preferable in

the case of nearly horizontal segments as these

contain consecutive pixels with same vertical

coordinate value leading to confusion for horizontal

disparity estimation.

Under the hypothesis of linear underlying scene

objects, we can extend the recovery of linear

segments to the union of the left and right segments.

The common part of the left and right matching

segments, facing horizontally, is used to estimate the

sub-pixel linear variation of the disparity. We then

extend this linear estimation to the upper and lower

limits of either left or right matching segments.

Segment extension should however be used with

caution and additional information (other segments

or grey level continuity) should be gathered for

confirmation. This was not implemented in the

present work.

2.5 Segment Selection

The information extracted so far may be used to

assess the presence of elevated linear segments so

representative of buildings.

If buildings are to be highlighted, range limits of

disparity may be specified to filter out objects not in

the expected range of heights. If more than a visual

appreciation is desired, detected segments with valid

disparity can be grouped into structures thanks to

disparity or height consistency and relative

orientation and distance (proximity, parallelism or

perpendicularity).

3 RESULTS

The approach was applied to a stereo pair of Ikonos

images in the context of the GMOSS European

project. GMOSS (Global MOnitoring for Stability

and Security) is a Network of Excellence in the

Aeronautics and Space priority of the 6th framework

of the European Union lasting from 2004 to 2008.

GMOSS aims at acquiring and maintaining expertise

for global monitoring using satellite earth

observation. One activity was the definition and

collaboration for several test cases related to real

situations through which partners could contribute

thanks to their expertise.

For the test case concerning Iraq, the SIC

contributed with the detection of medium or large

size buildings thanks to the disparity estimation from

a stereo pair of 1-m resolution images around

Bagdad. Risk assessment is indeed of high

importance in critical situations and industrial areas

consisting of large buildings are potential targets.

A particularly interesting representation of the

results considers the display in false colour of

segments matched in the left and right images. In

Figure 2, matched segments are displayed according

to their disparity with a rainbow palette. Low objects

(typically on the ground level) appear in violet or

dark blue while light blue or green correspond to

medium elevation. Elevated segments are displayed

in yellow, orange or red.

Still considering this figure, we observe that few

candidate segments satisfy the conditions about edge

magnitude, continuity and length, although the

linearity constraint was quite loose. This reduces

considerably the number of possible pairs and

additional constraints about valid disparity, overlap

and orientation allows for the rejection of most

improper matches.

The small number of segments and possible

matches makes the approach fast, as intended. The

processing of a pair of 1Mpixel images takes less

than three seconds on a 1.3 MHz PC with most of

the time devoted to segment detection.

As visible in the figure, many linear segments

not related to buildings can be filtered out thanks to

the disparity constraint. Most violet or dark blue

segments correspond to roads, field limits or fences.

A few light blue segments emanate from trees and

could probably be rejected by a stricter condition on

straightness.

For building area detection, a map is created

from the count of segment pixels with appropriate

disparity in 25m x 25m neighborhood, thresholded

by the median of the counts. Results in Figure 3.

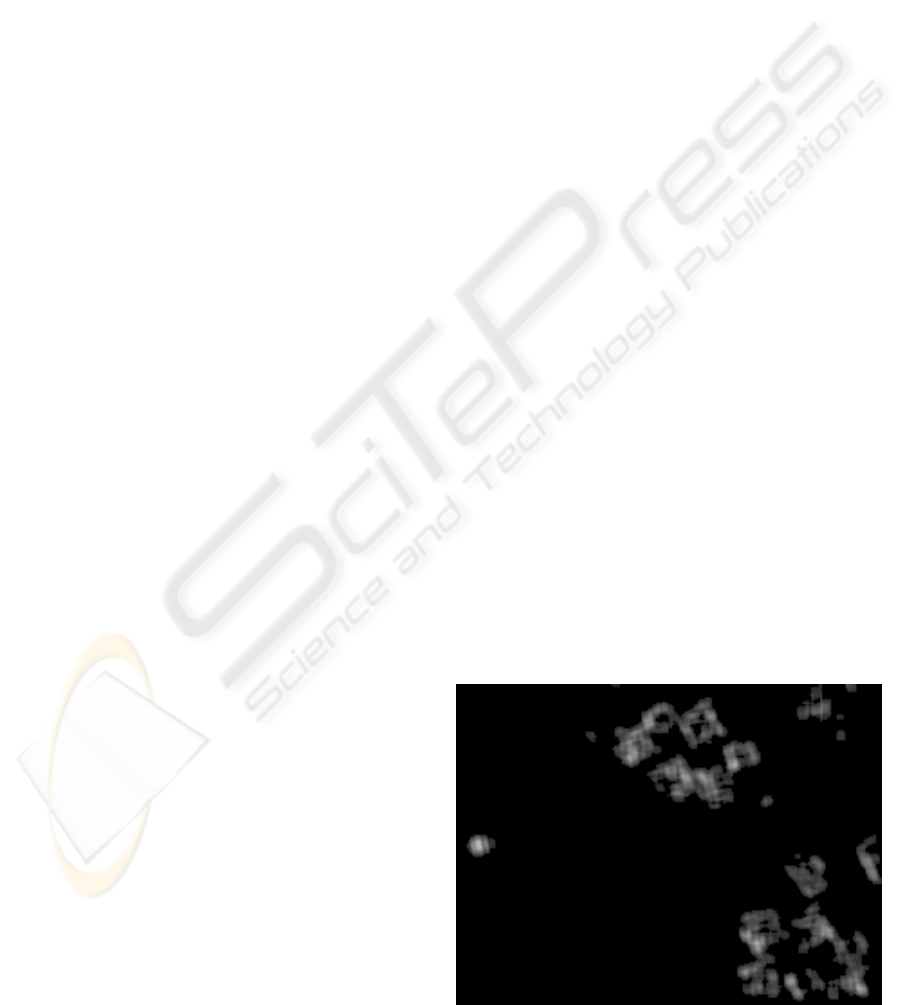

Figure 3: Building area map from counts of segment

pixels with appropriate disparity in 25x25 neighborhood.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

320

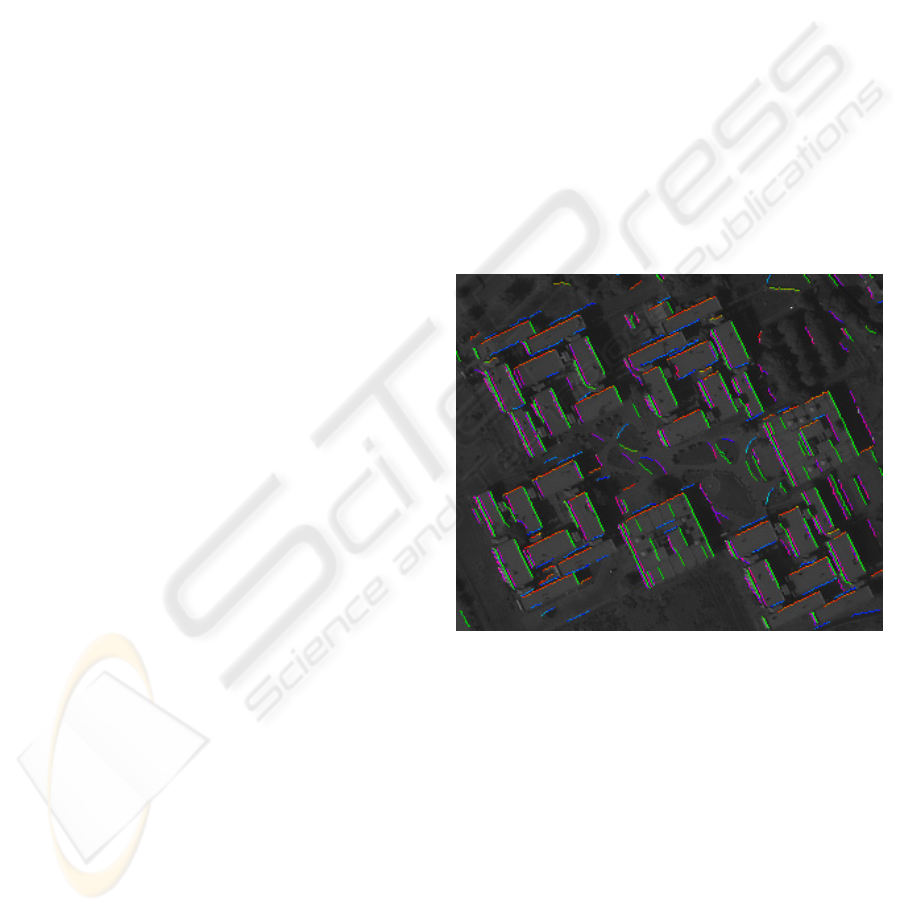

Figure 2: Display of matched segments with rainbow palette. Low segments are in violet and dark blue, medium in light

blue and green and elevated segments are in yellow, orange or red.

Although successfully applied to medium and

large building detection, the approach has a

limitation linked to the similarity of the left and right

images. Common differences are due to occlusion

seen differently in both images, a change in

orientation due to non horizontal segments (ridges of

a gable roof) or a modification of illumination due to

the sun orientation (different reflection or shadow,

especially when the sun is low). The implied

difficulties increase with the change of viewpoints

so that a smaller B/H ratio is preferable (the base B

is the distance between the two viewpoints and the

height H is the distance between the camera and the

object point). However the elevation precision is

proportional to the B/H ratio.

This qualitative analysis will be completed by a

quantitative analysis as soon as we dispose of

ground truth. For this, the approach will be applied

to a couple of aerial images on an area for which we

can get a vector database with elevation.

4 CONCLUSIONS

We presented an efficient large and medium

building detection based on the disparity of

corresponding linear segments of an Ikonos stereo

pair.

Candidate segments are first detected in the left

and right images and filtered according to their

length and linearity. Left and right segments are

matched thanks to the vertical overlap, consistent

orientation and plausible disparity. Candidates for

built-up areas are highlighted by the density of

segments with appropriate disparity. The

implementation is simple and fast and allows for

sub-pixel accuracy if necessary. It was applied to the

detection of buildings for risk assessment and can be

easily extended for change detection or damage

assessment.

In the future we intend to assess the method

quantitatively, in particular to try the sub-pixel

BUILDING DETECTION IN IKONOS IMAGES FROM DISPARITY OF EDGES

321

potential in the case of higher resolution images by

detecting buildings in aerial images and compare

elevation from the ground truth of a vector database.

ACKNOWLEDGEMENTS

This study has been supported by the Belgian MoD.

Image data has been obtained through the GMOSS

(Global Monitoring for Security and Stability)

Network of Excellence of the European

Commission.

REFERENCES

Mayer, H., 1999. Automatic Object Extraction from Aerial

Imagery – A survey Focusing on Buildings. Computer

Vision and Image Understanding, Vol. 74, No. 2, May

1999, pp 138-149.

Shufelt, J., 1999. Performance Evaluation and Analysis of

Monocular Building Extraction From Aerial Imagery.

IEEE Trans. On Pattern Analysis and Machine

Intelligence, Vol. 21, NO. 4, Apr 1999, pp 311-326.

Fraser, C. S., Baltsavias, E. & Gruen, A., 2001. 3D

building reconstruction from high-resolution IKONOS

stereo images. Proc. Of 3

int. Symposium on

Automatic Extraction of Man-made Objects from

Aerial and Space Images. Ascona, Switzerland, 10-15

June 2001, pp 331-344.

Jin, X. & Davis, C. H., 2005. Automated Building

Extraction from High-Resolution Satellite Imagery in

Urban Areas Using Structural, Contextual, and

Spectral Information. EURASIP Journal on Applied

Signal Processing 2005: 14, pp 2196-2206.

Vozikis, G., 2004. Automatic generation and updating of

digital city models using high-resolution line scanning

systems. Geo-imagery Bridging Continents, XXth

ISPRS Congress, 12-13 July 2004, Istanbul, Turkey,

commission III, WGIII/7, pp 1033-1038.

Beumier, C., 2007. Building detection from disparity of

edges, 27

Earsel Symposium – Geoinformation in

Europe, Bolzano Italy, 4-7 June 2007.

Medioni, G. & Nevatia, R., Segment-Based Stereo

Matching. Computer Vision, Graphics, and Image

Processing, Vol. 31, 1985, pp 2-18.

Beumier, C., 2006. Straight-line Detection Using Moment

of Inertia. IEEE International Conference on

Industrial Technology 2006 (ICIT2006), Mumbai,

India, Dec 15-17, 2006.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

322
