HAND GESTURE TRACKING FOR WEARABLE COMPUTING

SYSTEMS

Xiujuan Chai, Kongqiao Wang, Luosi Wei and Hao Wang

System Research Center, Nokia Research Center, Hepingli Dongjie, Beijing, China

School of Automation Science and Electrical Engineering, Beihang University, Beijing, China

Keywords: Wearable computing, temporal differencing, motion region, skin detection, colour histogram.

Abstract: Wearable computing is a hot research field in recent years. For the important role in wearable computing

systems, hand gesture tracking attracts many researchers’ interests. This paper proposes a simple but

efficient temporal differencing based hand motion tracking scheme which is used to build an augmented

drumming system. In our method, the accurate motion information is gotten by a fine-coarse-fine strategy.

Once getting the motion region candidates, a skin detector based on skin colour histogram is used to

determine which region is our concerned hand. In the tracking procedure, motion direction constraint is also

adopted in order to get a robust result. Different with the traditional skin detection for the whole image

frame, combining with the motion region detection, the hand detection is no longer effected by the skin-like

background. Experimental results show that our presented hand gesture tracking is robust and fast. We also

adopt it into an augmented drumming system to show the good performance and powerful potential of our

method in wearable computing systems.

1 INTRODUCTION

Wearable computing facilitates a new form of

human-computer interaction(HCI). Hand detection

and tracking is widely exploited for the important

role in wearable computing systems for the potential

applications, including the command control, games,

text input and many other aspects (Manresa,

2005)(Buades, 2004)(MacCormick, 2000).

So far, the state-of-the-art tracking strategy can

achieve high accuracy under restrict environment.

However, when confronted with complicated

background and irregular motion, the tracking

performance will be decreased dramatically.

Therefore, researchers’ should pay more attention to

the robust hand tracking under unrestricted

conditions. Over the study of these years, there are

many literatures focus on hand tracking and

analysis. Roughly, the tracking methods can be

divided into two categories: appearance-based

method and the model-based method.

In general, the model-based method aims to find

the accurate mapping from the 2D image to the 3D

configuration model of hand (Wu, 2001) (Lu, 2003)

(Chang, 2005). Although such tracking can achieve

good performance even for the detailed finger

motion, the computations are always time-

consuming for the iterative fitting to the elaborate

3D hand model.

While the appearance-based method aims to get

the correspondence between sequential video frames

based on the image features. Here, the image

features include not only the color, edge, position,

but also the transformed features, such as the

histogram feature, wave-let feature, high level

semantic feature etc. The time cost changes with the

selected features and in general, it will be less than

the model-based method. (Shamaie, 2003) proposes

a Kalman filtering-based dynamic model to deal

with the bimanual movements. (Shan, 2007)

proposes mean shift embedded particle filtering to

improve the sampling efficiency. (Bowden, 2002)

adopts eigenspace approaches to model contour and

appearance feature spaces. And there are also some

papers focusing on much simpler features (Martin,

1998) (Huang, 2002). It is naturally that if the

selected feature is simpler, then the time cost is

lower.

Considering the efficiency, we also adopt

appearance-based method to tackle hand tracking

problem. First, a fine-coarse-fine strategy is

performed to realize robust motion region finding.

651

Chai X., Wang K., Wei L. and Wang H. (2008).

HAND GESTURE TRACKING FOR WEARABLE COMPUTING SYSTEMS.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 651-654

DOI: 10.5220/0001080306510654

 SciTePress

Then skin color is used as a constraint for the

determination of the hand region. Simultaneously,

the moving direction of each motion rectangle is

also computed, which is used to eliminate some

unmeaningful motions and erect the correspondence

of moving targets. To show the potential to wearable

computing, the tracking is conducted in an

augmented drumming system as an instance and

shows good performance.

2 HAND MOTION TRACKING

STRATEGY

Our scheme for hand motion tracking mainly

includes three modules: motion region detection,

skin detection and the final motion vector

computing.

2.1 Motion Region Detection

In this part, a fine-coarse-fine strategy is adopted in

the temporal differencing to achieve a good de-

noising. For two consecutive video frames, i.e. . the

differencing is operated between the current frame

I and the previous frame

1−n

I . With an

experimential threshold, we get the binary difference


D according to Eq.(1), which usually

contains many noise points for the illumination

effect, as shown in Figure.1 (b).

()

⎩

⎨

⎧

round)else(backg

elmotion pix

(1)

To further eliminate these noises, a fine-coarse-

fine strategy is using here. By performing the de-

noising operation in these transformable levels, the

obtained differencing image is very clear.

Fine level: Performing the de-noising operation

(erosion and dilation) to

D , and we can get a

binary image

′

with less noise as shown in Figure.

1(c).

Coarse level: Performing down-sampling to

′

then doing the de-noising operation to get

()

′

Fine level: Refining

′

from

()

′

()

(

)

()( )

()

⎪

⎩

⎪

⎨

⎧

′′′

′

lse ,,

0,, ,0

eyx

yxDand

(2)

here,

hyywxx /,/

′

, w and h are the down-

sampling steps along x and y directions respectively.

2.2 Skin Detection

In the motion region detection stage, we can detect

all the dominating motions, which are caused by

hand movement, body movement, or the movement

of anything else in the scene. It is obvious that some

motions are meaningless for us. Therefore, how to

move such motions from all detected candidates is

important and here we exploit a skin detector based

on color histogram.

In the model training procedure, first collecte

many hand moving rectangles. Then by using color

clustering, the skin pixels in these rectangles are

determined to erect the statistical color histogram

H ,

which could be defined as follows:

{

}

),...,1,0(,),(

),(

KiMiyxfN

===

∑

(3)

In Eq.(3),

binyxIyxIbinyxIyxf

BGR

/).().(*).(),( ++=

, and

binbinK /255255*255

, with 16

bin .

Here

M is the total number of the skin pixels and N

is defined as:

{}

⎩

⎨

⎧

is false, f

is true , f

(4)

Similarly, we can get a statistical non-skin color

histogram

. Therefore, one pixel is determined to

be skin point if it satisfies the following two terms:

(1)

),(

yxf

(2)

),(),( yxfyxf

HH ⋅>

, 10 <

Temporal

Differencin

Erosion

& Dilation

Downsampling

& Dilation & Erosion

Refine from

downsam

lin

Map to

ima

e frame

A. Fine Level

B. Coarse Level C. Fine Level

(a)

(b)

(c)

(d)

(e)

(f)

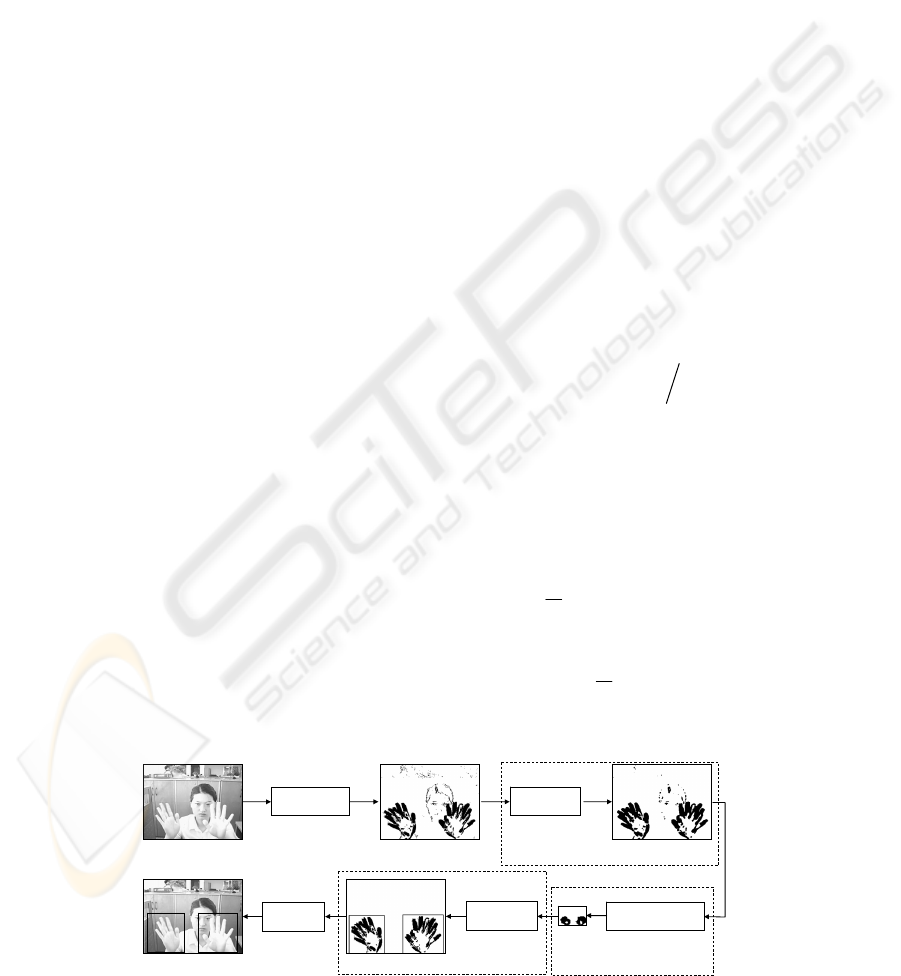

Figure 1: Flowchart of the motion region finding.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

652

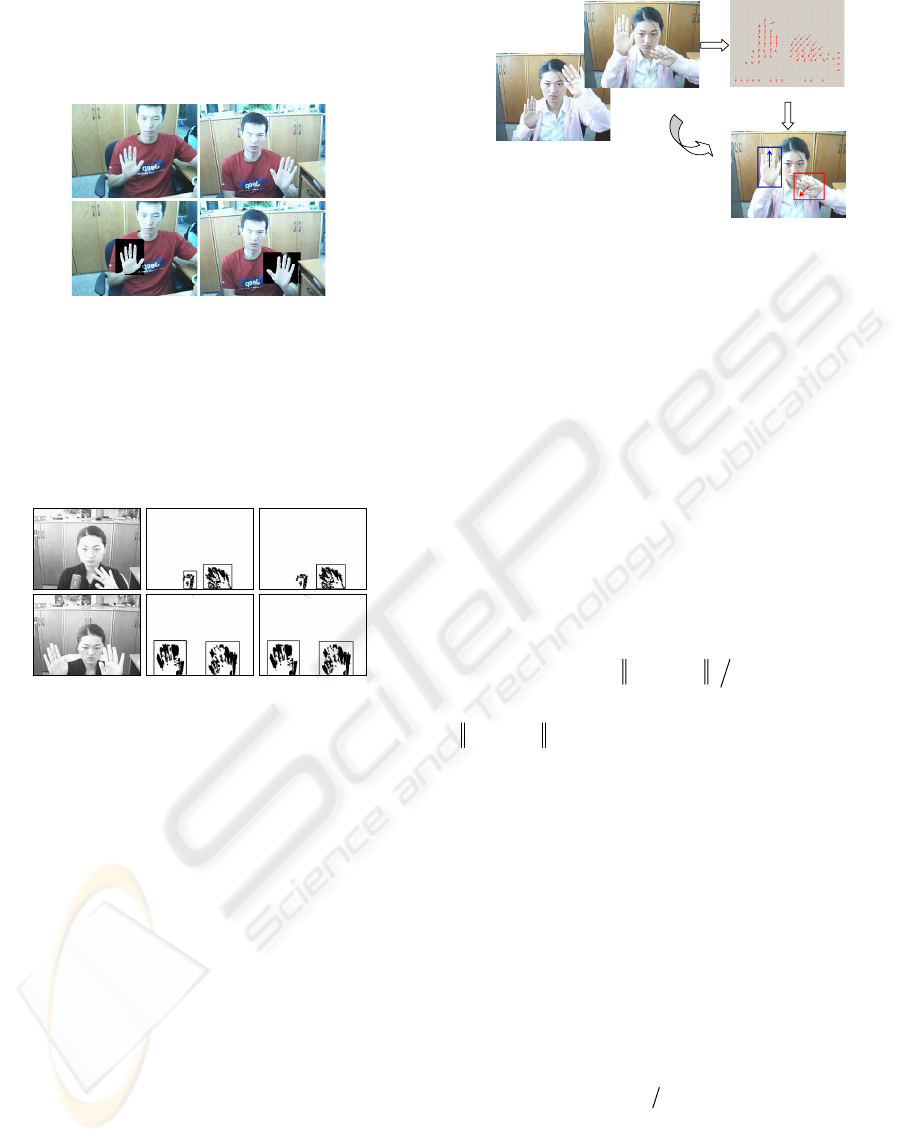

Figure 2 gives two examples for skin color

detection. The results clearly show that the skin

detection strategy can extracted the hand region

from so difficult background.

Figure 2: Examples for skin color detection.

With this skin detection procedure, the

percentage of the skin pixels to the whole pixels in

the moving rectangle can be computed. Through a

comparison with a predefined threshold, we can

eliminate the moving regions caused by non-skin

color objects, as given in Figure 3.

(a) Original frame (b) Hand tracking

without skin detection

(a) Hand tracking with

skin detection

Figure 3: The comparison of the hand motion tracking

with and without skin detection constraint.

2.3 Motion Vector Computing

To complete the tracking task, we try to erect the

correspondence between these motion rectangles by

using the moving direction information. Considering

the simplicity and effectiveness, block matching

algorithm is adopted in this paper. In our

implementation, we aim to get the mean moving

direction of each motion rectangle based on the

moving vector of the whole frame. Figure.4 gives an

example for the motion vector field and moving

directions for hand regions.

3 AN INSTANCE - AUGMENTED

DRUMMING SYSTEM

Augmented reality (AR) is a hot field of wearable

computing research which deals with the real world

(b) Current frame

(a) Previouse frame

(d) Moving direction

for hands

Figure 4: An example for the motion vector field and hand

motion region direction.

and computer generated data. In this paper, we

present a simple augmented drumming system as an

instance. Through the hand motion tracking, the

virtual drumming sound is generated and the virtual

drum is displayed with the real person and

background in the screen. Some examples are given

in Figure. 5 of Section 4.

Simply speaking, if the hand motion region

arrived at the virtual drum surface location with a

downwards moving direction, then it is determined

as a valid drum activity and the system is triggered

to sound. Another important parameter is the volume

of the sound and here it is determined through the

location information according to Eq.(5):

(

)

hCCVv

nn 2−

−⋅= ,

(5)

where,

V is the predefined max value of volume.

2−

− is the vertical distance between the two

centers

C and

2−n

C of n-th and (n-2)-th frames, h

is the height of the image frame.

4 EXPERIMENTS

4.1 Experiment on Hand Motion

Tracking

The qualitative results for hand motion tracking have

been given in the Figure 2 and Figure 3 shown.

To evaluate the performance of the hand motion

tracking, we adopt such a measurement principle:

nnr

(6)

here,

n and

n are the numbers of hand motion

region and totally detected motion region

respectively.

In our experiment, 10 short videos are recorded,

totally 2055 frames. We compare the hand motion

HAND GESTURE TRACKING FOR WEARABLE COMPUTING SYSTEMS

653

detection rates between with and without skin

detection constraint as listed in the table 1. In some

of our test videos, we add some motions caused by

other objects, and the experimental results show that

this kind of motion can be effectively eliminated and

thus the hand motion detection rate with skin

detection constraint improves remarkably. Importing

the skin detection modular also causes the increasing

of the time cost, as shown in Table 1. Fortunately,

the increasing can be accepted for general HCI tasks

and it can be compensated by high performance

computers.

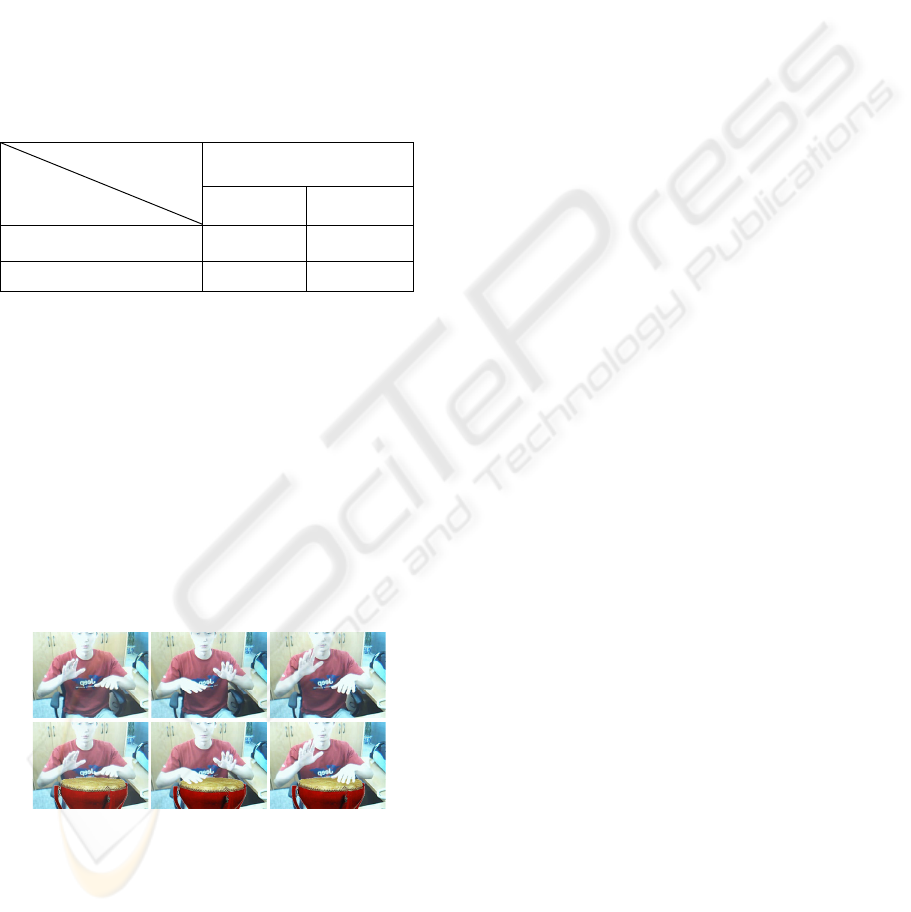

Table 1: The comparison results of the hand motion

detections with skin model and without skin model

conditions.

skin detection

constraint

Hand motion

detection

Evaluation

Without With

Detection rate 76.4% 93.04%

Time cost (ms/frame) 2.7 6.2

4.2 Experiment on Augmented

Drumming

In this wearable computing instance, the aim of our

hand motion tracking is to monitor an augmented

drumming system. Assuming a virtual drum location

first, through the hand tracking results, the rataplan

activity can be determined and the drumbeat is

played. By the integration of the hand motion

tracking and motion vector computation, the

augmented drumming system works well. Here,

some examples are given on Figure. 5, which show

the good performance of the interactive system.

(a) (b) (c)

Figure 5: The examples of the augmented drumming

system.

5 CONCLUSIONS

This paper proposes a robust hand gesture tracking

strategy. As an important visual analysis task for

wearable computing system, it is also used for an

augmented drumming system. In our motion

detection method, a fine-coarse-fine strategy is

adopted to eliminate lots of noise and get clear

results. Based on the extracted motion rectangles,

the skin detection using color histogram feature is

performed on them to determine the hand region.

The simple training procedure makes the distinction

between hand pixels and the skin-like background

become very easy and effective. Integrating the

motion vector computing, our proposed hand gesture

tracking strategy shows good performance in the

augmented drumming system.

REFERENCES

Martin, J., Devin, V, Crowley, J. L. 1998. Active Hand

Tracking. Proc. of the 3rd. Int. Conf. on Face and

Gesture Recognition. pp. 573-578.

Buades, J. M., Perales, F. J. , Varona, J., 2006. Real Time

Segmentation and Tracking of Face and Hands in VR

Application. Third Int. Workshop on Articulated

Motion and Deformable Objects. pp. 259-268.

Manresa, C., Varona, J., Mas, R., Perales, F. J., 2005.

Hand Tracking and Gesture Recognition for Human-

Computer Interaction. Electronic Letters on Computer

Vision and Image Analysis. 5(3): 96-104.

Lu, S., Metaxas, D., Samaras, D., Oliensis, J.2003. Using

Multiple Cues for Hand Tracking and Model

Refinement. CVPR, 2(443-450).

Chang, W., Chen, C., Hung, Y., 2005. Appearance-

Guided Particle Filtering for Articulated Hand

Tracking.CVPR. pp.235-242.

Wu, Y., Lin, J., Huang, T., 2001. Capturing Natural Hand

Articulation. ICCV. pp. 426-432.

Shamaie, A., Sutherland, A., 2003. A Dynamic Model for

Real-Time Tracking of Hands in Bimanual

Movements. Gesture Workshop. pp.172-179.

Rosales, R., Sclaroff, S., 2006. Combining Generative and

Discriminative Models in a Framework for Articulated

Pose Estimation. IJCV. 67(3): 251-276.

Stenger, B. 2005. Model-Based hand Tracking Using a

Hierarchical Bayesian Filter. Ph.D. Thesis. University

of Cambridge, St. John’s College.

MacCormick, J., Isard, M., 2000. Partitioned Sampling,

Articulated Objects, and Interface-Quality Hand

Tracking. ECCV. pp.3-19.

Shan, C., Tan, T. Wei, Y. 2007. Real-Time Hand

Tracking using a Mean Shift Embedded Particle Filter.

Pattern Recognition. 40(7):1958-1970.

Huang, Y., Huang, T., Niemann, H., 2002. Two-Handed

Gesture Tracking Incorporating Template Warping

With Static Segmentation. FGR.. pp.275-280.

Bowden, R., Sarhadi, M.,2002. A Non-linear Model of

Shape and Motion for Tracking Finger Spelt American

Sign Language, Image Vision Comput. 20: 597–607.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

654
