FAST TEMPLATE MATCHING FOR MEASURING VISIT

FREQUENCIES OF DYNAMIC WEB ADVERTISEMENTS

D´aniel Szolgay

Department of Information Technology, P´azm´any P´eter Catholic University, Pr´ater utca 50/A, Budapest, Hungary

Csaba Benedek and Tam´as Szir´anyi

Distributed Events Analysis Reseach Group, Computer and Automation Research Institute, Kende u. 13-17, Budapest, Hungary

Keywords:

Template matching, web advertisements, integral image, histogram.

Abstract:

In this paper an on-line method is proposed for statistical evaluation of dynamic web advertisements via

measuring their visit frequencies. To minimize the required user-interaction, the eye movements are tracked

by a special eye camera, and the hits on advertisements are automatically recognized. The detection step is

mapped to a 2D template matching problem, and novel algorithms are developed to signiﬁcantly decrease the

processing time, via excluding quickly most of the false hit-candidates. We show that due to the improvements

the method runs in real time in the context of the selected application. The solution has been validated on real

test data and quantitave results have been provided to show the gain in recognition rate and processing time

versus previous approaches.

1 INTRODUCTION

Analysing human behavior during web browsing is

nowadays an important ﬁeld of research. On one

hand, such surveys may provide useful information

about abilities, interest or needs of the users, which

can be applied in education, ofﬁces or e-commerce.

We can mention here (Kikuchi et al., 2002), which

suggests a method to compare the children’s reading

abilities in elementary schools.

On the other hand, examining the browsing process

helps the web page designers to decide which layouts,

colors, font sizes (etc.) may be found ergonomic or

attractive by the users. This paper is closely related

to this topic: we aim to measure the visit frequen-

cies of embedded web advertisements in given sites.

These examinations can help the investors to estimate

the efﬁciency of the commercials, while the web ser-

vice providers may get information about the optimal

locations of the advertisements.

Some corresponding methods in the literature need

conscious human feedback: in (Velayathan and Ya-

mada, 2006) the users have been requested to eval-

uate the web pages they viewed by a questionnaire

dialog pop up box. However, in this case the brows-

ing is periodically interrupted by questions, and also

ambiguous human factors should be considered such

as memory, motivation or preliminary knowledge.

Most of the above artifacts can be avoided if in-

stead of raising queries, we directly measure what

the users look at. In the proposed application a spe-

cial device is used: we track the eye movements

of a human observer with the system of the Senso-

Motoric Instruments

r

(SensoMotoric, 2005, SMI),

called iView X (Fig. 1). This system can register the

position of the eye with the precision of 0.5 degree in

every 50 millisecond.

As for biological background of the inspections, there

are three common types of eye movement: ﬁxations,

pursuit and saccades. For us the most interesting type

of the eye movements is the ﬁxation, because we re-

ceive practically all the visual information during it.

Thus, after we have got the eye positions from iView

X, we calculate the coordinates of the ﬁxation points

in the screen’s coordinate system.

The main task is to implement the automated pro-

cessing step, which measures the elapsed times mean-

while the users spent in ﬁxation over the different ad-

vertisements. The proposed model represents the con-

tent of the monitor by screen shots, which are cap-

tured periodically. In this way, we can handle the nat-

ural user interactions: they may displace the browser

228

Szolgay D., Benedek C. and Szirányi T. (2008).

FAST TEMPLATE MATCHING FOR MEASURING VISIT FREQUENCIES OF DYNAMIC WEB ADVERTISEMENTS.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 228-233

DOI: 10.5220/0001080002280233

Copyright

c

SciTePress

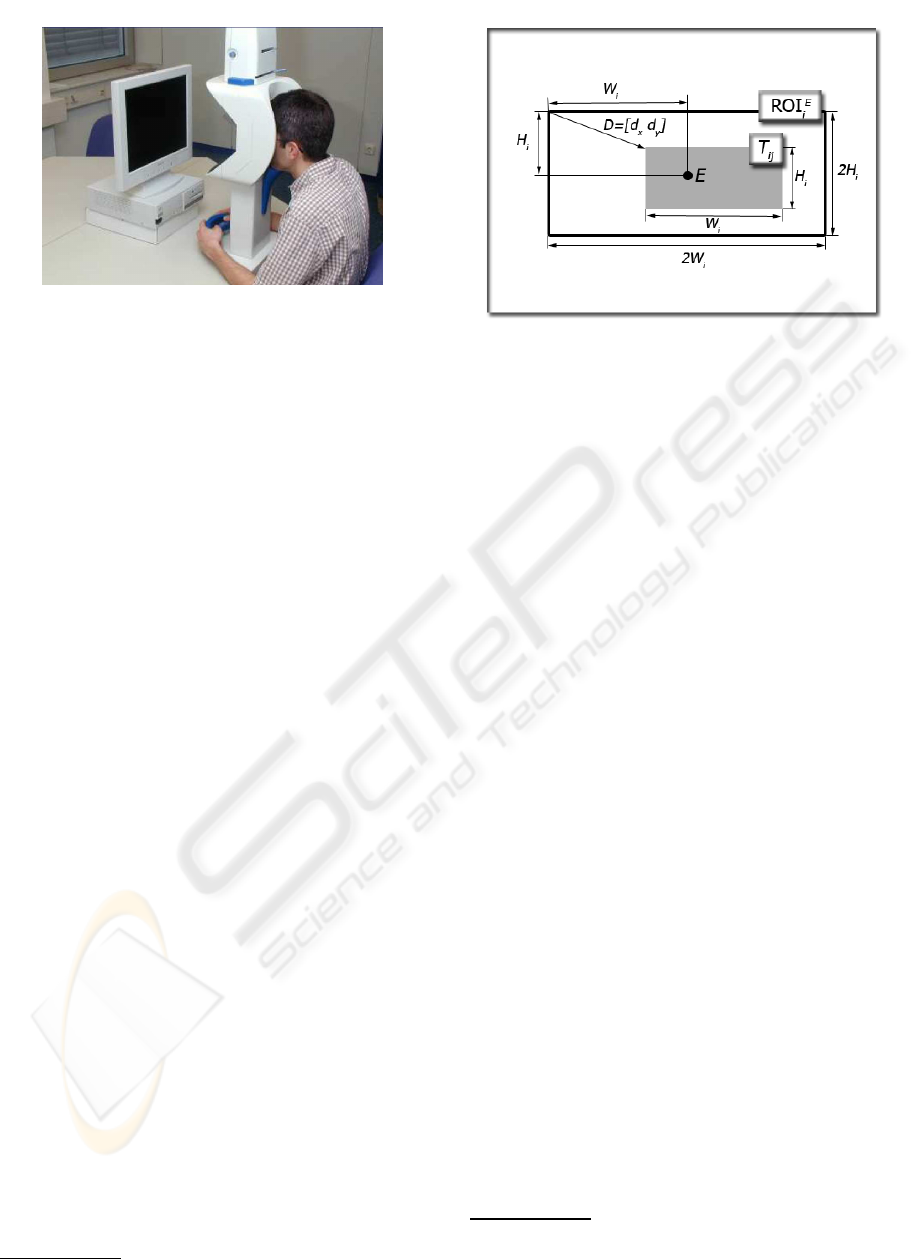

Figure 1: The eye tracker device in use (SensoMotoric,

2005).

window or scroll inside it up and down. Since the ad-

vertisements have usually dynamic content (e.g. ﬂash

animations), each of them is considered as a sequence

of images, which are given at the beginning of the

tests. Therefore, the procedure can be considered as a

2D template matching task from computer vision.

In this paper, a fast template matching method is pro-

posed, which can work in real time in the context of

the above application. At the end, we validate our so-

lution via real test data, and quantitatively show the

gain in recognition rate and processing time versus a

reference approach.

2 NOTATIONS AND NOTES

Let be N the number of advertisements. Denote by

T

ij

the jth frame (referred later as template) of the

ith advertisement. The templates corresponding to the

same advertisement are equally sized. The ith adver-

tisement contains n

i

frames with size W

i

× H

i

. The

screen coordinates of the current ﬁxation are denoted

by [e

x

, e

y

].

1

The examined problem can be interpreted as a se-

quence of 2D template matching tasks in the follow-

ing way (see Fig. 2): the eye position E = [e

x

, e

y

] is

over the ith advertisement, iff the E-centered, 2W

i

×

2H

i

sized part of the screenshot contains one of the

templates of the ith advertisement (T

ij

, j = 1. . . n

i

).

We will call this 2W

i

× 2H

i

sized image part as the

rectangle of interest: ROI

E

i

.

Note that we do not handle cases of partially missing

or occluded templates. This problem can be straight-

forward solved by splitting the advertisement tem-

plates into smaller parts and indicating matches if we

ﬁnd at least one part in the search region.

1

The origin of the screen is in its upper left corner.

Figure 2: Notations, E: position of the eye; T

ij

(gray rectan-

gle) a given template; ROI

E

i

: 2W

i

× 2H

i

sized ROI around

E.

3 PREVIOUS WORKS

Due to its wide applicability, template matching is a

well examined problem. The bottleneck of the avail-

able approaches is the time complexity: the general

models fail in real time processing of many templates.

Therefore, our proposed algorithm highly exploits the

application speciﬁc a priori conditions such as order

of magnitude regarding the size and number of tem-

plates. Usually, in a web page (or in a system of cor-

responding web pages, like a news portal) one can

observe 1-5 advertisements, however the length of

each sequence may be more around hundred frames.

Consequently, the advertisement matching procedure

should check 100-500 frames in real time. Note that

the assumptions about the number of templates only

affect the processing time but not the recognition rate

of the model, thus the system shows graceful degra-

dation in case of different priors.

For the above reasons, the following descriptions of

the different processing steps will focus on their com-

plexity, both regarding our method and the compet-

ing models. In most cases, the exact number of the

required operations cannot be given, since it also de-

pends on the input images.

2

Thus, we will give the

worst case values, which already gives a ground for

comparison, while the validation will be experimen-

tally performed at the end of the paper using real data.

3.1 Basic Method

The basic solution of the template matching problem

is the exhaustive search. Let characterize the possible

2

The models usually consist of a sequence of feature

extraction and comparison steps, where the difference be-

tween the regions may come forward at any step.

FAST TEMPLATE MATCHING FOR MEASURING VISIT FREQUENCIES OF DYNAMICWEB ADVERTISEMENTS

229

positions of a template T

ij

by the local coordinates of

its upper left corner D = [d

x

, d

y

] (i.e. displacement)

in the coordinate system of the current ROI

E

i

. Thus,

considering the T

ij

should be completely included by

ROI

E

i

(Fig. 2),

0 ≤ d

x

< W

i

, 0 ≤ d

y

< H

i

. (1)

Pixel by pixel checking of a given template in a given

position contains L

i

= W

i

· H

i

comparisons in worst

case. For each template, one should check all the pos-

sible positions of D row by row, and column by col-

umn, thus L

i

external cycles are needed. Finally, the

above process must be repeated for all templates. In

summary, the upper bound of the total number of op-

erations for one screen shot can be calculated as:

N

∑

i=1

n

i

· L

2

i

. (2)

For easier discussion, we introduce the following no-

tations:

n =

1

N

N

∑

i=1

n

i

, L =

∑

i

n

i

L

i

∑

i

n

i

,

b

L =

s

∑

i

n

i

L

2

i

∑

i

n

i

,

namely, n is the average number of the templates of

the same advertisement, while L (

b

L) is the weighted

average (quadratic mean) of the template sizes:

min

i=1...N

L

i

≤ L,

b

L ≤ max

i=1...N

L

i

.

In this way, eq. 2 can be written into the following

form:

b

L

2

·

N

∑

i=1

n

i

= N · n·

b

L

2

(3)

Consequently, the number of maximal required oper-

ations is proportional to the number of templates and

the square of their (quadratic) mean area in pixels.

If

b

L = 120 × 240 and we have in aggregate 500

templates this operation number equals to 4.15· 10

11

.

This complexity is unadmittable even in case of a few

templates.

3.2 Further Approaches

There have been proposed numerous ways to speed

up the template matching process. A widely used

technique works in the Fourier domain exploiting

the phase shift property of correlation (Reddy and

Chatterji, 1996). The most expensive part of this

procedure is performing the fast Fourier transform

which costs for each screen frame and each template

O (L · logL) operations (instead of

b

L

2

in eq. 3).

Later on, we will see that this performance is still

not appropriate. On the other hand, FFT-based

techniques can originally register images of the same

size, so the smaller template image must be padded

e.g. with zeros, which may cause further artifacts.

Note as well that due to the current task we do not

face rotated templates, which increase the complexity

of some general matching models (Yoshimura and

Kanade, 1994).

Another approach locates a template within image by

histogram comparison (Intel, 2005). As the detailed

results of the experimental section show, this solution

is also too weak if the number of templates is large.

An obvious way of speeding up the above algorithm

can be reached by (spatial) down scaling the tem-

plates and the images (i.e. decreasing L

i

). However,

due to compression artifacts down scaling may cause

signiﬁcant errors, especially in case of line drawings.

A new approximation scheme has been described in

(Schweitzer et al., 2002) that requires order O (L)

operations for each template. This approach is simi-

lar, but more complex than our upcoming “Average

feature based ﬁltering” (AFF) step presented in

Section 4. Moreover, we will only use AFF for hit

validation and exact position estimation, since its

complexity is still to high in case of a huge number of

templates, which may be present in our application.

Finally, we should mention the iterative template

matching techniques (Lucas and Kanade, 1981;

Comaniciu et al., 2003), which try to ﬁnd the optimal

location of the template from a given initial position.

However, reasonable initializations are needed here,

thus these methods are only used, if the positions of

the template in the consecutive frames are close to

each other (e.g. object tracking with high frame-rate).

In our case, the tracker device cannot provide reliable

eye positions if the user blinks, thus it is preferred to

ignore the high frame-rate assumption.

In the following part of this paper, we consider the

number of templates as a constant input parameter,

while taking efforts to signiﬁcantly decrease the

average number of the required operations for one

template.

4 AVERAGE FEATURE BASED

FILTERING (AFF)

We ﬁnd a key step in the exhaustive search based

models, namely, one should quickly answer whether

a given template T

ij

can be placed at a prescribed po-

sition D, or not. Since this subroutine is run for all

templates and all possible displacement positions, the

time complexity of this procedure is crucial. The

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

230

above mentioned models needed in average

b

L

2

and

respectively O (L · logL) operations at each template.

The following algorithm reduces it to C· L where C is

a small constant.

The main idea in the following approach is that we

do not compare pixel by pixel the templates and the

template-candidate ROI-parts, but we only compare a

few features which can be extracted very quickly. De-

note the number of features by F.

First of all, we convert the images into the HSV color

space, which is close to the physiological perception

of human eye. The features will be the empirical

mean values (M) and the mean squared values (Mq,

second moment) over the H and V image channels.

Thus, each template will be featured by F = 4 con-

stants, namely M

H

ij

, Mq

H

ij

, M

V

ij

, Mq

V

ij

, which should be

calculated only once when the program is initialized.

The features overthe rectangular hit candidate regions

of the ROIs should be calculated in each processing

step. Since the templates of a given advertisement are

assumed to be equally sized, the examinations must

be independently performed for each advertisement

but not for the included templates. Given ROI

E

i

one

should calculate the F feature scalars for each pos-

sible template offset D = [d

x

, d

y

] over the intervals

deﬁned by eq. 1. In a naive way, every such calcu-

lation would consist of an averaging over a W

i

× H

i

search region, which contains W

i

· H

i

− 1 addition op-

erations. Fortunately, the procedure can be signiﬁ-

cantly speeded up with the widely used integral trick.

4.1 Feature Extraction with the Integral

Trick

Several features over a given rectangular neighbor-

hood can be computed very rapidly using an interme-

diate representation for the image which is called the

integral image (Viola and Jones, 2001).

Given an image Λ, its integral image I

Λ

is deﬁned as:

I

Λ

(x, y) =

x

∑

i=1

y

∑

j=1

Λ(i, j).

With notation κ(x, 0) = 0 and I

Λ

(0, y) = 0, x =

1. . . S

x

, y = 1. . . S

y

:

κ(x, y) = κ(x, y − 1) + Λ(x, y),

I

Λ

(x, y) = I

Λ

(x− 1, y) + κ(x, y),

the integral image can be computed in one pass over

the original image (with two additions at each pixel).

With the integral trick, the sum of the pixel values

over a rectangular window can be computed via three

additional operations independently from the window

size (c− a) × (d − b):

c

∑

i=a

d

∑

j=b

Λ(i, j) = I

Λ

(c, d) − I

Λ

(a− 1, d)−

−I

Λ

(c, b− 1) + I

Λ

(a− 1, b− 1).

If we need the sum of the squares of the elements in

a rectangular window, the procedure is similar, but

a different integral image should be built up for the

squared elements.

Consequently, in the current procedure we should cal-

culate F integral images for each advertisement which

cost F · 2W

i

H

i

additions. Thereafter, at each of the

possible W

i

H

i

positions of displacement D, we can

calculate the local feature value with 3 additions and 1

multiplication, which should be compared to the ref-

erence features of the templates.

4.2 Optimizing the Comparison Via

Binary Search

After the algorithm calculates the local ﬁrst and sec-

ond ordered means regarding a given D displacement

position in ROI

E

i

, the resulting features should be

compared to the pre-calculated values regarding all

the templates of the ith advertisement. This means

n

i

comparisons. However, if we preliminary put the

templates into F ordered lists according to the F cal-

culated feature values, F · (1 + log

2

n

i

) comparisons

are enough using a binary search. In summary, the

time complexity of the method is as follows (hence-

forward using L

i

= W

i

H

i

):

2F

N

∑

i=1

L

i

| {z }

integ. im.

+ 4F

N

∑

i=1

L

i

| {z }

feature calc.

+

N

∑

i=1

L

i

· (1+ log

2

n

i

)

| {z }

compare

This is much more promising than the complexity de-

ﬁned by eq. 2, and also better than using the FFT-

based model. In our example, with N = 4, F = 4,

L

i

= 120 × 240 and n

i

= 100 the number of required

operations is 3.64 · 10

6

. However, according to our

tests this speed is still not enough for real time pro-

cessing.

5 HISTOGRAM BASED

FILTERING (HF)

Although the complexity of the AFF step is too high

in case of a huge number of templates, it can efﬁ-

ciently validate a few hit candidates. In this section,

we present a quick preprocessing algorithm, which

FAST TEMPLATE MATCHING FOR MEASURING VISIT FREQUENCIES OF DYNAMICWEB ADVERTISEMENTS

231

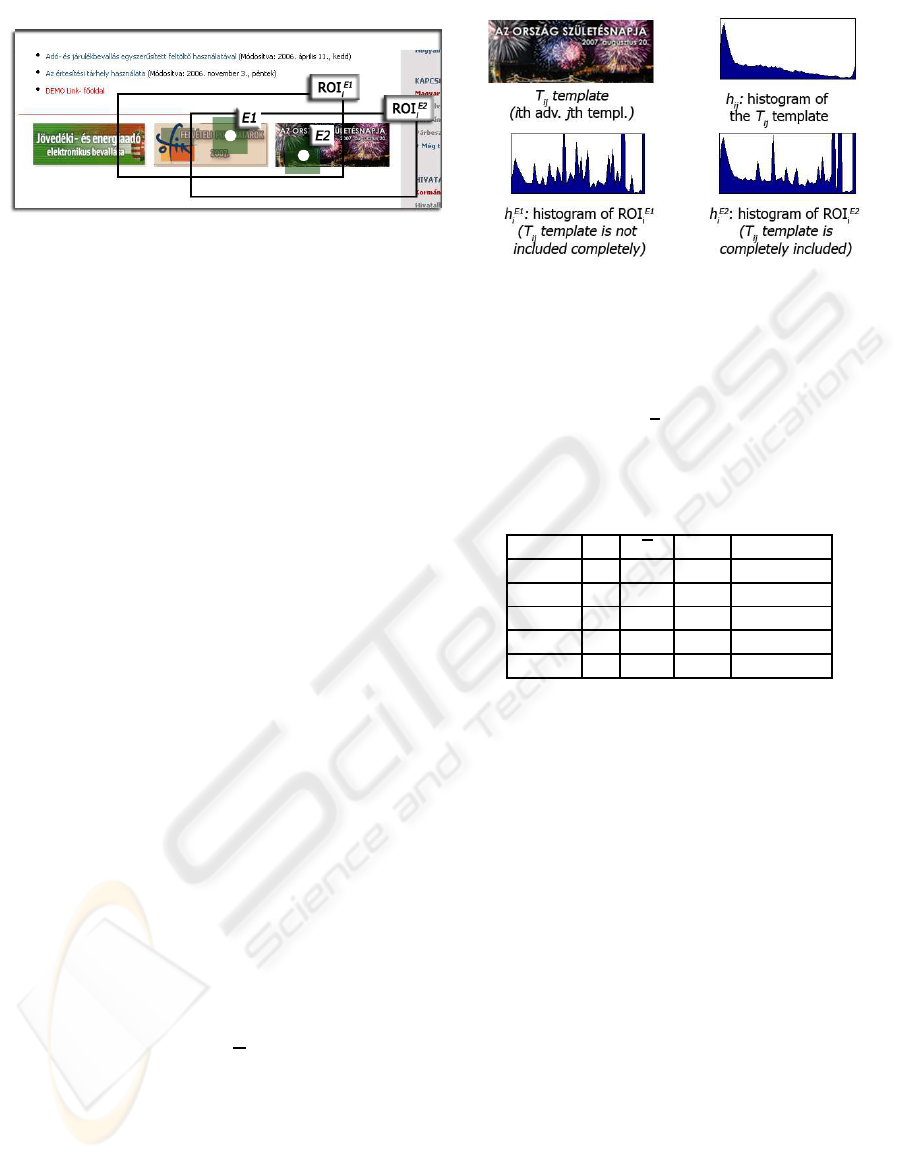

Figure 3: Demonstration of the histogram based ﬁltering step. Let be E1 and E2 two potential eye positions, and we are

looking for a given template corresponding to the ith advertisements as shown below. ROI

E1

i

and ROI

E2

i

are the rectangles of

interest around E1 and E2 respectively. Comparing the V histograms shows that h

ij

is below h

E2

i

over the whole domain, but

this condition does not hold for h

E1

i

. Thus, only E2 should be henceforward examined.

can practically ﬁlter out most of the false hits, thus

it enables a real time performance.

Denote by h

ij

the histogram of the T

ij

template, which

uses K bins. Here, h

ij

[k] denotes the kth bin. Simi-

larly, denote by h

E

i

the histogram of ROI

E

i

. If ROI

E

i

contains the T

ij

template, the following constraint

must hold:

h

ij

[k] ≤ h

E

i

[k] for all k = 0. . . K − 1.

Thus, all the templates can be excluded from further

examinations, which fail at least one of the above in-

equalities.

As for computation complexity: h

ij

should be calcu-

lated only once in the program. h

E

i

should be cal-

culated at each eye movement for all advertisements

(but their number is much lower than the number of

templates), it takes L

i

operations. For all templates

one should only compare the two histograms which

needs K operations (we used K = 64). Thus the total

number of required operations is:

N

∑

i=1

L

i

+ K ·

N

∑

i=1

n

i

.

The signiﬁcant gain in running time comes from the

fact that the time complexity of the above step de-

pends linearly both on the size and number of tem-

plates. With parameters N = 4, L = 120×240, K = 64

and

∑

i

n

i

= 400 , the number of required operations is

1.4· 10

5

.

In summary, our procedure begins with performing

the quick HF step, which returns a set of template

candidates. Thereafter, AFF should be only run for

these candidates. Finally, the AFF-hits are validated

by a single pixel by pixel comparison to the screen

shot, which can completely ﬁlter out the false posi-

tive matches.

Table 1: Parameters of the test browsing sequences. N:

number of advertisements n: average number of templates

belonging to one advertisement Hits:. shows how many

times the user looked at the advertisements. Adv. area: av-

erage number of pixels belonging to the advertisements on

one frame of the sequence.

N n Hits Adv. area

Seq. 1 3 73 43 100860

Seq. 2 3 115 77 113520

Seq. 3 3 1 34 12144

Seq. 4 4 81 51 184810

Seq. 5 3 46 23 147340

6 EXPERIMENTS

The proposed algorithm was evaluated on 5 different

browsing sequences, which were captured from dif-

ferent web sites including different advertisements.

The test parameters are as follows: the resolution of

the screen shots is 1024×768 and each examined web

page contains N = 3 or 4 dynamic advertisements.

During the surveys, there were altogether 228 “eye

hits” on advertisements. Further detailed information

about the sequences is provided in Table 1.

The results got by our model were compared to an ef-

ﬁcient and general template matching technique (In-

tel, 2005) (see notes in Section 3.2). To examine

the effects of downscaling on speed and accuracy, we

have also tested the reference method by decreasing

the resolution of the screen shot image and the tem-

plates. More precisely, we tested four different scal-

ing coefﬁcients: 1.0, 0.5, 0.25 and 0.1.

We measured three evaluation factors in the tests:

number of false negative respectively false positive

hits (Table 2), and computational time (Table 3). As

the results show, the reference method works reliably

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

232

Table 2: False negative (FN) and false positive (FP) hits of the reference template matching (TM) algorithm in 4 different

scales, and the proposed method on the ﬁve testsequences.

Seq1 Seq2 Seq3 Seq4 Seq5

Method Scale FN FP FN FP FN FP FN FP FN FP

TM 0.1 22 12 31 13 14 5 8 50 0 1

TM 0.25 20 6 28 6 0 0 25 15 0 1

TM 0.5 34 2 28 4 0 0 6 11 0 1

TM 1.0 0 0 0 0 0 0 0 0 0 0

Prop. Alg. 1.0 0 0 0 0 1 0 1 0 0 0

Table 3: Computational time (in sec) for one ﬁxation point

for the reference template matching (TM) algorithm in 4

different scales, and the proposed method (PM) on the ﬁve

testsequences, using C++ implementation and a Pentium

laptop (Intel(R) Core(TM)2 CPU, 2GHz).

Processing time

Me. SF Seq1 Seq2 Seq3 Seq4 Seq5

TM 0.1 0.32 0.42 0.05 0.60 0.28

TM 0.25 2.55 4.42 0.05 4.56 2.29

TM 0.5 9.17 21.8 0.11 22.9 9.33

TM 1.0 > 45 > 45 0.27 >45 > 45

PM 1.0 0.14 0.15 0.08 0.23 0.19

with reasonable speed having only a few templates

(Seq. 3), but as the template number grows the com-

putational time dramatically increases (Seq. 4). Al-

though the reference algorithm can run in real time if

the input data is downscaled to one tenth of the origi-

nal resolution, in that case the number of false positive

and false negative hits is extremely high. With less

drastic down scale the method is more accurate but

the computational time highly increases so the pro-

cess is not real time any more. On the other hand, the

proposed algorithm runs in real time (which means

that the processing of a ﬁxation point is ﬁnished be-

for the next data arrives) with high accuracy on each

sequence even with the highest template number.

7 CONCLUSIONS

In this paper we presented an on-line method for sta-

tistical evaluation of dynamic web advertisements by

tracking the users’ eye movements. For registering

the eye movement a special camera was used. The

events when the eye “visits” an advertisement were

automatically detected with a quick template match-

ing algorithm. The proposed method was tested on

real data and found to be very accurate (less then 1%

error) and fast (real time) even in case of a high tem-

plate number.

ACKNOWLEDGEMENTS

The authors are grateful to Zolt´an Vidny´anszky, Vik-

tor G´al, and M´arton Fernezelyi for providing the test

data. This work was supported by the C3 (Center for

Culture and Communication) Foundation, Hungary.

REFERENCES

Comaniciu, D., Ramesh, V., and Meer, P. (2003). Kernel-

based object tracking. IEEE Trans. Pattern Anal.

Mach. Intell., 25(5):564–575.

Intel (2005). Documentation of the Intel Open

Source Computer Vision Library (OpenCV),

http://www.intel.com/technology/computing/opencv/.

Kikuchi, H., Kato, H., and Akahori, K. (2002). Analysis

of children’s web browsing process: Ict education in

elementary schools. In Proc. ICCE, page 253, Wash-

ington, DC, USA. IEEE Computer Society.

Lucas, B. and Kanade, T. (1981). An iterative image regis-

tration technique with an application to stereo vision.

In Proc. of International Joint Conference on Artiﬁcial

Intelligence, pages 674–679, Vancouver, BC, Canada.

Reddy, B. and Chatterji, B. (1996). An FFT-based tech-

nique for translation, rotation and scale-invariant im-

age registration. IEEE Trans. on Image Processing,

5(8):1266–1271.

Schweitzer, H., Bell, J. W., and Wu, F. (2002). Very fast

template matching. In Proc. ECCV, pages 358–372,

London, UK. Springer-Verlag.

SensoMotoric (2005). Documentation of the iView X Sys-

tem, http://www.smi.de/iv/.

Velayathan, G. and Yamada, S. (2006). Behavior-based web

page evaluation. In Proc. WWW, pages 841–842, New

York, NY, USA. ACM Press.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In Proc. IEEE

CVPR, volume 1, pages 511–518, Hawaii, USA.

Yoshimura, S. and Kanade, T. (1994). Fast template match-

ing based on the normalized correlation by using mul-

tiresolution eigenimages. In Proc. IROS, volume 3,

pages 2086 – 2093.

FAST TEMPLATE MATCHING FOR MEASURING VISIT FREQUENCIES OF DYNAMICWEB ADVERTISEMENTS

233
