A NEW FACE RECOGNITION SYSTEM

Using HMMs Along with SVD Coefficients

Pooya Davari and Hossein Miar Naimi

Department of Electrical and Computer Engineering, Mazandaran University, Shariati Av, Babol, Iran

Keywords: Face Recognition, Hidden Markov Model, Singular Value Decomposition.

Abstract: In this paper, a new Hidden Markov Model (HMM)-based face recognition system is proposed. As a novel

point despite of 5-state HMM used in pervious researches, we used 7-state HMM to cover more details. As

another novel point, we used a small number of quantized Singular Value Decomposition (SVD)

coefficients as features describing blocks of face images. This makes the system very fast. In order to

additional reduction in computational complexity and memory consumption the images are resized

to

6464×

jpeg format. The system has been examined on the Olivetti Research Laboratory (ORL) face

database. The experiments showed a recognition rate of 99%, using half of the images for training. Our

system has been evaluated on YALE database too. Using five and six training images, we obtained 97.78%

and 100% recognition rates respectively, a record in the literature. The proposed method is compared with

the best researches in the literature. The results show that the proposed method is the fastest one, having

approximately 100% recognition rate.

1 INTRODUCTION

Face recognition has been undoubtedly one of the

major topics in the image processing and pattern

recognition in the last decade due to the new

interests in, security, smart environments, video

indexing and access control. Existing and future

applications of face recognition are many. A human

face is a complex object with features varying over

time. So a robust face recognition system must

operate under a variety of conditions.

There have been a several face recognition

methods, common face recognition methods are

Geometrical Feature Matching (Kanade, 1973),

Eigenfaces method (Turk and Pentland, 1991),

Bunch Graph Matching (Wiskott et al., 1997),

Neural Networks (Lin et al., 1997), Markov Random

Fields (Huang et al., 2004) and Hidden Markov

Models (Bicego et al., 2003;Kohir and Desai, 1998).

This paper presents a new approach using one

dimensional Discrete Hidden Markov Model

(HMM) as classifier and Singular Values

Decomposition (SVD) coefficients as features for

face recognition. We used a 7-state HMM to model

face configuration. Here despite of previous papers,

we added two new states to HMM to take into

account the hair and eyebrows regions. The

proposed approach has been examined on Olivetti

Research Laboratory (ORL) database. To speed up

the algorithm and reduce the computational

complexity and memory consumption along with

using small number of SVD coefficients we resized

the

92112

×

pgm formatted images of this database

to

6464

×

jpeg images. Image resizing results in

information losing and therefore seems to reduce the

recognition rate. But we have gained 99%

classification accuracy while speeding up the system

considerably. We also have examined the proposed

system on YALE face database. We resized YALE

database from

195231

×

pgm format into

6464

×

jpeg face images as well. Using five and six training

images, we obtained 97.78% and 100% recognition

rates respectively, a record in the literature.

The rest of the paper is organized as follows. In

Section 2, Hidden Markov Models and SVD are

briefly discussed. Section 3.1 describes an order-

statistic filter and its role in the proposed system.

Observation vectors calculations along with feature

extraction process are discussed in Sections 3.2 and

3.3. Section 3.4 describes feature selection method.

In Section 3.5 we introduce features quantization

and labeling process. Sections 3.6 and 3.7 represent

training and recognition procedures and discuss on

results gained on face databases. Thus Section 3

completely describes the proposed system. Finally in

Section 4 conclusions are drawn.

200

Davari P. and Miar Naimi H. (2008).

A NEW FACE RECOGNITION SYSTEM - Using HMMs Along with SVD Coefﬁcients.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 200-205

DOI: 10.5220/0001072002000205

Copyright

c

SciTePress

2 BACKGROUND

2.1 Hidden Markov Models

A HMM is associated with non-observable (hidden)

states and an observable sequence generated by the

hidden states individually. The elements of a HMM

are as below:

•

SN =

is the number of states in the model,

where

},...,

2

,

1

{

N

sssS =

is the set of all possible

states. The state of the model at time t is given

by

S

t

q ∈

.

•

VM =

is the number of the different observation

symbols, where

},...,

2

,

1

{

M

vvvV =

is the set of all

possible observation symbols

i

v

(also called the

code book of the model). The observation

symbol at time t is given by

Vo

t

∈

.

Each observation vector is a vector of observation

symbols of length T. T is defined by user based on

the in hand problem.

•

}{

ij

aA =

is the state transition probability

matrix, where:

Nji

i

s

t

q

j

s

t

qP

ij

a ≤≤==

+

=

⎥

⎦

⎤

⎢

⎣

⎡

,1,|

1

10,

≤

≤

ij

a

(1)

Ni

N

j

ij

a ≤≤

∑

=

= 1,

1

1

(2)

•

}{ )(kb

j

B = is the observation symbol

probability matrix, where:

⎥

⎦

⎤

⎢

⎣

⎡

===

j

s

t

q

k

v

t

oPk

j

b |)(

MkNj ≤

≤

≤≤ 1,1,

(3)

•

},...,

2

,

1

{

N

π

π

π

π

=

is the initial state

distribution, where:

NiP

i

i

sq ≤≤= = 1,][

1

π

(4)

Using shorthand notation HMM is defined as

following triple:

),,(

π

λ

BA=

(5)

HMMs generally work on sequences of symbols

called observation vectors, while an image usually is

represented by a simple 2D matrix.

In this paper we divided image faces into 7

regions which each is assigned to a state in a left to

right one dimensional HMM. Figure 1 shows the

mentioned seven face regions.

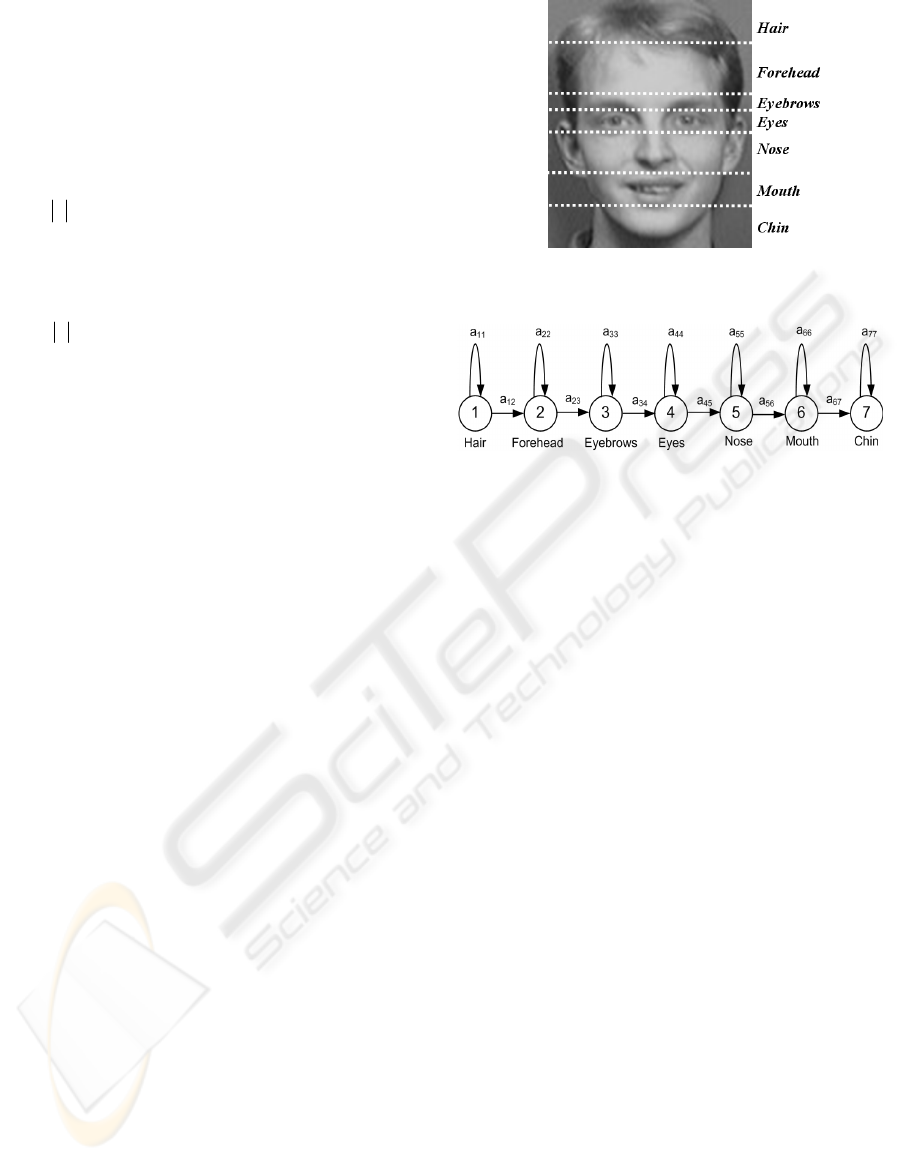

Figure 1: Seven regions of face coming from top to down

in natural order.

Figure 2: A one dimensional HMM model with seven

states for a face image with seven regions.

Figure 2 shows equivalent one-dimensional HMM

model for a partitioned image into seven distinct

regions like Figure 1. The main advantage of the

model above is its simple structure and small

number of parameters to adjust. For a deep study on

HMMs the reader may refer to (Rabiner, 1989).

2.2 Singular Value Decomposition

The Singular Value Decomposition (SVD) has been

an important tool in signal processing and statistical

data analysis. As singular vectors of a matrix are the

span bases of the matrix, and orthonormal, they can

exhibit some features of the patterns embedded in

the signal. SVD provides a new way for extracting

algebraic features from an image.

A singular value decomposition of a

nm

∗

matrix X is any function of the form:

T

VUX Σ= ,

(6)

where

)( mmU

×

and )( nnV

×

are orthogonal matrix,

and

Σ

is and nm

×

matrix of singular values with

components

ji

ij

≠

=

,0

σ

and

0>

ii

σ

. Furthermore, it

can be shown that there exist non-unique matrices U

and V such that

0...

2211

≥≥

σ

σ

. The columns of the

orthogonal matrices U and V are called the left and

right singular vectors respectively; an important

property of U and V is that they are mutually

orthogonal. Singular values represent algebraic

properties of an image (Klema and Laub, 1980).

A NEW FACE RECOGNITION SYSTEM - Using HMMs Along with SVD Coefficients

201

3 THE PROPOSED SYSTEM

3.1 Filtering

Most of the face recognition systems commonly use

preprocessing to improve their performance. In the

proposed system as the first step, we use a specific

filter which directly affects the speed and

recognition rate of the algorithm. Order-statistic

filters are nonlinear spatial filters. A two

dimensional order statistic filter, which replaces the

centered element of a

33× window with the

minimum element in the window, was used in the

proposed system. It can simply be represented by the

following equation.

)},({

),(

min),(

ˆ

tsg

xy

Sts

yxf

∈

=

In this equation,

),( tsg is the grey level of

pixel

),( ts and

xy

S

is the mentioned window. Most

of the face databases were captured with camera

flash. Using the flash frequently caused highlights in

the subjects eyes which affected the classification

accuracy (Haralick and Shapiro, 1992). According to

sentences above, this filter is expected compensate

the flash effect (see Figure 3). It also reduces salt

noise as a result of the min operation.

3.2 The Observation Vectors

Since HMMs require a one-dimensional observation

sequence and face images are innately two-

dimensional, the images should be interpreted as a

one dimensional sequence. The observation

sequence is generated by dividing each face image

of width W and height H into overlapping blocks of

height L and width W. The technique is shown in

Figure 4. These successive blocks are the mentioned

interpretation. The number of blocks extracted from

each face image is given by:

1+

−

−

=

P

L

LH

T

,

(8)

where P is overlap size of two consecutive blocks.

(a) (b)

Figure 3: An example of operation of the order static filter.

Image before filtering in (a) and after filtering (b).

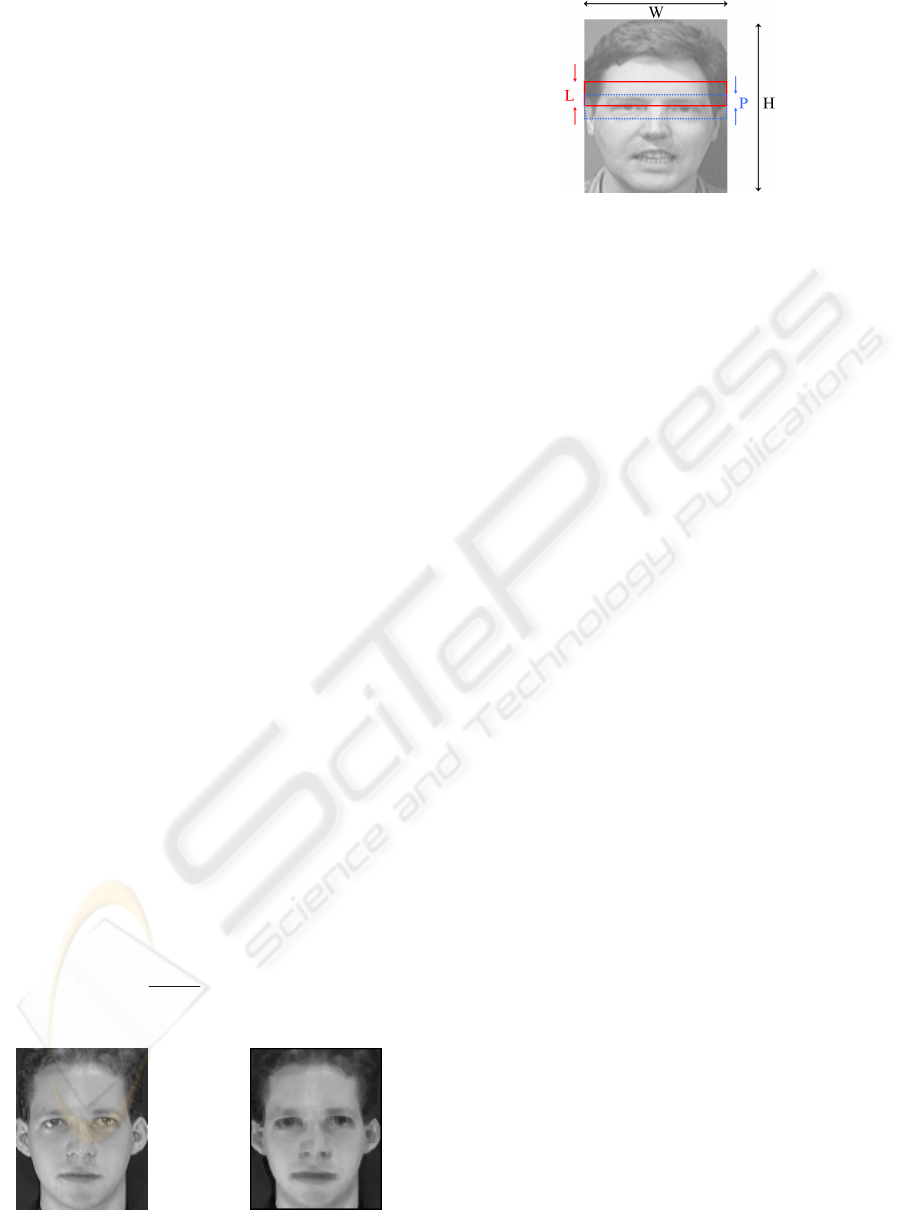

Figure 4: The sequence of overlapping blocks.

A high percent of overlap between consecutive

blocks significantly increases the performance of the

system consequently increases the computational

complexity. Our experiments showed that as long as

P is large (

1

−

≤

L

P

) and 10/HL ≈ , the recognition

rate is not very sensitive to the variations of L.

3.3 Feature Extraction

In order to reduce the computational complexity and

memory consumption, we resize both face databases

into

6464

×

which results in data losing of images,

so to achieve high recognition rate we have to use

robust feature extraction method.

A successful face recognition system depends

heavily on the feature extraction method. One major

improvement of our system is the use of SVD

coefficients as features instead of gray values of the

pixels in the sampling windows. We use a sampling

window of 5 pixels height and 64 pixels width, and

an overlap of 80% in vertical direction. Using pixels

value as features describing blocks, increases the

processing time and leads to high computational

complexity. In this paper, we compute SVD

coefficients of each block and use them as our

features.

3.4 Feature Selection

The problem of feature selection is defined as

follows: given a set of d features, select a subset of

size m that leads to the smallest classification error

and smallest computational cost. We select our

features from singular values which are the diagonal

elements of

∑

. It has been shown that the energy

and information of a signal is mainly conveyed by a

few big singular values and their related vectors.

Figure 5 shows the singular values of a

6464 × face

image. Obviously the first two singular values are

very bigger than the other ones and consequently,

based on the SVD theory, have more significance.

Figure 6 shows a face image along with its five

approximations, using different combinations of the

first three singular values and their related vectors.

(

7

)

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

202

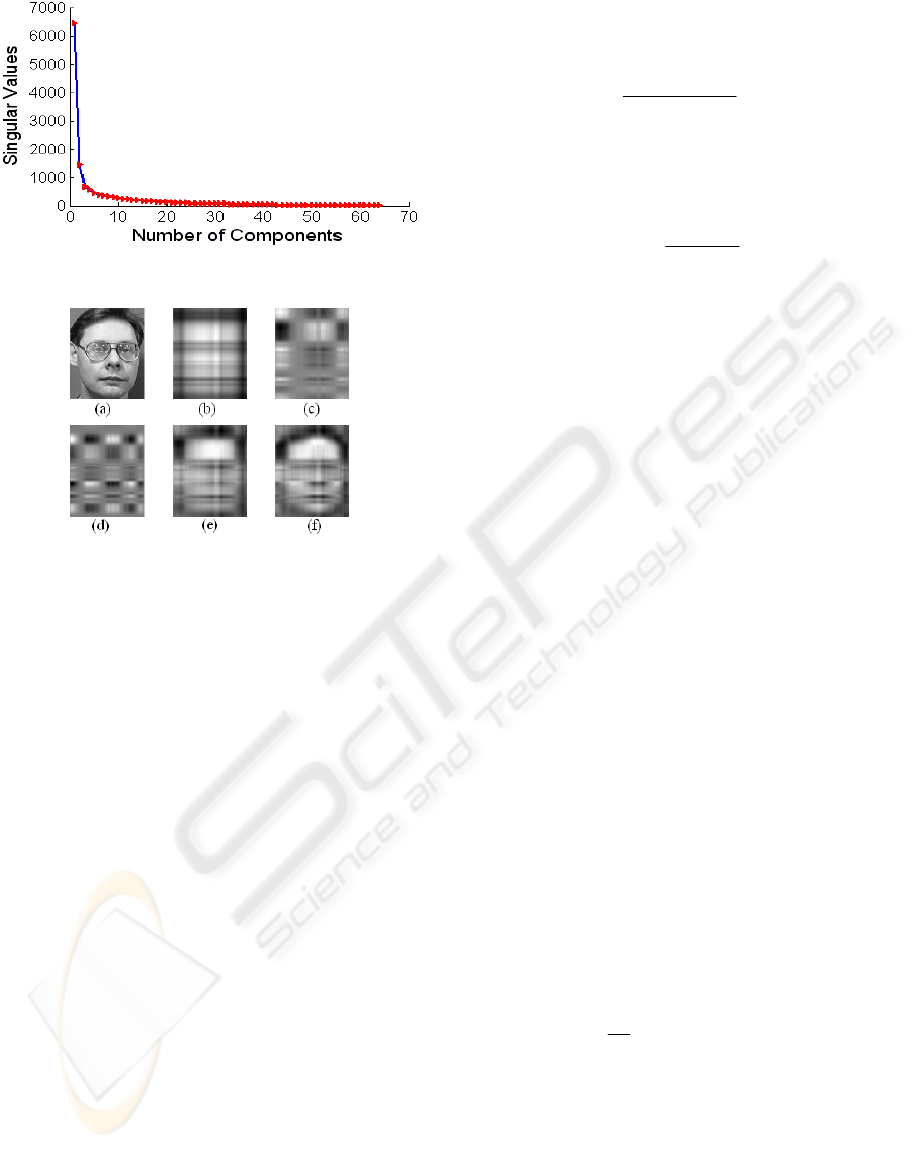

Figure 5: SVD coefficients of a

6464 ×

face image.

Figure 6: a)Original image, b)

T

vu

111

σ

, c)

T

vu

222

σ

, e) b+c

and f) b+c+d are approximations of the original image.

The last approximation (Figure 6f) contains all

three singular values together and simply shows the

large amount of the face information. To select some

of these coefficients as feature, a large number of

combinations of these were evaluated in the system.

As expected, the two biggest singular values along

with u

11

have the best classification rate.

Based on the above discussion we use two first

coefficients of matrix

∑

and first coefficient of

matrix U as three features (

11

,

22

,

11

u

σσ

)

associating each block. Thus each block of size 320

pixels, is represented by 3 values. This decreases

computational complexity and sensitivity to image

noise, changes in illumination, shift or rotation.

3.5 Quantization

The SVD coefficients have innately continuous

values. These coefficients build the observation

vectors. If they are considered in the same

continuous type, we will encounter an infinite

number of possible observation vectors that can’t be

modeled by discrete HMM. So we quantize the

features described above. To show the details of the

quantization process, used in the proposed system,

consider a vector

),...,

2

,

1

(

n

xxxX =

with

continuous components. Suppose

i

x is to be

quantized into

i

D distinct levels. So the difference

between two successive quantized values will be as

equation x.

i

D

i

x

i

x

i

minmax

−

=Δ

(9)

max

i

x and

min

i

x are the maximum and minimum

values that

i

x gets in all possible observation

vectors respectively.

][

min

i

ii

quantized

i

xx

x

Δ

−

=

(10)

At last each quantized vector is associated with a

label that here is an integer number. Considering all

blocks of an image, the image is mapped to a

sequence of integer numbers that is considered as an

observation vector. In this paper we quantized the

first feature

)(

11

σ

into 10, the second feature )(

22

σ

7

and the third one

)(

11

u into 18 levels, leaving 1260

possible distinct vectors for each block.

3.6 The Training Process

After representing each face image by observation

vectors, they are modeled by a 7-state HMM shown

in Figure 2. Five images of the same face are used to

train the related HMM and the remaining images are

used for testing.

A HMM is trained for each person in the

database using the Baum-Welch algorithm (Rabiner,

1989). At the first step

),,(

π

λ

BA=

is initialized.

The initial values for A and

π

are set due to the left

to right structure of the face model corresponding to

Figure 2.

The initial values for A and

π

are as follows:

1

0

1

7,7

615.0

1,

,

=

=

≤≤

=

+

=

π

a

i

ii

a

ii

a

(11)

Initial estimates of the observation probability

matrix B are obtained as following simple Matlab

statement:

),(

1

MNOnes

M

B =

(12)

Where M is the number of all possible

observation symbols obtained from quantization

procedure and N is the number of states.

After representing the images by observation

vectors, the parameters of the HMM are estimated

using the Baum-Welch algorithm which

finds

)|(max

*

λ

λ

λ

OP=

. In the computed model the

probability of the observation O associated to the

A NEW FACE RECOGNITION SYSTEM - Using HMMs Along with SVD Coefficients

203

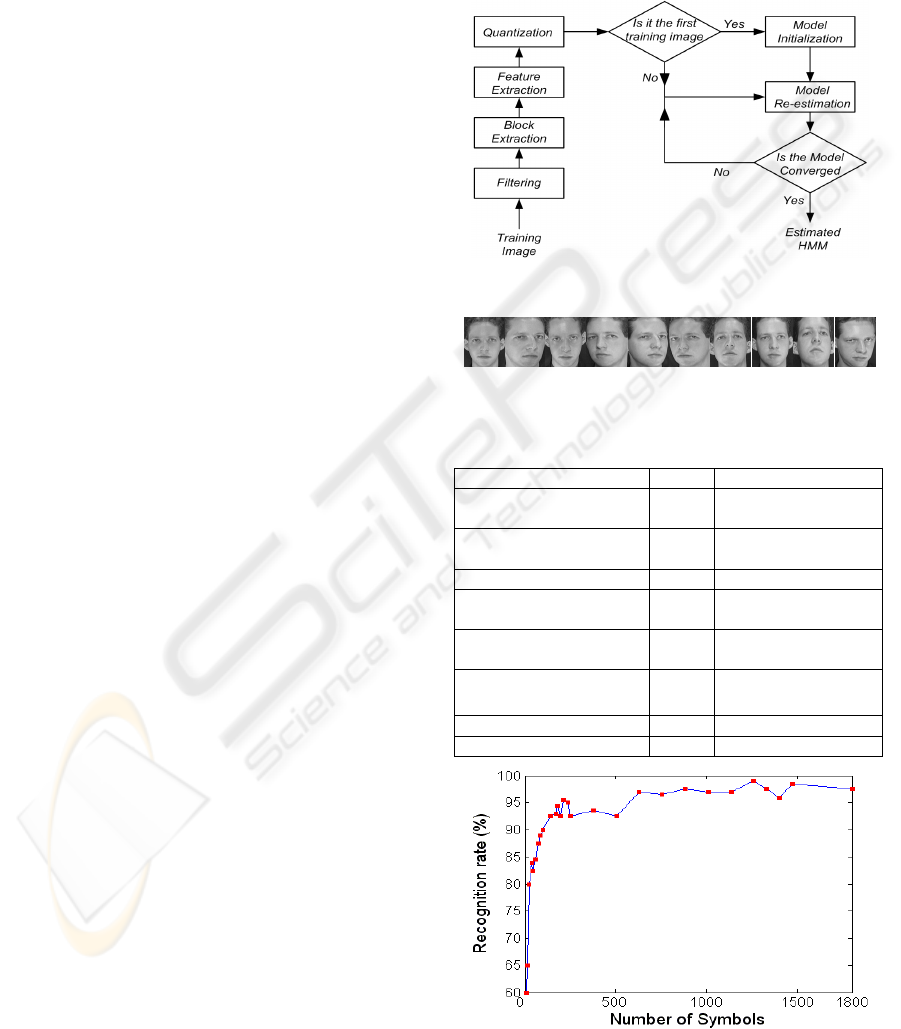

Figure 9: Showing the relation between number o

f

symbols and recognition rate. Maximum value is 99% an

d

encounter on 1260 s

y

mbols.

learning image is maximized. Figure 7 shows the

estimation process related to one learning image.

This process is iterated for all training images of a

person. The iterations stop, when variation of the

probability of the observation vector (related to

current learning image) in two consecutive iterations

is smaller than a specified threshold or the number

of iterations reaches to an upper bound. This process

is reiterated for the remaining training images. Here

the estimated parameters of each training image are

used as initial parameters of next training image.

The estimated HMM of the last training image of a

class is considered as its final HMM.

3.7 Face Recognition

After learning process, each class (face) is

associated to a HMM. For a K-class classification

problem, we find K distinct HMM models. Each test

image experiences the block extraction, feature

extraction and quantization process as well. Indeed

each test image like training images is represented

by its own observation vector. Here for an incoming

face image, we simply calculate the probability of

the observation vector (current test image) given

each HMM face model. A face image m is

recognized as face d if:

)|

)(

(max)|

)(

(

n

m

OP

n

d

m

OP

λλ

=

(13)

The proposed recognition system was tested on

the ORL face database. The database contains 10

different face images per person of 40 people with

the resolution of

92112 × pixels. As we mentioned

before in order to decrease computational

complexity (which affects on training and testing

time) and memory consumption, we resized the pgm

format images of this database from

92112

×

to

6464 × jpeg format images. Five images of each

person were used for the training task. The

recognition rate is 99%, which corresponds to two

misclassified images in whole database. Table 1

represents a comparison among different face

recognition techniques and the proposed system on

the ORL face database. It is important to notice that

all different face recognition techniques in Table 1

use

92112 × resolution of ORL face database where

we use

6464 × image size. The significance of this

result is that such a high recognition rate is achieved

using only three features per block along with image

resizing. Figure 8 shows the 10 images of one

subject from ORL face database.

We obtained 99% recognition rate by using 1260

symbols. To illustrate the relation between number

of symbols and recognition rate we varied the

number of symbols from 8 to 1800. The recognition

rate is illustrated in Figure 9. Increasing the number

of symbols to achieve greater recognition rate leads

to more time consumption for training and testing

procedure. To prevent this event we can use low

number of symbols. For example as we can see in

Figure 9 our system achieve 80%, 94.5% and 97%

accuracy respectively with 24, 182 and 630 symbols.

Figure 7: The training process of a training image.

Figure 8: A class of the ORL face database.

Table 1: Comparative results on ORL database.

Method Error Ref.

Eigenface 9.5% (Turk and Pentland,

1991)

Pseudo 2D HMM+gray

tone features

5% (Samaria and Young,

1994)

PDNN 4% (Lin et al., 1997)

Continuous n-tuple

classifier

2.7% (Lucas, 1997)

Ergodic HMM + DCT

coef.

0.5% (Kohir and Desai,

1998)

Pseudo 2D HMM +

Wavelet

0% (Bicego et al., 2003)

Markov Random Fields 13% (Huang et al., 2004)

1D HMM+SVD 1%

(Proposed method)

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

204

Table 2 shows a comparison of the different face

recognition techniques on the ORL face database

which reported their computational cost. As we can

see from Table 2 our system has a recognition rate

of 99% and a low computational cost. Proposed

system was implemented in Matlab 7.1 and tested on

a machine with CPU Pentium IV 2.8 GHz with 512

Mb Ram and 1 Mb system cache.

Finally we tested our system on YALE face

database. The Yale face database contains 165

images of 15 subjects. There are 11 images per

subject with different facial expressions or lightings.

Figure 10 shows the 11 images of one subject. We

resized YALE database from

195231× into 6464

×

jpeg face images. No other changes like background

cutting or cropping the images were preformed. We

obtained our system results on 1 image to 10 images

for training using 960 symbols. Table 3 shows

Comparative results on this database.

Table 2: Comparative computational costs and recognition

results of some of the other methods as reported by the

respective authors on ORL face database.

Method Recog.(%) Train. time

per image

Recog. time

per image

PDBNN

(Lin et al., 1997)

96 20min

≤

0.1 sec.

n-tuple

(Lucas, 1997)

86 0.9 sec. 0.025 sec.

Pseudo-2D HMM

(Samaria and Young,

1994)

95 n/a 240 sec.

DCT-HMM (Kohir

and Desai, 1998)

99.5 23.5 sec. 3.5 sec.

Proposed method 99 0.63 sec. 0.28 sec.

Figure 10: A class of the YALE face database.

Table 3: Experiments on YALE face database. Our

accuracy obtained on

6464 ×

resolution face images.

# of train

image(s)

MRF

(Huang et al.,

2004)

PCA

(Huang et al.,

2004)

Proposed

method

1 81.6% 60.04% 78%

2 93.11% 75.2% 82.22%

3 95.17% 79.03% 90.83%

4 95.9% 79.75% 94.29%

5 96.11% 81.13% 97.78%

6 96.67% 81.15%

100%

7 98.67% 81.9% 100%

8 97.33% 81.24% 100%

9 97.33% 81.73% 100%

10 99.33% 81.73% 100%

4 CONCLUSIONS

A fast and efficient system was presented. Proposed

system used SVD for feature extraction and 1-D

HMM as classifier. The evaluations and

comparisons were performed on the two well known

face image databases; ORL and YALE. In both

databases, approximately having a recognition rate

of 100%, the system was very fast. This was

achieved by resizing the images to smaller size and

using a small number of features.

Future work will be directed towards evaluating

the proposed system on larger face databases.

REFERENCES

Rabiner, L. R., 1989. ‘A tutorial on Hidden Markov

Models and Selected Applications in Speech

Recognition’, IEEE Proceedings, Vol. 77, No. 2, pp.

257-285.

Bicego, M., Castellani, U., and Murino, V., 2003. Using

Hidden Markov Models and Wavelets for face

recognition. In Proceedings IEEE International

Conference on Image Analysis and

Processing(ICIAP), 0-7698-1948-2.

Samaria, F.S. and Young, S., 1994. ‘HMM-based

Architecture for Face Identification’, Image and

Vision Computing, Vol. 12, No. 8,pp. 537-543.

Haralick, R.M. and Shapiro, L.G., 1992. Computer and

Robot Vision, Volume I. Addison-Wesley.

Kanade, T., 1973. “Picture Processing by Computer

Complex and Recognition of Human Faces,” technical

report, Dept. Information Science, Kyoto Univ.

Wiskott. L., Fellous, J.-M., Krüger, N., and vondder

malsburg, C., 1997. Face Recognition by Elastic

Bunch Graph Matching. IEEE Transaction on Pattern

Analysis and Machine Intelligence, 19(7):775-779.

Klema, V. C., and Laub, A. J., 1980. The Singular Value

Decomposition: Its Computation and Some

Applications. IEEE Transactions on Automatic

Control, 25(2):0018–9286.

Huang, R., Pavlovic, V., and Metaxas, D. N., 2004. A

Hybrid Face Recognition Method using Markov

Random Fields. IEEE, 0-7695-2128-2.

Kohir, V. V., and Desai, U. B., 1998. Face recognition

using DCTHMM approach. In Workshop on Advances

in Facial Image Analysis and Recognition Technology

(AFIART), Freiburg, Germany.

Turk, M., and Pentland, A., 1991. “Eigenfaces for

Recognition,” J. Cognitive Neuroscience, vol. 3, pp.

71-86.

Lin, S., Kung, S., and Lin, L., 1997. Face

Recognition/Detection by Probabilistic Decision-

Based Neural Network. IEEE Trans. Neural Networks,

8(1):114–131.

Lucas, S. M., 1997. Face recognition with the continuous

n-tuple classifier. In Proceedings of British Machine

Vision Conference.

A NEW FACE RECOGNITION SYSTEM - Using HMMs Along with SVD Coefficients

205
