OPTICAL-FLOW FOR 3D ATMOSPHERIC MOTION ESTIMATION

Patrick H´eas and Etienne M´emin

INRIA -IRISA, Campus de Beaulieu, Rennes, France

Keywords:

3D Motion estimation, Variational methods, Optical-ﬂow, Atmospheric dynamics, Physical-based model.

Abstract:

In this paper, we address the problem of estimating three-dimensional motions of a stratiﬁed atmosphere from

satellite image sequences. The complexity of three-dimensional atmospheric ﬂuid ﬂows associated to incom-

plete observation of atmospheric layers due to the sparsity of cloud systems makes very difﬁcult the estimation

of dense atmospheric motion ﬁeld from satellite images sequences. The recovery of the vertical component

of ﬂuid motion from a monocular sequence of image observations is a very challenging problem for which no

solution exists in the literature. Based on a physically sound vertical decomposition of the atmosphere into

layers of different altitudes, we propose here a dense motion estimator dedicated to the extraction of three-

dimensional wind ﬁelds characterizing the dynamics of a layered atmosphere. Wind estimation is performed

over the complete three-dimensional space using a multi-layer model describing a stack of dynamic horizontal

layers of evolving thickness, interacting at their boundaries via vertical winds. The efﬁciency of our approach

is demonstrated on synthetic and real sequences.

1 INTRODUCTION

Geophysical motion characterization and analysis by

image sequence analysis is a crucial issue for nu-

merous scientiﬁc domains involved in the study of

climate change, weather forecasting, climate predic-

tion or biosphere analysis. The use of surface sta-

tion, balloon, and more recently in-ﬂightaircraft mea-

surements and low resolution satellite images has im-

proved the estimation of wind ﬁelds and has been a

subsequent step for a better understanding of meteo-

rological phenomena. However, the network’s tempo-

ral and spatial resolutions may be insufﬁcient for the

analysis of mesoscale dynamics. Recently, in an ef-

fort to avoid these limitations, another generation of

satellites sensors has been designed, providing image

sequences characterized by ﬁner spatial and temporal

resolutions. Nevertheless, the analysis of motion re-

mains particularly challenging due to the complexity

of atmospheric dynamics at such scales.

Tools are needed to exploit this new generation

of satellite images and we believe that it is very im-

portant that the computer vision community gets in-

volved in such domain as they can potentially bring

relevant contributions with respect to the analysis of

spatio-temporal data.

Nevertheless in the context of geophysical mo-

tion analysis, standard techniques from Computer Vi-

sion, originally designed for bi-dimensional quasi-

rigid motions with stable salient features, appear to

be not well adapted (Horn and Schunck, 1981) (Leese

et al., 1971). The design of techniques dedicated to

ﬂuid ﬂow has been a step forward, towards the consti-

tution of reliable methodsto extract characteristic fea-

tures of ﬂows (Anonymous)(Anonymous)(Zhouet al.,

2000). However, for geophysical applications, exist-

ing ﬂuid-dedicated methods are all limited to horizon-

tal velocity estimation and neglect vertical motion.

All these methods are obviously not adapted to the

extraction of 3D measurements but also do not take

into account accurately luminance variations due to

3D motions. Such effects are occasionally important

at small scales and should be incorporated in the mo-

tion estimation method.

Geophysical ﬂows are quite well described by ap-

propriate physical models. As a consequence in such

contexts, a physically-based approach can be very

powerful for analyzing incomplete and noisy image

data, in comparison to standard statistical methods.

The inclusion of physical a priori leads to novel ad-

vanced techniques for motion analysis or 3D informa-

tion recovery. This yields to new application domains

399

Héas P. and Mémin E. (2008).

OPTICAL-FLOW FOR 3D ATMOSPHERIC MOTION ESTIMATION.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 399-406

DOI: 10.5220/0001071503990406

Copyright

c

SciTePress

impacting potentially studies of capital interest for our

everyday life, and obviously to the devise of proper

efﬁcient techniques. This is thus a research domain

with wide perspectives. Our work is a contribution

towards this direction.

The method proposed in this paper is signiﬁcantly

different from previous works on motion analysis by

satellite imagery. A main difference is that the data

model used in our method relies on an exact 3D phys-

ical model for pressure difference image observations

retrieved at different atmospheric levels. This inter-

acting layered model allows us to recover a vertical

motion information.

2 RELATED WORKS ON

OPTICAL FLOW

The problem of wind ﬁeld recovery consists in esti-

mating the 3D atmospheric motion denoted by V(s,t)

from a 2D image sequence I(s,t), where (s,t) denote

the pixel and time coordinates. This problem is a

complex one, for which we have only access to pro-

jected information on cloudsposition and spectral sig-

natures provided by satellite observation channels. To

avoid the three-dimensional wind ﬁeld reconstruction

problem, all developed methods have relied on the as-

sumption of negligible vertical winds and focused on

the estimation of a global apparent horizontal winds

related to top of clouds of different heights.

The estimation of the apparent motion v(s,t) as

perceived through image intensity variations (the so-

called optical-ﬂow) relies principally on the tempo-

ral conservation of some invariants. The most com-

mon invariant used is the brightness constancy as-

sumption. This assumption leads to the well known

Optical-Flow Constraint (OFC) equation

v· ∇I(s,t) + I

t

(s,t) = 0 (1)

An important remark is that for image se-

quences showing evolving atmospheric phenomena,

the brightness consistency assumption does not allow

to model temporal distortions of luminance patterns

caused by 3D ﬂow transportation. In spite of that,

most estimation methods used in the meteorology

community still rely on this crude assumption (Larsen

et al., 1998). In the case of transmittance imagery, the

Integrated Continuity Equation (ICE) provides a valid

invariant assumption for compressible ﬂows (Fitz-

patrick, 1988) under the assumption that the temporal

derivatives of the integration boundaries compensate

the normal ﬂows. This ICE model reads :

Z

ρdz

t

+ v.∇

Z

ρdz

+

Z

ρdz

divv = 0 (2)

where ρ and v denotethe ﬂuid density and the den-

sity averaged horizontal motion ﬁeld along the verti-

cal axis. Unlike the OFC, such models can compen-

sates mass departures observed in the image plan by

associating two-dimensional divergence to brightness

variations. But, for the case of satellite infra-red im-

agery, the assumption that I ∝

R

ρdz is ﬂawed. More-

over, note that although the assumed boundary con-

dition is valid for incompressible ﬂows, it is not real-

istic for compressible atmospheric ﬂows observed at

a kilometer order scale. However, based on experi-

ments, authors proposed to apply directly this model

to the image observations (Anonymous) or to the in-

verse of the image intensities (Zhou et al., 2000).

Recently, under the assumption of negligible vertical

wind, the model of Eq. 2 has been applied to pres-

sure difference maps approximating the density inte-

grals (Anonymous).

The formulationsof Eq.1 and Eq.2 can not be used

alone, as they provide only one equation for two un-

knowns at each spatio-temporal locations (s,t), with

therefore a one dimensional family of solutions in

general. In order to remove this ambiguity and ro-

bustify the estimation, the most common assumption

consists to enforce a spatial local coherence. The lat-

ter can explicitly be expressed as a regularity prior in

a globalized smoothing scheme. Within this scheme,

spatial dependenciesare modeled on the complete im-

age domain and thus robustness to noise and low con-

trasted observations is enhanced. More precisely, the

motion estimation problem is deﬁned as the global

minimization of an energy function composed of two

components :

J(v,I) = J

d

(v,I) +αJ

r

(v) (3)

The ﬁrst component J

d

(v,I) called the data term,

expresses the constraint linking unknowns to obser-

vations while the second component J

r

(v), called the

regularization term, enforces the solution to follow

some smoothness properties. In the previous expres-

sion, α > 0 denotes a parameter controlling the bal-

ance between the smoothness and the globaladequacy

to the observation model. In this framework, Horn

and Schunck (Horn and Schunck, 1981) ﬁrst intro-

duced a data term related to the OFC equation and

a ﬁrst-order regularization of the two spatial compo-

nents u and v of velocity ﬁeld v. In the case of trans-

mittance imagery of ﬂuid ﬂows, I =

R

ρdz, and using

the previously deﬁned ICE model (Eq.2) leads to the

functional :

J

d

(v,I) =

Z

Ω

(I

t

(s) + v(s) · ∇I(s) + I(s)divv(s))

2

ds (4)

where Ω denotes the image domain.

Moreover, it can be demonstrated that a ﬁrst order

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

400

regularization is not adapted as it favors the estima-

tion of velocity ﬁelds with low divergence and low

vorticity. A second order regularization on the vortic-

ity and the divergence of the deﬁned motion ﬁeld can

advantageously be considered as proposed in (Anony-

mous)(Suter, 1994)(Anonymous) :

J

r

(v) =

Z

Ω

k ∇curlv(s) k

2

+ k ∇divv(s) k

2

ds (5)

Instead of relying on a L

2

norm, robust penalty

function φ

d

may be introduced in the data term for at-

tenuating the effect of observations deviating signiﬁ-

cantly from the ICE constraint (Black and Anandan,

1996). Similarly, a robust penalty function φ

r

can be

used if one wants to handle implicitly the spatial dis-

continuities of the vorticity and divergence maps. In

the image plan, these discontinuities are nevertheless

difﬁcult to relate to abrupt variations of clouds height.

Moreover, the robust approach does not allow points

of unconnectedregions, which belongto a same layer,

to interact during the motion estimation process.

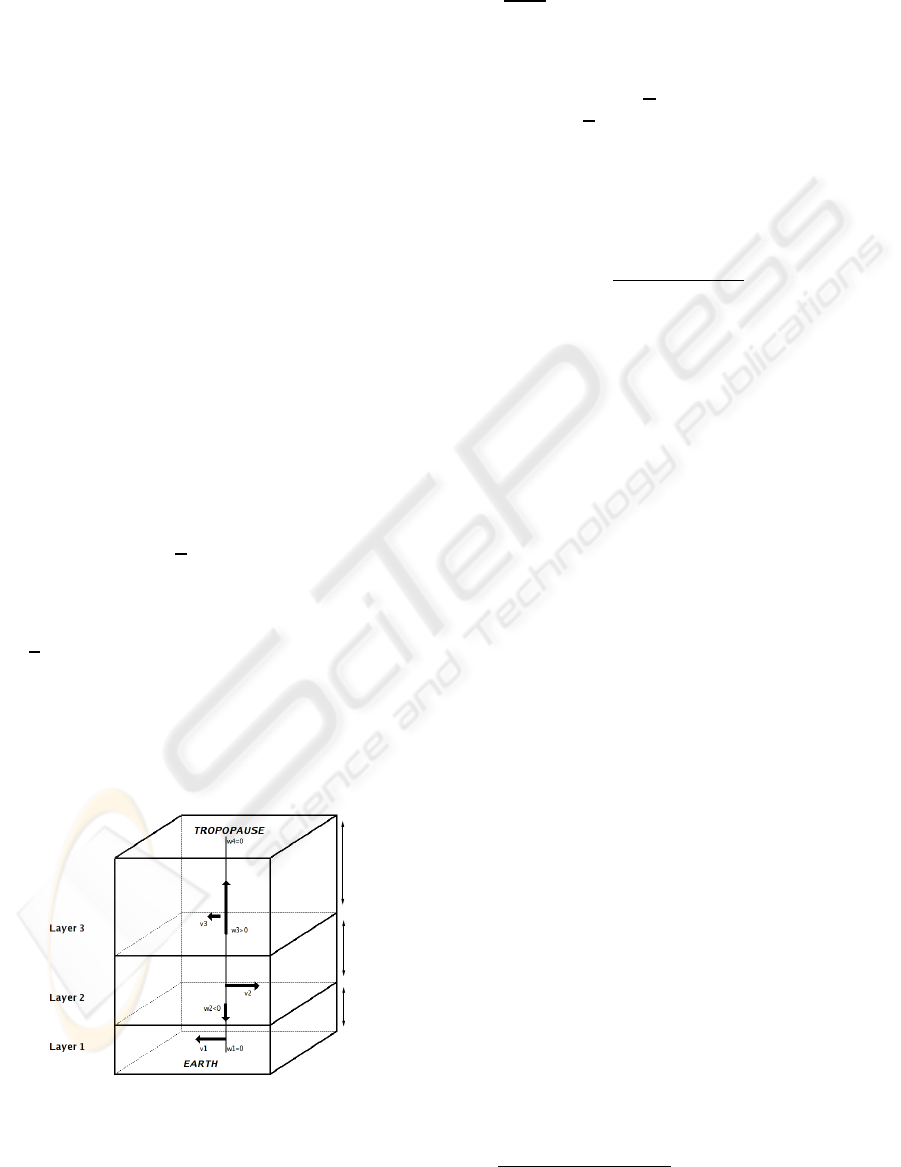

3 MODELING A DYNAMICAL

STACK OF LAYERS

3.1 Integrated Continuity Equation for

3D Winds

Interesting models for 3D compressible atmospheric

motion observed through imagesequencesmay be de-

rived by integrating the 3D continuity equation ex-

pressed in the isobaric coordinate system (x, y, p). In

comparison to standard altimetric coordinates, iso-

baric coordinates are advantageous : they enable to

handle in a simple manner the compressibility of at-

mospheric ﬂows while dealing directly with pressure

quantities, which will be used as observations in this

paper. In this coordinate system, the pressure function

p acts as a vertical coordinate. Let us denote the hori-

zontal wind components by v = (u,v) and the vertical

wind in isobaric coordinates by ω. The 3D continuity

equation reads (Holton, 1992) :

−

∂ω

∂p

=

∂u

∂x

+

∂v

∂y

p

(6)

By deﬁning now two altimetric surfaces s

k

and s

k+1

with p(s

k

) > p(s

k+1

) related to a pressure difference

function δp

k

and a pressure-average horizontal wind

ﬁeld v

k

δp

k

= p(s

k

) − p(s

k+1

)

v

k

=

1

δp

k

Z

p(s

k

)

p(s

k+1

)

vdp (7)

we have demonstrated in appendix I that the vertical

integration of Eq.6 in the altimetric interval [s

k

,s

k+1

]

yields under certain conditions to the following 3D-

ICE model:

gρ(s

k

)w(s

k

) − gρ(s

k+1

)w(s

k+1

) =

dδp

k

dt

+ δp

k

div(v

k

) (8)

where g and w denote thegravity constant and the ver-

tical wind in the standard altimetric coordinate sys-

tem (x,y,z). Note that this model appears to be a

generalization of the so called kinematic method ap-

plied in meteorology for the recovery of vertical mo-

tion (Holton, 1992). Indeed, by neglecting the ﬁrst

term on the right hand side of Eq.8, vertical motion

can be expressed as :

w(s

k+1

) =

ρ(s

k

)w(s

k

)

ρ(s

k+1

)

−

δp

k

gρ(s

k+1

)

div(v

k

), (9)

which corresponds exactly to the kinematic estimate.

Note also that the ICE model (Eq.2) can be recov-

ered when vertical motion is neglected and for an at-

mosphere in hydrostatic equilibrium (δp = −g

R

ρdz).

On the right side of the 3D-ICE, vertical motion w

appears only on the integration boundaries, while

on the left side, pressure-average horizontal motion

v

k

appears within a standard optical ﬂow expression

compensated by a divergence correcting term. Thus,

for pressure difference observations on layer bound-

aries, the 3D-ICE constitutes a possible 3D estimation

model.

3.2 Layer Decomposition

The layering of atmospheric ﬂow in the troposphere

is valid in the limit of horizontal scales much greater

than the vertical scale height, thus roughly for hori-

zontal scales greater than 100 km. It is thus impossi-

ble to guarantee to truly characterize a layered atmo-

sphere with a local analysis performed in the vicin-

ity of a pixel characterizing a kilometer order scale.

Nevertheless, one can still decompose the 3D space

into elements of variable thickness, where only sufﬁ-

ciently thin regions of such elements may really cor-

respond to common layers. Analysis based on such

a decomposition presents the main advantage of op-

erating at different atmospheric pressure ranges and

avoids the mix of heterogeneous observations.

Let us present the 3D space decompositionthat we

chose for the deﬁnition of the layers. The k-th layer

corresponds to the volume lying in between an upper

surface s

k+1

and a lower surface s

k

. These surfaces

s

j

are deﬁned by the height of top of clouds belong-

ing to the j-th layer. They are thus deﬁned only in

areas where there exists clouds belonging to the j-th

OPTICAL-FLOWFOR 3D ATMOSPHERIC MOTION ESTIMATION

401

layer, and remains undeﬁned elsewhere. The mem-

bership of top of clouds to the different layers is de-

termined by cloud classiﬁcation maps. Such classiﬁ-

cations which are based on thresholds of top of cloud

pressure, are routinely provided by the EUMETSAT

consortium, the European agency which supplies the

METEOSAT satellite data.

3.3 Sparse Pressure Difference

Observations

Top of cloud pressure images are also routinely pro-

vided by the EUMETSAT consortium. They are de-

rived from a radiative transfer model using ancil-

lary data obtained by analysis or short term fore-

casts (Lutz, 1999).

We denote by C

k

the class corresponding to the k-

th layer. Note that the top of cloud pressure image de-

noted by p

S

is composed of segments of top of cloud

pressure functions p(s

k+1

) related to the different lay-

ers. That is to say : p

S

= {

S

k

p(s

k+1

,s); s ∈ C

k

}. Thus,

pressure images of top of clouds are used to consti-

tute sparse pressure maps of the layer upper bound-

aries p(s

k+1

). As in satellite images, clouds lower

boundaries are always occluded, we coarsely approx-

imate the missing pressure observations p(s

k

) by an

average pressure value p

k

observed on top of clouds

of the layer underneath. Finally, for the k-th layer, we

deﬁne observations h

k

as pressure differences :

p

k

− p

S

= h

k

= δp

k

(s) if s ∈ C

k

6= δp

k

(s) if s ∈

¯

C

k

,

(10)

3.4 Layer Interacting Model

h2

h1

h3

Figure 1: Scheme of three interacting layers deﬁned at a

given pixel location. The set of unknowns associated to the

corresponding 3D-ICE model is {v

1

,w

2

,v

2

,w

3

,v

3

}. For

the enhancement of the visual representation, pressure dif-

ference h

k

have been identiﬁed here to altimetric heights.

Eq.8 is thus valid for image observations h

k

re-

lated to the k-th layer on the spatial sub-domain C

k

:

d(h

k

)

dt

+ h

k

∇· v

k

= g(ρ

k

w

k

− ρ

k+1

w

k+1

) (11)

where for clarity we have simpliﬁed notations ρ(s

k

)

and w(s

k

) into ρ

k

and w

k

. Density maps ρ

k

are ﬁxed

to a mean density value, which is computed according

to the mean pressures p

k

using the approximation :

ρ

k

≈ p

0

/(RT

0

)(p

k

/p

0

)

(γR)/g+1

, where p

0

, T

0

, γ and R

denote physical constants (Holton, 1992).

Integrating in time differential equation 11 along

the horizontal trajectories and applying the variation

of the constant tecnhique for the second member, we

obtain a time-integrated form :

˜

h

k

e

divv

k

− h

k

= g∆t

ρ

k

w

k

− ρ

k+1

w

k+1

divv

k

(e

divv

k

− 1) (12)

where the motion-compensatedimage h

k

(s+v

k

,t+∆t)

has been denoted for convenience by

˜

h

k

and where

∆t denotes the time interval expressed in seconds be-

tween two consecutive images.

For the lowest layer, the Earth boundary condition

implies : w

1

= 0. Let K denote the index of the high-

est layer. Another boundary conditions may be given

for the highest layer by the reasonable assumption

that vertical wind can be neglected at the tropopause

which acts like a cover : w

K+1

= 0. Thus, as the verti-

cal wind present on the upper bound of the k-th layer

is identical to the one present on the lower bound of

the (k + 1)-th layer, we have the following two sets of

unknowns : {v

k

: k ∈ [1,K]} and {w

k

: k ∈ [2,K]}. The

vertical wind unknowns act as variables materializing

horizontal wind interactions between adjacent layers.

Fig.1 schematizes an exampleof three interacting lay-

ers associated to a set of unknowns, according to the

3D-ICE model.

4 3D WIND ESTIMATION

4.1 Dedicated Robust Estimator

Since outside the class C

k

, h

k

deﬁned in Eq.10 is not

relevant of the k-th layer, we introduce a masking op-

erator to removeunreliable observations by saturation

of a robust penalty function φ

d

. More explicitly, we

denote by I

C

k

the operator which is identity if pixel

belong to the class, and which returns a ﬁxed value

out of the range taken by h

k

otherwise. Thus, apply-

ing this new masking operator in Eq.12, we obtain for

the k-th layer the robustdata term J

d

(v

k

,w

k

,w

k+1

,h

k

) =

Z

Ω

φ

d

˜

h

k

(s)exp{divv

k

(s)} − I

C

k

(h

k

(s))

+g∆t

ρ

k

w

k

(s) − ρ

k+1

w

k+1

(s)

divv

k

(s)

(1− exp{divv

k

(s)})

ds (13)

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

402

A second order div-curl regularizer has been chosen

to constrain spatial smoothness of horizontal wind

ﬁelds. The latter was combined with a ﬁrst order

regularizer enforcing regions of homogeneous verti-

cal winds. Note that we have restricted the regularizer

for vertical wind to be a ﬁrst order one, as 3D diver-

gence and 3D vorticity vectors are inaccessible in a

layered model. The regularization term for the k-th

layer has been thus deﬁned as J

r

(v

k

,w

k

) =

Z

Ω

α(k ∇curlv

k

(s) k

2

+k ∇divv

k

(s) k

2

)+βk ∇w

k

(s) k

2

ds, (14)

where β > 0 denotes a positive parameter. A Leclerc

M-estimator has been chosen for φ

d

for its advanta-

geous minimization properties (Holland and Welsch,

1977). The masking procedure together with the use

of this robust penalty function on the data term al-

lows discarding implicitly the erroneous observations

from the estimation process. It is important to outline

that, for the k-th layer, the method provides estimates

on all point s of the image domain Ω. Areas outside

the cloud classC

k

correspondto 3D interpolated wind

ﬁelds.

4.2 Large Horizontal Displacements

One major problem with the differential formula-

tion of Eq.11 is the estimation of large displace-

ments. However, on the opposite of the integrated

form of Eq.12 which is valid for high amplitude dis-

placements, this formulation presents the advantage

to be linear. A standard approach for tackling the

non-linear data term consists to apply successive lin-

earizations around a current estimate and to warp

a multiresolution representation of the data accord-

ingly. This approach relies on an image pyramid,

constructed by successive low-pass ﬁltering and down

sampling of the original images. A large displace-

ment ﬁeld

˜

v is ﬁrst estimated at coarse resolution

where motion amplitude should be sufﬁciently re-

duced in order to make the initial differential data

model valid. Then, the estimation is reﬁned through

an incremental ﬁelds v

′

while going down the pyra-

mid (Bergen et al., 1992). The latter are estimated

within a linear scheme by minimizing linearized

motion-compensated functionals : for the decompo-

sition v

k

=

˜

v + v

′

, Eq.13 is linearized around

˜

v and

yields to a motion-compensated linear formulation of

the data term. Let us denote by

˜

ζ

k

the coarse scale

divergence estimate div

˜

v and omit for sake of clarity

point coordinates s in the integrals. For the k-th layer,

the linearized data term reads J

d

(v

k

,w

k

,w

k+1

,h

k

) =

Z

Ω

φ

d

{e

˜

ζ

k

([

˜

h

k

∇

˜

ζ

k

+ ∇

˜

h

k

]

T

v

′

+

˜

h

k

) − I

C

k

(h

k

) (15)

+g∆t f(

˜

ζ

k

,w

k

,w

k+1

)}ds

where if

˜

ζ

k

6= 0, f(

˜

ζ

k

,w

k

,w

k+1

) =

ρ

k

w

k

− ρ

k+1

w

k+1

˜

ζ

k

1− e

˜

ζ

k

+ v

′

∇

˜

ζ

k

(

e

˜

ζ

k

− 1

˜

ζ

k

− e

˜

ζ

k

)

and if

˜

ζ

k

= 0, f(

˜

ζ

k

,w

k

,w

k+1

) = ρ

k+1

w

k+1

− ρ

k

w

k

4.3 Minimization Issues

In the proposed optimization scheme, we chose to

minimize a discretize version of functionals of Eq. 15

and Eq. 14. Let us denote by z

k

the robust weights

associated to the semi-quadratic penalty function re-

lated to the data term. Minimization is done by al-

ternatively solving large systems for unknowns v

k

,

w

k

and z

k

through a multigrid Gauss-Seidel solver.

More explicitly, all variables are ﬁrst initialized to

zero. A global optimization procedure is then suc-

cessively operated at each level of the multiresolution

pyramid. This procedure ﬁrst performs in a multigrid

optimization strategy, the minimization with respect

to v

k

of a linearized functional composed of the data

term deﬁned in Eq.15 and of the second order smooth-

ness term deﬁned in Eq.14. As variables {w

k

} and

{z

k

} are ﬁrst frozen, this ﬁrst step can be performed

independently for each layer level k ∈ [1, K]. Once

the minima have been reached, in a second step, ﬁx-

ing variables {v

k

} and {z

k

}, the same functional is

minimized with respect to each w

k

,k ∈ [2,K].

Note that vertical wind w

k

is estimated consider-

ing variables related to the layer above the bound-

ary { w

k+1

,h

k

,

˜

h

k

,v

k

,z

k

} and the layer underneath the

boundary {w

k−1

,h

k−1

,

˜

h

k−1

,v

k−1

,z

k−1

}. Finally, in

a last step for each pixel locations and for each k ∈

[1,K], the robust weights z

k

are in turn updated while

variables {v

k

} and {w

k

} are kept ﬁxed. The three pre-

vious minimization steps are iterated until a global

convergence criterion is reached, that is to say until

the variation of the estimated solution between two

consecutive iterations becomes sufﬁciently small.

It is important to point out that the proposed 3D

estimation methodology does not increase much the

complexity of the original non-linear horizontal mo-

tion estimation problem. Indeed, given horizontal

motion, the vertical wind estimation constitutes a lin-

ear quadraticproblemwhich can be efﬁciently solved.

5 EXPERIMENTAL EVALUATION

5.1 Synthetic Image Sequence

For an exhaustive evaluation,we have relied on a sim-

ulated ﬂow of an atmosphere decomposed into K = 3

OPTICAL-FLOWFOR 3D ATMOSPHERIC MOTION ESTIMATION

403

truth

3D-ICE

2D-ICE

v

1

w

2

v

2

w

3

v

3

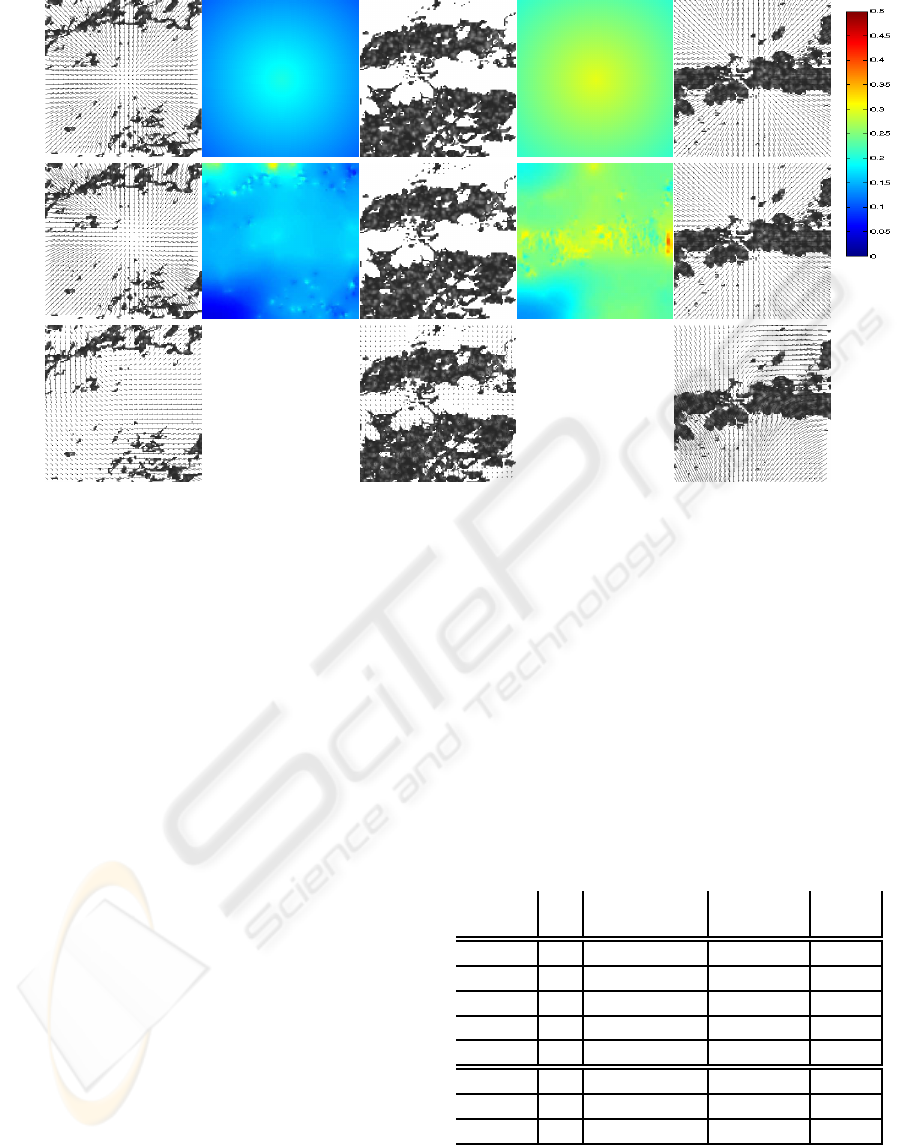

Figure 2: Recovery of horizontal {v

1

,v

2

,v

3

} and vertical {w

2

,w

3

} wind ﬁelds. Simulated 3D winds (1

st

line). Horizontal

winds related to the high (left), the medium (middle) and the low (right) layer are superimposed on the cloud pressure

difference observations. Horizontal motion estimated with the 3D ICE model (2

nd

line) have been compared to results

obtained with a 2D version of the model (3

rd

line).

layers correspondingto low, medium and high clouds.

The resulting synthetic images have been chosen to

simulate a layered atmosphere contracting itself at

its basis, driven by ascendant winds, and expand-

ing itself at its top. Let us describe the 3D motion

simulation. A real cloud classiﬁcation map (used in

the next experiment) has been employed to dissoci-

ate the layers, and to assign them to different image

regions C

k

. Thus, for each layers k, a sparse im-

age h

k

(t) of 128 by 128 pixels has been generated,

representative of cloud pressure difference measure-

ments on the assigned regions C

k

and of a ﬁxed sat-

uration value on the complementary domain. A tex-

tured image of mean 600 hPa and with a standard de-

viation of 100 hPa has been used to simulate cloud

pressure difference values. The three resulting im-

ages are presented in ﬁgure 2. An horizontal mo-

tion v

1

issued from a divergent sink has been im-

posed to the lower layer, while on the middle layer

no horizontal winds v

2

= 0 has been considered. On

the higher layer, a motion v

3

issued from a divergent

source has been applied. The latter sink and source

possess a decreasing inﬂuence while going away from

the center of the image to its boundaries (motion am-

plitudes ranges in the interval ∼ 0 − 1.25 pixel per

frame, that is ∼ 0 − 4m.s

−1

). Non-uniform verti-

cal winds of strength w

2

∈ [0.1, 0.2]m.s

−1

and w

3

∈

[0.2,0.3]m.s

−1

have been simulated on the bound-

aries shared respectively by the lower and the medium

layers, and by the medium and the high layers re-

spectively. The latter horizontal and vertical winds

have been used to deform, according to the time in-

tegrated 3D-ICE model (Eq.12), image observations

[h

1

(t),h

2

(t),h

3

(t)] in order to generate propagated

images [h

1

(t+∆t),h

2

(t+∆t),h

3

(t+∆t)] with ∆t =900

seconds.

Barron’s error Speed bias RMSE

(degree) (pixel) (m/s)

3D-ICE w

3

0.027

w

2

0.028

v

3

6.426 0.099

v

2

0.138 0.002

v

1

3.566 0.058

2D-ICE v

3

29.608 0.210

v

2

6.331 0.112

v

1

38.276 0.161

Figure 3: Numerical evaluation. Barron angular error and

speed bias on horizontal winds {v

1

,v

2

,v

3

} and RMSE on

vertical wind {w

2

,w

3

} provided by the 3D-ICE model.

Comparison with horizontal winds produced by a 2D ver-

sion of the model.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

404

Horizontal and vertical winds which have been re-

trieved with the 3D estimator can be visualized in ﬁg-

ure 2. For the three layer levels, vertical and horizon-

tal winds are accurately estimated in cloudy regions.

The estimator accuracy is evaluated in table 3, using

for horizontal wind the Barron angular error (Barron

et al., 1994) and the speed bias, and for vertical wind

the Root Mean Square Error (RMSE). In observations

free areas, vertical and horizontal winds appear to be

consistent with the divergent and ascendant motions.

Note that in the latter regions, the estimator acts as a

3D wind extrapolator. Moreover, it can be noticed that

the proposed layer interacting model increases signif-

icantly the estimation performances. In particular, the

convergent motion of the lower layer is well charac-

terized although only very few observations are avail-

able. For comparison purpose we have run on this

sequence the same estimator imposing a zero value to

the unknown vertical components. This comes to use

the 2D layered data model as proposed in (Anony-

mous). As a result, this estimator calculates indepen-

dent horizontal winds for the three different layers in

the very same numerical implementation setup as for

the 3D wind estimator. Results which are presented

in ﬁgure 2 and in table 3 show that the latter estimator

completely fails to accurately characterize horizon-

tal motion. This demonstrates that, although vertical

wind (∼ 0.1 − 0.3m.s.

−1

) is weak compared to hori-

zontal motion (∼ 0 − 4m.s.

−1

), its inﬂuence can not

be neglected in the estimation process. As evaluated

in table 3, a 3D data model clearly improves the re-

sults in such a situation.

5.2 Satellite Image Sequence

We then turned to qualitative evaluations on a

METEOSAT Second Generation meteorological se-

quence of 4 images acquired at a rate of an image

every 15 minutes, with a spatial resolution of 3 kilo-

meters at the center of the whole Earth image disk.

The images of 512 by 200 pixels cover an area over

the Gulf Guinea. The images are EUMETSAT top

of cloud pressure observations which are associated

to top of cloud classiﬁcations (Lutz, 1999). Accord-

ing to section 3.3, pressure images and classiﬁcations

maps have been used to derive pressure difference im-

age segments for 3 broad layers, at low, intermediate

and high altitude. Figure 4 displays the pressure dif-

ference images related to the higher layer, together

with the 3D estimated wind ﬁelds. One can visual-

ize here large convective systems. They are charac-

terized by strong ascendant ﬂows which are smoothly

reversed after bursting while reaching the tropopause

cover. Such scenarios have been correctly estimated

as shown in ﬁgure 4. Furthermore, let us remark that

the time-consistency and the correct range of wind

values estimated are a testimony of the stability of the

3D estimation method.

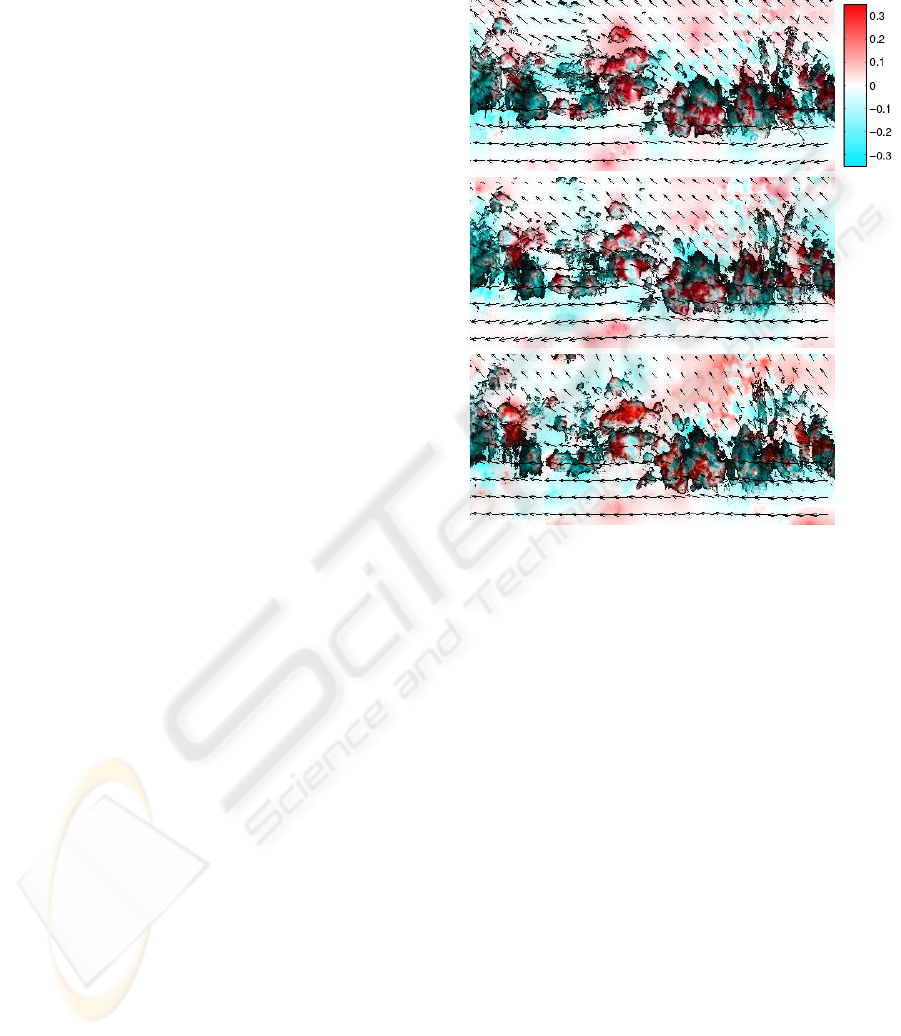

Figure 4: Estimation of 3D wind in atmospheric convective

systems. Cloud pressure difference images of the highest

layer at 3 consecutive times (from top to bottom). Estimated

horizontal wind vectors which have been plotted on the im-

ages range in the interval [0,10]m.s.

−1

. Retrieved verti-

cal wind maps on the highest layer lower boundary have

been superimposed on the pressure difference images with

a shaded red color for ascendant motion and a shaded blue

color for descendant motion. Vertical wind ranges in the

interval [−0.5,0.5]m.s.

−1

.

6 CONCLUSIONS

In this paper, we have presented a motion estimation

method solving for the ﬁrst time the complex problem

of 3D winds ﬁeld recovery from satellite image se-

quences. In order to manage incomplete observations,

physical knowledge on 3D mass exchanges between

atmospheric layers have been introduced within an

optical ﬂow scheme.

The estimator is based on a functional minimiza-

tion. The data term relies on the 3D-ICE model which

describes the dynamics of an interacting stack of at-

mospheric layers. The 3D-ICE model applies on a

set of sparse pressure difference images related to the

different atmospheric layers. A method is proposed

OPTICAL-FLOWFOR 3D ATMOSPHERIC MOTION ESTIMATION

405

to reconstruct such observations from satellite top of

cloud pressure images and classiﬁcation maps. To

overcome the problem of sparse observations, a ro-

bust estimator is introduced in the data term. The

data term is combined to a regularizers preserving bi-

dimensional divergent and vorticity structures of the

three-dimensional ﬂow and enforcing regions of ho-

mogeneous vertical winds.

An evaluationﬁrst performedon a synthetic image

sequence, and latter on a METEOSAT pressure image

sequences demonstrate the stability and the efﬁciency

of the method even in the difﬁcult case of very sparse

image observations.

REFERENCES

Barron, J., Fleet, D., and Beauchemin, S. (1994). Perfor-

mance of optical ﬂow techniques. Int. J. Computer

Vision, 12(1):43–77.

Bergen, J., Burt, P., Hingorani, R., and Peleg, S. (1992). A

three-frame algorithm for estimating two-component

image motion. IEEE Trans. Pattern Anal. Machine

Intell., 14(9):886–895.

Black, M. and Anandan, P. (1996). The robust estimation of

multiple motions: Parametric and piecewise-smooth

ﬂow ﬁelds. Computer Vision and Image Understand-

ing, 63(1):75–104.

Fitzpatrick, J. (1988). The existence of geometrical

density-image transformations corresponding to ob-

ject motion. Comput. Vision, Graphics, Image Proc.,

44(2):155–174.

Holland, P. and Welsch, R. (1977). Robust regression using

iteratively reweighted least-squares. Commun. Statis.-

Theor. Meth., A6(9):813–827.

Holton, J. (1992). An introduction to dynamic meteorology.

Academic press.

Horn, B. and Schunck, B. (1981). Determining optical ﬂow.

Artiﬁcial Intelligence, 17:185–203.

Larsen, R., Conradsen, K., and Ersboll, B. (1998). Estima-

tion of dense image ﬂow ﬁelds in ﬂuids. IEEE trans.

on Geoscience and Remote sensing, 36(1):256–264.

Leese, J., Novack, C., and Clark, B. (1971). An automated

technique for obtained cloud motion from geosyn-

chronous satellite data using cross correlation. Jour-

nal of applied meteorology, 10:118–132.

Lutz, H. (1999). Cloud processing for meteosat second

generation. Technical report, European Organisation

for the Exploitation of Meteorological Satellites (EU-

METSAT), Available at : http://www.eumetsat.de.

Suter, D. (1994). Motion estimation and vector splines. In

Proc. Conf. Comp. Vision Pattern Rec., pages 939–

942, Seattle, USA.

Zhou, L., Kambhamettu, C., and Goldgof, D. (2000). Fluid

structure and motion analysis from multi-spectrum 2d

cloud images sequences. In Proc. Conf. Comp. Vision

Pattern Rec., volume 2, pages 744–751, USA.

APPENDIX I

Vertical Integration of the Continuity

Equation

For compressible ﬂuids, the continuity equation in the

(x,y, p) coordinates system reads:

−

∂ω

∂p

=

∂u

∂x

+

∂v

∂y

p

(16)

Let us denote by s

k

and s

k+1

altimetric surfaces with

p(s

k

) > p(s

k+1

). According to the Leibnitz for-

mula, integrating Eq.16 in the varying pressure inter-

val [p(s

k+1

), p(s

k

)] yields to :

[ω]

s

k+1

s

k

= div

p

Z

p(s

k

)

p(s

k+1

)

vdp− v(s

k

).∇

xy

(p(s

k

)

s

k

+ v(s

k+1

).∇

xy

(p(s

k+1

))

s

k+1

(17)

Moreover, expandingω in the (x, y, z) coordinates sys-

tem and using the hydrostatic assumption (

∂p

∂z

= −ρg)

yields to

ω =

dp

dt

=

∂p

∂t

+ v· ∇

xy

(p)− wρg, (18)

where w is the vertical velocity in z coordinates and

where we have introduced the density functions ρ and

the gravity constant g. Assuming that the surface s

k

is

ﬂat in the vicinity of a pixel, by merging Eq. 17 and

Eq. 18, we obtain

g[ρw]

s

k

s

k+1

+

∂(p(s

k+1

) − p(s

k

))

∂t

I

s

≃ div

p

Z

p(s

k

)

p(s

k+1

)

vdp (19)

where we have denoted by I

s

the altimetric interval

between surfaces s

k

and s

k+1

. Let us now deﬁne the

following quantities :

δp

k

= p(s

k

) − p(s

k+1

)

v

k

=

1

δp

k

Z

p(s

k

)

p(s

k+1

)

vdp (20)

Considering the reasonable approximation

div(v

k

)

p

≃ div(v

k

)

I

s

, we can then rewrite Eq. 19 as

gρ(s

k

)w(s

k

) − gρ(s

k+1

)w(s

k+1

) ≃

∂δp

k

∂t

I

s

+ v

k

· ∇

xy

(δp

k

)

I

s

+ δp

k

div(v

k

)

I

s

(21)

Simplifying notations of operators deﬁned for the al-

timetric interval I

s

, we obtain the relation :

gρ(s

k

)w(s

k

) − gρ(s

k+1

)w(s

k+1

) ≃

dδp

k

dt

+ δp

k

div(v

k

), (22)

which consitutes a proper image-adapted model for

observations δp

k

related to a layer deﬁned in the in-

terval I

s

.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

406
