AN EMPIRICAL EVALUATION OF EVOLUTIONARY DESIGN

APPROACH

Design, Results and Discussion of Experiments on Extreme Programming

René Noël, Marcello Visconti, Gonzalo Valdés and Hernán Astudillo

Departamento de Informática, Universidad Técnica Federico Santa María, Av. España 1258, Valparaíso, Chile

Keywords: Extreme Programming, Evolutionary Design, Experimental Design.

Abstract: Evolutionary Design is Extreme Programming’s approach to organize software structure and its

relationships, encouraging refactoring, test driven development and the simplest solution for the

requirements of a single iteration, thus avoiding a big up-front design activity at the beginning of the project

that can cause carrying on a huge structural complexity throughout the whole project. In order to contrast

this approach with a planned or traditional design approach, an empirical evaluation of impact on software

design quality and process productivity has been designed and conducted in an academic environment with

toy size problems. Experimental studies planning details are presented, and two replications with different

experimental designs are described. Results suggest that there are no differences in quality between both

approaches, and that productivity is better when a planned design is adopted.

1 INTRODUCTION

Extreme Programming (XP) (Beck, 1999) proposes

an iterative process and an evolutionary design

(Fowler, 2004) approach that encourages the design

of the simplest solution for the requirements

considered in each iteration, without worrying about

next iteration requirements and its design

complexity. This approach allows embracing change

by avoiding big up-front design activity and carrying

design complexity throughout the whole project, as

traditional software processes proposes.

There are documented cases of development

teams that resist to this approach (Harrison, 2003;

Keefe and Dick, 2004; Müller and Tichy, 2001;

Rasmusson, 2003) questioning XP design practices

and their naturalness; besides, a big up-front design

is an instance for identifying reusable structures such

as architectural or design patterns (Gamma et al,

1995), and may help to improve productivity and

product internal quality. Theoretical fundaments can

be argued in favour of both design approaches, but

Experimental Software Engineering offers a chance

to gather empirical evidence on its impact over

product quality and process productivity. This paper

presents two experimental designs and their results

on evaluating the impact of different design

approaches over product quality and process

productivity. The design topics covered in this

article are limited to the detailed design activity

(class models, method’s algorithms) and not

architectural design issues.

Section 2 presents the two experimental designs,

and its results. Section 3 discusses the main findings

of the study considering both experimental studies,

its interpretation on Evolutionary Design context

and future work.

2 EXPERIMENTAL DESIGN

In order to compare XP approach with a traditional

or planned approach, an empirical evaluation has

been designed. The goal of the study is to detect the

existing differences on product quality and process

productivity when developing with an XP design

approach versus a planned design approach.

2.1 Activity Description

The software development activity (which subjects

must tackle) was designed considering the practices

that must be implemented, and time constraints to

execute experiment trials. Design, coding and testing

of software features can’t take more than two

119

Noël R., Visconti M., Valdés G. and Astudillo H. (2007).

AN EMPIRICAL EVALUATION OF EVOLUTIONARY DESIGN APPROACH - Design, Results and Discussion of Experiments on Extreme Programming.

In Proceedings of the Second International Conference on Evaluation of Novel Approaches to Software Engineering , pages 119-122

DOI: 10.5220/0002586201190122

 SciTePress

academic time slots, so we planned a 4-hour activity

and design problems that could be solved in that

time box. A method based on XP original definition

(Beck, 1999; Wake, 2001; Jeffries et al, 2000) was

defined. In addition, a variation of the original XP

method was defined, in order to incorporate a

planned design session at the start of each iteration.

Each trial of the experimental study consists of

training the subjects on a development method, and

then making them apply the method on a given

problem.

The application of the methods consists basically

of developing a simple software solution, whose

requirements are separated in two sets. The whole

context of the problem is presented on a global

system description that explains the whole

functionality and all the domain elements and its

relationships. The first set specifies a functionality

that adds value to the client, but is not the whole

system functionality. The second set complements

the first one, and covers all the desired features of

the system. By giving a whole system description at

the start, planned design subjects can anticipate

system design complexity, probably improving its

final design quality, and also improving its

productivity when identifying already solved

problems. If too much time is spent on making this

up-front design, productivity could be negatively

affected. XP approach can presumably be more

productive without a first up-front design, but

separating requirements in iterations guarantees that

design must be at least reviewed to implement the

second set of requirements, and could probably

require refactoring the first iteration code.

2.2 Hypotheses and Variables

High level null hypotheses are formulated in order to

evaluate the existence of differences on product

quality and process productivity using XP approach

and planned design approach:

H0’: The use of planned design approach produces

software with an equal design quality than

evolutionary design approach

H0’’: The use of an evolutionary software design

approach is as productive as a planned approach on

an XP project.

In order to test these hypotheses, quality and

productivity are measured by using standard metrics.

For each of the metrics, a null hypothesis is

formulated, for instance:

H0’1: Productivity measured on LOC/minute is the

same using evolutionary or planned design

approach

Independent variables that can affect quality and

productivity are identified:

 Design Approach: is the factor under study,

and has two levels: evolutionary approach

(XP’s approach) and planned approach.

 Participant’s Design Experience: is an

undesirable factor of influence and the

experimental design will focus on minimizing

its impact.

 Problem to Solve: If different problems are

used on the study, the impact must be

minimized or evaluate if the impact on results

is statistically significant.

 XP Knowledge: to minimize the influence of

this undesirable factor, participants are trained

on XP’s practices an process, and a guided

exercise applying them is performed.

Business logic complexity can be addressed

during the detailed design by creating an appropriate

structure of classes, methods and interfaces that

provides a maintainable and flexible solution, or

assigning complexity to a few and highly complex

methods, attempting to maintainability and

understandability of the code. In order to evaluate

software quality, methods’ algorithms complexity is

measured.

Process Productivity:

 LOC/minute (PTLOC)

 Number of Classes/hour (PNOC)

 Number of Methods/minute (PNOM)

Product Internal Quality (Design Quality):

 Decision Count (DC)

 Maximum McCabe Cyclomatic Complexity

(MCC), of the more complex method coded

by each subject.

 Number of Code Statements (NSTMNT)

2.3 Original Experimental Design

The original experimental design was presented in

(Noël et al, 2005), consisting on a random blocked

design, with one factor (the Design Approach) and

two levels (XP and planed approach). Participants

were undergraduate students that had previously

approved an Object Oriented Analysis and Design

course. Two blocks were conformed by subjects

with design experience and without design

experience (marked with different grey levels in

table 1), previously evaluated by a survey. Subjects

were 31 development teams conformed by a pair of

developers, with equivalent design experience. A

training session of 1.5 [hours] was performed.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

120

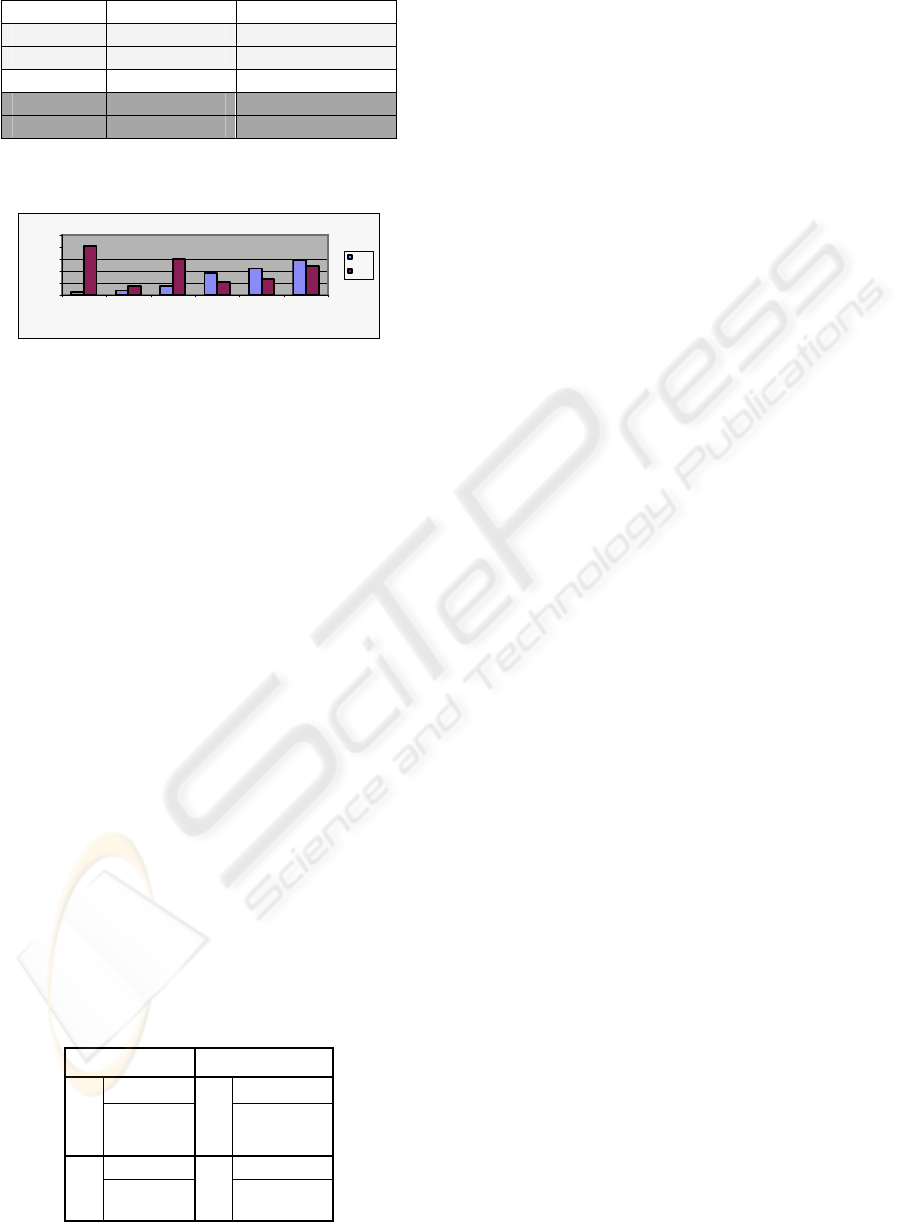

Table 1: Original Experimental Design.

Subject XP Approach Planned Approach

1 X

2 X

...

30 X

31 X

Remarkable results of acceptance test are the

following:

0,052

0,0804

0,1503

0,3726

0,4424

0,5843

0,8078

0,1481

0,6047

0,2281

0,2645

0,4859

0,2

0,4

0,6

0,8

PTNOC PTLOC PTNOM DC NSTMNT MCC

metric

significance

NDE

Figure 1: Significance Test Results for Original

Experimental Design.

Chart shows the t-Test 2-tailed probability of

rejecting null hypothesis when it's true, on subjects

blocked by experience on design experienced

subjects (DE) and no experienced subjects (NDE).

Significant differences on productivity for subjects

with no design experience where found (p<0.07),

obtaining better results with a planned design

approach. Differences on software design quality are

less significant, but show that experienced subjects

produce higher quality software with a planned

design approach. The difference between experience

blocks leads us to try to mitigate the influence of this

factor instead of blocking it, in order to isolate the

method effect from the experience effect.

2.4 Second Experimental Design

To mitigate the influence of the subjects’ particular

experience, each of them must use both design

approaches. This implies having two distinct

problems to solve, in order to not introduce

maturation bias when applying both approaches on

the same problem. Thus a 2x2 factorial design with

repeated measures is proposed where the factors are

the Design Approach and the problem to be solved

(Table 2).

Table 2: Second Experimental Design.

Group 1 Group 2

Training Training

Method 1

Problem 1

Method 2

Problem 1

Training Training

Method 2

Problem 2

Method 1

Problem 2

To avoid carryover effects, counterbalancing is

applied: if the whole Group 1 uses Method 1 in first

place and then Method 2, a bias can be introduced

due to the learning of tools, programming language

or others on the first session. Thus, one half of

Group 1 will use method 1 and problem 1, and the

other half will use method 2 and problem 2. On the

second day, methods and problems will be inverted.

Same strategy is applied to group 2. Participants

were 22 senior-level students, with Object Oriented

Design knowledge and some professional practice.

A detailed comparison of the two experimental

designs is presented in (Noël et al, 2007).

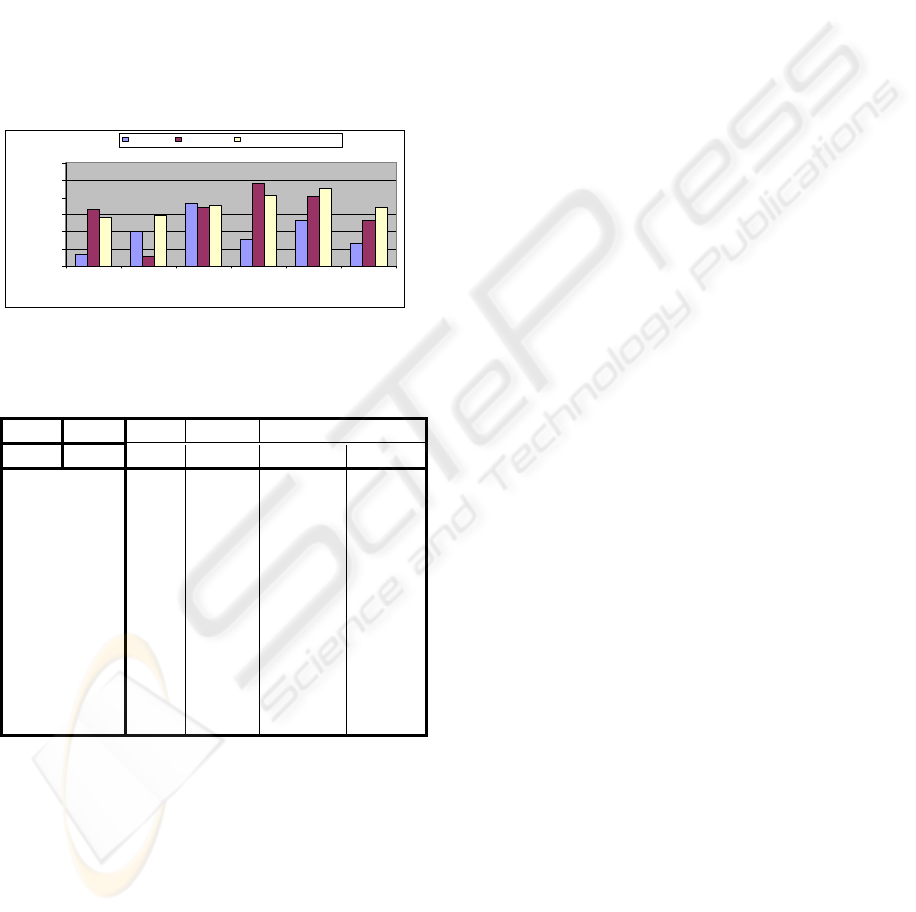

2.5 Experimental Results Summary

Given the 2x2 factorial design with repeated

measures, and the factors Development Method and

Problem, 3 sets of hypotheses can be formulated.

For Main Effect Development Method:

 H0: There is no difference between subjects

using XP’s Design Approach and subjects using

Planned Approach with respect to VAR[i]

 H1: There is a difference between subjects

using XP’s Design Approach and subjects using

Planned Approach with respect to VAR[i]

Where i = PTLOC, PNOC, PNOM, DC, MCC,

NSTMNT. Similar hypotheses are formulated for

Main Effect Problem and Interaction Effect Method

X Problem. Looking for method main effect over

dependent variables will allow testing hypotheses

raised on section 2.2

Data was analysed applying Analysis of

Variance for the 2x2 factorial with repeated

measures design. All the tests of significance for the

influence of factors and interception applied led to

the same significance levels for each metric, that are

presented on figure 2. Looking at method’s effect,

we can see that null hypotheses can’t be rejected; no

differences in quality and productivity between

evolutionary and planned design approaches can be

demonstrated by the influence of the Method factor.

Estimated marginal means for each metric for

methods 1 and 2, presented on table 3 suggest that

although not statistically significant, the Planned

Design Approach (Method 2) is more productive

than XP Design Approach (Method 1), for every

metric of productivity. Product design quality

metrics are favourable to XP Design Approach for

Number of Statements and Maximum Cyclomatic

Complexity. Decision Count metric suggests that

more control flow statements were coded when

using XP Design Approach than using a Planned

Design Approach.

AN EMPIRICAL EVALUATION OF EVOLUTIONARY DESIGN APPROACH - Design, Results and Discussion of

Experiments on Extreme Programming

121

2.6 Validity Discussion

The main threats to validity are related to three key

factors:

Activity Design for Process Implementation.

Available time for perform the activity forces us to

adapt XP practices and to work with toy problems,

so it might be a threat for construct validity.

Metrics and Problems Size. Toy problems

could be not complex enough to get significant

differences on quality or productivity for the chosen

metrics, attempting to construct validity.

Academic Environment. Students could not be

representative of professional developers, attempting

to the external validity of the study.

0,136

0,403

0,736

0,311

0,532

0,269

0,666

0,12

0,682

0,961

0,805

0,535

0,589

0,708

0,823

0,906

0,687

0,568

0,2

0,4

0,6

0,8

1,2

PTLOC PNOC PNOM NSTMNTS DC MCC

metrics

si gni fi cance

METHO D PRO B LEM METHO D * PROBL EM

Figure 2: ANOVA Significance Test Results for 2x2

Factorial with Repeated Measures Design.

Table 3: Estimated Marginal Means for Method’s Effect.

Measure Method Mean Std. Error 95% Confidence Interval

Lower Bound Upper Bound

PTLOC 1 ,458 ,053 ,335 ,582

2 ,568 ,080 ,385 ,751

PNOC 1 1,106 ,162 ,732 1,480

2 1,294 ,133 ,986 1,601

PNOM 1 ,079 ,020 ,031 ,126

2 ,090 ,025 ,033 ,146

NSTMNT 1 22,167 2,26 16,957 27,376

2 26,611 3,76 18,043 35,179

DC 1 3,611 ,740 1,905 5,317

2 3,056 ,868 1,054 5,057

MCC 1 3,333 ,717 1,680 4,986

2 4,444 ,966 2,216 6,673

3 CONCLUSIONS

Productivity results are consistent between original

and second execution of the experimental study:

results suggest that a Planned Design approach

always yields a better productivity. For quality

metrics, in the first experimental study planned

design approach yields better quality, but in the

second, the results suggest that subjects using XP

evolutionary approach get better quality products.

However, both quality results are far from being

statistically significant, so this suggests that no

product design quality differences exists when using

distinct design approaches.

When facing the design activity, we can choose

between a planned approach or an evolutionary

approach. Our study suggests that no significant

differences on quality between both approaches can

be demonstrated, and that process productivity is

better with a planned approach, so we can evaluate

the trade-offs of increasing process productivity by

planning the design, or empowering the process

capability for embracing change through the

adoption of XP original design approach, without

affecting product design quality.

REFERENCES

Beck, K., 1999. Extreme Programming Explained:

Embrace Change, Addison-Wesley.

Fowler, M., 2004. Is Design Dead? http://

www.martinfowler.com/articles/designDead.html.

Gamma, E., Helm, R., Johnson, R., & Vlissides, J., 1995.

Design Patterns: Elements of Reusable Object-

Oriented Software, Addison-Wesley.

Harrison, N., 2003. A Study of Extreme Programming in a

Large Company. Avaya Labs. http://

www.agilealliance.org/system/article/file/1292/file.pdf

Henderson-Sellers, B., 1996. Object-Oriented Metrics,

measures of Complexity, Prentice Hall.

Jeffries, R., Anderson, A., Hendrickson, C., & Jeffries, R.

E., 2000. Extreme Programming Installed, Addison-

Wesley.

Keefe, K., & Dick, M., 2004. Using Extreme

Programming in a Capstone Project. In Proc. 6

Australasian Computing Education Conference,

Dunedin, New Zealand, pp. 151-160.

Müller, M., & Tichy, W., 2001. Case Study: Extreme

Programming in a University Environment. In Proc.

Int’l Conference on Software Eng., Toronto,

Canada, pp. 537-544.

Nöel, R., Visconti, M., Valdés, G., & Astudillo, H., 2007.

Lab. Package for the Investigation about the Impact of

Software Design Approaches on XP. http://www.

labada.inf.utfsm.cl/~amigosisw/xpdesign_package.

Nöel, R., Astudillo, H., Visconti, M., & Pereira, J., 2005.

Evaluating Design Approaches in Extreme

Programming. In Experimental Software Eng. Latin

American Workshop, Uberlandia, Brazil.

Rasmusson, J., 2003. Introducing XP into Greenfield

Projects: Lessons Learned. IEEE Software, vol. 33, no.

7, pp. 21-28.

Wake, W., 2001. Extreme Programming Explored,

Addison-Wesley.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

122
