SERVICE DISCOVERY WITH SWE-ET AND DIANE

A Comparative Evaluation by Means of Solutions to a Common Scenario

Ulrich K

uster

, Andrea Turati

, Maciej Zaremba

, B. K

onig-Ries

, D. Cerizza

, E. Della Valle

M. Brambilla

, S. Ceri

, F. M. Facca

and C. Tziviskou

Institute for Computer Science, Friedrich Schiller University Jena, 07743 Jena, Germany

CEFRIEL, Via Fucini 2, 20133 Milano, Italy

Dipartimento di Elettronica e Informazione, Politecnico di Milano, Milano, Italy

DERI – National University of Ireland, IDA Industrial Estate, Lower Dangan, Galway, Ireland

Keywords:

Semantic Matchmaking, Service Discovery, Evaluation, Comparison.

Abstract:

Semantic service discovery and matchmaking has received increased attention within the last years. Various

approaches have been proposed but agreed upon criteria or common use and test cases to objectively evaluate

such approaches are widely lacking. In this paper we present an in-depth comparison of the solutions to

the discovery problems deﬁned by the SWS-Challenge 2006. By means of this common and independently

developed scenario we can develop a much better understanding for the applied technologies in general, but

also and in particular for the trade-offs involved in the different approaches.

1 INTRODUCTION

Following the idea of the semantic web and the suc-

cess of service oriented computing (SOC), the ap-

plication of semantic technologies to automate cen-

tral tasks within SOC like service discovery, match-

making and binding has received increasing attention

within the last years. Many frameworks have been

proposed and are being actively developed, but up to

now there is no consensus about the most appropri-

ate formalism for semantic service description or the

best techniques to work with or reason about them.

Clearly a uniﬁed benchmark would be tremendously

helpful in order to compare the pros and cons of the

various approaches in an objective way. The Semantic

Web Services Challenge

(Petrie, 2006) is attempting

to create such a benchmark. In a series of three work-

shops so far, participants have applied their technol-

ogy to a common set of scenarios and presented their

approaches to their peers. This way a good under-

standing of each others technology could be devel-

oped. In this paper we will present a comparative

evaluation of the solutions to the SWS-Challenge’s

discovery scenario, with a focus on the joint solu-

tion by the team from Politecnico Milano and CE-

FRIEL (Brambilla et al., 2006) on the one hand and

http://www.sws-challenge.org

the one by University Jena (K

uster and K

onig-Ries,

2006a; K

uster et al., 2006) on the other hand. We

will describe the various aspects of these approaches

in a structured way and elaborate on the trade-offs

involved in each technology. The rest of the paper

is organized as follows: In Section 2 we shortly de-

scribe the discovery scenario of the challenge. Sec-

tion 3 contains the detailed comparison of the differ-

ent solutions to that scenario and Section 4 presents

our conclusions.

2 THE SCENARIO

The SWS-Challenge presented two complementary

scenarios: the mediation scenario integrates a legacy

system supporting the RosettaNet protocol, the dis-

covery scenario is about how to identify possibly rel-

evant shipment services. In this paper we focus on the

latter.

The objective of the discovery scenario is to ﬁnd

the best shipment service, taking into considera-

tion pickup location, delivery location, delivery time,

price and similar constraints. Thus the scenario pro-

vided implementations of several shipping services,

each of them with a WSDL and a more concise nat-

ural language description. What makes the scenario

430

Küster U., Turati A., Zaremba M., König-Ries B., Cerizza D., Della Valle E., Brambilla M., Ceri S., M. Facca F. and Tziviskou C. (2007).

SERVICE DISCOVERY WITH SWE-ET AND DIANE - A Comparative Evaluation by Means of Solutions to a Common Scenario.

In Proceedings of the Ninth International Conference on Enterprise Information Systems, pages 438-446

 SciTePress

Table 1: Comparison between DIANE and SWE-ET.

Feature DIANE SWE-ET

Formalism DE and DSD (custom formalism) F-logic

Service Descriptions conﬁgurable set of possible effects WSMO service capabilities

Goal Descriptions fuzzy set of acceptable effects

(fuzziness to express preferences)

WSMO goal capabilities

Matchmaking set-based: subset value of optimally

conﬁgured offer in fuzzy request

rule-based: matching rules coded into wgMe-

diator (ﬁlter web service instances wrt. given

goal)

Negotiation integrated into matchmaking (nego-

tiable parameters tagged in offers)

integrated into the discovery process with ex-

ternal invocation through WebRatio grounding

(negotiable parameters tagged in offers)

Selection through fuzzy requests (integrated

into matchmaking)

done by the user through WebRatio interface

Invocation automatically done by framework automatically done by WebRatio grounding

interesting is the realistically heterogeneous nature of

the services descriptions, that focus on different char-

acteristics. For example, some speciﬁcations are:

• Muller speciﬁes rates on request (cf. invokePrice

operation within the WSDL)

• Racer adds 12.50 for each collection order

• Runner requires weight, length and height if pack-

age weight exceeds 70 lbs, and states that collec-

tion is possible between 1am - 12pm

• Walker applies different rates depending on loca-

tion, and has some conditions about, for instance,

maximum package weight or pickup time

• Weasel ships only within the United States.

Discovery had to be performed by a set of predeﬁned

requests with increasing complexity.

3 COMPARISON OF BOTH

APPROACHES

In the following we will compare the approaches

taken by University Jena as well as Politecnico Mi-

lano and CEFRIEL to tackle the discovery problem

introduced above. The solution by University Jena

is based on its DIANE-framework

while the other

one is named SWE-ET

and combines CEFRIEL’s

Glue discovery engine

with the WebRatio frame-

work

from Politecnico Milano.

We adopt a structured approach to compare both

solutions along several dimensions. Table 1 shows a

compact representation of the comparison result.

http://hnsp.inf-bb.uni-jena.de/DIANE

http://sweet.cefriel.it/

http://glue.cefriel.it/

http://www.webratio.com/

3.1 Formalism Used to Model

Ontologies

The goal of the DIANE project is to create a frame-

work that is able to completely automate the whole

process of service usage. Thus an ontology language

was needed that on the one hand is expressive enough

to precisely capture the necessary aspects of service

offers and requests but on the other hand is as re-

stricted as possible to ease the matchmaking process

and maintain efﬁcient processability. Therefore the

approach followed by DIANE is to not use one of the

logics commonly employed for semantic service de-

scriptions, but to deﬁne its own language speciﬁcally

tailored towards the use case at hand. Consequently

DIANE uses its own ontology language, called DE

(DIANE Elements) and DSD (DIANE Service De-

scriptions) which has been introduced in (Klein et al.,

2005). Ontologies are very lightweight and the de-

scription elements of DSD used for ontologies can

best be characterized as a small subset of F-logic

(Kifer et al., 1995) without rules and quantiﬁers.

In contrast Glue – the discovery engine used in

SWE-ET – is directly based on F-logic. This was

motivated by the desire to create a discovery en-

gine that is compliant with WSMO (de Bruijn et al.,

2005a). At the time development on Glue started,

tools for translating WSML into reasoner-speciﬁc for-

mats were missing and WSML itself was a work-

in-progress. However, the WSML working group

proposed a subset of OWL (named OWL

–

) that does

not fall outside a logic programming framework and

allows for a straight-forward combination with rule

languages (de Bruijn et al., 2005b). Additionally an

expressive datatype support was desired and WSML

http://www.wsmo.org/wsml/

working group showed in (de Bruijn et al., 2004) that

OWL-E (Pan, J. Z. and Horrocks, I., 2004) (a proposal

for extending OWL with expressive datatype expres-

sion) can be added to OWL

–

, forming a new ontolog-

ical language named OWL-Flight. Since both OWL

–

(Angele and Lausen, 2004) and OWL-Flight can be

translated into F-logic, it was decided to implement

Glue on a F-logic reasoner.

Thus the Glue approach models ontologies using

F-Logic and can beneﬁt from the entailed expressiv-

ity: F-logic allows to represent classes, instances,

relationships among classes and instances, formulas

that use logic operators and quantiﬁers, rules, and so

on. F-logic provides a second-order, object-oriented-

style syntax for a ﬁrst-order logical language. In other

words, as described in (Kifer and Lausen, 1989), F-

logic has an appearance of a higher-order-logic, but,

unlike it, is tractable and has a natural direct ﬁrst-

order semantics. In addition, sound and complete

proof procedures for F-logic exist.

To address the SWS-Challenge’s scenarios, both

teams modeled necessary domain ontologies to cap-

ture required concepts like date and time, weight and

dimensions, prices, locations, shipment etc. Despite

the much bigger expressivity of the full F-logic ap-

proach taken by Glue, the modelled ontologies look

fairly similar since the current scenario did not require

to use complex rules and restrictions in the ontologies.

3.2 Formalism Used to Model Goals

and Services

While the underlying ontologies are rather simple,

DSD supports more complex and expressive mod-

elling operators to be used in request and offer de-

scriptions. In DSD, service offers are described as the

set of effects they can provide wheras service requests

are described as the set of effects that are acceptable

for the requester. The semantics of DSD deﬁnes that

one effect out of the request effect set is requested and

one effect out of the offer effect set will be provided

by a service invocation

. Figure 1 shows excerpts of

the description of the Muller shipping service in an

intuitive graphical notation.

As mentioned, Muller is described by the set of

Shipped effects it can provide. Sets are denoted by

a diagonal line in the upper left corner of a concept.

Generally DSD sets are described by

• a type condition to specify the class of admissable

instances (like Shipped, Country or Double)

This may be changed by using special operators, called

iteration directives, see (K

uster and K

onig-Ries, 2006a)

upper

muller: Service

upper.profile

: ServiceProfile

presents

Address

IN,e,1

IN,x,1

fromAddress

toAddress

PhysicalEntity

IN,e,1

IN,x,1

cargo

WeightMeasure

Country

City

y

city

locatedIn

WeightUnit

== pound

Double

<=50

Continent

in {africa,

northAmerica,

europe, asia}

locatedIn

Shipped

...

effect

weight

val

pickupTime

Price

OUT,e,1

Currency

== usd

Double

currency

val

price

unit

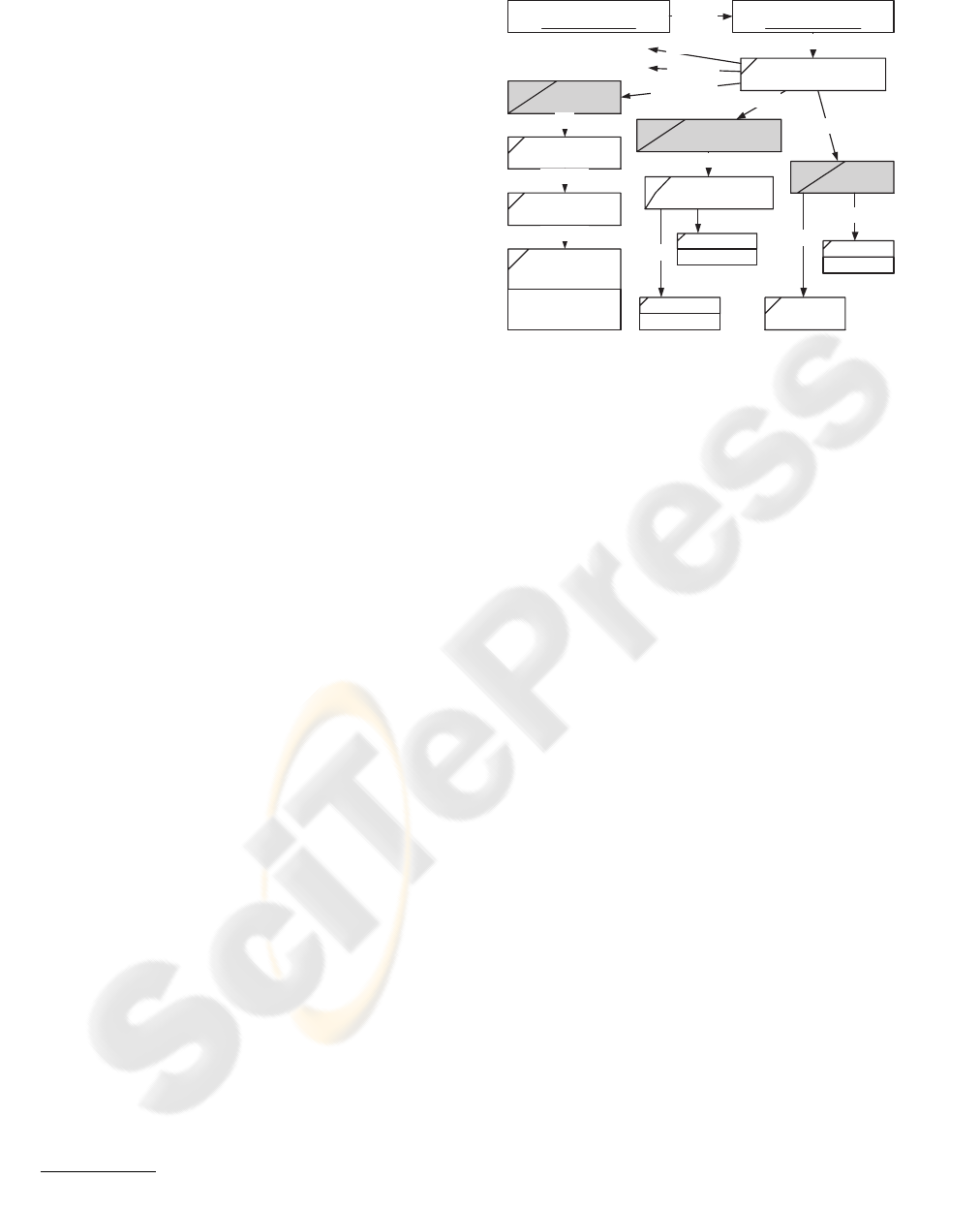

Figure 1: Excerpts from the description of the Muller ship-

ping service. Muller allows shipping within Africa, North

America, Europe and Asia and transports only packages up

to 50 pounds.

• a number of direct conditions to include or ex-

clude named instances (compare with the Con-

tinent set) or specify declarative conditions on

primitive types (compare with the Double set used

for the weight of a cargo)

• a number of property conditions that recursively

specify the sets of admissable values for the prop-

erties of admissable instances (like the val and

unit property of the WeightMeasure set). Prop-

erty descriptions lead to service descriptions that

form trees as shown in Figure 1.

To express preferences, fuzzy sets may be used in-

stead of crisp sets in request descriptions: The higher

the set membership value, the higher the preference of

the requester. Fuzzy sets are constructed using fuzzy

variants of the type and direct condition introduced

above together with connecting strategies that specify

how to compute the membership value of an instance

based on the membership values of its properties (A

weighted sum might for instance be used to compute

the set membership value of a Shipped-instance using

the values of its properties cargo, price, pickupTime,

...).

The concept of variables – a special type of set

– is used to represent necessary inputs and required

outputs of a service invocation. Variables are marked

with a gray background in Figure 1. Where allowed

by the offer description, variables enable the requester

to conﬁgure an offer (i.e. inﬂuence which of the of-

fered effects will be created). Muller for instance

takes the destination address and the cargo to ship as

input and provides the price of the shipping operation

as output. For more information on DSD, please refer

to (K

uster and K

onig-Ries, 2006a; Klein et al., 2005).

In Glue, web services and goal descriptions are

represented in F-logic, like ontologies. To model the

requests a shipping goal class was designed, captur-

ing the desired capabilities as post-conditions follow-

ing the WSMO modeling approach (de Bruijn et al.,

2005a). Likewise the semantics of the offer descrip-

tions were captured by a web service class for ship-

ment. The restrictions that must hold in order to in-

voke a service were modelled as assumption and the

result provided by an invocation as post-conditions.

As explained in (Della Valle and Cerizza, 2005), Glue

reﬁnes the WSMO discovery conceptual model by

making the notion of class of goals and class of web

service description explicit and by making a clear sep-

aration between instances and classes of goals and

web services.

An example of the F-logic description of the web

service instance for the Muller shipping service can

be found in section 3.4.

In a service description there could be properties

that need to be negotiated, in order to assume a spe-

ciﬁc value. Properties that require invocation of exter-

nal web services to gather more information are man-

aged in a special way. They are annotated with special

tags, so that Glue can invoke WebRatio when it rec-

ognizes these tags and WebRatio can negotiate them.

This aspect is detailed in section 3.4.

Not surprisingly, F-logic was sufﬁciently expres-

sive to capture all details of the given offer and goal

descriptions. However F-logic is not a temporal logic,

therefore a date-time ontology (including concepts

like distance between two different instants of time)

has been modeled in order to have the possibility to

manage temporal constraints for the scenario.

Glue needs to exploit the notion of current time

given by WebRatio. When a goal description is in-

serted by means of the graphical interface of WebRa-

tio, the value of the current time is passed from We-

bRatio to Glue together with the goal description so

that Glue can use it during the matchmaking.

In DIANE, since DSD classes and instances are

internally represented as Java classes, custom Java

code may be injected into instances and classes. In

order to deal with temporal aspects, DIANE could

exploit a special time instance now that could access

the System time to assert the actual date and time.

On the other hand, the lack of rules and arithmetic

expressions in DSD were hindering the modeling of

some aspects of offer and goal descriptions. Rule-

based price computations (e.g. different prices based

upon the delivery continent) could not be expressed

in DSD. As a workaround for that problem the com-

putation of the price was delegated to an external web

service similar to what was anyway required by one

out of the ﬁve available offers (see Section 3.4). Be-

side that, DSD currently also does not support the ex-

pression of arithmetic computations

as needed for in-

stance to model that a shipping price is made up of a

constanc factor multiplied with the weight of a pack-

age. The workaround for the problem is the same.

Even though ﬁnally all aspects could be captured

in both SWE-ET or DIANE, the greater expressivity

of the F-logic approach taken by Glue proved advan-

tageous in the above mentioned cases.

3.3 The Process of Matchmaking

Reasoning: Since DSD does not build on any com-

mon logic formalism it cannot beneﬁt from standard

reasoning tools. Instead a special custom reason-

ing operation subset has been deﬁned that solves the

problem of service matchmaking.

For a list of given DSD offer descriptions O and

a given DSD request r, a matchmaker has to answer

two questions for each o ∈ O: What is the subset value

of o’s effect sets in r’s fuzzy effect sets (how well is o

contained in what r requests) and which conﬁguration

of o yields the best such value? Thus subset(O, r) re-

turns a list of altered offers O

′

, sorted by the fuzzy

subset value of each o

′

∈ O

′

wrt. r (called match

value) and each o

′

∈ O

′

corresponds to exactly one

∈ O where o

′

differs from o

exactly by the fact

that all input variables in o

have been ﬁlled with a

concrete instance value.

The current Java based implementation of sub-

set steps through the graphs of each o

and r syn-

chronously in order to calculate the matching value

in [0,1] as well as the optimal ﬁlling of all input

variables. It is worth mentioning that thus the DSD

matcher does not only passively select the most ap-

propriate offer but also actively conﬁgures and opti-

mize each offer where possible. The expressivity of

DSD has been tailored with the goal to support efﬁ-

cient computability of subset. For further information

on matchmaking of DSD descriptions please refer to

(Klein et al., 2005).

In contrast to DSD, which deﬁnes a custom rea-

soning operation, Glue can build upon standard rea-

soning tools for F-logic. Flora-2

– a plug-in of the

XSB inference engine

based on Prolog – was cho-

sen as inference engine. The language of Flora-2 is a

dialect of F-logic with numerous extensions, includ-

ing HiLog and Transaction Logic. In Glue, discovery

returns all the web services descriptions that match

This is currently work in progress

http://ﬂora.sourceforge.net/

http://xsb.sourceforge.net/

the request at predeﬁned levels. The level is computed

by evaluating a wgMediator (a WSMO entity that is in

charge of mediating between web service and goal),

that basically speciﬁes a set of F-logic rules speciﬁc

to match instances of particular web services classes

with an instance of a particular goal class. Given a

goal instance, in order to identify all instances of the

web services classes that match it, each rule is ap-

plied on a web service description at a time, resulting

in a value that states whether the rule is satisﬁed or

not. Depending on what rules are satisﬁed, a discrete

value stating the level of match is returned.

For example, in the wgMediator for shipment four

level of match were deﬁned. The last one is the level

associated to the least accurate match, in which only

the following rules must be satisﬁed:

• the weight of the good declared in the goal must

be lower than the maximum that the service ac-

cepts for shipping

• pickup and delivery locations requested in the

goal must be covered by the service.

Execution framework and semantics: DSD as-

sumes a common ontology used by all participants

of the matchmaking process. A middleware frame-

work is supplied to support service usage. During

setup the common domain ontologies need to be de-

ployed at the middleware. Afterwards, offer descrip-

tions (speciﬁed in DSD and based on those ontolo-

gies) can be published to a repository within the mid-

dleware. Requests as well as offers are internally rep-

resented as Java objects. A request agent handles the

automatic execution of requests that are sent to the

middleware. It causes the matcher agent to match the

request against the available offers (see above), picks

the best matching offer, forwards it to an invocation

agent and takes care that the outputs of the service

invocation are sent back to the requester.

Glue embraces the notion of mediation as spec-

iﬁed in (de Bruijn et al., 2005a). Every element

involved in the discovery process is inserted in the

reasoner as a F-logic description. During discovery,

the reasoner performs inferences upon these descrip-

tions. The result of the inference process represents

the result of the discovery. In particular, during setup

time the F-logic descriptions of web services and goal

classes are inserted in Glue, as well as the F-logic de-

scriptions of both domain ontologies and all the re-

quired mediators. At publishing time, provider en-

tities publish instances of web service descriptions

simply by referring to the correct class of web ser-

vice description and providing values to all the nec-

essary parameters. Then, at discovery time, when

a user formalizes a goal instance, the goal class the

goal instance belongs to is selected. By using a set of

appropriated ggMediators, other semantically equiv-

alent goals are identiﬁed by translating the original

goal. Then, for each goal previously identiﬁed, Glue

takes the web service class that match it by using a

wgMediator, which connects a goal class to a web

service class. In other words, the instances of web

services descriptions can be roughly ﬁltered on the

basis of the target of the detected wgMediators. Fi-

nally, a matchmaking between the goal instance de-

scription and the web services instances descriptions

is performed and then the user can select (and invoke)

one of the remaining web services descriptions in or-

der to satisfy the goal.

Selection: Regarding selection the views taken by

SWE-ET and DIANE are quite different. In the SWE-

ET framework, discovery and selection are viewed as

separate tasks. Glue as a discovery engine is able to

discover a set of web services that can satisfy a speci-

ﬁed request, which is represented by a goal. Selection

is viewed as an additional step that follows the dis-

covery and is responsible for choosing a single web

service to be invoked, starting from the set of web

services returned by discovery. For this reason, Glue

does not include selection. In the Glue approach, se-

lection has to be left in charge of the user, which is

the only entity that can take such a decision. Glue

only supports the user’s decision by applying ranking

of the results corresponding to the above mentioned

match levels. Glue does so by assigning a value to

each matching rules that represents the importance of

that rules.

In contrast DIANE is aiming at completely au-

tomating the whole process of service usage. This is

only possible if selection is performed by the match-

making process, too. This in turn is feasible only

if it is possible to precisely capture user preferences

within service requests and efﬁciently use that ad-

ditional information during matchmaking. The ﬁrst

is achieved through DSD’s fuzzy elements, the lat-

ter through the application of the speciﬁcally tailored

subset operation used for matchmaking. Thus DSD

is able to provide a more ﬁnegrained matching com-

pared to Glue at the price of restricted expressivity

and limited compatibility to other semantic service

frameworks.

3.4 Dynamic Aspects of Service

Descriptions

Section 3.2 shows how to model static aspects of a

web service description, assuming no dynamic de-

pendencies. However, one shipping service (Muller)

required to inquire the price of a shipping operation

dynamically by calling a particular web service end-

point.

To cope with such requirements, DSD supports a

simple choreography to interact with services where

an arbitrary number of estimation steps is followed

by a single execution step. Estimation steps must

not have effects on the real world and can be used to

gather dynamical information from a service provider.

In Figure 1, Muller declares that given the shipping

address and the cargo properties as input, the price

of a shipping operation can be retrieved as output of

the ﬁrst estimation step (denoted by markers

OUT,e,1

and

IN,e,1

)

Thus – if necessary – the matcher will initiate a

call of the associated operation and dynamically com-

plement Muller’s description corresponding to the

retrieved information. This procedure was ﬂexible

enough to support all dynamic aspects contained in

the scenario. Additionally it was used to delegate

arithmetic computations as well as the evaluation of

rules needed to compute the price for a shipping to an

external web service to overcome some of the expres-

sivity limits of DSD (compare to Section 3.2).

Originally Glue had not been able to deal with dy-

namic aspects. In order to overcome this limitation,

Glue has been extended by making a clear separation

among:

• discovery capabilities, which represent the static

description of the service

• negotiation capabilities, which represent the dy-

namic description of the service that needs to be

evaluated by invoking it

• selection capabilities, which include non-

functional descriptions.

This extension has had a minimal impact on the

SWE-ET infrastructure. It has been sufﬁcient to add

new features to the execution semantics at the end of

the entire discovery process, in order to perform the

negotiation.

When a web service is published in Glue, in the

case that the service includes special parameters that

need to be negotiated (e.g. shipping price), its de-

scription has to be annotated with special tags, which

point out what parameters have to be negotiated. For

example, the following code shows how the price of

the Muller service has been modeled in order to en-

able negotiation. In particular, with respect to the

code shown below, a tag stating that it is necessary

Details how to execute that estimation step are speciﬁed

in an offer’s grounding, which is beyond the scope of this

paper. Please refer to (K

uster and K

onig-Ries, 2006b) for

further information.

to invoke the invokePrice operation of the Muller ser-

vice in order to negotiate the values of the price has

been added. In addition, the request message (in-

vokePriceRequest) that has to be sent to start the ne-

gotiation has been added to Muller’s description.

wsdInstance_Shipment11:wsdClass_Shipment[

nonFunctionalProperties->_#[

dc_title->’Muller Shipment Service’

... ],

capability->_#:capabilityWSD_Shipment[

assumption->_#:

restrictionsOnShipmentService[

maximalGoodWeight->50,

... ],

postcondition->_#:

providesShipmentService[

pickupLocations->>{africa, ...},

price->>{

_#:shipmentPricing[

basePrice->0,

//negotiate_operation:

//Muller/invokePrice(out Price)

pricePerWeight->0,

additionalPricePerCollect->(-1)

] ...

invokePriceRequest[

country=>location,

packageInformation[

weight=>integer,

lenth=>integer,

height=>integer,

width=>integer

]

At the ﬁrst step of the discovery, Glue deals with

the static descriptions of services only. When it iden-

tiﬁes a service description in which there are some pa-

rameters that have been annotated with a special tag

(i.e. the negotiate

operation tag in the previous exam-

ple), Glue starts a negotiation by delegating it to We-

bRatio. In other words, Glue is responsible for mod-

eling a service description (including also its nego-

tiation capabilities) and starting the negotiation pro-

cess when it is necessary to dynamically get the value

of a parameter. WebRatio is responsible for handling

the actual invocation (including the grounding toward

SOAP messages). After negotiation, WebRatio re-

turns the actual value for the parameter, so that Glue

can update the service description adding this value.

Finally, Glue evaluates whether the updated instance

of service satisﬁes the goal by applying the appropri-

ate rules and accepts or rejects the service correspond-

ingly.

3.5 Invocation

Automated invocation of offers is directly supported

by DIANE. In case of the before mentioned estima-

tion steps the corresponding invocations can be initi-

ated by the matcher directly and can be performed in-

terweaved with the matchmaking process. Regarding

the ﬁnal execution of the service, the matcher – as out-

lined in Section 3.3 – outputs a list of readily conﬁg-

ured offers, i.e. offers where all necessary input val-

ues have been set. The remaining task performed by

the invocation agent is to perform the necessary low-

ering to create an appropriate XML message to send

to the offer implementation and perform lifting on the

returned response message. This is done using sim-

ple declarative mapping rules that map between DSD

concepts and XML data (see (K

uster and K

onig-Ries,

2006b) for details).

In the SWE-ET approach matchmaking and in-

vocation are performed using different technologies.

Invocation of a web service is not directly executed

by Glue, but is left to the application in which Glue

is integrated – in the case of phase-III of the SWS-

Challenge an external invocation component imple-

mented within the WebRatio framework. This ap-

proach is described in (Zaremba et al., 2007).

3.6 Comparison with Other Solutions

DERI

has provided a solution that is quite similar

to the one of CEFRIEL-Politecnico di Milano. In

particular both are based on the same framework for

Semantic Web services - WSMO. In this section we

emphasize the main differences between the two so-

lutions.

The solution by DERI is based upon WSMX –

the WSMO execution environment – and thus na-

tively supports WSML, in the contrary to Glue where

WSMO is encoded in F-logic by means of Flora-2

syntax. Semantic Web services, goals and ontolo-

gies have been modeled directly in WSMT

, which

provides versatile support for modeling WSMO ele-

ments.

Since logical rules have been used quite exten-

sively in order to explicitly describe various ship-

ping criteria of different shippers, DERI expresses

the rules by means of WSML-Rule ﬂavor of WSML,

while CEFRIEL expressed them in the same formal-

ism used also for goals and services descriptions. In-

stead of Flora-2, DERI used KAON2

interfaced via

http://www.deri.org

http://wsmt.sourceforge.net

http://kaon2.semanticweb.org

the WSML2Reasoner

framework as internal rea-

soner to inference over the provided functionality of

a service. KAON2 comes with support for elabo-

rate rules and arithmetic expressions, therefore the

WSMX Discovery component did not have to resort

to an external arithmetic services but required calcu-

lations were carried out internally within the context

of reasoner.

Similarly to Flora-2, KAON2 is a high preci-

sion reasoner giving explicit responses without the

direct support for fuzziness or preferences. DERI

has provided simple support for the preferences via

non-functional properties within a goal which specify

which criteria should be taken into the account when

selecting the most suitable service.

The DERI submission directly supports service

contracting as necessary in the case of Muller where

the shipping price had to be dynamically obtained.

WSMO Choreography expressed in ontologized Ab-

stract State Machines (snippet below) has been used

for specifying the necessary interaction with the ser-

vice. This contracting Choreography is utilized dur-

ing the discovery phase and its result (i.e. price in this

case) is integrated into the reasoning context. Once

the service has been selected for the execution phase

there is a separate Choreography allowing to consume

service functionality.

choreography contracting#choreogr

stateSignature

in mu#pQuoteReq withGrounding { ... }

out mu#pQuoteResp withGrounding { ... }

forall {?pQuoteReq} with (

?pRequest memberOf mu#pQuoteReq) do

add( # memberOf mu#pQuoteResp)

endForall

WSMX uses a dedicated Communication Man-

ager component for handling the external commu-

nication with service requesters and with involved

services. The Communication Manager manages

adapters which are responsible to perform the neces-

sary lifting and lowering (i.e. translate between XML

and WSML). Lifting is required when moving from

syntactic data representation to a rich ontology model,

while lowering does the opposite, namely mapping

downwards to non-semantic data models (e.g. XML,

EDI, RosettaNet, others).

4 CONCLUSIONS

Overall the discovery performed by SWE-ET on the

one hand and DIANE on the other is quite different.

http://tools.deri.org/wsml2reasoner

DIANE uses a fuzzy set based approach to match-

making. Offers are modelled as the conﬁgurable set

of effects a service can provide wheras requests are

modelled as the fuzzy set of similar effects a user is

willing to accept. This maximizes the chance to ﬁnd

a match and allows to integrate user preferences, thus

providing a very ﬁnegrained ranking of matching of-

fers. But to achieve this and still maintain efﬁcient

computability the expressivity of the employed lan-

guage (DSD) had to be restricted quite strictly. An

example will be given below.

Glue in contrast uses a very different matchmak-

ing philosophy. Glue performs matchmaking based

on the notion of a single goal instance and the avail-

able web service instances. Matchmaking is then per-

formed by evaluating rules that check whether a par-

ticular web service instance under consideration is

suitable for the particular goal at hand. In princi-

ple this eases the matchmaking since it is easier to

compare two instances than to compare a fuzzy with

a conﬁgurable set. Thus – in turn – Glue is able to

support a much more expressive language (F-logic)

without compromising efﬁcient computability.

To illustrate the trade-offs, assume the following

two examples: A shipper supports collection of pack-

ages on Monday through Friday, the preferred day can

be speciﬁed within the ordering process. A requester

accepts collection on either Friday, Saturday or Sun-

day. Using DIANE’s set based approach, this could

be directly encoded and the matcher would correctly

detect a match and automatically choose Friday as the

proper collection day. In the SWE-ET approach this

could not be captured directly (since it requires set-

based matching).

Now assume the requester had required a particu-

lar collection day instead of allowing multiple options

but the conditions of the shipping (regarding price,

available collection times, ...) vary depending on the

chosen collection day. This could be easily modelled

correctly in SWE-ET but not directly expressed using

DSD (lack of expressivity regarding rules).

It should be mentioned however, that in both cases

certain workarounds allow the respectively inferior

approach to deal with the issue at hand. This is also

reﬂected by the fact that both approaches were suc-

cessfully applied to solve the SWS-Challenge discov-

ery scenarios released so far.

REFERENCES

Angele, J. and Lausen, G. (2004). Ontologies in F-logic. In

Handbook on Ontologies, pages 29–50.

Brambilla, M., Celino, I., Ceri, S., Cerizza, D., della Valle,

E., Facca, F., and Tziviskou, C. (2006). Improvements

and Future Perspectives on Web Engineering Meth-

ods for Automating Web Services Mediation, Chore-

ography and Discovery: SWS-challenge phase III. In

Third Workshop of the Semantic Web Service Chal-

lenge 2006, Athens, GA, USA.

de Bruijn, J., Bussler, C., Domingue, J., Fensel, D., Hepp,

M., Keller, U., Kifer, M., K

onig-Ries, B., Kopecky, J.,

Lara, R., Lausen, H., Oren, E., Polleres, A., Roman,

D., Scicluna, J., and Stollberg, M. (2005a). Web ser-

vice modeling ontology (wsmo). W3C Member Sub-

mission 3 June 2005.

de Bruijn, J., Polleres, A., Lara, R., and Fensel, D. (2004).

D20.3 OWL ﬂight. Technical report, WSML.

de Bruijn, J., Polleres, A., Lara, R., and Fensel, D. (2005b).

D20.1 OWL

–

. Technical report, WSML.

Della Valle, E. and Cerizza, D. (2005). The mediators cen-

tric approach to automatic web service discovery of

glue. In MEDIATE2005, volume 168 of CEUR Work-

shop Proceedings, pages 35–50. CEUR-WS.org.

Kifer, M. and Lausen, G. (1989). F-logic: A higher-order

language for reasoning about objects, inheritance, and

scheme. In Proc. ACM SIGMOD Conf., page 134,

Portland, OR.

Kifer, M., Lausen, G., and Wu, J. (1995). Logical founda-

tions of object-oriented and frame-based languages. J.

ACM, 42(4):741–843.

Klein, M., K

onig-Ries, B., and M

ussig, M. (2005). What is

needed for semantic service descriptions - a proposal

for suitable language constructs. International Jour-

nal on Web and Grid Services (IJWGS), 1(3/4):328–

364.

uster, U. and K

onig-Ries, B. (2006a). Discovery and

mediation using diane service descriptions. In Third

Workshop of the Semantic Web Service Challenge

2006, Athens, GA, USA.

uster, U. and K

onig-Ries, B. (2006b). Dynamic binding

for BPEL processes - a lightweight approach fo inte-

grate semantics into web services. In Second Inter-

national Workshop on Engineering Service-Oriented

Applications: Design and Composition (WESOA06)

at ICSOC06, Chicago, Illinois, USA.

uster, U., K

onig-Ries, B., and Klein, M. (2006). Discov-

ery and mediation using diane service descriptions. In

Second Workshop of the Semantic Web Service Chal-

lenge 2006, Budva, Montenegro.

Pan, J. Z. and Horrocks, I. (2004). OWL-E: Extending owl

with expressive datatype expressions. Technical re-

port, IMG/2004/KR-SW-01/v1.0, Victoria University

of Manchester.

Petrie, C. (2006). It’s the programming, stupid. IEEE Inter-

net Computing, 10(3):96, 95.

Zaremba, M., Vitvar, T., Moran, M., Brambilla, M., Ceri, S.,

Cerizza, D., Valle, E. D., Facca, F. M., and Tziviskou,

C. (2007). Towards semantic interoperabilty: In-

depth comparison of two approaches to solve medi-

ation tasks. In Comparative Evaluation of Seman-

tic Web Service Frameworks Special Session at ICEIS

2007.
