Models in Conflict – Detection of Semantic Conflicts in
Model-based Development
?
Thomas Reiter
2
, Kerstin Altmanninger
1
, Alexander Bergmayr
2
, Wieland Schwinger
1
and Gabriele Kotsis
1
1
Department of Telecooperation
Johannes Kepler University Linz, Austria
2
Information Systems Group (IFS)
Johannes Kepler University Linz, Austria
Abstract. To make the model-driven paradigm a widespread success, appropri-
ate tools such as version control systems (VCS) are required to adequately sup-
port a model-based development process. However, first approaches specializing
on model-based versioning, do not take into account the semantics of the artefacts
they operate upon. Thus, conflict detection mechanisms are based on detecting
conflicting concurrent modifications on a software artefact’s syntactic represen-
tation, only, without explicitly considering the semantics the artefact stands for.
As opposed to a heavyweight approach relying on formal mathematics, we follow
a lightweight approach that is based on creating views of a model that explicate a
certain aspect of a modeling language’s semantics. Such a view is created through
a model transformation from the original model which has been edited by the
developers. Using both the original model and the generated view our approach
relies on graph-based comparison strategies to detect conflicts due to concurrent
editing to determine syntactic and semantic conflicts, respectively. Consequently,
by means of various example scenarios, we demonstrate how our approach is able
to detect conflicts that otherwise would remain undetected.
1 Introduction
The shift from code-centric to model-centric software development places models as
first class entities in “Model-driven Software Development” (MDSD) processes. A ma-
jor prerequisite for the wide acceptance of MDSD are proper methods and tools as
available for traditional software development, such as build tools, test frameworks or
“Version Control Systems” (VCS). Considering the latter, VCS are particularly essen-
tial when the development process proceeds in parallel such that different developers
concurrently modify a model, which may result in concurrent, potentially conflicting
modifications.
Such conflicting modifications need to be resolved by appropriate techniques for
model comparison, conflict detection, conflict resolution and merging, which in case of
?
This work has been partly funded by the Austrian Federal Ministry of Transport, Innovation
and Technology (BMVIT) and FFG under grant FIT-IT-810806.
Reiter T., Altmanninger K., Bergmayr A., Schwinger W. and Kotsis G. (2007).
Models in Conflict – Detection of Semantic Conflicts in Model-based Development.
In Proceedings of the 3rd International Workshop on Model-Driven Enterprise Information Systems, pages 29-40
DOI: 10.5220/0002422600290040
Copyright
c
 SciTePress

a heterogeneous tooling environment are required to operate on the resulting model (i.e.
state-based).
Since, as already stated, models are the first class entities in model driven devel-
opment, this should not rely on text- or tree-based VCS like Subversion [1], CVS [2]
or CoEd [3]. Although they offer excellent version control techniques for text-based
documents, the granularity of comparison is a single line. This makes such VCS not
a first-hand choice for MDSD, since for effectively dealing with conflicting modifica-
tions, the logical structure of models has to be taken into account.
For dealing with concurrent modifications on models and specifically for properly
identifying conflicts, it is necessary not only to consider the syntactical structure of
models (i.e. the syntax of the model) but also to “understand” the model’s semantics.
For example, concurrent modifications on a model may not result in an obvious conflict
when syntactically different parts of the model (e.g., different model elements) were
edited. Nevertheless, they may interfere with each other, thus yielding an actual conflict
(e.g., modification of two different model elements may have a conflicting side effect),
which without considering the model’s semantics would remain hidden. Furthermore,
certain conflicts may only occur due to the syntactical representation of a model, since
sometimes more than one possibility exists to conceptually express the same state of
affairs in a modeling language. This does not necessarily lead to a conflict with respect
to the model’s semantics (e.g., decision nodes as well as conditional nodes in UML
activity diagrams are two ways to express alternative branches in a process). Especially
modeling languages offering “syntactic sugar” in the sense that convenience constructs
allow to express the same meaning in varying ways, can easily give rise to the above
mentioned scenario.
Whereas model comparison and model merging can be facilitated by means of ex-
isting graph-based approaches, facilitating an “understanding” of the models during
conflict detection and conflict resolution is still an open issue for models. We argue
that through the definition of semantics, a VCS can find conflicts more precisely dur-
ing conflict detection, thus avoiding falsely indicated conflicts and finding previously
undiscovered ones.
Although, in the field of programming languages some approaches have been pre-
sented [4] providing some “understanding”, they typically rely on formal semantics
and apply to certain languages, only. Such approaches cannot immediately be reused
in the realm of models, since unfortunately, a full formal specification of the seman-
tics underlying a modeling language is very often not feasible: On the one hand, many
modeling languages do not have a formal semantics as these are often hard and costly
to define [5], and on the other hand, in the light of a growing number of domain specific
languages a flexible and more light-weight approach is desirable.
Consequently, in this paper we lay out a light-weight approach for making use of
a modeling language’s semantics for conflict detection, which is based on interpreting
the model in a view that makes explicit certain characteristics of the original language.
Thus, additionally to existing graph-based VCS our approach has the ability to detect
“semantic” conflicts that are specific to the modeling language that these models con-
form to. The benefits of the proposed light-weight approach are threefold. Firstly, it is
open to incorporate any modeling tool. Secondly, it is flexible to operate on virtually
30

any modeling language. Finally, it is extensible to incorporate the semantics of interest
for a certain development scenario.
2 Semantic Versioning
2.1 Conceptual Overview of Semantic Conflict Detection
A model conforms to a certain metamodel that defines the abstract syntax of a model-
ing language, which itself does not provide any machine-interpretable semantics. Most
definitions of semantics are functions that map the abstract syntax of one language onto
the abstract syntax of another well understood language or a formal semantic domain.
As already stated, the definition of semantics for a modeling language is a diffi-
cult process involving the actual formalization of the semantics and the finding of an
agreement between stakeholders thereon. For our work, such full-fledged semantic defi-
nitions are out of scope. Consequently, instead we advocate a way of specifying seman-
tics, that is machine-interpretable and flexible enough to just represent those aspects of
a language’s semantics that are of special interest for concurrent development.
Therefore, in our proposed approach, the semantic mapping between a modeling
language’s metamodel and a metamodel representing a certain view of interest, is de-
fined through a model transformation. The output of such a transformation is another
model which conforms to the metamodel representing the semantic view definition of
interest. Compared to the definition of semantics for programming languages [6], our
model transformation-based approach is similar to a translational semantics specifi-
cation, which maps the constructs of one language onto constructs of another, usually
simpler language such as machine-instructions. Similarly, in our case we translate into
a view that defines a certain facet of interest for our purpose of conflict detection, only.
A translational approach can be considered as a special case of denotational seman-
tics, with the valuation functions denoting constructs of the target language instead of a
purely mathematical semantic domain. Thus, the rules of a model transformation relate
the elements of the metamodel (abstract syntax) to which the original model conforms
to and the elements of the metamodel representing the semantic view definition.
As a consequence of the transformation realizing a semantic mapping, conflict de-
tection can be carried out on both models and semantic views. Throughout the rest of
this paper we will refer to conflicts that are determined purely upon the comparison of
two versions of a model as syntactical conflicts whereas a semantic conflict is a conflict
that is detected between the representations of such a model’s versions in a semantic
view. The actual finding of conflicts in both the original model and the semantic view
function analogous to the graph-based detection of structural conflicts in existing ver-
sioning systems like [7–9], based on the detection of concurrent modifications to the
same element.

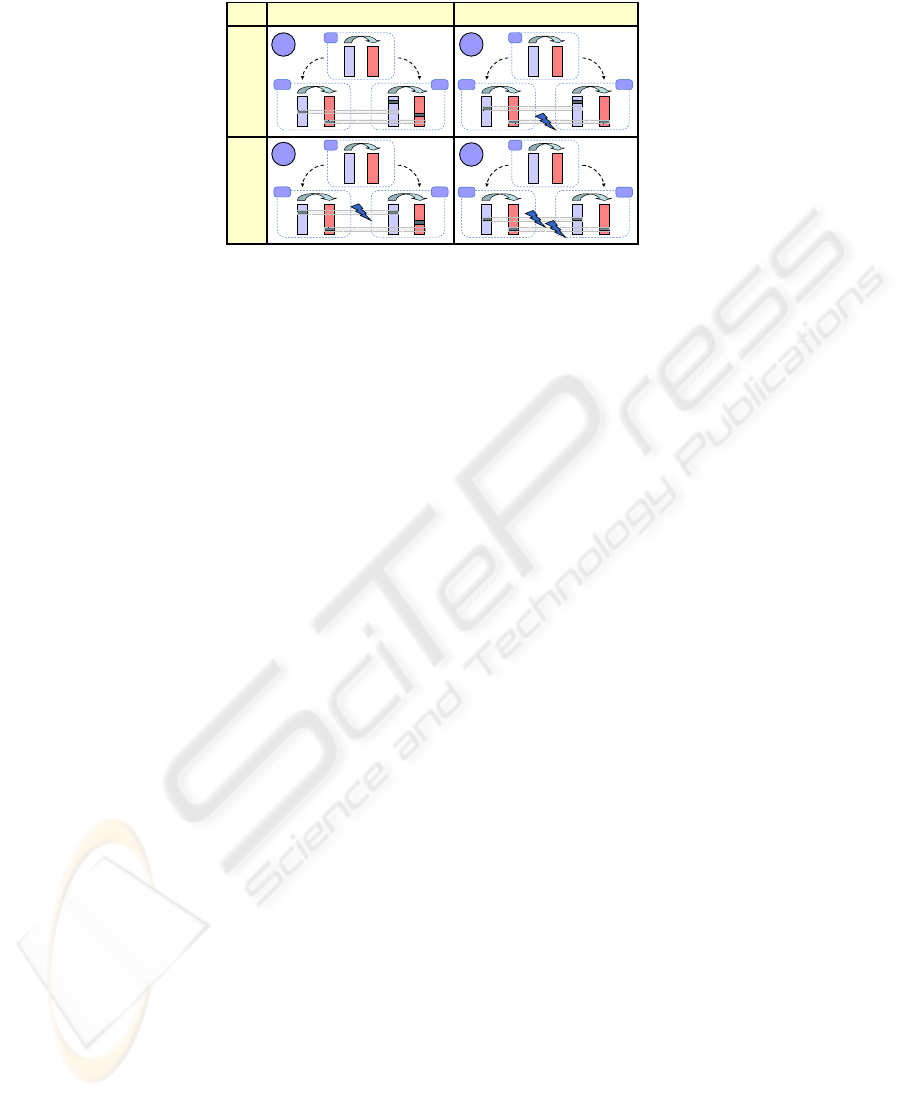

Fig. 1 shows four possible combinations of scenarios that can occur when a model’s
semantic views are incorporated into conflict detection. These scenarios are arranged
according to an observed syntactic or semantic conflict, respectively. As a simplifica-
tion, the figure does not make use of a concrete model, but uses bars as abstractions
for models with highlights indicating a modification in a certain part of the model. The
31

No Semantic Conflict
Syntactic
Conflict
No Syntactic
Conflict
V' V"
V
V'
V"
V
V' V"
V
V' V"
V
Semantic Conflict
A
B
C
D
Fig. 1. Overview on conflict types.
left light shaded bars refer to the original model (before transformation) and the right
dark shaded bars refer to the semantic view of a model (after transformation). Thus,
if changes in the model or the view occur in the same place, a syntactic or semantic
conflict is detected, respectively. Of course, only the model is checked out and edited
by developers, whereas the semantic view is only a product of the transformation. The
common ancestor version V is shown on top of the modified versions V
0
and V
00
.
2.2 Semantic Views by Example
In the following we introduce an example that demonstrates the definition of a semantic
view for a simplified version of the “Business Process Execution Language” (BPEL)
[10]. The view we are going to define focuses on certain BPEL constructs that serve
as “syntactic sugar” to enhance readability and are a convenient way for structuring
groups of activities. The Sequence construct for instance, denotes sequential execution
of its contained Activities. However, the same meaning can be expressed by linking up
individual activities accordingly. For instance, a Sequence S containing the Activities
A1 and A2 is equivalent to Activities A1 and A2 connected by a Link from A1 to A2.
Assuming these two semantically equivalent models originate from a common ancestor
and are the outcome of concurrent editing, a conventional versioning system would find
a number of differences between these two models and according to that would report
a number of conflicts. A developer would then have to interpret these models and come
to the conclusion that besides the structural difference between the models, no semantic
difference exists. Drawing such conclusions can automatically be achieved by a com-
parison of models transformed into semantic views, which abstracts from syntactical
modifications and allows seeing conceptual changes to the model, only.

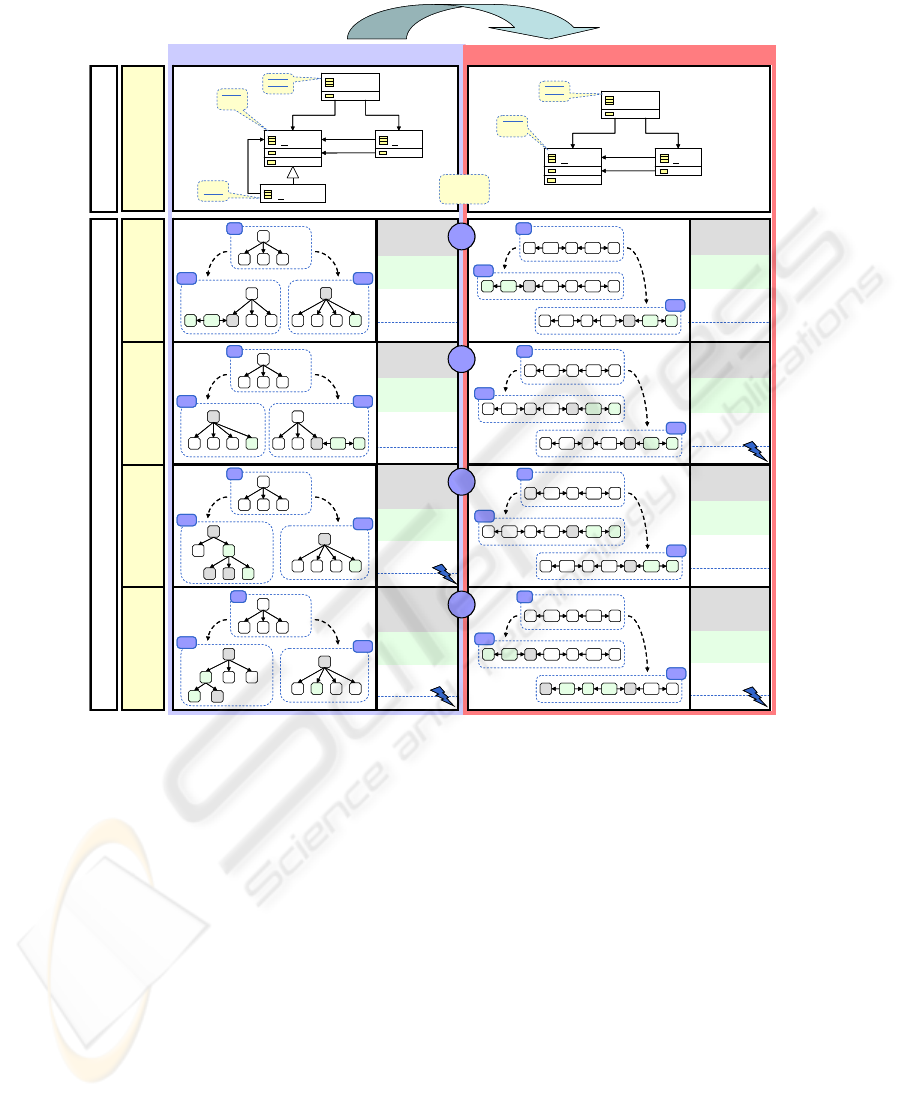

Fig. 2 shows four concrete situations where an instance of a simplified BPEL meta-
model has been checked out by both developers, each time undergoing modifications
that lead to one of the four conflict scenarios mentioned earlier. In every scenario the
updated model elements are marked and the right hand side gives details about the cal-
culation of elements in conflict.
In each of the scenarios, two developers make concurrent modifications to a BPEL
Sequence S1 initially containing Activities A1, A2, and A3, possibly resulting in update
32

conflicts. The actual comparison of model elements is based on an identifying attribute
designated in the metamodel. By inspecting the structural features, namely the attributes
and references of a model element, one can determine whether the model element as a
whole has been updated. In particular, we differentiate between four different strategies,
to detect structural changes in a graph that are of interest for conflict detection.
1. Attribute update (AT T ): The value of an attribute has been changed. E.g., The
attribute ‘minimumAge’ has been set from ‘21’ to ‘18’.
2. Reference update (REF ): The set of referenced model elements has been changed.
For example new model elements have been added or removed. (c.f. Fig. 2)
3. Role update (ROL): A model element is referenced or de-referenced by another
model element.
4. Referenced element update (REF ): A referenced model element has undergone
an update.
For reasons of simplicity the modifications in the examples are of just two kinds, namely
inserting a new Activity into a Sequence, which affects the Sequence through a reference
update (REF ), and connecting an Activity through a Link, in which case the Activity is
affected through a role update (ROL). For both the “syntactic” as well as the “semantic”
side, a set of model elements (Con) that have undergone conflicting modifications is
computed. For instance, depending on whether the set of syntactic conflicts is empty, a
syntactic conflict has or has not been detected.
In scenario (A), the first developer (V
0
) adds a new Activity A0 and connects it with
a Link L01 to A1, whereas the second developer (V
00
) inserts a new Activity A4 into
Sequence S1. The affected model elements are A1 and S1 due to a role and a reference
update. In the semantic view, A1 and A3 are affected. Therefore, neither a syntactic nor
a semantic conflict occurs.
Similar to scenario (A), two Activities are added in scenario (B), which do not result
in a syntactic conflict as S1 and A3 are affected. In the semantic view however, as the
two new Activities A4 and A5, were inserted at the end of the Sequence, a conflict arises
in A3.
In scenario (C), a new Activity A4 and a new Sequence S2 is added. This results in a
syntactic conflict, as S1 is affected through a reference update. However, the adding of
S2 does not affect execution order, and since in the semantic view both modifications
are equal, no semantic conflict occurs.
Finally in scenario (D), a syntactic conflict occurs through adding new elements to
S1. These modifications, however, are not equal as they were in the previous scenario
and affect A1 through a role update resulting in a semantic conflict.
The OCL expressions (depict in Listing 1.1) define the above used conflict sets
in more detail. The set Con contains all conflicting model elements and is a union of
three further sets that represent update-update, create-create and update-delete conflicts
accordingly. The UpdCon set consists of concurrently edited model elements, CrCon
contains concurrently created elements that are however not equal, and DelCon contains
concurrently updated and deleted model elements. The function isUpdated determines
an update to a model element and the function areNotEqual checks for the equality (as
opposed to the identity) of two model elements.
33

UpdCon = {}
Updates' = {S1
REF
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {A4}
Creates" = {L35,A5}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
Syntax
A1 A2
L
1-2
V'
V"
L
2-3
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
A1 A2 A3
L
1-2
L
2-3
A0
L
0-1
A3
V
UpdCon = {}
Updates' = {A1
ROL
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {A0,L01}
Creates" = {L34,A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
A1 A2 A3
L
1-2
V'
V"
L
2-3
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
V
UpdCon = {}
Updates' = {A3
ROL
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {L34,A4}
Creates" = {L34,A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
Semantic View
A1 A2 A3
L
1-2
V'
V"
L
2-3
A0 A1 A2
L
0-1
L
1-2
A3
L
2-3
A1 A0 A2
L
1-0
L
0-2
A3
L
2-3
V
UpdCon = {A3
ROL
}
Updates' = {A3
ROL
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {L34,A4}
Creates" = {L35,A5}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {A3}
UpdCon = {A1
ROL
}
Updates' = {A1
ROL
}
Updates" =
{A1
ROL
,A2
ROL
}
CrCon = {}
Creates' = {A0,L01}
Creates" = {L10,A0,L02}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {A1}
No Syntactic &
No Semantic Conflict
A1 A2 A3
L
1-2
V'
V"
L
2-3
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
A1 A2 A3
L
1-2
L
2-3
A5
L
3-5
V
Activity
id
value
Link
id
Process
id
source
target
hashas
**
1
1
A1 A2 A3
S1
{ordered}
A2 A3
S1
{ordered}
A1 A2 A3
S1
L
0-1
V' V"
V
A4A1A0
UpdCon = {S1
REF
}
Updates' =
{S1
REF
,A2
ROL
,A3
ROL
}
Updates" = {S1
REF
}
CrCon = {}
Creates' = {S2,A4}
Creates" = {A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {S1}
UpdCon = {}
Updates' = {A1
ROL
}
Updates" = {S1
REF
}
CrCon = {}
Creates' = {A0,L01}
Creates" = {A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
A1 A2 A3
S1
A1 A2 A3
S1
A4 A1 A2 A3
S1
L
3-5
A5
V' V"
V
A1 A2 A3
S1
A1
A1 A0 A2
S1
A3
V'
V"
A0
A2S2 A3
S1
V
UpdCon = {S1
REF
}
Updates' =
{S1
REF
,A1
ROL
}
Updates" = {S1
REF
}
CrCon = {}
Creates' = {S2,A0}
Creates" = {A0}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {S1}
A1 A2 A3
S1
A1
A3
S1
A4
A1 A2 A3
S1
A4
V'
V"
A2
S2
V
contains
Activity
id
value
Link
id
Process
id
source
target
hashas
**
1
1
*
Sequence
A
B
C
D
Simplified BPEL
No Syntactic &
Semantic Conflict
Syntactic &
No Semantic Conflict
Syntactic &
Semantic Conflict
REF
ROL
REF
ROL
REF
ROL
REF
ROL
REF
ROL
Conflict
detection
strategy
{ordered}
Metamodel
Conflict detection between versions of models
Transformation
UpdCon = {}
Updates' = {S1
REF
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {A4}
Creates" = {L35,A5}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
Syntax
A1 A2
L
1-2
V'
V"
L
2-3
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
A1 A2 A3
L
1-2
L
2-3
A0
L
0-1
A3
V
UpdCon = {}
Updates' = {A1
ROL
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {A0,L01}
Creates" = {L34,A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
A1 A2 A3
L
1-2
V'
V"
L
2-3
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
V
UpdCon = {}
Updates' = {A3
ROL
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {L34,A4}
Creates" = {L34,A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
Semantic View
A1 A2 A3
L
1-2
V'
V"
L
2-3
A0 A1 A2
L
0-1
L
1-2
A3
L
2-3
A1 A0 A2
L
1-0
L
0-2
A3
L
2-3
V
UpdCon = {A3
ROL
}
Updates' = {A3
ROL
}
Updates" = {A3
ROL
}
CrCon = {}
Creates' = {L34,A4}
Creates" = {L35,A5}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {A3}
UpdCon = {A1
ROL
}
Updates' = {A1
ROL
}
Updates" =
{A1
ROL
,A2
ROL
}
CrCon = {}
Creates' = {A0,L01}
Creates" = {L10,A0,L02}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {A1}
No Syntactic &
No Semantic Conflict
A1 A2 A3
L
1-2
V'
V"
L
2-3
A1 A2 A3
L
1-2
L
2-3
A4
L
3-4
A1 A2 A3
L
1-2
L
2-3
A5
L
3-5
V
Activity
id
value
Activity
id
value
Link
id
Link
id
Process
id
Process
id
source
target
hashas
**
1
1
A1 A2 A3
S1
{ordered}
A2 A3
S1
{ordered}
A1 A2 A3
S1
L
0-1
V' V"
V
A4A1A0
UpdCon = {S1
REF
}
Updates' =
{S1
REF
,A2
ROL
,A3
ROL
}
Updates" = {S1
REF
}
CrCon = {}
Creates' = {S2,A4}
Creates" = {A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {S1}
UpdCon = {}
Updates' = {A1
ROL
}
Updates" = {S1
REF
}
CrCon = {}
Creates' = {A0,L01}
Creates" = {A4}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
A1 A2 A3
S1
A1 A2 A3
S1
A4 A1 A2 A3
S1
L
3-5
A5
V' V"
V
A1 A2 A3
S1
A1
A1 A0 A2
S1
A3
V'
V"
A0
A2S2 A3
S1
V
UpdCon = {S1
REF
}
Updates' =
{S1
REF
,A1
ROL
}
Updates" = {S1
REF
}
CrCon = {}
Creates' = {S2,A0}
Creates" = {A0}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {S1}
A1 A2 A3
S1
A1
A3
S1
A4
A1 A2 A3
S1
A4
V'
V"
A2
S2
V
contains
Activity
id
value
Activity
id
value
Link
id
Process
id
Process
id
source
target
hashas
**
1
1
*
SequenceSequence
A
B
C
D
Simplified BPEL
No Syntactic &
Semantic Conflict
Syntactic &
No Semantic Conflict
Syntactic &
Semantic Conflict
REF
ROL
REF
ROL
REF
ROL
REF
ROL
REF
ROL
Conflict
detection
strategy
{ordered}
Metamodel
Conflict detection between versions of models
Transformation

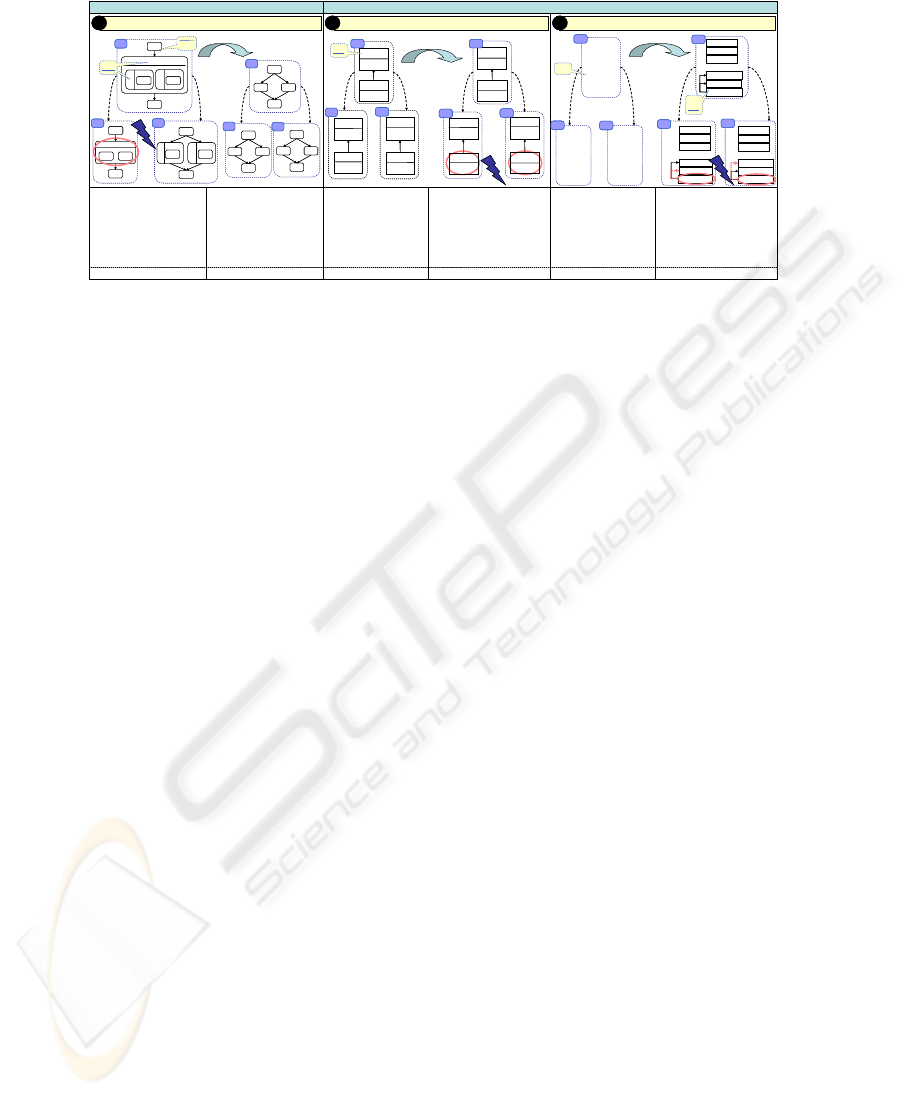

Fig. 2. BPEL example.
Listing 1.1. OCL Expressions.
Con=UpdCon−>u n i o n ( CrCon−>u n i o n ( DelCon ) )
UpdC on= Up d a te s ’−>i n t e r s e c t i o n ( U p d a t e s”)−> s e l e c t ( e | e . a r e N o t E q u a l (V’ ,V ” ) )
CrCon = C r e a t e s ’−> i n t e r s e c t i o n ( C r e a t e s ”)−> s e l e c t ( e | e . a r e N o t E q u a l (V ’ ,V ” ) )
DelCon = ( U p d a t e s ’−>i n t e r s e c t i o n ( D e l e t e s ”))−> u n i o n ( U p d a t e s”−>i n t e r s e c t i o n ( D e l e t e s ’ ) )
U p d a t e s ’=V−>s e l e c t ( e | e . i s U p d a t e d (V, V ’ )
U p d a t e s ”=V−>s e l e c t ( e | e . i s U p d a t e d (V, V” )
C r e a t e s ’ = (V’−V)
C r e a t e s ”= (V”−V)
D e l e t e s ’ = (V−V ’ )
D e l e t e s ”= (V−V ” )
These above-mentioned comparison strategies, that are encapsulated in the isUpdated
method, can be applied to individual metamodel elements. For instance, in examples
depicted in Fig. 2, we assumed that a model element has undergone modification if
34

one of its references has been changed (reference update). Furthermore, we recognize
an update to a model element, if a link of a reference pointing to that model element
has been created or removed (role update). Such a strategy makes sense if the role of a
model element that is indicated by a reference influences the meaning of a model in a
way, that can result in possible conflicts. Adding new elements to a simple container-
like model element would for instance not result in a conflict. It may however be useful
to be informed of a conflict if a reference denoting a more specialized role is modified.

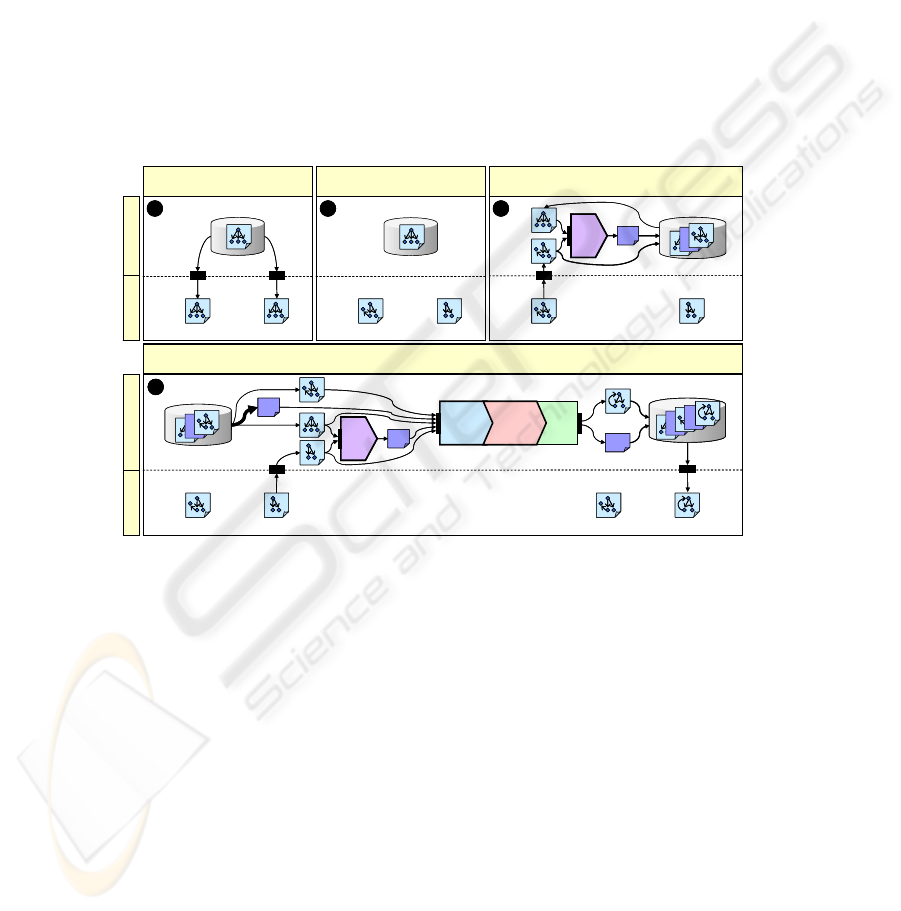

3 Prototype
After the previous section has introduced our approach from a conceptual point of view,
the following section will describe our prototype application from a more technical per-
spective. Furthermore, as yet the given examples have abstracted from check-in/check-
out functionality and simply assumed the existence of an ancestor revision and two
working copies, an example describes how the prototype implementation deals with ac-
cumulating the differences between several revisions before an actual comparison takes
place.

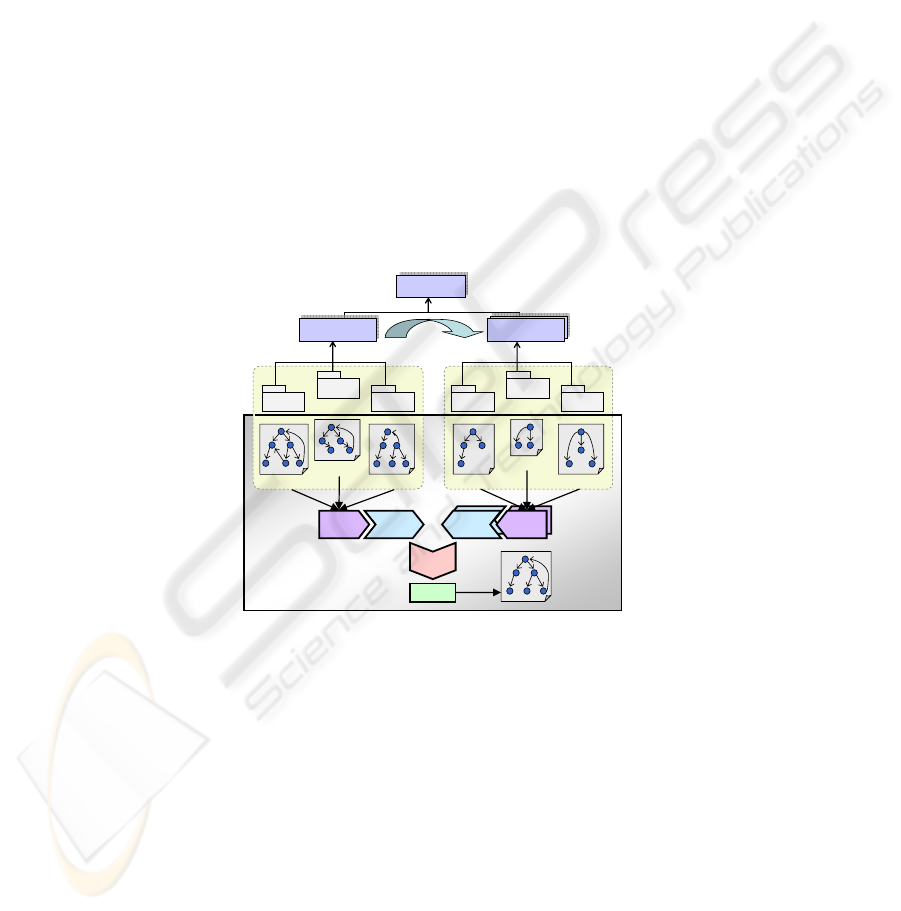

conforms to
Ecore
Ecore
Metamodel
Metamodel
Metamodel of
view definition
Model V'
syn
Semantically
enhanced VCS
for models
Merge
Conflict
Detection
Comparison
Comparison
Conflict
Detection
Conflict
Resolution
SDO Graph
V*
syn
®
conforms to
conforms to
SDO Graph V
syn
SDO Graph V"
syn
SDO Graph V'
syn
Model V
syn
Model V"
syn
Model V'
sem
SDO Graph V'
sem
SDO Graph V
sem
SDO Graph V"
sem
Model V
sem
Model V"
sem
ATL
Transformation
Fig. 3. Architecture of the proposed semantically enhanced VCS for models.
In order to define the abstract syntax of a modeling language and a desired semantic
view definition, a metamodeling architecture is needed. The “Eclipse Modeling Frame-
work” (EMF) [11] provides Ecore, which is a simplified version of MOF that constitutes
an M3 layer. Furthermore, EMF covers persistence support with an XMI serialization
mechanism and a reflective API for manipulating EMF models. The creation of a se-
mantic view from a model is realized through the “Atlas Transformation Language”
(ATL) [12], which is a QVT-like model-to-model transformation language. Accord-
ingly, the top of Fig. 3 shows the usage of this metamodeling stack in the context of our
prototype’s architecture.
35

The comparison of the versions (V
0
sy n
, V
00
sy n
, V
0
sem
, V
00
sem
) with their common ancestor
(V
sy n
, V
sem
) is carried out on a generic graph representation of the respective mod-
els and views. For this purpose, the EMF reference implementation of “Service Data
Objects” (SDO) [13] is used. SDO is a general framework to realize standardized ac-
cess to potentially heterogeneous data sources such as databases, XML files or mod-
els serialized in XMI. SDO allows to create “datagraphs” from EMF models, which
are convenient for comparison purposes as SDO’s mechanism to establish the differ-
ence between two graphs can be used. These so called “change summaries” are used
in our prototype to store modifications between versions, which are then used by the
actual conflict detection mechanism. Hence, the underlying algorithm implements the
aforementioned comparison strategies and establishes the relevant sets of conflicting
elements. This comparison component of our prototype is implemented in Java on top
of SDO and EMF.
CS
W
CS
R
Conflict
Detection
CS
*
Comp-
arison
XMI
XMI
Repository
Developer A publishes his version first
VCS
Interface
Developer A Developer B
XMI XMI
Two developers copy the same model
Both begin to edit their copies with their
model development tooling preferred
The VCS applies a 3-way check-in process on basis of the last revision (R') in the repository,
the working copy (W") of developer B and their common ancestor (R).
XMI
Merge
Conflict
Resolution
VCSModeling Tool
1 2 3
W W
Repository
R
Developer A Developer B
W'
W"
Repository
Developer A Developer B
W'
W"
VCSModeling Tool
Developer A Developer B
W'
W"
R
R'
Developer A Developer B
W'
W*
Repository
R*
Repository
R
R'
CS'
W"
R
R'
CS'
CS*
R*
VCS
Interface
VCS
Interface
VCS
Interface
Comp-
arison
CS'
R
R
R'
CS'
4
W'
R
CS
W
CS
W
CS
R
CS
R
Conflict
Detection
CS
*
CS
*
Comp-
arison
XMI
XMI
Repository
Developer A publishes his version first
VCS
Interface
Developer A Developer B
XMI XMI
Two developers copy the same model
Both begin to edit their copies with their
model development tooling preferred
The VCS applies a 3-way check-in process on basis of the last revision (R') in the repository,
the working copy (W") of developer B and their common ancestor (R).
XMI
Merge
Conflict
Resolution
VCSModeling Tool
1 2 3
W W
Repository
R
Developer A Developer B
W'
W"
Repository
Developer A Developer B
W'
W"
VCSModeling Tool
Developer A Developer B
W'
W"
R
R'
Developer A Developer B
W'
W*
Repository
R*
Repository
R
R'
CS'
W"
R
R'
CS'
CS*
R*
R
R'
CS'
CS*
R*
VCS
Interface
VCS
Interface
VCS
Interface
Comp-
arison
CS'CS'
R
R
R'
CS'
4
W'
RR
Fig. 4. Workflow scenario of the proposed approach.
Fig. 4 illustrates the workflow in our proposed VCS also including the currently not
addressed phases conflict resolution and merge which are part of the check-in process.
To start with, two developers A and B contact the repository and create a personal
working copy (W ) – a local reflection of the repository’s file ¶. Developers then work
in parallel, modifying their private copies (W
0
and W
00
) ·. Developer A saves his
changes to the repository first. Because the last revision in the repository is the di-
rect ancestor of the incoming working copy (W
0
) the check-in can proceed. The files
saved in the repository are the modified working copy of developer A (W
0
→ R
0
) and
the computed change summary (CS
0
), provided by SDO, of W
0
and his ancestor (R)
¸. When developer B attempts to save his changes later, the repository informs him
that his artifact (W
00
) is out-of-date. In other words, that artifact W
00
is not a work-
ing copy of the current last revision in the repository (R
0
). Therefore, the VCS has to
36

apply a 3-way check-in process containing the phases comparison, conflict detection,
conflict resolution and merge. The process starts with comparing the working copy of
developer B (W
00
) with his ancestor (R) to determine the modifications (CS
W
). To
be able to compute conflict detection the change summary between the last revision in
the repository (R
0
) and the common ancestor (R) has to be retrieved. In this workflow
scenario there only exists one change summary between the revisions but if more then
one exist, they have to be accumulated resulting in CS
R
. Now the conflict detection,
resolution and merge process can start involving the developer B. Once the developer
B has integrated both sets of changes, he saves the merged artifact (R
∗
) and the change
summary (CS
∗
) back to the repository ¹. Generally, before editing a working copy,
one should always check whether this working copy is indeed a copy of the current
version of the artifact in the repository, to avoid 3-way check-in processes, which may
not be necessary.
4 Case Study
This section discusses an evaluation of our approach regarding its capabilities for se-
mantic conflict detection upon three different application scenarios. To demonstrate
variability two scenarios deal with behavioral and structural modeling, whereas the third
scenario deals with applying our approach to imperative programming languages. These
example scenarios were chosen because on the one hand we deem them representative
for various modeling languages in practical use, and on the other hand, to illustrate the
flexibility of our approach not just for models, but possibly for code-oriented software
artifacts, too.
As shown on the left-hand side of Fig. 5, the first scenario ¶ deals with conflict de-
tection between BPEL documents. For our evaluation we have extended the previously
introduced BPEL metamodel and the assorted semantic transformation, mainly by in-
cluding the Flow construct denoting parallel execution of activities. Since basically an
almost arbitrary mixture of the Sequence, Flow and explicit Link constructs can be used
to model a process definition, semantic conflict detection gives considerable benefits in
actually separating merely syntactic from “real” semantic conflicts. Our experiments
have shown us, that without semantic conflict detection, spotting the latter becomes a
tedious task as they can easily be obscured by BPEL’s “syntactic sugar”. The second
scenario · deals with the inheritance of methods in a Java class hierarchy. Thereby
we aim at detecting conflicts that involve updates of inherited methods. The concept of
inheritance is made explicit through a semantic view that propagates all inherited meth-
ods down the class hierarchy, which in turn allows semantic conflict detection based on
the created view. Consequently, a semantic conflict can be detected, as both developers
have introduced a method with the same name but different return type. The third sce-
nario ¸ deals with semantic versioning of a simple imperative programming language.
Thereby, a program is transformed into a dependency graph, which makes explicit data
dependencies between statements in the code. Thus, for instance, concurrent changes
to two different statements that influence some other model element can be detected. In
the example shown, this is the case as the statements setting the variables x and y are
modified, which indirectly updates the statement setting the value of z.
37

Syntactic Conflict, but no Semantic Conflict
def x
def y
def z
x := 5
y := 3
z := x+y
def x
def y
def z
x = 5
y = 1
z = x+y
def x
def y
def z
x = 8
y = 3
z = x+y
„def x“
„def y“
„def z“
„x = 8“
„y = 3“
„z = x+y“
„def x“
„def y“
„def z“
„x = 5“
„y = 1“
„z =x+y“
„def x“
„def y“
„def z“
„x = 5“
„y = 3“
„z = x+y“
No Syntactic Conflict, but Semantic Conflict
Example: Inheritance Hierarchy (Java 1.4)
Example: Simple imperative programming language
Seq1
Flow
Seq2
A0
A1 A2
A3
Flow
A0
A1
A2
A3
Seq1 Seq2
A0
A1
A2
A3
A0
A1
A2
A3
A0
A1
A2
A3
A0
A1
A2
A3
a() : A
a() : B
A
B
A
A
B
B
a() : A
a() : B
A
A
B
B
a() : A
A
B
Example: BPEL
Transformation
Transformation
Transformation
V
V
VV
V
V
V'
V''
V'
V''
V'
V'
V''
V''
V'
V'
V''
V''
UpdCon = {}
Updates' = {A1
ROL
,A2
ROL
,Flow
REF
}
Updates" = {A0
ROL
,A3
ROL
}
CrCon = {}
Creates' = {“a():A”}
Creates" = {“a():B”}
DelCon = {}
Deletes' = {Seq1,Seq2}
Deletes" = {Flow,L
A0-S2
,L
S1-A3
}
Con = {Flow}
UpdCon = {}
Updates' = {}
Updates" = {}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
UpdCon = {}
Updates' = {A
REF
}
Updates" = {B
REF
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
UpdCon = {}
Updates' = {A
REF
,B
REF
}
Updates" = {B
REF
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {B
REF
}
CrCon = {}
Creates' = {“a():A”, “a():A”}
Creates" = {“a():B”}
CrCon = {}
Creates' = {}
Creates" = {}
UpdCon = {}
Updates' = {“y”
ATT
}
Updates" = {“x”
ATT
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
CrCon = {}
Creates' = {}
Creates" = {}
UpdCon = {}
Updates' = {“y”
ATT
,“z”
IND
}
Updates" = {“x”
ATT
,“z”
IND
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {“z”}
REF
ROL
CrCon = {}
Creates' = {}
Creates" = {L
A0-S1
,L
A0-S2
,L
S1-A3
,L
S2-A3
}
CrCon = {}
Creates' = {}
Creates" = {}
REF
ROL
REF
ROL
REF
ROL
ATT
IND
ATT
ROL
1 2 3
Syntactic Conflict, but no Semantic Conflict
def x
def y
def z
x := 5
y := 3
z := x+y
def x
def y
def z
x = 5
y = 1
z = x+y
def x
def y
def z
x = 8
y = 3
z = x+y
„def x“
„def y“
„def z“
„x = 8“
„y = 3“
„z = x+y“
„def x“
„def y“
„def z“
„x = 5“
„y = 1“
„z =x+y“
„def x“
„def y“
„def z“
„x = 5“
„y = 3“
„z = x+y“
No Syntactic Conflict, but Semantic Conflict
Example: Inheritance Hierarchy (Java 1.4)
Example: Simple imperative programming language
Seq1
Flow
Seq2
A0
A1 A2
A3
Flow
A0
A1
A2
A3
Seq1 Seq2
A0
A1
A2
A3
A0
A1
A2
A3
A0
A1
A2
A3
A0
A1
A2
A3
a() : A
a() : B
A
B
A
A
B
B
a() : A
a() : B
A
A
B
B
a() : A
A
B
Example: BPEL
Transformation
Transformation
Transformation
V
V
VV
V
V
V'
V''
V'
V''
V'
V'
V''
V''
V'
V'
V''
V''
UpdCon = {}
Updates' = {A1
ROL
,A2
ROL
,Flow
REF
}
Updates" = {A0
ROL
,A3
ROL
}
CrCon = {}
Creates' = {“a():A”}
Creates" = {“a():B”}
DelCon = {}
Deletes' = {Seq1,Seq2}
Deletes" = {Flow,L
A0-S2
,L
S1-A3
}
Con = {Flow}
UpdCon = {}
Updates' = {}
Updates" = {}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
UpdCon = {}
Updates' = {A
REF
}
Updates" = {B
REF
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
UpdCon = {}
Updates' = {A
REF
,B
REF
}
Updates" = {B
REF
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {B
REF
}
CrCon = {}
Creates' = {“a():A”, “a():A”}
Creates" = {“a():B”}
CrCon = {}
Creates' = {}
Creates" = {}
UpdCon = {}
Updates' = {“y”
ATT
}
Updates" = {“x”
ATT
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {}
CrCon = {}
Creates' = {}
Creates" = {}
UpdCon = {}
Updates' = {“y”
ATT
,“z”
IND
}
Updates" = {“x”
ATT
,“z”
IND
}
DelCon = {}
Deletes' = {}
Deletes" = {}
Con = {“z”}
REF
ROL
CrCon = {}
Creates' = {}
Creates" = {L
A0-S1
,L
A0-S2
,L
S1-A3
,L
S2-A3
}
CrCon = {}
Creates' = {}
Creates" = {}
REF
ROL
REF
ROL
REF
ROL
ATT
IND
ATT
ROL
1 2 3
Fig. 5. Case study scenarios.
The effort for specifying the transformations for each of these examples was consider-
ably small, as each of the above scenarios account for only about 50 to 200 lines of ATL
transformation language code. Thus, the return on investment gained in better conflict
detection clearly outweighs the initial effort spent on specifying the semantic views.
Furthermore, the above examples emphasize the versatility of a model transformation-
based approach, as one gains the ability to perform diverse tasks like eliminating syn-
tactic sugar ¶, explicate hidden concepts in models through the application of inference
rules ·, and in general the establishment of specialized views on models ¸ that high-
light certain aspects of interest.
Concluding, we perceive that the strength of our approach lies in its way of speci-
fying semantics through model transformations, as apposed to a rigorous mathematical
definition of semantics, model transformations are immediately executable and besides
expressing the actual semantics of the modeling language, would for instance also allow
to explicate application specific rules or some form of model metrics.
5 Related Work
The closest approach to ours is laid out by SemVersion [14], which is itself based on
RDF, proposing the separation of language specific features (e.g., semantic difference)
from general features (e.g., structural difference or branch and merge). To perform the
semantic difference the semantics of the used ontology language are taken into account.
Therefore, assuming using an RDF Schema as the ontology language and two versions
(A and B) of an RDFS ontology, SemVersion uses RDF Schema entailment on model A
and B and infers all possible triples. Now, a structural difference on A and B can be cal-
culated in order to obtain the semantic difference. In our approach semantic differences
between models are established after a transformation into the semantic representation
followed by a structural difference computation. SemVersion, however, compared to the
work presented in this paper is not flexible to operate on any modeling language and
furthermore does not provide version control functionalities.
In terms of optimistic state-based VCS, Odyssey-CVS [7] presents a graph-based
system for versioning UML elements, aiming to support UML-based CASE tools in
38

evolving their artifacts. Odyssey-CVS, therefore, is not flexible in the used modeling
language but open to incorporate any modeling tool. Model differences and conflicts
found during the comparison and conflict detection phase are results of a purely struc-
tural comparison of two versions of a model with their common ancestor. Hence se-
mantic aspects of a modeling language are not considered.
In terms of comparison and difference detection between versions of models Ohst
et al. [15] addresses the problem of how to detect and visualize differences between
versions of UML models such as class or object diagrams. The approach presented is
loosely-coupled to the modeling tooling and provides difference computation for UML
models, only. The proposed difference computation algorithm detects only structural
differences visualized to the developer and provides an approach for the comparison
phase, that is part of the VCS’s check-in process. Furthermore, Ohst et al.’s approach is
not extensible in order to “understand” and interpret the semantics of a model.
More widely related to our proposed approach, are VCSs which focus on models
but are tightly-coupled to the modeling environment in order to be able to save opera-
tions performed on models. For example, Nguyen [8] proposes a VCS which deals with
the detection of structural and textual differences between versions of many kind of
software artifacts, including models. Oda and Saeki [9] describe the need for a graph-
based VCS which manages the changes on various kind of elements that are different
according to the used diagrams (UML, ER). Oda and Saeki’s approach does not support
concurrent editing and therefore is not supporting a check-in process which is capable
to merge different model versions. Overall, beside the fact that semantics of the model-
ing languages are not considered in both of this widely related works, these approaches
are accurate since operations on models are stored but therefore close interoperability
between an editor and the VCS repository is needed.
6 Conclusion and Future Work
In this paper a light-weight approach for incorporating semantics into VCSs for mod-
els is proposed. It is argued that by means of transforming a model into a semantic
view, syntactic sugar can be eliminated and hidden concepts can be explicated. Hence,
the joint use of model transformations expressing certain semantic aspects of a mod-
eling language, and the employment of graph-based comparison techniques on models
and views, allows for a more precise semantically enhanced conflict detection between
concurrently edited versions of models.
The approach, for which a prototype is presented, is open to the modeling envi-
ronment through using XMI as an exchange format between the VCS and the model-
ing tooling. Furthermore, it relies on meta-modeling techniques and MDSD standards
which are providing flexibility of the approach to operate on virtually any modeling
language. The benefits of the proposed approach are exemplified in this paper through
three diverse scenarios revealing that with a relatively small amount of effort to estab-
lish the necessary transformations, a return on investment can quite easily be gained.
With respect to future work, the presented approach has the potential to not only
define a single semantic view definition, but multiple semantic view definitions which
may focus on certain semantic aspects each, thus promising increased conflict detection
39

precision. Therefore, future research needs to elaborate on how to extend the conflict
detection approach to also operate on multiple semantic views. Also worthwhile is the
investigation into the conflict detection strategies which can be specifically fine-tuned
towards different modeling languages. At the current state of development the approach
solely focuses on the phases comparison and conflict detection. Questions how these
conflicts can be visualized for the developer and how they can be resolved and merged
is going beyond the scope of this paper. Therefore in the future we will investigate how
the involved semantics can also improve the conflict resolution and the consecutive
model merging phase.
References
1. Subversion. (http://subversion.tigris.org/)
2. Concurrent Versions System. (http://www.nongnu.org/cvs/)
3. Bendix, L., Larsen, P.N., Nielsen, A.I., Petersen, J.L.S.: CoEd – A Tool for Versioning of
Hierarchical Documents. In: ECOOP ’98: Proceedings of the SCM-8 Symposium on System
Configuration Management. Volume 1439 of LNCS., Springer (1998) 174–187
4. Mens, T.: A State-of-the-Art Survey on Software Merging. IEEE Transactions on Software
Engineering 28 (2002) 449–462
5. Harel, D., Rumpe, B.: Meaningful Modeling: What’s the Semantics of “Semantics”? Com-
puter 37 (2004) 64–72
6. Slonneger, K., Slonneger, K., Kurtz, B.: Formal Syntax and Semantics of Programming
Languages: A Laboratory Based Approach. Addison-Wesley Longman Publishing Co., Inc.,
Boston, MA, USA (1995)
7. Oliveira, H., Murta, L., Werner, C.: Odyssey-VCS: a Flexible Version Control System for
UML Model Elements. In: SCM ’05: Proceedings of the 12th international workshop on
Software configuration management, ACM Press (2005) 1–16
8. Nguyen, T.N.: A Novel Structure-Oriented Difference Approach for Software Artifacts. In:
Proceedings of the 30th Annual International Computer Software and Applications Confer-
ence (COMPSAC). Number ISBN: 0-7695-2655-1, IEEE Computer Society (2006) 197–204
9. Oda, T., Saeki, M.: Generative Technique of Version Control Systems for Software Dia-
grams. In: Proceedings of the 21st IEEE International Conference on Software Maintenance
(ICSM’05), IEEE Computer Society (2005) 515–524
10. Business Process Execution Language for Web Services version 1.1: Specification.
http://www-128.ibm.com/developerworks/library/specification/ws-bpel/ (2007)
11. EMF Homepage. http://www.eclipse.org/modeling/emf/ (2007)
12. Allilaire, F., B
´
ezivin, J., Jouault, F., Kurtev, I.: ATL – Eclipse Support for Model Transforma-
tion. In: Proceedings of the Eclipse Technology eXchange Workshop (eTX) at the ECOOP
2006 Conference, Nantes, France. (2007)
13. SDO Homepage. http://www.eclipse.org/modeling/emf/?project=sdo (2007)
14. V
¨
olkel, M.: D2.3.3.v2 SemVersion – Versioning RDF and Ontologies. http://www.aifb.uni-
karlsruhe.de/Publikationen/showPublikation?publ
i
d = 1163 (2006)
15. Ohst, D., Welle, M., Kelter, U.: Differences between versions of UML diagrams. In: Pro-
ceedings of the 9th European Software Engineering Conference (ESEC). Number ISBN:
1-58113-743-5, ACM Press (2003) 227–236
40
