A Fair Non-repudiation Service in a Web Services

Peer-to-Peer Environment

Berthold Agreiter, Michael Hafner and Ruth Breu

University of Innsbruck

Institute of Computer Science

A-6020 Innsbruck

Abstract. “Non-repudiation”, a well known concept in security engineering,

provides measures to ensure that participants in a communication process

cannot later on deny of having participated in it. Such a concept is even more

important in service oriented architectures (e.g. electronic billing). However,

there is no sophisticated standard implementing fair Non-repudiation in such an

environment.

In this paper, we will introduce a framework providing fair Non-repudiation for

Web service messages. It executes a previously specified protocol using Web

services technology itself, but completely hides the protocol execution from the

target Web services. To allow the integration of such security requirements

already in an early phase of development, a model-driven configuration

approach is used. Furthermore, the procedure is not tied to Non-repudiation

protocols only, which means that a broad range of protocols can be integrated in

a similar way. The framework presented in this paper leverages existing

standards and protocols for an efficient adoption in service oriented

architectures.

1 Introduction

Service Oriented Architectures have matured to a widely accepted architectural

paradigm for the realization of B2B cooperation. One of the key characteristics of

these systems is the peer-to-peer style communication with no central control.

Security aspects in B2B communication are heavily regulated by law, which implies

that it is also a potential subject to change. Although sophisticated solutions and

standards already exist for the enforcement of the basic security requirements – like

confidentiality or integrity – this is not the case for more advanced security

requirements like Non-repudiation.

So far, there is actually no standard for a protocol enforcing fair Non-repudiation

in these environments. Available solutions only consider some kind of voluntary, so-

called naïve Non-repudiation, which cannot guarantee that one communicating party

is not gaining any advantage over the other. This means that cooperating parties have

to trust each other to behave in a legal way. Nevertheless, the enforcement of protocol

based security requirements is crucial in many B2B scenarios, e.g. electronic

tendering, electronic auctions, electronic procurement, etc.

Agreiter B., Hafner M. and Breu R. (2007).

A Fair Non-repudiation Service in a Web Services Peer-to-Peer Environment.

In Proceedings of the 5th International Workshop on Security in Information Systems, pages 63-72

DOI: 10.5220/0002415500630072

 SciTePress

In this paper we present an approach which supports the enforcement of a fair Non-

repudiation protocol between two parties without even touching the endpoint-services

themselves. The communicating parties are forced to behave correctly, otherwise the

misuse is detected and no one of the parties gains advantage over the other. We

directly apply the methods described herein to the S

ECTET-framework – a tool-suite

for the correct realization of decentralized, security-critical workflows – and deploy it

with an example protocol using a trusted third party. The solution presented in this

paper is flexible enough to instantiate other protocol-based security requirements as

well, e.g., transactional security.

The paper is structured as follows: Section 2 sketches some background to our

previous work and related approaches. A motivating example is given in section 3

followed by our solution and partly its theoretical background. We close the paper

with a conclusion and a brief outlook in the last section.

2 Background

2.1 The Sectet Framework

The S

ECTET-framework supports business partners during the realization and

distributed management of a common Global Workflow – a decentralized, security-

critical collaboration across domain boundaries. S

ECTET realizes a domain

architecture aiming at the correct technical implementation of domain-level security

patterns. Security requirements are integrated into the specification of a Global

Workflow as UML 2.0 model artifacts. The models form the input for a chain of

integrated tools that transform the models into artefacts configuring security

components of a Web services-based target architecture. The framework consists of

three core components.

The Modeling Component supports the collaborative definition of a Global

Workflow and related security requirements at the abstract level in a platform

independent context. It implements an intuitive domain specific language (DSL),

which is rendered in a visual language and is currently implemented as a UML 2.0

profile for M

AGICDRAW [1].

The Reference Architecture represents a Web services-based target runtime

environment for the Local Workflows and back-end services at the partner node. The

workflow and security components implement a set of workflow and security

technologies based on XML and Web services technologies and standards.

The Transformation Component translates the models into executable

configuration artifacts for the Reference Architecture. Source and target models can

easily be defined or adapted by importing the respective metamodels. This supports

domain experts in rapidly developing and adapting a domain specific language in an

agile way and visualizes the transformation process.

For an in-depth account on the conceptual foundations of the S

ECTET framework,

please refer to [1-3].

2.2 Non-repudiation

The security requirement Non-repudiation is needed in a communication process

where two participants want to assure that the other communication partner cannot

deny having participated. There are two kinds of Non-repudiation: Non-repudiation of

origin, where the sender cannot deny he is the originator of a message, and Non-

repudiation of receipt, where the receiver is not able to deny having received a

message. Throughout this paper we always want to achieve both kinds of Non-

repudiation at once.

There exist a number of Non-repudiation protocols for different purposes and with

different properties (e.g. fair, reliable channel, etc.). Some of them, including the one

discussed in this paper, use a trusted third party to guarantee Non-repudiation.

2.3 Related Work

The integration of Non-repudiation services for Web services was also studied before.

The simplest way – the implementation of a naïve protocol – which was also partly

integrated in the S

ECTET-framework until now, uses digital signatures [4] within the

messages exchanged through SOAP [5]. Such an approach is also discussed in [6].

Here, digital signatures on the document are used to ensure that the documents creator

really is who he claims to be. For authentication and to prevent replay attacks

SSL/TLS [7] is used. Without the addition of SSL the creator and the originator of a

message could be different, which would open the door to replay attacks. However,

the significant shortcoming with this approach is that Non-repudiation is only

voluntary. This means that the recipient is not forced to return a confirmation of

receipt. In such cases, the sender is in a weaker position, because he could not present

evidence to the judge in case of dispute.

Another approach, but very similar to the one just described, is WSS: Non-

Repudiation [8]. It is also using digital signatures defines a schema SOAP header

elements to transport the Non-repudiation requests and signatures. The different types

of receipt requests range from timestamp-only to digital signatures of specific

elements. Although this approach supports Non-repudiation of receipt, this form of

Non-repudiation is only voluntary. It does not define any mechanism to prove receipt

of a message by a non-conformant implementation.

3 Fair Non-Repudiation in a P2P Environment

3.1 A Security Incident

As a motivating example, we present an electronic procurement scenario. A company

purchases goods from a supplier. The buyer sends the purchase order to the supplier,

which then returns the invoice. The buyer does not receive the ordered goods until he

transfers the money stated on the invoice (cf. Fig. 1).

Considering this example, a number of security incidents could happen, each of

them leading to a conflict almost impossible to resolve:

• The supplier sends an invoice to a buyer without an actual purchase order.

• The supplier does not acknowledge the payment.

• The supplier claims he did not receive a purchase order/money transfer.

• The buyer claims he did not send a purchase order.

• The buyer claims he paid the goods without doing so.

One can see that both participants are able to cheat and cannot present valid

evidence to a judge in case of dispute. Annoyingly enough, the respective other

participant cannot do anything about it until the business partner changes his mind

and complies with his duties.

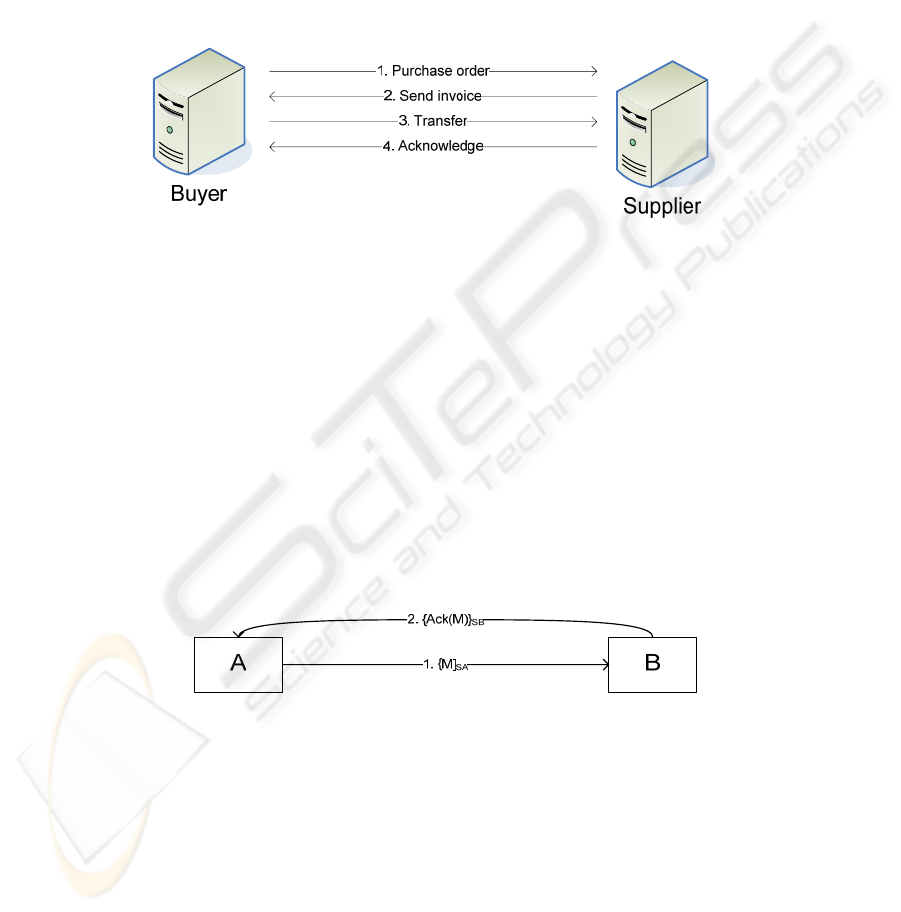

Fig. 1. B2B purchasing process.

3.2 Voluntary Non-Repudiation

The security incident of the example discussed above happens because a naïve

protocol was used. Non-repudiation happens to be enforced on a voluntary basis,

which means that the recipient is not forced to return a confirmation of receipt.

Figure 2 shows the simplest naïve protocol possible:

- A sends a signed message to B.

- B returns a signed acknowledgement to A.

The messages are signed with the respective private key of the originator. After B

received the message M from A, he can decide by itself whether to send an

acknowledgement or not. B already has a confirmation that the originator of the

message is A. This means it is voluntary to B to return an acknowledgement to A.

Figure 2: A naive Non-repudiation protocol

3.3 Fair Non-Repudiation

The shortcomings of voluntary Non-repudiation can be counteracted by using

different protocols which are aware of this situation. This kind of Non-repudiation

protocols is called fair. Fair protocols provide the originator and the recipient with

valid and irrefutable evidence after completion of the protocol, without giving a party

an advantage over the other at any stage of the protocol run [9]. That is, none of the

participants is able to cheat.

One such fair Non-repudiation protocol is presented in [9] (cf. Fig. 3). This

protocol uses a trusted third party (TTP). However, there also exist fair Non-

repudiation protocols without the need for TTPs (e.g. [10]). Moreover, different

protocols make use of the TTP in different ways (cf. [11]).

TTP

A B

1. f

NRO

, B, L, C, NRO

2. f

NRR

, A, L, NRR

3. f

SUB

, B, L, K, sub_K

4. f

CON

, A, B, L, K, con_K

5. f

CON

, A, B, L, K, con_K

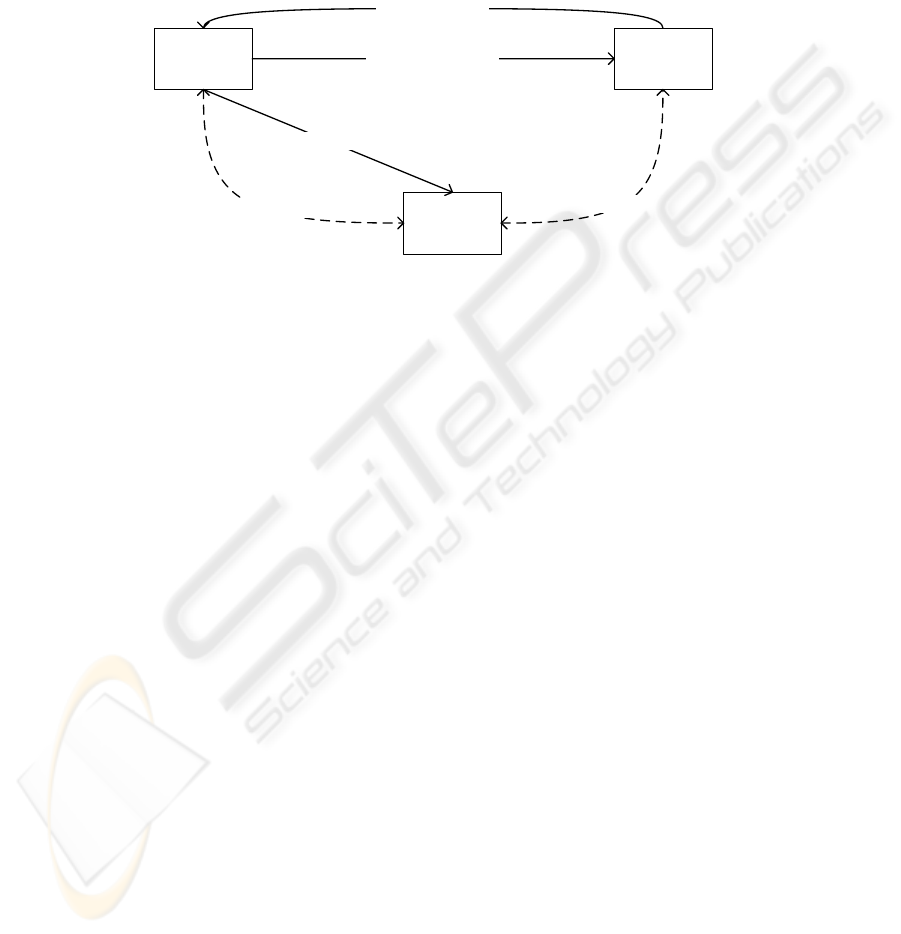

Fig. 3. The Zhou and Gollmann Non-repudiation protocol (ZG1).

The ZG1 protocol works as follows (cf. Fig. 3):

- A sends a message to B with the Non-repudiation of origin flag (f

NRO

) set

and containing a commitment C.

- B returns a Non-repudiation of receipt message to A, but is still unable to

read C, because it is encrypted with key K.

- A submits the key needed to decrypt C to the TTP.

- After this operation, A and B are able to retrieve K and the confirmation of

K issued by TTP (con_K) from TTP.

Every message exchanged in this protocol contains a protocol run identifier L to

correlate sets of messages, and every message is always signed with the private key of

the sender. Otherwise it would not be valid evidence. These signatures are denoted by

NRO, NRR, con_K and sub_K.

In every step of this protocol, the following is valid: if one of the participants tries

to cheat, he cannot get any valid evidence supporting its potential fraudulent claims.

The evidence needed in case of dispute is either NRO and con_K or NRR and con_K.

In this paper we use the ZG1 protocol to demonstrate the functionality of our

architecture.

3.4 Modeling of Non-repudiation in the Global Workflow Model

When modeling the inter-organizational workflow of two partners, one has to

configure which part of the communication process should be Non-repudiatable. We

do this in the Global Workflow Model (cf. Fig. 4). Out of this security configuration,

the necessary entries in the XACML policy (see section Protocol Execution) are

generated. This has two consequences:

• The triggering of the protocol-execution when sending a message.

• The enforcement of a check whether a protocol has been executed when

receiving a message.

There is even a possibility to configure the kind of protocol to be executed on the

Global Workflow Model.

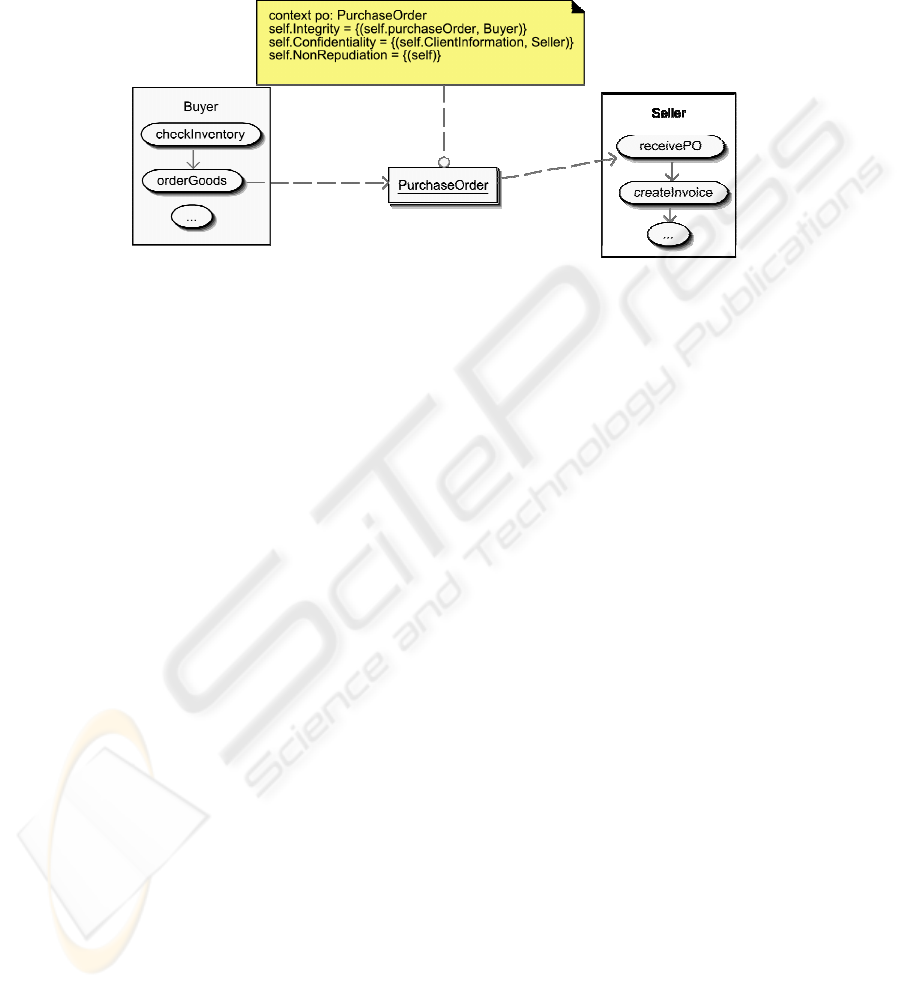

Fig. 4. Configuration of Non Repudiation in Global Workflow Model.

3.5 Protocol Specification

First of all, the protocol itself is described in a machine-readable way. XML offers

great possibilities for doing this, not least due to its interoperability and ease of use.

An XML-based definition is also necessary for the messages which are part of the

protocol. There are a number of primitives which have to be replaced by the

respective sender of a message (e.g. Receiver, Label, Message, etc.). The

protocol gives a description about which elements are used at which place in a

protocol run. All this information configures the Target Architecture by storing it in

the Protocol Storage.

The potential of this approach lies in the fact that this protocol configuration could

also be specified in a model-driven way. This would result in an even more intuitive

way for the specification of various protocol-based security requirements (e.g. fair

Non-repudiation without TTP, transactional security, etc.) while preserving high

flexibility. For the time being, we assume a specific protocol for Non-repudiation –

namely the ZG1 – graphically modeled for a specific transaction in a Global

Workflow and automatically translated for the protocol engines of the target

architectures.

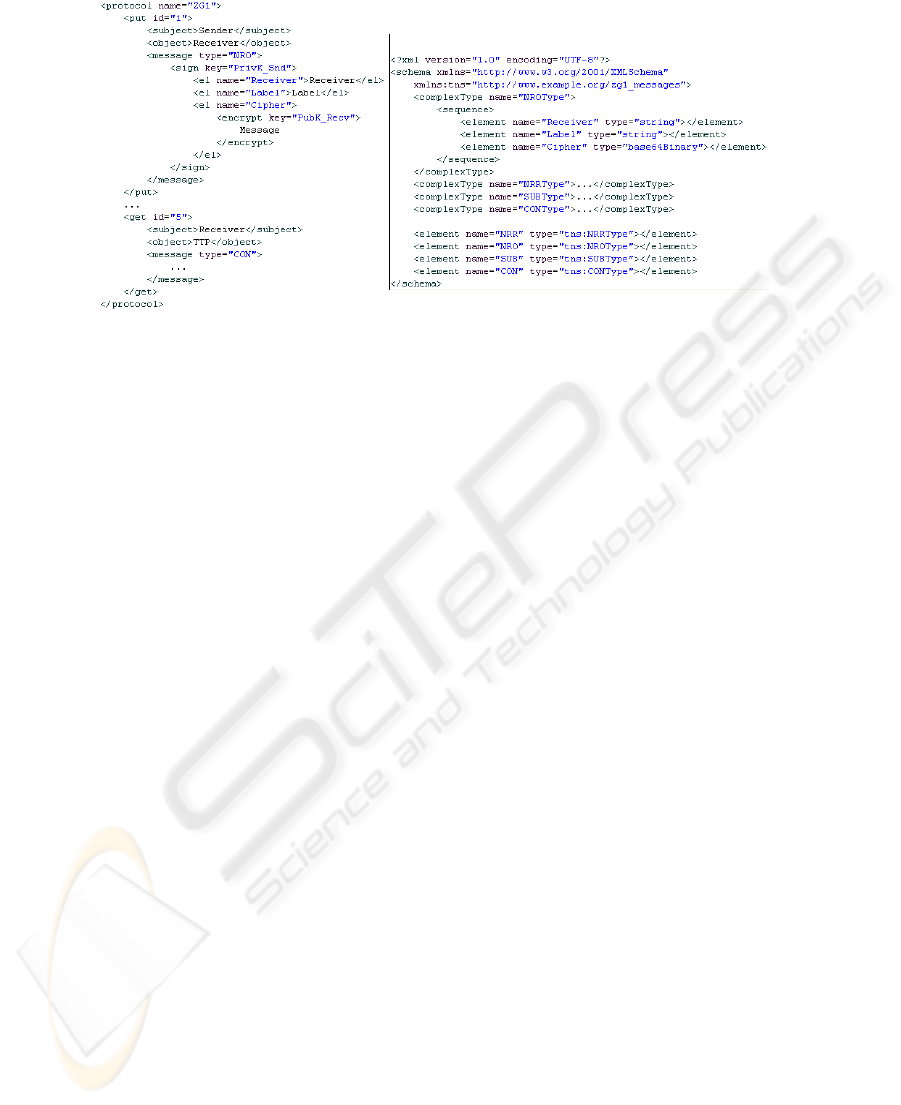

Fig. 5. Sample protocol and schema definition.

3.6 Protocol Execution

The execution of the protocol happens in a transparent way, which means that the

Web service client and server are not actively taking part in it. Instead, the protocol is

executed by the Non-Repudiation Engine, which is part of a Security Gateway

wrapping the services. This engine executes the protocol (cf. Fig. 5) stored in the

Protocol Storage. In short, the protocol is logically executed on a lower layer than the

Web services calls. The messages exchanged by the Non-Repudiation Engine are not

part of the Web service call from an application point of view. They build a signaling

channel which is again realized through Web services technology (cf. Figure 6).

As documents are transferred, the Non-Repudiation Engine somehow has to know

two important things:

1. Whether to execute the protocol or not.

2. At which stage of protocol execution it is.

The first issue is implemented through the use of policies. As documents are sent,

the Security Gateway always checks for the security requirements and enforces them.

In case of Non-repudiation, this triggers the execution of the protocol. The entry in

the policy has the nice implication that the receiving endpoint can also check whether

a Non-repudiation protocol was executed. Thus, starting to execute the protocol and

observe its enforcement is solved via XACML policies.

The solution to the second issue, the identification of the protocol execution step,

does not seem trivial in the first place. The point is that Web services should be

stateless to retain the independency of different clients. This can be solved by

avoiding to store the service-state in the service themselves, and to outsource this

storage to the execution engine. We then only need a link to the pertaining state every

time a message arrives. A protocol run identifier (i.e. the label L in ZG1) would fit

perfectly for this purpose. This means by submitting a unique identifier along with

each message in a protocol run, every endpoint is able to determine and modify its

current state in this run. A comparable standard tackling these kind of problems is

described in [12].

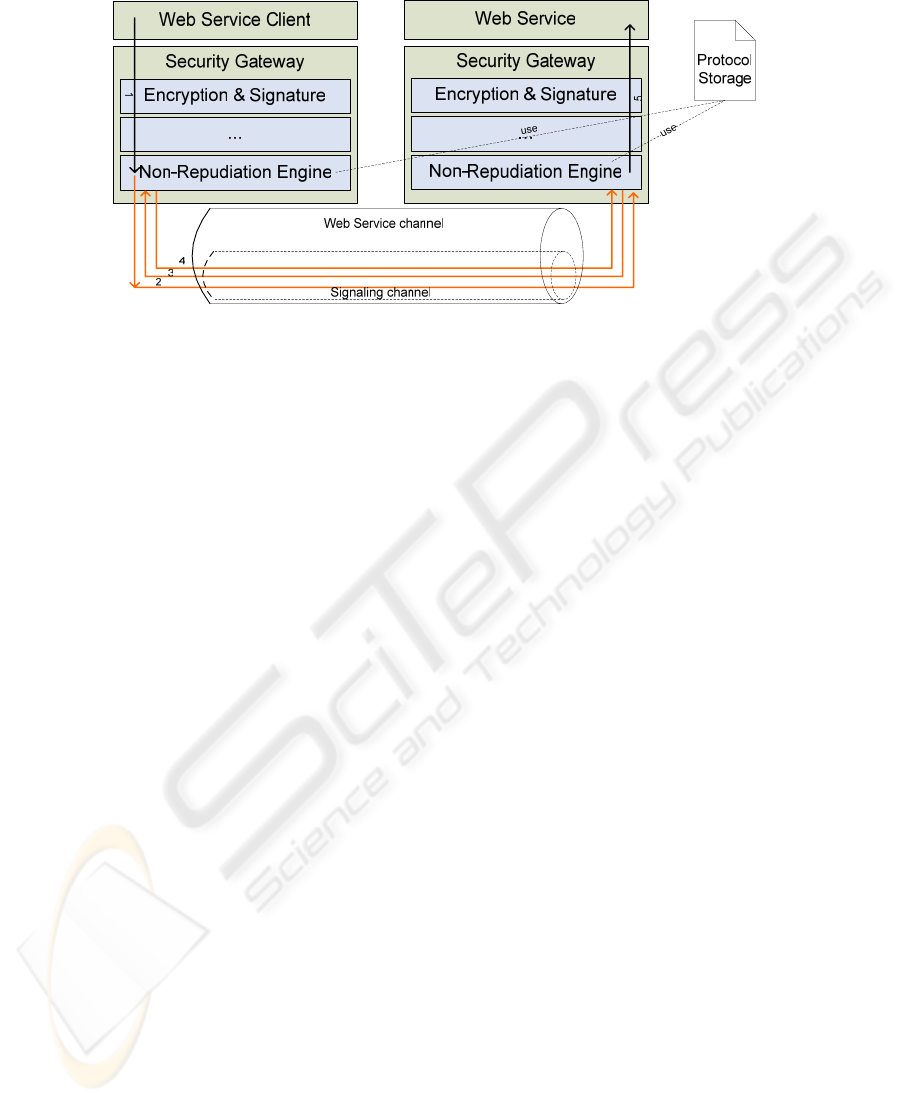

Fig. 6. Layer architecture.

Depending on the protocol the TTP, if any, takes part differently in the process. In

the case of ZG1, it stores the proof of submission and lets clients fetch the

confirmation of the key K.

3.7 Dispute Resolution

One case which has to be considered by any Non-repudiation protocol is the case of

dispute. If one of the communication partners denies having participated in a

communication, a kind of independent party – a “judge” - will evaluate the evidence

held by the participants and determine whether recipient or origin are as claimed.

Therefore, one thing we further integrated in our architecture is the Evidence Store.

The Non-Repudiation Engine has the knowledge of how protocols have to be

executed (through the usage of the protocol storage) and simply forwards evidences to

this store. So in case of dispute the participants can present them to a judge.

3.8 Target Architecture Integration

The affected components in the target architecture are the Protocol Engine, Evidence

Store and Non-Repudiation Engine which acts as a handler inside the Security

Gateway (cf. Fig. 7).

The Non-Repudiation Engine is the interface to the Protocol Engine. Every

message passes this lightweight handler, which triggers certain protocol steps when

necessary. The Protocol Engine themselves contains the protocol definitions (Protocol

Storage) and different execution states. This component is executing the protocols and

also has an interface to the Evidence Store. One can see that the definition of a

protocol is in fact the configuration of the Protocol Engine.

3.9 Benefits

Our framework implements a comprehensive approach for the model-driven

realization of security requirements in a Web service environment. The use of the

ECTET-framework comes with a number of benefits:

1. High and flexible configurability through the use of a model-driven

approach.

2. Evidence is bound to Web service messages. This would not be

achievable that easy for a realization on the transport layer.

3. The Web services itself remain untouched. The whole protocol is

executed before the endpoint receives the message. This uncoupled

execution renders the Protocol Engine and Configuration exchangeable.

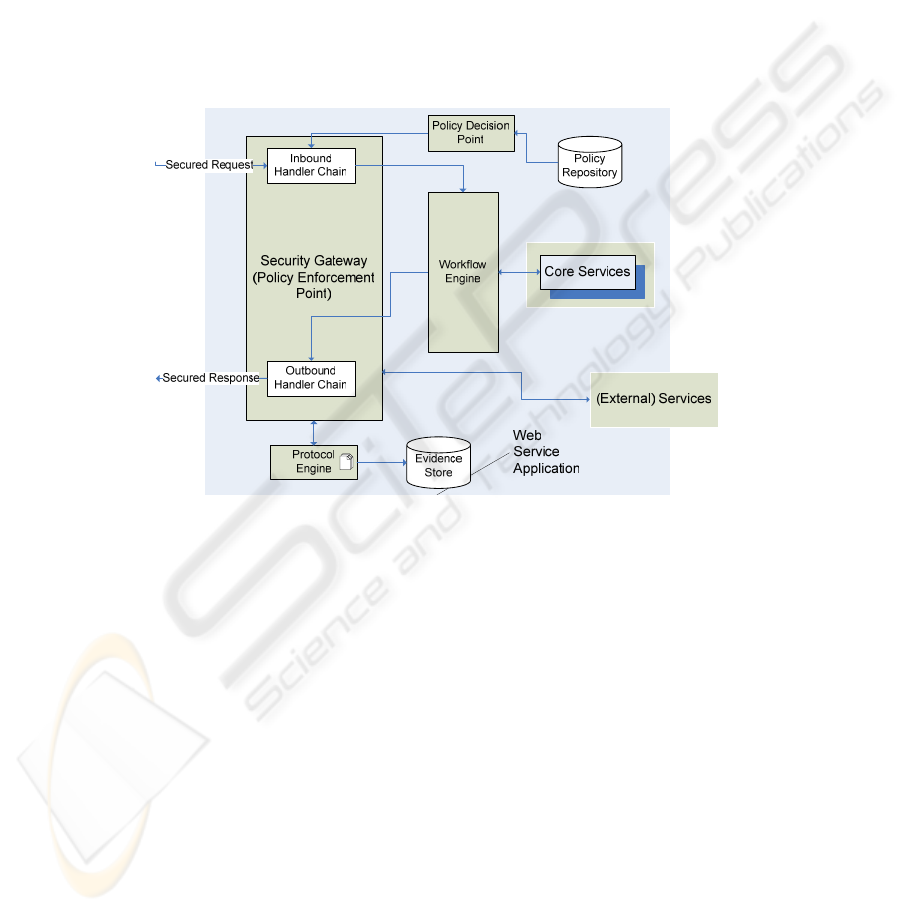

Fig. 7. SECTET Target Architecture.

4 Conclusions and Outlook

Fair Non-repudiation is a security requirement imposed by the business logic.

However, the simple application of crypto-functions like digital signature and

encryption is not sufficient. A protocol, which has a set of non-trivial implications, is

needed.

In this paper, we presented how such a fair Non-repudiation protocol can be

applied to the world of Web services without ever touching the Web services itself.

The whole protocol-related traffic runs over a signaling channel which ends at each

participant’s Security Gateway. On the other side, we remain technically on the Web

services layer since the messages we exchange in the protocol are still SOAP

messages. This also makes sense with respect to the evidence collection.

In the future we will have a deeper look into the modeling of protocols. The

Protocol Engine should follow the same principles as the rest of the S

ECTET-

framework, i.e. the configuration takes place in a model-driven way from which

executable artifacts are produced. This leaves the engine open to any kind of

protocols, not only Non-repudiation protocols.

A first step into this direction could be to integrate a Non-repudiation protocol

without TTP. Different kinds of protocols need different kinds of primitives. A kind

of plug-in mechanism would render the architecture more flexible.

Another case not discussed in this paper is the dispute resolution. Here, a judge has

to collect evidence from the participants and probably from the TTP.

Overall, we can say that the model-driven configuration of security requirements

and protocols in this case offers many possibilities in rendering a system more

flexible and considering security aspects in an early phase of development. The

evaluation of the profitability of for such a Protocol Engine with its configurability of

a lower layer is an interesting open problem for future research.

References

1. Hafner, M., M.M. Alam, and R. Breu. Towards a MOF/QVT-based Domain Architecture

for Model Driven Security. in Models 2006. 2006. Genova, Italy.

2. Hafner, M., et al. Realizing Advanced Security Requirements for Inter-organizational

Workflows. in eChallenges 2006. 2006. Bacelona, Spain.

3. Hafner, M., et al. Sectet - An Extensible Framework for the Realization of Secure Inter-

Organizational Workflows. in WOSIS 2006. 2006. Paphos, Cyprus: INSTICC Press.

4. Bartel, M., et al. XML-Signature Syntax and Processing. 2002 [cited 2007 19.01.];

Available from: http://www.w3.org/TR/xmldsig-core/.

5. SOAP Version 1.2 Part 1: Messaging Framework. 2003 [cited 2007 19.01.]; Available

from: http://www.w3.org/TR/soap/.

6. Hada, S. SOAP security extensions: digital signature. 2001 [cited 2007 18.01.]; Available

from: http://www-128.ibm.com/developerworks/library/ws-soapsec/.

7. Freier, A., P. Karlton, and P. Kocher, The SSL Protocol Version 3.0. 1996.

8. Gravengaard, E., Web Services Security: Non-Repudiation. 2003.

9. Zhou, J. and D. Gollmann, A Fair Non-repudiation Protocol. 1995: University of London,

Royal Holloway, Department of Computer Science.

10. Markowitch, O. and Y. Roggeman, Probabilistic non-repudiation without trusted third

party. Second Conference on Security in Communication Networks, 1999. 99.

11. Kremer, S., O. Markowitch, and J. Zhou, An intensive survey of fair non-repudiation

protocols. Computer Communications, 2002. 25(17): p. 1606-1621.

12. Graham, S., et al. Web Services Resource 1.2. 2006 [cited 2007 19.01.]; Available from:

http://docs.oasis-open.org/wsrf/wsrf-ws_resource-1.2-spec-os.pdf.
