MODEL-DRIVEN DESIGN OF

CONTEXT-AWARE APPLICATIONS

Boris Shishkov and Marten van Sinderen

Department of Computer Science, University of Twente, 5 Drienerlolaan, Enschede, The Netherlands

Keywords: Business modeling, Application design, Context, SOA, LAP.

Abstract: In many cases, in order to be effective, software applications need to allow sensitivity to context changes.

This implies however additional complexity associated with the need for applications’ adaptability (being

capable of capturing context, interpreting it and reacting on it). Hence, we envision 3 ‘musts’ that, in

combination, are especially relevant to the design of context-aware applications. Firstly, at the business

modeling level, it is considered crucial that the different possible context states can be properly captured and

modeled, states that correspond to certain desirable behaviors. Secondly, it must be known what are the

dependencies between the two, namely between states and behaviors. And finally, what is valid for

application design in general, business needs are to be aligned to application solutions. In this work, we

address the mentioned challenges, by approaching the notion of context and extending from this perspective

a previously proposed business-software alignment approach. We illustrate our achieved results by means of

a small example. It is expected that this research contribution will be useful as an additional result

concerning the alignment between business modeling and software design.

1 INTRODUCTION

In designing a software application, the engineer

should take into account not only the user

requirements but also the characteristics of the

environment in which the application will be used

(Shishkov et al., 2006b). This sometimes leads to the

identification of different possible environmental

states – referred to as context states, where by

context is meant ‘the interrelated conditions in which

something exists’ (Van Sinderen et al., 2006).

Hence, sensitivity to context changes is sometimes

essential for the effectiveness of applications, in this

case labelled as C

ontext-Aware (CA) applications. It

should be decided therefore which of the relevant

context states would be considered by the

application designer. Further, the application should

be capable of capturing context, interpreting it, and

reacting on it; we call this quality adaptability.

All this implies complex design. We envision 3

‘musts’ that, in combination, are especially relevant

to the design of CA applications: (i) At the business

modeling level, it is considered crucial that the

different possible context states can be properly

captured and modeled, states that correspond to

certain desirable behaviors; (ii) It must be known

what are the dependencies between the two, namely

between states and behaviors, as illustrated in Figure

1; (iii) Business needs are to be aligned to

application solutions (this ‘must’ is valid for

application design in general).

lication

environment

ali

nment

…..

end: B – Behaviors; S – Context States

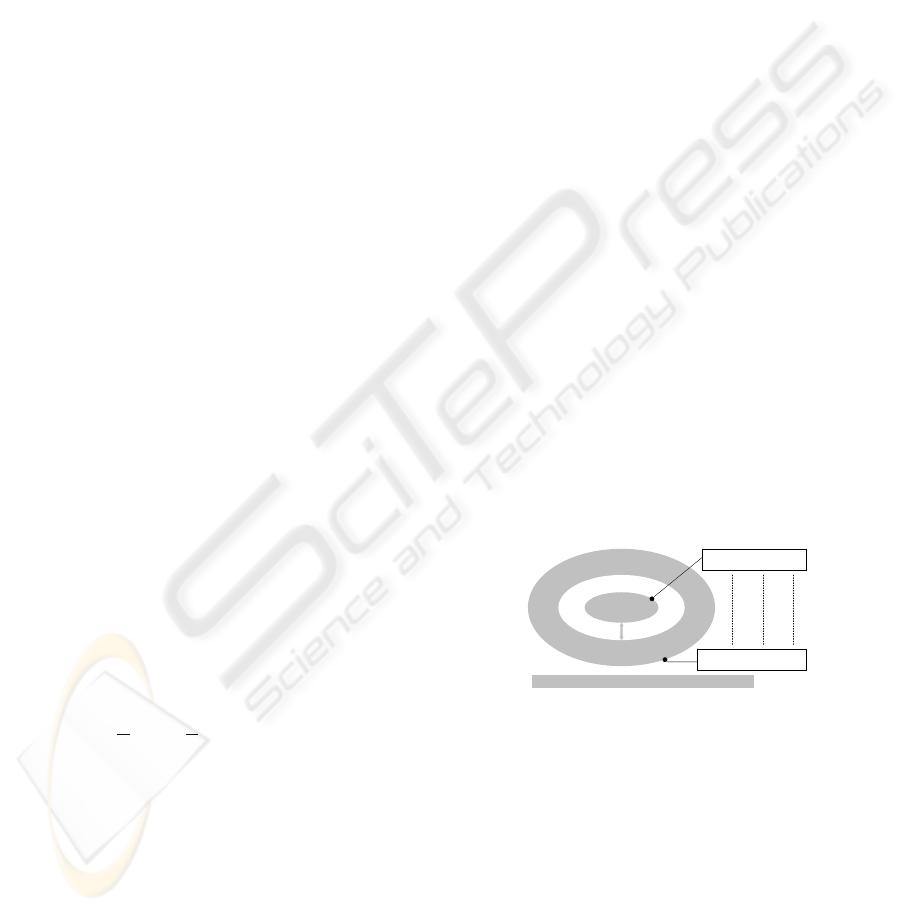

Figure 1: Essential issues in designing CA applications.

By business modeling we mean the modeling of

business-level entities and their corresponding

relations and behaviors. The desired application

behaviors must (logically) be appropriate

refinements of those business-level behaviors. This

implies that, in addressing the business-application

alignment, it might help approaching business

modeling and corresponding application design

separately: We could model firstly the entities and

behaviors that concern the technology-independent

‘view’ on business processes and secondly, we could

model the entities and behaviors that concern the

105

Shishkov B. and van Sinderen M. (2007).

MODEL-DRIVEN DESIGN OF CONTEXT-AWARE APPLICATIONS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 105-113

DOI: 10.5220/0002360301050113

 SciTePress

functionality of the application (viewing this is

inevitably technology-rooted). These modeling

endeavors concern different abstraction levels –

high-level business logic and technology-driven

application functionality. Bridging this gap is

partially considered in this paper and more

thoroughly approached in previously reported work

(Shishkov et al., 2006b).

The desired context sensitivity implies the

necessity for adequate capturing of context and

reaction on context changes as stated already.

Although and application would react on context

changes at real time, those changes should be

foreseen at design time, so that proper desirable

application behaviors are prescribed.

This context-driven design preparation is

focused in the current paper. In particular, we further

the development of a business-software alignment

approach (Shishkov et al., 2006b), by extending it in

the mentioned direction. The paper not only

considers the notion of context but also focuses on

consistency, as an issue claimed to be important in

the business-application alignment (concerning

especially CA applications). Consistency is a desired

relationship between models that address separate

concerns, for instance business and application

concerns (Alonso, 2004). We illustrate our achieved

results, by means of a small example.

In tackling this, we adopt service-orientation

(Alonso, 2004; Newcomer, 2002) as a preferred

architectural style (this decision is motivated and

inspired by previously achieved results (Shishkov et

al., 2006b)), meaning that at any design step we only

consider the external behaviors of entities. In

addition, composing services at high level (thus

hiding the technological complexity concerned with

service realization) is a way to speed up the

development of business-aligned application models,

and also to flexibly utilize advanced technological

platforms for their implementation.

We acknowledge that the models of the

application’s (business) environment have to be

faithful to the domain for which they are used, and

also that they are inevitably driven by the subjective

perception of the engineer who expresses through

them either observed or desired business situations

(Shishkov & Quartel, 2006). To be useful, such

‘descriptions’ must exhaustively disclose both statics

(entities) and dynamics (behaviors), as mentioned

already, and also corresponding governing norms

(Liu, 2000). Reflecting these considerations in the

design process, we take additional constraints into

account; they concern the desired adequacy of the

application’s operation in its environment and the

user requirements, and also of course the technology

platforms to be used and the project-driven technical

restrictions. In the current work however, we largely

ignore these constraints because they do not

immediately concern the derivation of (CA)

application models from business models.

We expect that this work would be useful as an

additional result related to the alignment between

business modeling and software design.

The paper’s outline is as follows. Section 2

motivates further our proposed design views and

also introduces concepts/theories and methods that

we use. Section 3 introduces a case study that is

elaborated in the next sections to outline and

illustrate the different phases of our approach.

Section 4 and Section 5 present respectively the

business and application modeling milestones and

phases. Finally, Section 6 contains the conclusions.

2 MODELING APPROACH

A consideration of business/application models,

concerns fundamentally the notions of

business/software system and environment (Bunge,

1979). They both are composed of entities which

could fulfil different roles. In doing this, entities

perform behaviors (Shishkov & Quartel, 2006). A

system integrates (complex) processes which

comprise together its overall external behavior. It

manifests the system’s service provided to the

system’s environment.

As mentioned before, such a service provisioning

needs to appear sometimes in different ‘versions’,

driven by corresponding environmental states. Said

otherwise, for one state of the environment, the

system should deliver one type of external behavior

while for another state, another behavior is to be

delivered. Hence, context changes trigger changes in

the system behavior (Maamar et al., 2006) including

changes in the behaviors of the same entities or even

changes in the statics (removed and/or added

entities). Based on these basic considerations,

concerning CA applications’ design, we identify a

number of challenges. Among them are:

 The application should be able to sense context

changes;

 It should also be able to interpret those changes

as triggers to alternative services;

 The application should be able to handle the

switching between its alternative services;

 It should be able to deliver adequate and

exhaustive domain-driven services covering

all possible context states.

ICEIS 2007 - International Conference on Enterprise Information Systems

106

Legend:

S: Sensing

I: Interpretation

W: Switch

B: Serv. Delivery

○ = state

→

transition

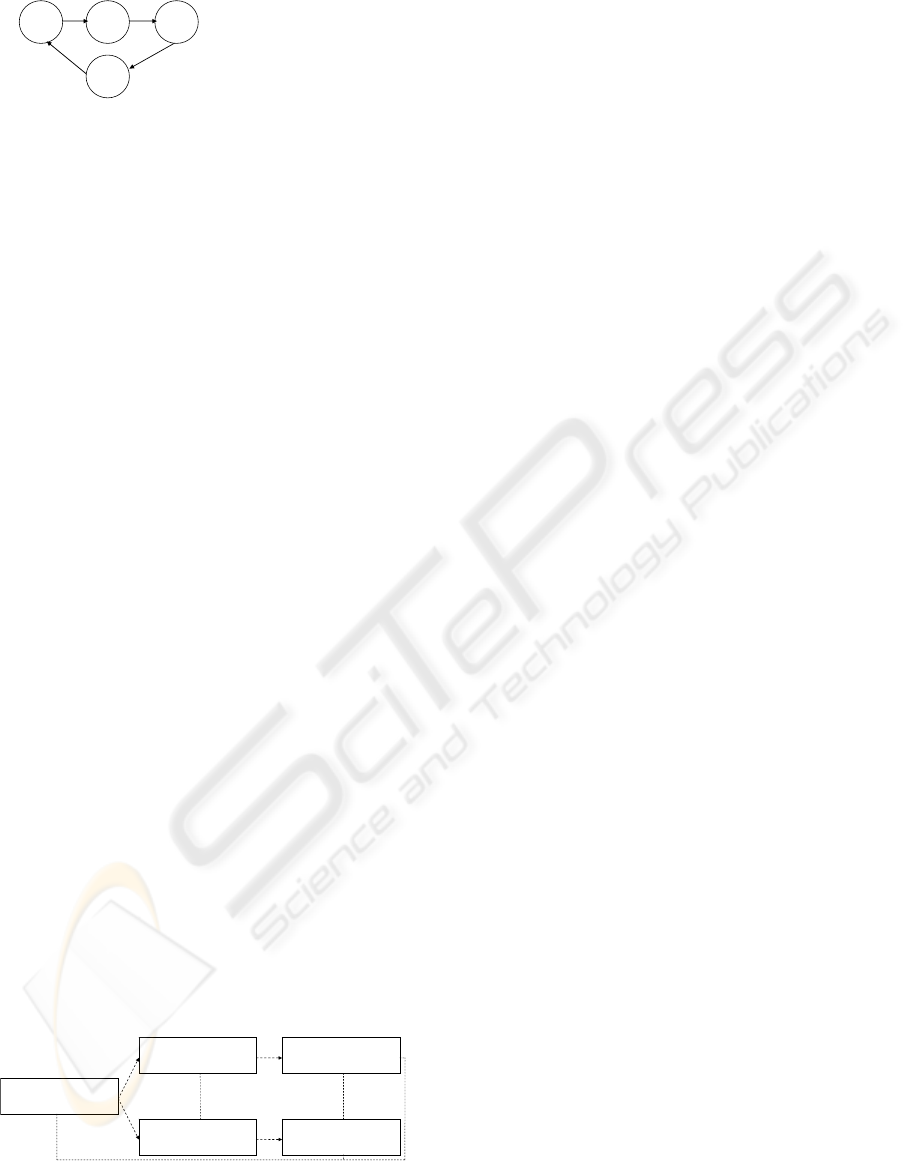

Figure 2: Model of a CA application’s overall behavior.

As illustrated in Figure 2, the overall behavior of

a CA application can be seen as a behavior cycling

through the following states: S (sensing a context

change), I (interpretation on what external behavior

is required in the new context state), w (switching

from one alternative service to another one, driven

by a context state change), D (delivery of an

alternative service).

In the following, we largely ignore Sensing

(supported by sensors, for example) and

Interpretation (supported by reasoning techniques

and rules, for example), because they are addressed

in a related work (Van Sinderen et al., 2006).

Further, we pay little attention to Switching between

alternative services of the application; this is

positioned as future research.

Hence we focus here on the modeling of

different alternative desired service behaviors (as

needed by the user in corresponding context states)

and their consequent realization by an application.

We face thus the gap, mentioned in Section 1,

between domain-driven requirements on the external

application behavior, or its alternative services, on

one hand, and technology-rooted application

realization of this behavior, on the other hand. In

properly addressing this, we need to consider

different aspects of consistency:

 Correspondence between environmental

(context) states and the business model (that

concerns the desired external behaviors);

 Consistency between the application model and

the business model;

 Consistency between dynamic aspects

(behavior) and corresponding static (entity)

aspects of business/application models.

Figure 3 illustrates these consistency aspects

(designated by dotted lines).

Context state

Business entity model

Business behavior model

Application entity model

Appl. behavior model

Figure 3: Consistency aspects in the appl. design process.

As shown in the figure, the models considered in

the application design process take a context state as

input (i.e., different states lead to alternative

models). Two aspect models are considered, namely

entity and behavior models. Models are refined in

the design process, starting with abstract business

level models and ending up with detailed application

models, through gradually increasing consideration

of computational and technology platform aspects.

Two fundamental modeling phases and milestones

are distinguished, namely the business modeling

phase, which leads to a business model, and the

application modeling phase, which leads to an

application model.

We model a behavior as a set of related events;

each event corresponds to a unit of behavior, which

is indivisible at the abstraction level at which it is

defined. We distinguish two types of events, viz.

action (performed by a single entity) and interaction

(performed by two or more entities, in cooperation).

An interaction is expressed as two or more

connected interaction contributions that represent the

participation of the involved entities.

As for our business/application models, we

envision them in consistency with the Model Driven

Architecture – MDA (Rational, 2006; Caceras et al.,

2004), by considering: (i) business modeling from a

computational independent perspective (no decisions

are made with respect to the (partial) automation of

business processes), and (ii) application modeling

from a technology platform independent perspective

(even though the applications are technology-rooted,

no decisions are made with respect to specific

technological platform(s) on which the application

components are implemented). The consideration of

such specific technological platforms is left beyond

the scope of this paper – these issues seem to be well

studied (Newcomer, 2002).

Further, the mentioned adoption of service

orientation, affects our modeling in a way that we

are mainly interested in external behaviors (services)

that are relevant to application’s environment (Wang

& Zhang, 2006). We hence could arrive at a service

model from two directions: either by identifying

(high-level) services from business models (which is

certainly straightforward) or by abstracting from

application models (discarding some technology-

driven information). We claim that a business-

requirements-driven service model would possess

the right restrictions whose fulfilment (in application

design) would guarantee that the application would

be adequate to the external (context-driven)

demands.

MODEL-DRIVEN DESIGN OF CONTEXT-AWARE APPLICATIONS

107

With respect to the modeling of real-life-level

business requirements, we consider a theoretically-

rooted approach, namely the Language-Action

Perspective – LAP (Shishkov et al., 2006a) that

possesses strengths in modeling real-life

interactions. LAP distinguishes between two types

of activities (production acts and coordination acts)

and two types of roles that an entity could fulfil

(initiator and executor). The initiator initiates an

interaction and the executor delivers the required

production fact. This is accompanied however by

coordination acts which could be request, promise,

state, accept, and decline, and which together with

the production act form a generic interaction (GI)

pattern of a real-life interaction (Bunge, 1979;

Shishkov et al., 2006b). Complex interactions can in

most cases be decomposed into such patterns.

According to the pattern, the initiator initiates an

interaction, by making a request which could be

either taken or declined by the executor. If taken, it

should be fulfilled by him, by his delivering the

desired production fact, through performing a

corresponding production act. If the executor has

declined the request, he and the initiator enter a

negotiation whose negative result leads to

interaction’s failure. If they find a compromise

however, the executor must take commitment of

delivering the ‘updated’ desired result. The

production act is responsibility of the executor.

However, it does not mark the interaction’s

completion; a result delivery is subject to

announcement (explicit or implicit) by the executor.

The result is to be ‘evaluated’ by the initiator who

may accept it (interaction completed) or not

(interaction not completed and negotiation starts). If

unsuccessful, the negotiation leads to interaction’s

failure. If a compromise is found then the interaction

is to reach completion.

3 THE HEALTH-CARE

SCENARIO

We will describe and illustrate (in Sections 4 and 5)

the different modeling phases, supported by a

health-care scenario (outlined below), inspired by a

broader case (Van Sinderen et al., 2006).

In the scenario, we consider patients who are

suffering from conditions that are characterized by

occasional occurrences of undesired effects. For this

reason, these patients need help from caregivers

each time when symptoms occur.

We distinguish two situations: Situation 1 – the

traditional institutional-care situation, and Situation

2 – the situation in which patients are no longer

bound to an institution like a hospital, but receive

mobile care through monitoring and treatment

realized from distance, using advanced technology.

SITUATION 1. In approaching the traditional

institutional-care situation, we identify the role of

Caregiver (fulfilled by medical doctors or medical

nurses) who provides help to patients. In this help

provisioning, the caregiver receives support from

medical workers who fulfil the following roles:

Triager (the allocator of treatment to patients),

Trend Synthesizer (the first checker of the patient’s

condition), Processor (the examiner of the patient’s

symptoms), Analyst (the patient history analyst), and

Advisor (the rules-supported generator of advice to

the Caregiver). Furthermore, we distinguish between

two possible states that are relevant to this care

provisioning, namely: State 1 – ‘not too busy’, some

doctors are immediately available to provide help,

and State 2 – ‘very busy’, all doctors are occupied or

have scheduled appointments (within half an hour,

for example). In State 1, a doctor helps a patient if

the patient had been directed by the Triager. In order

to give a proper direction to the patient, the Triager

must have received input from the Trend Synthesizer

who in turn must have checked (beforehand) the

patient’s condition, for which the Trend Synthesizer

needs two inputs, one coming from the Processor

and another one – coming from the Analyst. The

Processor provides information resulting from a

conducted examination of the patient’s symptoms

(for example, a consideration of vital signs, such as

blood sugar and blood pressure). The Analyst

delivers some conclusions resulting from the

medical history of the patient. In State 2, it is

desired, if possible, to minimize the work directed to

doctors and to replace them (in some cases) by

nurses. Then nurses take action in helping a patient

only if the patient had been directed by the Triager

and the Advisor had provided sufficient instructions

that allow the nurse to give adequate care to the

patient. Hence, the Advisor needs input from the

Triager who in turn needs input similar to State 1.

SITUATION 2. In approaching the technology-

facilitation-driven situation, we identify the same

roles and interactions as described in Situation 1,

and they are involved in the same scenario. The

difference however is that those who fulfil the roles

of Triager, Trend Synthesizer, Processor, Analyst,

and Advisor, are not human beings but components

belonging to a distributed software application; it

runs on a number of devices, supporting the doctors

and nurses in their help provisioning.

ICEIS 2007 - International Conference on Enterprise Information Systems

108

Section 4 will result in a CA model of Situation

1. Section 5 outlines, on this basis, the specification

of an application that could run on (advanced)

devices, adequately fulfilling the corresponding

requirements.

4 BUSINESS MODELING

In achieving the first modeling milestone we come

through the following 3 sub-phases:

The Context analysis sub-phase, approaching the

possible context states and corresponding desired

behaviors, includes: (i) study of the possible context

states and their occurrence probabilities; (ii)

discovery of useful context parameters whose values

indicate the occurrence of particular states.

The Structural (static) modeling sub-phase

includes the identification of: (i) business systems

relevant to each desirable behavior; (ii) relevant

entities belonging to the system/environment - for

each of the system ‘versions’; (iii) relations between

entities, representing interaction abilities that

concern only two-entity interactions (see Section 2) -

for each of the system ‘versions’; (iv) the entities’

Initiator/Executor roles in the relations - for each of

the system ‘versions’; (v) proper rules that define the

‘switch’ between different desired behaviors. All

this builds up a Business entity model.

The Behavior modeling and Service

identification sub-phase concerns the modeling of

entities’ integrated interaction behavior, abstracting

from interaction contributions. Being concerned

with different levels of abstraction and elaboration,

the modeling evolves as follows: (i) the system’s

external behavior is firstly modeled, considering the

system as a ‘black box’; (ii) the system’s internal

behavior is disclosed on this basis (relevant

interactions are modeled as well as the way the

interactions relate to each other); (iii) units of

composite behaviors are identified by grouping

interactions (putting together the coordination acts,

following the GI pattern), arriving therefore at a

service model. For more elaborations on these steps

and on the related conformance justification, readers

are referred to (Shishkov et al., 2006b).

4.1 Context Analysis Sub-phase

Deciding about states, the engineer is sometimes

inevitably driven by subjective judgements that are

hardly supportable by rules: How a situation is

perceived? What behaviors can be expected?

Further, the engineer must often make pragmatic

decisions – ignoring, for example, states that usually

do not occur (although they may occur). Besides

such subjective decisions, there are some steps

which in general help (in our view) to adequately

approach the context analysis challenge. These steps

concern the consideration of random variables.

Exploring their probabilities, allows us to apply

statistical analysis, including hypotheses testing and

parameters estimation (Levin & Rubin, 1997).

Considering just possible outcomes is sometimes

not enough in approaching a phenomenon; we might

need to refer to an outcome in general. This is

possible if we have a random variable and we study

the occurrence probability of the outcomes.

As concerns the Health-Care Scenario, we have

there exactly two possible states, namely: ‘not too

busy’ and ‘very busy’. We consider the random

variable Y with respect to these outcomes. Y would

be a discrete random variable (Levin & Rubin,

1997) since it may take on only a countable number

of distinct values (in our case 2). Provided the

number of possible distinct values is exactly 2, we

have the case of a priori probabilities of each of the

alternative outcomes (one of these probabilities can

be calculated by deducting the other one from 1).

A conducted experiment shows that on average,

the ‘busy’ hours are 3 per a 24-hour period – 1

during daytime and 2, during night-time. We

therefore conclude that the a priori probability of the

first of the mentioned possible values is around 0.9.

The a priori probability of the second alternative

outcome is thus 0.1 (1-0.9).

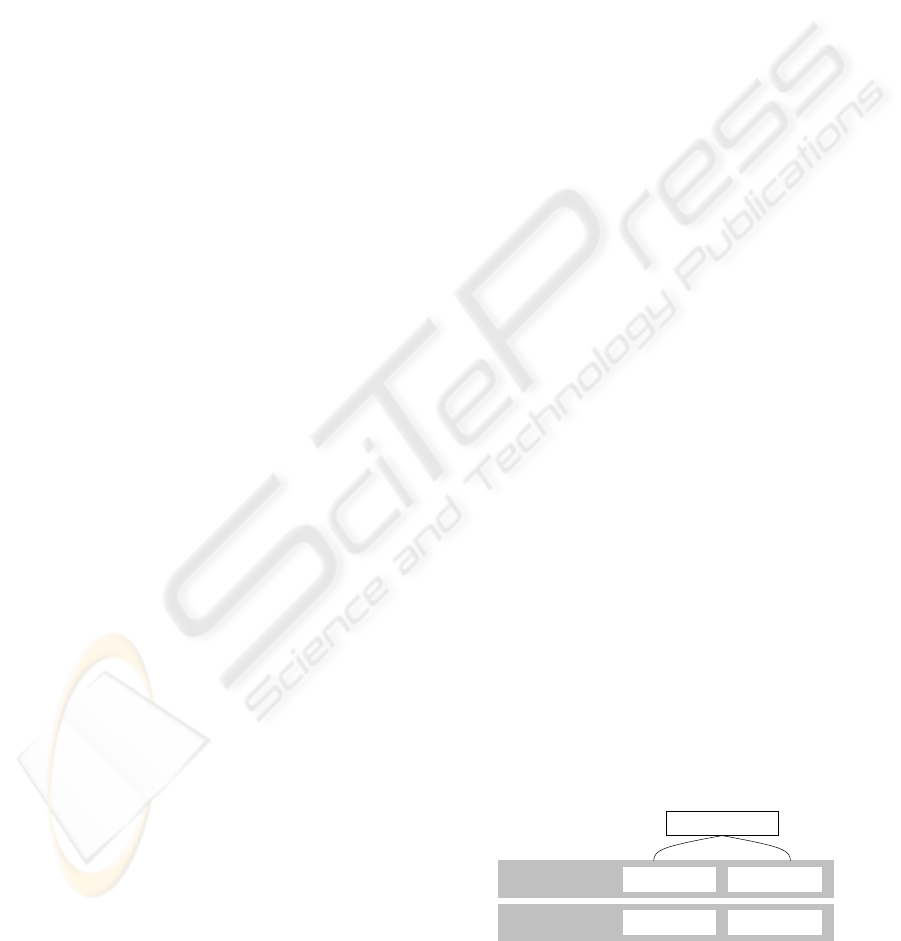

Our context states represent the ‘not too busy’

and ‘very busy’ alternatives, with a priori

probabilities 0.9 and 0.1, respectively (Figure 4).

Knowing the occurrence probability of each

outcome helps in deciding of the ‘default’ desired

external behavior and also what could be ignored.

In order to prescribe how to recognize each of

these 2 states, we assume that the state at a particular

moment is recognizable through observing the

values of appropriate parameters. If we have n

parameters appropriate to our scenario and if each of

them has certain possible values, then each values

combination would point to a particular state.

Alternative

‘

not too busy

’ ‘

very busy

’

priori

probability

0.9 0.1

Context

Figure 4: Two context-state alternatives.

MODEL-DRIVEN DESIGN OF CONTEXT-AWARE APPLICATIONS

109

For brevity, we exemplify with just two

parameters, namely p

and p

 p

is about the ratio between the number of

patients and the number of doctors at a

moment, and is with just 3 possible values: v

(the number is less than 1), v

(it is exactly

1), and v

(it is more than 1);

 p

concerns the particular moment – normal or

not (‘not’ would be during night-time, for

example), and has just 2 possible values,

respectively for ‘normal’ and ‘not’ (not

normal), namely v

and v

Hence, there are 6 possible value (p

)

combinations, namely v

, v

and v

. Driven by some

additional domain analysis, omitted here for brevity,

we determine the last combination only as validly

corresponding to the 0.1-probability alternative (the

‘Second’ alternative), and thus all the rest,

corresponding to the 0.9-probability alternative (the

‘First’ alternative), as depicted in Figure 5.

First alternative

, v

Second alternative

Parameters’ values’ combinations

Figure 5: Context state’s recognition.

Knowing the values of the 2 parameters (the

values could be captured using sensors for example),

one could actually ‘sense’ the context state at a

particular moment.

4.2 Structural Modeling Sub-phase

We omit the steps leading to the derivation of

Business entity models concerning each of the two

desired behaviors, namely the ones corresponding to

the ‘First alternative’ and ‘Second alternative’ states,

including steps concerning decisions on what are the

relevant entities and how they are related to each

other. We omit these steps not only because the

SDBC approach is exhaustive regarding them,

possessing capabilities to transform unstructured

case information into a Business model (Shishkov et

al., 2006a), but also because a consideration of such

early business analysis problems would shift the

focus from the business-software alignment issue.

Hence, we directly ‘arrive’ at the Business entity

model for the Health-Care (HC) case (Figure 6); the

model is expressed using a diagramming technique,

inspired by DEMO (Shishkov & Quartel, 2006). The

identified entities are presented in named boxes –

these are Caregiver (C; D/N – fulfilled by a

doctor/nurse), Triager (T), Trend Synthesizer (TS),

Processor (P), Analyst (A), and Advisor (Adv),

while the small grey boxes, on one end of each

connection, indicate the executor role of the

connected entities. The lines that connect entities,

indicate the need for interactions between those

entities, in order to achieve the objective of

delivering a health-care service; with each such

‘connection’ we associate a single interaction, as

follows: C(CaregiverD)-T (i1), T-TS (i2), TS-P

(i3), and TS-A (i4). As for the delimitation, C is

positioned in the environment of the health-care

(HC) system, and T, TS, P, and

A together form the

system. Through i1, the HC system is related to its

environment (represented by C). Thus, from the

perspective of C, there is no difference between the

system and T. All this concerns the First alternative,

as depicted in the left part of the figure, labelled ‘a)’.

)

HC system

i1b

i1a

Adv

)

Legend

C = Caregiver

T = Triager

TS = Trend

Synthesizer

A = Analyst

P = Processor

Adv = Advisor

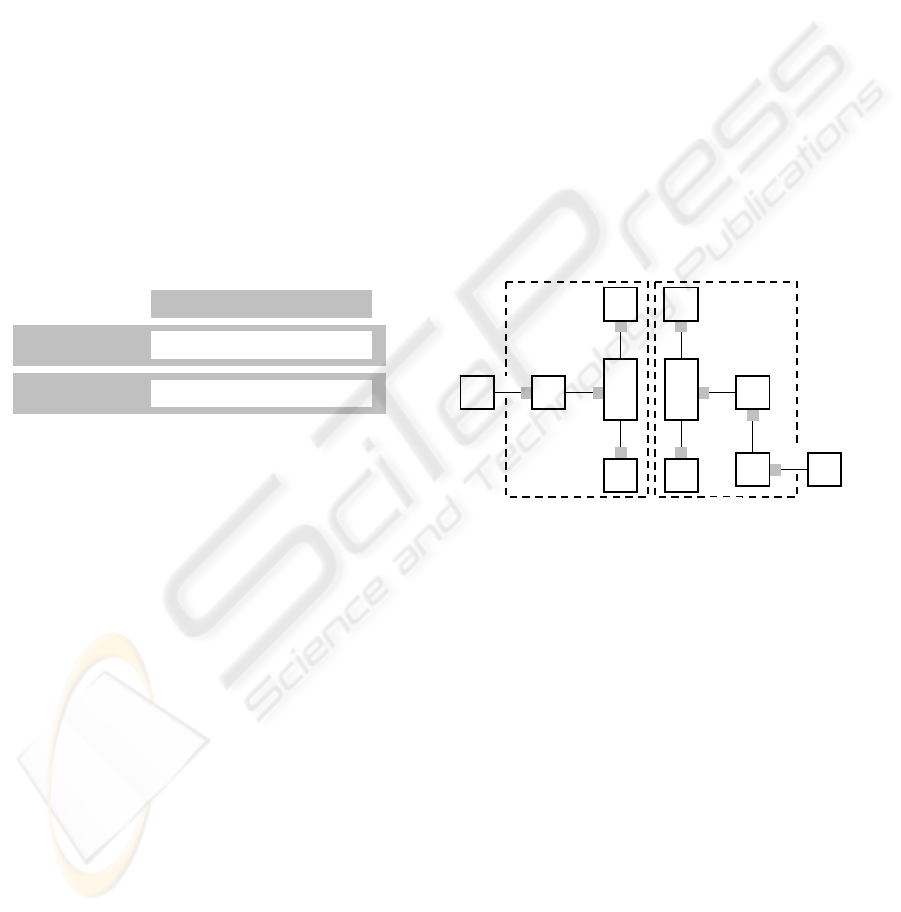

Figure 6: Business entity model for the HC case.

In the Second alternative model - ‘b)’ an Advisor

(Adv) is envisioned ‘between’ C (CaregiverN) and

T (interaction i1 is replaced by two interactions,

namely i1a and i1b).

For brevity, we will consider further only the

First-alternative model since it would allow us to

discuss the business-software alignment almost

sufficiently. As for modeling a transition from one

state to another, this can be done using Semiotic

norms (Liu, 2000).

4.3 Behavioral Modeling and Service

Identification Sub-phase

We decide firstly on the external behavior of the HC

system, at a high level of abstraction, and then we

move to the abstraction level which concerns the

internal behavior of HC.

ICEIS 2007 - International Conference on Enterprise Information Systems

110

With respect to the external behavior model, it

should envision the interaction between the

Caregiver (C) and the system (HC), and is

represented by a single action (expressed by an oval)

in Figure 7-a).

Regarding the internal behavior model, it should

reflect the interactions between the entities of the

system, as exhibited in Figure 7-b). This model

shows how the interaction i1 (between the

CaregiverD C and the Triager T) is made dependent

on other interactions (i2, i3 and i4). The black box

indicates that the results of both i3 and i4 are

necessary for the triggering of i2. Such models can

be extended further (e.g., with attributes) and

interested readers could find more on this issue in

(Shishkov et al., 2006b).

a) b)

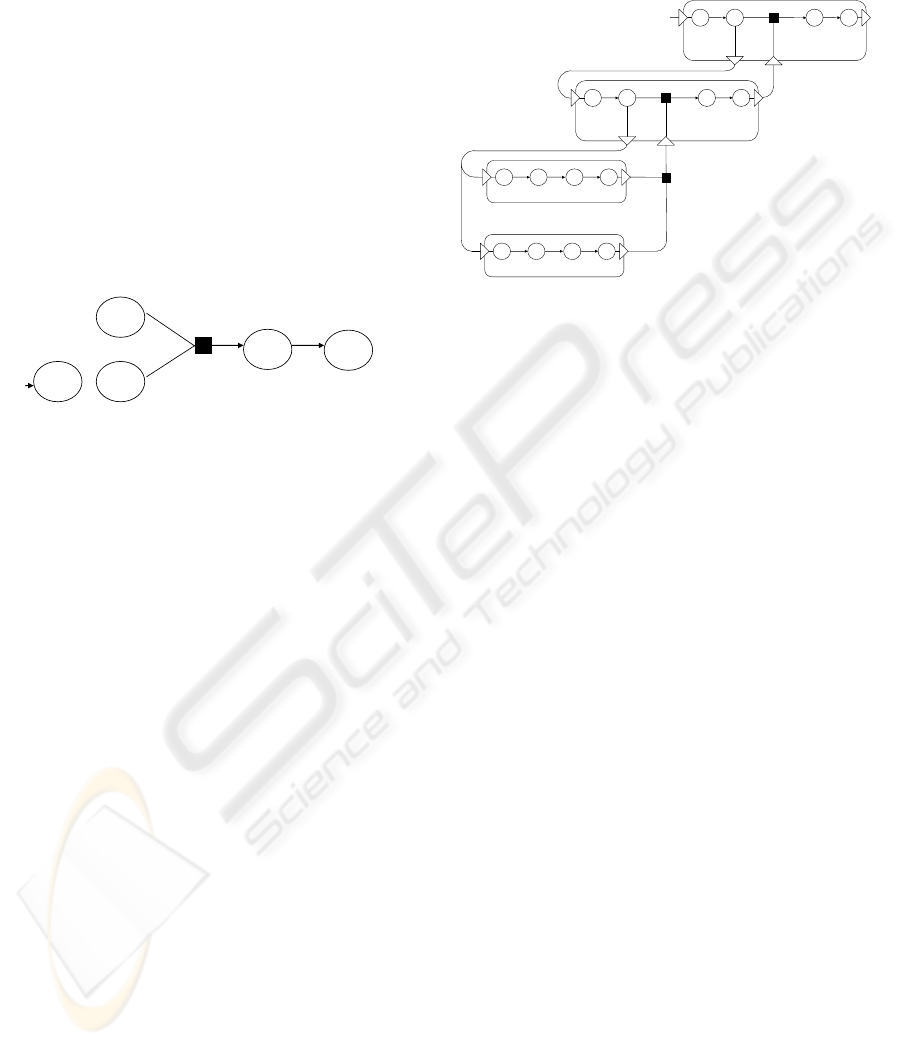

Figure 7: a) HC external behavior represented by a single

action; b) Interactions in decomposed HC system,

implementing the HC external behavior.

We need to further elaborate this model, in order

to achieve a service specification that allows for a

better ‘link’ to relevant real-life aspects. As

mentioned already, we will apply the LAP-driven GI

pattern in enriching our behavior model. We thus

consider the coordination acts request (r), promise

(p), state (s), and accept (a). We also follow the

interaction-interaction triggering ‘mechanism’: if the

initiator of one interaction requests something and if

the executor promises to do the requested production

act, and if this requires another interaction’s output

then in parallel with promising to realize the

production act, the executor requests a result

delivery, which actually is the triggering of another

interaction. For more information on this, readers are

referred to (Shishkov & Quartel, 2006).

We replace each interaction by its corresponding

coordination acts – r, p, s, a, following the above

mentioned ‘mechanism’. We group together

coordination acts based on their relation to

production acts (Figure 8).

We need however to model also the possible

decline acts (see Section 2); we could model them

(decline-after-request and decline-after-state) by a

special value of an information attribute (e.g., Result

r ׀ r = ‘decline’) of the promise and accept acts,

respectively. Information attributes of the act and

constraints on the values of these attributes are not

represented in the figure.

r4 p4

r3 p3 s3 a3

Service T

r1 p1 s1 a1

r2 p2 s2 a2

Service TS

Service A

s4 a4

Service P

Figure 8: Refined interactions in decomposed HC system,

implementing the HC-service behavior.

The model, presented in this way, defines

services rooted in the GI pattern, consistently with

our initial modeling output (Figure 6-a)).

5 APPLICATION MODELING

In achieving the second modeling milestone we

come through the following 4 sub-phases.

The Delimitation-requirements sub-phase

concerns the following decisions: (i) which part of

the business model is addressed by the overall

application service; (ii) what are the user

requirements and how are we reflecting them in the

application model. Decision (ii) is beyond the direct

scope of this paper.

The SOA decisions sub-phase addresses the

SOA-related decisions on the desired realization of

the (distributed) application service. In particular,

these are decisions concerned with the way in which

re-usable services are addressed and coordinated by

application-specific component(s), in support of

achieving the desired functionality of the

application.

The Application design sub-phase is concerned

with according refinement and extension of the

models from the business modeling phase.

The Consistency analysis sub-phase (not

addressed in the current paper; addressed in

(Shishkov et al., 2006b)) envisions the consistency

between the original business models and the

(derived) application models; such an analysis

supports therefore the validation of the built

application models.

MODEL-DRIVEN DESIGN OF CONTEXT-AWARE APPLICATIONS

111

5.1 Delimitation-Requirements

Sub-phase

The scenario statement is not exhaustive in

connection to the (users’) intended automation level

or criteria helping to make related choices (e.g., on

non-functional aspects, such as cost/performance

and ease-of-use). Getting the ‘message’ of the

statement, we could assume nevertheless that the

whole business (HC) system should be automated.

Thus, the HC business service is also the initial

specification of the overall application service.

5.2 SOA Decisions Sub-phase

The easiest-to-do decision is one-to-one mapping

between business processes and application

components. Such a mapping would be

disadvantageous however, because the identified

services are tightly coupled. This means that there is

a dependency of the service provided by one entity

on services provided by other entities (Figure 8). We

claim that a solution would be to introduce ‘in

between’ an additional application component that

has the task of coordination. We label such a

component as ‘Orchestrator‘.

The Orchestrator is an application-specific

component (as the coordination is application-

specific). The (subordinate) services, however,

which are coordinated by the Orchestrator, may be

useful for many different types of applications. Their

description may therefore be published through a

public or corporate registry, such that they can be

discovered, and selected for invocation by an

orchestration component. Related to its coordination

tasks, the Orchestrator could sometimes supply to

one service the result of another service, if this is

necessary for the service to perform its task.

a) b)

i1a i1b

i2a i2b

i3a

i4a

i3b

i4b

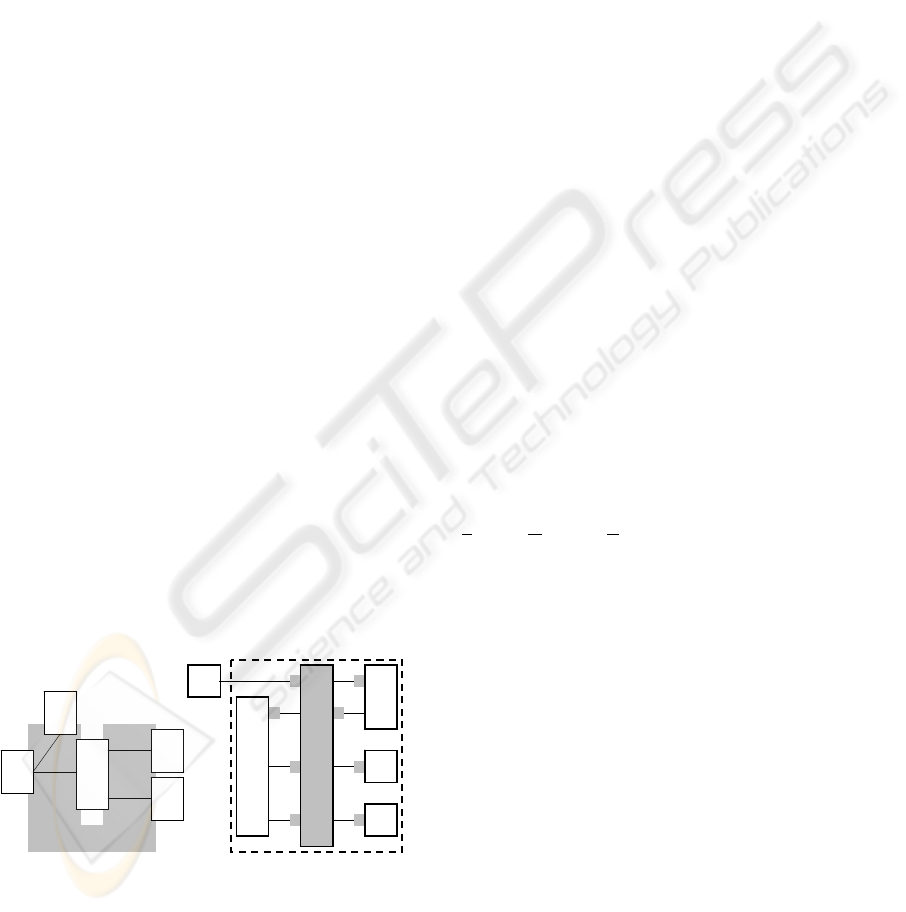

Figure 9: a) Illustration of the role of the Orchestrator; b)

The Application entity model.

Figure 9-a illustrates the Orchestrator’s (O) role.

It concerns the interactivities between the original

entities as well as coordination. The Orchestrator

mediates not only the interaction between the

‘customer’ (C) and the system but also all

interactions between entities inside the system.

5.3 Application Design Sub-phase

In the application design, we firstly refine the

Business entity model (Figure 6-a)), by reflecting

there the Orchestrator entity (colored grey in Figure

9-b)) that mediates interactions between entities.

Then, analogously to what we did in Section 4,

we can derive an application behavior model and a

service-oriented model. We omit this for brevity.

6 CONCLUSIONS

This paper proposes improvements with respect to

the business-application alignment in the design of

context-aware applications. A model-driven service-

oriented approach has been introduced, which is

essentially concerned with consistency as the target

quality to ensure business-application alignment. We

have shown how different business and application

models that progressively capture more details, can

be consistently derived from an initial business

model. Moreover, the approach allows useful design

preparations in cases of desired adaptability of the

application to possible context changes. In support

of the proposed approach, is an explicit design

decision - to specify applications according to the

ervice-Oriented Architecture (SOA). Such a SOA

application model applies an orchestration

component responsible for coordinating the use of

subordinate services, such that the required external

behavior is provided to the application’s

environment. The orchestration component in this

model is typically application-specific, whereas the

subordinate services are not: they could be

discovered from a registry. The SOA application

model is still at a high level of abstraction and does

not depend on any specific technology platform; in

particular, the model uses integrated interactions. A

further step in the design would be the distribution

of such interactions, i.e. consider the exchange of

information necessary for an interaction in a

distributed environment, using a communication

pattern that is supported by a commercially available

middleware or data transport platform. The

consideration of mappings onto particular

technology platforms (such as Web services,

CORBA or J2EE) is beyond the scope of this work.

ICEIS 2007 - International Conference on Enterprise Information Systems

112

We claim that this paper makes useful

contributions concerning (i) the possibility to

analyze application’s context in support of the

(application’s) design; (ii) the proposed use of the

anguage-Action Perspective (LAP) in business

modeling, motivated by relevant strengths, namely

possibilities for capturing real-life aspects; (iii) the

SOA focus that facilitates an adequate business-

application alignment. To justify our claim, we have

studied related work. On the basis of the study, we

have identified several approaches/methods which

usefully address the business-software alignment

challenge, notably SDBC, Catalysis, Tropos

(Shishkov et al., 2006b).

SDBC supports the identification of re-usable

business models that are soundly mappable to UML-

driven software specification models. Catalysis

provides a coherent set of techniques for business

analysis and system development, and also well-

defined consistency rules across models. Tropos

facilitates application specification, supporting it

with sound goal-driven requirements analysis.

A distinctive feature of our proposed approach

(compared to the mentioned ones) is the

combination of:

(i) LAP-based business-capturing;

(ii) behavior model consistency; (iii) SOA focus; (iv)

CA-related strengths (presented). This allows for an

adequate

consideration of relevant real-life aspects in

consistency with which we specify service models,

guaranteeing in this way that the developed services

would adequately function in their environment.

These features distinguish the proposed approach

also from currently popular SOA methods, such as

Crystal, XP and DSDM (Wang & Zhang, 2006).

To further this research, we plan to work on

procedures for automated derivation of the

orchestration component. We are also interested in

specifying techniques that allow for automated

assessment of the consistency between business and

application models.

ACKNOWLEDGEMENTS

This work is part of the Freeband AWARENESS

and A-MUSE projects (http://awareness.freeband.nl;

http://a-muse.freeband.nl). Freeband is sponsored by

the Dutch government under contract BSIK 03025.

REFERENCES

Alonso, G., F. Casati, H. Kuno, V. Machiraju, 2004. Web

services, concepts, architectures and applications,

Springer-Verlag. Berlin Heidelberg.

Bunge, M.A., 1979. A world of systems, Treatise on basic

philosophy, Vol. 4, Reidel Publ. Company. Dordrecht.

Caceres, P., Marcos, E., De Castro, V., 2004. Integrating

agile and model-driven practices in a methodological

framework for the Web information systems

development. In ICEIS’04, 6th International

Conference on Enterprise Information Systems.

INSTICC Press.

Levin, R.I and D.S. Rubin, 1997. Statistics for

management, Prentice Hall. USA.

Liu, K., 2000. Semiotics in information systems

engineering, Cambridge University Press. Cambridge.

Maamar, Z., Baina, K., Benslimane, D., Narendra, N.C.,

Chelbabi, M., 2006. Towards a contextual model-

driven development approach for Web services. In

ICEIS’06, 8th International Conference on Enterprise

Information Systems. INSTICC Press.

Newcomer, E., 2002. Understanding Web services, XML,

WSDL, SOAP and UDDI, Addison-Wesley. Boston.

Rational / OMG MDA, 2006. SModel-Driven

Architecture, Object Management Group,

http://www.omg.org/mda.

Shishkov, B., Quartel, D., 2006. Refinement of SDBC

business process models using ISDL. In ICEIS’06, 8th

International Conference on Enterprise Information

Systems. INSTICC Press.

Shishkov, B., Dietz, J.L.G., Liu, K., 2006. Bridging the

Language-Action Perspective and Organizational

Semiotics in SDBC. In ICEIS’06, 8th International

Conference on Enterprise Information Systems.

INSTICC Press.

Shishkov, B., Van Sinderen, M.J., Quartel, D., 2006.

SOA-driven business-software alignment. In

ICEBE’06, IEEE International Conference on e-

Business Engineering. IEEE Press.

Van Sinderen, M., Van Halteren, A., Wegdam, M.,

Meeuwissen, E., Eertink, H., 2006. Supporting

context-aware mobile applications: an infrastructure

approach. IEEE Communications Magazine.

Wang, H., Zhang, H., 2006. Enabling enterprise resources

reusability and interoperability through Web services.

In ICEBE’06, IEEE International Conference on e-

Business Engineering. IEEE Press.

MODEL-DRIVEN DESIGN OF CONTEXT-AWARE APPLICATIONS

113
