MAINTENANCE COST OF A SOFTWARE DESIGN

A Value-Based Approach

Daniel Cabrero

Dirección General de Tráfico, Spanish Ministry of Internal Affairs, Madrid, Spain

Javier Garzás

Kybele Consulting S.L. Madrid, Spain

Mario Piattini

Alarcos Research Group. University of Castilla-La Mancha. Ciudad Real, Spain

Keywords: Value-Based design, cost estimation, maintenance, design evaluation.

Abstract: Alternative valid software design solutions can give response to the same software product requirements. In

addition, a great part of the success of a software project depends on the selected software design. However,

there are few methods to quantify how much value will be added by each design strategy, and hence very

little time is spent choosing the best design option. This paper presents a new approach to estimate and

quantify how profitable is to improve a design solution. This will be achieved by estimating the

maintenance cost of a software project using two main variables: The probability of change of each design

artifact, and the cost associated to each change. Two techniques are proposed in this paper to support this

approach: COCM (Change-Oriented Configuration Management) and CORT (Change-Oriented

Requirement Tracing).

1 INTRODUCTION

Recently, a Value-based software engineering

(VBSE) agenda has emerged (Boehm, 2005), with

the objective of integrating Value considerations

into the full range of existing and emerging software

engineering principles and practices. One of the

major elements of this agenda is Value-based

architecting, which involves the further

reconciliation of the system objectives with

achievable architectural solutions.

Some work has been already published

according to the agenda. In particular, Value

considerations about requirements (Cleland-Huang

and Denne, 2005, Cleland-Huang et al., 2004,

Heindl and Biffl, 2005, Srikanth and Williams,

2005) and test Value-based aspects (Egyed et al.,

2005, Huang and Bohem, 2006, Srikanth and

Williams, 2005). However, very few proposals about

Value-based design have been written. (Kazman et

al., 2001) exposes an architecture-centric approach

to the economic modelling of software design

decision making called CBAM (Cost Benefit

Analysis Method), in which costs and benefits are

traded off with system quality attributes. However,

this method doesn’t provide any clue of how this

cost should be calculated. Up to now, there is no

work addressing how to calculate cost and benefit of

each design decision in a Value-based context.

The way each design decision affects to the

maintainability and global cost of software projects

is still an open research issue. In general, each

design artifact has a different relative importance. In

fact, the contribution to the global design will vary

depending on where and how the solution is applied.

This lead us to the concept of “Value-based” Design.

2 FROM DESIGN TO VALUE

Software maintenance consumes the largest part of

the overall lifecycle cost (Bennet and Rajlich, 2000,

Pigoski, 1996). The incapacity to update software

quickly and reliably means that organizations lose

business opportunities. Thus, in recent years we

384

Cabrero D., Garzás J. and Piattini M. (2007).

MAINTENANCE COST OF A SOFTWARE DESIGN - A Value-Based Approach.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 384-389

DOI: 10.5220/0002358903840389

 SciTePress

have seen an important increase in research

addressing these issues.

Considering the ISO 9126 standard, three

important parameters for quality maintenance of

Object Oriented Micro Architectural Design exist:

Analyzability, Changeability and Stability:

 Analyzability allows us to understand the

design.

 Changeability allows a design to be able to be

altered, an important requirement at the time of

extended functionality into an existing code. In

our case, the element that provides

changeability is what it is called indirection.

(Nordberg, 2001) comments that “at the heart of

many design patterns is an indirection between

service provider and service consumer”.

 Stability allows us reduce risk of unexpected

effect of modifications.

Introducing indirections, such as abstraction

layers or patterns, has a big impact on the

relationship among analyzability, changeability and

stability. Thanks to the fact that experienced

software engineers and domain specialists develop

patterns, the software community can take advantage

of this reliable knowledge, available from pattern

libraries (Gamma et al., 1995).

This new approach was an important milestone

when talking about design techniques. Since then,

however, a lot of applications have been designed.

Some of them implemented no patterns at all, and on

the other hand, some others are overloaded with

patterns. But then, when should I introduce a new

indirection?

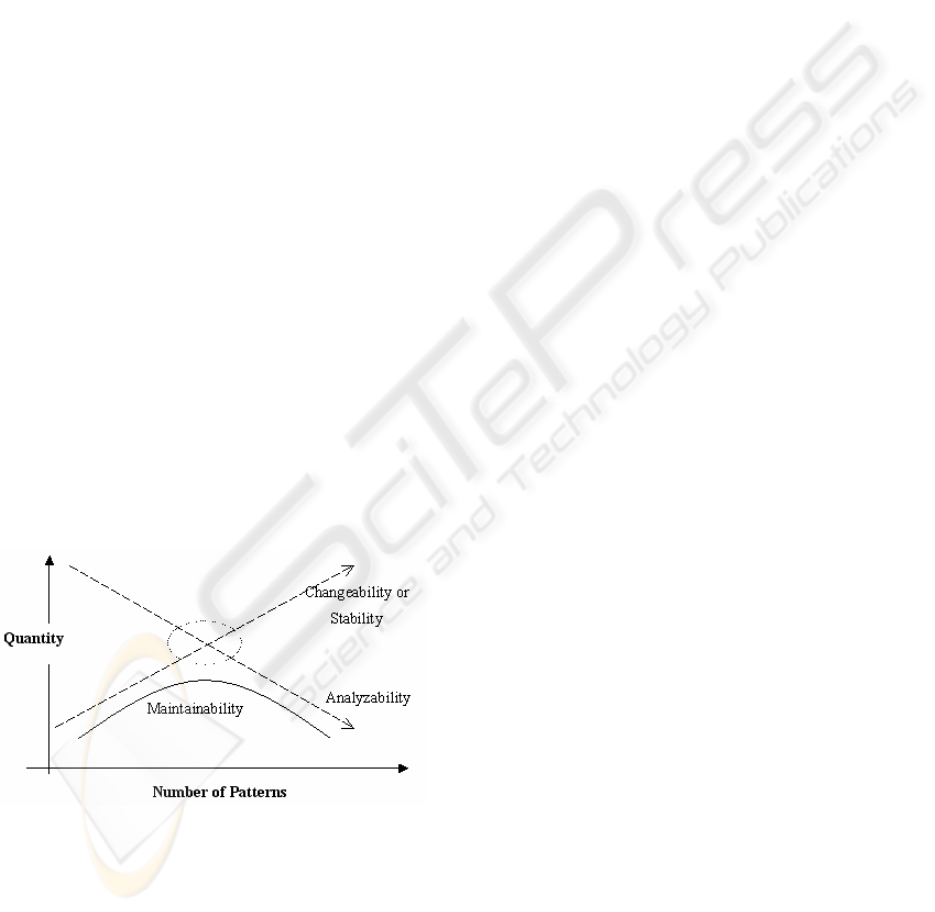

Figure 1: Impact of the number of Patterns on

Maintainability extracted from (Garzás and Piattini, 2002).

For example, if a design implements a lot of

design patterns this design will have a great amount

of changeability and stability, but it won’t be

analyzable. On the other hand, if it doesn’t provide

point of change (indirections) it will be analyzable,

but difficult to change. Figure 1 depicts this context.

This problem lead us to the point that not every

pattern or indirection adds the same Value to the

design, it depends on where and how it’s used. This

will be discussed in detail in the next section.

3 COST DRIVEN DESIGN

3.1 Cost of Maintainability

A first approach for calculating the cost of a design

is the generic cost model showed in the equation 1.

= C

+ C

(1)

The Total Cost of Construction (C

) is defined by

two factors: The initial development cost (C

), and

the maintenance cost of that implementation (C

Extending this model, this paper proposes to

decompose the problem into pieces, and to apply this

model to each piece that predicts which will be the

cost of development and maintenance during the

whole project’s life, taking into account not only the

cost, but also the long-term benefit.

This can be done multiplying the probability of

change of each component by the cost of change. Of

course, the probability of change will depend on the

estimated life expectancy of the project. Thus, the

equation 2 models the maintenance cost in this

scenario.

= Σ

year, comp

Probability(change) * C

change

(2)

Where Σ

year, comp

Probability(change) is the

probability of change of a component in the whole

life of the project, and C

change

is the cost of change of

this component. The feasibility of this model

depends on a correct estimation of probability and

cost. In addition, a usable technique of

decomposition of the problem must be defined.

3.2 Cost of Refactoring

(Fowler, 1999) introduced the concept of

“Refactoring”. To refactor an application is to

change its internal design in order to make it easier

to maintain but conserving the same external

behaviour.

In this study, we will use the model to decide

whether or not to refactor a faulty expensive-to-

maintain application. In terms of viability and costs,

a software company has to check if the cost of

refactoring (C

refactoring

) plus maintenance

(refactored)) is smaller than the money spent in

the long term maintenance cost without refactoring

). See equation 3.

MAINTENANCE COST OF A SOFTWARE DESIGN: A Value-Based Approach

385

> C

(refactored) + C

refactoring

(3)

If this statement is true, the refactoring of the

faulty application is viable. Otherwise, it could be

better not to modify the application or to build it

from the beginning.

To be able to apply this model, we must estimate

several variables: the probability of change of a

component (Σ

year, comp

Probability(change)), the cost

of a change (C

change

), and the cost of refactoring

refactoring

). The rest of the paper will focus on this

task.

4 ESTIMATING THE

PROBABILITY OF CHANGE

As stated in section 2.2, the feasibility of this model

depends on a correct estimation of probability of

change.

Two techniques are proposed in this paper to

tackle this problem: COCM (Change-Oriented

Configuration Management) and CORT (Change-

Oriented Requirement Tracing).

4.1 Change-Oriented Configuration

Management (COCM)

This technique reviews which object has changed

and when it happened. The Table 1 shows an

example of data extraction.

Table 1: Example of COCM data extraction.

Object Changes

Object 1 10/10/2006

12/10/2006

15/10/2006

Object 2 10/10/2006

12/10/2006

Object 3 15/10/2006

The historical information available on the Table

2 might be transformed into probability of change.

This probability will be obtained by normalizing the

number of changes.

Table 2: COCM probability of change.

Object Estimated probability of

change

Object 1 3/3 = 100%

Object 2 2/3 = 66%

Object 3 1/3 = 33%

The main advantage of this technique is that it

can be easily automated, but there are two pre-

requisites for its utilisation. The first is that we need

to have all this information available in a

Configuration Management Tool. The other is that

this tool must have been already used for a long

enough period of time to receive a representative

amount of change requests.

4.2 Change-Oriented Requirement

Tracing (CORT)

Using final user input to estimate probability of

change of a design artifact is a difficult task for two

reasons. First, among the existing types of software

artefacts (requirement, design, code, and so on),

requirement artifacts are the only items that can be

understood by the stakeholders. For this reason,

tracing techniques need to be used to identify where

those requirements corresponds to design artifacts.

Second, in most cases, the only link between

designers and final users is the gathered

requirements, which have no mention to the

probability of change and earned Value of each one.

To solve this problem, we propose to extract and

document some additional information concerning

the probability of change for each requirement.

Later, this information will be traced into design

artifacts to find out which requirement will change

and how, according to the final user.

4.2.1 Requirement Elicitation Approach

The aim of this new approach is to identify which

requirement will change. Our technique is inspired

by a case study presented by (Srikanth and Williams,

2005), that used a method called VBRT (Value

Based Requirement Tracing), which sets a

requirement priorization based on the risk and the

relative Value of each requirement. In our case, we

will use a similar approach but focusing on

changeability.

In this way, after identifying stakeholders of the

project, they are asked to assign a “changeability”

variable to each requirement and use case. This will

generate a matrix of requirement/stakeholders with a

number from 1 to 10 expressing the “estimated

variability” of each requirement from each

stakeholder point of view, as showed in the Table 3.

Table 3: “Estimated Variability” matrix.

User 1 User 2 User 3

Req. 1

3 5 0

Req. 2

2 7 1

Req. 3

0 1 0

This variable is then normalized in order to

obtain a probability. The Table 4 depicts the process.

ICEIS 2007 - International Conference on Enterprise Information Systems

386

Table 4: Probability of change per user of each

requirement.

User 1 User 2 User 3

Req. 1

3/7 = 28% 5/7 = 71% 0

Req. 2

3/7 = 28% 7/7 = 100% 1/7 = 14%

Req. 3

0 1/7 = 14% 0

The next step is to calculate the average or

probability (or adjusted average assigning weights to

different users if each stakeholder is not equally

important). In this case, for simplicity, we will

consider that all users have the same relative

importance, and we won’t use weights. The Table 5

shows probability of change of the each

requirement.

Table 5: Probability of change of each requirement.

Probability of Change

Req. 1

33%

Req. 2

47%

Req. 3

The main advantage of this approach is that it

can be easily used by many software requirement

tools, which already have variables associated with

requirements, such as importance or frequency. But

on the other hand, we have the problem that we need

the software requirements specification and direct

contact with stakeholders, which is not always

available.

4.2.2 Tracing Requirements to Design

Artifacts

In software development projects there are

interdependencies between all kinds of artifacts, e.g.

requirements, design, source code, test cases.

Requirements tracing is the ability to follow the life

of a requirement in a forward and backward

direction (Gotel and Finkelstein, 1994).

An interesting summary of tracing oriented to

improve the return of investment is provided by

(Cleland-Huang et al., 2004). The detailed study of

each option is out of the scope of this research.

Anyway, all of them finally establish a relationship

between a set of requirements and an object or group

of objects.

This relationship will allow us to analyse which

objects will change if a given requirement changes,

and to translate that “probability of change” from the

requirement to objects. For example, if requirement

1 has a 33% of probability of change and this change

will affect to the object A and B, we could say that

the object A and B have a 33% of probability of

change.

5 ESTIMATING THE COST OF

CHANGE

It’s very difficult to estimate what we don’t know.

For this reason, the first logical step is to understand

which kind of changes may be needed. Fortunately,

there is a great amount of previous work on Object

Oriented Design Knowledge (OODK). In particular,

we are interested in “design rules” (Garzás and

Piattini, 2005) exposed in the next subsection.

5.1 Classification of Changes Using

OODK Rules

In OODK, rules are the “what”, patterns are the

“how”, and refactorings are the “how to apply”

design practices. In this case, we are interested in the

“what”. A high quality design must be compliant

with design rules. Table 6 shows some design rules.

Table 6: Some of the OODK rules extracted from (Garzás

and Piattini, 2005).

If there is any software design element (class, methods,

code, and so on) duplicated, then eliminate the duplication

If there are dependencies on concrete classes then these

dependencies should be on abstractions.

If there are unused or little-used items then eliminate them

If a super class knows any of its subclasses then eliminate it.

If a class collaborates with too many others then reduce the

number of collaborations.

If a change in an interface has an impact on many clients

then create specific interfaces for each client.

If a service has many parameters then create various

methods, reducing the list, or put these into an object.

If the attributes of a class are public or protected then make

them private and access them through services.

Thus, when we have a software design and we

need to improve it, the most intuitive way is to

detect the deficiencies (in this case, violated rules)

and fix a percentage of deficiency resolutions. Note

that we will use the probability of change to know

when will be profitable to make the change.

5.2 Estimating Cost of Each Type of

Change

The last step in our research is to estimate how much

time will be needed to make a maintenance update in

the code where a OODK rule is violated (we will

call it Cost A), how much will cost to fix that rule

MAINTENANCE COST OF A SOFTWARE DESIGN: A Value-Based Approach

387

violation (Cost B) and to make the change once the

design has been improved (Cost C). The cost will be

expressed in “hours of work”.

Table 7: Example of cost associated to a change.

Rule Cost A Cost B Cost C

Rule 1 4 hours 4 hours 2 hours

Rule 2 3 hours 6 hours 1 hour

Rule 3 8 hours 12 hours 6 hours

The improvement is worth it if the cost A

multiplied by the number of modifications (n) is

bigger than the cost B plus the cost C multiplied by

n. The equation 4 shows the concept.

Cost(A) * n > Cost (B) + (Cost (C) * n) (4)

At first sight, if the change must be done only

once, probably it will be better in terms of cost not

to improve the design. This confirms the importance

of the “probability of change” variable estimated in

the precedent section.

The most direct and reliable way to estimate how

many hours will be necessary to change the code is

to plan an experiment where a group of developers

accomplish this task. This experiment must be

repeated for each design rule. The output of this

experiment could be similar to the data exposed in

the Table 7.

Note that this experiment still hasn’t been carried

out in the context of this research, as noted in the

“Future Work” section.

6 GATHERING ALL TOGETHER

A company maintaining a faulty and expensive-to-

maintain software may wonder whether or not to

redesign some parts of the application, in order to

make the application easier to maintain. To assess

the potential cost of this application the following

steps are proposed.

First, we have to analyse the application in order

to identify violated rules and to estimate the cost to

modify those designs. This process is explained in

detail in section 5. Then, we must estimate the

potential cost of maintenance of the code associated

to that violated rule. To be able to calculate this cost

) presented in the equation 2, we need to

estimate the probability of change and the estimated

cost of change. This process is reviewed in the

sections 4 and 5.

Later, we use the same equation to estimate the

cost of maintenance after improving the code

(refactored)), and estimate the cost of refactoring

refactoring

) using techniques exposed in section 5.

Only then we will be able estimate if the

modification is profitable verifying if the condition

exposed in the equation 3 is true.

In this way, it is possible to perform a cost-based

guide of design decisions.

7 CONCLUSION AND FUTURE

WORK

For future work, it would be very important to carry

out an empirical validation of results. Several case

studies could be conducted in order to verify

empirically the suitability of the proposal.

In addition we plan to carry out an experiment

that estimates the cost of correcting a violation of

each rule, and the cost of modification of code

containing violated rules. This experiment must be

planned with a group of developers that accomplish

this task, and repeated for each design rule.

We have presented a method for guiding a

software design improvement through value and

design knowledge. The estimation has been based on

how effective the solutions are, instead of measuring

functionality or size. This will be achieved

estimating the maintenance cost of each solution.

To achieve this goal, we have developed a

Value-based model oriented to maintenance costs,

due to the fact that the main goal of a design is to

make applications maintainable (stable, changeable

and analyzable).

ACKNOWLEDGEMENTS

This work has been partially supported by the

ESFINGE project (Ministerio de Ciencia y

Tecnología (TIN 2006-15175-C05-05) and

ENIGMAS (Entorno Inteligente para la Gestión del

Mantenimiento Avanzado del Software), supported

by the Department of Education and Science of the

Junta de Comunidades de Castilla-La Mancha

(Regional Government of Castilla-La Mancha) (PBI-

05-058).

REFERENCES

Antoniol, G., Lokan, C., Caldiera, G. & Fiutem, R. (1999)

A Function Point-Like Measure for Object-Oriented

Software. Empirical Software Engineering, 4, 263 -

287.

Bennet, K. H. & Rajlich, V. T. (2000) Software

Maintenance and Evolution: a Roadmap. ICSE (Track

ICEIS 2007 - International Conference on Enterprise Information Systems

388

on The Future of Software Engineering). Limerick,

Ireland, Finkelstein A.

Boehm, B. (2005) Value-Based Software Engineering:

Overview and Agenda. Value-Based Software

Engineering Springer.

Boehm, B., Horowitz, E., Madachy, R., Reifer, D., Clark,

B. K., Steece, B., Brown, A. W., Chulani, S. & Abts,

C. (2000) Software Cost Estimation with Cocomo II

Prentice Hall PTR.

Briand, L. C., Emam, K. E., Surmann, D., Wieczorek, I. &

Maxwell, K. D. (1999) An assessment and comparison

of common software cost estimation modeling

techniques. International Conference on Software

Engineering Los Angeles, California, United States

IEEE Computer Society Press.

Cleland-Huang, J. & Denne, M. (2005) Financially

informed requirements prioritization. International

Conference on Software Engineering St. Louis, MO,

USA ACM Press.

Cleland-Huang, J., Zemont, G. & Lukasik, W. (2004) A

Heterogeneous Solution for Improving the Return on

Investment of Requirements Traceability.

Requirements Engineering Conference, 12th IEEE

International (RE'04). IEEE Computer Society

Egyed, A., Biffl, S., Heindl, M. & Grünbacher, P. (2005)

A value-based approach for understanding cost-benefit

trade-offs during automated software traceability. 3rd

international workshop on Traceability in emerging

forms of software engineering Long Beach, California

ACM Press.

Fowler, M. (1999) Refactoring: Improving the Design of

Existing Code, Menlo Park, California, Addison

Wesley.

Gamma, E., Helm, R., Johnson, R. & Vlissides, J. (1995)

Design Patterns, Reading, MA, Addison-Wesley.

Garzás, J. & Piattini, M. (2002) Analyzability and

Changeability in Design Patterns. SugarLoafPLoP.

The Second Latin American Conference on Pattern

Languages of Programming. Itaipava, Río de Janeiro,

Brasil.

Garzás, J. & Piattini, M. (2005) An ontology for micro-

architectural design knowledge. IEEE Software

Magazine, 22, 28-33.

Gotel, O. C. Z. & Finkelstein, A. C. W. (1994) An

analysis of the requirements traceability problem. 1st

International Conference on Requirements

Engineering. Colorado Springs, CO, USA.

Heindl, M. & Biffl, S. (2005) A Case Study on Value-

based Requirements Tracing. 10th European software

engineering conference held jointly with 13th ACM

SIGSOFT international symposium on Foundations of

software engineering Lisbon, Portugal ACM Press.

Huang, L. & Bohem, B. (2006) How Much Software

Quality Investment Is Enough: A Value-Based

Approach. IEEE Software, 23, 88- 95.

Kazman, R., Asundi, J. & Klein, M. (2001) Quantifying

the Costs and Benefits of Architectural Decisions.

Proceedings of the 23rd International Conference on

Software Engineering. Toronto, Ontario, Canada,

IEEE Computer Society.

Nordberg, M. E. (2001) Aspect-Oriented Indirection –

Beyond OO Design Patterns. OOPSLA 2001,

Workshop Beyond Design: Patterns (mis)used. Tampa

Bay, Florida, EEUU.

Pigoski, T. M. (1996) Practical Software Maintenance.

Best Practices for Managing your Investements, NY.

USA, John Wiley & Sons.

Srikanth, H. & Williams, L. (2005) On the economics of

requirements-based test case prioritization. 7th

international workshop on Economics-driven software

engineering research St. Louis, Missouri ACM Press

MAINTENANCE COST OF A SOFTWARE DESIGN: A Value-Based Approach

389
