LIVE TV SUBTITLING

Fast 2-pass LVCSR System for Online Subtitling

Ale

s Pra

ak, Lud

ek M

uller

SpeechTech s.r.o., Morseova 5, 301 00 Plze

n, Czech Republic

J. V. Psutka, J. Psutka

Department of Cybernetics, University of West Bohemia, Univerzitn

ı 8, 306 14 Plze

n, Czech Republic

eywords:

ASR, LVCSR, HMM, real-time, class-based language model, live TV, online subtitling.

Abstract:

The paper describes a fast 2-pass large vocabulary continuous speech recognition (LVCSR) system for au-

tomatic online subtitling of live TV programs. The proposed system implementation can be used for direct

recognition of TV program audio channel or recognition of a shadow speaker who re-speaks the original audio

channel. The ﬁrst part of this paper focuses on preparation of an adaptive language model for TV programs,

where person names are speciﬁc for each subtitling session and have to be added to the recognition vocabulary.

The second part outlines the recognition system conception for automatic online subtitling with vocabulary up

to 150 000 words in real-time. The recognition system is based on Hidden Markov Models, lexical trees and

bigram and quadgram language models in the ﬁrst and second pass, respectively. Finally, experimental results

from our project with the Czech Television are reported and discussed.

1 INTRODUCTION

There is a lot of hearing impaired people who have

only limited access to the information contained in

audio channel in the multimedia content. In the tele-

vision - the most widespread mass media - there is an

effort to access its multimedia content to these peo-

ple with alternative textual information - the subtitles.

Many public service televisions such as Czech Tele-

vision have a duty by law to subtitle certain portion of

their broadcasting. The subtitles should be added to

all TV programs, even to the live TV programs with

minimum delay. To meet this requirement the auto-

matic speech recognition (ASR) technology is being

introduced for live subtitling in some television com-

panies, for example BBC (Evans, 2003).

Since the automatic speech recognition technol-

ogy is not error-free and the recognition results are

very dependent on the acoustic speech signal quality

the trend is to use so-called shadow speaker who re-

speaks the original speech by his own words. The

recognition system can be learned to professional

speaker acoustic characteristics, manner of speech

and even the vocabulary he or she uses. The recogni-

tion results are then more accurate so the subtitles can

be well intelligible. In addition, the shadow speaker

can simplify the original speech to meet the demands

of the hearing impaired people for simple, easily read-

able subtitles. However, the training of the shadow

speaker is a very time and money consuming process.

Some TV programs have clear acoustic speech

signal and quite limited vocabulary so direct recogni-

tion of the TV program audio channel can be carried

out with reasonable recognition accuracy. This ap-

proach can save expenses on shadow speakers and can

be fully automated. So far we have prepared a system

for automatic online subtitling of the live transmis-

sions of the Czech Parliament meetings without use

of a shadow speaker.

2 ADAPTIVE LANGUAGE

MODEL

By law, the shorthand records of all Czech Parliament

meetings are available for public use on the Internet.

These shorthand records are amended to avoid slips

of the tongue and to meet grammatical rules; how-

ever there is a huge amount of text from different elec-

139

Pražák A., Müller L., V. Psutka J. and Psutka J. (2007).

LIVE TV SUBTITLING - Fast 2-pass LVCSR System for Online Subtitling.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 139-142

DOI: 10.5220/0002140301390142

 SciTePress

toral periods to create a high quality language model.

Unfortunately, this training text contains many non-

standard (NS) words: abbreviations, acronyms, num-

bers written as ﬁgures, dates etc. Therefore the con-

version of NS words to their standard forms (digit se-

quences, abbreviations and acronyms to the full word

forms) is essential. This is called text normalization.

2.1 Text Normalization

The text normalization for languages with a low de-

gree of inﬂection such as English is easier because

the most conversions are unambiguous. However, in

highly inﬂectional languages, such as Czech or other

Slavic languages, one NS word can be converted to

several standard forms, each of which has the same

meaning but represents different morphological cate-

gories (gender, case and number). The morphological

meaning of each NS word is given also by its context

in a whole sentence. The method proposed in (J. Ka-

nis, 2005) solves the task of ﬁnding the right standard

form for a given NS word. This method is based on a

tagger performing context-dependent morphological

disambiguation of each word in a given sentence.

The text normalization system has two modules.

The ﬁrst module ensures NS word detection and clas-

siﬁcation and the second module the conversion it-

self. The detection and classiﬁcation is based on reg-

ular expressions. We distinguish 17 different types of

NS words, for example cardinal and ordinal number,

date, abbreviation, currency, percentage etc. After the

NS word is detected the second module converts it to

the standard form. The conversion is algorithmic and

uses the method proposed in (J. Kanis, 2005). Firstly,

the NS word is converted to the basic form and then a

tagger is used to ﬁnd the morphological information

which determines the right standard form.

The automatic NS word conversion accuracy is

about 90 %. To improve this result we performed

manual correction as postprocessing of the automatic

conversion. The implementation of automatic text

normalization with the manual correction accelerates

process of the text normalization more then ten times

in comparison with full manual text normalization.

2.2 Language Model Classes

Now a standard n-gram language model can be

trained on the normalized text of the parliament meet-

ings from three electoral periods. The language

model contains the names of representatives (deputies

and government members) from these three electoral

periods. However, this language model does not al-

low subtitling of parliament meetings from different

(including future) electoral periods, due to missing

names of representatives elected in those periods. In

addition, each name has been seen in different con-

texts in the training text, so the n-gram probability

mass is split among many names of representatives.

Even though the parliament meeting speeches contain

only 1.5 % of representative names, there are some

TV programs such as sport transmissions where the

portion of names in the commentary exceeds 15 %

and the described problem becomes crucial. Because

the names of representatives are known before the

ﬁrst parliament meeting, the language model can be

adapted before the actual subtitling. We created a

language model in which each class incorporates one

concrete Czech grammatical case of all representative

names. The language model was trained in two steps.

Firstly, the names of the representatives from the

electoral periods corresponding to the training text

were automatically inﬂected to all grammatical cases.

This inﬂection was based on speciﬁc rules for dif-

ferent cases and different inﬂectional patterns. Each

name in the training text was then replaced by a tag

representing the name’s grammatical case. Unfor-

tunately, different grammatical cases can have the

same morphological form (especially female names),

so manual classiﬁcation of ambiguous morphological

forms was still necessary.

In the second step, taking into account these tags

instead of the individual names, a class-based n-gram

language models were trained. Five classes have

been created and ﬁlled by inﬂected names of repre-

sentatives from demanded electoral period. The four

classes contain multi-words

"first name+surname"

and words

"surname"

in different grammatical cases.

The class probabilities were split between these

words in proportion to their frequency in the train-

ing text. The last ﬁfth class contains reverse multi-

words

"surname+first name"

in the ﬁrst grammat-

ical case. Other forms of names did not occur in the

training text.

Using an adaptive language model with classes for

names, our online subtitling system can be used for

any electoral period of parliament meetings. This ap-

proach can be effectively used also for other named

entities, for example company or state names.

3 LVCSR SYSTEM

The fast 2-pass large vocabulary continuous speech

recognition system developed at the Department of

Cybernetics, University of West Bohemia is the main

module of the whole subtitling system.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

140

3.1 Acoustic Processing

The analogue input speech signal is digitized at 44.1

kHz sampling rate and 16-bit resolution format. The

aim of the front-end processor is to convert contin-

uous acoustic signal into a sequence of feature vec-

tors. We performed experiments with MFCC and PLP

parameterizations, see (J. Psutka, 2001) for method-

ology. The best results were achieved using 27 ﬁl-

ters and 12 PLP cepstral coefﬁcients with both delta

and delta-delta sub-features. Feature vectors are com-

puted at the rate of 100 frames per second.

Each individual basic speech unit is represented

by a three-state HMM with a continuous output prob-

ability density function assigned to each state. In this

task, we use only 8 mixtures of multivariate Gaus-

sians for each state. The choice of an appropriate ba-

sic speech unit with respect to the recognition network

structure and its decoding is discussed later.

3.2 Recognition Network

Our LVCSR system uses a lexical tree (phonetic pre-

ﬁx tree) structure for representation of acoustic base-

forms of all words of the system vocabulary. In a lex-

ical tree, the same initial portions of word phonetic

transcriptions are shared. This can dramatically re-

duce the search space for a large vocabulary, espe-

cially for inﬂectional languages, such as Czech, with

many words of the same word stem. The automatic

phonetic transcription (with pronunciation exceptions

deﬁned separately) is applied to all words of the sys-

tem vocabulary and resulted word baseforms for all

pronunciation variants are added to the lexical tree.

To better model the pronunciation of words we

used triphones (context dependent phonemes) as the

basic speech units. By using a triphone lexical tree

structure, the in-word triphone context can be eas-

ily implemented in the lexical tree. However, the

full triphone cross-word context leads to fan-out im-

plementation by generation of all cross-word context

triphones for all tree leaves. This results in enor-

mous memory requirements and vast computational

demands. To respect the requirement of the real-time

operation we have proposed an approximation of the

triphone cross-word context.

One of the possible approaches is to use mono-

phones (context independent phonemes) instead of

triphones on the word boundaries. However, this

brings the necessity to train two different types of

acoustic model units and also mutually normalize the

monophone and triphone likelihoods. To cope with

this problem, we use only triphone state likelihoods

and merge the triphone states corresponding to the

same monophone within a given phone context. As

the system vocabulary is limited, not all right and

left cross-word contexts have to be modeled. This

approach results in so-called biphones that represent

merged triphone states with only one given context

- right in the root and left in the leaves. The bi-

phone likelihood is computed as the mean of the like-

lihoods of merged triphone states. The proposed bi-

phone cross-word context represents a better approx-

imation than a simple replacement of triphones by

monophones on the word boundaries. In addition,

this approach increases neither the recognition net-

work complexity nor the decoding time, but only the

duration of ofﬂine recognition network creation.

3.3 Recognition Network Decoder

Since bigram language model is implemented in the

ﬁrst pass, a lexical tree copy for each predecessor

word is required. The lexical tree decoder uses a time-

synchronous Viterbi search with token passing and ef-

fective beam pruning techniques applied to re-entrant

copies of a lexical tree. The beam pruning is used

inside and also at the level of the lexical tree copies,

but a sudden increase of hypothesis log-likelihoods

occurs due to application of language model proba-

bilities at time of word to word (lexical tree to lex-

ical tree) transitions. Fortunately, early application

of the knowledge of language model can be carried

out by factorizing language model probabilities along

the lexical tree. In the lexical tree, more words share

the same initial part of their phonetic transcriptions

and thus only the maximum of their language model

probabilities is implemented towards the root of the

lexical tree during the factorization. In addition, com-

monly used linear transformation of language model

log-likelihoods is carried out for optimal weighting of

language and acoustic models.

To deal with requirement of real-time operation,

an effective method for managing lexical tree copies

is implemented. The algorithm controls lexical tree

to lexical tree transitions and lexical tree copies cre-

ation/discarding. The number of lexical tree copies

decoded in real-time is limited, so the control algo-

rithm keeps only the most perspective hypotheses and

avoids their undesirable alternations, which protects

the decoding process from time consuming creation

of lexical tree copies. The algorithm also manages

and records tokens passed among lexical tree copies

in order to identify the best path at the end of the

decoding. In addition, for word graph generation

not only the best, but several (n-best) word to word

transitions are stored. HTK Standard Lattice For-

mat (S. Young, 1999) is used to store the word graph.

LIVE TV SUBTITLING - Fast 2-pass LVCSR System for Online Subtitling

141

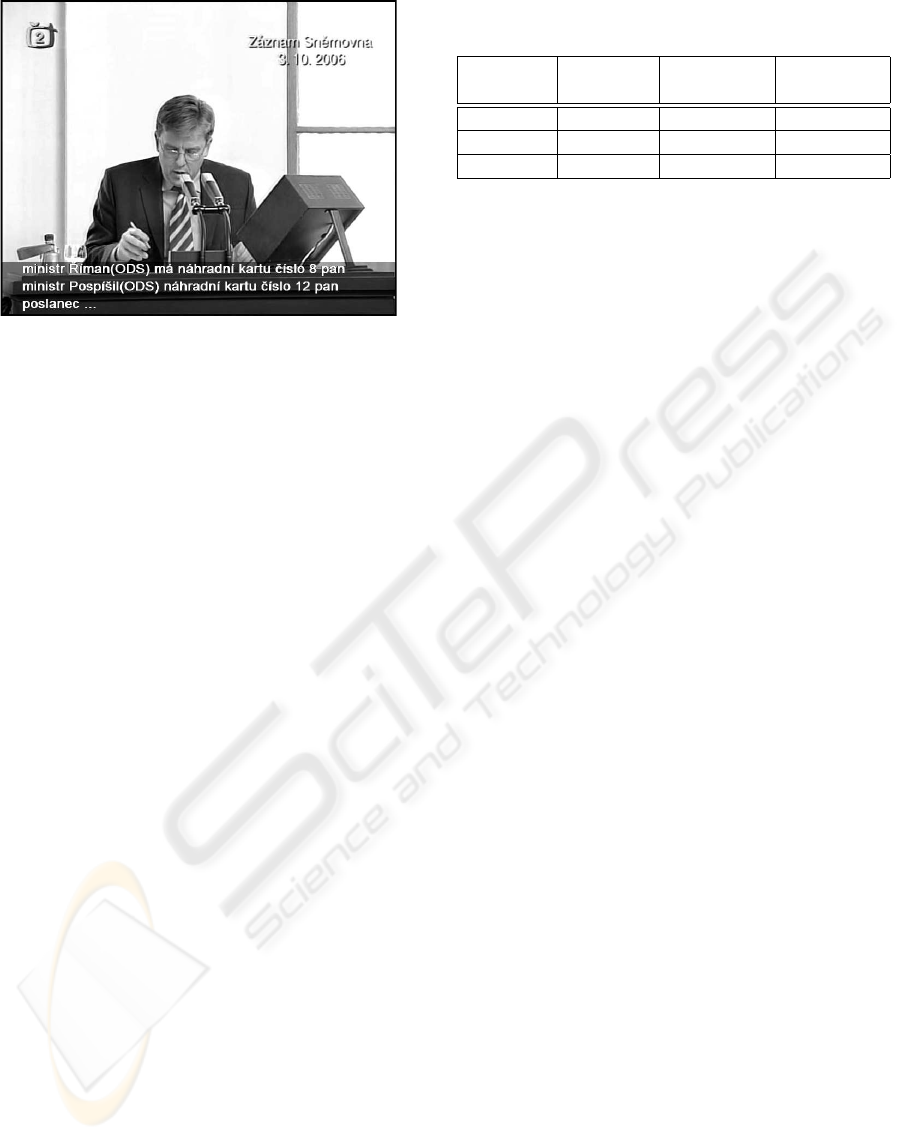

Figure 1: Online subtitling of TV transmission of the Czech

Parliament meeting.

In the second pass of the recognition system, the

word graph is rescored with class-based 4-gram lan-

guage model trained as described in section 2. To al-

low progressive subtitle displaying, the word graph

creation and its rescoring can be performed even sev-

eral times per second. The whole LVCSR system can

effectively use multi-core computer systems, so the

proposed fast 2-pass LVCSR system implementation

handles tasks up to 150 000 words in real-time with

the delay about one second.

4 EXPERIMENTS

The acoustic model for subtitling of the parliament

meetings was trained on 40 hours of parliament

speech records with manual transcription. We used 42

Czech phonemes. As the number of Czech triphones

is too large, phonetic decision trees were used to tie

their states. Now, subtitling of the Czech Parliament

meetings works with 3 729 different HMM states of a

speaker and gender independent acoustic model.

Three language models were trained on about

18M tokens of normalized Czech Parliament meeting

transcriptions (Chamber of Deputies only) for the ex-

periment. The ﬁrst one is the baseline bigram back-off

language model (BLM) with Good-Turing discount-

ing trained directly from the training text, i.e. without

name classes. The second one is an adapted class-

based 2-gram language model (ALM2) for the ﬁrst

pass and the last one is an adapted class-based 4-

gram language model (ALM4) for word graph rescor-

ing in the second pass. The last two language mod-

els were trained from training text incorporating tags

representing the name classes. The vocabulary size is

almost 113 000 words. The SRI Language Modeling

Toolkit (Stolcke, 2002) was used for training.

Table 1: Experimental results with baseline and adapted

language models.

Language Test Recognition Recognition

model perplexity correctness accuracy

BLM 305 86.13 % 83.67 %

ALM2 292 87.02 % 84.42 %

ALM4 208 87.55 % 85.06 %

Five parliament speech records from different

electoral period than the training text, half an hour

each, were chosen for the testing. The OOV word rate

is 1.51 % for BLM, 1.35 % for ALM2 and ALM4. It

is important to notice that about 50 % of the OOV

words are slips of the tongue. The perplexity and

recognition results are reported in Table 1.

5 CONCLUSION

We designed our fast 2-pass LVCSR system imple-

mentation that is suitable for automatic online subti-

tling using original TV program audio channel or us-

ing a shadow speaker. Many word errors are caused

only by missing prepositions and wrong endings of

ﬂexible words, so the subjective readability of auto-

matically generated subtitles is very high.

ACKNOWLEDGEMENTS

This work was supported by the Ministry of Edu-

cation of the Czech Republic under project M

SMT

2C06020.

REFERENCES

Evans, M. J. (2003). Speech recognition in assisted and live

subtitling for television. BBC R&D White Paper, 065.

J. Kanis, J. Zelinka, L. M. (2005). Automatic numbers

normalization in inﬂectional languages. In SPECOM

2005, 10th International Conference SPEECH and

COMPUTER.

J. Psutka, L. M

uller, J. V. P. (2001). Comparison of

mfcc and plp parameterization in the speaker in-

dependent continuous speech recognition task. In

EUROSPEECH 2001, 7th European Conference on

Speech Communication and Technology.

S. Young, e. a. (1999). The HTK Book. Entropic Inc.

Stolcke, A. (2002). Srilm - an extensible language modeling

toolkit. In ICSLP 2002, 7th International Conference

on Spoken Language Processing.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

142
