Efthymios Alepis, Maria Virvou
Department of Informatics, University of Piraeus, 80 Karaoli & Dimitriou St., 18534, Piraeus, Greece
Katerina Kabassi
Department of Ecology and the Environment, Technological Educational Institute of the Ionian Islands
2 Kalvou Sq., 29100 Zakynthos, Greece
Keywords: Human-Machine Interface, e-learning, knowledge engineering, multi-criteria decision making theories.
Abstract: This paper presents knowledge engineering for a system that incorporates user stereotypes as well as a multi
criteria decision making theory for affective interaction. The system bases its inferences about students’
emotions on user input evidence from the keyboard and the microphone. Evidence form these two modes is
combined by a user modelling component underlying the user interface. The user modelling component
reasons about users’ actions and voice input and makes inferences in relation to their possible emotional
states. The mechanism that integrates the inferences form the two modes has been based on the results of
two empirical studies that were conducted in the context of requirements analysis of the system. The
evaluation of the developed system showed significant improvements in the recognition of the emotional
states of users.
The unprecedented growth in HCI has led to a
redefinition of requirements for effective user
interfaces. A key component for these requirements
is the ability of systems to address affect (Hudlicka,
2003). This is especially the case for computer-
based educational applications that are targeted to
students who are in the process of learning. Learning
is a complex cognitive process and it is argued that
how people feel may play an important role on their
cognitive processes as well (Goleman, 1995). At the
same time, many researchers acknowledge that
affect has been overlooked by the computer
community in general (Picard & Klein, 2002).
Picard (Picard, 2003) argues that people’s
expression of emotion is so idiosyncratic and
variable, that there is little hope of accurately
recognising an individual’s emotional state from the
available data. Therefore, many researchers have
pointed out that there is a need of combining
evidence from many modes of interaction so that a
computer system can generate as valid hypotheses as
possible about users’ emotions (e.g. Oviatt, 2003,
Pantic & Rothkrantz, 2003). However, for the time
being, very little research has been reported in the
literature towards this direction.
In this paper, we present the knowledge
engineering process for combining two modes of
interaction, namely keyboard and microphone, for
the development of an affective educational

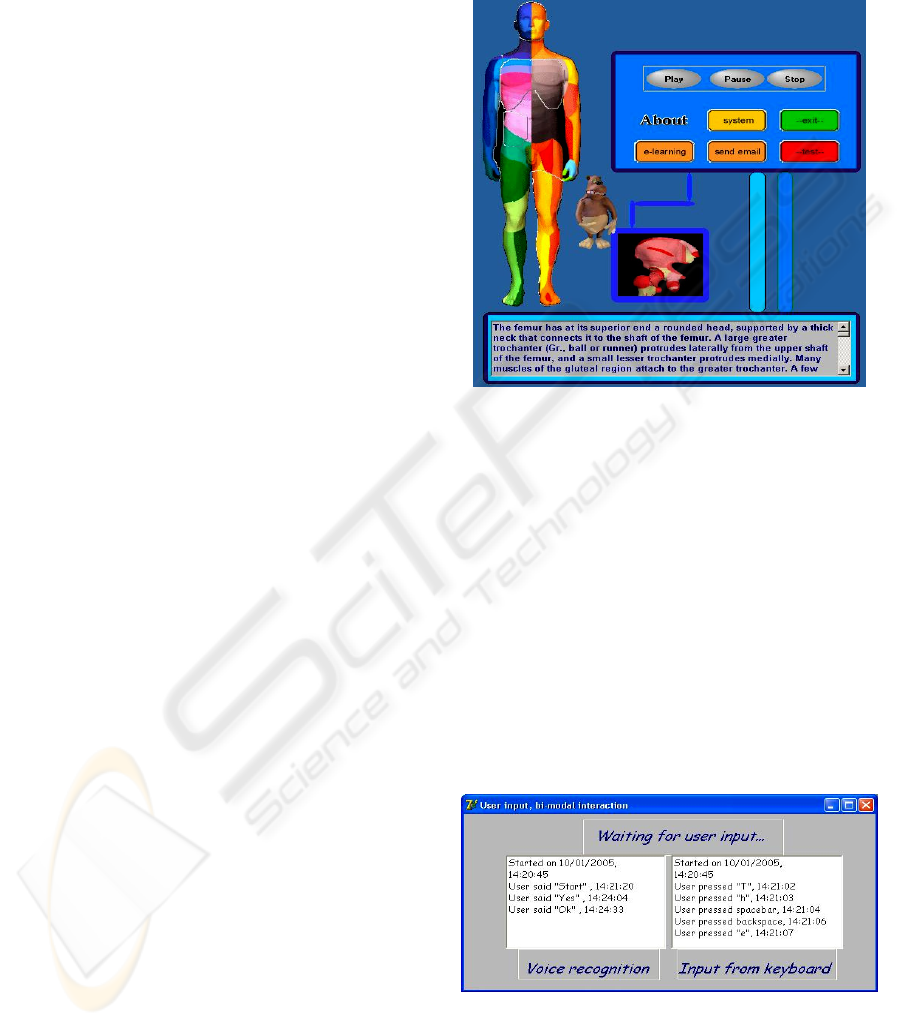

application. The educational application is called
Edu-Affe-Mikey and is an affective educational
software application targeted to first-year medical
The main characteristic of the system is that it
combines evidence from the two modes mentioned
above in order to identify the users’ emotions. The
results of the two modes are combined through a
multi-criteria decision making method. More
specifically, the system uses Simple Additive
Weighting (SAW) (Fishburn 1967, Hwang & Yoon
1981) for evaluating different emotions, taking into
account the input of the two different modes and
selects the one that seems more likely to have been
felt by the user. In this respect, emotion recognition
is based on several criteria that a human tutor would
Alepis E., Virvou M. and Kabassi K. (2007).
In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 218-225
DOI: 10.5220/0002138302180225
have used in order to perform emotion recognition
of his/her students during the teaching course.
The values of the criteria used in our novel
approach that is described in this paper, are acquired
by user stereotypes. For this purpose, user
stereotypes have been constructed with respect to the
different emotional states of users that these users
are likely to have experienced in typical situations
during the educational process and their interaction
with the educational software. Examples of such
situations are when a student makes an error while
answering an exam question or when a user reads
about a new topic within the educational application
The user stereotypes have been resulted from an
empirical study that we conducted among 50 users.
The empirical study aimed at finding out common
user reactions of the target group of the application
that express user feelings while they interact with
educational software.
The main body of this paper is organized as
follows: In section 2 we present and discuss related
work. In the next section we describe the overall
educational application and in sections 4 and 5 we
present briefly the experimental studies for
requirements analysis. Section 6 describes the
application of the multi-criteria decision making
method in the context of the educational application.
In section 7 we present and discuss the results of the
evaluation of the multi-criteria model. Finally, in
section 8 we give the conclusions drawn from this
2.1 Stereotypes
Stereotypes constitute a popular user modeling
technique for drawing inferences about users
belonging to different groups and were first
introduced by Rich (Rich, 1983). Stereotype-based
reasoning takes an initial impression of the user and
uses this to build a user model based on default
assumptions (Kay, 2000). Therefore, Kobsa et al.
(Kobsa et al, 2001) describe a stereotype as
consisting of two main components: A set of
activation conditions (triggers) for applying the
stereotype to a user and a body, which contains
information that is typically true of users to whom
the stereotype applies. The information that a
stereotype contains is further used by a system in
order to personalise interaction.
The need of incorporating stereotypes concerning
users’ characteristics in modern multi-modal
application interfaces is important; individuals can
more effectively understand universal emotions
expressed by members of a cultural group to which
they have greater exposure (Elfenbein & Ambady,
The importance of user stereotypes is
acknowledged by other researchers as well in the
area of emotion recognition. For example, in
(Moriyama & Ozawa 2001) is suggested that the
incorporation of stereotypes in emotion-recognition
systems improves the systems’ accuracy. Despite
this importance, in 2001 there were only a few
studies based on emotion stereotypes but the interest
in such approaches was rapidly growing (Moriyama
et al, 2001).
2.2 Simple Additive Weighting
The Simple Additive Weighting (SAW) (Fishburn,
1967, Hwang & Yoon, 1981) method is among the
best known and most widely used decision making
method. SAW consists of two basic steps:
1. Scale the values of the n criteria to make
them comparable. There are cases where the
values of some criteria take their values in
[0,1] whereas there are others that take their
values in [0,1000]. Such values are not easily
comparable. A solution to this problem is
given by transforming the values of criteria in
such a way that they are in the same interval.
If the values of the criteria are already scaled
up this step is omitted.
2. Sum up the values of the n criteria for each
alternative. As soon as the weights and the
values of the n criteria have been defined, the
value of a multi-criteria function is calculated
for each alternative as a linear combination of
the values of the n criteria.
The SAW approach consists of translating a decision
problem into the optimisation of some multi-criteria
utility function
U defined on
. The decision
maker estimates the value of function
XU for
every alternative X
and selects the one with the
highest value. The multi-criteria utility function
can be calculated in the SAW method as a linear
combination of the values of the n criteria:
where X
is one alternative and x
is the value of the i
criterion for the X
Requirements specification and analysis resulted
from two different empirical studies. The first
empirical study participated 50 potential users of the
educational system and it revealed the basic
requirements for affective bi-modal interaction. The
second empirical study, on the other hand,
participated 16 expert users and the information
collected were used for defining the criteria for
determining the emotional states of users. These
criteria would be used in the next phases of the
software life-cycle for applying the multi-criteria
decision making model.
3.1 Determining Requirements for
Affective Bi-modal Interaction
In order to find out how users express their emotions
through a bi-modal interface that combines voice
recognition and input from keyboard we have
conducted an empirical study. This empirical study
involved 50 users (male and female), of the age
range 17-19 and at the novice level of computer
experience. The particular users were selected
because such a profile describes the majority of first
year medical students in a Greek university which
the educational application is targeted to. They are
usually between the age of 17 and 19 and usually
have only limited computing experience, since the
background knowledge required for medical studies
does not include advanced computer skills.
In the first phase of the empirical study these
users were given questionnaires concerning their
emotional reactions to several situations of computer
use in terms of their actions using the keyboard and
what they say. Participants were asked to determine
what their possible reactions would be when they are
at certain emotional states during their interaction.
Our aim was to recognise the possible changes in the
users’ behaviour and then to associate these changes
with emotional states like anger, happiness,
boredom, etc.
After collecting and processing the information
of the empirical study we came up with results that
led to the design of the affective module of the
educational application. For this purpose, some
common positive and negative feelings were
The results of the empirical study were also used
for designing the user stereotypes. In our study user
stereotypes where built first by categorizing users by
their age, their educational level and by their
computer knowledge level. The reason why this was
done was that people’s behaviour while doing
something may be affected by several factors
concerning their personality, age, experience, etc.
Indeed, the empirical study revealed many cases of
differences among users. For example, experienced
computer users may be less frustrated than novice
users. Younger computer users are usually more
expressive than older users while interacting with an
animated agent and we may expect to have more
data from audio mode than by the use of a keyboard.
The same case is when a user is less experienced in
using a computer than a user with a high computer
knowledge level. In all these cases stereotypes were
constructed to indicate which specific characteristics
in a user’s behaviour should be taken more to
account in order make more accurate assumptions
about the users’ emotional state.
The empirical study also revealed that the users
would also appreciate if the system adapted its
interaction to the users’ e-motional state. Therefore,
the system could use the evidence of the emotional
state of a user collected by a bi-modal interface in
order to re-feed the system, adapt the agent’s
behaviour to the particular user interacting with the
system and as a result make the system more
accurate and friendly.
3.2 Determining Multiple Criteria
Decision making theories provide precise
mathematical methods for combining criteria in
order to make decisions but do not define the
criteria. Therefore, in order to locate the criteria that
human experts take into account while providing
individualised advice, we conducted a second
empirical study.
The empirical study should involve a satisfactory
number of human experts, who will act as the human
decision makers and are reviewed about the criteria
that they take into account when providing
individualised advice. Therefore, in the experiment
conducted for the application of the multi-criteria
theory in the e-learning system, 16 human experts
were selected in order to participate in the empirical
study. All the human experts possessed a first and/or
higher degree in Computer Science.
The participants of the empirical study were
asked which input action from the keyboard and the
microphone would help them find out what the
emotions of the users were. From the input actions
that appeared in the experiment, only those proposed
by the majority of the human experts were selected.
In particular considering the keyboard we have: a)
user types normally b) user types quickly (speed
SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications
higher than the usual speed of the particular user) c)
user types slowly (speed lower than the usual speed
of the particular user) d) user uses the backspace key
often e) user hits unrelated keys on the keyboard f)
user does not use the keyboard.
Considering the users’ basic input actions
through the microphone we have 7 cases: a) user
speaks using strong language b) users uses
exclamations c) user speaks with a high voice
volume (higher than the average recorded level) d)
user speaks with a low voice volume (low than the
average recorded level) e) user speaks in a normal
voice volume f) user speaks words from a specific
list of words showing an emotion g) user does not
say anything.
Concerning the combination of the two modes in
terms of emotion recognition we came to the
conclusion that the two modes are complementary to
each other to a high extent. In many cases the human
experts stated that they can generate a hypothesis
about the emotional state of the user with a higher
degree of certainty if they take into account evidence
from the combination of the two modes rather than
one mode. Happiness has positive effects and anger
and boredom have negative effects that may be
measured and processed properly in order to give
information used for a human-computer affective
interaction. For example, when the rate of typing
backspace of a user increases, this may mean that
the user makes more mistakes due to a negative
feeling. However this hypothesis can be reinforced
by evidence from speech if the user says something
bad that expresses negative feelings.
In this section, we describe the overall functionality
and emotion recognition features of our system,
Edu-Affe-Mikey. The architecture of Edu-Affe-
Mikey consists of the main educational application
with the presentation of theory and tests, a
programmable human-like animated agent, a
monitoring user modelling component and a
While using the educational application from a
desktop computer, students are being taught a
particular medical course. The information is given
in text form while at the same time the animated
agent reads it out loud using a speech engine. The
student can choose a specific part of the human body
and all the available information is retrieved from
the systems’ database. In particular, the main
application is installed either on a public computer
where all students have access, or alternatively each
student may have a copy on his/her own personal
computer. An example of using the main application
is illustrated in figure 1. The animated agent is
present in these modes to make the interaction more
Figure 1: A screen-shot of theory presentation in Edu-
Affe-Mikey educational application.
While the users interact with the main
educational application and for the needs of emotion
recognition a monitoring component records the
actions of users from the keyboard and the
microphone. These actions are then processed in
conjunction with the multi-criteria model and
interpreted in terms of emotions. The basic function
of the monitoring component is to capture all the
data inserted by the user either orally or by using the
keyboard and the mouse of the computer. The data is
recorded to a database and the results are returned to
the basic application the user interacts with. Figure 2
illustrates the “monitoring” component that records
the user’s input and the exact time of each event.
Figure 2: Snapshot of operation of the user modeling
Instructors have also the ability to manipulate the
agents’ behaviour with regard to the agents’ on
screen movements and gestures, as well as speech
attributes such as speed, volume and pitch.
Instructors may programmatically interfere to the
agent’s behaviour and the agent’s reactions
regarding the agents’ approval or disapproval of a
user’s specific actions. This adaptation aims at
enhancing the “affectiveness” of the whole
interaction. Therefore, the system is enriched with
an agent capable to express emotions and, as a
result, enforces the user’s temper to interact with
more noticeable evidence in his/her behaviour.

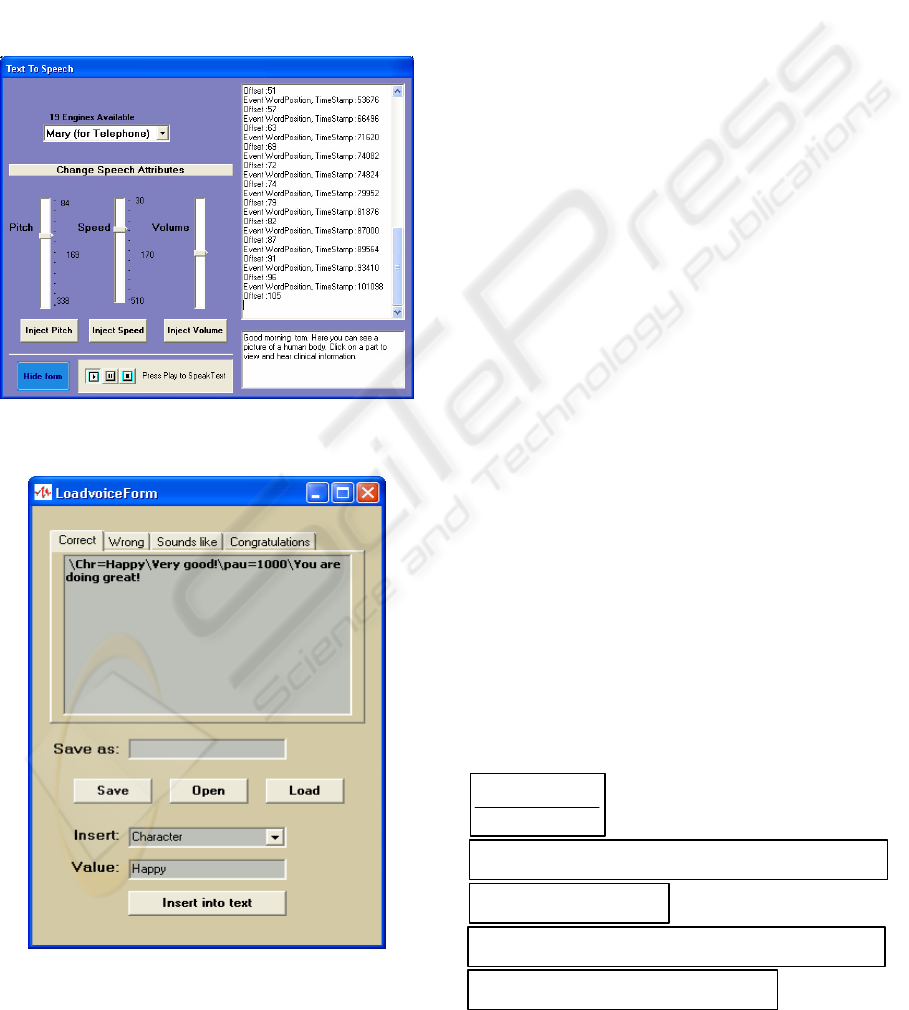

Figure 3 illustrates a form where an instructor
may change speech attributes.
Figure 3: Setting parameters for the voice of the tutoring
Figure 4: Programming the behaviour of animated agents
depending on particular students’ actions.
Within this context the instructor may create and
store for future use many kinds of voice tones such
as happy tone, angry tone, whisper and many others
depending on the need of a specific affective agent-
user interaction. In some cases a user’s actions may
be rewarded with a positive message by the agent
accompanied by a smile and a happy tone in the
agent’s voice, while in other cases a more austere
behaviour may be desirable for educational needs.
Figure 4 illustrates how an instructor may set
possible actions for the agent in specific interactive
situations while a user takes a test.
The input actions that were identified by the human
experts during the second experimental study during
requirements specification and analysis provided
information for the emotional states that may occur
while a user interacts with an educational system.
These input actions are considered as criteria for
evaluating all different emotions and selecting the
one that seems more prevailing. More specifically,
each emotion is evaluated first using only the criteria
(input actions) from the keyboard and then only the
criteria (input actions) from the microphone. In
cases where both modals (keyboard and
microphone) indicate the same emotion then the
probability that this emotion has occurred is
increased significantly. Otherwise, the mean of the
values that have occurred by the evaluation of each
emotion is calculated and the one with the higher
mean is selected.
For the evaluation of each alternative emotion the
system uses SAW for a particular category of users.
This particular category comprises of the young
(under the age of 19) and novice users (in computer
skills). The likelihood for a specific emotion
(happiness, sadness, anger, surprise, neutral and
disgust) to have occurred by a specific action is
calculated using the formula below:
(Formula 1)
(Formula 2)
SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications
em is the probability that an emotion has
occurred based on the keyboard actions and
is the probability that refers to an emotional state
using the users’ input from the microphone. These
probabilities result from the application of the
decision making model of SAW and are presented in
formulae 1 and 2 respectively.
em and
em take their values in [0,1].
In formula 1 the k’s from k1 to k6 refer to the six
basic input actions that correspond to the keyboard.
In formula 2 the m’s from m1 to m7 refer to the
seven basic input actions that correspond to the
microphone. These variables are Boolean. In each
moment the system takes data from the bi-modal
interface and translates them in terms of keyboard
and microphone actions. If an action has occurred
the corresponding criterion takes the value 1,
otherwise its value is set to 0. The w’s represent the
weights. These weights correspond to a specific
emotion and to a specific input action and are
acquired by the stereotype database. More
specifically, the weights are acquired by the
stereotypes about the emotions.
In order to identify the emotion of the user
interacting with the system, the mean of the values
that have occurred using formulae 1 and 2 for that
emotion is estimated. The system compares the
values from all the different emotions and
determines whether an emotion is taking effect
during the interaction. As an example we give the
two formulae with their weights for the two modes
of interaction that correspond to the emotion of
happiness when a user (under the age of 19) gives
the correct answer in a test of our educational
application. In case of
em considering the
keyboard we have:
In this formula, which corresponds to the
emotion of happiness, we can observe that the higher
weight values correspond to the normal and quickly
way of typing. Slow typing, often use of the
backspace key and use of unrelated keys are actions
with lower values of stereotypic weights. Absence of
typing is unlikely to take place. Concerning the
second mode (microphone) we have:
In the second formula, which also corresponds to
the emotion of happiness, we can see that the highest
weight corresponds to m6 which refers to the
‘speaking of a word from a specific list of words
showing an emotion’ action. The empirical study
gave us strong evidence for a specific list of words.
In the case of words that express happiness, these
words are more likely to occur in a situation where a
novice young user gives a correct answer to the
system. Quite high are also the weights for variables
m2 and m3 that correspond to the use of
exclamations by the user and to the raising of the
user’s voice volume. In our example the user may do
something orally or by using the keyboard or by a
combination of the two modes. The absence or
presence of an action in both modes will give the
Boolean values to the variables k1…k6 and m1…m7.
A possible situation where a user would use both
the keyboard and the microphone could be the
following: The specific user knows the correct
answer and types in a speed higher than the normal
speed of writing. The system confirms that the
answer is correct and the user says a word like
‘bravo’ that is included in the specific list of the
system for the emotion of happiness. The user also
speaks in a higher voice volume. In that case the
variables k1, m3 and m6 take the value 1 and all the
others are zeroed. The above formulas then give us
In the same way the system then calculates the
corresponding values for all the other emotions
using other formulae. For each basic action in the
educational application and for each emotion the
corresponding formula have different weights
deriving from the stereotypical analysis of the
empirical study. In our example in the final
comparison of the values for the six basic emotions
the system will accept the emotion of happiness as
the most probable to occur.
In section 5 we have described how the system
incorporates the multi-criteria decision making
theory SAW and uses stereotypic models derived
from empirical studies in order to make a multi-
criteria decision about the emotions that occur
during the educational human-computer interaction.
Each mode uses user stereotypes with specific
weights for each input action and produces values
for each one of the six basic emotions in our study.
Correspondingly, each mode produces hypotheses
for the six basic emotions and classifies them by
their probabilities of occurrence. The final
conclusion on the user’s emotion is based on the
conjunction of evidence from the two modes using
The 50 medical students that were involved in
the first phase of the empirical study in section 3.1
were also used in the second phase of the empirical
study for the evaluation of the multi-criteria emotion
recognition system. In this section we present and
compare results of successful emotion recognition in
audio mode, keyboard mode and the two modes
combined. For the purposes of our study the whole
interaction of all users with the educational
application was video recorded. Then the videos
collected were presented to the users that
participated the experiment in order to perform
emotion recognition for themselves with regard to
the six emotional states, namely happiness, sadness,
surprise, anger, disgust and the neutral emotional
state. The students as observers were asked to justify
the recognition of an emotion by indicating the
criteria that s/he had used in terms of the audio mode
and keyboard actions. Whenever a participant
recognized an emotional state, the emotion was
marked and stored as data in the system’s database.
Finally, after the completion of the empirical study,
the data were compared with the systems’
corresponding hypothesis in each case an emotion
was detected.
Table 1 illustrates the percentages of successful
emotion recognition of each mode after the
incorporation of stereotypic weights and the
combination through the multi-criteria approach.
Provided the correct corresponding emotions for
each situation and by each user we were able to
come up with conclusions about the efficacy of our
systems’ emotion recognition ability. Indeed, the
results presented in table 1 indicate that the
incorporation of user stereotypes as well as the
application of the multi-criteria model lead our
system to noticeable improvements in its ability to
recognize emotional states of users successfully.
Table 1: Recognition of emotions using stereotypes and
SAW theory.
Using Stereotypes and SAW
Multi-criteria bi-
modal recognition
In this paper we have described an affective
educational application that recognizes students’
emotions based on their words and actions that are
identified by the microphone and the keyboard,
respectively. The system uses an innovative
approach that combines evidence from the two
modes of interaction based on user stereotypes and a
multi-criteria decision making theory.
For requirements analysis and the effective
application of the particular approach two different
experimental studies have been conducted. The
experimental studies involved real end users as well
as human experts. In this way the application of the
multi-criteria model in the design of the system was
more accurate as it was based on facts from real
users’ reasoning process.
Finally, the approach for emotion recognition
was evaluated. More specifically, some users
interacted with the educational application and their
interaction was video recorded. The videos were
then presented to the same users, who were asked to
comment on their emotion. The emotions the users
identified were compared to the emotions identified
by the system. This comparison revealed that the
system could adequately identify the users’ emotion.
However, its hypotheses were more accurate when
there was a combination of the evidence from two
different modes using the multi-criteria decision
making theory.
In future work we plan to improve our system by
the incorporation of stereotypes concerning users of
several ages, educational backgrounds and computer
knowledge levels. Moreover, there is ongoing
research work in progress that exploits a third mode
of interaction, visual this time (Stathopoulou &
Tsihrintzis, 2005), to add information to the
system’s database and complement the inferences of
the user modelling component about users’
emotions. The third mode is going to be integrated
to our system by adding cameras and also providing
the appropriate software, as for a future work.
Support for this work was provided by the General
Secretariat of Research and Technology, Greece,
under the auspices of the PENED-2003 program.
SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications
Elfenbein, H.A., Ambady, N., 2003. When Familiarity
Breeds Accuracy. Cultural Exposure and Facial
Emotion Recognition, Journal of Personality and
Social Psychology, Vol. 85, No. 2, pp. 276–290.
Fishburn, P.C., 1967. Additive Utilities with Incomplete
Product Set: Applications to Priorities and
Assignments, Operations Research.
Goleman, D., 1995. Emotional Intelligence, Bantam
Books, New York .
Hudlicka, E., 2003. To feel or not to feel: The role of
affect in human-computer interaction. International
Journal of Human-Computer Studies, Elsevier
Science, London, pp. 1-32.
Hwang, C.L., Yoon, K., 1981. Multiple Attribute Decision
Making: Methods and Applications. Lecture Notes in
Economics and Mathematical Systems 186, Springer,
Berlin/Heidelberg/New York.
Kay, J., 2000. Stereotypes, student models and
scrutability. In: G. Gauthier, C. Frasson and K.
VanLehn (eds.): Proceedings of the Fifth International
Conference on Intelligent Tutoring Systems, Lecture
Notes in Computer Science, Springer-Verlag, Berlin,
Heidelberg, Vol. 1839, pp. 19-30.
Kobsa, A., Koenemann, J., Pohl, W., 2001. Personalized
hypermedia presentation techniques for improving on-
line customer relationships. The Knowledge
Engineering Review, vol. 16, pp. 111-115.
Moriyama, T., Ozawa, S., 2001. Measurement of Human
Vocal Emotion Using Fuzzy Control. Systems and
Computers in Japan, Vol. 32, No. 4.
Moriyama, Τ., Saito, Η., Ozawa, S., 2001. Evaluation of
the Relation between Emotional Concepts and
Emotional Parameters in Speech. Systems and
Computers in Japan, Vol. 32, No. 3.
Oviatt, S., 2003. User-modeling and evaluation of
multimodal interfaces. Proceedings of the IEEE,
Institute of Electrical and Electronics Engineers, pp.
Pantic, M., Rothkrantz, L.J.M., 2003. Toward an affect-
sensitive multimodal human-cumputer interaction.
Vol. 91, Proceedings of the IEEE, Institute of
Electrical and Electronics Engineers, pp. 1370-1390.
Picard, R.W., 2003. Affective Computing: Challenges. Int.
Journal of Human-Computer Studies, Vol. 59, Issues
1-2, pp. 55-64.
Picard, R.W., Klein, J., 2002. Computers that recognise
and respond to user emotion: theoretical and practical
implications. Interacting with Computers 14, pp. 141-
Rich, E., 1983. Users are individuals: individualizing user
models. International Journal of Man-Machine Studies
18, pp. 199-214.
Stathopoulou, I.O., Tsihrintzis, G.A., 2005. Detection and
Expression Classification System for Face Images
(FADECS), IEEE Workshop on Signal Processing
Systems, Athens, Greece.
