INVESTIGATION OF COOPERATIVE DEFENSE

AGAINST DDOS

Igor Kotenko and Alexander Ulanov

St. Petersburg Institute for Informatics and Automation, 39, 14 Liniya, St.-Petersburg, 199178, Russia

Keywords: Denial of Service and other attacks, DDoS Defense, Simulation of Internet Attacks and Defense.

Abstract: The paper considers a new approach and a simulation environment which have been developed for

comprehensive investigation of Internet Distributed Denial of Service attacks and defense. The main

peculiarities of the approach and environment are as follows: agent-oriented framework to attack and

defense investigation, packet-based simulation, and capability to add new attacks and defense methods and

analyze them. The main components of the simulation environment are specified. Using the approach

suggested and the environment implemented we evaluate and compare several cooperative defense

mechanisms against DDoS (DefCOM, COSSACK, and our own mechanism based on full cooperation). The

testing methodology for defense investigation is described, and the results of experiments are presented.

1 INTRODUCTION

One of the most dangerous classes of the Internet

attacks is Distributed Denial of Service (DDoS). The

prospective DDoS defense system is supposed to

work due to the cooperation of various network and

global defense mechanisms functioning both in local

networks and in the whole Internet.

The distributed cooperative DDoS defense

mechanisms are the ones that implement the defense

due to resource roaming (e.g. Server Roaming

(Sangpachatanaruk, etc., 2004)), change of resources

quantity, resource differentiation (e.g. Market-based

Service Quality Differentiation (Mankins, etc.,

2001), Transport-aware IP router architecture

(Wang, etc., 2003)), authentication (e.g. Secure

Overlay Services (Keromytis, etc., 2002)) and also

the mechanisms that implement traceback (e.g.

Gateway-based mechanism [Xuan, etc., 2001]) with

packet marking or signature storing, including

pushback, auxiliary packet generation, etc.

There are various defense methods with resource

differentiation that use rate-limiting. They are in

dedication of different traffic volumes for different

protocols and lowering the load of defense system or

target system (to allow them implement the

countermeasures effectively). Applying the rate-

limiting can be also the result of attack traceback

mechanisms. Agents-limiters are distributed in the

defended or ISP subnet and implement rate-limiting

according to the given protocols. Such methods are

mostly represented in cooperative defense

mechanisms.

Our goal is to develop the simulation

environment which can help investigate the Internet

attacks and defense mechanisms and elaborate well-

grounded recommendations on the choice of

efficient defense mechanisms. In the paper we

investigate the aspects of component cooperation for

COSSACK (Papadopoulos, etc., 2003), DefCOM

(Mirkovic, etc., 2005) and our own full cooperation

approach as well as trying to develop a new

approach to the investigation of cooperative defense

mechanisms based on agent-oriented packet-based

simulation.

The work is organized as follows. Section 2

outlines suggested approach for simulation.

Section 3 defines the DDoS defense mechanisms

investigated. Section 4 describes the simulation

environment developed. Section 5 presents the

testing methodology for defense mechanisms

investigation. Section 6 analyzes the results of

experiments fulfilled. Conclusion surveys main

work results and future research.

2 SIMULATION APPROACH

It is suggested to represent the investigated

processes as an interaction of various teams of

180

Kotenko I. and Ulanov A. (2007).

INVESTIGATION OF COOPERATIVE DEFENSE AGAINST DDOS.

In Proceedings of the Second International Conference on Security and Cryptography, pages 180-183

DOI: 10.5220/0002128801800183

 SciTePress

software agents in the dynamical environment

defined on the basis of the Internet model (Kotenko,

Ulanov, 2006). Aggregated system behavior is

shown in local interactions of particular agents.

There are at least three different classes of agent

teams: teams of agents-malefactors, teams of

defense agents, teams of agents-users. Agents of

different teams can be in indifference ratio,

cooperate or compete up till explicit counteraction.

Agents of attack teams are divided, at least, into

two classes: “daemons” that realize the attack and

“master” that coordinates other system components.

The class of attack is defined by the following

parameters: a packet sending intensity and an IP-

address spoofing technique (no spoofing, constant,

random, random with real IP addresses).

According to the general DDoS defense

approach suggested the defense agents are classified

into the following classes: information processing

(“sampler”); attack detection (“detector”); filtering

(“filter”); investigation (“investigator”). Samplers

collect and process network data for anomaly and

misuse detection. Detector coordinates the team and

correlates data from samplers. Filters are responsible

for traffic filtering using the rules provided by

detector. Investigator tries to defeat attack agents.

Defense team jointly implements certain

investigated defense mechanism.

Defense teams can interact using various

schemes. Moreover, a new class of defense agent –

“limiter” – is introduced. It is intended for the

implementation of cooperative DDoS defense. Its

local goal is to limit the traffic according to the team

goal. It lowers the traffic to the attack target and

allows other agents to counteract the attack more

effective.

There are three types of limiting: by the IP-

address of attack target; by the IP-addresses of

attack sources; according to the packet marking.

Detector sets limiting mode using detection data.

3 DEFENSE MODELS

The main attention in cooperative mechanisms is

given to the methods of distributed filtering and

rate-limiting. These methods help to trace the attack

sources and drop the malicious traffic as far from

attack target as possible.

DefCOM (Mirkovic, etc., 2005) works in the

following way. When “Alert generator” detects the

attack it sends the attack messages to the other

agents. “Rate limiter” agents will start to limit the

traffic destined to the attack target. “Classifier”

agents will start to classify and drop the attack

packets and to mark legitimate packets.

DefCOM is simulated as follows. “Alert

generator” agent is based on “detector”, “Rate

limiter” – on “limiter” agent, agent “Classifier” – on

“filter”.

COSSACK (Papadopoulos, etc., 2003)

consists two main agent classes: “snort” and

“watchdog”. “Snort” (IDS) prepares the statistics on

the transmitted packets for different traffic flows; the

flows are grouped by the address prefix. If one of the

flows exceeds the given threshold then its signature

is transmitted to “watchdog”. “Watchdog” receives

traffic data from “snort” and applies the filtering

rules on the routers. Agent “snort” is based on the

agent “sampler”, “watchdog” – on the agent

“detector”. It makes the decision about attack due to

data from “snort”. Agent “filter” is used to simulate

filtering on routers.

COSSACK cooperation is in the following: when

“watchdog” detects the attack it composes the attack

signature and sends it to the other known

“watchdogs”. “Watchdogs” try to trace in their

subnets the attack agents that send attack packets;

when they detect them the countermeasures are

applied.

Proposed approach. There are used the

following four classes of defense team agents:

“samplers”, “detectors”; “filters”; “investigators”.

Agent teams are able to interact using various

cooperation schemes: no cooperation; filter-level

cooperation; sampler-level cooperation; poor

cooperation; full cooperation. The main aspect of

full cooperation is that team which network is under

attack can receive traffic data from the samplers of

other teams and apply the filtering rules on filters of

other teams.

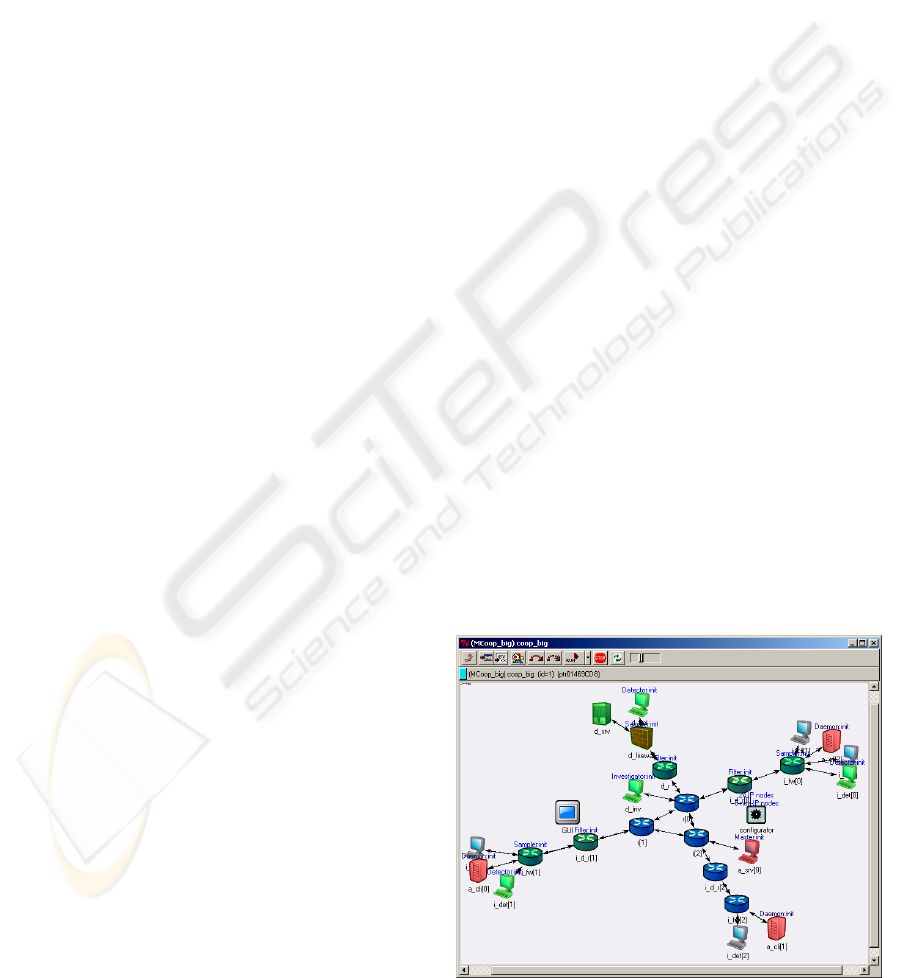

Figure 1 shows the full cooperation defense

system configuration proposed by the authors.

Figure 1: Proposed defense system configuration.

INVESTIGATION OF COOPERATIVE DEFENSE AGAINST DDOS

181

4 SIMULATION ENVIRONMENT

The simulation environment architecture consists of

the following components (Kotenko, Ulanov, 2006):

Simulation Framework, Internet Simulation

Framework, Multi-agent Simulation Framework,

Subject Domain Library.

Simulation framework is a discrete event

simulator. Other components are expansions or

models for Simulation Framework. Internet

Simulation Framework is a modular simulation suite

with the realistic simulation of Internet nodes and

protocols. Multi-agent Simulation Framework

allows realizing agent-based simulation. Subject

Domain Library is a library used for imitation of

processes from subject domain and containing

modules that extend functionality of IP-host:

filtering table and packet analyzer.

This architecture was implemented for multi-

agent simulation of DDoS attack and defense

mechanisms with the use of OMNeT++ INET

Framework and software models developed in C++.

Agent models implemented in Multi-agent

Simulation Framework are represented with generic

agent, attack and defense agents. Subject Domain

Library contains various models of hosts, e.g.

attacking host, firewall, etc., and also the application

models (attack and defense mechanisms, packet

analyzer, filtering table).

5 EXPERIMENTS

The developed simulation environment is used to

investigate cooperative defense mechanisms. We are

investigating the methods effectiveness, their

functioning in various cooperative schemes and in

different networks with different attacks.

The following cooperation schemes are

investigated: DefCOM; COSSACK; full cooperation.

The following main admission for the simulation

was made. Each cooperative defense mechanism

(COSSACK, DefCOM or our approach) is based on

its own attack detection method. We proposed to use

for investigation of cooperative defense the same

methods, e.g. Hop counts Filtering (HCF), Source IP

address monitoring (SIPM), Bit Per Second (BPS),

etc. The use of the same detection methods allows

investigating various cooperative mechanisms in

equal conditions.

The investigation is supposed to be done on the

basis of analysis of the following main parameters:

the amount of incoming traffic before and after filter

of team which network is the attack victim; false

positive and false negative rates of the defense team

which network is under attack.

6 RESULTS OF EXPERIMENTS

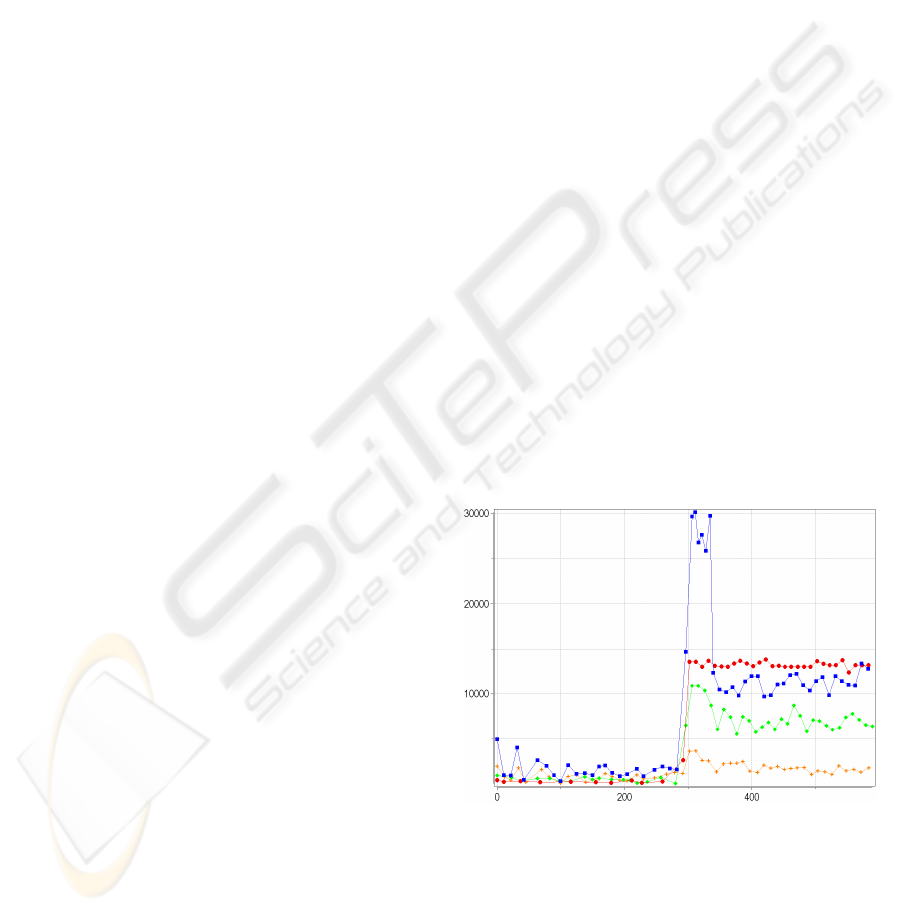

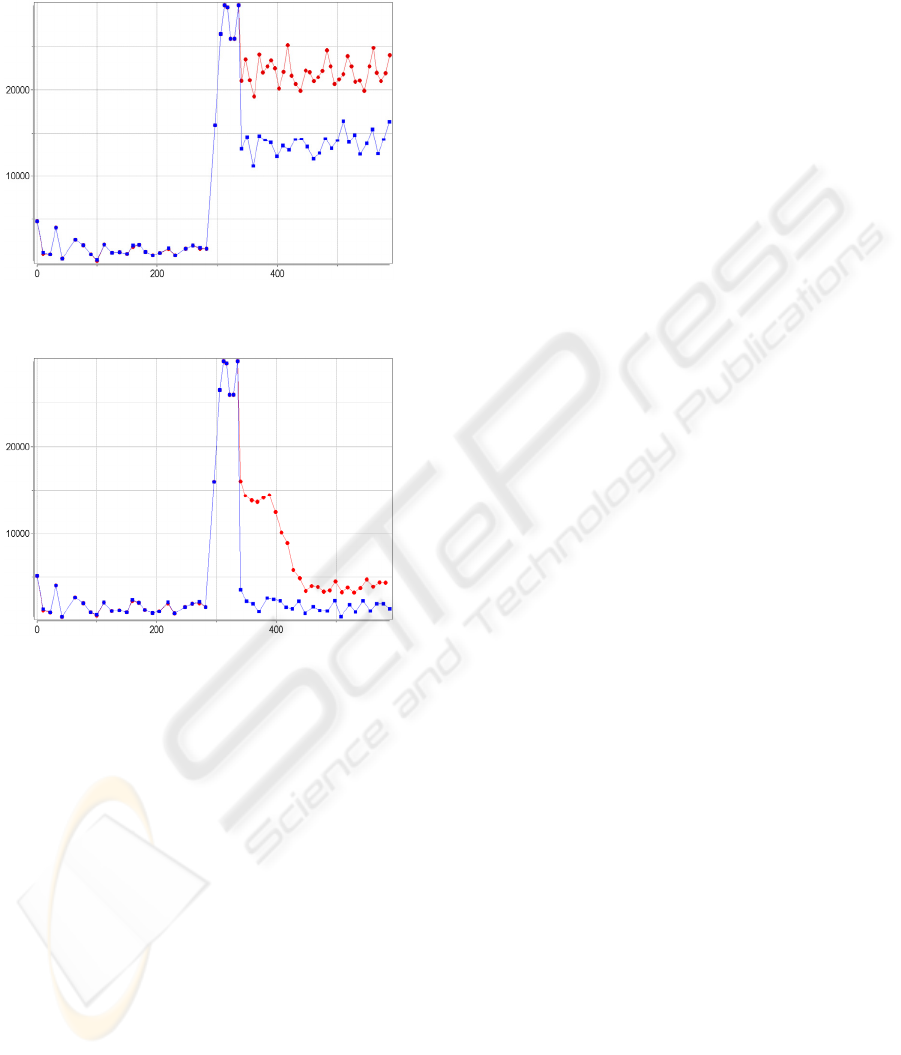

Figures 2-4 show the traffic inside (line of squares)

and before (other lines – of dots, rhombs and

crosses) the attacked subnet for the DefCOM,

COSSAK and full cooperation schemas accordingly.

The Figure 2 consists of four graphs since the traffic

was measured at the entrance to the subnet.

Attack starts at 300 seconds. The random real IP

spoofing technique is applied as the most

complicated for detection (the addresses for

spoofing are taken from the same network). SIPM is

used as the defense method. The router is placed

there, it has four interfaces. The significant traffic

increase is noticed in the beginning of attack

(Figures 2-4). But in the area of 350 seconds the

defense system detects the attack and traffic is being

limited before the defended subnet ad being filtered

in the source subnets (Figures 2-4).

DefCOM’s rate limiter proceeds to limit the

traffic because of the high attack traffic volume

(Figure 2). But this cooperation schema succeeds to

keep the traffic on the acceptable level due to

limiting and to applying filtering rules. In

COSSACK the filtering rules are applied and the

attack signature is sent to the other defense

components. In full cooperation the attack signatures

are sent to other cooperating teams which apply the

filtering rules in their subnets. The traffic on the

entrance to the defended subnet is decreased due to

their actions.

Figure 2: Traffic inside and before the attacked subnet for

the DefCOM schema.

Experiments showed the effectiveness of various

cooperative DDoS defense. The best cooperative

schema is the full cooperation. Sampler cooperation

played the key role in the defense. DefCOM schema

shows the stable containment of attack traffic due to

a limiter on the entrance to the defense subnet and

SECRYPT 2007 - International Conference on Security and Cryptography

182

classifiers in the source subnets. COSSACK schema

has the similar traffic level in the defense subnet, but

outside it the traffic stays enough high.

Figure 3: Traffic inside and before the attacked subnet for

the COSSACK schema.

Figure 4: Traffic inside and before the attacked subnet for

the full cooperation.

7 CONCLUSION

The main results of the paper consist in

implementing the simulation environment developed

by the authors for packet-level agent based

simulation of various cooperative defense schemas

against DDoS (DefCOM, COSSACK, and our own

based on full cooperation). The goal of the paper

was to evaluate the effectiveness of these schemas

and compare them.

The multitude of experiments we implemented

demonstrated that full cooperation shows the best

results on blocking the attack traffic. It uses several

defense teams with cooperation on the level of filters

and samplers. DefCOM advantage is in using a rate

limiter before the defended network. It allows

lowering the traffic during attack and letting the

defended system work properly. COSSACK is one

of the examples of peer-to-peer defense network. It

uses attack signatures transmission between agents

to apply the filtering rules near the source.

Future work is concerned with improving the

functionality of the simulation environment and

investigating new cooperative defense mechanisms.

ACKNOWLEDGEMENTS

This research is being supported by grant of Russian

Foundation of Basic Research (Project No. 07-01-

00547), program of fundamental research of the

Department for Informational Technologies and

Computation Systems of the Russian Academy of

Sciences (contract No 3.2/03), Russian Science

Support Foundation and partly funded by the EU as

part of the POSITIF project (contract No. IST-2002-

002314) and RE-TRUST (contract No. 021186-2).

REFERENCES

Keromytis, A., Misra, V., Rubenstein, D., 2002. SOS:

Secure Overlay Services. In Proceedings of ACM

SIGCOMM'02, Pittsburgh, PA.

Kotenko, I., Ulanov A., 2006. Simulation of Internet

DDoS Attacks and Defense. In Proc. of ISC 2006.

Samos, Greece. LNCS, Vol. 4176.

Mankins, D., Krishnan, R., Boyd, C., Zao, J., Frentz, M.,

2001. Mitigating Distributed Denial of Service Attacks

with Dynamic Resource Pricing. In Proceedings of the

17th Annual Computer Security Applications

Conference. ACSAC’01.

Mirkovic, J., Robinson, M., Reiher, P., Oikonomou, G.,

2005. Distributed Defense Against DDOS Attacks. In

University of Delaware CIS Department Technical

Report CIS-TR-2005-02.

Papadopoulos, C., Lindell, R., Mehringer, I.,

Hussain, A., Govindan, R. 2003. Cossack:

Coordinated suppression of simultaneous attacks. In

Proceedings of DISCEX III.

Sangpachatanaruk, C., Khattab, S.M., Znati, T., Melhem,

R., Mosse, D., 2004. Design and Analysis of a

Replicated Elusive Server Scheme for Mitigating

Denial of Service Attacks. In Journal of Systems and

Software, Vol.73(1).

Wang, H., Shin, K.G., 2003. Transport-aware IP Routers:

A Built-in Protection Mechanism to Counter DDoS

Attacks. In IEEE Transactions on Parallel and

Distributed Systems, Vol.14(9).

Xuan, D., Bettati, R., Zhao, W., 2001. A Gateway-Based

Defense System for Distributed DoS Attacks in High

Speed Networks. In Proceedings of the 2nd IEEE

SMC Information Assurance Workshop, West Point,

NY.

INVESTIGATION OF COOPERATIVE DEFENSE AGAINST DDOS

183
