Paulo F. Andrade, Fernando Mira da Silva and Carlos Ribeiro
Instituto Superior T
ecnico, Universidade T
ecnica de Lisboa, Lisboa, Portugal
Intrusion Detection Systems, Switch-based Networks, Security Analysis.
As Internet becomes more and more ubiquitous, security is an increasingly important topic. Furthermore,
private networks are expanding and security threats from within the network have to be cautioned. For these
large networks, which are generally high-speed and with several segments, Intrusion Detection System (IDS)
placement usually comes down to a compromise between money invested and monitored services.
One common solution in these cases, is to use more than one IDS scattered across the network, thus, raising
the amount invested and administrative power to operate. Another solution is to collect data through sensors
and send it to one IDS via an Ethernet hub or switch. This option normally tends to overload the hub/switch
port where the IDS is connected.
This paper presents a new solution, for networks with a star topology, where an IDS is coupled to the network’s
core router. This solution allows the IDS to monitor every different network segment attached to the router in
a round-robin fashion.
Over the past two decades, with the rapid growth of
the Internet — which now counts with more than 100
million sites (Netcraft, 2006) companies have been
forced to change the way they do business. To keep
up with new Internet-centric companies or simply to
still be competitive, many companies have had to al-
ter their business process to accommodate this new
means of communication.
However, along with this growth, the number of
attacks to Internet sites has also increased dramati-
cally. For instance, between 2000–2006, the num-
ber of incidents reported to Computer Emergency Re-
sponse Team Coordination Center (CERT/CC) grew
around 740%.
There are a few factors that contribute to this as-
tonishing rate. First, there is the continuously publi-
cation of exploits and vulnerabilities on the Internet
as they are discovered. Secondly, there is a profusion
of intrusion tools and automated scripts available that
duplicate known methods of attacks. These two fac-
tors combined allow for practically anyone with little
technical knowledge to be able to perform an attack.
Consequently, the number of sophisticated attacks has
This paper starts by defining ”intrusion detection”
in section 2. Then, section 3 describes the common
solutions for Intrusion Detection System (IDS) place-
ment together with their benefits and drawbacks. The
proposed solution is described in section 4. And, fi-
nally, section 5 concludes.
Although the word ”intrusion” might connote a suc-
cessful attack, Intrusion Detection Systems are used
to detect anomalies, regardless of them being inten-
tional or not. There are several definitions for ”intru-
sion detection”, one widely accepted is presented in
(Rich, 2005): ”Intrusion detection is the methodology
by which undesirable or aberrant activity is detected
on a host or a network.
Under this broad definition, all undesirable or ab-
normal activity might be considered an intrusion, be-
ing it planned or not. A Denial-of-Service (DoS)
(Ptacek and Newsham, 1998) attack, an user infected
F. Andrade P., Mira da Silva F. and Ribeiro C. (2007).
In Proceedings of the Second International Conference on Security and Cryptography, pages 102-106
DOI: 10.5220/0002127001020106
by a virus that is using the local mail server to
send spam, or a buggy Transmission Control Protocol
(TCP) stack in an Operating System (OS) that is in-
correctly fragmenting packets are a few examples of
possible intrusions.
IDSs are usually divided into two major cat-
egories, Host-based Intrusion Detection Systems
(HIDSs) and Network-based Intrusion Detection
Systems (NIDSs) (Singh, 2005). This paper focuses
on NIDS.
IDS placement is one of the most important aspects
in the design of a secure network infrastructure. The
balance between monitoring coverage and resources
allocated is not an easy subject. This is specially true
when dealing with network-based IDS. For HIDSs,
the decision is relatively easier. Host-based IDS
should, usually, be placed on the hosts that provide
services crucial to the organisation.
The next subsections discuss the rationale behind
the design of the proposed solution. Starting from
small and rather simplistic networks and building up
to large and more complex networks.
3.1 Basic Network Setups
Usually small to medium-sized networks use a setup
consisting of a central switch connecting the gate-
way and other computers/segments. Instead of the
switch hardware, there might be an ethernet hub. Us-
ing a shared-medium also implies that all devices con-
nected to the hub will listen to all the networks traffic
that flows through it. In this scenario an IDS may sim-
ply be connected to the hub to be able to monitor the
entire network (assuming that there are no switches
on either segments). This scenario is, however, rather
When using a network switch, packets arriving in
one port are sent to the port where the packet’s target
might be found. In this scenario, simply connecting a
NIDS to a port on the switch won’t suffice, since all
traffic routed to the other ports won’t be monitored,
namely the traffic going to and from the gateway.
There are mainly three ways that allow one to use
a NIDS to monitor traffic leaving and entering the net-
work. Note that, in this section, it is assumed that
the network is trusted (which is generally the case for
small to medium sized networks), and therefore mon-
itoring traffic between network devices is not neces-
Hubs Due to its properties, using a hub between the
switch and the gateway allows all incoming and
outgoing traffic to be copied off to the IDS. This
is a simple and inexpensive way to go about solv-
ing this problem. However hubs can easily de-
grade network performance, therefore this solu-
tion is presented merely as an example.
Taps The tap solution is very similar to the hub. A
network tap is a hardware device which provides a
way to access the data flowing across a link. Taps
have at least three ports; the A and B port are used
to establish the connection between the two net-
work segments; the remaining ports, also called
monitor ports, are used to connect the IDS. One
important aspect to note, is that if the network link
is an 100 mbps full-duplex link, then the aggre-
gate traffic comprising of the traffic in both direc-
tions would be 200 mbps. This is a problem if the
tap only has one monitor port. In these cases, taps
usually have two ports that monitor each direction
of the traffic; the IDS can use channel bonding to
monitor all traffic. Furthermore, taps don’t inter-
fere with the communication link between the two
segments. Also, good taps are fault tolerant, the
connection between ports A and B is hardwired
in, which means that in case of a power failure the
communication link between the two connected
segments will not be broken.
Port Mirroring This solution depends on the switch
capabilities, namely if port mirroring is an avail-
able feature. It consists on replicating data from
one or more ports onto a single port, referred as
the monitoring port. This feature is also known
as: Monitoring Port, Spanning Port, Switch Port
Analyzer (SPAN) port and Link Mode port. In
this setup the switch can be configured to copy the
traffic passing through the port where the gateway
is connected, to the monitoring port. Both direc-
tions (TX and RX) of the traffic are copied, thus
achieving the same monitoring capabilities of the
previous solutions.
3.2 Medium and Large Network
In large networks, IDS placement is a much more
complex task, specially if the network is a public or
easily accessible at the physical level (such as Uni-
versities, e.g.). There are several hundred of installed
workstations, various points where laptops can be
connected to the network and, more recently, wire-
less access points for users to connect their laptops or
Personal Digital Assistants (PDAs).
With this scenario, simply monitoring the Inter-
net connection is not enough, attacks perpetrated by
attackers inside the network would not be detected.
This is an important issue, specially when users can
bring their own machines which the network and sys-
tem managers have no control over.

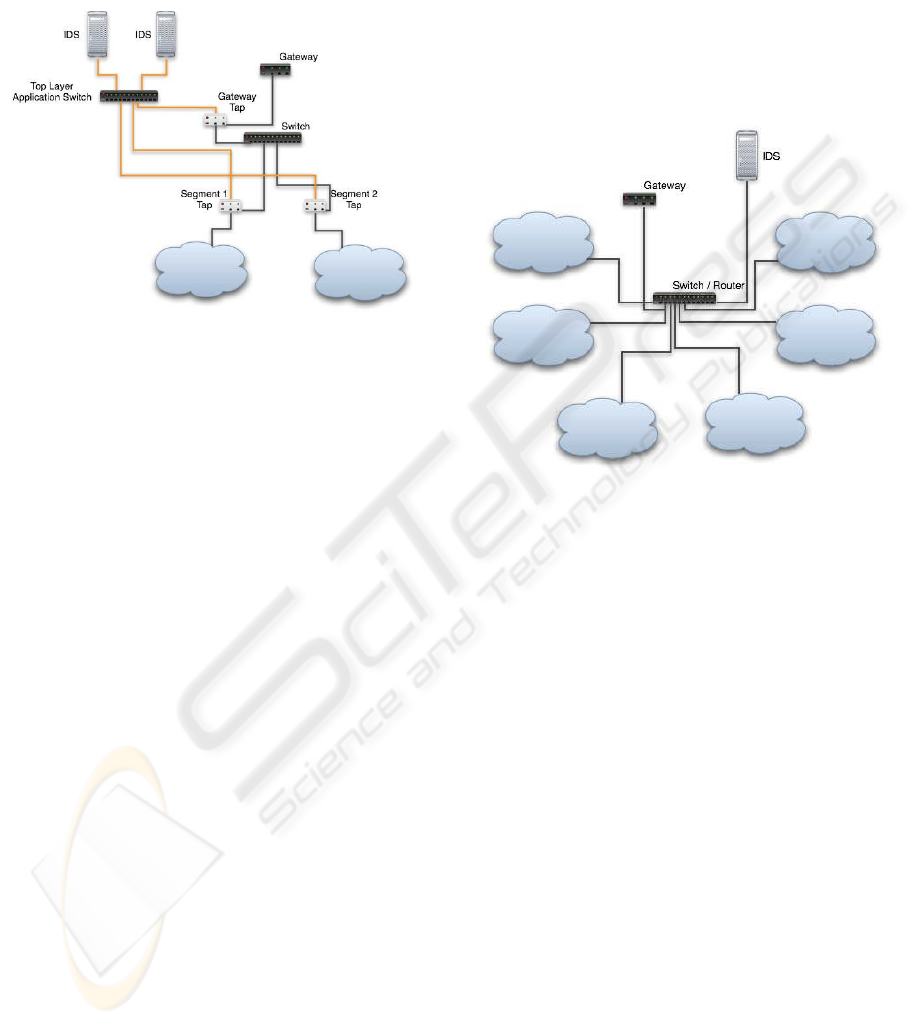

Figure 1: Consolidating the taps output with a Top Layer
Application Switch which is, in turn, balancing the load to
two IDSs
Note: Actually there should be two lines connecting the taps
and the Top Layer Application Switch, one for each traffic
direction (RX and TX).
The example shown in Fig. 1 is a simple exam-
ple of monitoring more than one network segment.
Two network segments are connected by a tap to a
Top Layer Application Switch (TLAS) which in turn
is connected to one or more IDSs.
Normal packet switching involves looking at a
packet headers, whether it is the layer-2 headers, in
the case of switching based on the Media Access
Control (MAC) address, or layer-3, in case of switch-
ing based on the Internet Protocol (IP) address. In
either case, the forwarding decision can be made by
looking at a single packet. A TLAS (Kessler, 2001)
differs from conventional switches in the sense that it
makes its decisions based on flows rather than single
Because IDS machines must monitor both direc-
tions of a flow, this switch awareness is crucial. The
notion of flows allows the TLAS to send both TX and
RX streams to one IDS this is called flow mirror-
ing. The TLAS can effectively balance the traffic load
collected from the taps to various IDS machines, rad-
ically diminishing the possibilities of overloading the
port where the IDS is connected.
Of course, one could exclude the TLAS and use
several NIDS, one for each tap. But this would be
much more costly.
Networks which have a star topology are one of the
most commons. In this topology, a central node acts
as a router for all the attached network segments. This
node might be a switch, a router or even a computer.
Note that the attached segments can be any type of
sub-network, including wireless networks.
Figure 2: Example of a network with a star topology, where
the IDS is connected directly to the central node.
For these networks, if a decision was required re-
garding which network segments should be monitored
by a network-based IDS, a common conclusion would
be to monitor all segments that are connected to the
central node, or a subset of these (only those that are
considered relevant or vulnerable). One could place a
tap on those segments and use the approach described
in the previous section. However this paper suggest a
different approach, one that dispenses the use of taps
and a Top Layer Application Switch altogether.
Attacks aren’t instantaneous. Port scanning, net-
work topology discovery, OS fingerprinting, DoS at-
tempts, running exploits, etc. Attacks consist of sev-
eral steps, many of which can take a considerable
amount of time.
Therefore, sampling the network traffic from each
of the segments attached to the central node in a
round-robin fashion may be effective. Meaning that
there is time for the IDS to rotate trough all the ports
while the attack is in action; it is a matter of calibrat-
ing the time between hops with respect to the num-
ber of segments to monitor. Provided that doing this
might prove to be rather difficult. There is no formula
for calculating the average time an attack takes to oc-
cur, so calibrating this value will be based on test-
SECRYPT 2007 - International Conference on Security and Cryptography
ing and the knowledge about current common attack
Common routers and switches facilitate their man-
agement by either a Secure Shell (SSH) connection
(older devices use telnet) and/or through Simple Net-
work Management Protocol (SNMP) queries. The
idea is to let the IDS monitor all, or any subset, of
the segments connected to the router, one by one, in a
round robin fashion. If any suspicious activity is de-
tected on the port being monitored, the IDS will stick
to that port and emit appropriate warnings or take the
appropriate actions. Once the suspicious activity has
terminated for a configurable amount of time or if an
administrator so wishes, the IDS will return to its nor-
mal cycle of operation.
Also, if the router is able to mirror more than one
port at a time, the system could be configured to keep
monitoring one or more ports (the port connected to
the Internet, e.g.) and cycle through the others — pro-
vided that the aggregate traffic does not overflow the
monitoring port.
The advantages of this solution are:
No further hardware needed. Provided that the
current central router/switch has port mirroring
Since the IDS is usually only monitoring one port
at a time, there is a low risk of the monitoring port
being overloaded.
It is flexible. Many routers allow for mirroring of
more than one port at a time, the system can be
configured to keep monitoring the port where the
gateway is connected, or keep monitoring the port
where suspicious activity was detected and con-
tinue to monitor the other ports in a round-robin
And the drawbacks are:
Only segments attached to the central node can be
Can not monitor all segments all the time, due to
the risk of overloading the monitoring port.
This approach requires developing the software
that will control the router and integrate with the IDS;
one such as Snort (Sourcefire, 2006) for example. To
be able to interact with the router, in case it does not
allow for the device connected to the monitoring port
to transmit, the IDS has to have two network cards,
both connected to the router. One for the traffic being
mirrored and the other to allow the IDS to communi-
cate with the router and control which port is being
To achieve a proper intrusion detection infrastruc-
ture, a mixture of host-based IDS and network-based
IDS is needed. Both have complementary character-
istics. For instance, in encrypted network environ-
ments, HIDS are more effective since they act after
the traffic has been decrypted. Conversely, for real-
time detection, NIDS are more effective.
A common setup is to have NIDS monitoring en-
try points of the network, and all segments that might
present further risks such as those that facilitate
wireless connectivity —, and to have HIDS at critical
The proposed solution brings another way to place
a NIDS on the network. One that makes a new com-
promise between the money invested and monitoring
ability. On one side of the scale, it is easy to see
that implementing such a solution would be cheaper
than those which involve using other hardware, such
as taps and TLAS, and since there is only one IDS to
maintain, management costs are also reduced. How-
ever, on the other side of the scale, this solution
should only be considered on networks with central
routing, and the fact that not all the segments are be-
ing monitored at one time might not be an option for
Kessler, G. C. (2001). IDS-in-Depth: Top Layer’s App-
Switch filters a copy of traffic flows to downstream
IDSeS. Information Security Magazine.
Netcraft (2006). November 2006 Web Server Survey.
2006 web server survey.html Avail.
November, 2006.
Ptacek, T. H. and Newsham, T. N. (1998). Intursion, Eva-
sion and Denial of Service: Eluding Intrusion Detec-
Rich, A. (2005). Introduction to Intrusion Detection With
detection.html – Avail. December, 2006.
Singh, K. K. (2005). Intrusion Detection and Analysis. PhD
thesis, University of British Columbia.
Sourcefire (2006). Snort. – Avail. April, 2007.
IDS Intrusion Detection System
CERT/CC Computer Emergency Response Team
Coordination Center
DoS Denial-of-Service
TCP Transmission Control Protocol
OS Operating System
HIDS Host-based Intrusion Detection System
NIDS Network-based Intrusion Detection
MAC Media Access Control
SPAN Switch Port Analyzer
IP Internet Protocol
PDA Personal Digital Assistant
TLAS Top Layer Application Switch
SSH Secure Shell
SNMP Simple Network Management Protocol
SECRYPT 2007 - International Conference on Security and Cryptography
