K2: A STREAM CIPHER ALGORITHM

USING DYNAMIC FEEDBACK CONTROL

Shinsaku Kiyomoto, Toshiaki Tanaka

KDDI R & D Laboratories Inc., 2-1-15 Ohara Fujimino-shi Saitama 356-8502, Japan

Kouichi Sakurai

Kyushu University, 744 Motooka Nishi-ku Fukuoka 819-0395, Japan

Keywords:

Stream Cipher, Dynamic Feedback Control, Irregular Clocking, Pseudorandom Generator.

Abstract:

A variety of different clock-controlled stream ciphers and attacks on them have been described in a number of

papers. However, few word-oriented algorithms with an irregular clocking mechanism have been proposed.

This paper proposes a new design of irregular clocking for word-oriented stream ciphers that is dynamic

feedback control and show analysis results of its security and performance. The stream cipher K2 v2.0 is

a secure and high-performance stream cipher using the dynamic feedback control, which is applicable for

several applications. We believe that the dynamic feedback control mechanism is potentially effective against

several different types of attacks, not only existing attacks but also novel attacks.

1 INTRODUCTION

Stream ciphers are used extensively to provide a re-

liable, efﬁcient method for secure communications.

A basic stream cipher uses several independent linear

feedback shift registers (LFSRs) together with non-

linear functions in order to produce a keystream. The

keystream is then XORed with plaintext to produce a

ciphertext. Some stream ciphers use a general non-

linear function to clock one or more LFSR(s) irregu-

larly. Various clock-controlled stream ciphers and at-

tacks on them have been proposed. Clock-controlled

stream ciphers are classiﬁed into two main types of

stream ciphers: the A5 family and the LILI family.

A5 is a well-known stream cipher designed to ensure

the conﬁdentiality of mobile communications. LILI-

like stream ciphers, such as LILI-128 (Simpson et al.,

2000), have two different LFSRs for providing bits for

clocking and keystream bits. One LFSR clocks reg-

ularly, providing input for a clock controller, and an-

other LFSR clocks irregularly, providing keystream.

Recently, word-oriented stream ciphers have been

developed in order to improve the performance of

software implementations. In the NESSIE project,

many word-oriented stream ciphers were proposed,

such as SNOW(Ekdahl and Johansson, 2000) and

SOBER(Rose and Hawkes, 1999), and demonstrated

good performance in software. However, few word-

oriented algorithms with an irregular clocking mech-

anism have been proposed because of the inefﬁciency

of the clock control mechanism for software imple-

mentation. LFSR-based stream ciphers have been

broken using a linear recurrence of the LFSR. Thus,

an irregular clocking mechanism for word-oriented

LFSRs will achieve an improvement of their security.

This paper proposes a new word-oriented stream

cipher using dynamic feedback control as irregular

clocking. The proposed stream cipher has a dy-

namic feedback control mechanism for the byte-level

feedback function of FSRs and realizes fast encryp-

tion/decryption for software implementation. We

present a stream cipher algorithm and show the re-

sults of an analysis of security and performance, and

show that the cipher is secure and it offers high-

performance encryption and decryption.

2 DYNAMIC FEEDBACK

CONTROL

The clock control mechanism of a stream cipher gen-

erally either controls LFSR clocking or shrinks or

thins output. A clock control that shrinks or thins out-

204

Kiyomoto S., Tanaka T. and Sakurai K. (2007).

K2: A STREAM CIPHER ALGORITHM USING DYNAMIC FEEDBACK CONTROL.

In Proceedings of the Second International Conference on Security and Cryptography, pages 204-213

DOI: 10.5220/0002122302040213

Copyright

c

SciTePress

put reduces the performance of the stream cipher be-

cause some output bits are discarded. If one applies

shrinking to a word-oriented stream cipher, the per-

formance is markedly reduced. The bit-oriented clock

control mechanism for updating an LFSR is also in-

efﬁcient when the mechanism controls the LFSR for

each register. On the other hand, a dynamic feedback

control for an LFSR is an effective method for im-

proving the security of stream ciphers. The stream

cipher MICKEY(Babbage and Dodd, 2005) has a

dynamic feedback control mechanism for a bit-wise

LFSR. POMARANCH(Jansen et al., 2005) uses a

cascade jump controlled sequence generator to mod-

ify the feedback function.

We propose a stream cipher design (called

KARAKORUM type) that operates on words and has

an efﬁcient dynamic feedback control as irregular

clocking. The basic idea of the design is to modify

the mixing operation during the state update. Feed-

back polynomials for word-oriented LFSR are de-

scribed with coefﬁcients; multiplying an input word

by a coefﬁcient means mixing the words. A typical

example is a LFSR of SNOW 2.0(Ekdahl and Johans-

son, 2003). Generally, the coefﬁcients are selected

such that the feedback polynomial is a primitive poly-

nomial. We apply irregular clocking for this mixing

operation, and the modiﬁcation causes only a mini-

mal decrease in the encryption/decryption speed. In

other words, at least one FSR is irregularly clocked

to dynamically modify the feedback function to the

dynamic feedback controller that receives the out-

puts of the other FSR(s). For example, the feedback

function is deﬁned as s

t+a

= α

{0,1}

0

s

t+b

⊕α

{0,1}

1

s

t+c

⊕

α

{0,1}

2

s

t+d

, where {0,1}s are selected by the dynamic

feedback controller. The FSR controlled by the dy-

namic feedback controller is named dynamic feed-

back shift register (DFSR).

The dynamic feedback control mechanism im-

proves the security of a stream cipher because it

changes the deterministic linear recurrence of some

registers into a probabilistic recurrence. This prop-

erty effectively protects against several attacks. An

attacker has to obtain the linear recurrence of the

keystream derived from the linear recurrence of some

registers. By an irregular modiﬁcation, the linear re-

currence exists with a low probability. An attacker has

to guess some inputs to the non-linear function for

an attack; however, an irregular modiﬁcation makes

it impossible: the attacker has to guess the inputs to

the dynamic feedback controller ﬁrst. Thus, irregular

modiﬁcation of the feedback function improves the

security of the stream cipher.

We think that a dynamic feedback control mech-

anism is potentially effective against several attacks,

not only existing attacks but also a novel attack.

3 STREAM CIPHER K2 V2.0

In this section, we describe the stream cipher algo-

rithm K2 v2.0

1

that has a dynamic feedback control

mechanism.

3.1 Linear Feedback Shift Registers

The K2 v2.0 stream cipher consists of two feedback

shift registers (FSRs), FSR-A and FSR-B, a non-linear

function with four internal registers R1, R2, L1, and

L2, and a dynamic feedback controller as shown in

Fig. 1. FSR-B is a dynamic feedback shift register.

The size of each register is 32 bits. FSR-A has ﬁve

registers, and FSR-B has eleven registers. Let β be

the roots of the primitive polynomial;

x

8

+ x

7

+ x

6

+ x+ 1 ∈ GF(2)[x]

A byte string y denotes (y

7

,y

6

,...,y

1

,y

0

), where y

7

is the most signiﬁcant bit and y

0

is the least signiﬁcant

bit. y is represented by

y = y

7

β

7

+ y

6

β

6

+ ... + y

1

β+ y

0

In the same way, let γ, δ, ζ be the roots of the

primitive polynomials,

x

8

+ x

5

+ x

3

+ x

2

+ 1 ∈ GF(2)[x]

x

8

+ x

6

+ x

3

+ x

2

+ 1 ∈ GF(2)[x]

x

8

+ x

6

+ x

5

+ x

2

+ 1 ∈ GF(2)[x]

respectively.

Let α

0

be the root of the irreducible polynomial of

degree four

x

4

+ β

24

x

3

+ β

3

x

2

+ β

12

x+ β

71

∈ GF(2

8

)[x]

A 32-bit string Y denotes (Y

3

,Y

2

,Y

1

,Y

0

), where Y

i

is a byte string and Y

3

is the most signiﬁcant byte. Y

is represented by

Y = Y

3

α

3

0

+Y

2

α

2

0

+Y

1

α

0

+Y

0

Let α

1

, α

2

, α

3

be the roots of the irreducible poly-

nomials of degree four

x

4

+ γ

230

x

3

+ γ

156

x

2

+ γ

93

x+ γ

29

∈ GF(2

8

)[x]

x

4

+ δ

34

x

3

+ δ

16

x

2

+ δ

199

x+ δ

248

∈ GF(2

8

)[x]

1

A previous version of the algorithm is shown in the

SASC 2007 workshop record(Kiyomoto et al., 2007).

K2: A STREAM CIPHER ALGORITHM USING DYNAMIC FEEDBACK CONTROL

205

Dynamic Feedback

Controller

B

t

FSR-B

0

A

t

FSR-A

Non-Linear Function

Keystream (64bits)

1

or

2

B

t+10

A

t+4

1

or

3

z

H

t

z

L

t

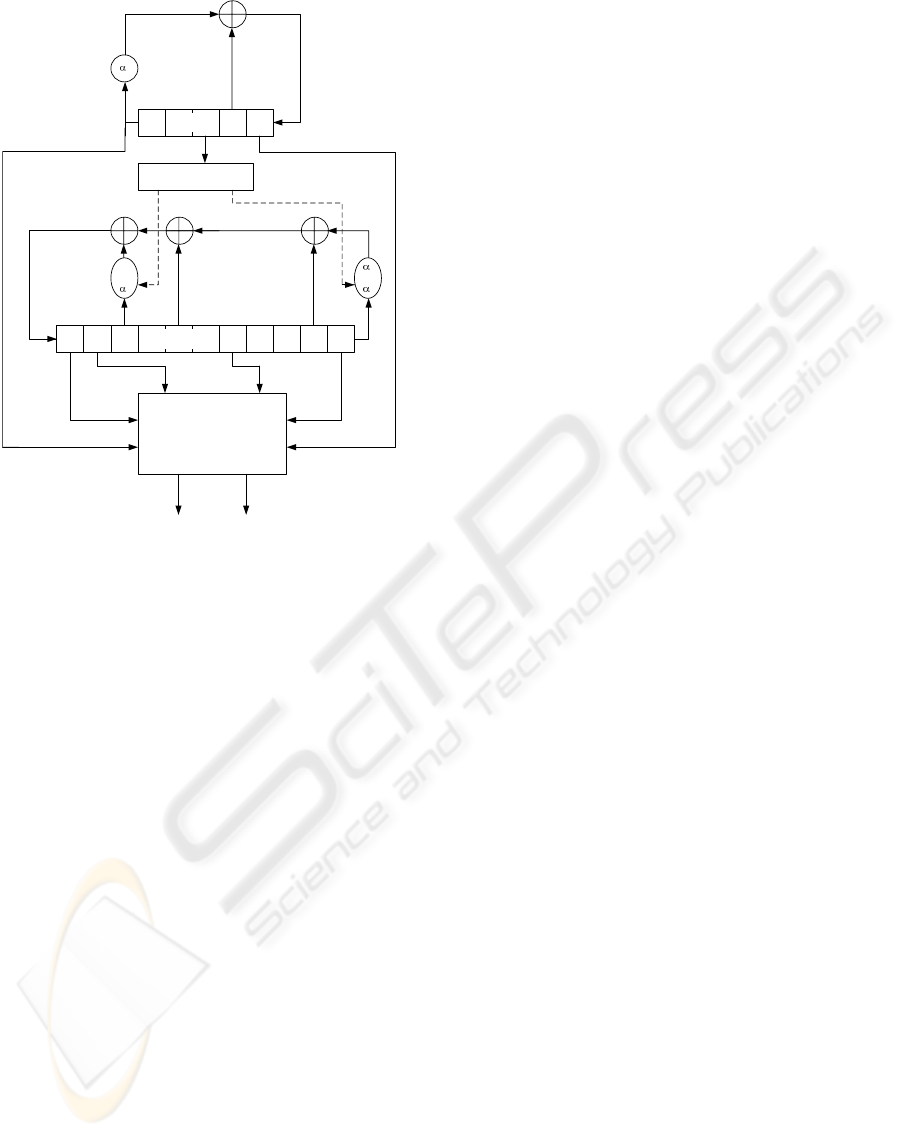

Figure 1: K2 v2.0 Stream Cipher.

x

4

+ ζ

157

x

3

+ ζ

253

x

2

+ ζ

56

x+ ζ

16

∈ GF(2

8

)[x]

respectively.

The feedback polynomials f

A

(x), and f

B

(x) of

FSR-A and FSR-B, respectively, are as follows;

f

A

(x) = α

0

x

5

+ x

2

+ 1

f

B

(x) = (α

cl1

t

1

+α

1−cl1

t

2

−1)x

11

+x

10

+x

5

+α

cl2

t

3

x

3

+1

Let cl1 and cl2 be the sequences describing the

output of the dynamic feedback controller. The out-

puts at time t are deﬁned in terms of some bits of FSR-

A. Let A

x

denote the output of FSR-A at time x, and

A

x

[y] = {0, 1} denote the yth bit of A

x

, where A

x

[31] is

the most signiﬁcant bit of A

x

. Then cl1 and cl2 (called

clock control bits) are described as follows;

cl1

t

= A

t+2

[30], cl2

t

= A

t+2

[31]

Both cl1

t

and cl2

t

are binary variables; more pre-

cisely, cl1

t

= {0,1}, and cl2

t

= {0,1}. Stop-and-go

clocking is effective in terms of computational cost,

because no computation is required in the case of

0. However, the feedback function has no transfor-

mation for feedback registers with a probability 1/4

where all clockings are stop-and-go clockings. Thus,

we use two types of clocking for the feedback func-

tion. FSR-B is deﬁned by a primitive polynomial,

where cl2

t

= 0.

3.2 Nonlinear Function

The non-linear function of K2 v2.0 is fed the values

of two registers of FSR-A and four registers of FSR-

B and that of internal registers R1, R2, L1, L2, and

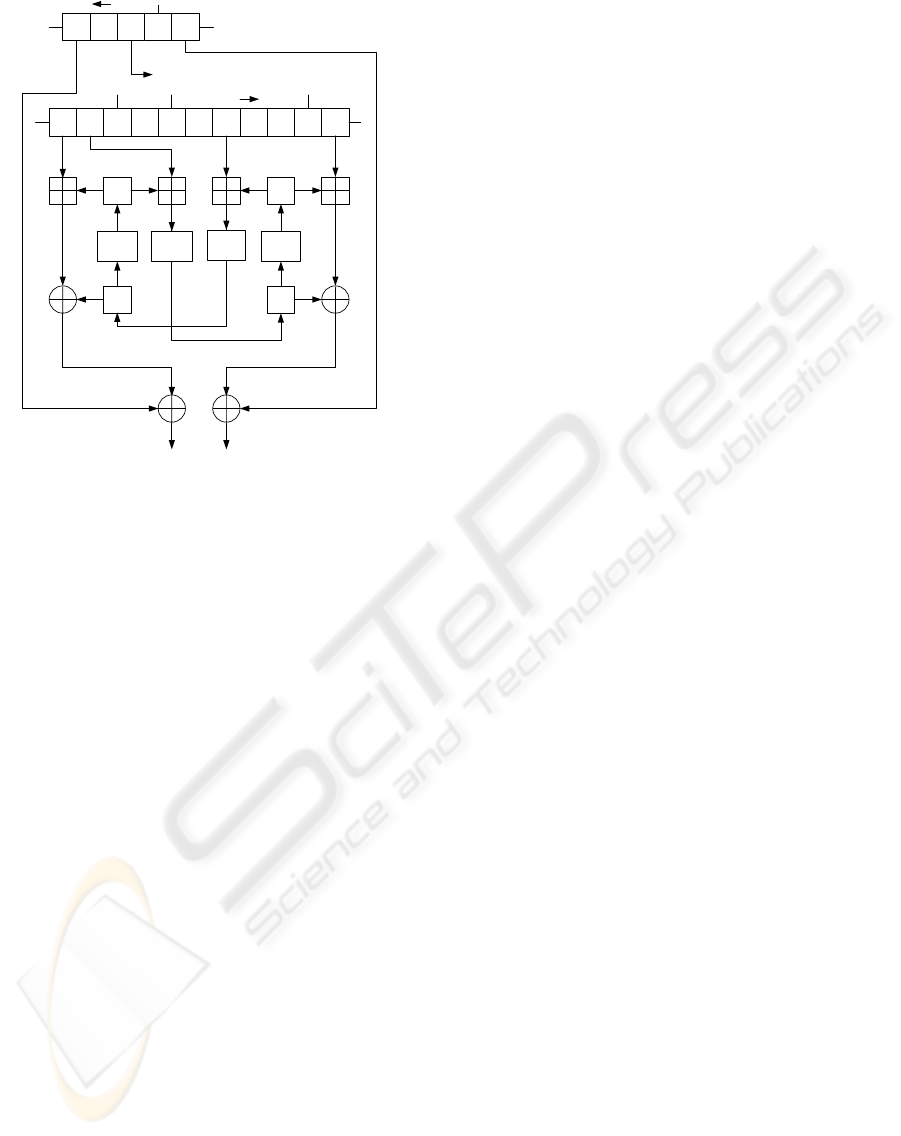

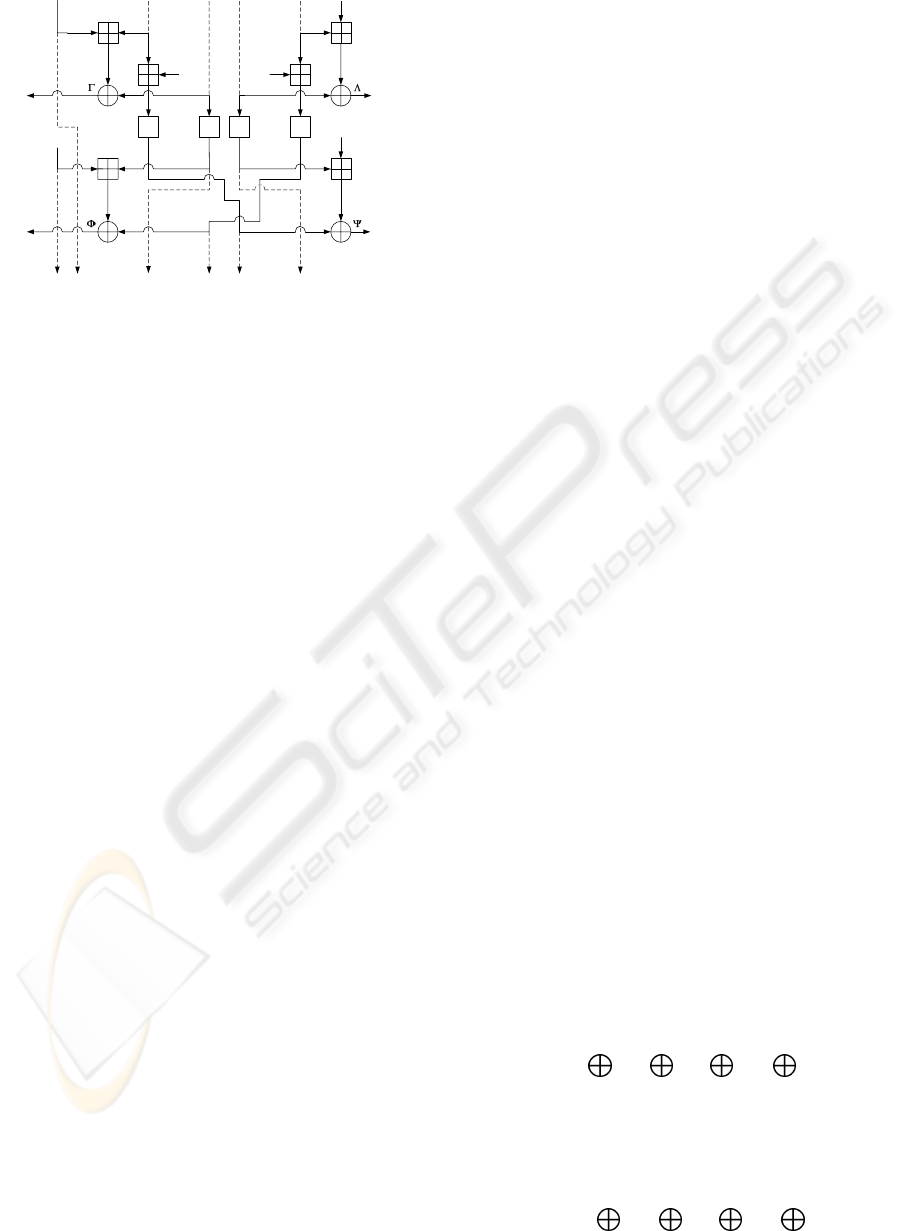

outputs 64 bits of the keystream every cycle. Fig. 2

shows the non-linear function of K2 v2.0. The non-

linear function includes four substitution steps that are

indicated by Sub.

The Sub step divides the 32-bit input string into

four 1-byte strings and applies a non-linear permuta-

tion to each byte using an 8-to-8 bit substitution, and

then applies a 32-to-32 bit linear permutation. The

8-to-8 bit substitution is the same as s-boxes of AES

(Daemen and Rijmen, 1998), and the permutation is

the same as AES Mix Column operation. The 8-to-

8 bit substitution consists of two functions: g and

f. The g calculates the multiplicative inverse mod-

ulo the irreducible polynomial m(x) = x

8

+ x

4

+ x

3

+

x+ 1 without 0x00, and 0x00 is transformed to itself

(0x00). f is an afﬁne transformation deﬁned by;

b

7

b

6

b

5

b

4

b

3

b

2

b

1

b

0

=

11111000

01111100

00111110

00011111

10001111

11000111

11100011

11110001

×

a

7

a

6

a

5

a

4

a

3

a

2

a

1

a

0

⊕

0

1

1

0

0

0

1

1

where a = (a

7

,...,a

0

) is the input and b = (b

7

,...,b

0

)

is an output, and a

0

and b

0

are the least signiﬁcant bit

(LSB).

Let C be (c

3

,c

2

,c

1

,c

0

) and output D be

(d

3

,d

2

,d

1

,d

0

), where c

i

, d

i

are 8-bit values. The lin-

ear permutation D = p(C) is described as follows;

d

0

d

1

d

2

d

3

=

02 03 01 01

01 02 03 01

01 01 02 03

03 01 01 02

c

0

c

1

c

2

c

3

in GF(2

8

) of the irreducible polynomial m(x) = x

8

+

x

4

+ x

3

+ x+ 1.

3.3 Keystream Output

Let keystream at time t be Z

t

= (z

H

t

,z

L

t

) (each z

x

t

is a

32-bit value, and z

H

t

is a higher string). The keystream

z

H

t

, z

L

t

is calculated as follows:

z

L

t

= B

t

⊞ R2

t

⊕ R1

t

⊕ A

t+4

z

H

t

= B

t+10

⊞ L2

t

⊕ L1

t

⊕ A

t

where A

x

and B

x

denote outputs of FSR-A and FSR-B

at time x, and R1

x

, R2

x

, L1

x

, and L2

x

denote the inter-

nal registers at time x. The symbol ⊕ denotes bitwise

SECRYPT 2007 - International Conference on Security and Cryptography

206

04910

R2

20

FSR-B

FSR-A

Keystream (64bits)

Dynamic Feedback Controller

L2

4

Sub

L1

Sub

R1

Sub

Sub

Figure 2: Non-Linear Function of K2 v2.0.

exclusive-or operation and the symbol ⊞ denotes and

32-bit addition. Finally, the internal registers are up-

dated as follows;

R1

t+1

= Sub(L2

t

⊞ B

t+9

), R2

t+1

= Sub(R1

t

)

L1

t+1

= Sub(R2

t

⊞ B

t+4

), L2

t+1

= Sub(L1

t

)

where Sub(X) is an output of the Sub step for X.

The set of {B

t

,B

t+3

,B

t+8

,B

t+10

} is a Full Positive

Difference Set (FPDS)(Golic, 1996).

3.4 Initialization Process

The initialization process of K2 v2.0 consists of

two steps, a key loading step and an internal state

initialization step. First, an initial internal state is

generated from a 128-bit initial key, a 192-bit initial

key, or a 256-bit initial key and a 128-bit initial

vector (IV) by using the key scheduling algorithm.

The key scheduling algorithm is similar to the round

key generation function of AES and the algorithm

extends the 128-bit initial key, the 192-bit initial

key or the 256-bit initial key to 384 bits. The key

scheduling algorithm for a 128-bit key is described as

K

i

=

IK

i

(0 ≤ i ≤ 3)

K

i−4

⊕ Sub((K

i−1

≪ 8) ⊕ (K

i−1

≫ 24))

⊕Rcon[i/4− 1] (i = 4n)

K

i−4

⊕ K

i−1

(i 6= 4n)

where IK = (IK

0

,IK

1

,IK

2

,IK

3

) is the initial key, i is

a positive integer 0 ≤ i ≤ 11, and n is a positive in-

teger. The function Sub(X) in the key scheduling al-

gorithm is the same as that in the non-linear function.

This function is different from the round key gener-

ation function of AES, and the other part of the key

scheduling algorithm is same as the AES round key

generation. Rcon[i] denotes (x

i

mod x

8

+ x

4

+ x

3

+

x + 1, 0x00,0x00,0x00) and x is 0x02. The internal

state is initialized with K

i

and IV = (IV

0

,IV

1

,IV

2

,IV

3

)

as follows:

A

m

= K

4−m

(m = 0,..., 4),B

0

= K

10

,B

1

= K

11

,

B

2

= IV

0

,B

3

= IV

1

,B

4

= K

8

,B

5

= K

9

,B

6

= IV

2

,

B

7

= IV

3

,B

8

= K

7

,B

9

= K

5

,B

10

= K

6

The internal registers, R1, R2, L1, and L2 are set to

0x00. After the above processes, the cipher clocks 24

times (j = 1, ..., 24), updating the internal states. The

internal states A

j+4

B

j+10

are also updated as follows:

A

j+4

=α

0

A

j−1

⊕ A

j+2

⊕ z

L

j−1

B

j+10

=(α

cl1

j−1

1

+ α

1−cl1

j−1

2

− 1)B

j−1

⊕ B

j

⊕ B

j+5

⊕ α

cl2

j−1

3

B

j+7

⊕ z

H

j−1

The recommended maximum number of cycles

for K2 v2.0 without re-initializing is 2

58

cycles (2

64

keystream bits).

4 ANALYSIS OF K2 V2.0

4.1 Analysis of Periods

The cipher has two FSRs. FSR-A is deﬁned by a

primitive polynomial. Thus, the sequence of 32-bit

outputs generated by FSR-A has a maximum period

of 2

160

− 1.

Now, we re-deﬁne the updating function f

B

for

FSR-B in terms of a 352 × 352 matrix M

f

B

over

GF(2). The updating function at time t is given by

one of the four possibilities for the matrix. The period

of outputs of FSR-B is l, where l is a minimum value

satisfying (M

f

B

)

l

= I. The matrix is described as

follows:

K2: A STREAM CIPHER ALGORITHM USING DYNAMIC FEEDBACK CONTROL

207

M

f

B

=

0 I 0 0 0 0 0 0 0 0 0

0 0 I 0 0 0 0 0 0 0 0

0 0 0 I 0 0 0 0 0 0 0

0 0 0 0 I 0 0 0 0 0 0

0 0 0 0 0 I 0 0 0 0 0

0 0 0 0 0 0 I 0 0 0 0

0 0 0 0 0 0 0 I 0 0 0

0 0 0 0 0 0 0 0 I 0 0

0 0 0 0 0 0 0 0 0 I 0

0 0 0 0 0 0 0 0 0 0 I

M

1

0 I 0 0 I 0 0 M

2

0 0

where M

1

= M

α

2

,M

α

1

(cl1

t

= 0, 1), M

2

= I,M

α

3

(cl2

t

= 0,1). M

α

1

, M

α

2

, and M

α

3

are shown in Ap-

pendix A.

We calculated the periods of FSR-B for the four

possible representations as follows:

• (cl1

t

,cl2

t

) = (0,0)

The matrix M

f

B

has the maximum order 2

352

− 1,

and output sequences of the FSR-B have a maxi-

mum period 2

352

− 1. The FSR-B is a linear feed-

back shift register where the feedback polynomial

f

B

is a primitive polynomial over GF(2).

• (cl1

t

,cl2

t

) = (1,0)

The matrix M

f

B

has the maximum order 2

352

− 1,

and output sequences of the FSR-B also have the

maximum period 2

352

− 1.

• (cl1

t

,cl2

t

) = (0,1)

The matrix M

f

B

has an order of approximately

2

332

, and output sequences of the FSR-B have a

period of approximately 2

332

.

• (cl1

t

,cl2

t

) = (1,1)

The matrix M

f

B

has an order of approximately

2

318

, and output sequences of the FSR-B have a

period of approximately 2

318

.

From the above results of analysis, we think that

K2 v2.0 can produce a keystream of a sufﬁcient length

period more than the number of cycles without re-

initialization. In an experimental analysis using some

sequences of the keystream produced by the cipher,

we did not ﬁnd any short periods.

4.2 Analysis of Statistical Tests

The statistical properties of the cipher also depend on

the properties of the output sequences of FSR-A and

FSR-B; thus, we expect the keystream of the cipher

to have good statistical properties. We evaluated the

statistical properties for the keystream of the cipher

and output sequences of FSR-A and FSR-B by the

NIST Test Suite

2

and conﬁrmed that these properties

2

Random Number Generation and Testing, NIST Test

Suite, Available from http://csrc.nist.gov/rng/.

were good.

4.3 Security Analysis

We discuss security of the cipher against existing

attacks.

Time-Memory Trade-Offs. We chose the size

of the secret key and IV taking into consideration

the discussion of general time-memory trade-offs by

Hong and Sarker (Hong and Sarkar, 2005). This at-

tack generally requires O(2

3(k+v)

4

) pre-computation,

O(2

k+v

2

) memory, and O(2

k+v

2

) available data, en-

abling an online attack with time complexity of

O(2

k+v

2

), where the lengths of the secret key and IV

are k and v, respectively.

The IV, the secret key, and the internal state are

sufﬁciently large. Thus, we think the cipher is not

vulnerable to time-memory trade-off attacks.

Correlation Attacks. The feasibility of cor-

relation attacks depends on the number of inputs

to the non-linear function and on the tap positions

for the function. The use of a full positive differ-

ence set for the tap positions and the non-linear

function has sufﬁcient non-linearity for preventing

the attacks. We evaluate the security using an

asymptotic analysis proposed by Chepyzhov and

Smeets (Chepyzhov et al., 2001). The required

length N of the keystream for an correlation attack

is N ≈ 1/4 · (2k · h! · ln2)

1/h

· ε

−2

· 2

l−k

h

, where l, k,

and h denote a target FSR length, and algorithm

parameters, and the correlation probability of the

target stream cipher is 1/2 + ε. The computational-

time complexity of this pre-computation phase in

the attack is approximately N

⌈(h−1)/2⌉

and N

⌊(h−1)/2⌋

is required. Furthermore, the decoding algorithm

stores (N

h

· 2

k−l

)/h! parity checks and its com-

putational complexity is 2

k

times the number of

parity checks. When attacking the regular clocked

FSR-B in K2, the lowest correlation probability

for the attack is approximately 1/2 + 2

−13

, where

h = 9, k = 26, and computational complexity and the

required memory are roughly O(2

256

). However, no

correlation between the input and output sequences

of the non-linear function with a probability larger

than 1/2+ 2

−13

is found. Furthermore, the irregular

clocking improves security against correlation attacks

because the linear relations of bits in FSR-B are more

complicated using the irregular clock.

Security of the Initialization Process. For

any key unique pair of a initial key and a IV, the

SECRYPT 2007 - International Conference on Security and Cryptography

208

key loading step generates an internal state of the

cipher. The initial key is expanded using the AES key

scheduling algorithm, and the IV and expanded keys

are thoroughly mixed by the 24 cycles comprising

the initialization process. After 13 cycles of the

run-up, all values of an internal state of the cipher

includes all IV

i

s. All registers in the internal state

will depend on both the initial key and IV after

13 cycles. Furthermore, the initialization process

additionally runs 11 cycles and the IV

i

s and an initial

key are well mixed into the internal state. Even an

initial difference of any single register for the IV is

propagated to all registers in the internal state after 12

steps. Thus, we think that the cipher is not vulnerable

to the chosen/related IV attacks. Another attack to

the initialization process is a distinguishing attack

to use a collision of the ﬁrst keystream by chosen

pairs of an initial key and a IV. However, we did

not ﬁnd the collision that is occurred with a feasible

probability, because any registers are well mixed.

Guess-and-Determine Attacks.

First, we discuss the general evaluation of the

computational complexity of guess-and-determine at-

tacks. The keystream of n bits is calculated from m

bits of the output of an internal state of l bits, which

consists of FSRs and the internal memory of a non-

linear function. In the initial step, an adversary can

determine n bits of the internal state from n bits of

the keystream, which allow guessing of m− n bits of

the internal state. In the next step, some values of the

internal state will have already been guessed or deter-

mined in the previous step. In this manner, the ad-

versary guesses other values of the internal state. The

adversary iteratively performs guesses and determines

steps until all values of the internal state have either

been guessed or determined. Now, we assume that m

bits of the output are uniformly selected from internal

state by an ideal rule. After j steps, the values that

the adversary has had to guess can be approximated

as

1− ⌈

v

j

l

⌉

(m− n), where v

j

is the number of bits

that have already been guessed or determined in step

j. Let y(x) denote the number of already-guessed or

determined bits at the xth step of the GD attack. and

set y(0) = 0. Now, we assume that n bits of the in-

ternal state can be determined in each step. y(x) is

caluclated as;

y(x) =

n

2

− m· n+ l · m

m− n

1− e

−

m−n

l

x

We obtain η the number of steps needed for the

GD attack from y(η) = l. Thus, the total number η

of guessed and determined steps can be approximated

by η ≈

l

m−n

· ln

m

n

.

The computational cost C is C ≈ c· 2

l−nη

, where c

is a constant value. For K2, l, m, and n are 640, 256,

and 64 respectively. Thus, the computational com-

plexity is approximately O(2

344

). As a result of the

general evaluation of GD attacks, K2 is expected to

be secure against GD attacks.

A simple guess-and-determine attack is where the

attacker guesses all values of FSR-A and all inter-

nal memory sets and determines all values of FSR-

B. However, this attack is impossible because the

computational complexity of the attack is at least

O(2

288

). Now, we consider a guess-and-determine at-

tack against a simpliﬁed K2 that is performed with-

out multiplying α

i

(i = 0,1,2, 3) and additions are re-

placed by exclusive-or operations. First, we consider

an attack designed to remove A

t+4

from the equation

of the keystream and to attack with the focus on FSR-

B as follows:

z

L

t

⊕ z

H

t+4

= (B

t

⊞ Sub(R1

t−1

)) ⊕ R1

t

⊕ (B

t+14

⊞ Sub(L1

t−1

)) ⊕ L1

t+4

If an attacker guesses ﬁve elements of the above

equation, then the attacker can determine the other el-

ement, such as B

t+14

, and the attacker can also de-

termine A

t+4

. To determine all values of FSRs, the

attacker has to guess at least 10 elements; thus, this

attack is impossible. Next, we consider the other at-

tack where the relationship of four internal registers

R1, R2, L1, L2 is used. The relationship of the mem-

ory is described as follows;

R2

t+1

= Sub(R1

t

), L1

t+2

= Sub(R2

t+1

⊞ B

t+5

)

L2

t+3

= Sub(L1

t+2

), R1

t+4

= Sub(L2

t+3

⊞ B

t+12

)

That is, if an attacker guesses R1

t

, B

t+5

, B

t+12

,

then the attacker determines R2

t+1

, L1

t+2

, L2

t+3

,

R1

t+4

using the above equations. Now, consider a

more simpliﬁed algorithm without FSR-A, which

is that the attacker obtains the values of z

H

t

⊕ A

t

and z

L

t

⊕ A

t+4

in each cycle t. In this situation,

if the attacker guesses six elements R1

t+1

, R1

t+2

,

L1

t

, L1

t+1

, B

t+6

, and B

t+7

, then the attacker can

determine all values of FSR-B. The complexity of the

second attack is O(2

192

). However, more than two

values of FSR-A have to be guessed for obtaining all

values of the internal state. Furthermore, the attacker

needs to guess the clock control bits for the full

version algorithm. Thus, we think the full version of

the algorithm is secure against guess-and-determine

attacks.

Distinguishing Attacks. In distinguishing at-

tacks, a probabilistic linear relation of keystream

K2: A STREAM CIPHER ALGORITHM USING DYNAMIC FEEDBACK CONTROL

209

Sub

B

t+9

Sub

B

t+10

B

t+11

Sub Sub

B

t+5

B

t

B

t+1

L2

t

L1

t

R1

t

R2

t

Z

L

t

+A

t

Z

L

t+1

+A

t+1

Z

R

t

+A

t+4

Z

R

t+1

+A

t+5

Figure 3: Linear Masking of K2 for Two-Round Outputs.

bits is needed as a distinguisher. K. Nyberg and J.

Wallen presented a distinguishing attack on SNOW

2.0(Nyberg and Wallen, 2006) where the computa-

tional complexity of their attack was O(2

174

). We try

to construct a linear recurrence from output keystream

bits with ﬁxed clock control bits cl1

t

= cl2

t

= 0 for

each cycle. A two-round linear masking of K2 is

shown in Fig. 3. Four substitutions are affected by the

linearization; the number of involved substitutions is

twice the number of attacks on SNOW 2.0. Thus, we

expect that K2 is more secure than SNOW 2.0 against

distinguishing attacks.

Now, we construct a linear distinguisher using

four masks, Γ, Λ, Φ, and Ψ as follows;

Γα

2

α

0

· Σ

z

H

(t) ⊕ Γα

2

· Σ

z

H

(t + 3,t + 5)

⊕ Γα

0

· Σ

z

H

(t + 1,t + 6,t + 8,t + 11)

⊕ Γ· Σ

z

H

(t + 4,t + 6,t + 9,t + 13,t + 14,t + 16)

⊕ Λα

2

α

0

· Σ

z

L

(t) ⊕ Λα

2

· Σ

z

L

(t + 3,t + 5)

⊕ Λα

0

· Σ

z

L

(t + 1,t + 6,t + 8,t + 11)

⊕ Λ· Σ

z

L

(t + 4,t + 6,t + 9,t + 13,t + 14,t + 16)

⊕ Φα

2

α

0

· Σ

z

H

(t + 1) ⊕ Φα

2

· Σ

z

H

(t + 4,t + 6)

⊕ Φα

0

· Σ

z

H

(t + 2,t + 7,t + 9,t + 12)

⊕ Φ· Σ

z

H

(t + 5,t + 7,t + 10,t + 14,t + 15,t + 17)

⊕ Ψα

2

α

0

· Σ

z

L

(t + 1) ⊕ Ψα

2

· Σ

z

L

(t + 4,t + 6)

⊕ Ψα

0

· Σ

z

L

(t + 2,t + 7,t + 9,t + 12)

⊕ Ψ· Σ

z

L

(t + 5,t + 7,t + 10,t + 14,t + 15,t + 17) = 0

If the bias for a combination of linear masks

has a high probability, an attacker constructs a

distinguisher from the equation. However, we have

not found a combination of linear masks with a bias

value higher than 2

−128

. Furthermore, to obtain

the equation, all clock control bits for 15 times the

feedback operations of FSR-B are cl1

t

= cl2

t

= 0;

the probability of this condition of clock control bits

is about 2

−30

. That is, the computational complexity

of a distinguishing attack against the cipher increase

2

60

times by using the dynamic feedback control

mechanism. Additionally, the cipher is assumed to be

re-initialized after 2

58

cycles. Thus, we conclude that

distinguishing attacks against K2 is impossible.

Algebraic Attacks. The non-linear function has

ideal algebraic properties; the non-linear function

consists of AES S-boxes and an effective permutation

function. Furthermore, the dynamic feedback control

increases the cost of solving the system of internal

values. Courtois presented an evaluation method for

the complexity of general algebraic attacks (Courtois,

2005). A general evaluation suggests that K2 is secure

against algebraic attacks; the computational complex-

ity of the attack is roughly O(2

646

).

We investigated the possibility of algebraic at-

tacks, when we assumed that FSR-B has regular

clocking and the addition modulo 2

32

operation is re-

placed by the XOR operation. An algebraic attack

against SNOW 2.0 was proposed by O. Billet and H.

Gilbert(Billet and Gilbert, 2005). We tried to apply

the attack to K2. This attack is effective for stream

cipher algorithms that have a non-linear function with

internal memory. In this attack, the attacker has to

have internal registers at time t, which is deﬁned as

linear equations that consist of initial values of in-

ternal state variables, and constructs relationships be-

tween the input values of a non-linear substitution and

the corresponding output values, which are low de-

gree algebraic expressions.

First, we obtain the following equation from the

assumption:

R2

t

= R1

t

⊕A

t+4

⊕B

t

⊕z

L

t

, L1

t−1

= Sub(R2

t−2

⊕B

t+2

)

R1

t

= Sub(L1

t−1

⊕ A

t−1

⊕ B

t+8

⊕ B

t+9

⊕ z

H

t−1

)

If we remove substitutions from the above equa-

tions, we obtain the linear recurrence R2

t

= R2

t−2

⊕

A

t−1

⊕ A

t+4

⊕ B

t

⊕ B

t+2

⊕ B

t+8

⊕ B

t+9

⊕ z

H

t−1

⊕ z

L

t

.

We can deﬁne a linear equation of registers of

FSR-A and FSR-B, for any clock t, which only in-

volves keystream, registers at t = 0, and R2

0

from the

equation for R2

t

;

R2

t

= R2

0

t

i=0

ε

i

t

z

H

i

t

j=0

ε

j

t

z

L

j

4

k=0

ε

k

t

A

k

10

l=0

ε

l

t

B

l

where ε

i

t

, ε

j

t

, ε

k

t

, ε

l

t

are known binary coefﬁcients.

We also obtain;

R1

t−1

= R1

0

t

i=0

ε

i

t

z

H

i

t

j=0

ε

j

t

z

L

j

4

k=0

ε

k

t

A

k

10

l=0

ε

l

t

B

l

SECRYPT 2007 - International Conference on Security and Cryptography

210

Table 1: Comparison with Other Stream Ciphers.

Algorithm Structure Key. Gen. (Cy./By.) Init. (Cy./Init.) ISE

SNOW 2.0(Ekdahl and Johansson, 2003) LFSR 4.5 937 0.440

SOBER-t32(NESSIE, 2003) LFSR 28 944 0.290

LILI-128(NESSIE, 2003) clock controlled LFSR 987 59 0.375

RC4 128-bit key (NESSIE, 2003) Table Updating 20 4680 0.018

AES 128-bit key encryption (NESSIE, 2003) - 24 689 -

K2 v2.0 (Reference) DFSR 7.5 1308 0.400

K2 v2.0 (Optimal) DFSR 5.4 1136 0.400

in the same manner. Thus, we can obtain quadratic

equations to use the relation R2

t

= Sub(R1

t−1

) be-

cause the substitution consists of the AES S-Box,

which has linearly independent quadratic equations

involving the S-Box input and output bits.

However, the substitutions that were removed in

the above attack prevent construction of the linear

equations for R1

t

and R2

t

in the real algorithm. Thus,

the attacker cannot obtain the linear equation of the

ﬁxed values of internal memory and registers, R1

0

,

R2

0

, B

0

, B

1

, ..., B

10

, A

0

, ..., A

4

for R1

t−1

and R2

t

.

This attack is impossible even for the regular clock-

ing algorithm.

Furthermore, the attacker has to guess the clocks

of each cycle to determine the equations for a full

version of the cipher. Let M be the total number

of non-constant monomials appearing in the over-

deﬁned system of equations, and N be the number of

equations that the attacker obtains per output of one

cycle. The computational complexity of the algebraic

attack increases 2

2

· (⌈M/N⌉ − 1) (≤ 2

160

) times

by using the dynamic feedback control mechanism.

Thus, we think the full version algorithm is secure

against an algebraic attack.

Clock Control Guessing Attack. This attack

(Zenner, 2003) is effective against bit-oriented clock

controlled stream ciphers. K2 is a word-oriented

stream cipher with a large internal state, and its non-

linear part is more complicated than existing stream

ciphers broken by the attacks. An extended attack

based on an algebraic approach was discussed by S.

Al-Hinai et. al. (Al-Hinai et al., 2006). However, it is

difﬁcult to apply the attack when a sufﬁciently secure

non-linear function is used to generate the keystream.

Thus, we expect that the cipher will be secure against

such attacks.

Divide-and-Conquer Approach. The output se-

quences of FSR-A and FSR-B have good statistical

properties. Thus, we expect that divide-and-conquer

attacks for the FSRs are not feasible.

4.4 Performance Analysis

We implemented the algorithm on a PC (Pentium

4 3.2 GHz) using Intel C++ Compiler Ver.9 (for

Windows), and evaluated the performance. The re-

sults of the evaluation are shown in Table 1. “Key.

Gen.” indicates the required clock-cycles for a one-

byte keystream generation and “Init.” indicates the

required clock-cycles for one initialization, includ-

ing the initial key and IV setup. The optimal ver-

sion is optimized to produce a 128-byte keystream at

once. The performance of eSTREAM

3

candidates

is about 4–14 cycle/byte in software implementation.

The performance of K2 v2.0 is much faster than exist-

ing clock controlled stream ciphers and AES, and is

competitive against word-oriented stream ciphers. K2

v2.0 is improves the security against existing attacks

proposed for SNOW 2.0. The Inner State Efﬁciency

(ISE) (Zenner, 2004) of the cipher, 0.4, is sufﬁciently

efﬁcient.

5 CONCLUSION

This paper proposed a new design for a stream cipher,

which is a word-oriented stream cipher using dynamic

feedback control. The stream cipher K2 v2.0 is secure

against several different types of attacks, and it of-

fers high-performance encryption and decryption for

software implementations. Furthermore, the design

of K2 v2.0 is considered security against existing at-

tacks on SNOW 2.0. We believe that the dynamic

feedback control mechanism is potentially effective

against several different types of attacks, not only ex-

isting attacks but also novel attacks.

REFERENCES

Al-Hinai, S., Batten, L., Colbert, B., and Wong, K. (2006).

Algebraic attacks on clock-controlled stream ciphers.

3

eSTREAM Project, http://www.ecrypt.eu.org/stream/

K2: A STREAM CIPHER ALGORITHM USING DYNAMIC FEEDBACK CONTROL

211

In Proc. of ACISP 2006, LNCS, volume 4058, pages

1–16. Springer Verlag.

Babbage, S. and Dodd, M. (2005). The stream ci-

pher MICKEY-128 2.0. Article for eSTREAM

Project, available at http://www.ecrypt.

eu.org/stream/p2ciphers/mickey128/

mickey128\_p2.pdf.

Billet, O. and Gilbert, H. (2005). Resistance of SNOW 2.0

against algebraic attacks. In Proc. of CT-RSA 2005,

LNCS, volume 3376, pages 19–28. Springer Verlag.

Chepyzhov, V., Johansson, T., and Smeets, B. (2001). A

simple algorithm for fast correlation attacks on stream

ciphers. In Proc. of FSE’00, LNCS, volume 1978,

pages 181–195. Springer Verlag.

Courtois, N. (2005). Algebraic attacks on combiners with

memory and several outputs. In Proc. of ICISC 2004,

LNCS, volume 3506, pages 3–20. Springer Verlag.

Daemen, J. and Rijmen, V. (1998). The Design of Rijn-

dael, Information Security and Cryptography, Texts

and Monographs. Springer Verlag.

Ekdahl, P. and Johansson, T. (2000). Snow -a new stream

cipher. The NESSIE submission paper.

Ekdahl, P. and Johansson, T. (2003). A new version of the

stream cipher SNOW. In Proc. of SAC 2002, LNCS,

volume 2595, pages 47–61. Springer Verlag.

Golic, J. D. (1996). On security of nonlinear ﬁlter genera-

tors. In Proc. of FSE ’96, LNCS, volume 1039, pages

173–188. Springer Verlag.

Hong, J. and Sarkar, P. (2005). Rediscovery of time memory

tradeoffs. IACR ePrint Archive, Report 2005/090.

Jansen, C. J., Helleseth, T., and Kholosha, A. (2005).

Cascade jump controlled sequence generator and

POMARANCH stream cipher. Article for eSTREAM

Project, available at http://www.ecrypt.

eu.org/stream/p2ciphers/pomaranch/

pomaranch\_p2.pdf.

Kiyomoto, S., Tanaka, T., and Sakurai, K. (2007). A

word-oriented stream cipher using clock control.

In SASC 2007 Workshop Record, pages 260–274,

available at

http://sasc.crypto.rub.de/files/

sasc2007_record.zip

.

NESSIE (2003). Nessie ﬁnal report, parformance of

optimized implementations of the nessie primitives.

NES/DOC/TEC/WP6/D21/2.

Nyberg, K. and Wallen, J. (2006). Improved linear distin-

guishers for SNOW 2.0. In Proc. of FSE 2006, LNCS,

volume 4047, pages 144–162. Springer Verlag.

Rose, G. and Hawkes, P. (1999). The t-class of sober stream

cipher. Publication Document, QUALCOMM Aus-

tralia.

Simpson, L., Dawson, E., Golic, J., and Millan, W. (2000).

LILI keystream generator. In Proc. of SAC 2000,

LNCS, volume 2012, pages 248–261. Springer Verlag.

Zenner, E. (2003). On the efﬁciency of the clock control

guessing attack. In Proc. of ICISC’02, LNCS, volume

2587, pages 200–212. Springer Verlag.

Zenner, E. (2004). On the role of the inner state size in

stream ciphers. Reihe Informatik 01-2004.

A MATRIX OF α

i

M

α

1

is the 32× 32 matrix over GF(2) given by

10001101100000000000000000000000

11000110010000000000000000000000

11100011001000000000000000000000

11111100000100000000000000000000

11111110000010000000000000000000

01110010000001000000000000000000

00110100000000100000000000000000

00011010000000010000000000000000

00110111000000001000000000000000

10011011000000000100000000000000

01001101000000000010000000000000

10010001000000000001000000000000

11001000000000000000100000000000

11010011000000000000010000000000

11011110000000000000001000000000

01101111000000000000000100000000

00100111000000000000000010000000

10010011000000000000000001000000

11001001000000000000000000100000

01000011000000000000000000010000

10100001000000000000000000001000

01110111000000000000000000000100

10011100000000000000000000000010

01001110000000000000000000000001

01010100000000000000000000000000

10101010000000000000000000000000

01010101000000000000000000000000

01111110000000000000000000000000

10111111000000000000000000000000

00001011000000000000000000000000

01010001000000000000000000000000

10101000000000000000000000000000

SECRYPT 2007 - International Conference on Security and Cryptography

212

M

α

2

is the 32× 32 matrix over GF(2) given by

01010010100000000000000000000000

10101001010000000000000000000000

00000110001000000000000000000000

10000011000100000000000000000000

11000001000010000000000000000000

00110010000001000000000000000000

01001011000000100000000000000000

10100101000000010000000000000000

01110011000000001000000000000000

00111001000000000100000000000000

01101111000000000010000000000000

00110111000000000001000000000000

00011011000000000000100000000000

01111110000000000000010000000000

11001100000000000000001000000000

11100110000000000000000100000000

00100110000000000000000010000000

10010011000000000000000001000000

11101111000000000000000000100000

01110111000000000000000000010000

10111011000000000000000000001000

01111011000000000000000000000100

10011011000000000000000000000010

01001101000000000000000000000001

01011101000000000000000000000000

00101110000000000000000000000000

01001010000000000000000000000000

00100101000000000000000000000000

00010010000000000000000000000000

01010100000000000000000000000000

01110111000000000000000000000000

10111011000000000000000000000000

M

α

3

is the 32× 32 matrix over GF(2) given by

10011010100000000000000000000000

01001101010000000000000000000000

00111100001000000000000000000000

10000100000100000000000000000000

11000010000010000000000000000000

11100001000001000000000000000000

01101010000000100000000000000000

00110101000000010000000000000000

00000010000000001000000000000000

00000001000000000100000000000000

10000010000000000010000000000000

01000011000000000001000000000000

00100001000000000000100000000000

00010000000000000000010000000000

00001010000000000000001000000000

00000101000000000000000100000000

10110010000000000000000010000000

11011001000000000000000001000000

11011110000000000000000000100000

11011101000000000000000000010000

11101110000000000000000000001000

11110111000000000000000000000100

11001001000000000000000000000010

01100100000000000000000000000001

11001101000000000000000000000000

01100100000000000000000000000000

11001101000000000000000000000000

11100110000000000000000000000000

00111110000000000000000000000000

11010010000000000000000000000000

11101001000000000000000000000000

11110100000000000000000000000000

00110111000000000000000000000000

10011011000000000000000000000000

B TEST VECTOR

A test vector for K2 is shown in this section.

Initial Key (128 bits):

IK

0

=0x00000000, IK

1

=0x00000000,

IK

2

=0x00000000, IK

3

=0x00000000

Initial Vector (128 bits):

IV

0

=0x00000000, IV

1

=0x00000000,

IV

2

=0x00000000, IV

3

=0x00000000

Keystream:

0xF871EBEF945B7272, 0xE40C04941DFF0537,

0x0B981A59FBC8AC57, 0x566D3B02C179DBB4,

0x3B46F1F033554C72, 0x5DE68BCC9872858F,

0x575496024062F0E9, 0xF932C998226DB6BA

K2: A STREAM CIPHER ALGORITHM USING DYNAMIC FEEDBACK CONTROL

213
