THE ART TO KEEP IN TOUCH

The “good use” of Lagrange Multipliers

Antoine Jonquet, Olivier Nocent

Department of Computer Science, Institute of Technology, Reims University, rue des cray`eres, 51687 Reims cedex 2, France

Yannick Remion

Department of Computer Science, Institute of Technology, Reims University, rue des cray`eres, 51687 Reims cedex 2, France

Keywords:

Physically-based animation, constraints, contact simulation.

Abstract:

Physically-based modeling for computer animation has become a wide spread framework because it allows

to produce more realistic motions in less time without requiring the expertise of skilled animators. But, a

computer animation is not only a numerical simulation based on classical mechanics since it follows a precise

story-line. One common way to deﬁne aims in an animation is to add geometric constraints. There are

several methods to manage these constraints within a physically-based framework. In this paper, we present

an algorithm for constraints handling based on Lagrange multipliers. After few remarks on the equations of

motion that we use, we present a ﬁrst algorithm proposed by Platt. We show with a simple example that this

method is not reliable. Our contribution consists in improving this algorithm to provide an efﬁcient and robust

method to handle simultaneous and antagonist constraints.

1 INTRODUCTION

For about two decades, the computer graphics com-

munity has investigated the ﬁeld of physics in order

to produce more and more realistic computer anima-

tions. In fact, physically-basedmodeling in animation

allows to generate stunning visual effects that would

be extremely complex to reproduce manually. On one

hand, the addition of physical properties to 3D objects

automates the generation of motion just by specifying

initial external forces. On the other hand, physically-

based animations are even more realistic than tradi-

tional key-framed animations that require the exper-

tise of many skilled animators. As a consequence, the

introduction of physically-based methods in model-

ing and animation signiﬁcantly reduced the cost and

production time of computer generated movies. But,

one main drawback of this kind of framework is that

it relies on heavy mathematics usually hard to tackle

for a computer scientist. A second main disadvantage

concerns the input of a physically-based animation:

in fact, forces and torques are not really user-friendly

since it is really difﬁcult to anticipate a complex mo-

tion just by specifying an initial set of external forces.

A computer animation is deﬁnitely not a numer-

ical simulation because it follows a story-line. Ac-

cording to Demetri Terzopoulos (Terzopoulos et al.,

1989), an animation is simulation plus control. One

way to ensure that the objects fulﬁll the goals deﬁned

by the animator is to use geometric constraints. A

constraint is an equality or an inequality that gath-

ers different parameters of the animation like the total

time elapsed, the positions or the orientations of the

moving objects. In a less general way, mechanical

simulations also beneﬁt from the use of constraints

in order to prevent interpenetration between physical

objects for example.

There are several methods to handle constraints,

summarized in a survey paper by Baraff (Baraff,

1993). But, since our research work is mostly de-

voted to mechanical simulation, we decided to focus

on the use of Lagrange multipliers to manage the ge-

ometric constraints. In fact, numerical simulations re-

quire robust and reliable techniques to ensure that the

constraints are never violated. Moreover, with this

method we are also able to measure the amount of

strain that is necessary to fulﬁll a given constraint.

In this paper, we present a novel algorithm to man-

age efﬁciently several simultaneous active geometric

constraints. We begin by detailing the physical equa-

47

Jonquet A., Nocent O. and Remion Y. (2007).

THE ART TO KEEP IN TOUCH - The “good use” of Lagrange Multipliers.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 47-54

DOI: 10.5220/0002085000470054

Copyright

c

SciTePress

tions that we use before presenting Platt’s algorithm

(Platt, 1992) that is the only algorithm of this type

based on lagrange multipliers. With a simple exam-

ple, we demonstrate that this algorithm is not suitable

for handling simultaneous active constraints. We then

introduce our own contribution in order to show how

to improvePlatt’s algorithm to make it reliable, robust

and efﬁcient.

2 LAGRANGE EQUATIONS OF

MOTION

Lagragian dynamics consist in an extension of new-

tonian dynamics allowing to generate a wide range of

animations in a more efﬁcient way. In fact, Lagrange

equations of motion rely on a set of unknowns, de-

noted as a state vector x of generalized coordinates,

that identiﬁes the real degrees of freedom (DOF) of

the mechanical systems involved. Within this for-

malism, the DOF are not only restricted to rotations

or translations. For example, a parameter u ∈ [0, 1]

which gives the relative position of a point along a 3D

parametric curve can be considered as a single gener-

alized coordinate.

2.1 Unconstrained Motion

The evolution of a free mechanical system only sub-

ject to a set of external forces is ruled by the Lagrange

equations of motion (1).

M

¨

x = f (1)

M is the mass matrix.

¨

x is the second time deriva-

tive of the state vector. Finally, the vector f corre-

sponds to the sum of external forces. For more details

concerning this formalism, we suggest to read (Gold-

stein, 1980) and (Arnold, 1989).

2.2 Constrained Motion

By convention, an equality constraint will always be

deﬁned as in equation (2) where E is the set of indices

of all the equality constraints.

g

k

(x) = 0 ∀k ∈ E (2)

Constraints restrict the set of reachable conﬁgura-

tions to a subspace of R

n

where n is the total number

of degrees of freedom. As mentioned before, there

exists three main methods to integrate constraints in

equation (1)

The projection method consists in modifying the

state vector x and its ﬁrst time derivative

˙

x in

order to fulﬁll the constraint. This modiﬁcation

can be performed with an iterative method like

the Newton-Raphson method (Press et al., 1992).

Even if this method is very simple and seems to

ensure an instantaneous constraint fulﬁllment, it

is not robust enough: indeed it can not guarantee

that the process converges in the case of simulta-

neous active constraints.

The penalty method adds new external forces, act-

ing like virtual springs, in order to minimize the

square of the constraint equation, considered as a

positive energy function. The main advantage of

this method is its compatibility with any dynamic

engine since it only relies on forces. But this

method leads to inexact constraint fulﬁllment, al-

lowing interpenetration between the physical ob-

jects. In order to diminish this interpenetration,

the stiffness of the virtual springs must be sig-

niﬁcantly increased, making the numerical system

unstable.

The Lagrange method consists in calculating the

exact amount of strain, denoted as the Lagrange

multiplier, needed to fulﬁll the constraint. This

method guarantees that constraints are always ex-

actly fulﬁlled. Since the use of Lagrange multipli-

ers introduces a set of new unknowns, the equa-

tion (1) must be completed by a set of new equa-

tions, increasing the size of the initial linear sys-

tem to solve. But we consider that this method

is the only suitable to manage efﬁciently the geo-

metric constraints.

For all the reasons mentioned above, we choose

the Lagrange method to manage our geometric con-

straints. According to the principle of virtual work,

each constraint g

k

adds a new force perpendicular to

the tangent space of the surface g

k

(x) = 0. The La-

grange multiplier λ

k

corresponds to the intensity of

the force related to the constraint g

k

. With these new

forces, the equation (1) is modiﬁed as follows:

M

¨

x = f +

X

k∈E

λ

k

∂g

k

∂x

(3)

We add new equations to our system by calculat-

ing the second time derivativeof equation (2), leading

to equation (4).

n

X

i=1

∂g

k

∂x

i

¨x

i

= −

n

X

i,j=1

∂

2

g

k

∂x

i

∂x

j

˙x

i

˙x

j

∀k ∈ E (4)

In order to correct the numerical deviation due to

round-off errors, Baumgarte proposed in (Baumgarte,

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

48

1972) a constraint stabilization scheme illustrated by

the equation (5). The parameter τ

−1

can be seen as

the speed of constraint fulﬁllment.

n

X

i=1

∂g

k

∂x

i

¨x

i

= −

n

X

i,j=1

∂

2

g

k

∂x

i

∂x

j

˙x

i

˙x

j

−

2

τ

n

X

i=1

∂g

k

∂x

i

˙x

i

−

1

τ

2

g

k

(5)

When we mix the equations (1) and (5), we obtain

a linear system where the second time derivative of

the state vector x and the vector of Lagrange multi-

pliers Λ are the unknowns.

M −J

T

−J 0

¨

x

Λ

=

f

−d

(6)

J is the jacobian matrix of all the geometric con-

straints and d corresponds to the right term of equa-

tion (5).

2.3 Inequality Constraints Management

By convention, an inequality constraint will always be

deﬁned as in equation (7) where F is the set of indices

of all the inequality constraints.

g

k

(x) ≥ 0 ∀k ∈ F (7)

For a given state vector x, we remind the follow-

ing deﬁnitions:

• the constraint is said to be violated by x when

g

k

(x) < 0. This means that the state vector x

corresponds to a non allowed conﬁguration.

• the constraint is said to be satisﬁed by x when

g

k

(x) ≥ 0.

• the constraint is said to be active by x when

g

k

(x) = 0. In this case, the state vector x be-

longs to the boundary of the subspace deﬁned by

the inequality constraint g

k

.

The management of inequality constraints is more

difﬁcult than the management of equality constraints.

An inequality constraint must be handled only if it

is violated or active. In fact, the algorithm is a little

more complicated as we explain in the next sections.

That is why we deﬁne two subsets within F : F

+

is the set of indices of all handled inequality con-

straints and F

−

is the set of indices of ignored in-

equality constraints. Finally, we have F = F

−

∪ F

+

.

The jacobian matrix of constraints J of the equa-

tion (6) is built from all the constraints g

k

where

k ∈ E ∪ F

+

.

3 PREVIOUS WORK

Within the computer graphics community, the main

published method devoted to inequality constraints

management using Lagrange multipliers, known as

“Generalized Dynamic Constraints”, was proposed

by Platt in (Platt, 1992). In his paper, he describes

how to use Lagrange multipliers to assemble and

simulate collisions between numerical models. This

method is an extension of the work of Barzel and

Barr (Barzel and Barr, 1988) that speciﬁes how con-

straints must be satisﬁed. Moreover, Platt proposes a

method to update F

+

(the set of handled inequality

constraints) during the animation. This algorithm can

be compared to classical active set methods (Bj¨orck,

1996; Nocedal and Wright, 1999).

We do not focus on collision detection that is a

problem by itself. We are aware that this difﬁcult

problem can be solved in many ways, we encourage

the reader to refer to the survey paper by Teschner

et al. (Teschner et al., 2005). During the collision

detection stage, we assume that the dynamic engine

may rewind time until the ﬁrst constraint activation

is detected. In any case, this stage ensures that con-

straints are never violated. But, it is possible that

several constraints are activated simultaneously. The

main topic of this paper is to provide a reliable algo-

rithm to handle these multiple active constraints in an

efﬁcient way.

At the beginning of the animation, Platt populates

the set F

+

with all the active constraints.

Algorithm 1– Platt’s algorithm.

Solve equation (6) to get ¨x and Λ1

Update x and ˙x (numerical integration)2

for each k ∈ F do3

if k ∈ F

+

then4

if λ

k

≤ 0 then5

k is moved to F

−

6

else7

if g

k

(x) < 0 then8

g

k

is moved to F

+

9

For each time step, according to algorithm 1, we

solve equation (6) and update the state vector in order

to retrieve new positions and velocities at the end of

the current time step. We then check the status of each

inequality constraint. If a constraint g

k

is active, it is

still handled until its Lagrange multiplier is negative

or null, that is to say that the Lagrange multiplier cor-

responds to a force that prevents from deactivation.

According to the new values of the state vector x, if

THE ART TO KEEP IN TOUCH - The “good use” of Lagrange Multipliers

49

the previously inactive constraint g

k

is now violated

(g

k

(x) < 0), the constraint must be added to F

+

in

order to prevent the system to entering in such a con-

ﬁguration.

y

x

y=0

x−y=0

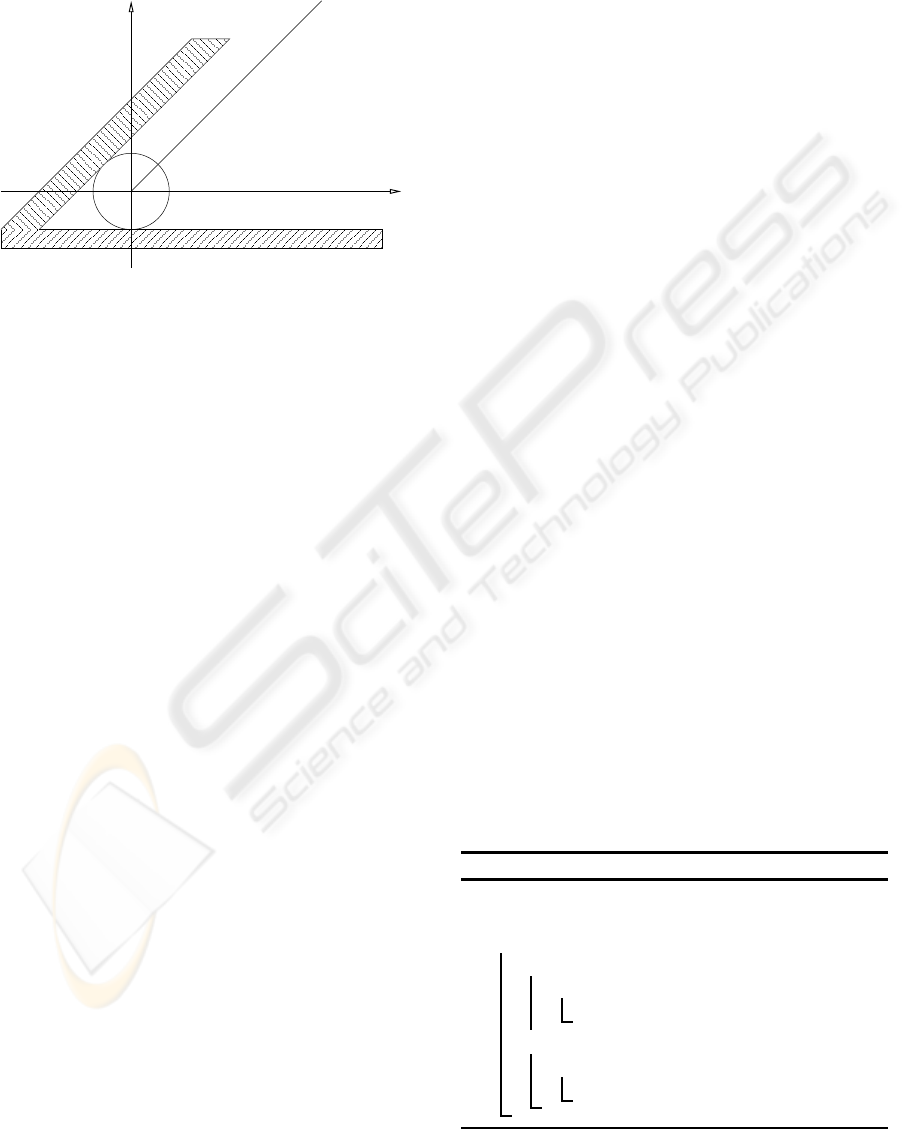

Figure 1: A simple example with two simultaneous active

constraints.

Even if this algorithm seems to give a reliable so-

lution for inequality constraints handling, some prob-

lems remain. We set up a simple scene as in ﬁgure 1

to illustrate the insufﬁciencies of Platt’s method. A

particle of mass m is constrained to slide on a 2D

plane. It starts from an acute-angle corner modeled

by two linear inequality constraints g

1

(x) = x − y

and g

2

(x) = y. Finally, this particle is subject to a

single external force f = (2, −1). In this particular

case, the state vector x is composed of the 2D coordi-

nates (x, y) of the particle. According to equation (1),

the generalized mass matrix for this system is deﬁned

by:

M =

m 0

0 m

(8)

As the geometric constraints g

1

(x) and g

2

(x) are

linear, their ﬁrst and second time derivative do not

produce any deviation term deﬁned in equation (5):

d =

0

0

(9)

According to the initial value of the state vector

x = (0, 0), the two constraints g

1

(x) and g

2

(x) are

active, so their indices are inserted in F

+

and J, the

jacobian matrix of constraints, is deﬁned as follows:

J =

1 −1

0 1

(10)

From equations (6) (8) (9) and (10), we obtain a

linear system whose unknowns are the second time

derivative of the state vector x and the two Lagrange

multipliers λ

1

and λ

2

associated with g

1

and g

2

:

m 0 −1 0

0 m 1 −1

−1 1 0 0

0 −1 0 0

¨x

¨y

λ

1

λ

2

=

2

−1

0

0

(11)

The solutions are ¨x = (0, 0) and Λ = (−2, − 1).

Because ¨x and ¨y are null, the particle does not move

during this time step. But, since λ

1

and λ

2

are both

negative, their corresponding constraints are moved

to F

−

. This means that, for the next time step, the

system will be free of any constraints. As the force

remains constant, the next value of ¨x will be equal to

(2m

−1

, −m

−1

). These values will lead to an illegal

position of the particle, under the line y = 0.

The amount of violation of the constraint g

2

(x) =

y mainly depends on the ratio between the mass m of

the particle and the intensity of the external force f .

The section 5 offers differentresults and comparisons.

4 OUR CONTRIBUTION

4.1 A First Approach

The problem of Platt’s method relies on the fact that it

keeps inequality constraints in F

+

abusively. In fact,

the condition g

k

(x) < 0 used to populate F

+

with in-

equality constraint is not well suited and an other way

must be proposed. A solution would be to replace

the condition g

k

(x) < 0 by a violation tendency con-

dition expressed as J

k

¨x < d

k

. An active constraint

that does not fulﬁll the violation tendency condition

will be satisﬁed during the next time step and does

not have to be handled.

At the beginning of the animation, we solve equa-

tion (1) to get ¨x and we then populate the set F

+

with

the active constraints that fulﬁll the violation tendency

condition. It is clear that we handle less constraints

than Platt because our criteria is more restrictive.

Algorithm 2– Platt’s improved algorithm.

Solve equation (6) to get ¨x and Λ1

Update x and ˙x (numerical integration)2

for each k ∈ F do3

if k ∈ F

+

then4

if λ

k

≤ 0 then5

k is moved to F

−

6

else7

if J

k

¨x < d

k

then8

k is moved to F

+

9

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

50

We brieﬂy verify that this algorithm gives a cor-

rect solution to our example illustrated in ﬁgure 1.

According to equation (1), ¨x = (2m

−1

, −m

−1

). The

two constraints g

1

and g

2

are active because x =

(0, 0) but only g

2

fulﬁlls the violation tendency con-

dition as mentioned in equation (12).

J

1

¨x = 3m

−1

, g

1

is moved to F

−

J

2

¨x = −m

−1

, g

2

is moved to F

+

(12)

In this special case, equation (6) becomes:

m 0 0

0 m −1

0 −1 0

¨x

¨y

λ

2

=

2

−1

0

(13)

The solutions of the linear system (13) are ¨x =

(2m

−1

, 0) and λ

2

= 1. Finally, the particle will slide

along the x-axis without crossing the line y = 0 be-

cause the constraint g

1

that was not handle did not

introduce a false response.

This new algorithm seems to manage multiple in-

equality constraints in a good way, but we could high-

light a problem in this algorithm by using the same ex-

ample illustrated in ﬁgure 1 with a new external force

f = (−1, −2).

At the beginning, since x = (0, 0), the constraints

g

1

and g

2

are active. From equation (1), we obtain

that ¨x = (−m

−1

, −2m

−1

), and from equation (14)

that only the consraint g

2

is handled.

J

1

¨x = m

−1

, g

1

is moved to F

−

J

2

¨x = −2m

−1

, g

2

is moved to F

+

(14)

According to equation (14), we build the linear

system (15).

m 0 0

0 m −1

0 −1 0

¨x

¨y

λ

2

=

−1

−2

0

(15)

The solutions are ¨x = (−m

−1

, 0) and λ

2

= 2.

Then, after the update of x and ˙x, the particle goes

through the plane deﬁned by the constraint g

1

and

reaches an illegal state. This is due to the fact that the

Lagrange multiplier λ

2

pushes the system in an illegal

state from the constraint g

1

point of view, which was

not previously inserted in the system 6 as its initial

tendency acceleration tends to disconnect the particle

from the x − y = 0 plane.

At the end of the step, we check inequality con-

straints for the next animation step, as λ

2

≤ 0, g

2

stays in F

+

and J

1

¨x < d

1

, then g

1

move to F

+

. So

at the next step, the linear system will be correctly

set, but it is too late since the system is already in an

illegal state.

4.2 The “Right” Algorithm

The use of the violation tendency condition J

k

¨x <

d

k

improves simultaneous active constraints man-

agement, since only the appropriate inequality con-

straints are handled by the equation (6). But we have

seen, from the previous example, that it is insufﬁcient

to reach the accurate conﬁguration. In fact, the con-

straints from F

+

that fulﬁll the violation tendency

condition will produce a vector Λ of Lagrange mul-

tipliers that prevent the system from being in an ille-

gal conﬁguration. In the meantime, the acceleration

tendency ¨x of the system could lead to another illegal

conﬁguration. The only way to deal with this problem

is to use the new acceleration tendencies to test if the

other active inequality constraints g

k

fulﬁll the viola-

tion tendency condition and have to be handled. We

then need an iterative process that computesthe accel-

eration tendencies and test for other active inequality

constraints g

k

to insert in F

+

, until the sytem reaches

the appropriate state.

We propose a simple and efﬁcient solution to the

inequality constraints handling problem, based on the

way physicists work. At the beginning of each time

step, all active inequality constraints g

k

are detected,

and F

+

is emptied. We then begin an iterative pro-

cess that runs until there is no new insertion in F

+

.

The acceleration tendencies

¨

x are computed from

the equation (6) and the violation tendency condition

J

k

¨x < d

k

is tested on each active inequality con-

straint. For any inequality constraint g

k

that fulﬁlls

the condition, we insert its index k in F

+

and start

another iterative step.

Algorithm 3– The right algorithm.

repeat1

Solve equation (6) to get

¨

x and Λ2

for each active constraint g

k

do3

if J

k

¨x < d

k

then4

k is moved to F

+

5

until F

+

has not been updated;6

Update x and ˙x (numerical integration)7

Since we begin with no constraints and that only

appropriate inequality constraints are inserted to F

+

during the iterative process, the last computation of

¨

x

and Λ from equation (6) will lead to an accurate con-

ﬁguration of the system. Moreover, this process guar-

antees the convergence towards an appropriate solu-

tion as we begin from an empty F

+

and only insert

constraints in F

+

.

In a recent communication (Raghupathi and

Faure, 2006), Raghupathi presented a method also

THE ART TO KEEP IN TOUCH - The “good use” of Lagrange Multipliers

51

-1.2e-05

-1e-05

-8e-06

-6e-06

-4e-06

-2e-06

0

2e-06

0 0.005 0.01 0.015 0.02

position

time

Platt’s algorithm

Our algorithm

-10

-5

0

5

10

0 0.005 0.01 0.015 0.02

acceleration

time

Platt’s algorithm

Our algorithm

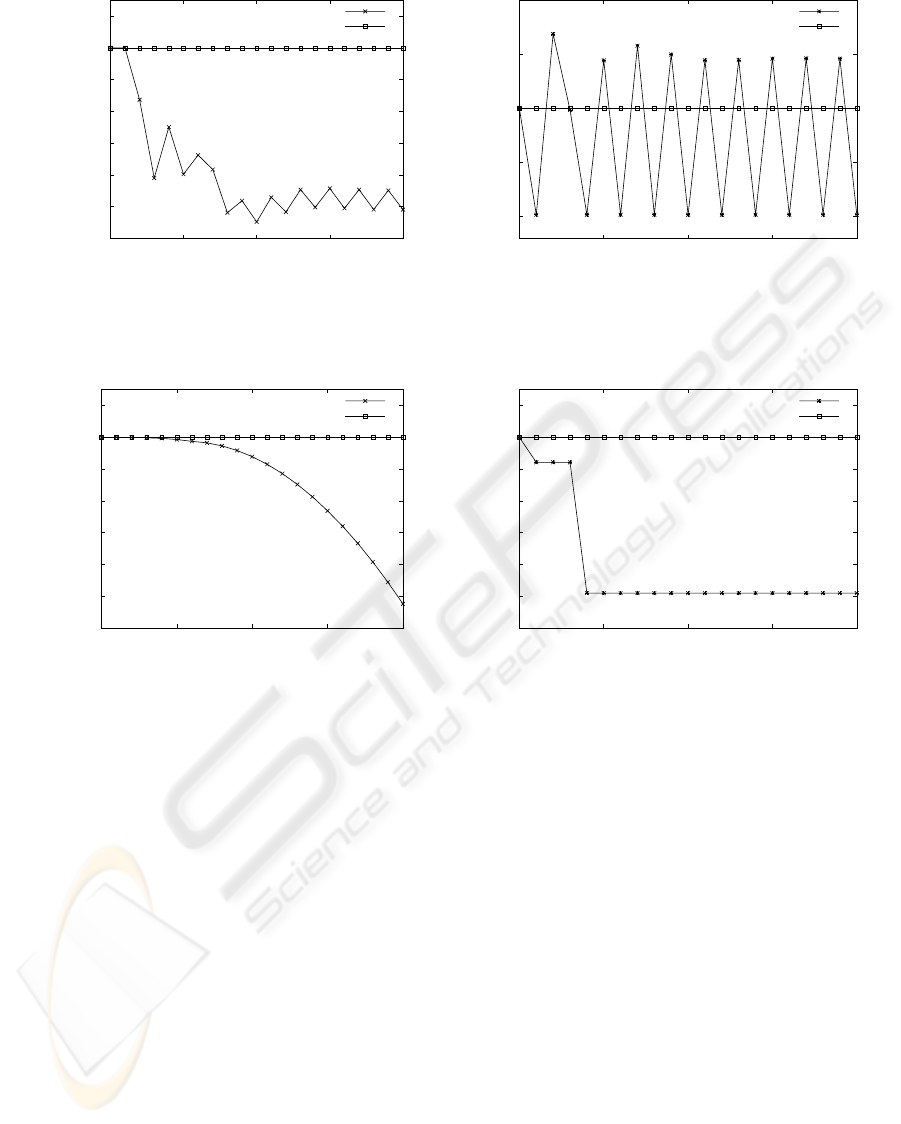

Figure 2: Comparison of Platt’s algorithm and our method using the example illustrated in ﬁgure 1 with a mass m = 2. The

numerical values correspond respectively to position and acceleration along the y-axis.

-0.0012

-0.001

-0.0008

-0.0006

-0.0004

-0.0002

0

0.0002

0 0.005 0.01 0.015 0.02

position

time

Platt’s algorithm

Our algorithm

-12

-10

-8

-6

-4

-2

0

2

0 0.005 0.01 0.015 0.02

acceleration

time

Platt’s algorithm

Our algorithm

Figure 3: Comparison of Platt’s algorithm and our method using the example illustrated in ﬁgure 1 with a mass m = 3. The

numerical values correspond respectively to position and acceleration along the y-axis.

based on Lagrange multipliers. For realtime consid-

erations, they do not allow the dynamic engine to

rewind time to get back to the ﬁrst constraint acti-

vation. They have to manage constraints at the end

of the time step, trying to ﬁnd the right accelerations

to ensure constraints fulﬁllement. They also confess

that this process is not guaranteed to converge in any

situation.

5 RESULTS AND COMPARISONS

We will now compare the results obtained with Platt’s

algorithm and our method, using the example illus-

trated in ﬁgure 1. Figure 2 and 3 illustrate a compari-

son of the positions and accelerations along y-axis of

a particle of mass m = 2 and m = 3 . We recall that

the inequality constraint g

2

forbids negativevaluesfor

y and that the constant force f applied to the particle

is equal (2, −1).

As shown on ﬁgure 2, Platt’s algorithm holds the

particle abusively on the corner at the ﬁrst time step,

and releases it at the next time step. As a conse-

quence, the particle evolves in an illegal state during

the following steps. With a mass m = 2, the error

related to the position is less than 10

−5

with an os-

cillating acceleration (right column). But if we set

the mass m to 3, as shown in the ﬁgure 3, errors are

much more important, and the particle crosses the line

y = 0 modeled by the constraint g

2

.

As illustated, our algorithm keeps the particle

along the x-axis within a controlled numerical error

value, that is less than 10

−8

in these examples.

To illustrate multiple contact constraints, we have

set a billiard scene with 10 balls placed in triangle in a

corner and an other ball that comes to them. For each

ball, we deﬁne two inequality constraints for each side

of the corner and one inequality constraint related to

the distance between each ball. This example is ﬁ-

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

52

nally composed of 11 balls and 77 inequality con-

straints (ﬁgure 4).

6 CONCLUSION

In this paper, we presented a novel algorithm to man-

age simultaneous inequality constraints. Among all

the existing methods to handle constraints within a

physically-based animation, we focused on the La-

grange method which provides a reliable way to en-

sure that constraints are always exactly fulﬁlled. But,

in the special case of several active inequality con-

straints, we have to take care on how to handle these

simultaneous constraints. Platt proposed an algorithm

based on Lagrangemultipliers but we showed that this

method is unable to solve even simple examples. We

then explained how to improve this algorithm in or-

der to propose a new reliable and efﬁcient method for

inequality constraints handling. Beyond the example

illustrated in ﬁgure 1, we produced a short movie sim-

ulating a billiard game. Some snapshots are gathered

in ﬁgure 4.

ACKNOWLEDGEMENTS

We would like to thank the Champagne-Ardenne re-

gional council who supports this work, which is a part

of the SYS-REEDUC project.

REFERENCES

Arnold, V. I. (1989). Mathematical Methods of Classical

Mechanics, volume 60 of Graduate Texts in Mathe-

matics. Springer Verlag, New York, 2

nd

edition. 508

pages.

Baraff, D. (1993). Non-penetrating rigid body simulation.

In State of the Art Reports, Eurographics ’93.

Barzel, R. and Barr, A. H. (1988). A modeling system based

on dynamic constraints. In SIGGRAPH ’88: Pro-

ceedings of the 15th annual conference on Computer

graphics and interactive techniques, pages 179–188,

New York, NY, USA. ACM Press.

Baumgarte, J. (1972). Stabilization of constraints and inte-

grals of motion. Computer Methods in Applied Me-

chanics and Engineering, 1:1–16.

Bj¨orck,

˚

A. (1996). Numerical Methods for Least Squares

Problems. SIAM, Philadelphia, Penn.

Goldstein, H. (1980). Classical Mechanics. Addison–

Wesley, Reading, MA, U.S.A., 2

nd

edition. 672

pages.

Nocedal, J. and Wright, S. (1999). Numerical Optimization.

Springer, New York.

Platt, J. (1992). A generalization of dynamic constraints.

CVGIP: Graphical Models and Image Processing,

54(6):516–525.

Press, W. H., Flannery, B. P., Teukolsky, S. A., and Vet-

terling, W. T. (1992). Numerical Recipes: The Art

of Scientiﬁc Computing. Cambridge University Press,

Cambridge (UK) and New York, 2nd edition.

Raghupathi, L. and Faure, F. (2006). QP-collide: A new ap-

proach to collision treatment. In Journ´ees du groupe

de travail Animation et Simulation (GTAS), Annual

French Working group on Animation and Simulation,

pages 91–101. Institut de Recherche en Informatique

de Toulouse.

Terzopoulos, D., Platt, J., Barr, A., Zeltzer, D., Witkin, A.,

and Blinn, J. (1989). Physically-based modeling: past,

present, and future. In SIGGRAPH ’89: ACM SIG-

GRAPH 89 Panel Proceedings, pages 191–209, New

York, NY, USA. ACM Press.

Teschner, M., Kimmerle, S., Heidelberger, B., Zachmann,

G., Raghupathi, L., Fuhrmann, A., Cani, M.-P., Faure,

F., Magnenat-Thalmann, N., Strasser, W., and Volino,

P. (2005). Collision detection for deformable objects.

volume 24 of Computer Graphics Forum, pages 61–

81.

THE ART TO KEEP IN TOUCH - The “good use” of Lagrange Multipliers

53

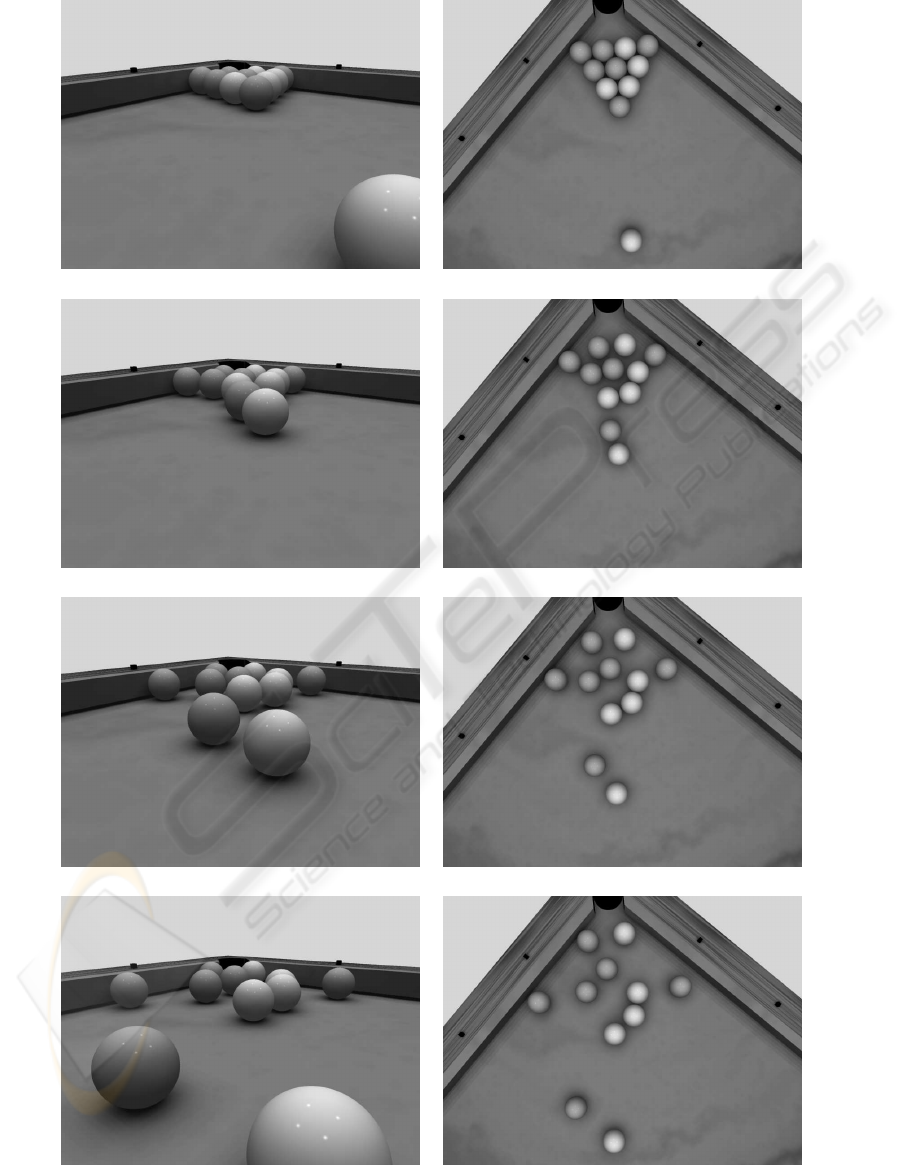

Figure 4: A billiard game session illustrating our algorithm for constraints management (11 balls and 77 inequality con-

straints).

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

54
