EXPLOITING COUPLED JOINTS

Anatomic Control of the Spine with IK Through Linearly Coupled Joints

Daniel Raunhardt and Ronan Boulic

VRLAB, Ecole Polytechnique Fédérale de Lausanne, 1015 Lausanne, Switzerland

Keywords: Inverse kinematics, joint coupling, human modeling, articulated figure.

Abstract: In this paper we propose a simple model for the coupling behavior of the human spine that is capable of

exhibiting anatomically correct motions of the vertebrae in virtual mannequins. Such a model transparently

integrates in our inverse kinematics framework as it couples standard swing and revolute joint models. The

adjustment of the joints due to the coupling is made with several simple (in)equality constraints, resulting in

a reduction of the solution space dimensionality for the inverse kinematics solver. A key benefit is to

prevent the inverse kinematics algorithm from providing infeasible postures. We exploit how to apply these

simple constraints to the human spine by a strict decoupling of the swing and twist motion of the vertebrae

and demonstrate the validity of our approach on various experiments.

1 INTRODUCTION

Realistic animations of human characters play an

important role for interactive applications. Three

dimensional virtual mannequins are the common

representation of the graphical interface, serving as

an interactive character inside the virtual

environment (Magnenat-Thalmann et al. 2004)

(Philips et al. 1990). Often researchers improved the

representation and animation of the exterior skin and

muscle deformations of the virtual mannequins

(Wilhelms et al. 2002) while the model of the

underlying body has been kept unchanged.

However, increasing the surface details of the virtual

mannequins may lead the viewers to be more

sensitive to unrealistic joint motions in animations

such as in the shoulder and spine regions of the

human body (Hodgins et al. 1998).

Joint models are important for correct motion

analysis of tasks, including the estimation of muscle

lengths and moment arms (Delp et al. 1995).

Introducing accurate biomechanical joint models to

the traditional hierarchy of joint transformations can

lead to an improved realism in human character

animation. Anatomical axes of rotations and joint

centers of the human body are taken from literature

and refined to produce improved fidelity of the

motions.

In this paper we introduce a human spine model

based on a set of coupled vertebral joints that reflect

its anatomic mobility distribution (Kapandji

1982a)(Kapandji 1982b). The vertebral joints are

coupled through linear equality constraints allowing

to transparently integrate the spine model within an

existing inverse kinematics (IK) solver. Each

equality constraint reduces the solution space for the

inverse kinematics solver. Relatively few parameters

are necessary to control the complex articulation of

the human spine. We give a short introduction to our

inverse kinematics solver based on the Prioritized

Inverse Kinematics (Baerlocher et al. 2004) and

demonstrate the validity of our model with different

experiments including performance measurements.

2 PREVIOUS WORK

The first use of articulated joint models for

representing human joints can be found in studies of

kinematics of robotic manipulators. These systems

used the Denavit-Hartenberg link parameter notation

from robotics to represent virtual mannequins with

articulated limbs (Girard et al. 1985). Although the

notation to associate coordinate frames between

adjacent segments is convenient, each parameter set

describes only a single degree of freedom (dof)

between two segments. Multiple dofs can be

achieved by combining multiple sets of parameters.

Structures like the spine exhibit a high degree of

13

Raunhardt D. and Boulic R. (2007).

EXPLOITING COUPLED JOINTS - Anatomic Control of the Spine with IK Through Linearly Coupled Joints.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 13-20

DOI: 10.5220/0002077900130020

Copyright

c

SciTePress

coupling behavior. This coupling behavior of the

spine has been exploited by Monheit et al. (1991) to

develop a kinematic model of the spine that exhibits

flexion-extension, lateral bending and axial torsion

rotation. For a normalized representation of the

human skeleton Kulpa et al. (2005) modeled the

spine with a spline that could be divided into

segments. To retrieve the positions of the vertebrae,

the spline representing the spine is simply

discretized according to the distances of the

vertebrae.

Apart form the spine itself, Maciel et al. (2002)

incorporate joints that can translate and rotate

together on plane and where the joint limits

dynamically change with the dofs of any joint.

Herda et al. (2005) characterize the joint coupling

behavior by implicit surfaces obtained from motion

captured values. This representation allows to

characterize intra- and inter-joint dependencies but

is not a very intuitive way to control the human

motion of the joints. To restrict the joint angle

ranges for ball-and-socket joints spherical polygons

(Korein 1985) and joint sinus cones (Maurel et al.

2000)(Wilhelms et al. 2002) have been introduced.

Spherical polygons are more general than cones but

they are also more complex to deal with. Cones are

often sufficient to represent the human joints

(Korein 1985).

Like our approach the Peabody system (Badler et

al. 1993) collects joints into different groups of

joints that have group angles to configure the joint

groups’ segments. Shao et al. (2003) introduced a

general joint component model called joint maps

that allows modeling of joint expressions over

several bone segments for biomechanical accurate

joints. A joint map is a function that takes a set of

inputs (e.g. set of joints) to produce output for one or

more joints. The input can be seen as the dofs and

the outputs are the modified joint values (e.g. angle,

translation variations). The outputs of one joint map

can be combined with the inputs of another joint

map to create increasingly sophisticated behaviors.

The process that performs this mapping varies

according to the type of the desired joint behavior.

Seen from this variety of presented joint models,

a single joint model representation is not suitable for

capturing all the different characteristics of the

human joints. In fact, specialized joint models are

often needed.

In contrast our model uses common joint models

such as revolute (1 dof) or swing (2 dofs) joints for

inverse kinematics. Through coupling we group the

joints into sets and reduce the remaining solution

space for the inverse kinematics solver. The paper

focuses especially on the case of the spine but it can

be used for a wide range of other cases. The spine

case is especially interesting because the mobility

allowed by the vertebrae shape is changing all along

the spine. For this reason we separate the handling

of the swing and the twist components. This allows

producing anatomically correct postures.

3 PRIORITIZED INVERSE

KINEMATICS

3.1 Constraining the Solution

We provide here only a brief overview of the

Prioritized Inverse Kinematics algorithm (PIK) that

handles an arbitrary number of priority levels and

linear constraints for the purpose of controlling

virtual mannequins or robot manipulators. In this

approach the articulated structure is organized as a

tree of chains. In the specific case of the human

body we are compliant with the H-Anim standard

(Humanoid Animation Working Group) that

includes all human joints.

As the joint models are independent of each

other, possible coupling, due to the presence of

tendons or muscles spanning over several joints, is

defined as additional “hard” constraints. This is

achieved through equality constraints acting on the

coupled joint parameters. We exploit also inequality

constraints for two purposes: to model the limit

range of a single joint or to offer a “relaxed”

coupling between joints.

Let us recall the definition of linear equality

(Figure 1 left) and inequality constraints (Figure 1

right) for a joint configuration q with n dofs:

i

T

i

bqc = for gi ..1=

(1)

i

T

i

bqc ≤ for gi ..1=

(2)

where the

i

c are n-dimensional vectors and the

i

b are scalars. Equation (2) allows simple lower

bounds and upper bounds on joint variables, as well

as linearly coupled joint limits. This set of

constraints defines a convex space of feasible

configurations. The choice of linearity is due to the

higher complexity introduced by non-linear

constraints. Joint limits that should never be violated

are handled as inequality constraints while we model

the anatomical joint coupling generally by equality

constraints.

The general PIK algorithm relies on an efficient

computation of projection operators enforcing tasks

grouped into an arbitrary number of strict priority

levels. The management of the (in)equality

constraints must be integrated within the process that

computes the joint variation. Ignoring the constraints

for the computation of the joint variation and only

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

14

adjusting the resulting joint configuration to satisfy

the constraints leads to non optimal solutions

(Baerlocher et al. 2004). The linear equality

constraints can be ensured within a single iteration

step at the initialization phase of the joint variation

computation. To achieve this we modify the initial

projection operator P

0

so that the resulting solution

space lies on the constrained subspace. Secondly, the

initial joint variation, noted ∆q

0

, is set to the

displacement required to meet the constraints, if this

is not already the case. This second term helps also

to avoid numerical drift away from the constraints.

Compared to the PIK algorithm described in

(Baerlocher et al. 2004), these additional “hard”

constraints can be seen as tasks of “infinite” priority

(i.e. of higher importance than any other task)

shaping the solution space. The initial projector

operator P

0

remains constant as long as no equality

constraint is added or removed.

procedure init_projector

begin

P

0

= I

n

for all equality constraint do

if (¬conflicting constraint)

P

0

= P

0

– P

0

(c*c

T

)

end if

end for

end

6420

8

6

4

2

0

8

1

q

2

q

3065

21

=+

qq

⎟

⎟

⎠

⎞

⎜

⎜

⎝

⎛

=

6

5

c

0

2

86420

8

6

4

2

q

1

q

7

1

≤

q

k

q

tr

y

k

qq

Δ

+

1

+

k

q

62

21

≤+−

qq

c

bqc

T

−

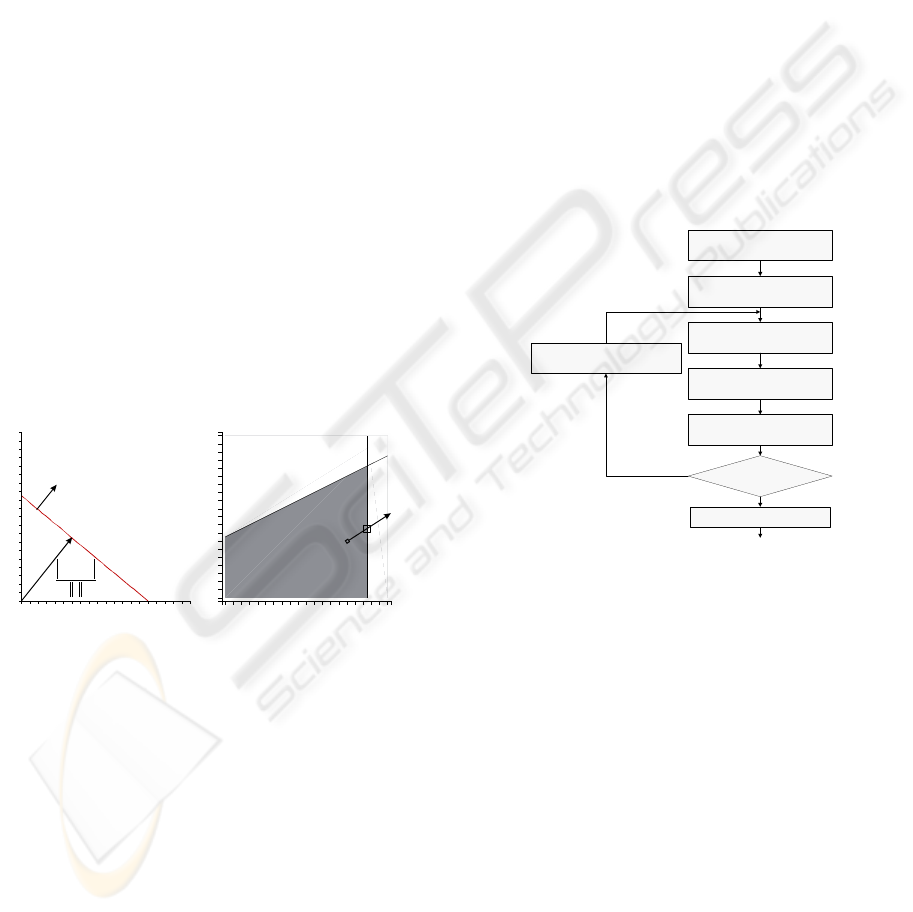

Figure 1: Left: equality constraint between two joints q

1

and q

2

. Right: the grey region indicates the possible area

of solutions for the joints q

1

and q

2

. The computed

solution q

k

+∆q

try

violates the inequality constraint q

1

≤ 7,

so the corrected solution is clamped to q

k+1

.

The inequality constraints are checked after the

new joint configuration q

k+1

is computed, where the

new joint state is defined as the sum of the current

configuration and the computed solution q

k

+∆q.

Figure 1 (right) illustrates a case where the new

configuration violates an inequality constraint

modeling a joint limit; therefore a new equality

constraint is dynamically added into the constraint

set, called the working set, to clamp the

corresponding joint on the limit. In our model we

check first the user-defined inequality constraints

and afterwards the joint limits. This gives the user-

defined inequality constraints a higher priority over

the joint limits. The prioritized solution is re-

evaluated as long as no additional inequality

constraint is violated (Figure 2). This loop is

necessary to guarantee the tasks’ error minimization.

The cost of the clamping loop is linear to the number

of recruited joints (see section 3.2). In the worst case

each clamping iteration would handle a single

clamped joint. This is seldom the case as, very often

multiple joints violate their limit simultaneously

which is handled through a single clamping

iteration.

If two (in)equality constraints are conflicting, i.e.

they cannot be satisfied at the same time, we

consider only the constraint that has been first added

to the working set of the constraints (e.g. the user-

defined inequality constraints dominate the joint

limits). Thus, we may get a solution of the joint

variation that may violate some of the constraints.

Initialization: All equality constraints (if

any) are introduced in the working set.

Build joint variation for all priority levels

Check user defined inequality

constraints

At least one inequality

constraint violated?

end

The new configuration can be kept

Select the violated constraint which is

closest to the initial configuration and add

it to the working set

Compute inital projector operator and

joint variation

Check joint limits (modeled as inequaliy

constraints)

yes

no

Figure 2: The Prioritized Inverse Kinematics convergence

loop highlighting the construction of the joint variation

solution for multiple priority levels and the management

of the equality and inequality constraints.

3.2 Joint Recruiting Level

Our PIK allows a task to recruit all or part of the

joints from its parent up to the root of the articulated

structure. We can manually discard joints that

should not participate to achieve the task. For

example, whenever controlling the position of the

wrist it is important to decide whether the spine

should participate or not. The problem of

overlapping joint regions has first been described by

Badler et al. (1980). Normally to resolve this

problem a minimal joint recruiting rule for joints

shared by multiple tasks has to be enforced (Le

Callennec et al. 2006). This rule concerns those parts

of the articulated structure where multiple tasks may

recruit part of their joints. Let T

i

be a task of priority

EXPLOITING COUPLED JOINTS - Anatomic Control of the Spine with IK Through Linearly Coupled Joints

15

i, Rec(T

i

) the corresponding set of recruited joints

and Anc(T

i

) all the possible joints that may be

recruited by T

i

(from its parent up to the root). Then,

for any two priority levels a>b we must have:

Rec(T

b

)

∩

Anc(T

a

)

⊂

Rec(T

a

)

(3)

Equation (3) states that recruited joints of low

priority tasks are a subset of high priority tasks.

Without this rule, it may lead to diverging solutions

where a low priority task dominates a high priority

task. Equation (3) solves the problem of overlapping

regions only if there are no joints coupled by

(in)equality constraints. The first problem using

coupled joint is that joints can be implicitly

recruited. If a joint is recruited by the task T

i

and if

this joint is also coupled to other joints, all these

coupled joints are implicitly recruited by task T

i

. A

joint recruited by a low priority task can be coupled

to a joint that is only recruited by high level priority

task. Thus, the low priority task would gain

influence over the high priority task despite

Equation (3) is satisfied. The set of all implicitly

recruited joints due to coupling of a task T

i

is

defined as Coup(Rec(T

i

)). The second problem is

that joints are coupled that are not recruited by any

task. Thus, we extend the Equation (3) to the

following conditions for the recruiting level for any

two priority levels a>b:

(Rec(T

b

)

∪

Coup(Rec(T

b

)))

∩

( Anc(T

a

)

Coup(Rec(T

a

)))

⊂

Rec(T

a

)

(4)

U

Coup(Rec(T

i

))

⊂

U

Rec(T

i

)

(5)

Equation (4) ensures that coupling can only take

place from the joints up to the root of the articulated

structure and that a lower priority task cannot couple

a joint that is nearer to the root than a higher priority

task. Equation (5) states that only joints recruited by

task are allowed to be also coupled by constraints.

4 SPINE

4.1 Introduction

The human spine consists of twenty four movable

vertebrae. According to positions and the

functionality of the individual vertebrae, the spine

can be divided into three sets: the cervical region

(seven vertebrae in the neck), the thoracic region

(twelve vertebrae in the thorax), and the lumbar

region (five vertebrae in the abdomen) (Kapandji

1982a) (Kapandji 1982b) (Monheit et al. 1991).

Each vertebra has three dofs of rotation (flexion-

extension, lateral-bending and torsion). These three

rotational components may have quite different

rotation centers and non-orthogonal rotation axes.

Modeling each vertebra as a joint without taking into

consideration the coupling that exists among them

due to the rotational behavior is not recommended as

too much freedom is left in the spine for the inverse

kinematics solver. This choice usually leads to

unrealistic spine postures. It is preferable to use only

a few uncoupled joints strategically placed on the

spine, in order to have a more realistic rigidity of the

system. Thus, we simplify the control of the spine

movement by a simple reduction of the dofs.

4.2 Spine Model

As each vertebra allows a swing motion (flexion-

extension, lateral-bending) and a torsion motion

(rotation along vertical vertebrae axis) the general

solution would be to represent each vertebra by a

ball-and-socket joint (3 dofs). Euler angles,

quaternions or exponential maps are often used to

express these segment orientations. The use of

quaternions or the exponential map for inverse

kinematics is advantageous compared to Euler

angles as they have no singular configuration within

their mobility range (Grassia 1998). For this reason

our inverse kinematics solver represents the joints as

exponential maps. The drawback of the exponential

map for the coupling with linear (in)equality

constraints is that it would not be possible to couple

independently the swing components or the twist of

two ball-and-socket joints as by changing the swing

of a ball-and-socket joint the torsion of this joint

may be changing too. To control separately the

swing and twist of the joints we have chosen to

consider two distinct joint types: swing (2 dofs) and

revolute (1 dof). The swing joint model is an

exponential map vector with zero contribution along

the main spine axis (no twist). It models the

flexion/extension and lateral bending of the

vertebrae while the revolute joint is oriented along

the spine main axis to model the twist mobility (also

called the torsion). These joints are strategically

placed over the spine as seen in Figure 3. Owing to

this organization we obtain a great flexibility in the

coupling schemes. For example, we may couple the

torsion of a joint with the lateral-bending of another

as happens in the cervical spine (White et al. 1990).

Thus, we are able to fully control the coupled

behavior of the spine by two common joint models

and simple (in)equality constraints.

For interoperability we have chosen to use the

same joint names as defined in H-Anim (Humanoid

Animation Working Group). As in the lumbar region

the torsion is equally distributed (Kapandji

1982a)(Kapandji 1982b) and its amount is very

small, we have placed only one revolute joint in this

region. In the thoracic and the cervical region we

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

16

have placed more revolute joints according to the

corresponding bigger torsion ranges. The concrete

coupling coefficients are based on the vertebrae

value ranges and their human coupling behavior

(Kapandji 1982a)(Kapandji 1982b). Table 1 presents

our choice of the joint ranges based on our

strategically placed joints over the spine.

Table 1: Joint ranges of the spine at different levels of the

spine along the three anatomic axis (Kapandji 1982a)

(Kapandji 1982b).

Flexion/Extension

Lateral bending

Torsi on

Thoracic

Lumbar

Cervical

vl5-vl3

vl2

vt12-vt9

vt7-vt5

vt3-vt1

vc7

vc5-vc3

vc1

vc3

vt4

vt8

vt2

vc6

To keep some independent movement between the

individual regions of the spine (lumbar-thoracic,

thoracic-cervical) we couple two regions with

inequality constraints as illustrated in Figure 3. This

helps the regions to behave more independently than

with a strict coupling by equality constraints.

Nevertheless we can ensure a fluent transition

between two regions.

Lumbar region

T

horacic region

Cervical region

Equality constraint

Equality constraint

Equality constraint

Inequality constraint

Equality constraint

Inequality constraint

Inequality constraint

Inequality constraint

Swing Joints

Torsion Joints

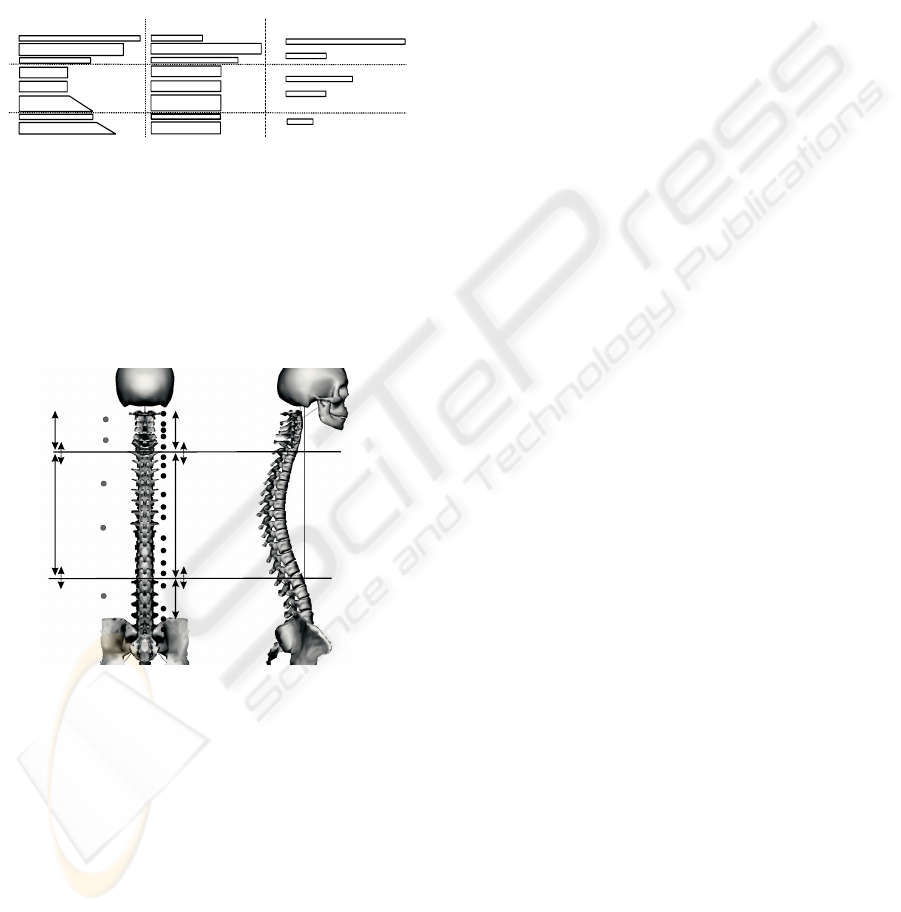

Figure 3: Our human spine model with the different spine

regions. We have strategically placed some rotational

joints (indicated by gray circles) to model the torsion of

the spine where for the remaining joints we use swing

joints (indicated by black circle). Inside a region we

couple the swing joints by equality constraints. To keep

some independency between the regions we use inequality

constraints.

The problem that arises with this concept is that the

equality constraints and the inequality constraints

(user-defined for the regions or joint limits) may be

conflicting. To avoid such conflicting we do only

check the joint limits for the first joint in each spine

region (for swing: vl5, vt12, vc7; for twist: vl2, vl8,

vc6). The accordance to the joint limits of the other

joints is automatically given by the use of real

measured vertebrae value ranges and human

coupling coefficients. The drawback of inequality

constraints is that they can lead to a re-evaluation of

the joint variation solution.

4.3 Summary

To summarize, our spine model is composed of three

segments. We strictly decouple the swing and twist

of the vertebrae using only swing and revolute

joints. Within each segment we couple the joints by

equality constraints, while the different segments are

connected by inequality constraints. A simple joint

coupling with equality constraints inside each spine

region would leave only 3 dofs (1 for

flexion/extension, 1 for lateral bending and 1 for

torsion) to each region. This would make a total of 9

dofs to control the entire spine which is considerably

less than the 72 dofs in an uncoupled spine.

Although our model is probably still not as accurate

as a real human spine, we can achieve fairly more

realistic spine configurations than in an uncoupled

spine. We think that our spine model is a good

compromise between the accuracy and the simplicity

of control.

5 RESULTS

5.1 Isolated Spine

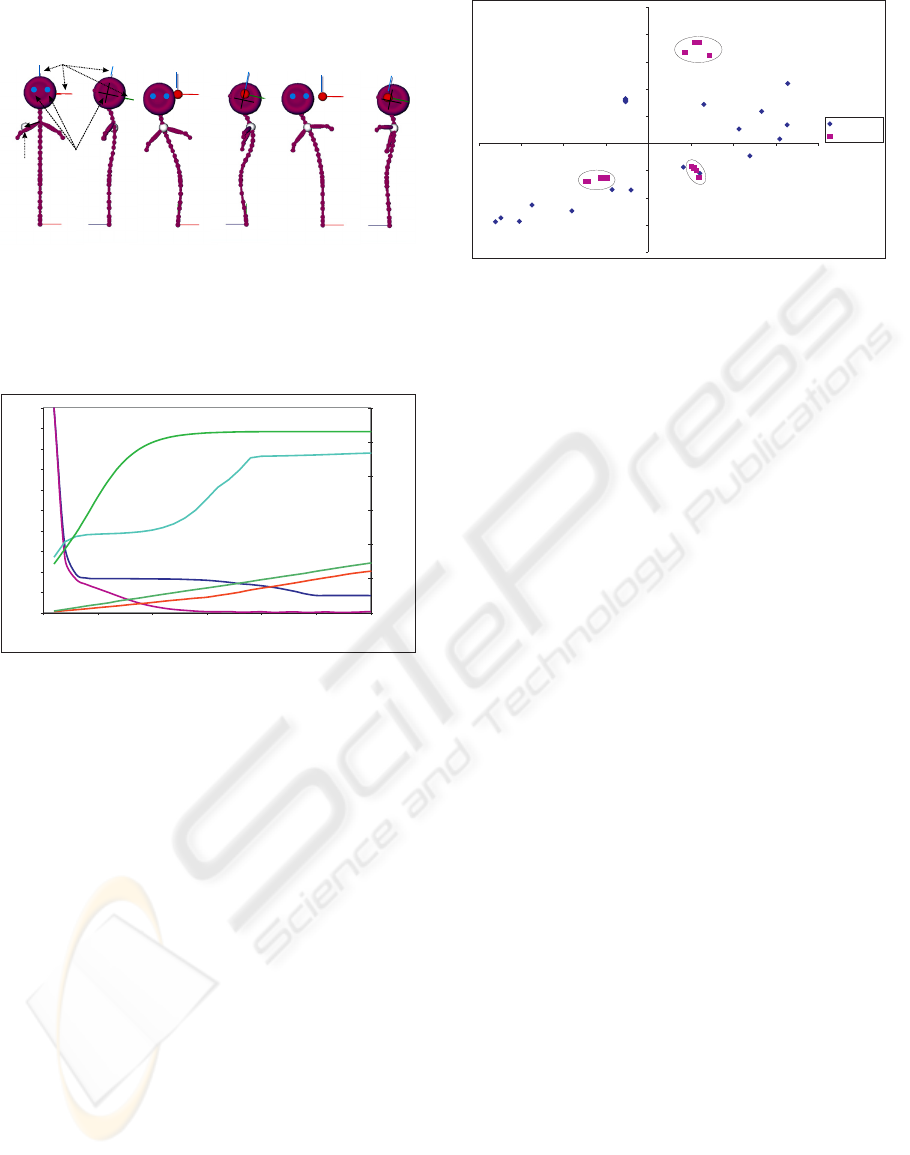

This experiment highlights the behavior of our

approach with two conflicting tasks on an isolated

spine consisting of 24 vertebrae where the vertebrae

are coupled with 32 equality and 12 inequality

constraints. Figure 4 on the left shows the initial

configuration of the spine. We have defined a

position and an orientation task to be achieved. The

orientation task is modeled as a high priority task

while the position task has low priority. We

executed this experiment twice, once with the

coupled spine and once where the joints of the spine

can move independently within their independent

joint limits.

Figure 4 highlights the initial position, the

achieved configuration for the spine without

coupling and with coupling. The obvious problem of

the uncoupled spine is the strong change of the spine

shape while the coupled spine displays no abrupt

changes of the shape. This behavior of the

uncoupled spine is possible due to the lack of

coupling, each joint being able to move

independently without taking into account the

motion of other joints. We have also compared the

computational speed, the error convergence and the

EXPLOITING COUPLED JOINTS - Anatomic Control of the Spine with IK Through Linearly Coupled Joints

17

norm of the joint variations of the two methods

(Figure 5).

orientation tas

k

Without coupling Coupling

front left front left front left

p

o

s

i

t

i

o

n

t

a

s

k

Initial posture

initial

orientation

Figure 4: Front and left side views of the isolated spine:

(left) initial configuration with indications of the two

tasks; (middle) end configuration without coupling; (right)

end configuration with coupling.

0

10

20

30

40

50

60

70

80

90

100

0 5 10 15 20 25 30

Iteration

Error [%]

0

0.05

0.1

0.15

0.2

0.25

0.3

Time [s] / Norm [rad]

Error no coupling

Error coupling

Norm coupling

Norm no coupling

Time no coupling

Time coupling

Figure 5: Comparison between coupling/no coupling for

computational time and error convergence.

Coupling with equality constraints reduces the

solution space for the inverse kinematics solver.

Therefore the error convergence could be slowed

down or the task may not be achievable while

without coupling it would be possible. In this

experiment the position task with coupling cannot be

fully achieved, so the final error does not converge

to zero. Overall the total computational time shows

some advantages for our coupling approach. By the

pre-computation of the initial projection operator the

computational overhead is limited to adjusting the

initial joint variation before each iteration. We have

measured that around 3-8% of the total

computational time for one iteration are spent to

initialize the joint variation. But as we remove some

dofs for the inverse kinematics solver this

computation stage is cheaper; in the end we gain

some computational time compared to the approach

without coupling (cf. “Error no coupling” and “Error

coupling” curves in Fig. 5). Due to coupling we also

restrict the overall joint variation during the

convergence (cf. “Norm no coupling” and “Norm

coupling” curves in Figure 5).

No_coupling

Coupling

Thoraric

Lumbar

Cervical

Figure 6: Distribution of the swing components of the

vertebrae for coupling/no coupling.

The swing components s

x

(flexion-extension) and s

y

(lateral-bending) are presented in Figure 6. The

swing component values without coupling are

widely distributed in the s

x

-s

y

space which leads to

the change of the signs in the spine as presented in

Figure 4 in the middle. On the other hand the swing

component values of the vertebrae with coupling are

grouped per spine region and can only change

significantly between two regions. Another problem

of the uncoupled spine is the abrupt change of the

torsion direction which is discussed in detail in

Section 5.2.1.

5.2 Full Body Postures

A spine model of 24 vertebrae may be too time

consuming for real-time applications of virtual

mannequins especially if there are other time

consuming calculations such as skinning or collision

detection/response. Thus, a simplified spine model is

often used. In the next experiments the uncoupled

simplified spine consists of 8 ball-and-socket joints

with a total of 24 dofs. The lumbar and the thoracic

region are each represented with three joints while

the cervical region has only two joints. As already

mentioned our coupled spine model can only be

represented by swing and rotation joints. Our

coupled spine model is built by 8 swing joints and 5

rotational joints. Figure 7 illustrates the initial

posture for the next experiments.

5.2.1 Bio-mechanical Considerations

In this experiment the virtual mannequin with the

simplified spine has to achieve a simple balanced

posture. The toes of the right foot are attracted

toward a position in the back while the hands have

to reach a position in the front. These goals are

modeled with a middle priority position task. During

the whole motion the left foot has to stay on the

ground which is reflected by two high priority tasks

(one for the toes and one for the heel). A low

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

18

priority orientation task is used to maintain the head

looking forward. To keep the virtual mannequin in

balance we project the center of mass over the left

foot with the highest priority task. We executed this

experiment twice, once with our coupling approach

and once with independent vertebrae (Figure 7

right).

Without

coupling

Coupling

Initial posture

Figure 7: The initial and the achieved postures without

coupling and with coupling.

Although both methods are visually similar there is

an important difference. In the uncoupled spine there

is an abrupt change in the torsion direction.

Considering three successive vertebrae (Figure 8

left), the lowest vertebrae may have a torsion to the

right, the middle to the left while the third vertebrae

rotates again to the right.

Figure 8: Possible changes of the torsion direction of

vertebrae for an uncoupled spine (left) and corresponding

measured values for uncoupled spine (middle) and

coupled spine (right).

We have measured a similar behavior of the

vertebrae torsion directions for the uncoupled spine

as illustrated in Figure 8 middle. Such a behavior is

bio-mechanically not possible although a change of

the torsion direction is possible between spine

regions.

For the coupled spine changes of the torsion

direction can only appear for vertebrae which are

coupled by inequality constraints (e.g. between two

spine regions).

5.2.2 Periodic Tasks

This experiment highlights the behavior of coupling

for long periodic tasks. The hands of the virtual

mannequin have to follow a moving goal which

forms an eight in the vertical plane (two low priority

positional tasks are used). The feet have to stay on

the ground (four high priority tasks) and the virtual

mannequin has to keep its balance by projecting the

center of mass between the two feet (highest priority

task). Figure 9 illustrates the different postures

without coupling and with coupling after an

increasing number of cycles.

W

i

t

h

o

u

t

c

o

u

p

l

i

n

g

C

o

u

p

l

i

n

g

W

i

t

h

o

u

t

c

o

u

p

l

i

n

g

C

o

u

p

l

i

n

g

W

i

t

h

o

u

t

c

o

u

p

l

i

n

g

C

o

u

p

l

i

n

g

200 cycles 600 cycles

2000 cycles

50 cycles

100 cycles

W

i

t

h

o

u

t

c

o

u

p

l

i

n

g

C

o

u

p

l

i

n

g

W

i

t

h

o

u

t

c

o

u

p

l

i

n

g

C

o

u

p

l

i

n

g

W

i

t

h

o

u

t

c

o

u

p

l

i

n

g

5 cycles

C

o

u

p

l

i

n

g

Figure 9: Postures on the left without coupling and on the

right with coupling after an increasing number of cycles

(from left to right and top to bottom). The blue bar

indicates the goal of the hands.

At the beginning the two postures are almost

identical. We can observe that the differences

between the postures increase with the number of

cycles. After 2000 cycles the coupled spine has still

a plausible shape while the uncoupled is highly

deformed. This is caused by the drift of the solution

in the joint space as originally discussed by Klein et

al. (1983). Coupling joints by (in)equality

constraints reduces the solution space for the inverse

kinematics solver which counteracts this drift in the

joint solution space for periodic tasks.

6 CONCLUSIONS

In this paper we have proposed a simple method to

model the coupling behavior of the spine. We use

simple (in)equality constraints to reflect the coupling

between the vertebrae. Each equality constraint

removes one dof of the solution space for the inverse

kinematics solver. Relatively few parameters are

sufficient to represent the spine. We have shown that

our approach is able to produce more natural spine

EXPLOITING COUPLED JOINTS - Anatomic Control of the Spine with IK Through Linearly Coupled Joints

19

shapes. By introducing constraints the inverse

kinematics solver may be no longer able to find a

solution with the same error as without coupling due

to the reduced solution space. The coupling may be

too restrictive and not cover the whole space of

possible human spine motion but it provides

plausible postures of the spine and is less sensitive to

the drift of the solution for periodic tasks. Besides

the computational cost is slightly less than for the

uncoupled one. Our future work is to exploit this

model within a real-time posture control of a virtual

mannequin interacting with its environment.

ACKNOWLEDGEMENTS

The authors would like to thank Achille Peternier

and Damien Maupu for their support of the graphics

library. This work has been realized with the support

of the Swiss National Science Foundation under the

grants 200020-109989, and is partially supported by

the E.U. ENACTIVE Network of Excellence.

REFERENCES

Badler, N. I., O'Rourke, J., Kaufman, B. 1980. Special

problems in human movement simulation. In

Proceedings of the 7th Annual Conference on

Computer Graphics and Interactive Techniques

(Seattle, Washington, United States, July 14 - 18,

1980). SIGGRAPH '80. ACM Press, New York, NY,

189-197.

Badler, N. I., Phillips, C. B., Webber, B. L. 1993. Virtual

Humans and Simulated Agents. New York, NY:

Oxford University Press.

Baerlocher, P., Boulic, R. 2004. An Inverse Kinematics

Architecture Enforcing an Arbirtray Number of Strict

Priority Levels. In The Visual Computer, Springer

Verlag, 20(6), 402-417.

Delp, S.L., Loan, P. 1995. A software system to develop

and analyze models musculosketal structures,

Computers in Biology and Medicine, vol. 25, 21-34.

Girard, M., Maciejewski, A. A. 1985. Computational

modeling for the computer animation of legged

figures. In Computer Graphics (SIGGRAPH 1985

Proceedings), B. A. Barsky, Ed., vol. 19, 263-270.

Grassia, F. S. 1998. Practical parameterization of rotations

using the exponential map. J. Graph. Tools 3, 3 (Mar.

1998), 29-48.

Herda, L., Urtasun, R., Fua, P. 2005. Hierarchical implicit

surface joint limits for human body tracking.

Computer Vision and Image Understanding 99(2),

189-209.

Hodgins, J. K., O'Brien, J. F., Tumblin, J. 1998.

Perception of Human Motion With Different

Geometric Models. IEEE Transactions on

Visualization and Computer Graphics 4, 4 (Oct.

1998), 307-316.

Humanoid Animation Working Group, 1999, H-Anim 1.1

specification for a standard humanoid. www.h-

anim.org.

Kapandji, I. A. 1982 a. The Physiology of the Joints:

Upper Limb, 2 ed., vol. 1. Churchill Livingstone.

Kapandji, I. A. 1982 b. The Physiology of the joints : The

Trunk and the Vertebral Column, 2 ed., vol. 3.

Churchill Livingstone.

Klein, C. A., Huang, C. H. 1983. Review of pseudoinverse

control for use with kinematically redundant

manipulators, IEEE Transactions on Systems, Man,

and Cybernetics, Vol. SMC-13, No-2 (March/April),

245-250.

Korein, J. U. 1985 A Geometric Investigation of Reach.

MIT Press.

Kulpa. R., Multon F., Arnaldi B. 2005. Morphology-

independent representation of motions for interactive

human-like animation. Computer Graphics Forum 24,

3 (2005), 343-352.

Le Callennec, B., Boulic, R. 2006. Interactive motion

deformation with prioritized constraints. Graph.

Models 68, 2 (Mar. 2006), 175-193.

Maciel, A.; Nedel, L.P.; Dal Sasso Freitas, C.M. 2002.

Anatomy-based joint models for virtual human

skeletons, Computer Animation, 2002. Proceedings of

, vol., 220-224.

Magnenat-Thalmann, N., Thalmann, D. 2004. Handbook

of Virtual Humans. Wiley. ISBN 0-470-02361-3.

Maurel, W., Thalmann, D. 2000. Human shoulder

modeling including scapulo-thoracic constraint and

joint sinus cones. Computers and Graphics 24, 2, 203-

-218.

Monheit, G., Badler, N. I. 1991. A Kinematic Model of

the Human Spine and Torso. IEEE Comput. Graph.

Appl. 11, 2 (Mar. 1991), 29-38.

Phillips, C. B., Zhao, J., Badler, N. I. 1990. Interactive

real-time articulated figure manipulation using

multiple kinematic constraints. In Proceedings of the

1990 Symposium on interactive 3D Graphics

(Snowbird, Utah, United States). SI3D '90. ACM

Press, New York, NY, 245-250.

Shao, W., Ng-Thow-Hing, V. 2003. A general joint

component framework for realistic articulation in

human characters. In Proceedings of the 2003

Symposium on interactive 3D Graphics (Monterey,

California, April 27 - 30, 2003). SI3D '03. ACM Press,

New York, NY, 11-18.

White, A. A., Panjabi M.M. 1990. Clinical Biomechanics

of the Spine, Philadelphia, J.B. Lippincott Company,

ISBN 0-397-50720-8.

Wilhelms, J. Gelder, A. V. 2002. Fast and easy reach-cone

joint limits. J. Graph. Tools 6, 2 (Sep. 2002), 27-41.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

20
