A MODEL BASED APPROACH FOR DEVELOPING ADAPTIVE

MULTIMODAL INTERACTIVE SYSTEMS

Waltenegus Dargie, Anja Strunk

Technical University of Dresden, Faculty of Computer Science, Chair of Computer Networks

Matthias Winkler

SAP Research

Bernd Mrohs

Fraunhofer Institute for Open Communication Systems, Competence Center Smart Environments

Sunil Thakar, Wilfried Enkelmann

DaimlerChrysler AG, Group Research and Advanced Engineering

Keywords: Multimodality, model driven architecture, software engineering, context-aware computing transformation.

Abstract: Currently available mobile devices lack the flexibility and simplicity their users require of them. To start

with, most of them rigidly offer impoverished, traditional interactive mechanisms which are not handy for

mobile users. Those which are multimodal lack the grace to adapt to the current task and context of their

users. Some of the reasons for such inflexibility are the cost, duration and complexity of developing

adaptive multimodal interactive systems. This paper motivates and introduces a modelling and development

platform – the EMODE platform – which enables the rapid development and deployment of adaptive and

multimodal mobile interactive systems.

1 INTRODUCTION

At present, the way users interact with a plethora of

devices while being mobile and/or carrying out other

impending activities – such as driving, attending a

child, holding a presentation, etc. – can be a

potential challenge to the vision of ubiquitous

computing. Besides the inconveniency of managing

those devices, often interaction takes place via

impoverished traditional input and output systems

which require considerable attention and

engagement.

Multimodal interactive systems significantly

reduce the obtrusiveness mobile devices impose by

increasing the communication bandwidth between

the user and the devices with which he interacts. A

gain in a communication bandwidth may offer

flexibility and freedom, allowing the eyes to focus

on and hands to be free to operate or to handle other

objects while an interaction with a device takes

place. Having said this, present multimodal

interactive systems do not exhibit the grace to adapt

to the social and conceptual settings in which they

operate, both to offer optimal flexibility and to

guaranty privacy.

Developing adaptive multimodal interactive

systems is a costly and time consuming process.

This is partly because of the inherent complexity of

interactive systems, but also because of the absence

of standardized methodology and integrating toolkits

which can be employed during the development

process. Within the EMODE project, we are tackling

these issues by developing a methodology as well as

a development and runtime support for multimodal

adaptive interactive Systems. In this paper, we will

give an overview of the EMODE platform and

discus its methodology.

Dargie W., Strunk A., Winkler M., Mrohs B., Thakar S. and Enkelmann W. (2007).

A MODEL BASED APPROACH FOR DEVELOPING ADAPTIVE MULTIMODAL INTERACTIVE SYSTEMS.

In Proceedings of the Second International Conference on Software and Data Technologies - PL/DPS/KE/WsMUSE, pages 73-79

DOI: 10.5220/0001334300730079

 SciTePress

The remaining part of this paper is organized as

follows: in section 2, we will discuss related work;

in section 3, we will introduce the EMODE

methodology; in section 3, we will present the

EMODE development environments; in section 4,

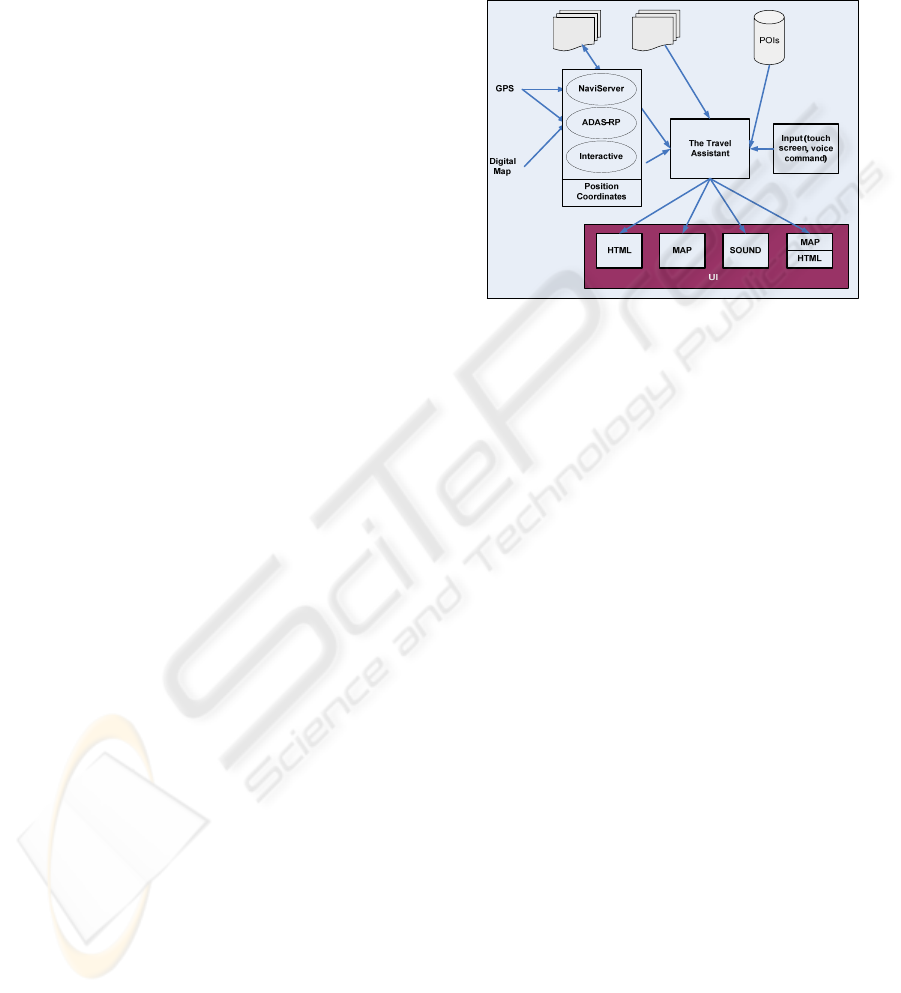

we will introduce the In Car Adaptive Travel

Assistant we are planning to develop by using the

EMODE platform; and finally in section 5, we will

give concluding remarks and outline future work.

2 RELATED WORK

Single authoring approaches enable service authors

to create their services regardless of the way the

services will be accessed (Mandyam, 2002); authors

merely describe the user interfaces of their services,

and an adaptation engine takes care of the

transformation to specific target devices and

platforms.

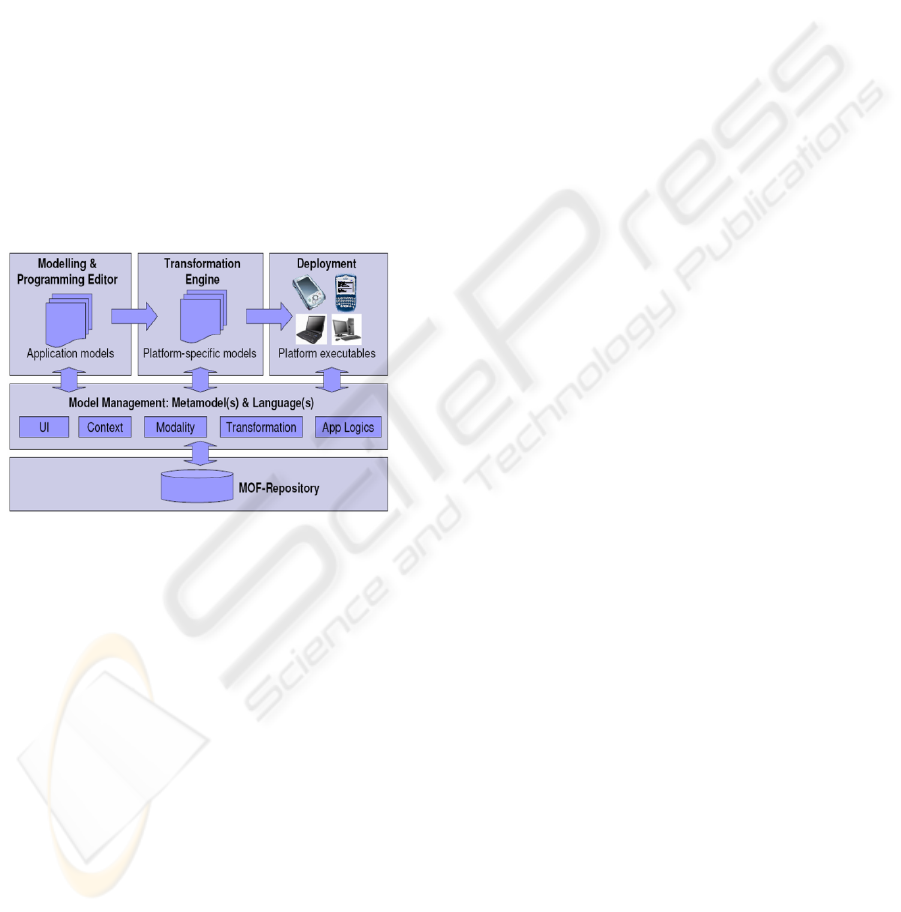

Figure 1: The EMODE Conceptual Architecture.

The ADAPT framework (Steglich, 2004)

employs a device independent UI description

language for applications to produce their output in a

format called the Generic User Interaction Mark-up

Language, an XML based user interface description,

which will eventually be transformed into device

specific output formats such as HTML, WAP or

VoiceXML. ADAPT also supports the

transformation of a user’s input into application

input parameters. The Renderer Independent

Markup Language (W3, 2002) and the Device-

independent Multimodal Markup Language (Hu

2005) provide similar support, but lack the support

for graphical UI interfaces. The SISL (Ball, 2000)

approach supports interaction based on natural-

language processing, both for speech and text, and

integrates those user interfaces with web and touch-

tone interfaces on the basis of common service logic.

While SISL describes how to realize a service logic

that can be interfaced by different user interfaces, it

does not specify how these user interfaces should

automatically be generated from a common source.

The Device-Independent Web Engineering

Framework (Kirda, 2002) creates flexible and

extensible multi-device services, supporting the

availability of web applications on resource-limited

devices such as PDAs and mobile phones. It allows

mobile access to web content and describes

XML/XSL based techniques and software tools for

web developers to implement services that are

device independent. The disadvantage of DIWE is

that it focuses on and limits itself to a web

developers’ view.

A model-based approach to user interface design

is presented in (Grolaux, 2001), which is based on

the Oz programming language, focusing on

graphical user interfaces. Multimodality and

adaptation of the UI to contextual changes, however,

is not supported. Similarly, Dery-Pinna et al. (Dery-

Pinna, 2004) present a development environment

based on components. The UI is considered as a

technical service of a business component just like

security or persistence. The dialog between UI and

business components is managed by an

interaction/coordination service that allows the

reconfiguration of components without modifying

them. A UI component merging service handles

dynamic assembly of corresponding UI components.

Calvary et al. (Calvary, 2002) propose a reference

process to enable the modelling of user interfaces

that keep their usability in different settings. The

changing settings include the hardware and software

platform as well as environmental factors, such as

noise and lighting. While the main focus of this

work is the preservation of plasticity, the major

focus in EMODE is to facilitate the development

process of multimodal interactive systems by

creating an integrated development and runtime

platform to improve the cost efficiency of the entire

creation process. In this way, the reference process

provides a basis upon which the EMODE platform

builds.

A work similar to ours is the Adaptive User

Interface Generation framework proposed by

Hanumansetty (Hanumansetty, 2004). This

framework introduces three concepts: firstly, a

formalisation for representing a context is

introduced. Secondly, a user interface generation life

cycle is studied and a context model is defined on

top of a task model, to introduce contextual

conditions into the user interface generation process.

This is useful for the user interface designer to

specify contextual requirements and the effect of

ICSOFT 2007 - International Conference on Software and Data Technologies

these requirements on the user interface. Thirdly,

context-aware adaptation of user interfaces is

achieved by mapping context specifications to

various levels of user interface generation life cycle.

The work, however, does not discuss how

modality and context are modelled and how model

transformation takes place.

3 THE EMODE APPROACH

In the final analysis, the usefulness of an application

is judged by how best it meets the needs of its user,

regardless of the underlying technology. This makes

it necessary to develop adaptive and flexible

applications and interactive systems. This is of

particular importance in a pervasive computing

environment, as the context and activity of the user

potentially change over time, making it infeasible to

foresee at design time the type of devices, networks,

platforms, and modalities involving an interaction.

The model-driven architecture approach meets

this requirement, enabling the designer of an

adaptive multimodal interactive system to model the

application’s logic along with other non-functional

aspects such as the activities of the user and

environmental settings without actually specifying

any particular platform or device. Platform specific

aspects and behaviours, such as the type of

modalities suitable for a given interaction setting,

device capability, display type, communication

bandwidth, etc., can be described by a

transformation policy which guides the mapping of

the platform independent model into a platform

dependent model, from which a part of the actual

software code can eventually be produced. The

semi-automation of the transformation of the

platform independent model to a platform dependent

model and the platform dependent model into a

software code enables the efficient and fast

development of adaptive multimodal interaction

systems.

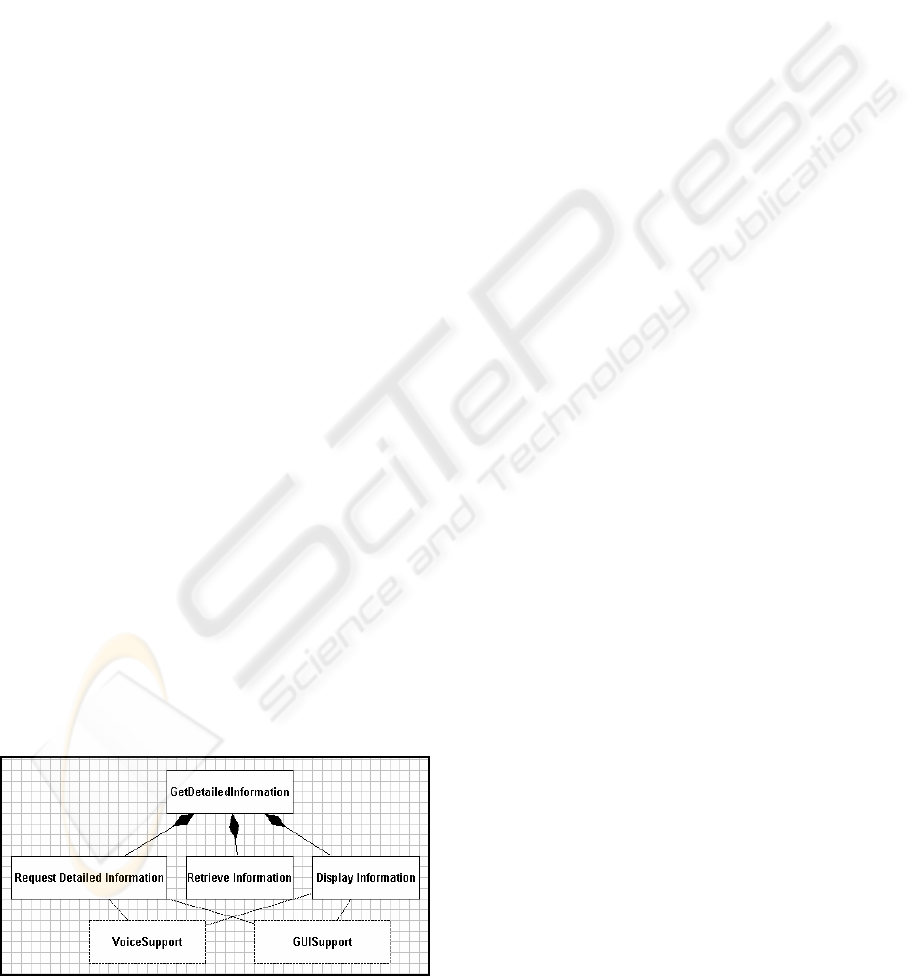

Figure 2: Sample Goal Model.

3.1 Methodology

An integrated approach is necessary for the

development of adaptive multimodal interactive

systems by keeping the focus on both issues: the

user interface and the applications functionality.

Several methodologies with focus on either software

engineering or user interface development exist.

They are, however, limited in that one field does not

consider the concern of the other field. The EMODE

methodology exploits the experiences learned both

in software engineering and multimodal user

interface design to facilitate the development of

adaptive multimodal interaction systems. It also

exploits the context of interaction (virtual and real

environments, persons, devices, etc.) supporting

runtime adaptation.

The EMODE methodology comprises three

entities: a project team, a process model, and a

conceptual architecture.

Our project team consists of users, developers,

and designers. The user of the final application is the

main source of domain knowledge and specific

requirements information. The developers are

responsible for developing the application logic and

the designers deal with user interface development.

Through an integrated development environment,

these three parties are linked together.

Our process model defines a number of phases

and related artefacts throughout the development

process. These phases comprise the gathering of

requirements, performing high-level goal modelling

and model transformations and finally the

implementation. During these phases a number of

models describing different aspects of adaptive

multimodal interactive systems are manually created

using metamodels while other models are created by

a model to model transformation process. We also

support model to code transformation to partly

enable the generation of code. Although

transformations ease the development process, we

do not aim at fully automating code generation.

There will always be remaining work for refining

the code.

The conceptual architecture describing the

infrastructure and tool support for the development

process is shown in Figure 1.

3.2 Architecture

The EMODE architecture consists of a repository, a

suite of metamodels, a model editor, a

transformation engine and a deployment

environment.

A MODEL BASED APPROACH FOR DEVELOPING ADAPTIVE MULTIMODAL INTERACTIVE SYSTEMS

Since we are following a model-based approach,

a repository holding the model information forms

the base of the conceptual architecture. The model

management layer is represented by the EMODE

meta-models and languages. These are needed to

perform application modelling and transformations

during the modelling. An overview on the meta-

model and the transformations will be given in the

following section. The modelling and programming

infrastructure is built on top of the repository and the

model management layer. It consists of a number of

modelling editors which enable developers to model

user and system tasks, abstract user interfaces, and

context. A transformation engine transforms one

model into another model, such as a goal model into

a task model or an abstract user interface description

into a concrete modality such as voice or graphic.

The conceptual architecture is currently being

implemented as the EMODE tool chain. A first

prototypical version of the tool chain is currently

being tested.

3.2.1 Metadata

To model different aspects of multimodal adaptive

interactive systems, we define a suite of meta-

models. These include the Goal model supporting

the modelling of functional and non-functional goals

and the Task model for modelling the overall task

flow consisting of user, system, and interaction

tasks. The Concept model is used to model data

concepts for the application. The AUI model and

Modality model provide the means for describing

abstract user interfaces and modality profiles of

devices that will finally render the modelled UIs.

Also of importance are the Context model and the

Functional Core Adapter model by which service

calls to backend application logic are modelled.

During the development process, models based on

these meta-models are either created by the

developer directly or through a transformation from

an existing model.

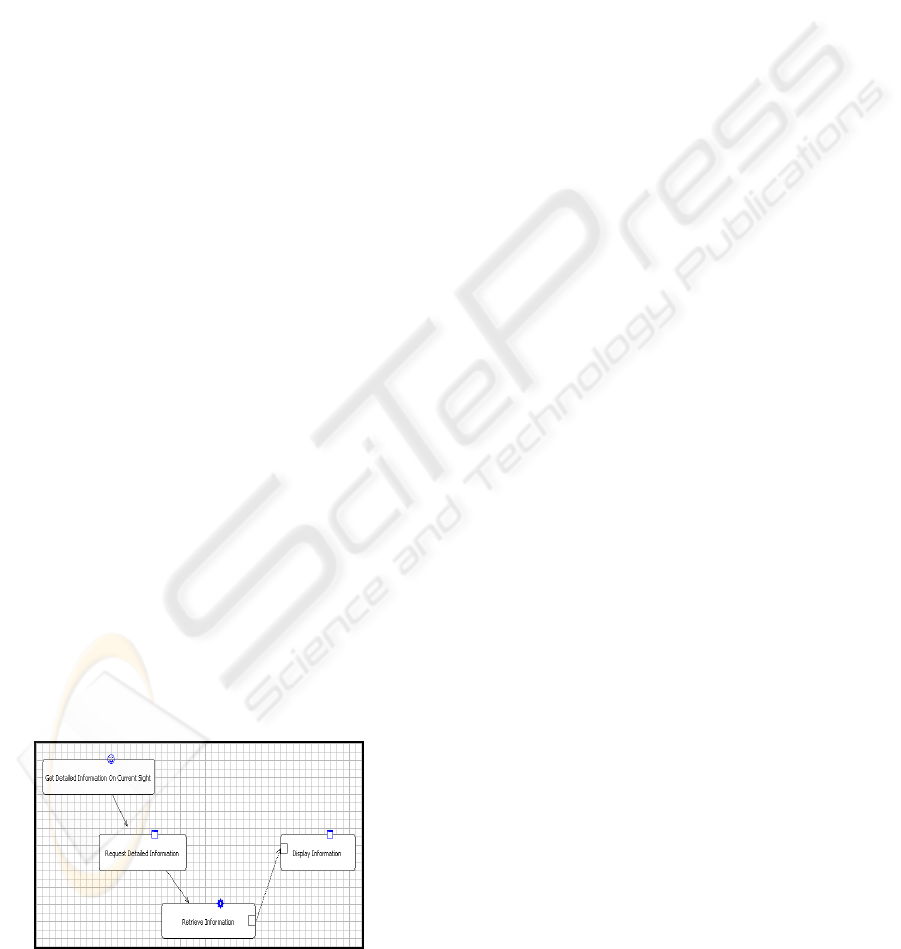

Figure 3: Sample Task Diagram with User Task,

Interaction Tasks, and System Task.

To illustrate the usage of the meta-model and

transformations, we will now provide a short

example outlining the interplay of the different

models.

At design time, a developer starts to model the

goals of a new application from the user’s

perspective. Goals are divided into functional goals

(the application’s functionality) and non-functional

goals (for example, the support of a speech modality

for an interaction). Both types of goals are the

outcome of a requirements-analysis phase. While the

goal model is the entry point in the modelling

process, the requirements-analysis phase is not

supported by EMODE at present. Figure 2

demonstrates a user’s (such as a tourist) intention to

get detailed information about a particular sight. The

intention is modelled as a higher-level goal. The

application developer divides this goal into the sub-

goals: “Request Detailed Information”, “Retrieve

Information”, and “Display Information”. While the

sub-goal “Retrieve Information” refers to a goal

accomplished by the application, the others represent

interaction between the user and the system.

Obviously, the higher-level goal entails non-

functional goals related to interaction. An interaction

can be carried out with the support of multiple

modalities, for example, voice and GUI modality.

Each sub-goal will be translated into a more

concrete task using concepts specific to the

application. Subsequently, tasks are separated into

the user’s tasks, the system’s task and an interaction

task. A user’s task describes the responsibility of the

user to accomplish his goal; the system’s tasks are

those executed by the system regardless of the

interaction type; and an interaction task is a task

carried out by a modality service which is

responsible for providing the necessary input for a

system task and the necessary output to the user. A

task diagram is generated semi-automatically by

transforming the goal model.

Figure 3 displays a task diagram corresponding

to the above goal diagram. A traveller triggers the

information retrieval by interacting with the system;

the system fetches the information, and displays it to

the user in a manner consistent with the user’s

context.

In the next design phase, an abstract user

interface is created by the AUI model editor. The

AUI model is generated from the Task model and

further refined by the developer. The transformation

of the AUI model to code produces an adaptive,

multimodal dialog description in the XML-based

D3ML document format. In our approach, D3ML is

utilized as an intermediate format which cannot

directly be rendered but is transformed into a target

ICSOFT 2007 - International Conference on Software and Data Technologies

language such as VoiceXML or XHTML. Building

modality-specific document formats from D3ML is

a four phase process.

The first phase comprises the semantic

adaptation of the D3ML dialog by evaluating inline

annotations that contain conditions over context

information. Semantic adaptation encompasses

layout selection for each target modality with respect

to the properties of the rendering device, for

example, the screen size available to a visual

modality output. Furthermore, UI controls whose

context conditions are not satisfied are pruned from

the dialog.

In the second phase, the previously selected

modality-specific layouts are filled with content

from the D3ML dialog, producing D3ML code that

is structured according to the target modalities. This

structure is the basis for the dialog fission phase that

decomposes the D3ML dialog into separate adapted

and modality-specific D3ML fragments.

Finally, the D3ML fragments are transformed

into code understood by the particular renderers and

recognizers of the target modalities. These

transformations are purely syntactic mappings of

mark-up code.

From a technological point of view, the first

three phases are implemented by operations on the

Document Object Model (DOM) tree of the D3ML

dialog. For the transformations in the final phase, we

pursue two approaches. The first approach utilizes

declarative XSL transformation rules, which provide

flexibility and easy extensibility, but come at the

cost of low performance which makes them

unsuitable on low-end devices. The second approach

is an imperative implementation of the

transformation rules over the D3ML DOM tree,

which overcomes the performance issues of the XSL

solution, but offers less flexibility. Despite this

shortcoming, only the later allows us to perform

D3ML adaptation on low-end, low-performance

devices such as a PDA.

3.3 Development Environment

The EMODE development environment (figure 4)

presents modelling tools and editors as well as

transformation engines. The model editors integrate

the EMODE meta-models and support the definition

of various models, namely, goals, tasks, contexts,

functional core adaptors, and various interactive

modalities. The transformation engines provide the

infrastructure support to specify and execute

transformations. It includes, in more detail, a

transformation language, a transformation editor,

and a transformation front-end. The transformation

front-end provides support for the user to control

and prepare the execution of transformations. Apart

from the above tools, our development environment

integrates coding tools and management tools. The

coding tools are used to complete, modify, compile

and test the generated source code whereas the

management tools are used to manage several

repositories which are responsible for storing a large

number of artefacts: models, transformations, source

code and transformation traces. The model editors

and the transformation front-end are developed as

Eclipse 3.2 Plug-Ins.

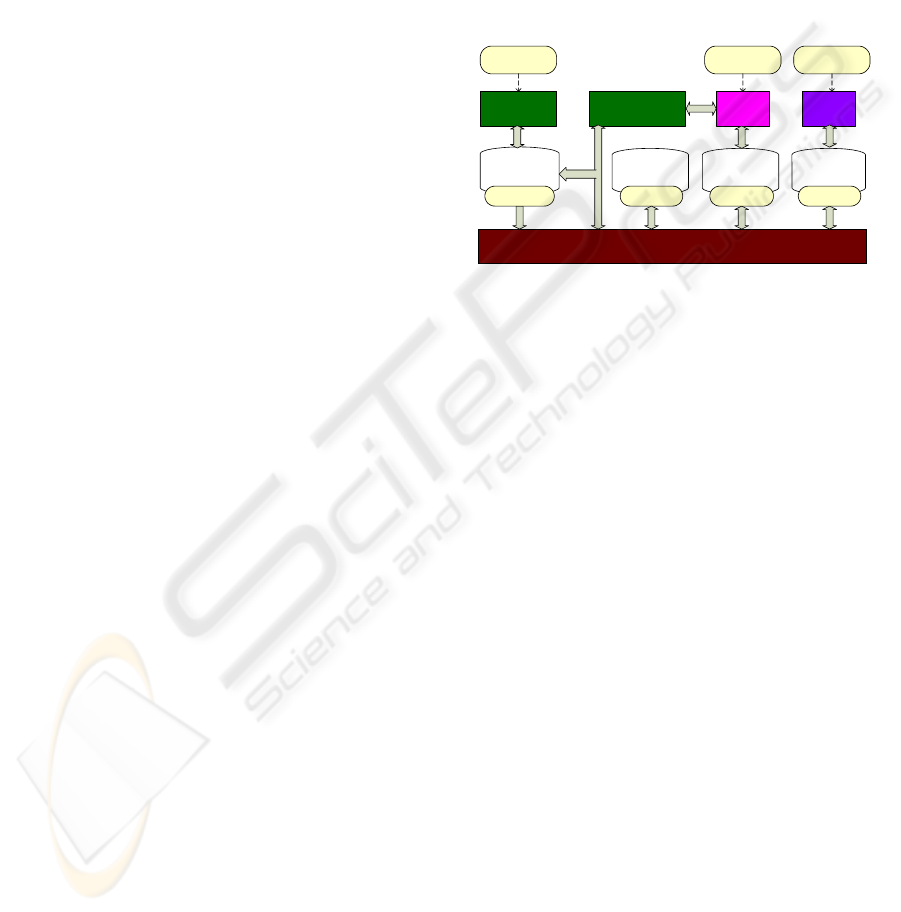

Figure 4: The EMODE development Environment.

3.3.1 Transformation

Transformations play an important role within the

EMODE tool chain. They support the user while

modelling an application by creating new models,

which are derived from existing models. Thus,

models can help to reduce the amount of work

necessary to model applications as well as avoid

modelling mistakes.

Two types of transformations were implemented

within EMODE: model-to-model transformations

and model-to-code transformations. The former ones

are used to derive a task model from an existing goal

model and an AUI model (Abstract User Interface)

and FCA model (Functional Core Adapter) from a

task model. These transformations are described in a

declarative QVT syntax and executed by a

prototypical QVT transformation engine.

Model-to-code transformations are used to

generate a significant body of an application

automatically. In most cases the developer will have

to add additional code to implement the application

logic. Within the EMODE project we implemented a

transformation that generates Java AWT code using

JET (Java Emitter Templates). A second

transformation based on the XML Template

Language (XTL) generates D3ML (Device-

independent Multimodal Markup Language)

dialogues.

Transformation Engine

Model

Editors

IDE

Model

Repository

Code

Repository

Transformation

Repository

Transformation

Front-End

Transformation

Editor

Models Code

Trace

Repository

Trans.

Traces

Trans.

Defintion

Transformation

Langauge

EMODE Meta

Model

Programming

Language

A MODEL BASED APPROACH FOR DEVELOPING ADAPTIVE MULTIMODAL INTERACTIVE SYSTEMS

EMODE applications comprise different parts

which are generated from the different models. At

present, the EMODE development environment

supports the following model/code mappings:

 The concept model is used to generate the code

that implements the data types used

throughout the application;

 The code implementing the overall application

workflow is generated from a task model;

 From the functional core adapter model method

stubs are generated that make up the interface

to the application’s business logic;

 The abstract UI and modality model are the

source for generating the nodes which

describe the application’s user interface;

currently, we support two different

transformation targets for UI: plain Java/AWT

and D3ML. The latter will eventually be

transformed into different modality-specific

dialogue descriptions such as XHTML or

VoiceXML; and,

 The context model is used to automatically

generate context provider descriptions.

Model-to-code transformations in EMODE

currently use Java SE as target platform. They can,

however, easily be adapted to support other target

platforms, such as .NET. The transformations are

implemented using Java Emitter Templates.

4 FUTURE WORK

We are developing two demonstrators using the

EMODE tool chain. The first demonstrator, the in-

car travel assistant, is already developed with

standard tools; our future aim is to produce it with

the EMODE tool support. This will enable us to

compare our methodology with existing standard

approaches in terms of efficiency of developing

adaptive multimodal interaction systems. The

second demonstrator is a mobile maintenance

application which provides support for maintenance

workers to access relevant information and compile

a report regarding their present task. In this paper,

we will briefly introduce the in-car travel assistant

only.

4.1 In-Car Travel Assistant

The in-car travel assistant is an adaptive multimodal

interactive system. It provides personalised,

situation-adapted information during a trip. The

situation context can be acquired by different

sensors and data sources. Some of these are data

available in the vehicle over the CAN bus, such as

speed, fuel tank level, outside and inside

temperature, and the current geographical position.

Additional sources of a context are the mobile

devices available inside the car.

tour.xml

file

Figure 5: Architecture of the current in-car version of

Travel Assistant.

The in-car travel assistant acquires and uses a

context to support two aspects of adaptations:

adaptation of the application’s business logic and

adaptation of the way information is delivered by

and to the user, i.e., adaptation of the modalities

employed. Adaptation of the application logic takes

place when travel information is selected, filtered,

and presented to the user based on the user’s current

situation (mostly location) and preferences.

Modality adaptation takes place by combining

different input and output modalities and operating

possibilities depending on the user’s situation. For

example, to announce a point of interest by a speech

modality while the user is talking on the mobile

phone is irrelevant or even obtrusive; hence, the

system selects an appropriate modality to present a

point of interest less obtrusively. Additional

constraints for the selection of appropriate

modalities are privacy policy and environmental

context (ambient noise and surrounding light

intensity, etc.).

On-trip travel information (point of interest) is

made available on portable devices of heterogeneous

nature, such as a smart phone or a PDA or an

embedded display device. At the same time,

available multimodal services expose their services

by advertising them so that the travel assistant can

dynamically discover and bind to them.

The travel assistant is a device independent

application. Depending on the preferred device or

the context of use, it employs a web browser

ICSOFT 2007 - International Conference on Software and Data Technologies

(HTML) component to dynamically plan or alter

trips; select points of interests and present

information en-route to its users as text or image. It

also possesses a map-based interaction mode. The

architecture for the current version is shown in

Figure 5.

In our current version, the travel assistant gets

live position data (coordinates) either from the

NaviServer, which in turn gets the live data from a

GPS, or interactively by clicking on a map.

NaviServer can also record and read the position

data from a database containing previously recorded

position coordinates. Additionally, the NaviServer

can process the data coming from the ADAS-RP

(Advanced Driver Assistance System – Research

Platform), which is in itself connected to a GPS and

typically provides map data, matched coordinates

and additional information such as road types and

road names.

The travel assistant has a link to POI-information

system to provide the user all the detailed

information regarding POIs selected during the pre-

trip planning. As an output, the travel assistant, en-

route a pre-planned trip, delivers information about

the current position of a vehicle, POI-information

and all the POIs in the vicinity of current position, in

form of POI-view or Map-view or as combination of

both (POI/Map) on a single screen.

5 SUMMARY

The EMODE methodology integrates software

engineering concepts with user interface design

approaches and adopts the model-driven architecture

(MDA) to develop adaptive multimodal interactive

systems. To define platform independent models and

to support model-to-model as well as model-to-code

transformation, we define a suite of meta-data for a

goal model, a task model, a context model, a

modality model and a functional core adaptor model.

Whereas separating the platform independent

aspects of an interactive system from those which

are platform dependent enables a design time

adaptation, the inclusion of context information

throughout the modelling process of both the

application business logic and the abstract user

interface enables a runtime adaptation.

To quantitatively compare the EMODE

methodology with existing standard approaches, we

are developing two demonstrators: the in-car travel

assistant and the mobile maintenance application. A

first version of the travel assistant which is

developed by standard tools is now fully functional;

work is in progress to produce it with the EMODE

tool chains, and to perform the comparison.

ACKNOWLEDGEMENTS

The EMODE project is partially funded by the

German Federal Ministry of Education and Research

(BMBF). We would like also to acknowledge the

contribution of René Neumerkel and Gerald Hübsch

to this paper.

REFERENCES

Mandyam, S., Vedati, K., Kuo, C., and Wang, W., 2002.

User Interface Adaptations: Indispensable for Single

Authoring. Position Paper of W3C Workshop on

Device Independent Authoring Techniques, SAP

University, St. Leon-Rot, Germany.

Steglich, S., and Mrohs, B., 2004. A Markup Language for

Generic User Interaction, The 2004 International

Conference on Internet Computing (IC'04), Las Vegas,

Nevada, USA.

http://www.w3.org/2002/07/DIAT/posn/nokia-ibm-

sap.html.

Hu, T.-Y., Park, D.–H., Moon, K.-D., 2005. Device-

Independent Markup Language. Fourth Annual ACIS

International Conference on Computer and

Information Science (ICIS'05), 2005.

Ball T., and Sisl, 2000. Several Interfaces, Single Logic,

Microsoft Research.

Kirda, Engin, 2005. Engineering Device-Independent Web

Services, Ph. D. Thesis.

Delgado, R.L. and Araki, M., 2005. Spoken, Multilingual

and Multimodal Dialogue Systems. John Wiley and

Sons, Ltd.

Grolaux, D., Van Roy, P., Vanderdonckt, J., 2001. QTk:

An Integrated Model-Based Approach to Designing

Executable User Interfaces, Lecture Notes in

Computer Science, vol. 2254, Springer Verlag.

Dery-Pinna, A. and Fierstone, J., 2004. User interface

development environment based on components:

assets for mobility. In Proceedings of the 1st French-

Speaking Conference on Mobility and Ubiquity

Computing. ACM Press, New York, NY.

Calvary, G., Coutaz, J., Thevenin, D., Limbourg, Q.,

Souchon, N., Bouillon, L., Florins, M., Vanderdonckt,

J., 2002. Plasticity of User Interfaces: A Revised

Reference Framework, TAMODIA, 2002, pp. 127-

134.

Hanumansetty, R. 2004. Model Based Approach for

Context Aware and Adaptive user Interface

Generation, MSc. Thesis.

A MODEL BASED APPROACH FOR DEVELOPING ADAPTIVE MULTIMODAL INTERACTIVE SYSTEMS
