DISTRIBUTED BLOOM FILTER FOR LOCATING XML TEXTUAL

RESOURCES IN A P2P NETWORK

ement Jamard, Laurent Yeh and Georges Gardarin

PRiSM Laboratory, University of Versailles, 45 av. des Etat-Unis, 78000, Versailles, France

Keywords:

XML, XQuery Text, P2P Network, Database System, Bloom Filter, Indexation.

Abstract:

Nowadays P2P information systems are considered as large scale distributed databases where all peers can

provide and query data in the network. The main challenge remains locating relevant resources. In the case

of XML documents, keywords and structures must be indexed. However, the major problem for maintaining

indexes of huge textual XML documents is the cost for connecting/disconnecting: indexing a quantity of keys

requires the transit of many messages in the network. To reduce this cost we adapt the Bloom Filter principle

to summarize peer content. Our Bloom Filter summarizes both structure and value of XML document and is

used to locate resources in a P2P network. Our originality is to propose techniques to distribute the Bloom

Filter by splitting it into segments using a DHT network. The system is scalable and reduce drastically the

number of network messages for indexing data, maintaining the index and locating resources.

1 INTRODUCTION

Peer-to-Peer (P2P) network is a technology used to

share and query information in a distributed manner.

P2P networks offer dynamicity of data sources, ro-

bustness, scalability, reliability and no central admin-

istration. With the emergence of XML as a stan-

dard for representing and exchanging data, P2P net-

works have been adapted to share structured informa-

tion. Coupling P2P networks with XML databases

could emerge new query possibilities at world scale.

P2P systems are used to locate relevant sources by in-

dexing data that peers intend to share on other peers.

Queries are then resolved in a distributed manner.

In P2P network few attention has been paid for

peer dynamicity (connecting, disconnecting or updat-

ing peer) and for indexing XML with massive text

data. In fact, peer dynamicity and XML data index-

ing imply heavy trafﬁc by sending every key to index,

that is a bottleneck for the system. Without dynam-

icity, or with an heavy cost for each action like peer

connection, the P2P network appears more static than

dynamic that is in opposition with the P2P paradigm.

Two kinds of P2P systems are focused on locating

XML sources. First, P2P systems like SomeWhere

(Rousset et al., 2006) or Piazza (Halevy et al., 2003)

are focused on locating efﬁciently data sources us-

ing mappings between peers. An advantage of this

approach is that it does not require to index data

in the network but connecting a peer in those net-

works requires constructing complex mappings, at an

heavy cost. Second, many P2P networks are built

over robust and scalable DHT (Distributed Hash Ta-

ble) methods ((Rowstron and Druschel, 2001), (Sto-

ica et al., 2001), (Ratnasamy et al., 2001)). In KaDoP

(Abiteboul et al., 2005), XML documents are decom-

posed into elements (node, text value) that are indexed

in the DHT. For each item, a message is sent in the

network for indexing the value. Many messages are

sent in the network as XML documents are composed

of several elements. Pathﬁnder (Gardarin et al., 2006)

is an alternative to index structured information; en-

tries of the index are organized as a compressed se-

quence of elements and values. Although this ap-

proach compresses the required index size and speed

up twig queries, the number of entries to be shipped

in the network remains huge.

DBGlobe (Koloniari et al., 2003) proposes an al-

ternative to these P2P systems by using Bloom Filter

(Bloom, 1970) for locating resources in a P2P net-

261

Jamard C., Yeh L. and Gardarin G. (2007).

DISTRIBUTED BLOOM FILTER FOR LOCATING XML TEXTUAL RESOURCES IN A P2P NETWORK.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 261-266

DOI: 10.5220/0001286002610266

 SciTePress

work. A Bloom Filter is a compact data structure used

for testing the membership of an element in a set. A

Bloom Filter is a bit array of size m initially set to 0

associated to k hash functions. Each function maps a

key value to a bit array entry. For checking if the ﬁlter

accepts a given word w, all relevant array entries de-

termined by the k functions must be set to 1. Notice

that a value succeeding the test might not be in the

document. This phenomenon is called a false positive

answer.

In DBGlobe, a Bloom Filter is only used to sum-

marize XML document structure. Peers are connected

by group on a P2P bus network, where each group

provides a ﬁlter summarizing participant structures.

This ﬁlter is used to orient query to relevant group of

peers. The cost for ﬁnding relevant peers is impor-

tant as the query must traverse several group of peers

before accessing the relevant data; the network trafﬁc

can become a bottleneck and it only indexes structure.

We propose Distributed Bloom Filters to ﬁlter

XML content and structure. Our data model allows to

distribute a Bloom Filter on a DHT network by split-

ting it into segments. It behaves like a non dense in-

dex; keys are indexed with a probability to ﬁnd in the

network. The work is focused on minimizing com-

munications and data exchanged for peer connection,

disconnection or querying data. We also propose a

method to control the probability of false positive for

efﬁciency of the solution.

The paper is organized as follows. In Section 2

we deﬁne the model of Distributed Bloom Filter. We

describe in Section 3 peers behavior for locating re-

sources using Distributed Bloom Filters in a DHT-

based network. In Section 4 we present experimental

evaluation that show the beneﬁt and efﬁciency of our

method. In Section 5, we concludes our work.

2 DISTRIBUTED BLOOM FILTER

A Distributed Bloom Filter (called DBF) is a struc-

ture adapted from Bloom Filter to summarize XML

data on content and structure. In this section we de-

scribe how to summarize XML data using Bloom Fil-

ters. Then we present a method to distribute and query

efﬁciently it on a DHT network. Finally we propose

a technique to control the probability of false positive

to guarantee good performance.

2.1 Content and Structure Filter

We use Bloom Filter to check the presence of a struc-

tural expression correlated with a value in peers data.

Keys inserted in the ﬁlter are composed of a path and

1 1 1 1

0 0

1 1

(key)

seg. 0 seg. 1

seg. N

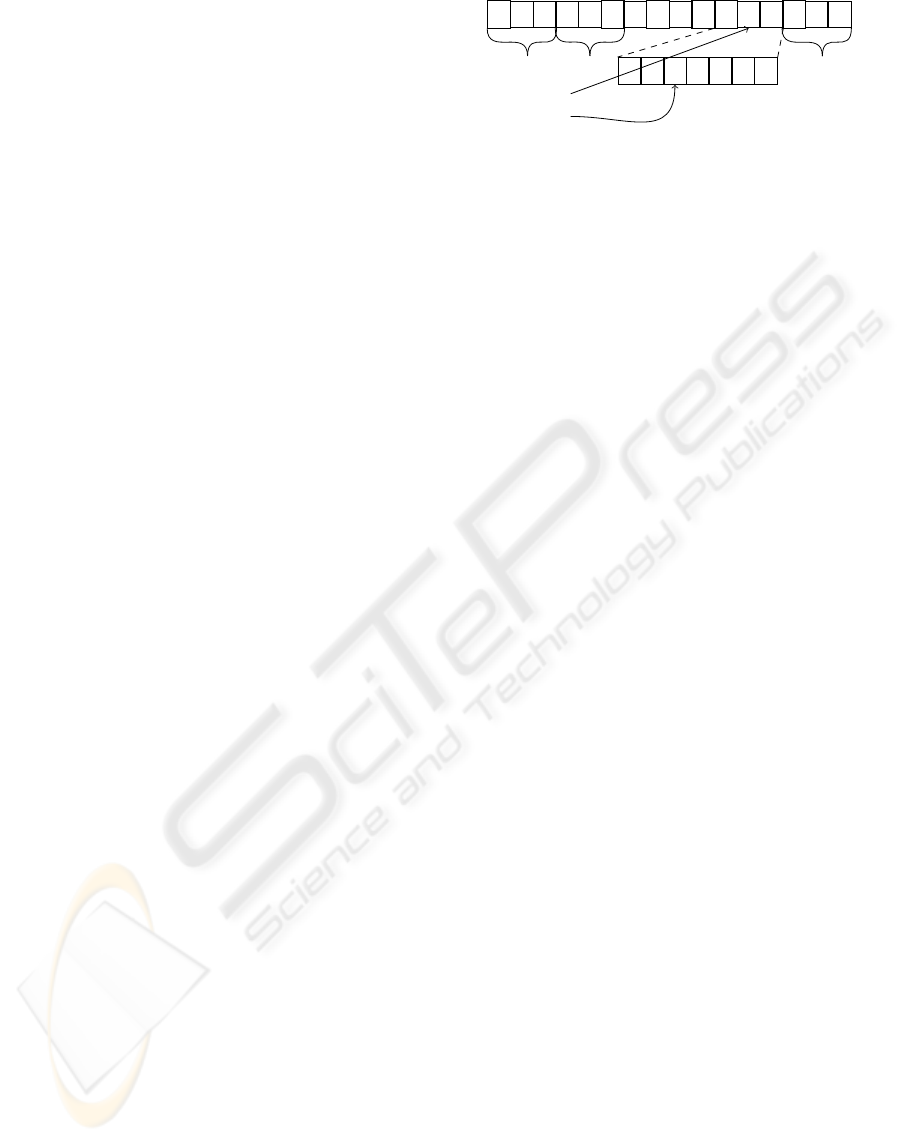

Figure 1: Distributed Bloom Filter and Shadow Segment.

a value. Every XML document can be mapped to a set

of value-localization-paths VLP = {vlp

} where vlp

is of type: /a

/.../a

[V ]. Only the node a

contains

the value V . When an element node contains several

words, it could be split into a set of value-localization-

paths. For example, <Book><Title> XML

Introduction </Title></Book> produces

two value-localization-paths /Book/Title[XML]

and /Book/Title[Introduction].

The k H

functions are used to determine which

array entries of the ﬁlter to set to 1. Each function cap-

tures both structure and value information; H

func-

tion is composed of H

, a path coding function, and

, a value coding function:

(key) = H

(key.path) ∗ H

(key.value)

The H

function is a typical hash function with value

range from 0 to (m − 1), where m is the size of the

array. The H

function uses a path encoding tech-

nique described in (Jagadish et al., 2005). The main

idea is to map the path domain to a range of value

between 0 and 1. Each unique path is mapped to

a unique value. More details can be found in (Ja-

gadish et al., 2005). The H

function sets a bit to

1 in the Bloom Filter array, with range from 0 to

(m − 1). Thus, two different value-localization-paths

with same value (e.g., /Book/Title[XML] and

/Article/Title[XML]) will set to 1 different

entries of the Bloom Filter.

2.2 Distributing a Bloom Filter

To distribute the ﬁlter, the bit array is split into

segments of equal size. Segments are distributed

over peers in a DHT network using the primitive

put(key, value); the segment number is used

as a routing key. This splitting method implies two

major problems:

• each peer responsible of a segment number will

receive segments from every peers in the network,

• checking each of the k hash functions requires to

contact many peers as the set of H

function could

cover several segments.

To distribute more evenly segments, we introduce

the notion of document theme. Each document that

WEBIST 2007 - International Conference on Web Information Systems and Technologies

262

a peer intends to publish or query is associated to

a theme. A user can ﬁnd the relevant themes from

a catalog of all existing predeﬁned themes shared

in the network. The theme is combined with the

segment number to determine the key used for the

put(key,value). Therefore, the i

segments of

the DBF are not indexed on a same peer as they be-

long to different themes.

To avoid checking several segments, we constraint

to H

functions to cover a single segment. Con-

sequently, the H

(key) function plays two roles: ﬁl-

tering and routing purpose. It ﬁlters values as a tradi-

tional hash function, and it is also used to determine

the segment number where other hash functions are

constrained. The segment number (m ÷ H

(key),

m being the DBF size), combined with the theme, is

used as the key of the primitive put(key, value)

for determining the peer storing the segment to check.

2.3 Controlling Segment Selectivity

The selectivity of a Bloom Filter depends on the size

m of the ﬁlter, the number k of functions, and the

number n of keys inserted. The probability of having

false positive answers (i.e., the probability of having

the k positions set to 1 for an element not in the set) is

given by (1 − e

−kn/m

)

. As the number k of function

is ﬁxed, the probability depends on the ratio n/m.

The false positive probability may imply a lot of

useless network communications. In fact, each time

a value is successfully ﬁltered, the peer that created

this ﬁlter is contacted. Therefore, controlling the false

positive probability by keeping it below a threshold is

important as it will reduce network trafﬁc.

When a source peer adds, removes, or modiﬁes

documents, its DBF must reﬂect the changes. Some

techniques (Fan et al., 2000) are available to support

removal in Bloom Filter. Our goal is to maintain un-

der a threshold the selectivity of a Bloom Filter af-

ter insertions.For controlling the selectivity, we intro-

duce shadow segments. When the ratio n/m makes

the probability exceed the threshold, a shadow seg-

ment with an augmented size is used. Each segment

keeps the number of keys inserted so far. The shadow

segment size is computed so that the ratio n/m keeps

the probability under the threshold. When a shadow

segment is created, keys have to be rehashed in the

shadow segment using the new hash functions. The

function remains the same, determining the seg-

ment number, and others H

functions range is mod-

iﬁed to cover the shadow segment interval. With this

approach we can adjust the size of a bloom ﬁlter dy-

namically according to the required need.

3 LOCATING DATA SOURCES

3.1 Network Architecture

As in traditional P2P networks, a peer can be a client,

a server, or a router. We add a fourth role: a peer is

also a controller for managing segments of DBF. The

client role is used for querying the network. A server

peer shares data on the network. For a server peer,

the DBF created from its data is split into segments;

segments are distributed through the network using

the DHT put(key, value) function for send-

ing the segment to a controller peer. The message

sent through the network contains: (i) The segment

of the distributed Bloom Filter. (ii) A set of Bloom

Filter hashing functions (H

(key)...H

(key)). (iii)

The IP address of the server peer. Each peer is a

router, routing messages according to the DHT princi-

ples. A controller peer manages distributed segments

of others peers. The role of a controller peer is to

check managed segments according to the Bloom Fil-

ter principles.

3.2 Locating Relevant Sources

Queries processed in our system are simple content

and structure queries with absolute path expressions

(i.e. only child axis). A query can be expressed as a

tree of path expression where keywords are attached

to leaf nodes, and a theme. A query tree is decom-

posed into value-localization-paths, as an XML docu-

ment. Each value-localization-path is inserted in a de-

mand message, used to resolve in a distributed man-

ner the query. A demand, illustrated at bottom of ﬁg-

ure 2, is organized as follows:

• a step attribute indicating the current process:

checking the DBF (checkingDBF) or contacting

server peers (checkingSRC),

• a from attribute for the client peer address,

• vlp elements representing value-localization-

paths of the query. It stores the theme of the

query, the path and the value to search. The

state attribute indicate wether it has been re-

solved on a controller peer (found) or in instance

to be (looking),

• a results element storing source peers ﬁltered

by DBFs.

Client Peer At creation time, a new demand mes-

sage is created with step set to checkingDBF. The al-

gorithm 1 describes the behaviours at the client peer.

First, from the query tree, a set of value-localization-

paths is extracted. The value-localization-paths (vlps)

DISTRIBUTED BLOOM FILTER FOR LOCATING XML TEXTUAL RESOURCES IN A P2P NETWORK

263

theme: Store

book

author

name

”Meier”

title

”XML”

<path>/Book/Author/Name</path>

<value>Meier</value>

</vlp>

<path>/Book/Title</path>

</vlp>

</Dem>

Figure 2: Query tree and routing demand.

are ordered in the demand according to their value is-

sued from the H

function (l.4) for further routing

process and initialized to looking. Then, the query

is routed in the network (l.6). The client peer waits

for results messages from other peers (l.7). If a No

result answer is received from a controller peer, the

process ends because a part of the user query could

not be resolved. Otherwise, the client peer receives

the number of potential answering server peers (l.10)

and waits for answers (l.11). Documents results are

stored (l.13) and global result is returned once every

server peer sends its answers (l.17).

Controller Peer The demand keeps the list of po-

tential results (i.e. the results answering resolved

vlps). The controller peer updates this list of ad-

dresses containing potential results (l.1). For each

value-localization-pathwith state set to looking hav-

ing their key value comprised in the key interval of

the controller peer (l.2), the addresses are updated by

checking segments (l.3) and the value-localization-

path state are set to found. If a controller peer con-

cludes that no server peer can answer, a No Re-

sult message is sent to the client peer and the rout-

ing process ends (l.5-6). When all segments for

this controller peer have been checked, the demand

is routed to the controller peer for the next un-

resolved value-localization-path(l.13). When every

value-localization-pathhas been resolved (l10-11) the

demand is forwarded to servers peers.

Server Peer A server peer is contacted when its

DBF segments have ﬁltered successfully each value-

localization-path of the query demand. The server re-

Algorithm 1 Client Send request.

Require: XQT: a Query Tree.

Ensure: A set of documents collection

1: V ← A set of value-localization-paths

2: W ait ← ⊘

3: for value-localization-path v

in V do

4: D ← D ∧ Order(H

), Demand(s

))

5: end for

6: Route(D).

7: if (Receive(W) = No Results) then

8: Return ⊘

9: else

10: W ait ← NumberOfResults(R)

11: while (notAllReceived(W ait))

∧ Receive(W )) do

12: if (emptyDoc(W) 6= ⊘) then

13: R ← R ∧ Document(W)

14: end if

15: end while

16: end if

17: return R

Algorithm 2 Controller peer.

Require: D; the demand.

Ensure: a set of relevant server peer addresses

1: R ← Server Peer addresses computed so far.

2: while P respOf Key H

(nextUncheckedV lp)

3: R ← R ∧ check(nextU ncheckedV lp)

4: if (R = ⊘) then

5: Send ”No results” to client peer.

6: Terminate process.

7: end if

8: end while

9: if (nextUncheckedV lp = ⊘) then

10: Route(D, R)

11: Send R to Client Peer

12: else

13: Route(D, H

(nextUncheckedV lp)).

14: end if

ceives the demand for computing results. False pos-

itive due to the probabilistic structure of DBF are re-

moved at this phase.

Query Routing We illustrate the routing process in

a Chord network of the message at bottom of ﬁg-

ure 2 on the ﬁgure 3. At beginning, the client peer

P1 ﬁlls the demand with value-localization-paths and

the demand is routed to controller peers. The value-

localization-paths are resolved in the order of their

key value (computed from H

and theme). The de-

mand is routed, using the Chord principles, to con-

WEBIST 2007 - International Conference on Web Information Systems and Technologies

264

P1, key=10

P2, key=25

P3, key=35

P4, key=40

P5, key=60

P6, key=68

P7, key=74

P8, key=83

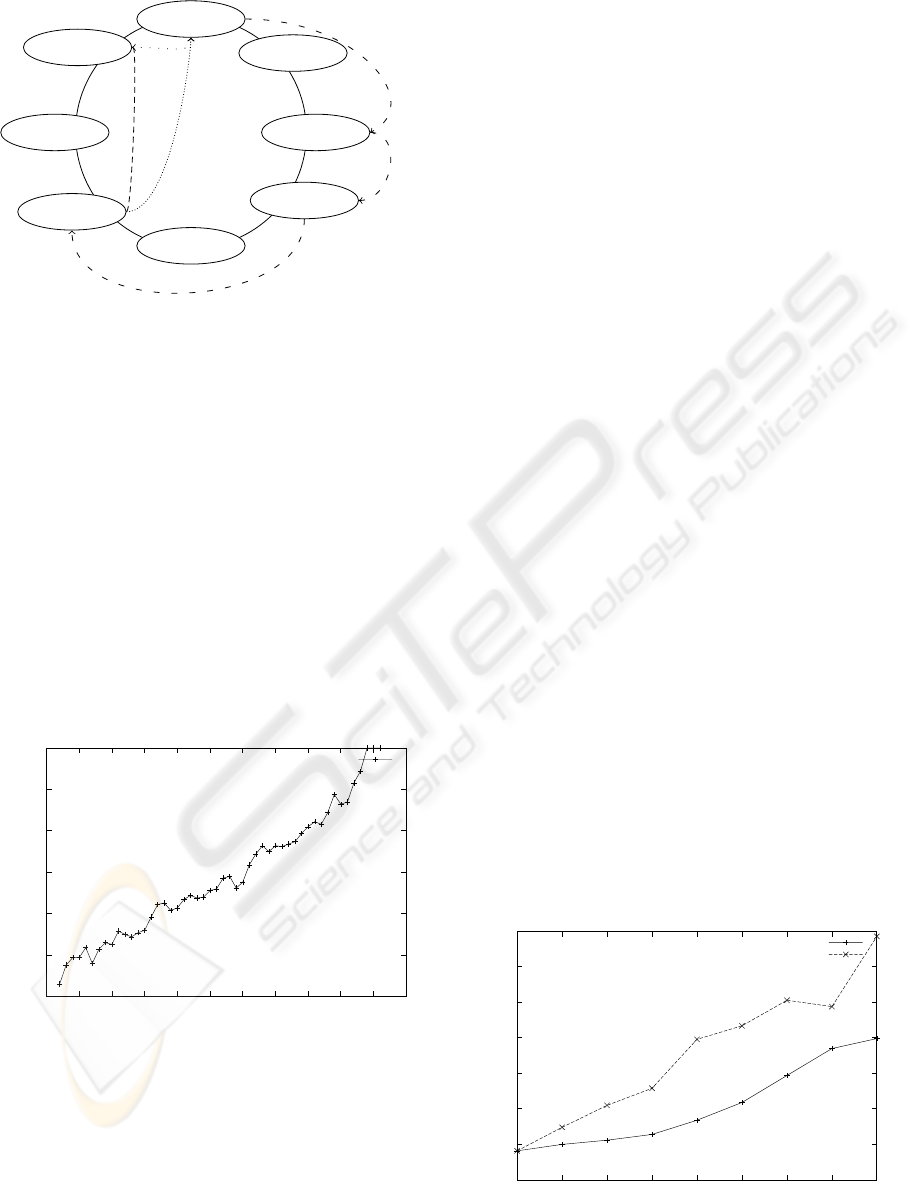

Figure 3: Query Routing.

troller peers P4 (step 1 and 2) and then P6 (step

4) responsible of DBF segment for the two value-

localization-paths; server peers addresses success-

fully ﬁltered are ﬁlled in the demand. Next, only

server peer P8 ﬁltered by both DBFs (answering

the two parts of the query) is contacted (step 4).

The client peer P1 waits for incoming results (step

5). Servers peers ﬁltered as potential relevant data

sources send results (step 6).

4 EXPERIMENTS

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1

False positive (%)

n/m ratio

False Positive for a 152 Ko Document

Figure 4: False positive rate.

For the representation efﬁciency of the DBF

model, the ﬁrst experiment shows the percentage of

false positive answers of our DBF. A XML document

of 152 Kb is randomly generated, that contains 12260

value-localization-paths. We construct a DBF for this

document with 10 hash functions. In Figure 4, each

measure is the percentage of false positive for 500

queries when the DBF size varies (the size is deter-

mined by the ratio n/m). According to the ﬁgure, we

can deduce that an acceptable percentage of false pos-

itive (less than 4%) require a ratio n/m equal to 0.04.

The compression ratio is 6.79% of the original data.

We compare the connection cost of peers on two

P2P network platforms: a Chord network (called Ba-

sic Chord) indexing XML content as in most KaDop

or PathFinder systems and a Chord with DBF (called

DBF Chord).

Table 1 exhibits in the third column (Messages)

the number of messages and the total size of data tran-

siting in the network for indexing peers data (each

peer shares data).

In the DBF Chord, the number of messages sends

for indexing peer data depends on the network size

and the number of segments created. In the Basic

Chord, the number of messages sent depends on the

number of keys. As described in our data model, the

number of messages remains constant in DBF Chord

with a growing key number. These results show that

our data model requires a bounded number of mes-

sages that allows a fast connecting process.

The fourth column (Messages Size) of Table 1 re-

ports the total size (in byte) of data exchanged in the

network. In Basic Chord, we use messages contain-

ing a 4 byte key, and the server peer address. The

key size is the average size for value and structure

indexing numbering scheme used to address XML el-

ements. The ratio n/m for DBF Chord is 0.08. We

observe that the total size for the DBF Chord is ex-

tremely small compare to the Basic Chord size. In

both case, the size is correlated to the number of mes-

sages sent in the network.

Finally the ﬁfth and sixth columns show the index

size (i.e. stored at controller peers) with respect to the

original size. For both, compression ratio is accept-

able (20%) and roughly equivalent.

1 2 3 4 5 6 7 8 9

Number of hops

Number of vlps

BloomFilter Routing Ordered Demand

Chord Routing Demand

Figure 5: Communication messages for routing a demand.

DISTRIBUTED BLOOM FILTER FOR LOCATING XML TEXTUAL RESOURCES IN A P2P NETWORK

265

Table 1: Network Performance : Chord Key Indexing vs. Chord DBF Indexing.

Network Messages Data

Network Number Number Size (byte) Data Size Index Size (byte)

size (peers) of keys Chord DBF Chord DBF (byte) Chord DBF

8 11860 11456 256 400960 36640 147529 34624 28704

16 24480 22728 512 795480 74136 303168 68696 58264

32 47720 41654 1024 1457890 146632 591350 125986 114888

The Figure 5 focus on the number of hops (i.e.

number of peers contacted during the process) for re-

solving a query. Queries are composed of one or

more value-localization-paths. The graph compares

a Basic Chord using the get(key) primitive to a DBF

network with ordering message. The network using

DBF is more efﬁcient in term of hops compared to

Basic Chord. Indeed, in Basic Chord every value-

localization-path is sent in the network and a response

is systematically returned to the sender. In compar-

ison, a single message is routed in the network us-

ing DBF until it reaches the source peers. Then, the

source peers send the results to the client peer. These

curves show that our new routing protocol requires

fewer messages than a traditional approach.

5 CONCLUSION

In this paper, we have proposed a new P2P indexing

model based on Bloom Filters. This model is used

to index XML document content and structure. We

design a Distributed Bloom Filter to summarize peer

content. Compared to other proposals, Distributed

Bloom Filter is a non dense index, offering a good

compression ratio of the original data. We proposed

technique to distribute this Bloom Filter on a DHT

based network and provide algorithms to localize rel-

evant sources. The main beneﬁce of our approach is

to reduce the network communication for connecting,

disconnecting and updating peers; few messages are

required despite the number of value to index. We

also demonstrated that our query routing method re-

duce the network trafﬁc despite false positive.

Future works are focused on integrating DBF into

the XLive mediation architecture (Dang-Ngoc et al.,

2005). Peers are mediator connected to the network,

publishing data of mediated sources. Data are indexed

in the network using Distributed Bloom Filters.

REFERENCES

Abiteboul, S., Manolescu, I., and Preda, N. (2005). Sharing

Content in Structured P2P Networks. In BDA, pages

51–58.

Bloom, B. H. (1970). Space/Time Trade-offs in Hash Cod-

ing with Allowable Errors. Communications of the

ACM, 13(7):422–426.

Dang-Ngoc, T.-T., Jamard, C., and Travers, N. (2005).

XLive : An XML Light Integration Virtual Engine.

In BDA, pages 399–404.

Fan, L., Cao, P., Almeida, J. M., and Broder, A. Z. (2000).

Summary Cache: a Scalable Wide-area Web Cache

Sharing Protocol. ACM Trans. Netw., 8(3):281–293.

Gardarin, G., Dragan, F., and Yeh, L. (2006). P2P Semantic

Mediation of Web Sources. In ICEIS (1), pages 7–15.

Halevy, A. Y., Ives, Z. G., Mork, P., and Tatarinov, I. (2003).

Piazza: data management infrastructure for semantic

web applications. In WWW, pages 556–567.

Jagadish, H. V., Ooi, B. C., and Vu, Q. H. (2005). BATON:

A Balanced Tree Structure for Peer-to-Peer Networks.

In VLDB, pages 661–672.

Koloniari, G., Petrakis, Y., and Pitoura, E. (2003). Content-

Based Overlay Networks for XML Peers Based on

Multi-level Bloom Filters. In DBISP2P, pages 232–

247.

Ratnasamy, S., Francis, P., Handley, M., Karp, R. M., and

Shenker, S. (2001). A Scalable Content-addressable

Network. In SIGCOMM, pages 161–172.

Rousset, M.-C., Adjiman, P., Chatalic, P., Goasdou

e, F., and

Simon, L. (2006). Somewhere in the semantic web. In

SOFSEM, pages 84–99.

Rowstron, A. and Druschel, P. (2001). Pastry: Scalable,

Decentralized Object Location and Routing for Large-

Scale Peer-to-Peer Systems. Lecture Notes in Com-

puter Science, 2218:329–350.

Stoica, I., Morris, R., Karger, D., Kaashoek, F., and Balakr-

ishnan, H. (2001). Chord: A Scalable Peer-To-Peer

Lookup Service for Internet Applications. In Proceed-

ings of the 2001 ACM SIGCOMM Conference, pages

149–160.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

266
