AN ADAPTATION MANAGER FOR PERSONALIZED
MOBILE WEB SEARCHES
Wolfgang Woerndl and Huda Yousef
Dep. of Computer Science, Technische Universitaet Muenchen, Boltzmannstr. 3, 85748 Garching, Germany
Keywords: Mobile Web, Personalization, User Profile, Context, Context-aware Applications, Web Searches.
Abstract: Context-aware and personalized information access becomes more and more important, especially in a
mobile scenario. In this paper, we present an Adaptation Manager which customizes Web searches to a
user’s context and profile attributes. The approach allows for reuse of personal information for different
services such as the Google Web Service API. We identify personalization components as parts of our
Adaptation Manager and explain the design of the system. We have also implemented the most important
parts of the system and thereby show the usability of the approach. Our solution is extensible, for example
to incorporate a rule system to (semi-)automatically switch between services.
1 INTRODUCTION
New developments in technology along with the
growth of mobile and wireless communication
provide us with services and information anytime
and anywhere. However, the access of relevant
information is not easier but even more complicated
than before. Users are suffering from too much
information and have trouble finding relevant
answers to their queries. The omnipresent
information overload makes an impact especially
with mobile Web searching and browsing:
Users cannot browse through many search
results with the small screen of a mobile
device in contrast to working on a desktop
PC. It would be more desirable to pre-filter
results to adapt to the user’s current needs,
if possible.
When using mobile devices, e.g. when
travelling, context based information is
more important. Users need access to
restaurants or other points of interests in
their vicinity, as an example for context.
So while on the one hand personalized and
context-adapted information is more important in a
mobile scenario, on the other hand obtaining
relevant information is also more difficult. This is in
large part due to the restrictions regarding display
size, bandwidth and input capabilities of mobile
devices.
In our scenario, a travelling user uses a mobile
device, e.g. pocket PC or smartphone to access
services such as the Google Web search. The user
wants to retrieve context-aware personalized
information, for example an answer to the query:
“which italian restaurants are in the vicinity of my
current location that fall in my price range“. In other
words, users want customized information and not
have to manually sort out Web search results. To do
so, our solution proposes a server-based
personalization system based on the current context
(e.g. location) of the user and information that has
been collected about her (the user profile).
The main goal of this paper is to describe the
“Adaptation Manager” which is the core of the
approach. Thereby, we first explain our general
architecture and approach (section 2). Then, we will
explain our Adaptation Manager in more detail and
also provide information about some design issues.

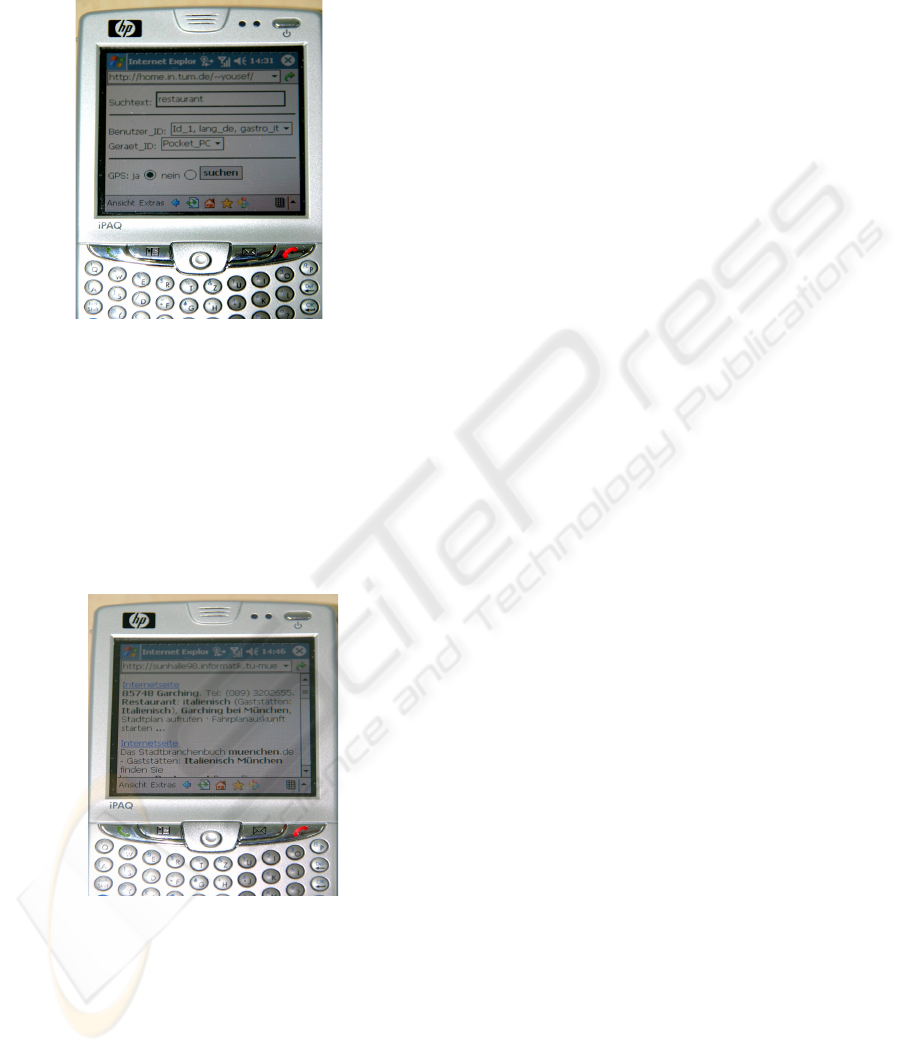

We also present our implementation and the user
interface. In Section 4, we will outline some of the
research issues we work on to further improve the
system. Finally, our paper concludes with a brief
summary and discussion of related work.
156
Woerndl W. and Yousef H. (2007).
AN ADAPTATION MANAGER FOR PERSONALIZED MOBILE WEB SEARCHES.
In Proceedings of the Third International Conference on Web Information Systems and Technologies - Web Interfaces and Applications, pages 156-161
DOI: 10.5220/0001268401560161
Copyright
c
SciTePress
2 THE BIG PICTURE
To fulfil the vision that is outlined in the
introduction, we propose the architecture that is
depict in Fig. 1. Thereby, users do not access
information services such as Google directly, but
through an Adaptation Manager. This component
customizes information retrieval and adapt to the
current device of the user. The Adaptation Manager
queries other services to satisfy user requests. In our
approach, a ”Service” is any software that can be
used in to access information, for example Google
Web search or a tourist information guide. Helper
applications are used to attain context information,
e.g. retrieve address information from GPS
coordinates (see chapter 3.2.2).
Service 1 Service 2
Service n
Adaptation Manager
User with her devices (Æ context)
user profile
Search and other services, e.g. Google Web Service
Helper Applications
(e.g. Geo Web
Services)
Figure 1: Architecture overview.
We distinguish between “context” and “profile”
in our system. We use the context definition
according to Dey et.al.: “Context is any information
that can be used to characterize the situation of
entities (i.e. whether a person, place or subject) that
are considered relevant to the interaction between a
user and an application, including the user and the
application themselves” (Dey, Abowd and Salber,
2001). In our approach, context is very transient
(e.g. the location of a user at a given time) and not
stored permanently. On the other hand, we define
“(user) profile” as information about a user that is
managed on a server to personalize services.
Examples include emails addresses and demographic
information about the user, and also interests or
preferences, e.g. the user’s favourite restaurant type
etc. Both context and user profiles are used to
personalize information access.
We propose a "thin client" approach, that means
the actual personalization is done in the Adaptation
Manager on a server, not on the end user device.
One main advantage is that user profile information
can be reused for different services, even when using
different devices. The user can also modify her
profile using a desktop PC and apply these
configurations to adapt information access on a PDA
later, for example.
Therefore, in our approach only the context
acquisition is done on the client. This includes
retrieving GPS coordinates on a GPS-enabled pocket
PC, for example. The actual context acquisition is
out the main focus of this paper, we will concentrate
on the Adaptation Manager, which will be explained
in the next section.
3 THE ADAPTATION MANAGER
3.1 Requirements and Subcomponents
We have identified the following main requirements
for our system and the Adaptation Manager:
Easily usable from a user’s perspective,
even on PDA’s and smartphones
Accepting and analyzing user queries
(keyword searches)
Management of user profiles in a database
and enhancing queries with profile
attributes
Interpreting and using context data that is
transmitted by the mobile end user device,
in particular GPS coordinates
Accessing other (Web) services to fulfil
user queries
Evaluation of search results and adaptation
to the user device
Modular and extensible software design
As parts of our adaptation manager, we designed
two main components: QueryProcessing
(including a client to the search – and other
services) and ResultEvaluation. The
QueryProcessing handles the user search
requests and takes case of the personalization. The
ResultEvaluation adapts to the device of the
user.
3.2 Design
One of the main design goals of our approach was to
develop the individual subcomponents as
independent from each other as possible using
software engineering methods (Brügge and Dutoit,
2004). Therefore, the system can be easily extended
with new features or services.
AN ADAPTATION MANAGER FOR PERSONALIZED MOBILE WEB SEARCHES
157
3.2.1 Program Flow
The basic program flow in our Adaptation Manager
is as follows:
1. QueryProcessing: Evaluate context, in
particular transform GPS coordinates to
addresses (see chapter 3.2.2), and figure out
the device the user is using
2. QueryProcessing: Choose an
appropriate service (see 3.2.3)
3. QueryProcessing: Actual
personalization, e.g. add user profile
attributes to improve searches (see 3.2.4)
4. ServiceClient: Propagate enhanced
and personalized request to service, e.g.
Google Web Service to perform a (Web)
search
5. ResultEvaluation: Filter search
results
6. ResultEvaluation: Adapt layout of
the result Web page to the actual end user
device (see 3.2.5)
We explain some selected aspects in more detail
in the following subsections.
3.2.2 Geocoding Services
Since location-based services are the most
prominent example of context-aware applications,
we explain in this subchapter how to deal with
location information. We assume that GPS
coordinates are provided by the end user device and
propagated to our Server application. While most
mobile phones are not equipped with GPS right now,
it is safe to assume that more and more devices will
integrate a GPS receiver in the future.
Especially interesting for our purposes are
“reverse geocoding“ services. These services
transform GPS coordinates into actual addresses
(street and location names etc.) and can be used to
find businesses at a certain location. Reverse
geocoding services can be either database
applications or Web Services. Existing applications
include OpenGeoDB (http://opengeodb.hoppe-
media.com/index.php?FrontPage), Mapbender
(http://sourceforge.net/project/showfiles.php?group_
id=88554) or the Geonames
(http://www.geonames.org) databases. More flexible
are Web Services, for example provided by
ViaMichelin (http://ws.viamichelin.com/) or
Geonames. The latter offers “find nearby postal
codes” and “find nearby place names” queries based
on GPS coordinates. We have integrated the
Geonames Web Service to retrieve post codes and
place names in our implementation.
The geocoding services are an example of a
helper application to improve search requests in our
architecture; it is also possible to access map
services and generate maps for the user. While
applications exist that provide location-based
solutions, we handle context separately from
services to allow for a flexible and extensible
architecture.
Apart from location, other context attributes
include the current date and time which could be
connected with a calendar of the user. We are
currently working on generating high level context
from sensor data, to figure out what the user is doing
in which environment with her (mobile) device right
now.
3.2.3 Integrating Services
As an example of the design of the Adaptation
Manager, we show how the connection of (search)
services in the QueryProcessing component is
designed (Fig. 2). The software design pattern that is
used here is the “strategy pattern” (Brügge and
Dutoit, 2004). This pattern allows for
interchangeable services. Thereby, the services are
decoupled from the rule system that performs the
selection of services.

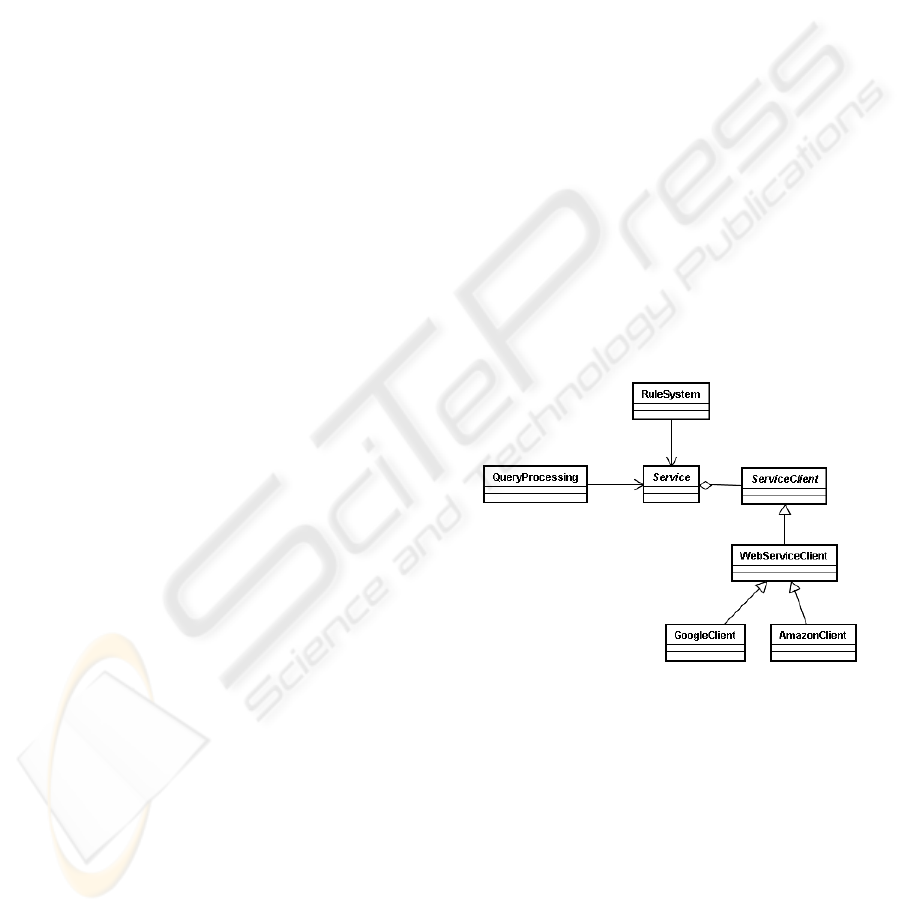

Figure 2: Design QueryProcessing.
The (abstract) Service class encapsulate
search and other information services. The
RuleSystem class is responsible for selecting the
service that is used for a query. Possible services
which can be integrated include (local) database
applications, Web Services or RSS feeds, for
example for analyzing Weblogs (Woerndl, Groh and
Toni, 2006). The GoogleClient implements the
actual Client for the Google Web Service API, for
example. Using this design, new services can easily
be integrated and the system can be gradually
extended.
WEBIST 2007 - International Conference on Web Information Systems and Technologies
158
3.2.4 User Profiles and Personalization
Our user profile consists of attribute-values pairs,
e.g. “restaurant.type = Italian”. The personalization
is done by extending the keyword-based search
string with some information from the profile and
also by filtering the search results afterwards.
At this time, we use a simple rule system that
maps user queries to user profile attributes, for
example: <<if the query contains the string
“restaurant” then add the value of “restaurant.type”
from the profile to the query>>. The user profile
information could be reused for other relevant
services, e.g. when accessing a purpose-built
restaurant data base.
However, not all elements of the personalization
are possible reusable because of different
capabilities and options of services. Service-
dependent personalization has to be configured and
possibly implemented for each service. For example,
the Google Web Service API offers an option to
specify the languages of search results, so the
QueryProcessing retrieves a configuration
setting “language” from the profile to personalize
the search request.
By keeping profile information apart from the
services, users can enter and manage information
about themselves with a Web based interface from
their desktop PC and retain the control about their
personal information (privacy). For example, if the
user’s favourite restaurant type changes, she can
easily change this setting once for usage with
different service providers. It is also possible to
integrate a component for implicit user modelling in
the Adaptation Manager, but in any case the user has
always access to what information is collected about
her and can delete or modify unwanted user profile
attributes.
3.2.5 Customizing for User Devices
The main options for mobile applications are to
either generate HTML or WAP pages, or develop
Client-side J2ME (Java Mobile Edition) or Windows
Mobile (resp. “Compact Framework”) applications.
We have designed our Adaptation Manager to
generate XHTML pages, since Web browsers are
provided for most PDA’s and similar devices.
To adapt the layout of the XHTML pages, we
keep information about device capabilities in the
Adaptation Manager. This is part of the user profile,
therefore users can configure themselves, how many
results are displayed on which device (or use the
default configuration for a certain device), for
example.
We also propose a template based mechanism to
customize the appearance of search result pages. A
template is provided for each (type of) device and is
used to create the actual XHTML page that is send
to the Client.
3.3 Implementation
We have implemented the most important
components of our Adaptation Manager. While we
have not gone into much depth in all parts of the
system, we have realized the whole workflow as
explained in chapter 3.2. Some subcomponents need
more refinement (see section 4), but the
implementation shows the suitability and usability
(see chapter 3.4) of the Adaptation Manager in
general.
The implementation is based on Java J2SE, using
an Apache Derby database to store user profiles and
device configurations. The application runs as a Java
servlet in Apache Tomcat and produces Web pages
that can be accessed by a (mobile) Web browser.
The Google client was realized using the Google
SOAP Search API (see http://code.google.com/
apis/soapsearch/) and JDOM 1.0 to parse the XML
Web Service files.
3.4 Test
Figures 3 and 4 show the user interface of our
prototype implementation. The test device is a HP
iPAQ hw6510 pocket PC running MS Windows
Mobile 2003 operating system, even though it ought
to work on any device that can display XHTML
Mobile 1.0 code.
In this demo, the user can enter a search phrase
(Fig. 3, top) and then select among several options.
In our demonstration user interface, the user can
select from some predefined user ID’s for test
purposes. In this example, a user profile will be used
that contains information about the user’s favourite
type of restaurant (Italian, in this case), which will
be added to the search query. Our test user also has
the preference to get Web sites in German as search
results only, which works fine with the Google API.
In a real world application, the search options a user
can choose from could be configurable by the user
herself as part of her profile.
Another test option is to select the type of device,
e.g. “Pocket PC”. This information could be figured
out automatically by using a (small) J2ME or
Windows Mobile application (instead of the
XHTML form), which could also retrieve the GPS
coordinates. This is part of the context acquisition
that is done on the Client.
AN ADAPTATION MANAGER FOR PERSONALIZED MOBILE WEB SEARCHES
159
Last but not least, the user can specify whether
the GPS coordinates are actually used for the query,
because searching without location information
might produce better results in some cases.
Figure 3: Search form.
After clicking “suchen”, the search will be
performed and the results are displayed in XHTML
(Fig. 4). A user can then follow the links to the
restaurant Web pages, for example. Searching for
“restaurant” actually produces links to Italian
restaurants in the vicinity of the provided GPS
coordinates. This is potentially much better than just
trying to manually search since results are location-
based and pre-filtered to users’ preferences.
Figure 4: Search results.
We have also implemented layout adaptation for
standard browsers on PC’s. In this case, more search
results are shown, more text is displayed per result
and also full links are shown. In the above example
on the pocket PC, only the term “Internetseite”
(German for ”Web page”) is used to mark-up the
link to the actual Web pages, because long URL’s
could corrupt the layout.
4 EVOLVING RESEARCH
ISSUES
We present the following research issues as an
extended future prospects section. We are currently
working on these issues and are refining our
Adaptation Manager to incorporate more
“intelligent” functionalities as in our existing
prototype implementation, but within the explained
architecture and overall design of our approach.
One question is how to better adapt to end user
devices. In our approach, every device has a
configuration entry in the ResultEvaluator. An
interesting idea is to check whether search results
are suitable for the current end user device or not.
This can be done in different ways. First, the
ResultEvaluator could check the header of the
Web pages search results for valid XHTML meta
tags. Another possibility is to query mobile link
directories. Thereby, the powerful ranking
algorithms by Google and other general purpose
search engine can be used to generate results, but the
results are double checked with specialized mobile
directories. This filtering of results could be made
optional by allowing the user to configure what kind
of Web pages she likes to receive as search results.
Another aspect is the dynamical adaptation of the
actual Web pages for mobile access, which is
investigated as part of the W3C Mobile Web
Initiative (see http://www.w3.org/Mobile/), for
example, and not part of our project.
In our approach, the rule system which chooses a
particular service for a request is rather simple. This
could be improved by building a database of
services with service descriptions using Semantic
Web ontologies (Davies, Fensel and van Harmelen,
2002). For example, if the user searches for a
“restaurant”, it may be determined that “restaurant”
is a sub-concept of “point of interest (POI)” and a
POI service could be used to answer the query.
Another possibility is a combination of services to
further improve search results.
Another interesting research question is the user
model and personalization process. In our
implementation some user profile attributes are
added to the search request based on the keyword(s)
the user entered. We are also experimenting with the
application of collaborative filtering and a hybrid
recommender system (Burke, 2002) to generate
personalized information. Thereby, we have realized
an application recommender, which recommends
Client-side, mobile applications based on the context
of the user. A simple example is to recommend a
mobile train timetable if the user is situated at a train
WEBIST 2007 - International Conference on Web Information Systems and Technologies
160
station, because other users have used this
application before in a similar context.
5 SUMMARY AND RELATED
WORK
In this paper, we have presented an Adaptation
Manager which customizes a user’s Web searches,
especially for a mobile scenario. We have explained
the design of the system. We have implemented the
most important components of our design and shown
how this approach may be useful to access Google’s
Web Service. We have also identified several
research issues we are working on at the moment.
The main benefits of our approach can be
summarized as follows. Firstly, user profiles can be
reused for different services since they are stored
apart form the services, and users can utilize their
preferences for different devices. We also identified
personalization components as parts of our
Adaptation Manager, which may also be useful in
other scenarios. In addition, the implementation can
serve as a test bed to further investigate the issues
outlined in section 4.
Google offers personalized (see
http://www.google.com/psearch) as well as mobile
(http://mobile.google.com resp.
http://www.google.com/xhtml) search interfaces
itself. However, the existing services do not make
our approach dispensable but complements our
solution. Existing services can be integrated in our
Adaptation Manager as explained in this paper. One
already mentioned advantage of our approach is that
user profiles can be reused for different services, for
example other search engines like Yahoo. Managing
user profiles apart from the services that are using
them may also decrease privacy concerns of users,
because users have possibly more control about what
information is collected and stored about them. It is
also possible to incorporate a privacy manager to
control access to the profiles (Woerndl, 2004).
There is related work dealing with the adaptation
to people’s context, often for specialized scenarios
such as context-aware management of meeting
rooms. One excellent paper is (Zimmermann, Specht
and Lorenz, 2005) and focuses on the problem of
context management. Their framework integrates
user and context modelling, which is comparable to
our solution. The paper introduces a framework and
tools for designing context-aware applications.
However, their scenario is somewhat different to
ours. While Zimmermann et.al. implemented an
audio-augmented museum environment as an
example, i.e. Client-side, context-aware
personalization, we propose a Server-based
adaptation of information retrieval.
With regard to query expansion for
personalization, (Akrivas et al., 2002) present a
technique to context-sensitively expand a user’s
query using a fuzzy thesaurus. However, their
approach is tailored towards the retrieval of
documents. Finally, (Keenoy and Levene, 2005)
give an overview of research approaches to
personalize Web searches and describe their own
system “PResTo!”. This system is an Internet
Explorer plug-in which uses Client-side user profiles
to provide a personalized ranking of results from
multiple search engines. In a mobile scenario, we
think our Server-based approach is more appropriate
because of the limitations of mobile end user
devices.
REFERENCES
Akrivas, G., Wallace, M., Andreou, G., Stamou, G.,
Kollias, S., 2002. Context-sensitive semantic query
expansion. In: Proc. International Conference on
Artificial Intelligence Systems (ICAIS 2002), IEEE.
Brügge, B., Dutoit, A., 2004. Object oriented software
engineering, Pearson Prentice Hall, Upper Saddle
River, USA, 2
nd
edition.
Burke, R., 2002. Hybrid Recommender Systems: Survey
and Experiments. In: User Modeling and User-
Adapted Interaction (UMUAI), Vol. 12, Nr. 4, pp.
331–370, Springer, Heidelberg.
Davies, J., Fensel, D., van Harmelen, F., 2002. Towards
the Semantic Web. Ontology-driven Knowledge
Management. John Wiley and Sons.
Dey, K.A., Abowd, D., Salber, D., 2001. A Conceptual
Framework and a Toolkit for Supporting the Rapid
Prototyping of Context-Aware-Applications. In:
Human Computer Interaction, Volume 16, pp. 97-166.
Keenoy, K., Levene, M, 2005. Personalisation of Web
Search. In: Anand, S., Mobasher, B. (eds.): Intelligent
Techniques for Web Personalisation, Springer LNCS
3169, Heidelberg, pp. 201-228.
Woerndl, W., 2004. Authorization of User Profile Access
in Identity Management. In Proc. IADIS International
Conference WWW / Internet 2004, Madrid, Spain.
Woerndl, W., Groh, G., Toni, K., 2006. Semantic
Blogging Agents: Weblogs and Personalization in the
Semantic Web. In Proc. AAAI Spring Symposium on
Computational Approaches to Analyzing Weblogs,
Stanford, USA.
Zimmermann, A., Specht, M., Lorenz, A., 2005.
Personalization and Context Management. In User
Modeling and User-Adapted Interaction (UMUAI),
Vol. 15, No. 3-4, pp. 275-302, Springer, Heidelberg.
AN ADAPTATION MANAGER FOR PERSONALIZED MOBILE WEB SEARCHES
161
