SYNCHRONIZATION AND MULTIPLE GROUP SERVER

SUPPORT FOR KEPLER

K. Maly, M. Zubair, H. Siripuram, S. Zunjarwad

Old Dominion University, Computer Science Department, Norfolk,VA-23508,USA

Keywords: Digital Libraries, Open Archives Initiative.

Abstract: In the last decade literally thousands of digital libraries have emerged but one of the biggest obstacles for

dissemination of information to a user community is that many digital libraries use different, proprietary

technologies that inhibit interoperability. Kepler framework addresses interoperability and gives publication

control to individual publishers. In Kepler, OAI-PMH is used to support "personal data providers" or

"archivelets".". In our vision, individual publishers can be integrated with an institutional repository like

Dspace by means of a Kepler Group Digital Library (GDL). The GDL aggregates metadata and full text

from archivelets and can act as an OAI-compliant data provider for institutional repositories. The basic

Kepler architecture and it working have been reported in earlier papers. In this paper we discuss the three

main features that we have recently added to the Kepler framework: mobility support for users to switch

transparently between traditional archivelets to on-server archivelets, the ability of users to work with

multiple GDLs, and flexibility to individual publishers to build an OAI-PMH compliant repository without

getting attached to a GDL.

1 INTRODUCTION

In the last decade literally thousands of digital

libraries have emerged; one of the biggest obstacles

for dissemination of information to a user

community is that many digital libraries use

different, proprietary technologies that inhibit

interoperability. Building interoperable digital

libraries will allow communities to share

information across institutional and geographic

borders. One major effort that addresses

interoperability is the Open Archive Initiative (OAI)

(Lagoze, 2002) that has developed a framework to

facilitate the discovery of content stored in

distributed archives.

One of the efforts in this direction is (Maly,

2001), for the overall framework see Figure 1, that

gives publication control to individual publishers,

supports rapid dissemination, and addresses

interoperability. In Kepler, the OAI framework is

used to support what we call "personal data

providers" or "archivelets". At this time, we have

implemented the system that lets any user create an

OAI-compliant archivelet using simple, self-

contained, self-installing software. As a

demonstration, we have setup a registration service

and a service provider at Old Dominion University

(Kepler, 2005). Once an archivelet registers with our

registration service, the service provider can harvest

metadata from it. We believe Kepler is a small step

toward our long-term vision of providing tools and

software for communities to easily deploy digital

libraries that are customized for their needs, can be

easily populated, managed, and are "open" for

development of future services. We define a

communal digital library as a federation of smaller

group based digital libraries. In our model, a

community represents users that wish to share digital

objects of common interest. A group is a sub-set of

community users that share the same publication and

management process. For example, a department

dealing with water pollution in a research laboratory

is a group and several such groups in other

laboratories and universities form a community.

The architecture of just the archivelet is

summarized in (Maly, 2001); (Maly, 2003) reports

on the general system architecture with a number of

new features added (see Figure 2 for the Kepler user

interface). These include the concept of a server-side

archivelet, persistent URLs, NAT/proxies,

111

Maly K., Zubair M., Siripuram H. and Zunjarwad S. (2006).

SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 111-117

DOI: 10.5220/0002495401110117

 SciTePress

import/export, caching and a validation tool. The

server-side archivelet addresses the problem of

allowing users away from their machine that runs

the archivelet to publish and manage their digital

library. Persistent URLs and NAT/proxies address

the problem that arise when archivelets are behind a

router that hides the network addresses. The

import/export solves the problem of moving entire

subsets of documents from one archivelet to another.

Caching – done at the group server that harvests an

archivelet - solves the problem of a document not

being available to a search user as the archivelet that

stores it is not on-line. Finally, the validation tool

enables a community to set standards for the process

of entering metadata and having these standards

enforced at publication time.

In this paper we report on three new major steps

in making the Kepler system more usable:

synchronization, multiple community registration,

and the generic archivelet. Synchronization, reported

in Section 3, addresses the issue of synchronizing

the server-side and the local archivelets. That is,

whenever a document is published in either the local

or the server-side archivelet, the system ensures that

it appears in the other archivelet. Multiple

community support, described in Section 4, means

that a user can select which of her papers are

registered to what group server (community). Only

the papers registered to a group server are harvested

by that group server. The generic archivelet,

reported on in Section 5, is for the user who wants to

use the Kepler archivelet as an independent, small,

and light-weight digital library that is OAI-

compliant. That is, it can be harvested by any OAI

service provider as it has a persistent URL.

2 BACKGROUND

Today, there exists many open source institutional

repository software, for example the eprints.org

software from the University of Southampton has

been widely adopted; and DSpace (Smith, 2003)

is created by Hewlett Packard and the MIT

Libraries, but has been widely adopted outside of

MIT. All of these systems feature significant

features and capability for building large-scale

digital libraries and institutional repositories. All

also use the OAI-PMH as a core technology.

However, they are in contrast to Kepler in that they

are institutional centric and not individual publisher

centric. The choice of a community of institutional

digital library is an extremely important one, and we

Communal

Registration

Service

Communal

Service Provider

Group

Service

Provider

Group

Service

Provider

Group

Service

Provider

Group

Registration

Service

OAI

Compliant

Repository

Publishing

Tool

OAI

Compliant

Repository

Publishing

Tool

Kepler

Archivelet

Group

Digital Library

Figure 1: Keple

framework.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

112

recommend surveys such as (Brogan, 2003) as

guides in determining which DL suits your needs.

Kepler as developed over the last few years

draws from a significant base of existing OAI-PMH

projects, developed both at Old Dominion and

throughout the community. In addition to the

original Kepler project (Maly, 2001), some of the

features draw from the Arc (Arc, 2005) project. The

OAI-PMH Static Repository format (Hochstenbach,

2003) was adopted when the need for archivelet

importing and exporting was addressed. The

persistent URL work is similar to the Extensible

Repository Resource Locators (ERRoLs) project

currently underway at OCLC (Young, 2005).

3 SYNCHRONIZATION OF

ON-SERVER AND LOCAL

ARCHIVELETS

In the previous version of the Kepler system, the

group server, being a reliable, scalable digital library

in itself, maintained a data base of the harvested

records. The local archivelet and the server-side

archivelet were not connected and had their own

storage system. The problems we are facing when

we try to have the two archivelets represent the same

collection virtually all the time are twofold. One

problem is to maintain consistency of the collections

visible in each archivelet in the face of the

possibility that the user publishes in both places. In

turn the group server should reflect that same

consistent state in its visible collection of metadata

records. The second problem is one of efficiency and

low latency, that is, we want to minimize redundant

work and we want to minimize the time where the

state is inconsistent. Our approach to the problem,

guided by similar problems in distributed databases

was to first combine the separate storage system at

the server by having one database of metadata

records for both the group server and the server-side

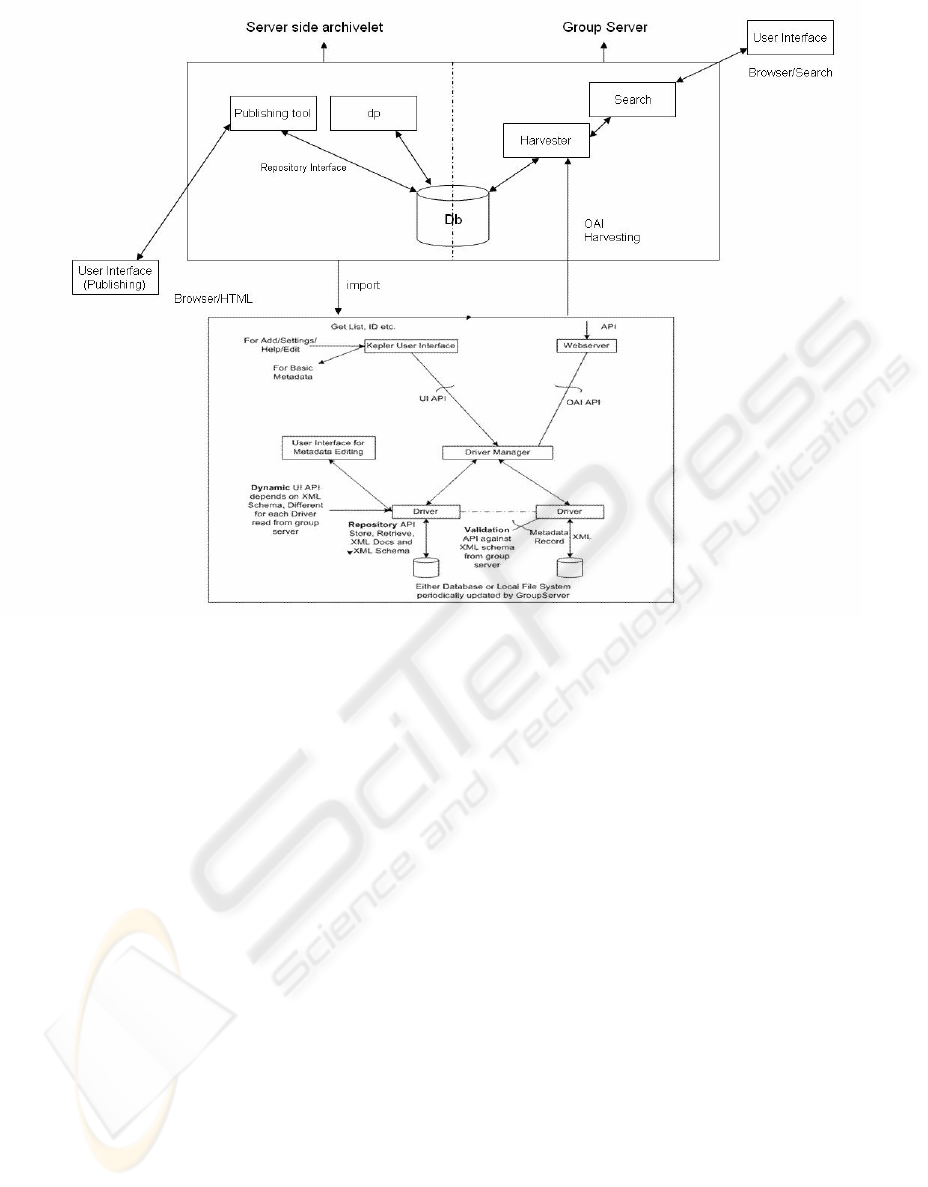

archivelet (see the top part of Figure 3). That allows

the server-side archivelet to see the records

published at the local archivelet immediately after

harvesting. However, we still have the problem of

synchronizing traditional archivelet publications

with the server-side archivelet. This is an active

research problem and is being addressed by database

community for example, (Barbara, 1990). There are

several commercial databases that support

synchronization, also some time referred as

replication (Agrawal, 1990). Some example issues

we face in synchronization are: synchronization

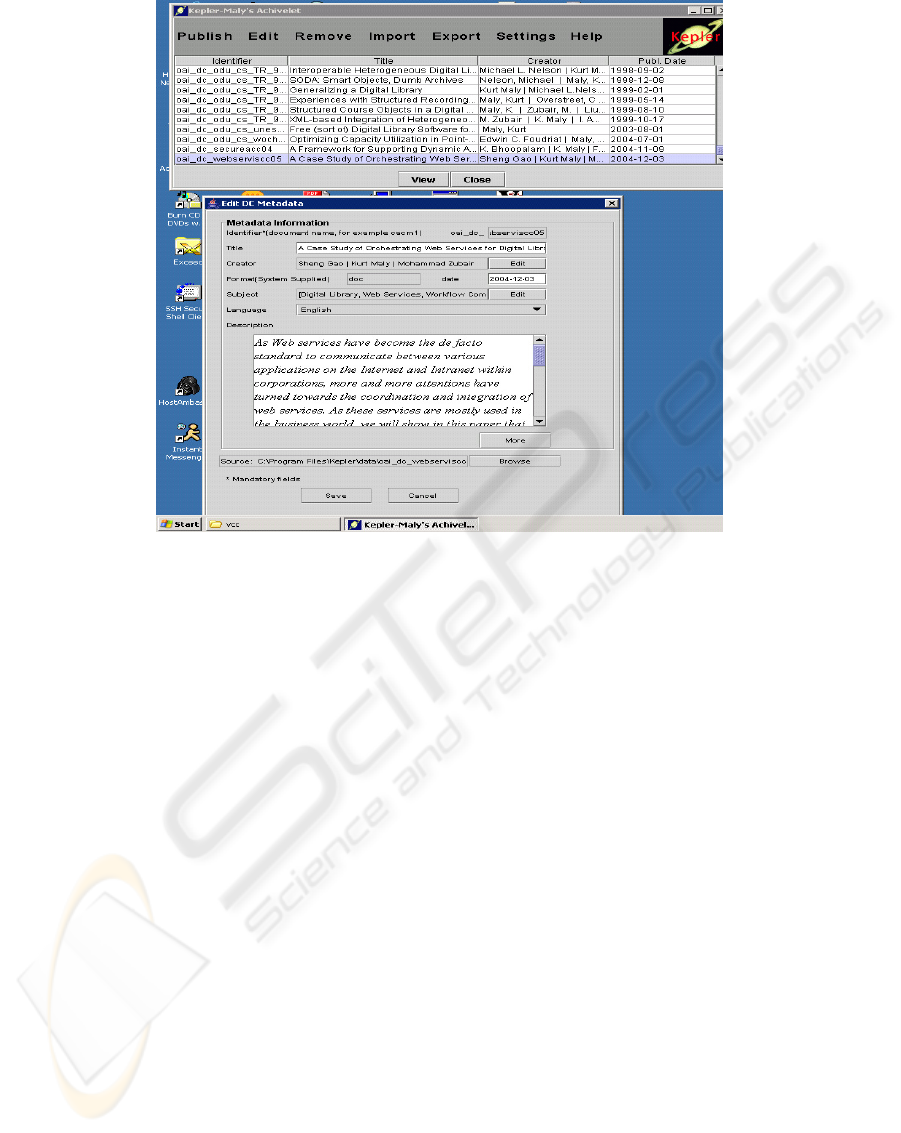

Figure 2: Kepler archivelet user interface.

SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER

113

granularity (field level, record level, table level,

etc.); we implement synchronization at the record

level and use OAI date stamp for efficient

management of synchronization. To simplify our

implementation, we decided to use the import

feature to transmit changes at the server-side to the

local archivelet (as opposed to build an OAI

harvester on top of the archivelet), again see Figure

When the user publishes the record on the local

(also called traditional) archivelet, the service

provider (group server) is notified to start a harvester

thread. If the OAI server at the traditional archivelet

is up, the records will be harvested and stored in the

database of the service provider.

As the service provider and the server-side (also

called on-server) archivelet share the same database,

the harvested records are now reflected at the on-

server archivelet account. The harvester checks the

date stamp of the harvested record with the record

currently available before updating the database.

This guarantees that to always have the latest

modified records at the on-server archivelet. When

the user publishes/edits records at the on-server

archivelet, it creates an ‘export’ xml file

representing the latest records on the on-server

archivelet. We send a notification (and an URL) for

importing this xml file to the tradition archivelet. If

the OAI server is running the local archivelet will

then ‘import’ the file immediately. If the local

archivelet is down, it will check with the group

server when it comes up again for any notification

messages and act on them. In either case the import

routine at the local archivelet checks for freshness of

the record by comparing the date stamp.

The two routines (import and harvesting) need to

take care of a number of issues. They include: What

happens when one archivelet does not yet exist?

What happens when a record gets changed versus

newly created? What happens when a record gets

deleted on either archivelet? How can we ensure that

the records are the freshest possible? Within the

major decisions of having a combined database at

the server and to use export/import these are issues

we dealt with mainly by using notification and time

stamp.

Figure 3: Synchronization architecture.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

114

4 MULTIPLE COMMUNITIES’

SUPPORT

The earlier release of Kepler framework allowed a

Kepler archivelet to work with only the original

group server - the server where the user downloads

the archivelet from. In the new release, which is the

focus of this paper, we eliminated this constraint and

gave flexibility to users to register their archivelet

with multiple group servers. The motivation for

adding this feature is to address individual

publishers who are active in multiple areas of

research and need to publish their work with

different group servers. To support this feature, we

need to address two major issues: harvesting of an

archivelet and maintaining the simplicity of the user

interface. For harvesting, we use the SET feature of

OAI-PMH to make distinction between different

group servers. We now discuss in some details our

approach in addressing these issues.

Harvesting. We need to provide support for selective

harvesting of records from an archivelet based on

the group server association. For example, a group

server A should be able to harvest all records

published in the archivelet only for group server A.

At the same time we also wanted to support cases

where an OAI service provider (outside the realm of

Kepler framework) may be interested in harvesting

“All” records published in an archivelet.

For selective harvesting of records, we use the SET

feature of OAI-PMH, which is an optional construct

for grouping items for the purpose of selective

harvesting. The archivelet organizes records into

sets, where each set corresponds to a group server.

An archivelet has as many sets as the number of

group servers with which it has registered. A typical

OAI-PMH request from a group server A looks like:

http://.../oai?verb=ListRecords&from=2005-05-

18&metadataPrefix=oai_dc&set=A

On receiving such a request, the archivelet

returns all records published under group server A.

An OAI service provider (typically outside the realm

of a group server), harvesting all records, issues an

OAI-PMH request with “set = ALL”. As we are

supporting persistent URL (PURL) by maintaining a

table in the group server, all OAI-PMH requests for

an archivelet actually go to a registered group server

for getting the current IP address of the archivelet.

When a harvesting request is originating from a

registered server, we discover the current address of

the archivelet using the PURL table maintained in

the group server. An OAI-PMH request originating

from an OAI service provider that is not a registered

group server, the translation is handled by the group

server pointed to by the base URL publicized by the

archivelet owner. We illustrate this in the Figure 4.

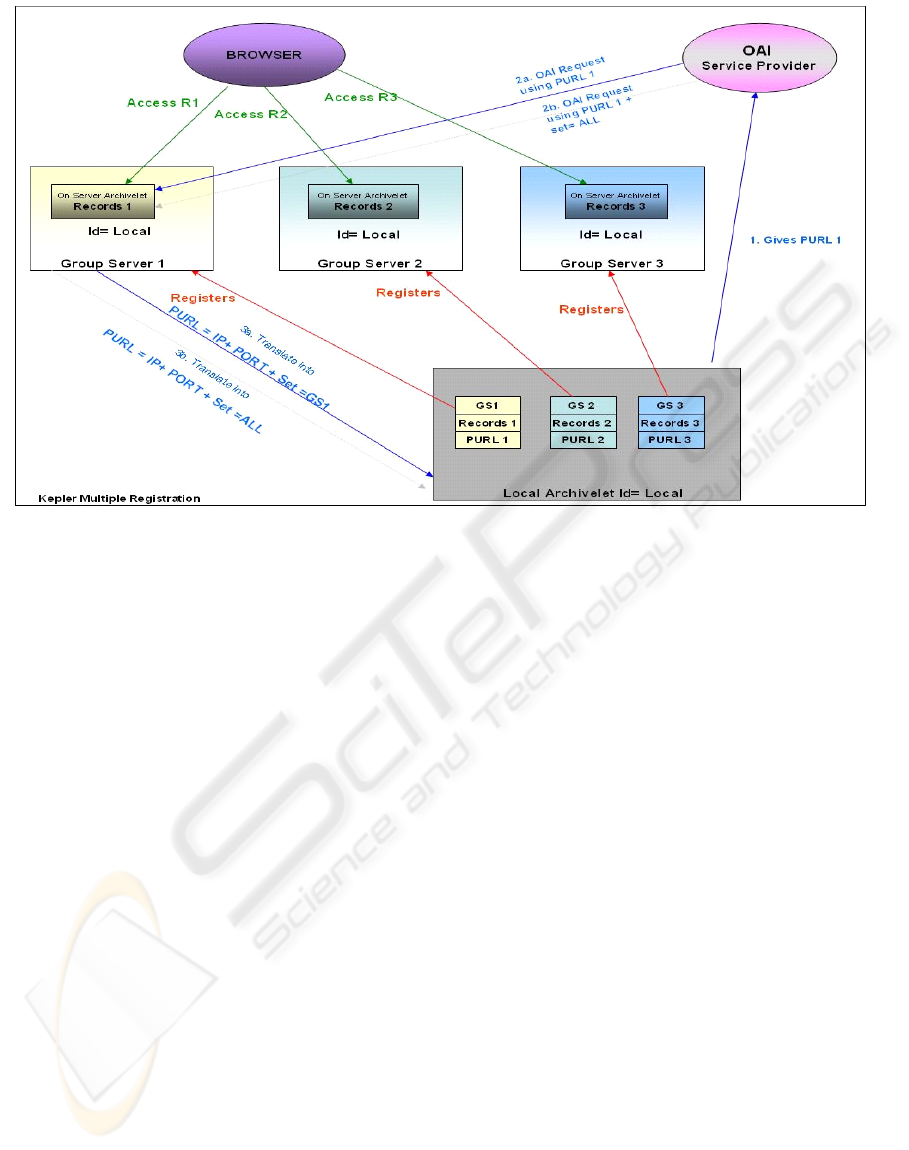

ure 4: Ke

ler su

ort of multi

le communities.

SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER

115

User Interface. At the user interface level, we need

to support publication, listing all groups, and

import/export features in presence of multiple

groups. To keep the user interface simple, we

introduce a concept of “location” on the user

interface, which is basically a pull-down menu that

lists the registered group server. A user can select a

location (a registered group server) from this list and

then all the publication, listing, and

importing/exporting of records is constrained to the

selected group server. We also introduce a special

location “All”, which when selected in listing mode,

lists all records published in the archivelet. Before a

user can publish a document or use import/export,

the user has to select one of the registered group

servers.

5 GENERIC ARCHIVELET

The objective of supporting generic archivelet is to

provide flexibility to individual publishers that do

not want to be associated with a group server, yet

want to build an OAI compliant repository. They

wish to expose their collection to OAI service

providers but not necessarily to group service

providers in a Kepler framework. One of the major

issues is the question of where to support the PURL

table that provides the current address of the

archivelet. For registered archivelets, the Kepler

group server(s) maintains the PURL table. For a

generic archivelet we do not have any registered

group server. To support generic archivelets, we

introduce a PURL resolver service that is maintained

by the Old Dominion University digital library

research group. A generic archivelet register itself

to this PURL service and when the archivelet is

starts it contacts the PURL service to update its

current address.

The other major issue is that we wanted – in

order to be able to maintain the code easily - to use

the same code package for generic archivelet as well

as traditional archivelets that are associated with

Kepler group servers. A registered archivelet has

constraints on publishing metadata defined and

enforced by the community through the group

server. For example, a group server can make the

“abstract” metadata field mandatory, thus requiring

all registered archivelet to enter content for this

metadata field when publishing. On the other hand, a

generic archivelet comes with minimal default

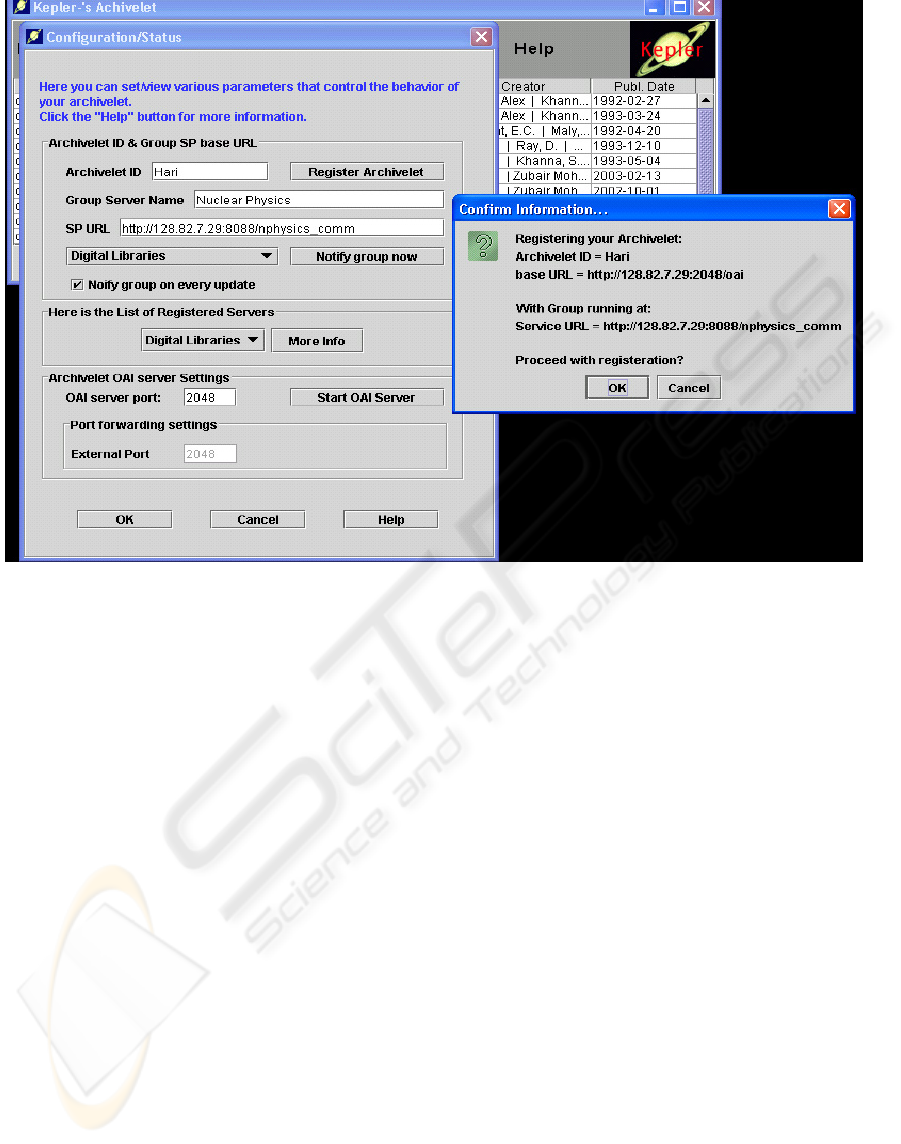

ure 5: Re

istration interface for multi

le communities.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

116

constraints that are preset and can not be changed.

To support this feature with the same code package,

we have introduced a “generic archivelet” mode in

the archivelet configuration component. Thus, an

archivelet becomes generic depending on a

configuration file that is part of the download

package used.

6 STATUS OF SYSTEM

We have implemented the complete Kepler package

using Java technology and is available for download

at sourceforge net site

(http://sourceforge.net/project/showfiles.php?group_

id=107191&package_id=115659&release_id=23308

3).

The group server package is supported both on

Unix and Windows platform. The package consists

of a group server along with support for distributing

traditional archivelet software. Once the group

server is deployed, a user can download the

traditional archivelet from the group server’s web

site.

After downloading the archivelet, a user can register

the archivelet with multiple group servers using the

setting menu as illustrated in Figure 5. The user

interface supports the location pull down menu that

allows user to select one of the registered group

servers for the purpose of publication, listing, and

importing/exporting of records.

7 CONCLUSION AND FUTURE

WORK

In this paper we have described three significant

additions to the Kepler system that makes it

attractive to be deployed in different environments.

We allow research communities to overlap and

researchers to have multiple interests and hence

papers on different group servers. The second

addition was the interconnection of local archivelets

and server-side archivelets and to keep them

consistent within themselves and with the group

server(s). Finally we described the generic archivelet

that allows researcher not affiliated with any

community to publish with a very lightweight digital

library tool and be OAI-compliant. All these features

have been implemented and thoroughly tested and

made available on Sourceforge under Opensource.

We also provide in our lab a PURL server for the

generic archivelets that can be downloaded from our

website (http://kepler.cs.odu.edu).

The key item in our future work will be to test

the user acceptance of these features and perform

field tests with several communities. In doing so ,

we may have to create additional drivers for other

metadata sets. We are, in particularly interested in a

driver for complex objects that will allow users to

publish composite objects and provide hierarchical

labeling of these objects.

REFERENCES

Agrawal, D. AND El-Abbadi, A., 1990. The tree quorum

protocol: An efficient approach for managing

replicated data. In Proceeding of the Sixteenth

International Conference on Very Large Databases.

Arc, 2005. http://arc.cs.odu.edu

Barbara, D. AND Garcia-Molina, H., 1990. The case for

controlled inconsistency in replicated data. In

Proceedings of the IEEE workshop on replicated data.

Brogan, M.L.,2003. A Survey of Digital Library

Aggregation Services. The Digital Library Federation

Council on Library and Information Resources,

Washington, DC. Available at

http://www.diglib.org/pubs/brogan/

Hochstenbach, P., Jerez, H., Van de Sompel, H., 2003.

The OAI-PMH Static Repository and Static

Repository Gateway. In Proc. of the third ACM/IEEE

Joint Conference on Digital Libraries, Houston TX,

pp. 210-217.

Kepler, 2005. http://kepler.cs.odu.edu/

Lagoze, C., Van de Sompel, H., Nelson, M., Warner, S.,

2002.The Open Archives Initiative Protocol for

Metadata Harvesting. Available at

http://www.openarchives.org/OAI/openarchivesprotoc

ol.htm

Maly, K., Zubair, M., Liu, X., 2001. Kepler - An OAI

Data/Service Provider for the Individual. D-Lib

Magazine 7(4), Available at

http://www.dlib.org/dlib/april01/maly/04maly.html

Maly, K., Nelson, M., Zubair, M., Amrou, A., Kothamasa

S., Wang L., Luce, R., 2003. Light-Weight Communal

Digital Libraries. In Proc. of the fourth ACM/IEEE

Joint Conference on Digital Libraries, Tucson AZ,

pp.237-238

Smith, M., Barton, M., Bass, M., Branschofsky, M.,

McClellan, G., Stuve, D., Tansley, R., Harford W.

J.,2003. DSpace - an open source dynamic digital

repository. D-Lib Magazine, 9(1), Available at

http://www.dlib.org/dlib/january03/smith/01smith.html

Young, J.A., 2005. Extensible Repository Resource

Locators (ERRoLs) for OAI Identifiers. Available at

http://www.oclc.org/research/projects/oairesolver/def

ault.htm.

SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER

117
