PARALLEL QUERY PROCESSING USING WARP EDGED

BUSHY TREES IN MULTIMEDIA DATABASES

Lt. S. Santhosh Baboo

Department of Computer Science, D.G Vaishnav College, Arumbakkam, Chennai 106. India.

P. Subashini

Department of Computer Science, Avinashilingam Deemed University, Coimbatore, India.

K. S. Easwarakumar

Department of Computer Science Anna University, Chennai, India.

Keywords: Multimedia databases, Bushy trees, Warp edges, Cost model.

Abstract The paper focuses on parallelization of queries execution on a shared memory parallel database system. In

this paper, a new data structures, named Warp edged Bushy trees, is proposed for facilitating compile time

optimization. The warp edged bushy tree is a modified version of bushy trees , which provides better

response time than bushy trees, during query processing.

1 INTRODUCTION

A database is a repository of data that traditionally

contains text, numeric values, boolean values and

dates, known as ‘printable’ objects (Golshani, F. and

Dimitrova N., 1998). A multimedia database

additionally contains graphical images; video clips

and sound files, known as ‘presentable’ objects.

Users may retrieve information from a database

without having any knowledge of how or where that

data is stored. The paper focus on bushy trees in

section 2, warph edged bushy trees in section 3, cost

model in section 4, experimental results and

conclusion are in section 5 and 6.

There are a number of issues relating to

multimedia database management systems and

multimedia information servers that are caused by

the particular nature of multimedia data. These can

be summarized as:

• The development of appropriate data modeling

techniques for multimedia information,

including video, sound and graphical images,

• Indexing and searching techniques for the

retrieval of multimedia data objects,

• Developing efficient storage schemas that

support heterogeneous data objects,

• Issues relating to the delivery quality of

multimedia objects.

Modern database applications, such as data

mining and decision support pose several new

challenges to query optimization and processing

(Haiyun He and Curtis Dyreson, 2002) (Silberschatz

et al, 1996). Parallelism is one of the key

technologies to handle these challenges (M. T. Ozsu

and P. Valduriez, 1997) but increases the complexity

of query optimization (Hasan et al., 1996). The

most crucial problem to be solved within query

optimization is ordering the operators (D. Taniar and

Y. Jiang, 1998). The operators describe the

dependencies between the different algebra

operators of a query and determines at the same time

the degree of inter operator parallelism. The problem

mainly focuses on the search for an optimal ordering

with respect to cost function.

Rather than navigating blindly into the search

space (K.-L. Tan and H.Lu, 1991) (Spiliopoulou et

al., 1996) (Leonindes Fegaras, 1998), we propose to

consider a subspace of it, called Warp edged Bushy

trees. Warp edged bushy trees identify a regular in

the search space including inter-operator parallelism

and face a significantly smaller space rather than the

273

S. Santhosh Baboo L., Subashini P. and S. Easwarakumar K. (2006).

PARALLEL QUERY PROCESSING USING WARP EDGED BUSHY TREES IN MULTIMEDIA DATABASES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 273-276

DOI: 10.5220/0002487802730276

 SciTePress

general one. Introducing warp edges into any tree

increases its efficiency.

2 BUSHY TREES

Two major forms are actually distinguished (Zait et

al., 1996), Bushy trees and warp edged bushy trees.

In bushy trees, two or more join operators lying on

different paths of a query-processing tree can be

processed at the same time. Almost all query

optimizers working on bushy trees have yet

considered the complete spawn search space. Fig. 1

shows the bushy trees. Supposing that a hash based

join is used and all hash tables of the left input

relations are built for a right deep tree, the tuples of

the right input can be pipelined through the whole

tree (D. Schneider and D. J. DeWitt, 1990). This

pipelining can be implemented very efficiently if the

entire hash table of the left input relation fits in the

main memory.

Figure 2: Bushy Trees.

3 WARP EDGED BUSHY TREES

A warp edge is an edge that is something other than

a parent to child edge i.e. an edge from an element to

a sibling or a grand child. Warp edges can be

dynamically generated and stored during query

evaluation to improve the efficiency of future

queries.

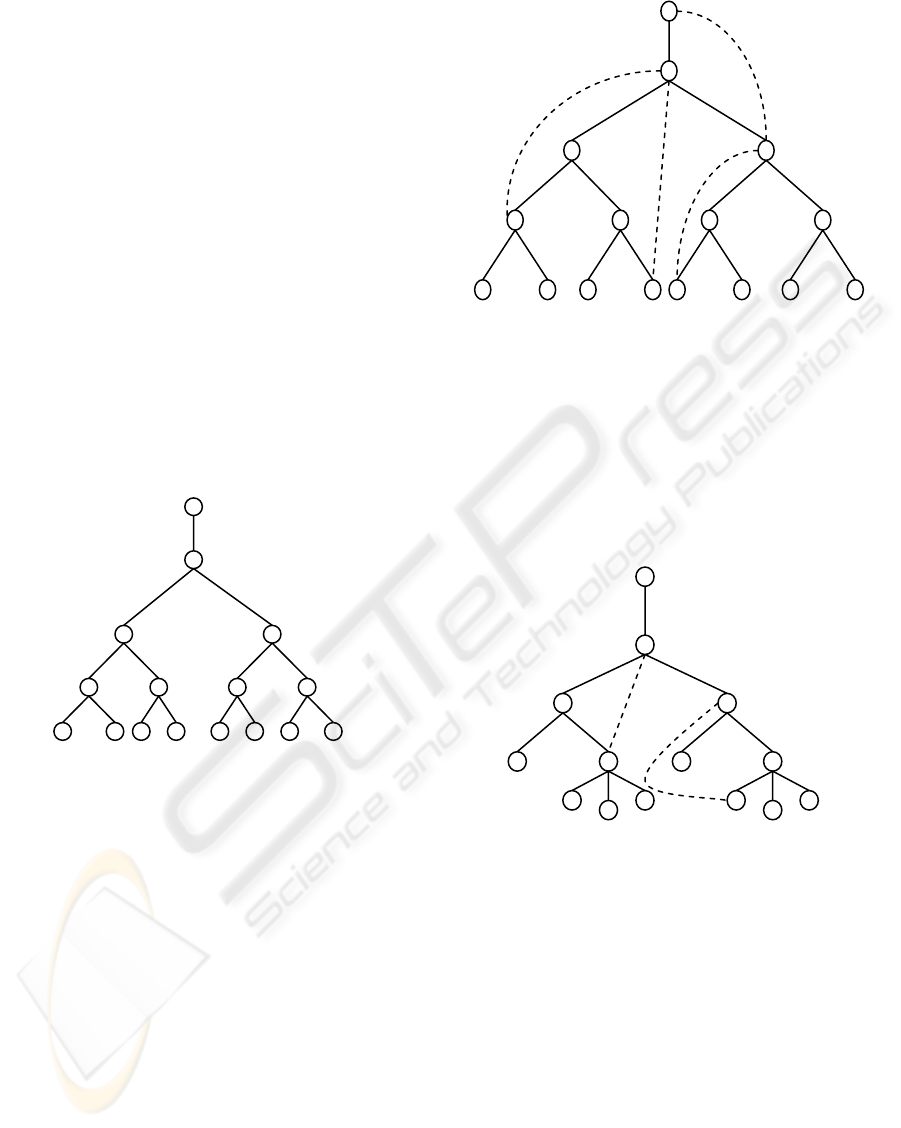

Figure 3: Warp Edged Bushy Tree.

The warped edged bushy tree created is shown in the

fig. 3. The warp edges connect the root with each

section since the query starts at the document root

and terminate at each section. The size of the

document is small and sections can be found

quickly, but in general the document could contain

thousands of sections.

Figure 4: Warp Edged Bushy Query Trees.

A warp edge is an edge in the data model that

traverses more than one level in the query tree.

Typically warp edges are added as the result of

previous queries. The warp edges can be traversed

during the evaluation of a query.

4 A COST MODEL FOR BUSHY

PARALLELISM

Our cost model, hereafter denoted as "BO", exploits

bushy parallelism only. Joins appearing in different

subtrees of the QEP are executed independently, as

root

L K

DE F

root

M L K J I

root

doc

chapter

section

not

par

title

not

par

title

doc

section

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

274

soon as their input streams are available for

processing. Thus, the cost of the QEP is the cost of

the most expensive branch.

In this execution scenario, the output of a

join must be stored in the local disk, from which it is

retrieved by its consumer. Hence, the cost of a join

consists of the time needed to retrieve its input

streams from a local or remote disk, the time for

local processing, and the time for storing the output

stream locally:

Tcost(x) = Tin(x) + Tlocal(x) + Tout(x)

The execution cost of the tree rooted at x is the total

elapsed time Ecost(x) from the beginning of query

execution until the completion of join x3. The cost

is equal to the execution time of x and the time

required by its slowest producer to complete

execution:

0, x is a leaf

Ecost(x) = T(x)+

Ecost(y), x has one child, join y

max(Ecost(y), Ecost(z)), both

children of x are joins y,z

Hence, the execution time of a QEP is the time

required for its root process r to complete execution,

Ecost(r).

Parameters of the experiments: We have studied

the cost distribution for 10 query sizes. For each

size, we have generated an acyclic query graph. The

database parameters are summarized in Table 1. We

consider two databases, the Small and the Large one,

containing relations with different size ranges. Out

database and query settings are close to those used in

"portofolio" database experiments, as presented in

(Lanzelotte et al., 1993).

The settings of the parallel architecture assumed

by the cost models are shown in Table 2. The small

size of processor memory was intended to

counterbalance the modest size of the database

relations, in the sense that main memory should not

be adequate to hold all relations.

Table 1: Database and Query parameters.

Table 2: Parallel Machine parameters.

The base relations input to the leaf nodes, all

intermediate results not fitting in main memory, and

the output streams for the BO model, imply I/O

accesses. The I/O cost for processing a very large

(intermediate) relation can thus easily become the

dominant factor, especially for small queries.

Therefore, QEPs processing the same relation can

have the same cost, although they may differ in the

rest of their structure. For the Small database, the

diversity is higher and a wide spectrum of values is

covered smoothly. This is due to the lower diversity

of relation sizes occurring in this database.

5 RANDOM EXPERIMENT

In this section, we describe a set of experiments on

randomly generated data. Our aim is to test the

performance of warp edged bushy trees over normal

bushy trees.

We conducted the test on randomly generated XML

documents. We categorized the test in two ways.

First we tested the Time factor of both the tress.

Second we tested the Space factor of the trees. We

randomly conducted the test on 500 queries.

Fig.1: Varying the time factor

100 200 300 400 500

No. of nodes

Time(seconds)

Bushy trees

Warp edged bushy

trees

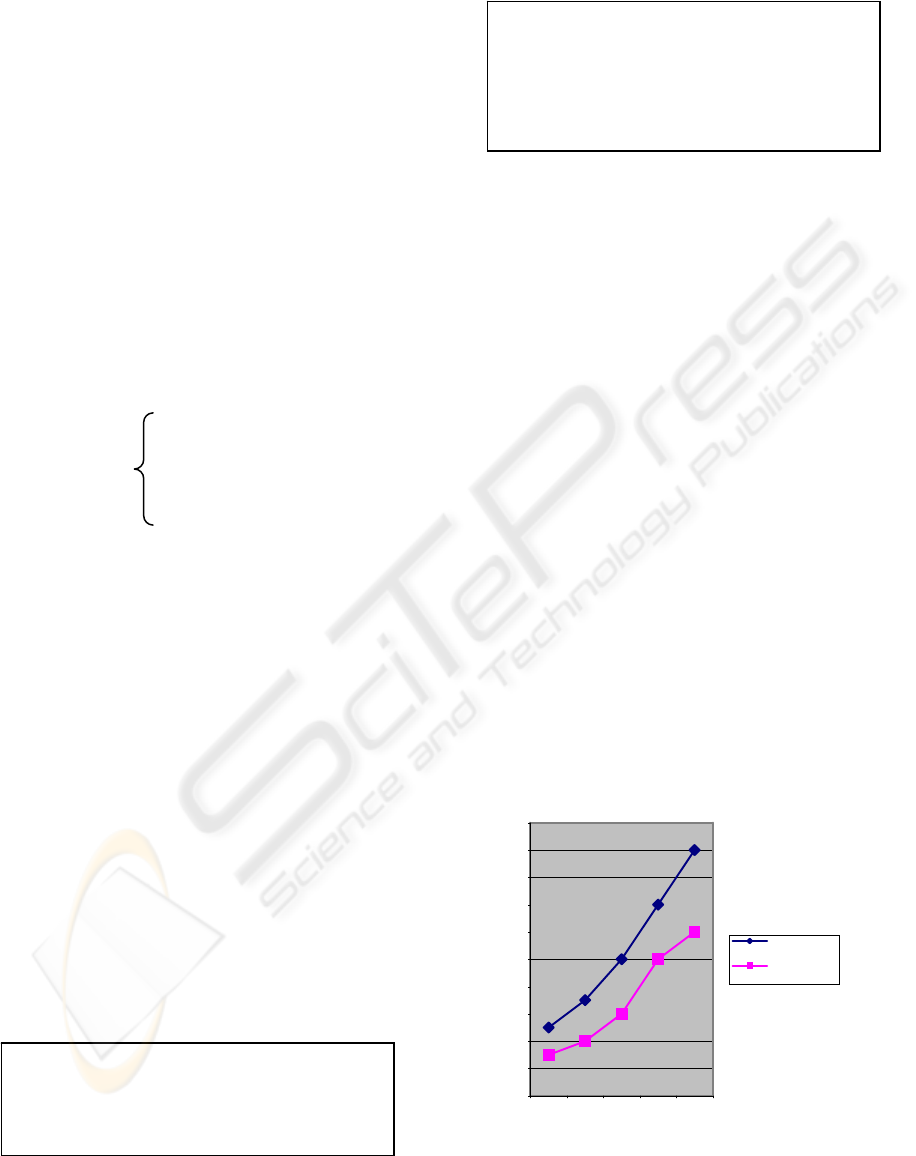

Figure 1: Varying the time factor.

Relation sizes: Small database: 1,000 to 10,000 tuples

Large database: 1,000 to 1,00,000 tuples

Attribute sizes 8 - 20 bytes

Output attributes: 4

Number of joins: 10 - 100

Page sizes : 1024 bytes

Page transfer time – Network : 1.7 msec (600

Kbytes/sec)

Page transfer time - Local disk : 8.3 msec

Page transfer time - Remote disk : 10 msec

Number of Processors : 100

Processor Memory : 800 Kbytes

PARALLEL QUERY PROCESSING USING WARP EDGED BUSHY TREES IN MULTIMEDIA DATABASES

275

Fig.2: Varying t he Space factor

50000000

100000000

150000000

200000000

250000000

300000000

350000000

400000000

450000000

500000000

100 200 300 400 500

No. of Nodes

Bushy tr ees

War p edged bushy

trees

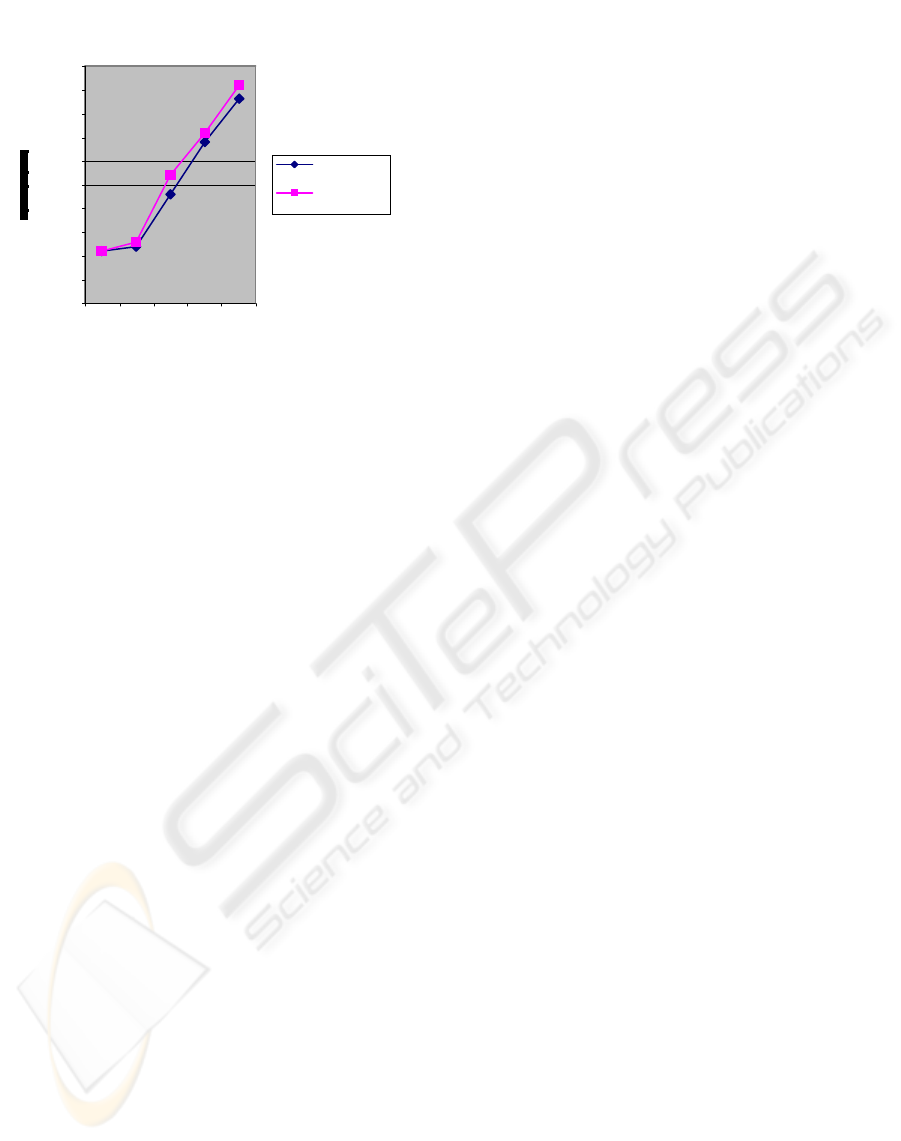

Figure 2: Varying the Space factor.

The first figure shows that warp edged bushy trees

take lesser time than bushy trees. It shows that the

turnaround time for query evaluation is lesser for

warp optimization. The optimization approximately

halves the time needed for query evaluation at a

modest increase in the amount of space. The second

figure shows that warping occupies more space than

normal bushy tyrees But the space occupied by such

optimized trees are at modest level only.

Overall, the experiments show that while warp

edged bushy tress needs a small amount of

additional space, it can improve query performance

for bushy trees.

6 CONCLUSIONS

The paper emphasized the warp edging optimization

on normal bushy trees in multimedia databases. Any

query can be done easily using query trees. Result

shows that multimedia databases can be represented

using bushy trees. Warp edges are dynamically

generated on the bushy query trees and stored during

query evaluation to improve the efficiency of future

queries. The technology needed to such optimization

can be implemented as a layer on top of any

evaluation engine. Experiments shows that in the

evaluation the use of warp edges results in

substantial savings of times at a modest increase in

space. So the objects stored in image documents can

be retrieved based on some query very fastly when

we use warp edging in query trees.

REFERENCES

Haiyun He and Curtis Dyreson, Warp-Edge Optimization

in Xpath, Springer-Verlag 2002.

Golshani, F. and Dimitrova N. , A Language for Content-

Based Video Retrieval, Multimedia Tools and

Applications 6, 1998, pp. 289-312.

A. Silberschatz, M. Stonebraker, and J. Ulman. Database

research: Achievements and opportunities. Into the

21st century. SIGMOD Record, 25(1):52-63, March

1996.

M. T. Ozsu and P. Valduriez. Distributed and Parallel

Database Systems, pp. 1093-1111. CRC Press, 1997.

W. Hasan, D. Florescu, and P. Valduriez. Open issues in

parallel query optimization. SIGMOD Record, 25(3):

pp. 28-33, September 1996.

D. Taniar and Y. Jiang. A high performance object-

oriented distributed parallel database architecture. In

HPCN Conference 98, pp. 498-517. Springer Verlag,

April 1998.

K.-L. Tan and H.Lu. A Note on the Strategy Space of

Multiway Join Query Optimization Problem in

Parallel Systems. SIGMOD Record, 20(4):pp. 81-82,

December 1991.

M. Spiliopoulou, M. Hatzopoulos, and Y. Contronis.

Parallel Optimization of Large Join Queries with Set

Operators and Aggregates in a Parallel Environment

Supporting Pipeline. IEEE Transactions on

Knowledge and Data Engineering, 8(3): pp.429-445,

June 1996.

Leonindes Fegaras. A new heuristic for optimizing large

queries. In International Database and Expert Systems

Applications Conference, pp. 726-735, Vienna,

Austria, August 1998. Springer Verlag LNCS 1460.

M. Zait, D. Florescu, and P. Valduriez. Benchmarking the

DBS3 Parallel Query Optimizer. IEEE parallel and

distributed technology: systems and applications, 4(2):

pp. 26-40, 1996.

D. Schneider and D. J. DeWitt. Tradeoffs in processing

complex join queries via hashing in multi-processor

database machines. In Proceedings of the International

Conference on Very Large Databases, pp. 469-490,

Melbourne, Australia, August 1990.

Rosana Lanzelotte, Patrick Valduriez, and Mohamed Zait.

On the effectiveness of optimization search strategies

for parallel execution spaces. In Int. Conf. on very

Large Databases, pp. 493-504, Dublin, Ireland, 1993

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

276
