A Design Method for Inter-Organizational

Service Processes

Rainer Schmidt

Department of Computer Science

University of Applied Sciences

Beethovenstraße 1

73430 Aalen

Abstract. Service processes play a more and more important part in modern

economies. However, their design does not achieve the flexibility and

efficiency known from ordinary business processes. Furthermore, their double

identity of being process and product at the same time is not properly

represented in present design methods. Therefore, a new method for the design

and the support of inter-organizational service processes is introduced. It is

based on so called perspectives for separating independently evolving parts of

the service processes. Based on it, a component-oriented approach for process

design is developed.

1 Introduction

The providing of services plays a more and more important role in modern and

internationally networked economies. Service processes are often provided by

coordinating a multitude of human activities as part of a service process. For example

to run a computer system, many different activities such as user administration,

software installation, network administration etc. have to be coordinated. These

activities are often not provided by a single company, but by a multitude of

companies. Therefore, service processes are often inter-organizational and allow

different service providers to combine their core competencies. Service processes

must be very flexibly adaptable to the customer’s requirements, they are also

products. However, this flexibility is in conflict with another requirement for service

processes: they must be provided efficiently. If a service process is individually

tailored to the customer’s requirements, its standardization is low. As a consequence,

there are no or only low scaling effects. On the other hand, to achieve a high

efficiency, a high standardization is needed to gain scaling effects. This

standardization however, contradicts with the requirement to flexibly fulfill individual

customer requirements. Therefore, the goal is to create a design method, which offers

both individually customized service products and efficient provisioning of the

services at the same time.

The paper will proceed as follows. In section 2, the properties of service processes

and especially the differences to ordinary business processes are analyzed. In section

3, a method for designing service processes is defined. It uses process components for

Schmidt R. (2006).

A Design Method for Inter-Organizational Service Processes.

In Proceedings of the 3rd International Workshop on Computer Supported Activity Coordination, pages 3-12

DOI: 10.5220/0002486700030012

 SciTePress

enhancing the reusability and efficiency of the process. The structure of the service

components is described in section 4. In section 5, the structure of the component

repository is defined. Adaptation and composition of the components is covered in

section 6. Related research is discussed in section 7. A summary and outlook on

further work is given in section 8.

2 Service Processes

To clarify the characteristics of service processes, a case study is used which is based

on the ITIL module incident management / service desk [7], [13]. The service process

is a three level IT-support for problems of a computer system. The IT-support process

is operated by a service provider in the building of the customer. The three level user

support is composed of a service desk at level 1, a team of specialists at level 2 and

third-party specialists at level 3. All support levels interact with the customer to

analyze the problem and they access the customer’s computer system to configure it.

Furthermore, each level has a defined reaction time for requests of the customer. The

service desk at level 1 is the primary point of contact for the customer’s staff. All

problems and requests are collected by the service desk. The service desk has to react

to incidents within 10 minutes. Many incidents can be solved by the service desk, in

this case the service desks repairs the computer system directly. Only if a incident

cannot be solved by the service desk, it is forwarded to the second level support. Thus

the specialists are not bothered with problems below their qualification such as

resetting forgotten passwords. The second level support has to react within two hours.

But there are also problems, which can not be solved by the second level support.

These problems are forwarded to specialists of external service providers who are the

third level support. They have to react within one day.

3 A Component-oriented Method for Designing Service Processes

To create a method to design service processes, a dilemma between flexibility and

efficiency has to be resolved. On one hand a process has to be provided, which is

individually tailored to the customer’s requirements. However, individually tailored

processes are unique and therefore offer no possibility to reuse parts of the process.

Thus the efficiency of an individually tailored process is low. On the other hand, one

can use a highly standardized process which can be executed efficiently, because

there are reuse and scaling effects. However, standardization also implies that

individual customer requirements cannot be taken into account. This dilemma has

existed since the beginning of industrialized mass production of goods. A common

way to escape from this dilemma is the use of components to design products. Mass

produced products are composed of standardized components individually specified

by the customer. Products built from components are very flexible, because they can

be adapted to individual customer requirements by selection of appropriate

components. At the same time, components also provide a high efficiency, because

they are standardized and can profit from scaling effects. Both the efficiency from

mass production and the individual solution to the customer can be achieved.

The component oriented design of service processes starts with the elicitation and

analysis of the (informal) customer requirements as shown in

Fig. 1. The formalized

requirements are used to retrieve service components from a component repository.

This repository is not static but can easily be extended by additional components,

which may be independently developed, for example by a subcontractor. In a gap

analysis, the potential solution using the retrieved components is compared to the

original requirements definition. Gaps can be handled in three ways. First, the original

requirements definition can be renegotiated with the customer (1). This may lead to

tradeoffs as discussed in [1]. Second, the creation of new components can be initiated

to fill the gaps (2). Third, the gaps can be closed by adaptation, as described later on.

The next step is the selection of components for the final solution. These components

are adapted and finally composed to a composite service process. The adaptation is

done by using specialization. Specialization is done by adapting the component to

individual requirements without changing their external interfaces and behavior. The

encapsulation of the component by its interfaces impedes the visibility of internal

changes.

Require-

ments

Elicitation

and

Analysis

Component

retrieval

Adaptation Composition

Component

ComponentComponent

Component

Composite Service Process

(Informal)

Require-

ments of the

customer

Component

repository

Selection

Gap

Analysis

Component

creation

(1)

(2)

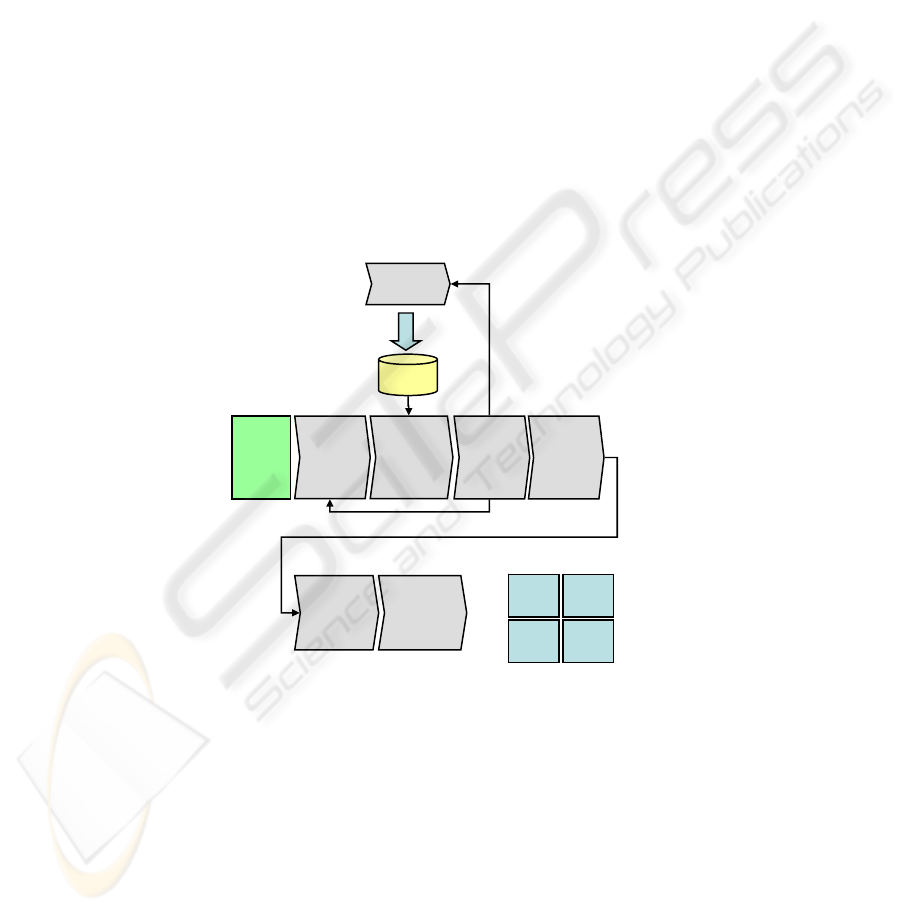

Fig. 1. Component-oriented design and modeling of service processes.

To realize a component oriented design-process for service processes three steps have

to be made:

1. The structure of the components has to be specified. Particularly, the

component granularity has to be defined. Components may be small or big,

containing a few or a lot of functionality. This decision on component

granularity is crucial to achieve flexibility and efficiency. It is also important

to reach the goals of low coupling and high cohesion [4].

2. The structure of the component repository has to be defined. Only in a

properly designed component repository it is possible to find appropriate

components and fulfill the customer’s requirements.

3. Adaptation and composition mechanisms have to be defined which fit with

the component granularity

4 Service Components

Choosing the component granularity is an important step to create components for the

component-oriented design process. To find the appropriate component granularity,

the analysis of the service processes has to be done: It is necessary to identify the

dimensions of change of the service processes. Knowing them, it is possible to

maximize the cohesion of the components and to minimize the coupling of the

components. These dimensions of change in service processes can be captured by so-

called perspectives. Perspectives are disjoint sets of model elements, which describe

independently evolvable parts of the process. For example, the organizational

structure of service processes can be changed completely while the operational

perspective remains unchanged. Different approaches for defining perspectives are

compared in [3].

Basic Perspectives. There are five basic perspectives. The functional perspective

describes what the process has to do; particularly it defines the process goal. The

operational perspective specifies activities executed during the process. The control

perspective defines, when and under which preconditions activities are performed.

The informational perspective specifies the information which shall be exchanged

between activities. The organizational perspective associates roles with activities.

Additional Perspectives. There are some characteristics which differentiate service

processes from ordinary business processes and therefore have to be analyzed. First,

there are a lot of interactions, especially with the customer. Second, external resources

are needed during the process and third, a predefined service level has to be

maintained. These characteristics require additional perspectives which will be

described below.

Interaction Perspective. A characteristic of service processes is their high degree of

division of labor with a high involvement of external participants. In traditional

production processes the customer is only interested in the outcome of the process but

not the process itself. In service processes, there are many interactions between the

service provider and the customer and third party service providers. Both have to be

integrated during the whole process and not only at the beginning and the end of the

process: In the example above, the customer has to be interrogated for further details

of his incident report. Advice is sought from the third level support. As service

processes contain many interactions, it is necessary to provide flexibility in changing

and integrating new interactions into the process. Interactions have to be adapted to

changed customer requirements and new interactions have to be integrated due to new

customer requirements. To achieve this, a new perspective has to be created when

defining the metamodel for service processes. This perspective is called interaction

perspective. It abstracts from different types of interactions comparable to the patterns

defined in [2].

Resource Perspective. Service processes differ from traditional business processes

also because they extensively use external resources both from the customer and third

party service providers. Resources have to be appropriately obtained, integrated and

administered [21]. For example, before configuring the customer’s computer system,

one has to have administrative privileges to do so. In addition, if external resources

are needed for service providing but no longer available but, a procedure has to be

started. Finally resources of the customer have to be given back at the end of the

service providing. To properly represent changes in the resource perspective, it must

be easily possible to add, change and remove resources.

Service Level Perspective. Not only the execution but also the potential to execute

the service process is important to the customer. In the example above, it is important

for the customer that his staff may call the service and start the service within a

predefined reaction time. Therefore service providers have to make available a

predefined potential to perform a service process. This potential is measured as

service level. In the example above, a service level defines the maximum reaction

time. To reach a certain service level, resources have to be kept ready, as services

cannot be kept in store as material products. In the example, one has to keep ready

properly trained staff available in the service desk, regardless whether there are calls

or not. The service level perspective is needed to define the potential to perform

activities. It describes the rights and duties for the customer and the service provider,

the service performance indicators (SPIs), the measurement of the service

performance indicators and change procedures. Service levels have to be easily

adapted to changing business requirements.

Analyzing Processes Using Perspectives. Applying these considerations to the case

study, we get the representation as shown in

Fig. 2. Here the service process is split up

into perspectives and perspective elements. Each perspective is shown as separate

layer. (Not all perspectives are shown for the clarity of the drawing. The

informational and the functional perspectives are not shown).

Incident

Analyze

Problem

Solution

known ?

Configure

System

Analyze

Problem

Solution

known ?

Configure

System

Analyze

Problem

Configure

System

yes

Computer

System

React within 10

min

React within 2

hours

React within 1

day

yes

Computer

System

Computer

System

Service-level

Perspective

Control

Perspective

Operational

Perspective

Interaction

Perspective

Resource

Perspective

Organisational

Perspective

1st

level

support

1st

level

support

customer

2nd

level

support

2nd

level

support

customer

2nd

level

support

2nd

level

support

customer

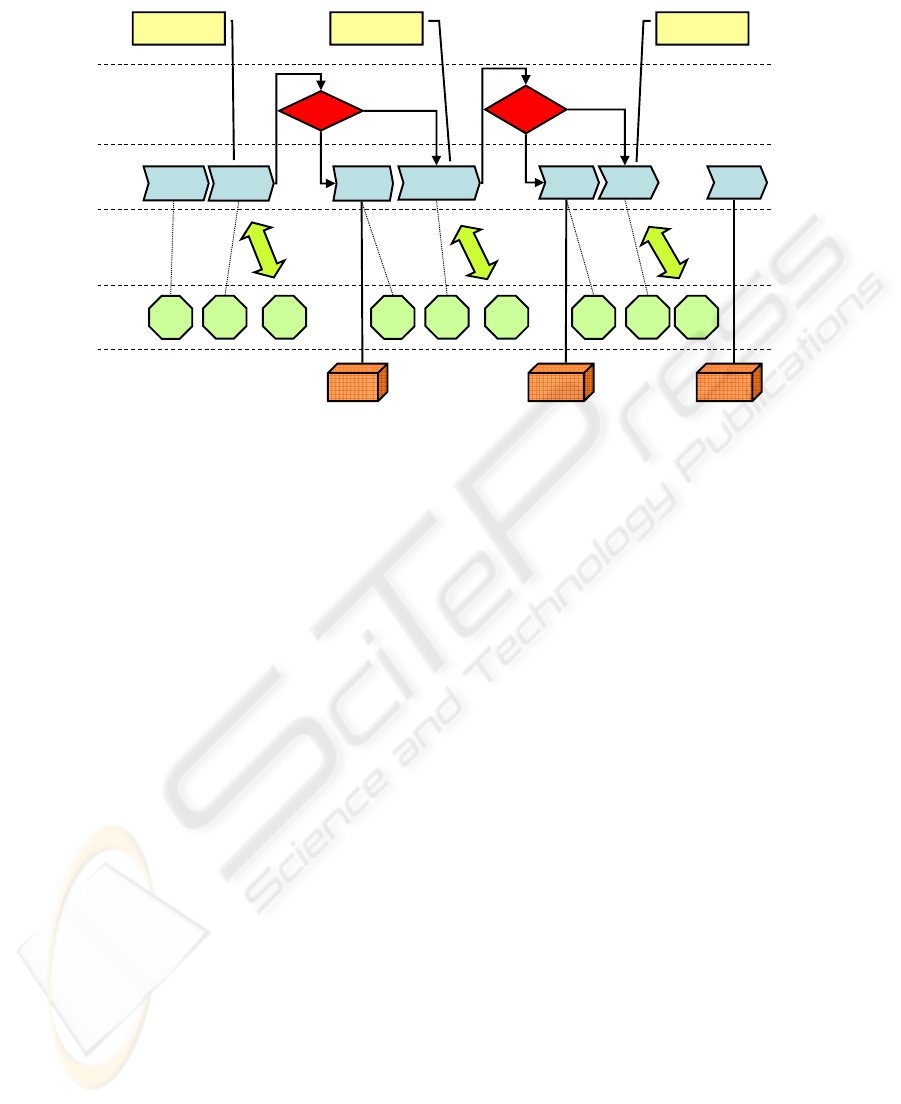

Fig. 2. Additional perspectives for service processes.

Component Structure. Based on the analysis of service processes using perspectives

it becomes clear, that no component should contain functionality which belongs to

different perspectives. A component should contain only functionality which belongs

to exactly one perspective to achieve a high degree of cohesion [4]. However putting

the complete functionality of one perspective into a component would not deliver the

optimal solution as processes do not contain all elements of a perspective. Therefore,

elements of the perspectives should be used as granularity, for example, the

interaction type a or a single control flow construct such as fork or a single data type.

A component implements the functionality of exactly one perspective element. It has

a component interface which is composed of ingoing, outgoing and bidirectional

interfaces. By using the functionality of only one perspective element, only one

“dimension” of change is implemented within a component. Thus, the component can

be flexibly replaced by another component. The adaptation of components to

individual requirements and the connection to other components is done by

specialization: the component is parameterized and connected to other components.

Therefore, the specialization mechanism contains both parameterisation and

connection mechanisms. The parameterisation mechanism adapts the component to

the individual needs of the composite process. It uses the parameterisation

information. The connection mechanism creates the connections of the component

with other components. It uses the connection information.

5 Defining the Repository Structure

The repository is structured according to the perspectives. Therefore there are

different branches for the functional, operational, organizational, informational,

control, service level, resource and interaction perspective. Some of the perspectives

are further split up. The functional perspective is split up into complex and simple

processes. The organizational perspective differentiates the perspective elements role,

person and organizational unit. Schema, schema elements and relations are the

elements of the informational perspective. The control perspective is composed of

elements to represent the control flow, exception handling and timing. Resources may

be complex or simple. Interactions may be a simple one-way communication,

bidirectional or follow complex protocols. Interactions can be further described by the

following properties: First, the start of the interaction may be automatic or on user

initiation. Second, the participants can be predetermined or have to be decided in an

ad hoc manner. Also the participation of mediators, which are not member of the

participating organizations, may be necessary, for example to settle a dispute. Third,

the interaction may have a definitive structure and the end of the interaction is

determined during the interaction. Finally, interactions can be differentiated if they

have a defined outcome or not.

6 Adaptation and Composition of Service Components

A composite process is created by a set of interconnected and specialized process

components. The connections and parameterisations are made by the parameterization

and connection mechanisms described above. For different composite processes there

is different specialization information. It is discriminated by the so-called global

context identifier. The so-called local context identifier differentiates multiple uses of

the same component in a composite process.

To clarify the idea of a composite process, a part of the case study shall be

represented as composite process in

Fig. 3. The decision “Solution known” is

represented by component c1. The appropriate specialization information is identified

by the context identifier i

. The parameterization information contains the

specialization information about the test “Solution known”. The information which

allows to decide, whether the test “Solution known” is true or false is contained in

component c6. Depending on the result, the connection information either continues

the process with component c2 (“yes”) or component c5 (“no”). Component c2 is

supplied with the connection information c3 and c4 as it uses them to do its task. If

component c5 continues, the component c3 is used for representing the 2

level

support. However, c3 is used in two different contexts. Therefore, we find two sets of

specialization information for component c3, differentiated by the context identifiers

and i

respectively. The activities “Configure System” and “Analyze Problem”

are represented by the components c2 and c5. The Computer System is symbolized by

the component c4.

Solution

known ?

Configure

System

Computer

System

2nd

level

support

Analyze

Problem

2nd

level

support

yes

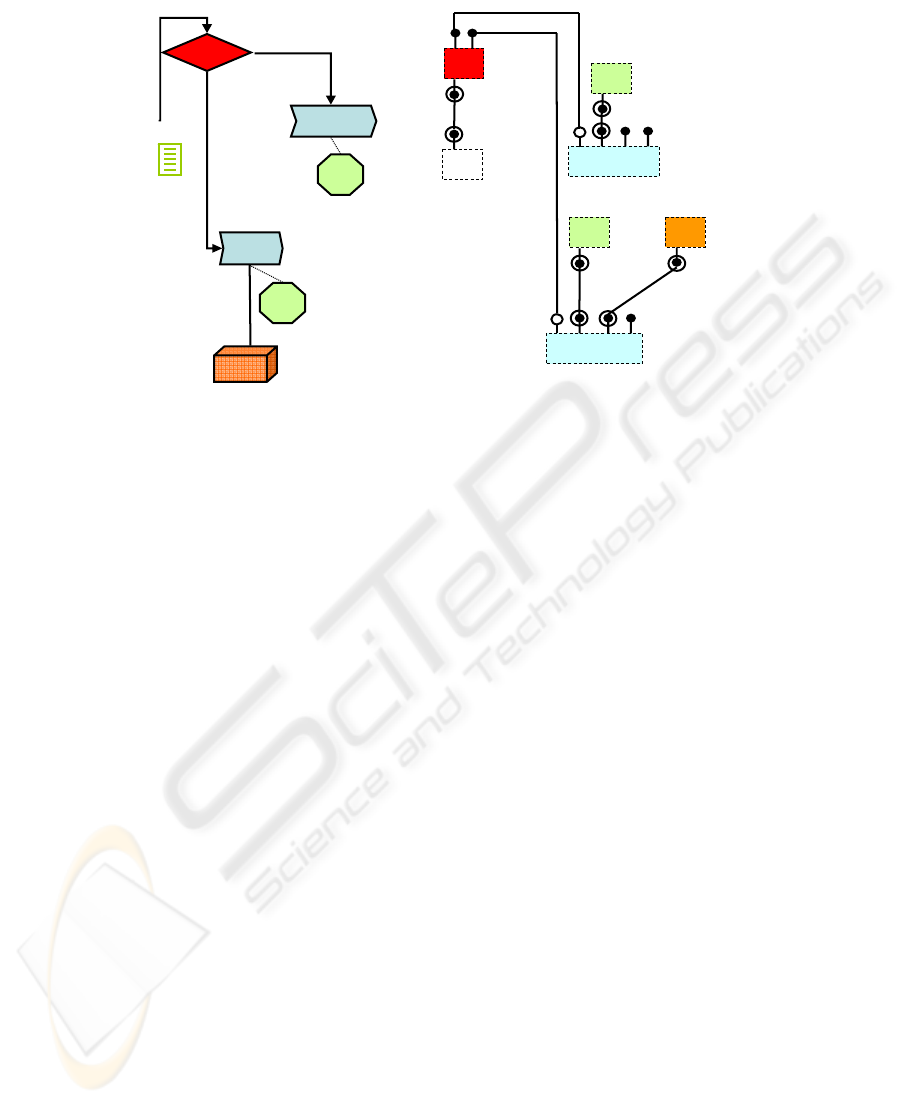

Fig. 3. Composite Process from example.

7 Related Research

To evaluate the approach presented here, a discussion with comparisons to related

research shall be done. Related research can be found in a number of areas, however

there are only few approaches which directly address the subject of the approach

presented here. The most important one, is the Service Flow approach described in

[KlWe01], [19], [18]. It describes how to model service processes and to execute them.

However, the approach neither identifies the dilemma between flexibility and

efficiency nor does it provide a component-oriented approach for modeling.

Furthermore, the approach only covers interactions in detail. Further perspectives

such as the service level or the resource perspective are not covered. The support of

service processes is done by using a coarse-grained architecture.

The problem addressed by the approach presented shows some relationship with

the problem of reusing reference models. Reference models give a recommendation

for designing processes for a defined purpose. By capturing best practices, they are a

reuse mechanism for processes. The problem is, that they both have to be adapted to

specific requirements and have to reuse as much process knowledge as possible.

Thus, the problem or reusing reference models can be compared with the reuse of

service processes. Six classes of methods for the reuse of reference models are

differentiated according to their reuse mechanisms. Two classes, the compositional-

monolithic and the generic-monolithic approach ([6], [17], and [16]) use monolithic

reference models. The composition of a service process out of predefined component

is thus not possible. Pattern-language oriented approaches such as [20] define a

multitude of dependencies between different models. However, the definition of an

appropriate component granularity and suitable interfaces is omitted. Catalog-based

methods [5] and knowledge based methods ([9], [15]) are aimed at the retrieval of

already defined reference models as a whole. No method how to appropriately design

components for reuse is presented. The library based approaches ([11], [10]) store

(parts of) reference models in a library using a classification or type system. However,

no recommendations for an appropriate granularity of the library entries are given.

Instead the formalization of the library elements is focused as in [10].

There are also approaches, which do not show a relationship although similar terms

are used. For example, service-oriented architectures (SOA) also use the term service,

for example [14] but target services provided by computers. Therefore one has to

differentiate between service processes, which provide services, and processes which

are executed using services, better called service-based or oriented processes.

8 Summary and Outlook

Service processes are an important group of inter-organizational business processes.

They have special properties which require new methods for their design and

execution. They are at the same time processes and products and therefore have to be

flexibly adaptable to the customer’s requirements while being offered at a competitive

price. Furthermore service processes show a high degree of interaction with external

participants such as the customer and subcontractors. Another difference to standard

business processes is the integration of external resources, for example the customer’s

computer system into the process. Finally, service processes not only have to produce

a defined process output but they have also to provide a defined potential to provide

the process output called service level.

To cope with these requirements a component-oriented design and modeling

method has been developed. It uses perspectives to identify the independently

evolvable parts of the processes. By using the perspectives, components can be

defined with a maximum of cohesion and a minimum of coupling. Based on the

method, composite processes are built from components in a way individually

specified by the customer. A high degree of individualization can be achieved, by

choosing from a multitude of components. By using a component oriented approach

both efficiency and the individual solution to the customer can be achieved.

Further work will apply the concepts developed to ITIL in the German chapter of the

ITSMF (Information Technology Service Management Forum). Further research will

cover the following topics. First, in a distributed environment, components may use

different model representations such as event oriented process chains versus Petri

nets. Therefore an integration mechanism has to be developed. The distributed

environment may also require the distribution of the component repository. Second, a

mechanism for revising and creating versions of the components has to be developed.

Third, market mechanisms have to be created to exchange components.

References

1. Alves, C., Filho, J. B. P., Castro, J., Analysing the Tradeoffs Among Requirements,

Architectures and COTS Components IV Workshop on Requirements Engineering, Buenos

Aires, Argentina, November 2001.

2. M. Aksit, K. Wakita, J. Bosch, L. Bergmans, A. Yonezawa: Abstracting Object

Interactions Using Composition Filters. In R. Guerraoui, O. Nierstrasz, M. Riveill (Eds.):

Object-Based Distributed Programming, ECOOP '93 Workshop, Kaiserslautern, Germany,

July 26-27, 1993. LNCS Vol. 791, Springer Verlag, Berlin, 1994.

3. M. Bernauer, G. Kappel, G. Kramler, W. Retschitzegger, Specification of

Interorganizational Workflows - A Comparison of Approaches, Proceedings of the 7th

World Multiconference on Systemics, Cybernetics and Informatics (SCI 2003),

4. J Eder, G Kappel, M Schrefl: Coupling and Cohesion in Object-Oriented Systems. - Proc.

Conference on Information and Knowledge Management, …, 1992 –

5. Fernandez, E. B.; Yuan, X.: Semantic Analysis Patterns. In: A. H. F. Laender, S. W. Liddle,

V. C. Storey (Hrsg.): Conceptual Modeling – ER 2000 – 19th International Conference on

Conceptual Modeling, Salt Lake City, Utah, USA, October 9-12, 2000 Proceedings. Berlin

et al. 2000, S. 183-195.

6. Hars, A.: Referenzdatenmodelle – Grundlagen effizienter Datenmodellierung. Wiesbaden

1994, Saarbrücken 1993

7. www.itil.co.uk

8. Klischewski, R., Wetzel, I.:, Serviceflow Management: Caring for the Citizen’s Concern in

Designing E-Government Transaction Processes, Proceedings of the 35th Hawaii

International Conference on System Sciences (HICSS-35). IEEE, 2002 Etegv03.pdf

9. Krampe, D.: Wiederverwendung von Informationssystementwürfen – Ein fallbasiertes

werkzeuggestütztes Ablaufmodell. Wiesbaden 1999.

10. Lang/Bodendorf: Gestaltung von Geschäftsprozessen auf der Basis von

Prozeßbausteinbibliotheken. In: HMD 1997, 198, S. 83-93

11. K- Lang: Gestaltung von Geschäftsprozessen mit Referenzprozeßbausteinen, DUV-Verlag,

Gabler, Wiesbaden, 1997

12. Regev, G., Wegmann, A.: A Regulation-Based View on Business Process and Supporting

Proceedings of the CAiSE’05 Workshop, p. 91-98.

13. Schmidt, R.: IT-Service-Management – State and Perspectives. 4. itSMF Kongress

Hamburg 2004

14. Schmidt, R.: Flexible Support of Inter-Organizational Business Processes Using Web

Services. Proceedings of the CAiSE’05 Workshop, p. 51 - 58.

15. Schulze, D.: Grundlagen der wissensbasierten Konstruktion von Modellen betrieblicher

Systeme. Aachen 2001

16. Schütte, R.: Grundsätze ordnungsmäßiger Referenzmodellierung – Konstruktion

konfigurations- und anpassungsorientierter Modelle, Gabler, Wiesbaden, 1998.

17. Schwegmann, A.: Objektorientierte Referenzmodellierung – Theoretische Grundlagen und

praktische Anwendung. Wiesbaden 1999

18. I. Wetzel, R. Klischewski: Serviceflow Beyond Workflow? Concepts and Architectures for

Supporting Inter-organizational Service Processes. CAiSE 2002: 500-515

19. I. Wetzel, R. Klischewski: Serviceflow beyond workflow? IT support for managing inter-

organizational service processes. Inf. Syst. 29(2): 127-145 (2004)

20. Wolf, S.: Wissenschaftstheoretische und fachmethodische Grundlagen der Konstruktion

von generischen Referenzmodellen betrieblicher Systeme. Aachen, 2001

21. Zdravkovic, J.; Henkel, M..: Enabling Flexible Integration of Business and Technology in

Service-based Processes. Proceedings of the CAiSE’05 Workshop, p. 107 – 114.
