CROCODIAL: Crosslingual Computer-mediated
Paul Piwek
and Richard Power
Centre for Research in Computing, Open University, Milton Keynes, UK,
Abstract. We describe a novel approach to crosslingual dialogue which allows
for highly accurate communication of semantically complex content. The ap-
proach is introduced through an application in a B2B scenario. We are currently
building a browser-based prototype for this scenario. The core technology under-
lying the approach is natural language generation. We also discuss how the pro-
posed approachcan complement Machine Translation-based solutions to crosslin-
gual dialogue.
1 Introduction
“The most pronounced impact of Internet technology is that it allows for human-
to-human collaboration, negotiation and transactions, instead of the phone, fax
or mail, collaboration can take place in real time using a browser and the In-
ternet.” (Harvey Seegers, CEO of Global eXchange Services. January 22, 2003
for CNET radio and ZDNet)
It should come as no surprise that companies such as Global eXchange Services (GXS),
one of the leading providers of B2B (Business to Business) services, see the move from
(e)mail, phone and faxto human-to-human interaction through a browser as a significant
one: a browser provides the platform for integrating many value-added services into the
functionality which has traditionally been provided by (e)mail, phone and fax. From
the manifold of services which one can imagine, we focus on two: crosslinguality and
knowledge management.
2 Transaction to Tuscany
Harry, a pensioner who is currently living in London, has decided that it is time to
start enjoying the better things in life. He buys a villa in Tuscany from Count Roberto
da Silva and instructs his bank to transfer his payment for the purchase to Da Silva’s
Two weeks after issuing the instruction, Harry receives a phone call from Da Silva.
He explains in agitated and broken English that the money has not yet been credited
Piwek P. and Power R. (2006).
CROCODIAL: Crosslingual Computer-mediated Dialogue.
In Proceedings of the 3rd International Workshop on Computer Supported Activity Coordination, pages 75-84
DOI: 10.5220/0002484400750084
to his account. Harry contacts the call centre of his bank and is connected to the local
branch where he issued the instruction. They promise to find out what has happened.
Next day, Harry contacts his local branch again, of course, via the central call centre.
They reassure him that they will soon get back to him.
A few calls later, the problem is finally resolved. It transpires that the money does
not show up on Da Silva’s euro account because it has been routed to a special account
for pounds sterling.
Probably quite a few of us have experienced similar mishaps. One of the leading
clearinghouses for banks (BACS), claims on its website that they alone deal with 4.5
billion financial transactions a year.
Complications like the aforementioned have two
unfortunate consequences for the bank. Firstly, it frustrates their customers. Secondly,
the bank wastes a lot of its own time, as well as the customer’s, on inefficient telephone
calls. Let us imagine how the same transaction could have been dealt with in a better
possible world.
Harry again receives a call from Da Silva and contacts his local branch. This time the
bank tells him that he will be informed about the whereabouts of the money within two
days. He is asked whether he wants to receive the information by telephone or email.
Harry prefers email. Next, an employee of Harry’s bank connects with her browser
to the server of the bank’s clearinghouse and requests information on the transfer. It
transpires that the money has been successfully transferred to the account of Da Silva.

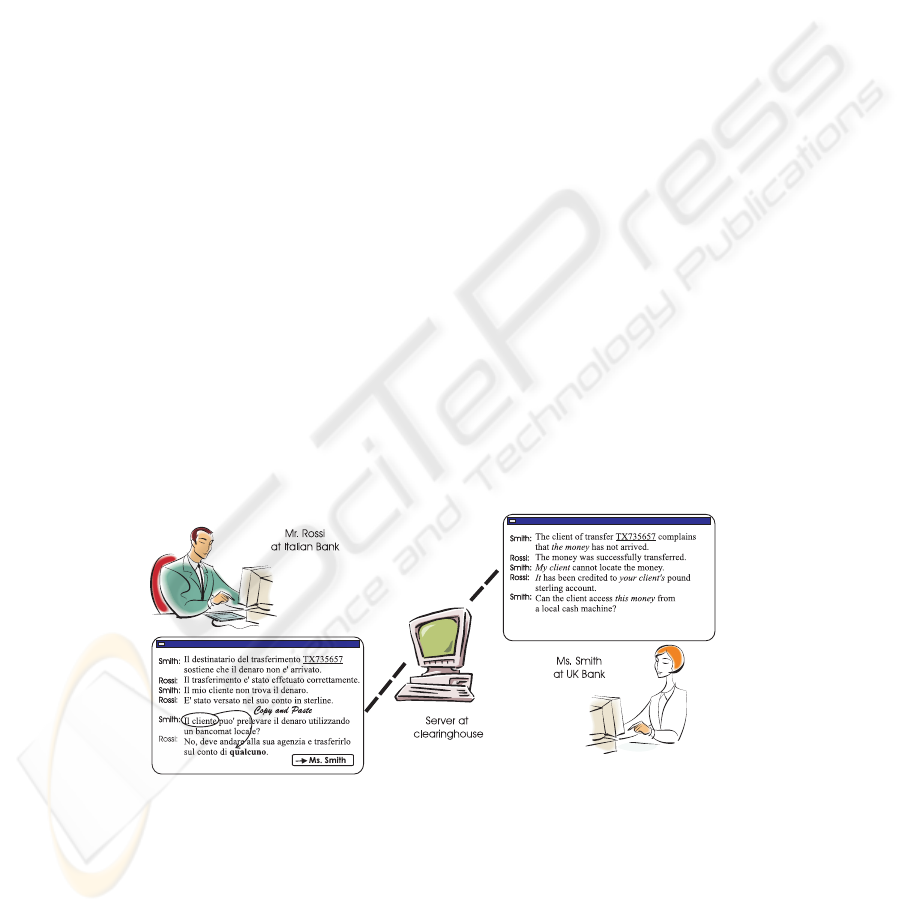

The employee selects the option to engage in a crosslingual dialogue with an em-
ployee of the Italian paying-bank (the bank which received the money). After a brief
interaction, it becomes clear that the money has been placed in Da Silva’s pound ster-
ling account. The content of the conversation is kept on record and used to automatically
generate a summary in English for Harry. This is delivered to him by email.
The scenario exemplifies a wider problem that faces many businesses that operate
globally: language barriers and the distribution of tasks among a multitude of partners
e.g., the collecting and paying banks with local branches and head offices and the
clearinghouse hamper smooth global interactions and reduce customer satisfaction.
The core problem is that information needs to be interchanged reliably in different
languages and has to be readily available for different purposes (company internal, B2B,
B2C). Looking beyond the banking industry, there are many further scenarios along
the same lines. Think, for instance, of ship-to-shore communications, where crews are
made up of many nationalities, and border crossing communications between medics.
3 Prospects of Machine Translation Based Solutions
Solutions based on Machine Translation (MT) present themselves as an obvious can-
didate for overcoming language barriers. In recent years MT has experienced a revival,
partly due to the increased demand and possibilities for translation caused by the advent
of the Internet. For instance, in crosslingual information retrieval, where large volumes
of text need to be translated, MT has proved very useful. Here, we are, however, con-
sidering applications that involve only small quantities of information that need to be
3; accessed February 3, 2006.
exchanged with extremely high accuracy, because either the financial stakes are high,
or the situation is safety-critical.
Unfortunately, some have predicted that high accuracy translations of text/speech
input are not likely to be realized in the near future (e.g., Hutchins, 1999). Even for
relatively simple domains, such as travel planning, medium and extremely large scale
research projects such as the Spoken Language Translator (Rayner et al., 2000) and
have, despite making substantial contributions to various areas of speech
and language processing, not yet delivered systems for practical deployment. Rayner
et al. (2000) estimate that spoken language translation will eventually be possible
though still challenging and only for closed domains with a coverage of 85 to 90%.
One of the few deployed crosslingual communication systems, Linguanet,
relies on the
use of message templates together with MT technology to achieve a level of accuracy
that is acceptable for a practical application (message passing between European police
Apart from high levels of accuracy, what is also largely missing in existing MT sys-
tems is the representation of the semantic and discourse content of utterances. Some
systems use an interlingua, i.e., a language independent representation of the content
of an utterance (e.g., Lonsdale et al. (1994)). However, most do not include corefer-
ence relationships across sentence boundaries, let alone more sophisticated anaphoric
relationship such as part-whole and action-actor. Representation of content is important
because it enables extra services. Consider the automatic delivery of a summary to our
protagonist called Harry: a formal representation of the dialogue between the bank em-
ployees would enable a summarization program to reliably determine what conclusions
were reached.
4 The Role of Context in Communication
In this section, we prepare the ground for a novel solution to the problem of accurate
crosslingual communication. We describe a view of communication which differs from
the view that informs existing approaches to crosslingual communication. Existing ap-
proaches are typically grounded in the classical transmission model of communication:
A wants to communicate a certain message m to B. She encodes this into a (spoken
or written) natural language sentence. B receives the sentence and decodes it into the
message m. According to this view, crosslingual communication from language L
reduces to the task of finding a sentence in L
which conveys the same message as
a given sentence s in L
We want to draw attention to a fundamental shortcoming of the transmission model.
Since the seventies, work in both linguistics and philosophy has moved towards a rather
different view of communication (e.g., Isard, 1975). Whereas the classical model is
static sentences (or better, utterances) are paired with meanings the alternative is
dynamic: utterances change the context, and the way in which they change that context
is again dependent on context.
For our purposes, the context includes a record of the conversational content (the di-
alogue history) and any relevant background information. Let us illustrate how context-
dependence plays a role in communication by examining the following utterance:
‘Greenspan stopped decreasing the interest rates’. The verb ‘stop’ is said to trigger a
presupposition: a constraint on the contexts in which this utterance can be produced.
The informational content of this utterance can only be accepted in a context where the
interlocutor is also willing to accept that Greenspan was decreasing the interest rates.
Presupposed information differs from what is asserted in that it is not affected by
negation. In ‘Greenspan did not stop decreasing the interest rates’, the assertion perishes
but the presupposition survives. The example illustrates that utterances do not convey
neat self-contained messages. Rather, they contribute to a context which is a network of
interlinked units of information (e.g., the information that Greenspan stopped decreas-
ing the interest rates depends on the information that he was decreasing them).
The context-change view of communication suggests a new approach to crosslin-
gual dialogue. In dialogue the interlocutors change the context by producing utterances
that extend the dialogue history. Changes at the informational level are arrived at via
interpretation of physical actions. Now imagine that interlocutors could directly edit
the context at the informational level but each see the results of their actions in a rep-
resentation suitable for them: no translation would be required since each interlocutor
would directly operate on the underlying content.
Conventional WIMP (for Windows, Icons, Menus and Pointer) interfaces allow users
to do something similar: if I want to get rid of a file on my computer, instead of saying
‘delete file foo’, I can pick up and drop the file into the recycle bin. I receive feedback
on the effects of my actions via a graphical interface. The desktop that I see is rendered
on the basis of an underlying model. Different desktops can be rendered from the same
underlying model without translation between desktops.
5 Crosslingual Dialogue as Joint Knowledge Editing
The contents that we can transfer by means of natural language are, of course, different
from the information rendered by a windows desktop. For instance, logical vocabulary
such as ‘not’, ‘or’ and ‘most’ introduces content for which natural graphical represen-
tations do not exist.
5.1 WYSIWYM Content Editing
The WYSIWYM technology What You See Is What You Meant (Power et al., 1998) –
presents a solution to the visualization problem. Content is rendered in natural language
using natural language generation technology. The basic idea underlying WYSIWYM is
presented in Figure 1.

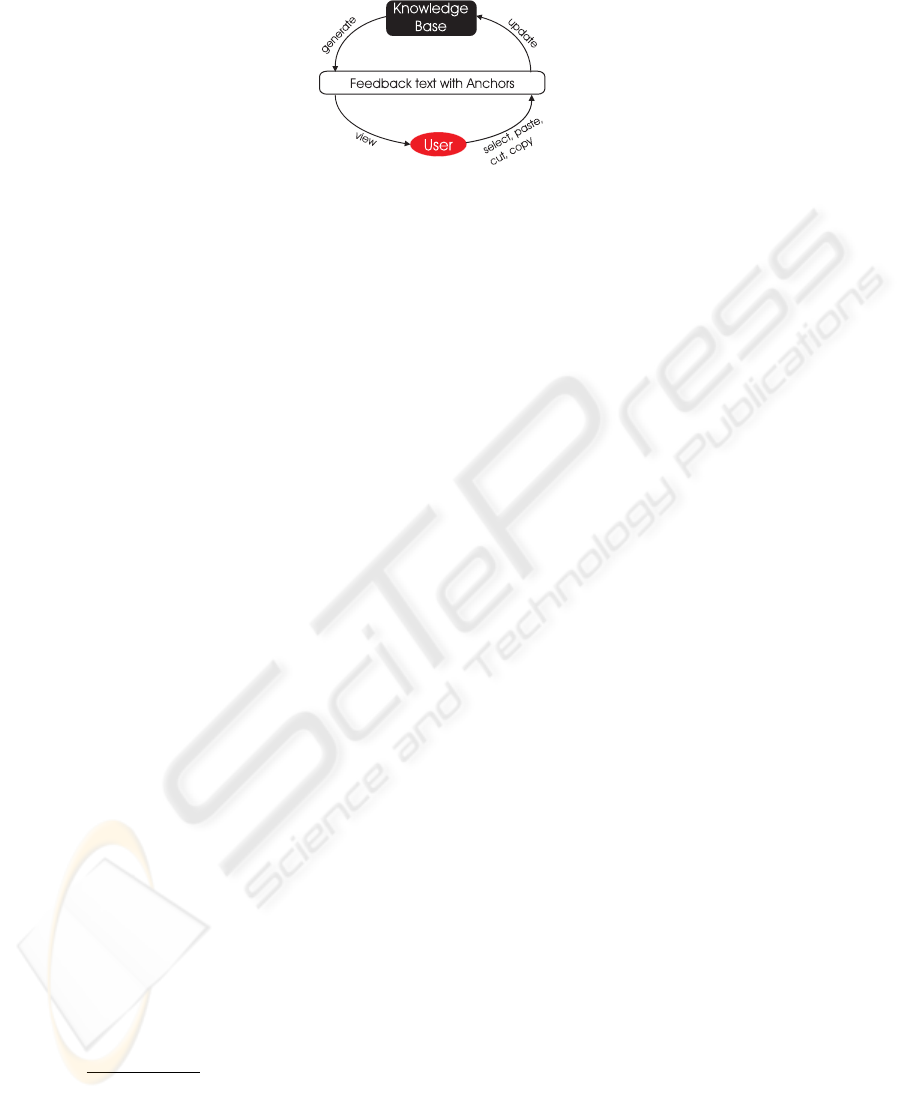

Figure 1 represents an editing cycle. Given a Knowledge Base (KB), the system
generates a description of the knowledge base in the form of a feedback text contain-
ing anchors representing places where the content in the knowledge base (a formal
representation of the context) can be extended. Each anchor is associated with pop-up
menus, which present the possible extensions of the KB at that point. On the basis of
Fig.1. The editing cycle.
the extension that the user selects, the knowledge base is updated and a new feedback
text (reflecting the updated content) is generated. Additionally, spans of feedback text
representing an object in the KB can be selected using the mouse to move or remove
the object to or from a location in the KB. After each action, a new feedback text is
generated representing the updated KB.
Let us consider a simple example that conveys the essential features of WYSIWYM
editing. We have a KB consisting of two parts: (1) an ontology in which we specify the
set of available concepts and their attributes, and (2) an assertion box (A-box) in which
instances of concepts/classes are introduced. Our sample ontology is represented by
means of the semantic web compatible OIL language of which we only use a subset:
class-def top | class-def account
| subclass-of top
class-def event | slotconstraint owner
subclass-of top | value-type person
class-def person | class-def view
subclass-of top | subclass-of event
| slotconstraint agent
class-def client | value-type person
subclass-of person | slotconstraint object
| value-type account
class-def employee |
subclass-of person | class-def transaction
| subclass-of event
| ...

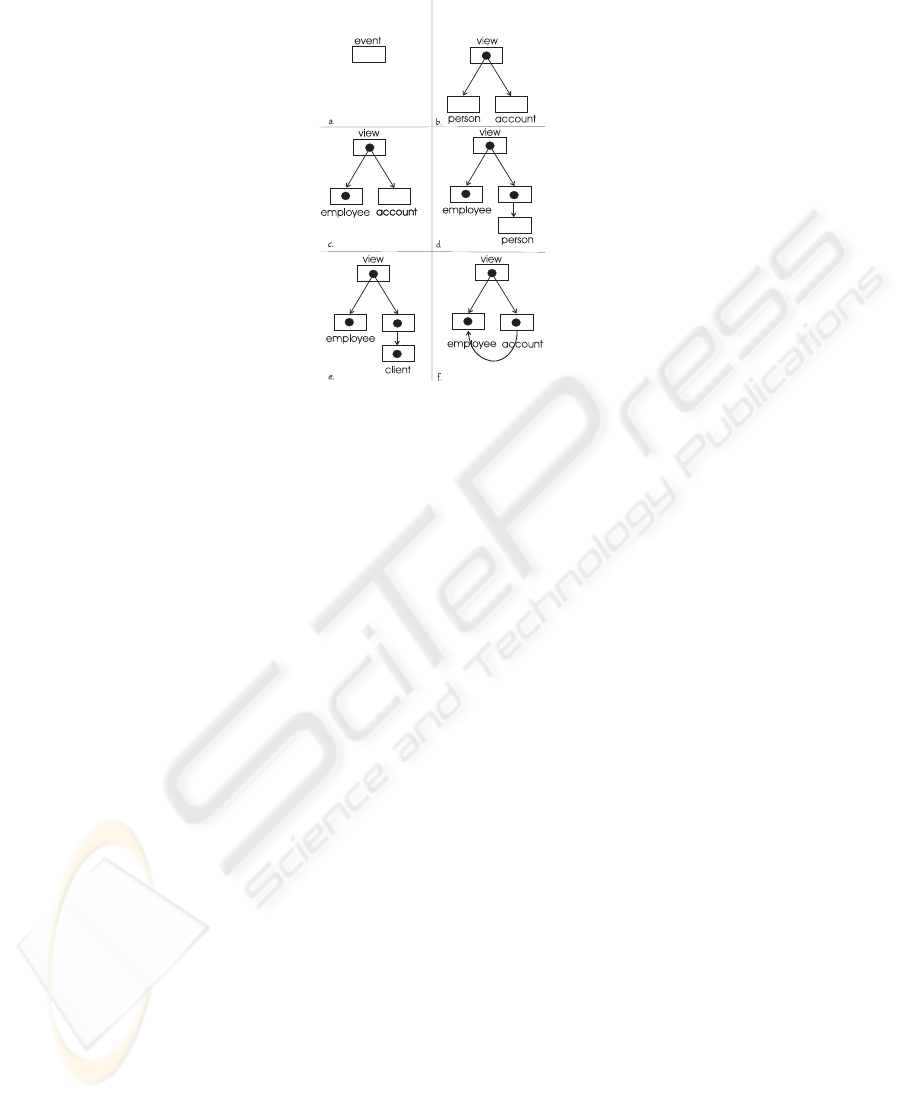

We start by introducing the class top. We also introduce three subclasses event,
person and account– of top and two subclasses of the concept person. We have
the attribute owner for the class account and stipulate that its value is a person.
We view is introduced as a subclass of event. It has two attributes: agent with a
person as its value and object with an account as its value.
The A-box contains the actual knowledge to be edited. It can be represented by
means of a graph: nodes stand for instances of concepts, i.e., objects, and directed arcs
Fig.2. Editing a Direct Acyclic Graph.
represent attributes. The basic editing operation is that of adding a new object, of a
specified type, as the value of an attribute of an existing object.
Let us start with an A-box which expects an instance of the concept event; see
Figure 2.a. On the basis of this KB a feedback text is generated:
(1) Something happened.
The entire span of text is in boldface to indicate that the text is an anchor. By clicking
on it, the user obtains a menu showing alternative expansions the KB. Our ontology
licenses two options: 1. Some person viewed some account and 2. Some person made
a transaction to some account. When the user selects option 1., a new instance of the
concept view is introduced into the KB (see Figure 2.b). From the updated KB a fresh
feedback text is generated:
(2) Some person viewed some account.
When the user selects the first anchor in this text, the following two options for expand-
ing the KB appear: 1. An employee viewed some account and 2. A client viewed some
Our user selects option 1. leading to the new KB in Figure 2.c and the text:
(3) An employee viewed some account.
Expansion of the second anchor along the same lines gives rise to the KB in Figure 2.d
and the following feedback:
(4) An employee viewed someone’s account.
If the user expands someone’s’, the complete network in 2.e can be obtained and the
(5) An employee viewed the account of a client.
Instead of inserting a new object (‘a client’) into the incomplete network (Figure
2.d), the user could have chosen to copy and paste an existing object. The span ‘an
employee’ has a menu with the options cut and copy. copy causes the underlying
object to be stored in a buffer. Subsequently, the user can paste it into the incomplete
part of the KB, i.e., ‘someone’s’. This would result in the network in Figure 2.f. and the
following feedback text:
(6) An employee viewed his/her own account.
A reflexive pronoun is generated for the ownattribute and its a value. Note that if copy
and paste had simply operated on the graphemic level of the sentence instead of the
underlying semantics, the result would have been An employee viewed an employee
account’. The proposed approach is different from, for instance, NLMenu (Tennant et
al., 1983) which allows for the menu-based editing of the syntactic surface structure of
sentences, rather than the underlying content.
Coreference is an aspect of meaning which is quite hard to determine automatically
but pervasive in dialogue. WYSIWYM avoids this problem by letting the user explic-
itly specify it during editing. The system avoids interpretation, and thereby also avoids
incorrect interpretations. Currently implemented WYSIWYM systems support corefer-
ence, and also introduction of plural objects, quantification, part-whole relationships
and logical relations such as negation and implication, and tense.

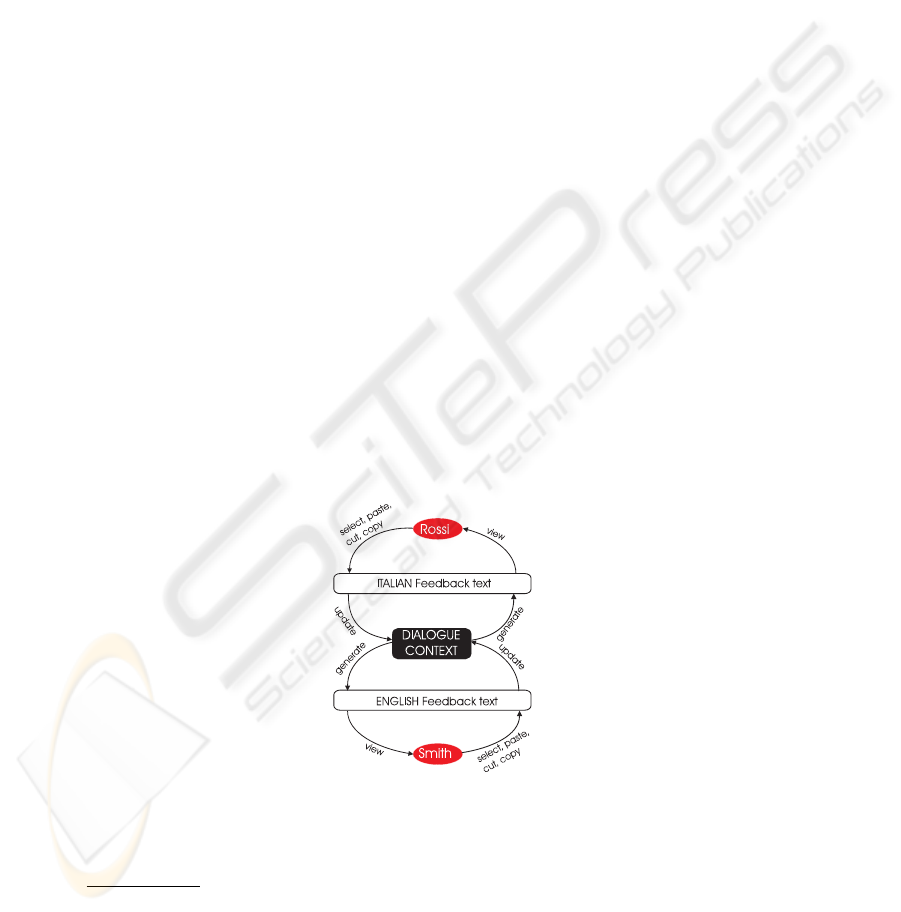

Fig.3. Crosslingual Joint Knowledge Editing.
5.2 Multi-person Editing and Dialogue
Let us now take the step from single-person editing to multi-person editing. Multi-
person editing leads us to crosslingual dialogue. The basic idea is visualized in Figure
3. We have added a second editor with access to the underlying context/KB. Although
each editor has access to the same context, their views of it are different: Rossi looks at
it through ‘Italian glasses’ (a language generator for Italian) and Smith through English
ones. Of course such a set-up does not necessarily lead to interactions that qualify as
dialogues. To approximate dialogue behaviour we introduce some constraints:
1. The jointly edited structure has to be interpreted as representing the dialogue con-
text of the dialogue at hand. It consists of the dialogue history, progressively built
up, and relevant background information. This information can be referred to in the
course the dialogue and comprises structured objects (e.g., a record with informa-
tion on a specific transaction, e.g., its date, clients, etc.) and links to information on
an intranet or the Internet.
2. Only the most recent turn in the history can be modified, although material can be
copied from preceding turns to establish anaphoric links.
3. Interlocutors construct turns one at a time.
Figure 4 depicts a snapshot of a conversation between the employees of an Italian
and an English bank who use the CROCODIAL technology. Each interlocutor is pre-
sented with a WYSIWYM feedback text of the dialogue context at each stage of the
dialogue. A common Internet browser is used. In the browser we have a lightweight ap-
plet for displaying the mouse-sensitive text with its associated editing operations. The
underlying representation and the language generation software for presenting it to the
users reside on a central server. In Figure 4, we have italicised some of the phrases
whose semantics consists of coreference links in order to illustrate their pervasiveness
both inside and across dialogue turns.
Fig.4. Crosslingual Joint Knowledge Editing.
In addition to the accuracy and coverage of complexity supported by our approach,
it also allows us to benefit from the fact that the interlocutors construct a formal repre-
sentation of the content of the interaction. We propose to exploit this representation by
using it to automatically generate a summary. For example, the interaction in Figure 4
could lead a summarizer to produce the following summary which integrates contextual
information regarding the transaction (date, banks involved, etc.).
On 15-1-2003 Ms Smith (Citibank) called Mr Rossi (Banca di Roma) about the transfer
of 100,000 GBP to the account of Count Roberto da Silva (654012). It was established
that the money had been transferred to the pound sterling account of Da Silva. This
account can only be accessed via a local branch of the Banca di Roma.
Similar summaries could be generated on demand in other languages when the need
for this arises; the basis for such summaries is the formal representation of the dialogue
which the interlocutors unwittingly constructed.
Finally, note that the approach leaves scope for different modes of interaction. A di-
alogue can be conducted very much like an email interaction with long breaks between
contributions, but it can also be conducted in a more synchronous fashion similar to
what can be found in a chatroom.
6 Summary and Discussion
The following three features of the proposed system make it suitable for certain practical
applications: (1) People with no common language can communicate; (2) Each message
is precise and linguistically correct; (3) The content of the conversation is formalized in
a knowledge base, so potentially it can be utilized by other programs.
However, the benefits have to be traded off against some limitations: (1) The in-
teraction is text-based, not speech-based; (2) Communication may be slow (compared
with face-to-face human-human conversation) because of the time needed to compose
contributions by WYSIWYM.
These two limitations would be serious if there was a speech-based alternative that
allowed for fast and extremely accurate crosslingual interactions. This is, however, not
the case. Firstly, speech-based MT systems still have some way to go before they will
attain extremely high levels of accuracy. Secondly, the authors of one of the few systems
which does aim for this goal admit that ‘[...] communication through a translation device
is not fast. [...] It is possible for the component technologies (recognition, translation
and synthesis) to become more streamlined, but it would be very difficult to achieve
truly spontaneous, simultaneous translation.’ (Frederking et al., 2002)
In fact, we feel that it is misguided to present current speech-based MT as a competi-
tor of the CROCODIAL approach. Firstly, there are many applications in which extreme
accuracy is not called for. Secondly, we see potential for hybrid solutions. Some transla-
tion systems provide a so-called back translation. If such a back translation were based
on an interlingua, it would be possible to use our approach to correct the back translation
whenever necessary, by means of WYSIWYM editing. This could allow interlocutors to
circumvent cumbersome clarification dialogues.
The enabling WYSIWYM technology has been applied to a number of domains. A
version of the system is available to the research community (Evans & Power, 2003).
We are currently building a first CROCODIAL prototype for a small financial domain. A
number of preliminary evaluations of WYSIWYM have been carried out. These studies
have indicated that users find the WYSIWYM editing operations and feedback to lead to
predictable results and follow a logical pattern. However, it has also been established
that an incomplete ontology negatively affects user satisfaction. Currently, more elab-
orate evaluations with eye-tracking equipment are in progress at the Evaluation Centre
of the German Research Centre for Artificial Intelligence.
The approach we have described is grounded in natural language technology; in
order for it to work, we need a generator that maps the formal representation of the con-
text to a natural language text (existing WYSIWYM generators cover English, German,
French and Italian). Each generator for a new language extends the scope of the technol-
ogy. Unfortunately, existing language generators are not readily reusable because they
require widely varying inputs. However, the emergence of the semantic web is likely
have a positive impact: many systems already have the ability to use XML input, and
content representation languages, such as OIL, may turn out to be a first stepping-stone
towards standardization.
1. Evans, R., Power, R.D. (2003). WYSIWYM - Building Interfaces with Natural Language
Feedback, Proceedings of EACL03 (Demonstrators), Budapest, 203–206.
2. Frederking, R., Black, A., Brown, R., Moody, J. and Steinbrecher, E. (2002). Field Test-
ing the Tongues Speech-to-Speech Machine Translation System. LREC2002, Las Palmas,
Canary Islands.
3. Hutchins, J. (1999). Retrospect and prospect in computer-based translation. In Proceedings
of MT Summit VII, 13th-17th September 1999, Kent Ridge Digital Labs, Singapore, 30–34.
4. Isard, S. (1975). Changing the Context, In: E. Keenan (Ed.), Formal Semantics of Natural
Language, Cambridge: Cambridge University Press, 287–296.
5. Lonsdale, D.W., Franz, A.M., Leavitt, J.R.R. (1994). Large-scale Machine Translation: An
Interlingua Approach. In IEA/AIE ’94: Proceedings of the Seventh International Conference
on Industrial and Engineering Applications of Artificial Intelligence and Expert Systems,
May 31-June 3, 1994, Austin, Texas. ACM, 1994.
6. Power, R., D. Scott and R. Evans (1998). What You See Is What You Meant: direct knowl-
edge editing with natural language feedback, Proceedings of ECAI-98, Brighton, UK, 1998,
7. Rayner, M., D. Carter. P. Bouillon, V. Digalakis & M. Wir
en (2000). The Spoken Language
Translator, Cambridge, Cambridge University Press.
8. Tennant, H., Ross, K., Saenz, M., Thompson, C., & Miller, J. (1983). Menu-Based Natural
Language Understanding. In Proceedings of the 21st Annual Meeting of the Association for
Computional Linguistics, Cambridge, Massachusetts, pages 151–158.
