MOLDING ARCHITECTURE AND INTEGRITY

MECHANISMS EVOLUTION

An Architectural Stability Evaluation Model for Software Systems

Octavian-Paul Rotaru

University “Politehnica” Bucharest Romania

Keywords: Architecture Evolution, Data Integrity, Mathematical Model, Perturbation Theory, Requirements, Software

Architecture, Stability.

Abstract: The architectural stability of a software system is a measure of how well it accommodates the evolution of

the requirements. The link between integrity mechanisms and application’s architecture starts right from the

moment the requirements of the application are defined and evolves together with them. The integrity

mechanisms used will evolve when the application’s requirements are modified. Apart from the possible

architectural changes required, adding a new requirement to an application can trigger structural changes in

the way data integrity is preserved. This paper studies the architectural stability of a system based on an

integrity oriented case study and proposes a mathematical model for architectural evaluation of software

systems inspired from the perturbations’ theory. The proposed mathematical model can be used to mold the

evolution of any software system affected by requirements changes; to find the architectural states of the

system for which a given set of requirements is not a trigger (doesn’t provoke an architectural change); and

to find the architectural configuration which is optimal for a given set of requirements (evolves as less as

possible).

1 INTRODUCTION

“All mankind is of one author, and is one volume;

when one man dies, one chapter is not torn out of the

book, but translated into a better language; and every

chapter must be so translated... as therefore the bell

that rings to a sermon, calls not upon the preacher

only, but upon the congregation to come: so this bell

calls us all: but how much more me, who am

brought so near the door by this sickness.... No man

is an island, entire of itself... any man's death

diminishes me, because I am involved in mankind;

and therefore never send to know for whom the bell

tolls; it tolls for thee.” (John Donne, Meditation

XVII, from “Devotions upon Emergent Occasions”,

1624)

This famous meditation of Donne’s elaborates on

a major idea of the Renaissance, valid in life as well

as in science that people are not isolated from one

another, but mankind is interconnected.

Similarly software systems all over the world are

nowadays interconnected. Home computers, servers,

applications, databases, modules and components

are all connected in a way or the other, they are

interacting and they are influencing each other.

When an Internet user uploads a file to a server

the operation influences the web server in many

ways. An upload routine is employed in order to get

the file on a temporary location; the database access

module is afterwards called in order to store the file

into the database; a mailing daemon will send an

email to the user in order to notify him that the

upload ended successfully; etc. Maybe some other

servers are also notified that the file is uploaded, for

example a search engine in order to index it, or a

load balancing module is inquired to decide what

server to use. The file upload operation can also

influence the load of the server, or can limit its

available space, and these are just a few examples of

what can happen behind the scene.

Not only systems are influencing each other, but

also at a smaller scale different characteristics of a

software system are doing the same.

Usually data integrity is perceived as an a priori

service offered by the database. However, data

integrity assurance is not referring only to the

integrity of the information stored in the database,

but to the integrity of all the data flows transferred to

and from the application or between the different

application’s modules as well.

426

Rotaru O. (2006).

MOLDING ARCHITECTURE AND INTEGRITY MECHANISMS EVOLUTION - An Architectural Stability Evaluation Model for Software Systems.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 426-431

DOI: 10.5220/0002469704260431

 SciTePress

There are many available integrity assurance

mechanisms and strategies that can be used by

application. The choice is clearly influenced, even if

not unique, by the specificities of each application.

Apart from the application characteristics, the

environment and the exterior interactions are also

influencing the choice of the optimal integrity

strategy. Finally, it all depends on the requirements,

implemented in the application, that are influencing

the architecture and its interactions, and

consequently the way the data integrity is realized.

Integrity is not a database characteristic, but a

characteristic of any software system. By data

integrity I am designating the integrity of the data in

the entire computational context, seeing the system

as an ensemble from which no piece can be ignored.

2 CASE STUDY

2.1 Overview

The link between integrity mechanisms and

application’s architecture starts right from the

moment the requirements of the application are

defined and evolves together with them. The

integrity mechanisms used will evolve whenever the

application’s requirements are modified. Apart from

the possible architectural changes required, adding a

new requirement to an application can trigger

structural changes in the way data integrity is

preserved.

The architecture’s influence on the integrity

assurance mechanism will be examined based on a

case study on an application that will evolve in time

by varying its functional and non-functional

requirements. At each stage the influence of the

requirements on the architecture and in turn on the

integrity control mechanisms will be evaluated. It is

worth noting that the description of each stage of the

case study will also contain context related

information, and not only the requirements.

The stages can be considered versions created

during the development of the application that are

created keeping in mind only the current

requirements, ignoring the future requirements that

will be introduced at later stages. The way

requirements are incrementally added without

considering the big picture of all the requirements

that will be added in each and every version is not a

good development practice, but it serves the purpose

of this case study. Usually, the development

versioning for an application is decided from the

beginning, choosing the most suitable architecture,

after studying all the requirements and the context,

keeping in mind possible future extensions.

In our case the requirements will be added

incrementally, trying as much as possible to preserve

the existing architecture and to always make the

minimal impact change, treating each version as

being the last one. Practically, while creating this

use case I will put on the hat of a bad application

architect or designer, which has no vision for the

future of the application.

2.2 Stages

2.2.1 Stage I

Requirements: The application is single user

and single instance and it offers only data

visualization services. No data is modified or

inserted by the application. The data transferred

between the application and database is made

through a secured environment.

Consequences: An architecture chosen based on

the above requirements and excluding any future

development, can be only 2-Tier. The logical or

physical separation of functionalities has no

justification in this context. Figure 1 presents the

architecture of the application at this stage.

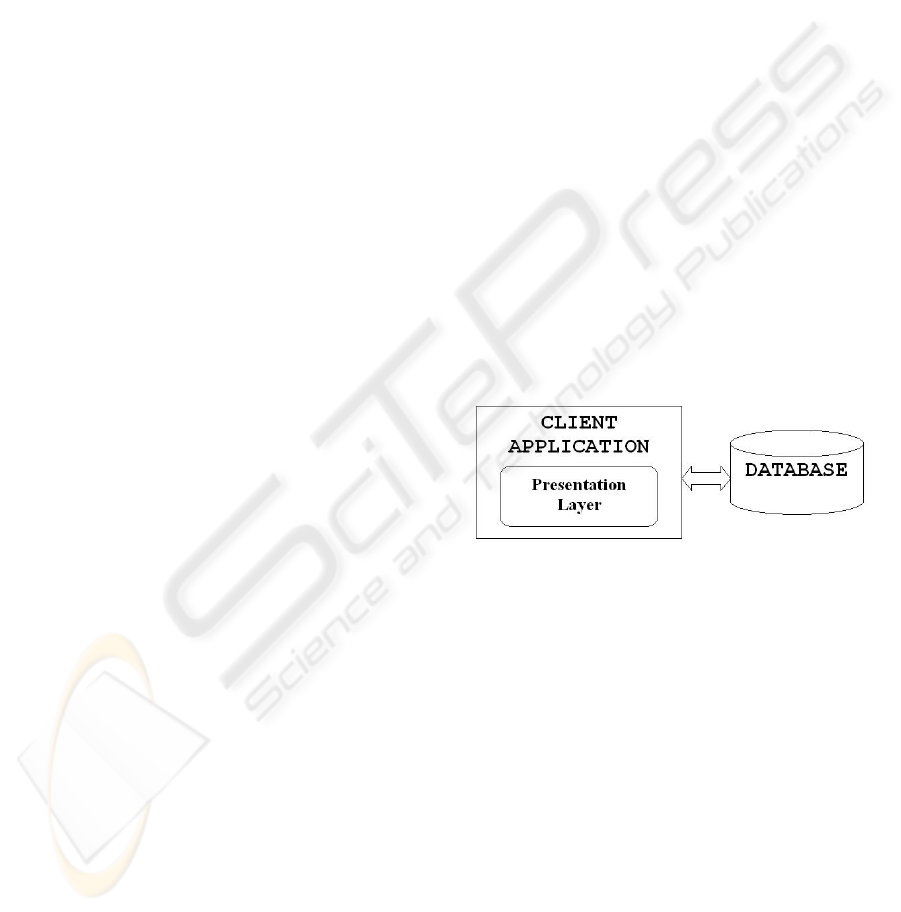

Figure 1: First Stage’s Architecture.

2.2.2 Stage II

Requirements: The transfer of data between the

application and the database is done through an open

environment and therefore it is required to verify if

the information was transmitted correctly.

Consequences: The physical architecture of the

application stays the same like at Stage I, 2-Tier.

Additionally, the application needs to control the

integrity of the information received from the

database.

Checking the integrity of the transferred data is

affecting both the structure of the database and the

application’s architecture. The introduction of these

additional services will modify the logical

architecture of the application, inducing a new layer

that will handle the data verifications. The

MOLDING ARCHITECTURE AND INTEGRITY MECHANISMS EVOLUTION - An Architectural Stability Evaluation

Model for Software Systems

427

application will now have two functional levels:

Presentation and Verification, as presented in Figure

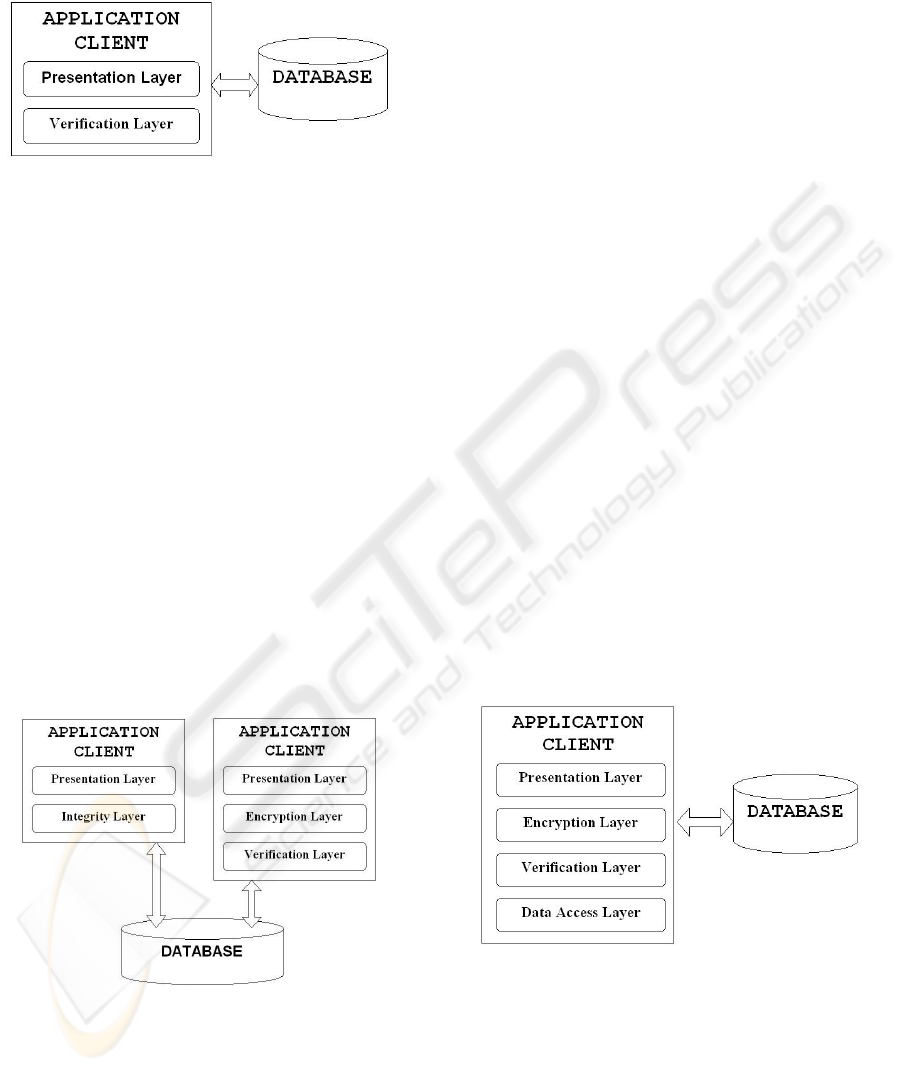

Figure 2: Second Stage’s Architecture.

2.2.3 Stage III

Requirements: The application should maintain

the confidentiality of the transferred data by

protecting it from unauthorized accesses.

Consequences: Digitally signing the data is not

enough to insure that unauthorized third parties do

not access it. Since the communication is done

through and open unsecured environment, it is

necessary to crypt the information in order to insure

its inviolability. The confidentiality requirement can

be implemented either by using the native support of

the database, if existent, or by implementing an

encryption algorithm.

The algorithm and the encryption key are chosen

depending on the required security degree. Either

symmetric algorithms, like DES, or asymmetric

algorithms, like PGP, can be used. Also, most of the

commercial DBMS’s provide native support for

secured communication protocols like SSL.

Figure 3: Stage III–Candidate Architectures.

Similarly with the digital signature, the

encryption of the transferred date adds a

computational overhead. The physical architecture

of the application remains unchanged, but the logical

architecture of the application can change in order to

accommodate the encryption mechanisms in a

separate Encryption layer (Figure 3, right). The

encryption mechanisms can also be clubbed together

with the data verification mechanisms, forming an

integrity layer (Figure 3, left).

2.2.4 Stage IV

Requirements: The application can be

simultaneously used from different computers

(multi-user).

Consequences: Keeping in mind that the

application only reads data from the database, the

physical architecture can stay 2-Tier. Also, since all

clients read data without modifying it, an exclusion

mechanism is not required. Such a requirement will

not at all influence the application’s architecture.

However, the same requirement added after the

stage in which the application already starts to

modify data will for sure influence the architecture.

This also proves that not only the integrity

mechanisms and the architecture are correlated

having the requirements as a catalyst, but also the

order in which requirements are added to the system

is relevant.

2.2.5 Stage V

Requirements: Additionally, the application

will allow its users to modify the record stored in the

database and to add new records.

Consequences: In this stage it is still not

required to take care of the operational integrity of

data since the effects of each and every operation are

available immediately after being done.

Figure 4: Fifth Stage’s Architecture.

The physical architecture of the application

remains unchanged, while the logical architecture is

affected by the introduction of a new layer dedicated

to the data access.

The separation of all data access related

functionalities into a separate layer is the best

solution that can be applied, the application’s

architecture becoming the one from Figure 4 that

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

428

contains the following layers: Presentation,

Verification, Encryption, and Data Access.

2.2.6 Stage VI

Requirements: The application needs to execute

work units or groups of operations whose result to

be available only if the entire group was processed

successfully. Such an operation group should not

overwrite during its execution data that was already

modified by another.

Consequences: This stage is the first in which it

becomes necessary to preserve the operational

integrity of data. The application’s work units

composed of multiple operations defined in the

requirement are actually translated into database

transactions. The clients will therefore require the

ability to impose locks on the records that they read

with the purpose of modifying so that no other

instance will attempt to simultaneously do it. The

transaction execution can be done either by using the

native database support or by embedding the

transaction mechanisms in the application. Also,

there is a third option of implementing the

transactions as database stored procedures.

In case the transactions are processed using the

native database support or implemented as stored

procedures the 2-Tier physical architecture of the

application remains unchanged. However, if the

transactional support is implemented directly in the

application, its physical architecture will modify,

becoming 3-Tier. The additional tier will be

dedicated to transaction management.

Practically, the choice is about the best

transactional model for the application, the available

options being: TP-Less, TP-Lite and TP-Heavy.

As per the initial assumption that at each stage

the lowest impact solution will be chosen, the native

transactional support of the application will be used,

going for a TP-Less transaction processing strategy.

2.2.7 Stage VII

Requirements: The application needs to cope

with strict performance criteria, related both to the

processing speed and the bandwidth required for

data transfer from and to the database.

Consequences: Such non-functional

requirements will trigger modifications in the way

transactions are processed.

There are situations in which the use of the

native transactional support of the database does not

fulfill the required performance criteria, especially

because of the big amount of data transferred to and

from the client in order to be processed. The data set

resulted after each operation will be sent to the client

who will take the decision of continuing the

transaction or not.

The transaction’s implementation as stored

procedures will diminish the quantity of data

transferred through the physical communication

environment. I/O operations are probably the

bottleneck of any software systems, and they are

even slower if network transfer is also involved.

2.2.8 Stage VIII

Requirements: The application needs to support

a number of clients bigger than the maximum

number of connections accepted by the database.

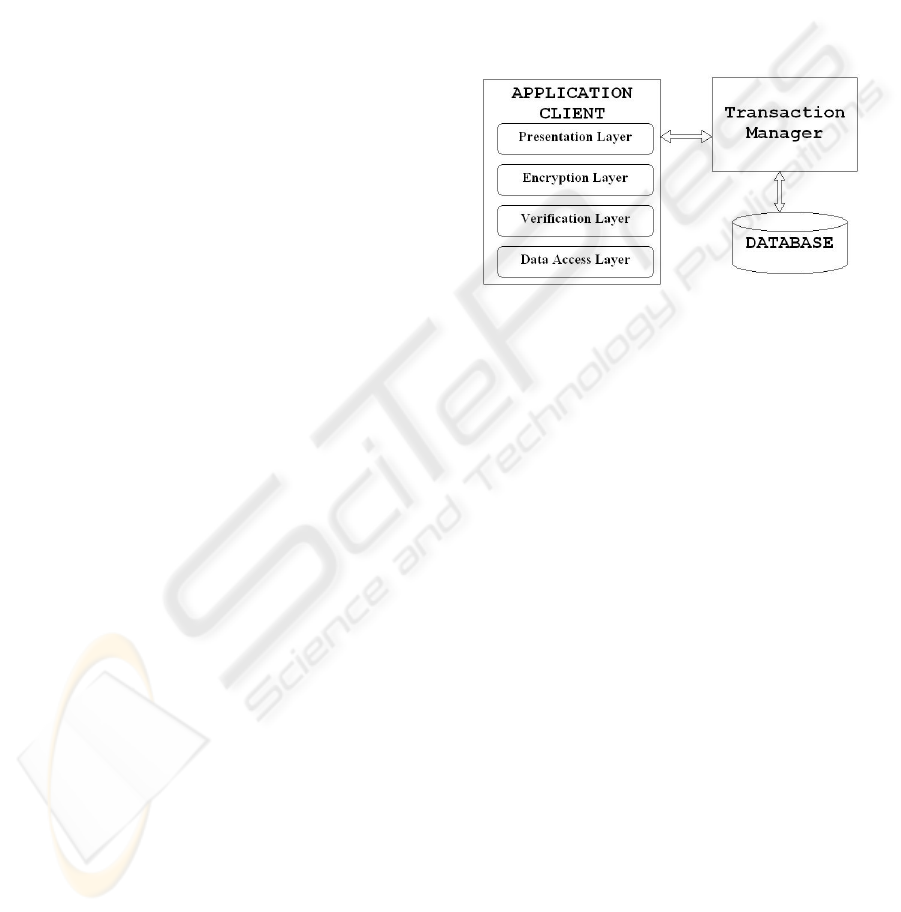

Figure 5: Eighth’s Stage Architecture.

Consequences: The adoption of the above stated

requirement involves changes in the physical

architecture of the application. The transaction

processing strategy needs to change, going to TP-

Heavy and consequently adding a new tier. The

introduction of the additional tier consisting of a

transaction manager, one of the simplest types of

application servers, will change the physical

architecture to 3-Tier (Figure 5).

A transaction manager is doing a multiplex

operation between n clients and m connections,

where usually n is greater than m using a waiting

queue.

3 MATHEMATICAL MODEL

A software system like the one used for the above

case study mathematically modeled. Apart from

modeling the state of the system as any point of

time, its evolution can also be modeled.

Architecturally, a system evolves only when

exposed to stimuli or events, which in such a case

are new or modified requirements. Depending on the

new or modified requirements, the system will

change or not the architectural state, both physically

and/or logically. Therefore, the evolution of a

software system during successive development

cycles can be modeled as a discrete set of states X,

where

∈

is any discrete state of the system.

MOLDING ARCHITECTURE AND INTEGRITY MECHANISMS EVOLUTION - An Architectural Stability Evaluation

Model for Software Systems

429

Let

Γ be a discrete set of requirements that can

be implemented in the studied software system and

Γ∈

a requirement that will be implemented in

the system at a certain time, then

()

xΓ is the set of

requirements, both functional and non-functional,

that can be implemented in the system at a certain

moment.

It is obvious that not all the potential

requirements can be implemented at any moment,

mainly because of dependencies between them.

Also, some of the requirements can become

impossible to implement at certain moments because

of the way the system evolved, reaching some

technical limitations.

The modeling at the system can be started at any

moment, the initial modeling state of the software

system,

x , being chosen accordingly.

Considering the implementation of a requirement

from the set of possible ones in a certain state of the

system

()

xΓ to be equivalent with the application

of a stimulus to any kind of general system, the

software system will make a state transition

depending both on the current state and the applied

stimulus:

(

)

xfx = ,

where

∈Γ∈

For any state

x of a system, a requirement

()

xΓ∈

activated in

x has a lifetime

(

)

The lifetime

()

represents the effort required

to implement the requirement, keeping in mind the

state of the system.

To simplify the model, the requirements are

considered to be implemented one after the other, a

new requirement being introduced only if the system

is not inside a development cycle

()

Every state

x of the system can potentially

have a requirement or a sequence of requirements

that lead to o a state transition. Let’s call such

requirements’ sequences transition triggers because

they trigger a state transition, and use D as notation

for them. The sum of the lifetimes of all the

requirements from a trigger is the lifetime of the

transition trigger:

()

∑

∈

kkD

xcxc

)( .

A trigger is an ordered set. The order of the

requirements inside the set D is strict. A change in

the order of the requirements can provoke the state

transition to happen earlier or not happen at all.

Starting from the points stated above, the

minimum lifetime of between two architectural

states of a system can be defined as being:

()

(

)

()

⎪

⎩

⎪

⎨

⎧

∅=Δ∞

otherwisec

xxif

xxc

jkD

,min

Where

(

)

jkD

xx ,

is the set of transition

triggers that will trigger the state transition from

state

x to state

x .

Furthermore, based on the minimum lifetime

between a state of a system and any other state, the

minimum lifetime in a state can be defined as being

the minimum of all the minimum lifetimes between

that state and any other state of the system,

excepting the previous states:

(

)

(

)

(

)

xxcx ,min

=Κ ,

Where

∈

The minimum lifetime of a system in a state

defines the architectural quality of the system in that

state. As the value of the minimum lifetime of the

system in a certain state is bigger, the system is more

robust, flexible and more resistant to new

requirements’ implementation.

Therefore the architectural flexibility of a system

can be defined in a given context as being

proportional with the minimum lifetime of the

system’s state that corresponds to the evaluated

architecture. An ideal architecture is one that is able

to cope with additional requirements without

changing. It corresponds to an infinite value of the

minimum lifetime of a state.

The lifetime of a requirement, which actually

mean the effort required for its implementation, can

be used as comparison criteria between two systems

with similar functionalities but having different

architectures. The impact of the same requirement

can be different when applied as a stimulus to

different software systems. For example, in one of

the systems the requirement can trigger a state

transition while in other systems the state will

remain unchanged.

4 CONCLUSIONS

The versioned development of an application is used

as a case study, adding a new requirement at each

stage and always tailoring the solution as if no

further development will be done, treating each

stage as the last one.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

430

The case study distinguishes a strong relation

between architecture and integrity, by analyzing the

organizational influence and the impact of the

application’s requirements on the integrity

mechanisms.

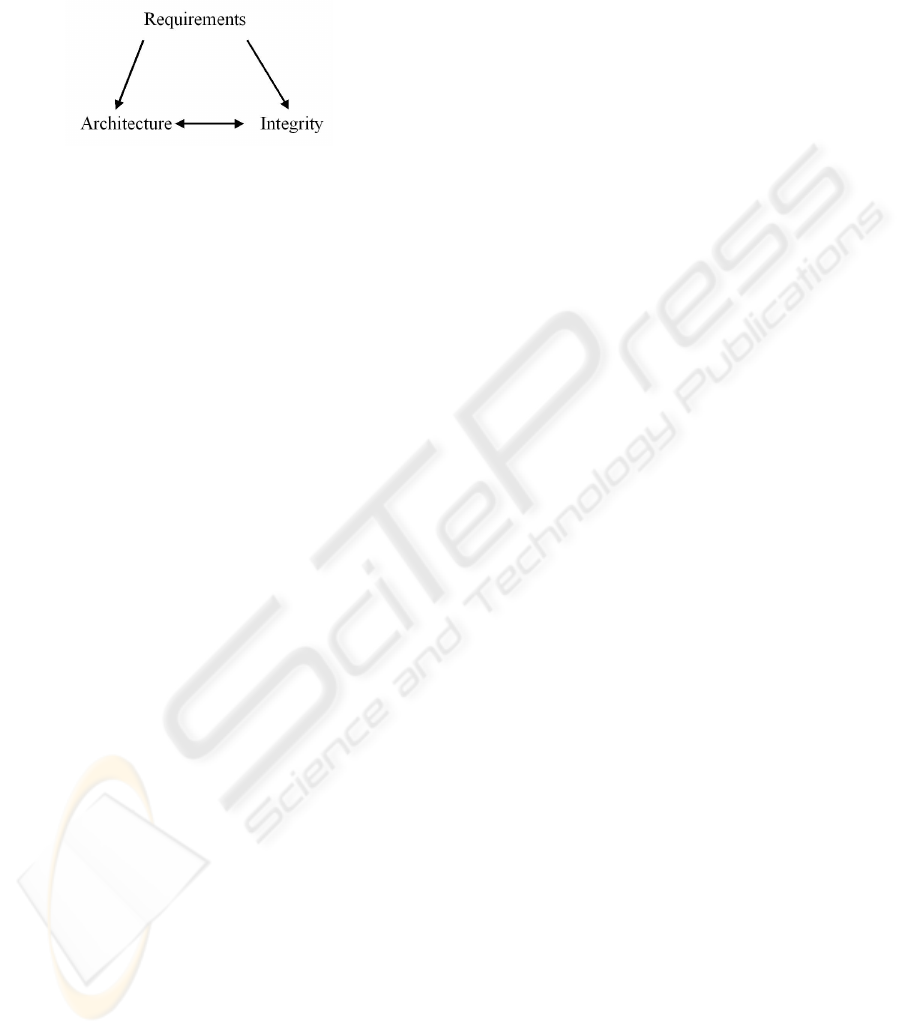

Figure 6: Relations between Architecture, Integrity and

Requirements.

The main conclusion that can be drawn from the

case study presented here is the existence of a

dependency triplet, pictured in Figure 6:

Requirements – Architecture – Integrity. The

architecture of the software system and the way data

integrity is realized and controlled are tightly

coupled together, the set of requirements to be

implemented in the system being the catalyst of this

relation.

Adding new requirements at each phase at the

case study triggered architectural changes. The

logical structure of the application was the most

affected by the additional requirements introduced at

every step. The logical layering of the application

doesn’t serves directly the requirements additionally

implemented in a software system, but gives more

clarity to the system’s architecture, makes it more

scalable and introduces a clear separation between

concerns at system level.

The architectural evolution of an application is

studied, stimulated by the introduction of new

requirements at each stage, distinguishing the

bijective relation between architecture and the

integrity assurance mechanisms that are used. The

relation is injective controlled by the stimuli, in our

case the requirements. The integrity mechanisms and

the multi-level data access architectures are

correlated. Integrity assurance proves to be an

integrant part of any architecture.

REFERENCES

Octavian Paul ROTARU, “Database Integrity Assurance

Mechanisms in Multi-Level Architectures. Pattern and

Components in Databases”, PhD Dissertation,

scientific adviser Prof. Dr. Eng. Mircea Petrescu,

University “Politehnica” Bucharest, 2005.

Mehdi Jazayeri, “OnArchitectural Stability and

Evolution”, Ada-Europe 2002, Vienna, Austria.

D. L. Parnas, “Designing Software for ease of Extension

and Contraction”, IEEE Transactions on Software

Engineering, 5(2), pp. 128-138, March 1979.

D. L. Parnas, “Software aging”, Proc. of International

Conference on Software ENgineering (ICSE94),

Sorento, May 1994, pp. 279-287.

M. Shaw, D. Garlan, ”Software architectures: perspectives

on an emerging disciplines”, Prentice Hall, Englewood

Cliffs, NJ, 1996.

Rami Bahsson, Wolfgang Emmerich, ”Evaluating

Softaware Architectures: Development, Stability, and

Evolution”, the Proceedings of ACS/IEEE

International Conference on Computer Systems and

Applications, Tunis, Tunisia, July 14-18-2003 IEEE

Press.

Muhamad Ali Babar, Ian Gorton, “Comparison of

Scenario-Based Software Architecture Evaluation

Methods”, 11

Asia-Pacific Software Engineering

Conference (ASPEC’04), pp. 600-607.

Gasiorowicz, Stephen, 2003. Quatum Physics, 3

edition.

John Wiley & Sons Inc.

Cohen-Tannoudji, Claude, 1989. Photons and Atoms:

Introduction to Quantum Electrodynamics. John Wiley

& Sons Inc.

MOLDING ARCHITECTURE AND INTEGRITY MECHANISMS EVOLUTION - An Architectural Stability Evaluation

Model for Software Systems

431
