FILTERING UNSATISFIABLE XPATH QUERIES

Jinghua Groppe, Sven Groppe

Digital Enterprise Research Institute (DERI), University of Innsbruck, Institute of Computer Science, AT-6020 Innsbruck

Keywords: Queries, XML, XPath, satisfiability tester, query optimization.

Abstract: Empty results of queries are a hint for semantic errors in users’ queries, and erroneous and unoptimized

queries can lead to highly inefficient processing of queries. For manual optimization, which is prone to

errors, a user needs to be familiar with the schema of the queried data and with implementation details of

the used query engine. Thus, automatic optimization techniques have been developed and have been used

for decades in database management systems for the deductive and relational world. We focus on the

satisfiability problem for the queries formulated in the XML query language XPath. We propose a schema-

based approach to check whether or not an XPath query conforms to the constraints given in the schema in

order to detect semantic errors, and in order to avoid unnecessary evaluations of unsatisfiable queries.

1 INTRODUCTION

XPath (W3C, 1999) (W3C, 2003) is either a

standalone XML query language or is embedded in

other XML languages (e.g. XSLT, XQuery, XLink

and XPointer) for specifying node sets in XML

documents. Different from the query languages for

relational databases, XPath supports complex

navigational paths and qualifiers. Thus, it is not

trivial to develop efficient XPath evaluators and

many current implementations of XPath evaluators

have a high runtime complexity (Gottlob et al.,

2002). There has been work on physical

optimization of XPath expressions, i.e. efficient

algorithms for XPath evaluation, e.g. the XPath

evaluator proposed in (Gottlob et al., 2002), which

considers bottom-up processing of XPath

expressions, indexing techniques (Rao et al., 2004)

(Wang et al., 2003) and structural join algorithms

(Jiang et al., 2003) (Bruno et al., 2002). Many

research efforts focus on the minimization of XPath

expressions (Amer-Uahis et al., 2001) (Ramanan,

2002) since the size of XPath expressions

significantly impacts the processing of queries. The

study on the minimality of XPath actually relates to

the issues of the equivalence and containment with

respect to two XPath queries (Miklau et al., 2002)

(Wood, 2000). Currently, logical rewriting and

optimization of XPath expressions attract more

attention (Olteanu et al., 2002) (Benedikt et al. 2003)

(Chan et al., 2004). The satisfiability problem of

XPath queries is another important determinant of

XPath evaluation. An XPath query is satisfiable if

there exists a document on which the evaluation of

the XPath query returns a non-empty result.

Therefore, using the satisfiability test can avoid the

submission and unnecessary computation of an

unsatisfiable XPath query, and thus saves users’ cost

and evaluation time. One of our contributions is to

show how we can detect unsatisfiable queries based

on schema information.

Since schemas impose the constraints of the

structure and vocabulary of XML documents,

schemas provide an additional dimension for the

satisfiability check of XPath. Our approach supports

the recursive as well as non-recursive schemas and

all XPath axes. The most widely used schema

languages are XML Schema (W3C, 2004) and DTD

(W3C, 1998), but only DTDs are used in the existing

work. In this paper, we focus on XML Schema for

the definition of schemas. An XML Schema can

express more restrictions than a DTD. Thus, a DTD

can be easily transformed into an XML Schema

representation, but in general, an XML Schema

definition cannot be transformed into a DTD.

A common XPath evaluator is typically constructed

to evaluate XPath queries on XML documents. Our

approach modifies the common XPath evaluator in

order to evaluate XPath queries on XML Schema

definitions rather than the instance documents of the

schemas. Since the satisfiability test for the class of

XPath queries supported by our approach in the

presence of schemas is undecidable (Benedikt et al.,

2005), we present a fast, but incomplete satisfiability

tester, i.e. for the satisfiability test of XPath queries,

our approach computes to one of the following

157

Groppe J. and Groppe S. (2006).

FILTERING UNSATISFIABLE XPATH QUERIES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 157-162

DOI: 10.5220/0002465001570162

 SciTePress

results: {unsatisfiable, maybe satisfiable}. Whereas

we are sure that the XPath query is unsatisfiable,

whenever our satisfiability tester returns

unsatisfiable, we cannot be sure that the XPath

query is satisfiable if our satisfiability tester returns

maybe satisfiable.

Related Work. Several contributions focus on

the satisfiability problem of XPath queries.

(Benedikt et al., 2005) theoretically studies the

complexity problem of XPath satisfiability in the

presence of DTDs, and shows that the complexity of

XPath satisfiability depends on the considered

subsets of XPath expressions and DTDs. We present

a practical algorithm for testing the satisfiability of

XPath queries. (Hidders, 2003) investigates the

problem of satisfiability of XPath expressions in the

absence of schemas. (Lakshmanan et al., 2004)

examines the test of satisfiability of tree pattern

queries (i.e. reverse axes are not considered) with

respect to non-recursive schemas. (Kwong et al.,

2002) suggests an algorithm to test the satisfiability

of XPath queries, but allows only non-recursive

DTDs and does not support all XPath axes. We

support recursive schemas and all XPath axes.

(Groppe et al., 2006) filters the unsatisfiable XPah

queries by a set of simplification rules while we use

the constraints given by an XML Schema definition

to check the satisfiability of XPath. (Groppe, 2005)

extends the applications of satisfiability testers to

optimizations for XML query reformulation and

shows how to reduce the containment and

intersection test of XPath expressions to the

satisfiability test.

The rest of the paper is organized as follows. Section

2 defines the XML Schema subset and XPath subset

supported by our approach. Section 3 develops a

data model of XML Schema for evaluating XPath

queries on an XML Schema definition. Section 4

presents our approach, the XSchema-XPath

evaluator, including the satisfiability test of XPath

expressions. This paper ends up with the summary

and conclusions in Section 5.

2 XML SCHEMA AND XPATH

Due to space limitations, we do not introduce XML

Schema here, but we refer readers to the

specification (W3C, 2004). We support the subset of

the XML Schema language, which contains the most

important language constructs to express XML

Schema definitions, where a given XML Schema

definition must conform to the following rules

defined in Extended Backus Naur Form (EBNF).

XSchema::= <schema> (elemD|attrGD|groupD|compTD)*

</schema>.

elemD::= <elem name='N' occurs? (type=’T’)?>

compT? </compT> (attrR|attrD)* </elem>.

groupD::= <group name='N'> compT? </group>.

compTD::= <compT name='N'> compT </compT>.

compT::= <all occurs?> compT? </all> | <seq occurs?>

compT? </seq> | (elems | groupR)*.

elems::= (elemD | <elem ref='N' occurs? />)*.

groupR::= <group ref='N'/>.

attrR::= <attrG ref='N'/>.

attrGD::= <attrG name='N'> (attrD)* </attrG>.

attrD::= <attr name='N' type=’T’ (use=’required’)?/>

occurs::= minO=num maxO=(num|'unbounded').

where T is a simple type, N is a name and num is a

number. Furthermore, we use

elem as short name for

element, compT for complexType, seq for sequence, attrG

for

attributeGroup, attr for attribute, minO for minOccurs and

maxO for maxOccurs.

Example 1: Figure 1 presents an example of an

XML Schema definition bib.xsd.

(D1) <schema> <group name='jArticle'> <seq>

(D2) <elem name='article' minO='1' maxO='1'>

(D3) <compT> <seq>

(D4) <elem name='year' minO='0' maxO='1’ type='string'/>

(D5) <elem name='ref' minO='0' maxO='1'>

(D6) <compT> <group ref='jArticle' minO='0'

maxO='unbounded'/> </compT> </elem>

</seq></compT></elem></seq></group>

(D7) <elem name='bib'>

(D8) <compT><group ref='jArticle' minO='0'

maxO='unbounded'/> </compT> </elem>

</schema>

Figure 1: An XML Schema definition bib.xsd.

In this paper, we consider the basic properties of the

XPath language. Due to space limitations, we do not

introduce XPath here, but we refer readers to the

specifications (W3C, 1999) and (W3C, 2003). Let e

be an XPath expression, q be a predicate expression

of XPath and C be a literal, i.e. a string or a number.

The abstract syntax of the supported XPath subset is

defined in EBNF as follows:

e::= e|e | /e | e/e | e[q] | axis::nodetest.

q::= e | e=C | e=e | q and q | q or q | not(q) | (q) | true() | false().

ances | DoS | AoS | FS | PS.

nodetest::= tagname | ∗ | node() | text().

where we write DoS for descendant-or-self, AoS for

ancestor-or-self, FS for following-sibling and PS for

preceding-sibling. Furthermore, we use attr as short

name for

attribute, desc for descendant and ances for

ancestor.

3 DATA MODEL FOR XML

SCHEMA

Based-on the data models for the XML language

given by (Wadler, 2000) and (Olteanu et al., 2002),

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

158

we develop a data model for XML Schema for

identifying the navigation paths of XPath queries on

an XML Schema definition. The transitive closure f

and reflexive transitive closure f* of a relationship

function f:T→Set(T) are defined as follows:

(x) = { z | y∈f

n-1

(x) ∧ z∈f(y) }, where f

(x) = {x}, f

(x) = f (x)

(x)

= ∪

n=1

∞

(x) and f *(x) = ∪

n=0

∞

(x)

An XML Schema definition is a set of nodes of type

Node.

There are four specific Node types in XML

Schema definitions, which are associated with

instance nodes of the schema:

root, iElem, iAttr and

iText.

Accordingly, we define four functions of

Node→Boolean to test the type of a node: isRoot, isiElem,

isiAttr, and isiText, which return true if the type of the

given node is a root node, is of type

iElem, iAttr or iText

respectively, otherwise false.

Definition 1 (instance nodes): The instance nodes

of an XML Schema definition are

• <elem name=N> (which is of type iElem),

• <attr name=N> (which is of type iAttr),

• <compT mixed= ‘true’>

(which is of type iText),

• <elem type=T> (which is of type iText), where T is

simpleT.

Definition 2 (succeeding nodes): A node N2 in an

XML Schema definition is a succeeding node of a

node

N1 in the XML Schema definition if

• N2 is a child node of N1, or

• N1=<elem type=N> and N2=<compT name=N> with

the same

N, or

• N1=<elem ref=N>

and N2=<elem name=N> with the

same

N, or

• N1=<group ref=N> and N2=<group name=N> with the

same

N, or

• N1=<attrG ref=N> and N2=<attrG name=N> with the

same

Definition 3 (preceding nodes): Node N1 in an

XML Schema definition is a preceding node of a

node

N2 in the XML Schema definition if N2 is a

succeeding node of

N1.

Figure 2 defines the relation functions of

Node→Set(Node), which relate a schema node to other

schema nodes. For instances,

root(x) returns the root

node of the document in which

x occurs; iChild relates

a node to its instance child nodes. For computing

iChild(x), an auxiliary function S(x) is defined, which

relates the node

x to the self node and all the

descendant nodes of

x, which occur before the

instance child nodes of

x in the document order. iDesc

relates a node to all its instance descendant nodes

and is defined to be the transitive closure

iChild

. The

relation function

iSibling(x) relates the node x to its

instance sibling nodes.

iBranch(x) relates node x to all

the instance element nodes excluding any ancestors

and descendants of the node

x. iPS(x) relates the node

x to its instance sibling nodes that occur before node

x in the document order, and iPreceding(x) relates node

x to its instance branch nodes that occur before node

x in the document order. We write y<<x to indicate

that the node

y occurs before the node x in the

document order of an instance document. The

document order is computed from an XML Schema

definition in the following way: if a set of elements

is declared as

seq with the attribute maxO set to 1, the

document order of elements is the order in which

they are defined; if it is declared as

all or as seq with

the attribute

maxO set to a number greater than 1, any

element of this set of elements can occur before any

other elements of this element set in an instance

document.

root(x) = { y | isRoot(y)}

succeeding(x) = { y | y is a succeeding node of x }

preceding(x) = { y | y is preceding node of x }

S(x) = ∪

i=0

∞

, where S

= {x}, S

= { z | y∈S

i-1

∧

z∈succeeding(y) ∧ ¬isiElem(z) ∧ ¬isiAttr(z) }

P(x) = ∪

i=0

∞

, where P

= {x}, P

= { z | y∈P

i-1

∧

z∈preceding(y) ∧ ¬isiElem(z) ∧ ¬isiAttri(z) }

iChild(x) = { z | y∈S(x) ∧ z∈succeeding(y) ∧

( isiElem(z) ∨ isiText(z) ) }

iAttribute(x) = { z | y∈S(x) ∧ z∈succeeding(y) ∧ isiAttr(z) }

iParent(x) = { z | y∈P(x) ∧ z∈preceding(y) ∧ isiElem(z) }

iDesc(x) = {z | z∈iChild

(x)}

iAnces(x) = {z | z∈iParent

(x)}

iDoS(x) = {z | z∈iChild

∗

(x)}

iAoS(x) = {z | z∈iParent

∗

(x)}

iSibling(x) = {y | z∈iParent(x) ∧ y∈iChild(z)}

iBranch(x) = {y | y∈iChild

(root(x)) ∧ y ∉iParent

∗

(x) ∧

y ∉iChild

(x) ∧ ¬isiAttr(y)}

iPS(x) = {y | y∈iSibling(x) ∧ y << x}

iFS(x) = {y | y∈iSibling(x) ∧ x << y}

iPreceding(x) = {y | y∈iBranch(x) ∧ y << x }

iFollowing(x) = {y | y∈iBranch(x) ∧ x << y}

Figure 2: Used relation functions.

Let nodeTest be the type of the node tests of XPath.

An auxiliary function

attr(x, name) retrieves the value

of the attribute

name of the node x. The function NT,

which tests a schema node against a node test of

XPath, is defined as:

NT: Node × NodeTest → Boolean

• NT(x, tagname) = ( isiElem(x) ∧ (attr(x, name)=tagname)

)

∨ ( isiAttr(x) ∧ (attr(x, name)=tagname) )

• NT(x, ∗) = isiElem(x) ∨ isiAttr(x)

• NT(x, node()) = true

• NT(x, text()) = isiText(x)

4 XSCHEMA-XPATH

EVALUATOR

As a variant of a common XPath evaluator, our

XSchema-XPath evaluator evaluates XPath

expressions on an XML Schema definition rather

than XML instance documents. Instead of

FILTERING UNSATISFIABLE XPATH QUERIES

159

computing the node set of a given instance XML

document, our XSchema-XPath evaluator computes

a set of schema paths to the possible nodes specified

by a given XPath query when the XPath query is

evaluated by a common XPath evaluator on XML

instance documents. If an XPath query cannot be

evaluated completely, the schema paths for the

XPath query are computed to an empty set of

schema paths, i.e. the XPath query is unsatisfiable

according to the schema.

Definition 4 (Schema paths): A schema path is a

sequence of pointers to either the records <XP’, N, z, lp,

or the records <o, {f, …, f}>, where

• XP’ is an XPath expression,

• N is a node in an XML Schema definition,

• z is a set of pointers

• lp

is a set of schema paths,

• f is a schema path list, or a predicate

expression without location steps, and

• o is a keyword.

XP’ is the part of a given XPath expression, which

has been evaluated;

N is a resultant node of a schema

whenever XP’ is evaluated by our XSchema-XPath

evaluator on the schema definition; z is a set of

pointers to the records in which the schema node is

the parent of the schema node of the current record.

Note whenever a record is the first record of a loop,

the record has more than one possible parent record.

lp represents loop schema paths; f represents either a

schema path list computed from a predicate

q that

test the node N, or the predicate expression q itself

from which no schema paths can be computed like

true() or false(), but also including self::node()=C. o

represents operators like or, and and not.

4.1 Computing Schema Paths

We use the technique of the denotational semantics

(Schmidt, 1994) to describe our XSchema-XPath

evaluator, and define the following notations. Let

be a pointer in a schema path and

d is a field of a

schema record, we write

z.d to refer to the field d of

the record to which the pointer

z points. We use the

letter S to represent the size of a schema path p, thus

p(S) to represent the last pointer, p(S-1) the pre-last

pointer, and so on.

Figure 3 defines the denotational semantic

L of the

XSchema-XPath evaluator. The function

L takes an

XPath expression and a schema path as the

arguments and yields a set of new schema paths, and

is defined recursively on the structure of XPath

expressions. For evaluating each location step of an

XPath expression, our XSchema-XPath evaluator

first computes the axis and the node test of the

location step by iteratively taking the schema node

p(S).N from each schema path p in the path set as the

context node. The path set is computed from the part

xp’’ of the XPath query, which has been evaluated by

the XSchema-XPath evaluator. For each resultant

node r selected by the current location step

, a new

schema path is generated based on the old path

The auxiliary function ϑ(r, g) generates a new schema

path record e=<xp’, r, g, -, ->, adds a pointer to e at the

end of the given schema path

p and returns a new

schema path, where xp’=xp’’/xp

and g is a set of

pointers.

In the case of recursive schemas, it may occur

that the XSchema-XPath evaluator revisits a node

of the XML Schema definition without any progress

in the processing of the query. We call this a loop. A

loop might occur when an XPath query contains the

axis

desc, ances, preceding or following, which are boiled

down to the recursive evaluation of the axis child or

parent respectively. We detect loops in the following

way: let

r be a visited schema node when evaluating

the part

xp’ of an XPath expression with p(S).N as the

context node. If there exists a record

p(i) in p, such

that

p(i).N=r, and p(i).XP’=xp’, a loop is detected and the

loop path segment is

lp = (p(i), …,p(S)). lp will be

attached to the schema node

p(i).N where the loop

occurs. For computing

L⎡desc::n⎦(p), we first compute

| p

∈L⎡child::*⎦(p

i-1

) where p

=L⎡child::*⎦(p). If no loop is

detected in the path p

, i.e. ∀i∈{1, ..., S-1}: p

(i).N≠p

(S).N

∧ p

(i).XP’≠p

(S).XP’, L’⎡self::n⎦(p

) is then computed in

order to construct a possible new path from

. If a

loop is detected in the path

, i.e. ∃k∈{1,.., S-1}:

(k).N=p

(S).N ∧ p

(k).XP’=p

(S).XP’, a loop path segment,

i.e.

(k), …, p

(S-1)} is identified. The function X

modifies the record, which is the head of the loop,

by adding the loop path into the record, i.e.

X(p

(k),

(k),..,p(S-1))), and returns true. Furthermore,

although the schema nodes in two records are the

same, i.e.

(k).N=p

(S).N, these two nodes have

different parents, i.e,

(k).z ≠ p

(S).z. Therefore, the

new parent

(S).z has to be recorded and this is done

by the function

Z, which adds a parent pointer to the

record

(k), i.e. Z(p

(k), p

(S).z), and returns true.

The schema paths of a predicate are attached to

the context node of the predicate. The function

A(F, i,

p) writes F into the field p(i).f and returns the modified

schema path

p. The parameter F = {f

,..,f

} is computed

from a set of predicates

,..q

. f

is either a schema

path list computed from a predicate

, or is the

predicate expression

itself when q

does not contain

location steps. The node

p(i).N is the context node of

these predicates.

is evaluated to false if q

computed to the empty schema paths with the

exception of

not(q), which is computed to true. For

instance,

L⎡e[q

and q

]⎦(p) is computed to empty paths

or q

are evaluated to false. When computing the

schema paths of a predicate, the XSchema-XPath

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

160

evaluator initializes a schema path variable

f with

null, which is logically concatenated with the main

path

p, denoted by p+f, for the need of both finding

the context node of the predicate and finding the

nodes specified by reverse axes in the predicate,

which occur before the context node of the predicate

in the document order.

L: XPath expression × schem path → set(schem path)

• L⎡e1|e2⎦(p) = L⎡e1⎦(p) ∪ L⎡e2⎦(p)

• L⎡/e⎦(p) = L⎡e⎦(p

) ∧ p

=( </,/,-, -, - > )

• L⎡e1/e2⎦(p) = { p

| p

∈L⎡e2⎦(p

)

∧ p

∈L⎡e1⎦(p) }

• L⎡self::n⎦(p) = { ϑ(p(S).N, p(S).z) | NT(p(S).N, n) }

• L⎡child::n⎦(p) = {ϑ(r, p(S)) | r∈iChild(p(S).N) ∧ NT(r,n) }

• L⎡attr::n⎦(p) = { ϑ(r, p(S)) | r∈iAttr(p(S).N) ∧ NT(r,n) }

• L’⎡self::n⎦(p) = { p | NT(p(S).N, n) }

• L⎡desc::n⎦(p) = { p’ | p’∈∪

i=1

∞

L’⎡self::n⎦(p

) ∧

∀k∈{1, …, S-1 }: p

(k).N≠p

(S).N ∧ p

(k).XP’≠p

(S).XP’

where p

∈L⎡child::∗⎦(p

i-1

)

∧ p

∈L⎡child::∗⎦(p), or

p’∈∪

i=1

∞

L’⎡self::n⎦(p

i-1

)

∧ X(p

(k), (p

(k),..,p(S-1))) ∧

Z(p

(k), p

(S).z)) ∧ ∃k∈{ 1,.., S-1 }:

(k).N=p

(S).N ∧ p

(k).XP’=p

(S).XP’,

where p

∈L⎡child::∗⎦(p

i-1

)

∧ p

i-1

∈ L⎡child::*⎦(p

i-2

) ∧

∈L⎡child::∗⎦(p).

• L⎡DoS::n⎦(p)= L⎡self::n⎦(p) ∪ L⎡desc::n⎦(p)

• L⎡parent::n⎦(p) = { ϑ(r, x)| r=Z1.N ∧ Z1∈p(S).z ∧ x=Z1.z ∧

NT(r,n) }

• L⎡ances::n⎦(p) = { p’ | p’∈∪

i=1

∞

L’⎡self::n⎦(p

) ∧

∀k∈{1,.., S-1}: p

(k).N≠p

(S).N ∧ p

(k).XP’≠p

(S).XP’,

where p

∈L⎡parent::∗⎦(p

i-1

) ∧ p

∈L⎡parent::∗⎦(p)

p’∈∪

i=1

∞

L’⎡self::n⎦(p

i-1

)

∧ X(p

(k), (p

(k),..,p(S-1))) ∧

Z(p

(k), p

(S).z)) ∧ ∃k∈{1,.., S-1}:

(k).N=p

(S).N ∧ p

(k).XP’=p

(S).XP’,

where p

∈L⎡parent::∗⎦(p

i-1

) ∧ p

i-1

∈L⎡parent::*⎦(p

i-2

) ∧

∈L⎡parent::∗⎦(p).

• L⎡AoS::n⎦(p) = L⎡self::n⎦(p) ∪ L⎡ances::n⎦(p)

• L⎡FS::n⎦(p) = { ϑ(r, p(S).z) | r∈iFS(p(S).N) ∧ NT(r,n) }

• L⎡following::n⎦(p) = L⎡AoS:: ∗/FS :: ∗/DoS::n⎦(p)

• L⎡PS::n⎦(p) = { ϑ(r, p(S).z) | r∈iPS(p(S).N) ∧ NT(r,n) }

• L⎡preceding::n⎦(p) = L⎡AoS:: ∗/PS :: ∗/DoS ::n⎦(p)

• L⎡e[q]⎦(p) = A( {L⎡q⎦(p’+f)}, S, p’ ), where f=∅ ∧ p’∈L⎡e⎦(p)

• L⎡e[q

]]⎦(p) = A( {L⎡q

]⎦(p’+f)}, S, p’ ),

where f=∅ ∧ p’∈L⎡e⎦(p)

• L⎡e[self::node()=C]⎦(p) = A( {‘self::node()=C’}, S, p’ ),

where p’∈L⎡e⎦(p)

• L⎡e[q = C]⎦(p) = L⎡e[q[self::node()=C]]⎦(p)

• L⎡e[q

][q

]⎦(p) = A( {A( {L⎡q

⎦(p’+f

), L⎡q

⎦(p’+f

)}, S, f)}, S, p’),

where p’∈L⎡e⎦ (p) ∧ f=(<‘and’, ->) ∧ f

=∅ ∧ f

=∅.

• L⎡e[q

and q

]⎦(p) = L⎡e[q

][q

]⎦(p)

• L⎡e[q

or q

]⎦(p) = A( {A ({L⎡q

⎦(p’+f

), L⎡q

⎦(p’+f

)}, S, f)}, S, p’),

where p’∈L⎡e⎦(p) ∧ f=(<‘or’, ->) ∧ f

=∅ ∧ f

=∅.

• L⎡e[q

= q

]⎦(p) = A( {A ({L⎡q

⎦(p’+f

), L⎡q

⎦(p’+f

)}, S, f)}, S, p’),

where p’∈L⎡e⎦(p) ∧ f=(<‘=’, ->) ∧ f

=∅ ∧ f

=∅.

• L⎡e[not(q)]⎦(p) = A( {L⎡q

⎦(p’+f

)}, S, f) , where

f=(<‘not’, ->) ∧ p’∈L⎡e⎦ (p) ∧ f

=∅.

Figure 3: Formulas for constructing the schema paths.

Example 2: Our XSchema-XPath evaluator

evaluates an XPath query

Q in Figure 4 on the XML

Schema definition of Figure 1 and computes a

schema path (cf. Figure 5). Figure 6 is the graphical

representation of Figure 5, in which we only present

the schema node item of records of the schema path.

Figure 4: XPath query Q and its subexpressions.

(R1) { (</, /, -, -, -> ,

(R2) <S1, D7, {R1}, -, ->,

(R3) <S2, D2, {R2, R4},

(R4) {(<S2, D5, {R3}, -, ->)},

(R5) (<‘and’,

(R6) {(<S3, D4, {R3}, -, ->),

(R7) ‘true()’} > ) >,

(R8) <Q, D5, {R3}, -, -> )}

Figure 5: Schema paths of the query Q.

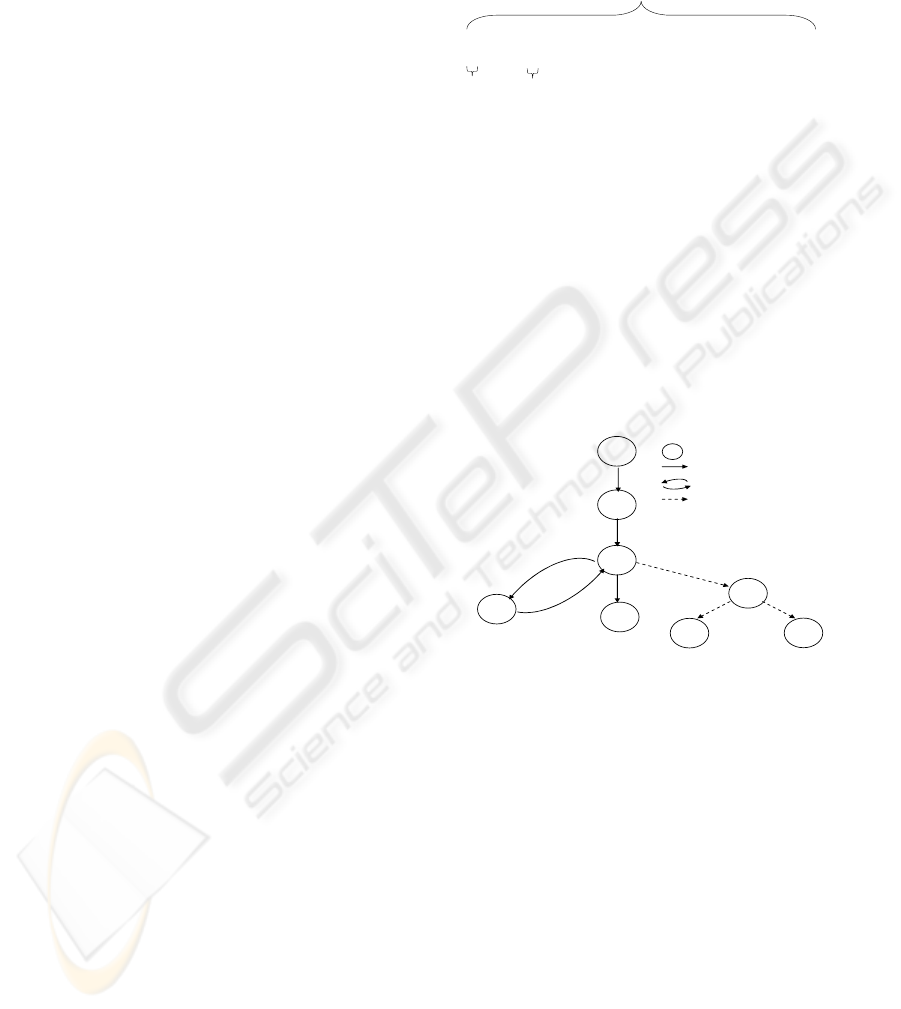

Figure 6: Graphical representation of the schema paths of

Figure 5.

4.2 Satisfiability Test

Definition 5 (Satisfiability of XPath querys): A

given XPath query

Q is satisfiable according to a

given XML Schema definition

XSD, if there exists an

XML document

D, which is valid according to XSD,

and the evaluation of

Q on D returns a non-empty

result. Otherwise

Q is unsatisfiable according to XSD.

Proposition 1 (Unsatisfiable XPath querys): A

given XPath query

Q is unsatisfiable according to a

given XML Schema definition

XSD if the evaluation

Q by the XSchema-XPath evaluator on XSD

generates an empty set of schema paths.

Proof. The XSchema-XPath evaluator is constructed

in such a way that the XSchema-XPath evaluator

returns an empty set of schema paths, if the

constraints given in

Q and the constraints given in

/bib//article[year][not(self::node()[editor]/AoS::node()[self::node()=‘bib’])]/parent::ref

‘and’

‘true()’

main schema path

loop schema path

predicate schema path

schema record

FILTERING UNSATISFIABLE XPATH QUERIES

161

XSD exclude the constraints of the other. Thus, there

does not exist a valid XML document according to

XSD, where the application of Q returns a non-empty

result.

If the XSchema-XPath evaluator computes a

non-empty set of schema paths for a given XPath

query

Q, the XPath query is only maybe satisfiable,

since the satisfiability test of XPath expressions

formulated in the supported subset of XPath is

undecidable (Benedikt et al., 2005).

5 SUMMARY AND

CONCLUSIONS

We have proposed a fast satisfiability tester of

XPath queries, the XSchema-XPath evaluator, which

evaluates XPath queries on recursive and non-

recursive XML Schema definitions. We have

developed a data model of the XML Schema

language to identify the node relationships parent-

child and next-sibling of declared XML nodes in

XML Schema definitions so that we can support all

XPath axes. Based on the data model, the

XSchema-XPath evaluator evaluates given XPath

queries on an XML Schema definition and generates

a set of schema paths. Whenever the set of schema

paths is computed to an empty set, the XPath query

is unsatisfiable, otherwise the XPath query is maybe

satisfiable.

The experimental results of our prototype (which we

do not present here due to space limitations) show

that our approach can significantly optimize the

evaluation of XPath queries by filtering unsatisfiable

XPath queries. A speed-up factor up to several

magnitudes is possible.

We will investigate how to support a bigger subset

of XPath in our future work.

ACKNOWLEDGEMENTS

This material is based upon works supported by the

EU funding under the Adaptive Services Grid

project (FP6 – 004617). Furthermore, this material is

based upon works supported by the Science

Foundation Ireland under Grant No.

SFI/02/CE1/I131.

REFERENCES

S. Amer-Uahis, S. Cho, L.K.S. Laksmanan, D. Srivastava,

2001. Mininization of tree pattern queries. In

SIGMOD’01.

M. Benedikt, W. Fan and G. M. Kuper, 2003. Structural

properties of XPath fragments. In ICDT’03.

M. Benedikt, W. Fan and F. Geerts, 2005. XPath

Satisfiability in the presence of DTDs. In PODS’03.

N. Bruno, N. Koudas, and D. Srivastava, 2002. Holistic

twig joins: optimal XML pattern matching. In

SIGMOD’02.

C.Y. Chan, W. Fan, and Y. Zeng, 2004. Taming XPath

Queries by Minimizing Wildcard Steps. In VLDB’04.

G. Gottlob, C. Koch, and R. Pichler, 2002. Efficient

Algorithms for Processing XPath Queries. In

VLDB’02.

S. Groppe, 2005. XML Query Reformulation for XPath,

XSLT and XQuery. Sierke-Verlag, Göttingen,

Germany. ISBN 3-933893-24-0.

S. Groppe, S. Böttcher and J. Groppe, 2006. XPath Query

Simplification with regard to the Elimination of

Intersect and Except Operators. In XSDM’06 in

conjunction with ICDE’06.

J. Hidders, 2003. Satisfiability of XPath Expressions,

DBPL’03, LNCS 2921, pp. 21 – 36.

H. Jiang, W. Wang, H. Lu and J. X. Yu, 2003. Holistic

twig joins on indexed XML documents. In VLDB’03.

L. Lakshmanan, G. Ramesh, H. Wang and X. Zhao, 2004.

On Testing Satisfiability of Tree Pattern Queries. In

VLDB’04.

A. Kwong and M. Gertz, 2002. Schema-based

optimization of XPath expressions. Techn. Report

University of California, California, USA.

G. Miklau and D. Suciu, 2002. Containment and

equivalence for an XPath fragment. In PODS’02.

D. Olteanu, H. Meuss, T. Furche, and F. Bry, 2002.

XPath: Looking Forward, XML-Based Data

Management (XMLDM), EDBT Workshops.

P. Ramanan, 2002. Efficient algorithms for minimizing

tree pattern queries. In SIGMOD’02.

P. Rao and B. Moon, 2004. PRIX: indexing and querying

XML using Prufer sequences. In ICDE’04.

D.A. Schmidt, 1994. The structure of Typed programming

languages. MIT Press, Cambridge, MA, USA.

P. Wadler, 2000. Two semantics for XPath. Tech. Report.

H. Wang, S. Park, W. Fan and P.S. Yu, 2003. ViST: a

dynamic index method for querying XML data by tree

structures. In SIGMOD’03.

P. T. Wood, 2000. On the equivalence of XML patterns.

In LNCS 1861, pages 1152-1166. Springer.

W3C, 1999. XML Path Language (XPath) Version 1.0,

W3C Recommendation, www.w3.org/TR/xpath/.

W3C, 2003. XML Path Language (XPath) Version 2.0,

W3C Working Draft, www.w3.org/TR/xpath20/.

W3C, 1998. Extensible Markup Language (XML) 1.0.

W3C Recommendation, www.w3.org/TR/REC-xml.

W3C, 2004. XML Schema Part 1: Structures Second

Edition. W3C Recommendation,

www.w3.org/TR/xmlschema-1.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

162
