GRADUAL MODELING OF INFORMATION SYSTEM

Model of Method Expressed as Transitions Between Concepts

Marek Pícka, Robert Pergl

Institute of Management, Czech Agricultural University, Kamýcká 129, Prague, Czech Republic

Keywords: BORM methodology, Unified Process, model, transformation, software engineering, method’s model.

Abstract: The objective of this paper is to show a new way of depicting information systems‘ models of design

methods. New terms of the method are created by sequential transformations from the existing terms. The

model of elements‘ transformation is an instance of this model. It depicts the process of constructing given

information system.

1 INTRODUCTION

The creator of an IS generally works by sequentially

adding new elements to the model. However,

analytical and design methods usually used cannot

record the relationships between the elements being

added and the model created so-far. Methods usually

don’t explicitly contain relationships among their

terms, either.

Nowadays, information systems are usually

designed using methodologies that don’t help

maintain relationships among the individual

gradually added elements of the model much. Big

mental jumps among loosely bound elements

(documents, diagrams) are usual in methodologies --

e.g. in methodologies based upon UML. There exist

huge gaps between the use-case diagrams, the

activity diagrams, sequences and classes. This forces

the analyst to fill those gaps in his mind, which

increases the demands on analyst’s experience of the

modelled branch on one hand. On the other hand,

those transitions are undocumented, because

methodologies don’t provide ways how to record

them – we cannot say why and how a certain

element got into the model. That leads to a

consistency loss among those elements. Model

typically contains elements that are either useless or

even false. A solution may be to construct an IS in a

sequence of small steps that follow each other, such

that the analyst doesn’t lose the context.

The goal of this paper is to show a new way of

correctness and consistency assurance during IS

design using successive transformation of elements

in the model from entry elements, created according

to the task, to elements making the appropriate IS

model.

2 DEFINITION OF TERMS

For better understanding of the following text, we

will define new terms that we will use:

Concept – is an entity with which we work in the

method (or methodology). Examples of concepts

are: class, package, use-case, function, scenario,

state, activity, etc.

Transition between the concepts – it is a possible

transformation of (several) concepts to new

concepts, which is allowed in the method.

Model of admissible transitions in the method (or

shortly the model of the method) – is a model

depicting all concepts of the method and mutual

transitions allowed by the method. This model is

expressed by the Concept Transition Diagram.

Element is an instance of concept. It represents

concrete, further indivisible parts of the IS model.

Elements are stored in a repository of the model.

Examples of elements include a concrete class, a

method, a function, a scenario, etc. A new element

of the model is created by a transformation of

existing elements in the model.

Transformation between elements – is an instance of

a concept transition. The transformation between

elements is a process in which new elements in the

model are created from the existing ones. The

538

Pícka M. and Pergl R. (2006).

GRADUAL MODELING OF INFORMATION SYSTEM - Model of Method Expressed as Transitions Between Concepts.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 538-541

DOI: 10.5220/0002457705380541

 SciTePress

transformation between elements is specified by its

appropriate transition.

Element Transformation Log – is a layer of the

model which depicts all transformations performed

in the model. This log records the “pedigree” of all

elements in the model (i.e., relations of predecessor-

successor type in the model).

3 SUCCESSIVE CONSTRUCTION

OF INFORMATION SYSTEM

Successive modeling of information system in small

steps (for context and relevance assurance) can be

seen as successive adding of new elements to the

existing model. For correctness assurance we

propose to abide the following rules:

• Every new element added to the model of

the information system must have sense.

• Every new element must be created by a

relevant (for given moment and given

elements) transformation from the elements

already present in the model (predecessor-

successor relation).

• So-called entry elements exist in the model.

They have no predecessor in the model and

were created directly from the specification.

If those rules are followed, a new layer of model is

constructed along with the model. The layer will

show which elements originated from which

elements and will record transformations among

them (the pedigree of all elements in the model will

be available). If the origins of all elements are

recorded, a powerful tool for relevance checking is

obtained. More about the construction of the element

transformation log is in Picka 2004.

4 CONCEPT TRANSITION

MODEL

During the IS design, the construction of the element

transition log helps us to just a limited extent. The

above mentioned rules just tell us that we cannot add

new elements arbitrarily – every newly added

element shall have its predecessor. This forces the

designer to think about the context of every newly

added element and it decreases the probability of

errors in design. However, the designer is not

advised as to by which transformation a new

element is created. So, during the design of IS it

would be worth knowing, which elements can occur

in a given context. To this end, we need to specify

admissible transformations.

The creation of new elements is driven by the

method of analysis and design of the information

system. The method specifies which transformations

can be in used in a given context and which new

elements can be created. So we need to depict the

terms used in the method and the possible transitions

between them. We need to create a “data-flow”

model of the method. We named this model the

Concept Transition Model.

Unfortunately, in the methods used for analysis and

design of ISs those transitions are not explicitly

specified. For their depicting we need a new

apparatus. It is described in following paragraphs.

4.1 An Example of Transition Model

For illustrative reasons we will first show an

example of model of transitions between the

concepts of the model. For simplicity, we choose the

transformation between the Chen entity-relationship

diagram and the physical model of a relational

database. This transformation is well-known and is

often used. Almost every CASE tool used for

relational database modelling does it automatically.

Let us remind how it is done:

1 Transform all entities to tables.

2 If a relationship between entities is binary

and of 1:N type without attributes, then

transform the relationship to a new

attribute (foreign key) and add it to the

attributes of the table on the N-side. If the

relationship is of 1:1 type, add foreign key

to one of the tables.

3 Otherwise transform the relationship to a

table. Add foreign keys pointing to the

related tables to the attributes.

4 Transform remaining attributes of entities

and relationships to attributes in the tables.

This word-description is depicted using the diagram

of concept transition in Figure 1. It can be seen, that

(one) entity transforms into (one) table. A

relationship can transform either into an attribute

(foreign key) or into a table with two or more

(according to the relationship’s level) foreign keys

(attributes). Attributes of entities and relationships

transform to attributes of tables.

The above described word-description is better

expressed by an algorithm, but a diagram better

depicts relationships and possibilities in the

GRADUAL MODELING OF INFORMATION SYSTEM - Model of Method Expressed as Transitions Between Concepts

539

transformation. This transformation can be done

automatically, because we know the correct

algorithm (see e.g. Godolla 2003). However, this is

not typical in methodologies of analysis and design.

We typically know the relations between concepts of

the methodology, but the concrete realisations of

these relations are chosen by analyst according to

their experience.

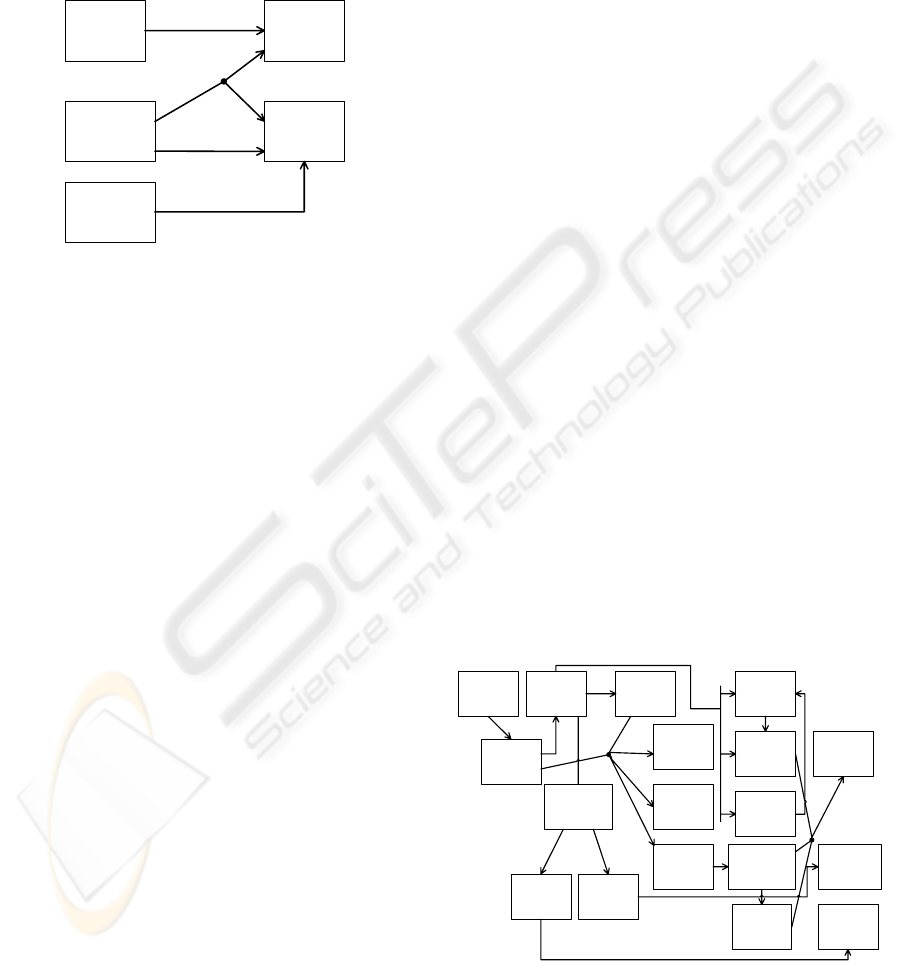

Figure 1: Concept transitions diagram for ER to physical

database model.

5 USAGE OF THE DIAGRAM OF

CONCEPT TRANSITION

With the method of IS analysis and design recorded

by the model of concept transition it is possible:

• To manage the development process – in

every moment it is possible to say, which

transformations the method allows (it is

possible for instance to create a CASE tool

capable of possible transformations offers).

We know which and how many elements

can originate in the next step of method.

• To check, whether the IS model matches

the used method. It is possible to control,

whether the element added to the model

matches the model. The CraftCASE

modelling tool supports such control (see

Craft.CASE ).

• Such record helps in performing some

transformations automatically or semi-

automatically. It is necessary to add the

algorithm that defines the transformation.

• To depict the process of a method – this

model can be used for defining relations in

a method and this can be used for instance

for easier understanding of relations inside

the method, for method teaching, etc.

• To control and improve methods – by

having all concepts and transitions defined,

it is possible to control, whether transition

between elements is not too rough (e.g. it

doesn’t transform directly to final classes,

in the extreme) or too fine.

6 BORM

BORM (Business Objects Relational Modelling) –

see Merunka at al 2003 is an object-oriented method

of IS analysis and design. It focuses on processes

running inside the modelled system, on their

revealing, analysis and following modelling. BORM

is an interactive method and is based on spiral model

of system design. One of the main rules in BORM is

depicting of its terms using sequential

transformations.

A process model is in BORM depicted as a set of

mutually communicating final automata. Those

automata represent business objects. After modelling

all processes using diagrams of processes a process

model is created. In this moment, a lot of BORM-

based projects end – BORM is often used just for

process analysis, e.g. for reengineering processes

purpose.

6.1 BORM and the Concept

Transformation

The basic idea of BORM methodology is based on

transitions between its concepts. So demonstrate

these principles is easy and straightforward (see

Figure 2).

Function

Scenario

Participant

Role

State

Transition

Action

Relationship

ISA

Association

Object

Class

Set

Method

Communicati

Data Flow

Composition

Inherition

1..*

0..*

1..*

0..*

0..1

0..*

1..*

0..*

1..*

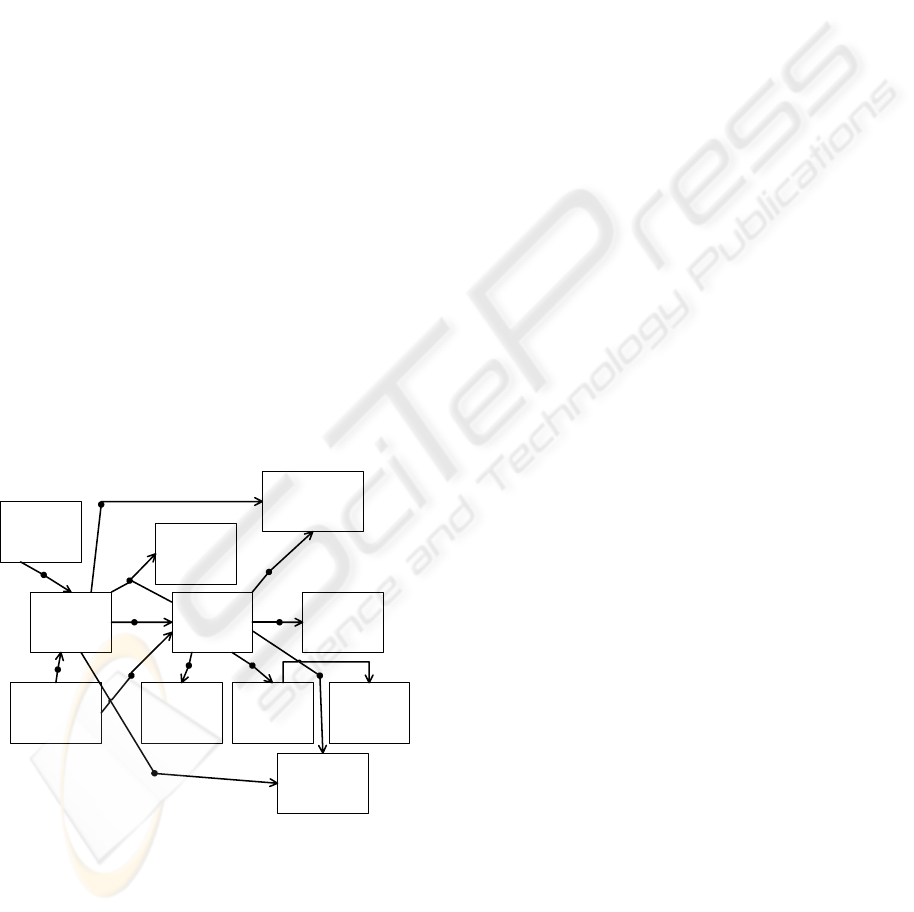

Figure 2: Diagram of concept transitions of BORM

methodology.

Entity

Relationship

Table

Attribute

2..*

ERAttributte

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

540

7 THE UNIFIED PROCESS

The Unified Software Development Process (USDP)

methodology, known better under its shortened

name Unified Process (UP) is one of many object-

oriented methodologies based upon the UML

language. This methodology comes directly from the

authors of UML (Booch, Jacobson, Rumbought –

see Jacobson at al. 1999) and is (together with its

derivatives – e.g. RUP) the most commonly used

iterative methodology.

7.1 UP and the Concepts Transition

To implement the ideas of sequential

transformations during the IS design for the UP

methodology is not as easy and straightforward as in

the case of BORM. One of the problems is that the

methodology itself consists of many alternative

methods. For the use of concept transitions we must

deal with individual methods and develop the overall

way through the methodology from them. In UP it is

the smartest to construct transition diagrams in each

work procedure.

The next problem is that transitions between

concepts are not explicitly defined in the

methodology. The diagram of concept transition for

the work procedure of finding actors and use-cases

is in Figure 3.

Actor

Term

Definition

UseCase

Communica

tion

System

Boundary

Detailed

UseCase

Domain

Definition

Generalisation

0..*

0..*1..*

0..*

0..1

2..*

0..*

2..*

Include Extend

Extension

Point

0..* 0..*

10..*

Figure 3: Diagram of concept transitions of Use Case

model.

8 CONCLUSIONS

The model of concept transition allows to view

methods of IS analysis and design from a new

perspective. It gives an apparatus for formalizing

relations between concepts in the model and their

successiveness. The model helps gain a better

understanding of a method. The fact that relations

inside this method are well defined improves the

method’s manageability and the possibilities to

improve it.

During the IS development, by using the model of

concept transition we get several advantages. The

model can be used for managing the development

process, for control of the method usage and for

depicting the method’s process.

Existing CASE tools support some ideas of the

model of concept transitions, e.g. CraftCASE

modelling tool performs checks, whether the added

element conforms to the method. To further improve

the quality of analyst’s work, it would be a great

contribution to implement complex support for the

concept transitions model. A CASE tool could thus

better lead an analyst through the process of

analysis, give him hints, check and record his steps.

REFERENCES

Godolla, M., Lindow, A., 2003. Transforming Data Model

with UML. In Knowledge Transformation for

Semantic Web. IOS Press. Amsterdam.

Craft.CASE. http://www.craftcase.com

Merunka, V., Knott, R, Polak, J. 2003. The BORM

Methodology: a third generation fully object-oriented

methodology. In Knowledge-Based Systems. Elsevier

Science International. New York.

Liu. L, Roussev, R., Knott, R., Merunka, V. Polak, J at al.

2005. Management of the Object-Oriented

Development Process. – Part 15: BORM

Methodology. University of Akron. University of

Virgin Islands.

Picka. M. 2004. Guided development of Information

Systems. In Objekty 2004 – sborník příspěvků

devátého ročníku konference. Provozně-ekonomická

fakulta. Česká zemědělská univerzita. Praha.

Jacobson, I., Booch, G., Rumbaugh, J. 1999, The Unified

Software Development Process. Addisson Wesley

Profesional.

OMG. 2003. OMG Unified Modeling Language

Specification – version 1.5.

GRADUAL MODELING OF INFORMATION SYSTEM - Model of Method Expressed as Transitions Between Concepts

541
