A PRODUCT ORIENTED MODELLING CONCEPT

Holons for Systems Synchronisation and Interoperability

Salah Baïna, Hervé Panetto

CRAN (UMR 7039), University Henry Poincaré Nancy I

F 54506 Vandoeuvre les Nancy, France,

Khalid Benali

LORIA (UMR 7503), Campus scientifique, BP 239

F 54506 Vandoeuvre les Nancy, France,

Keywords: Process Modelling, Models Synchronisation, Manufacturing Systems, Enterprise Integration, Systems

Interoperability, Model Driven Architecture, Models Mapping.

Abstract: Nowadays, enterprises are confronted to growing needs for traceability, product genealogy and product life

cycle management. To meet those needs, the enterprise and applications in the enterprise environment have

to manage flows of information that relate to flows of material and that are managed in shop floor level.

Nevertheless, throughout product lifecycle coordination needs to be established between reality in the

physical world (physical view) and the virtual world handled by manufacturing information systems

(informational view). This paper presents the “Holon” modelling concept as a means for the synchronisation

of both physical view and informational views. Afterwards, we show how the concept of holon can play a

major role in ensuring interoperability in the enterprise context.

1 INTRODUCTION

Enterprise application integration (EAI) and the

opening of information systems towards integrated

access have been the main motivation for the interest

around systems interoperability. Integration aspect

and information sharing in the enterprise lead to an

organisation of the hierarchy of enterprises

applications where interoperability is a key issue

(see

Figure 1).

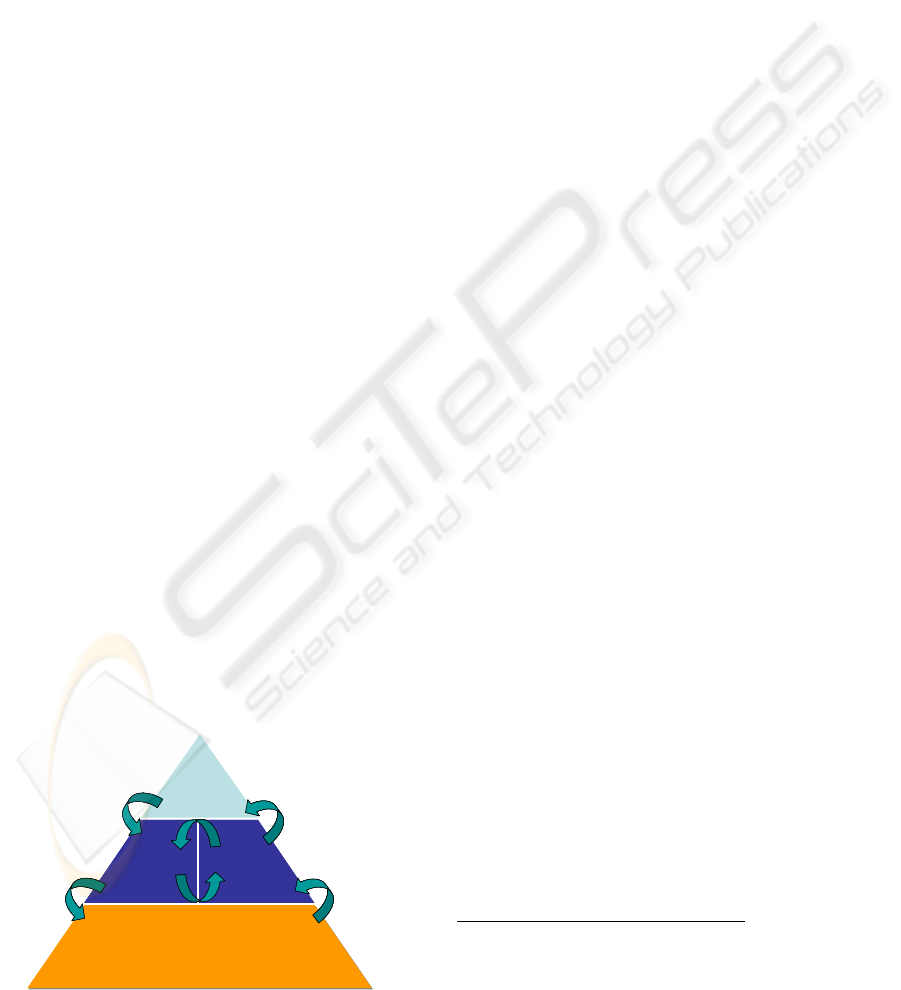

Figure 1: Manufacturing enterprises common structure.

This hierarchy defines the three main levels in

manufacturing enterprises:

L1: Process control level contains all processes that

perform routing and physical transformations on the

produced goods and services;

L2: The Execution level performs the processes that

manage decision flows (e.g.: Workflow systems)

and production flows (

e.g.: MES

, SCE

);

L3: The management system level is responsible

for the management of processes that handle all

different informational aspects related to the

enterprise (

e.g.: APS

, ERP

or CRM

systems).

To meet traceability, product genealogy and

product life cycle management needs, nowadays an

enterprise has to manage flows of information that

relate to flows of material and that are managed in

shop floor level.

We assume that the enterprise is

composed of two separated worlds (see

Figure 2:):

Manufacturing Execution System

Supply Chain Execution

Advanced Planning Scheduling system

Enterprise Resource Planning

Customer Relationship Management

MANUFACTURING

EXECUTION

SYSTEMS

ERP

ORKFLO

MANAGEMENT

SYSTEMS

PROCESS CONTROL

GOODS & SERVICES PRODUCTION

MANUFACTURING

EXECUTION

SYSTEMS

ERP

ORKFLO

MANAGEMENT

SYSTEMS

PROCESS CONTROL

GOODS & SERVICES PRODUCTION

Baïna S., Panetto H. and Benali K. (2006).

A PRODUCT ORIENTED MODELLING CONCEPT - Holons for Systems Synchronisation and Interoperability.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 19-26

DOI: 10.5220/0002455400190026

 SciTePress

(i) On one hand, a world in which the product is

mainly seen as a physical object, this world is

called the manufacturing world. It handles systems

that are tightly related to the shop-floor level,

(ii) On the other hand, a world where the product is

seen as a service released in the market. This world

is called the business world.

In order to achieve the main objective of the

enterprise, "the product" to be specific, the business

universe and the manufacturing universe need to

exchange information and to synchronise their

knowledge concerning the product (good and

service). It is assumed that the product

(good/service) can play the role of the gateway

between both universes, since it represents a

common entity between those worlds.

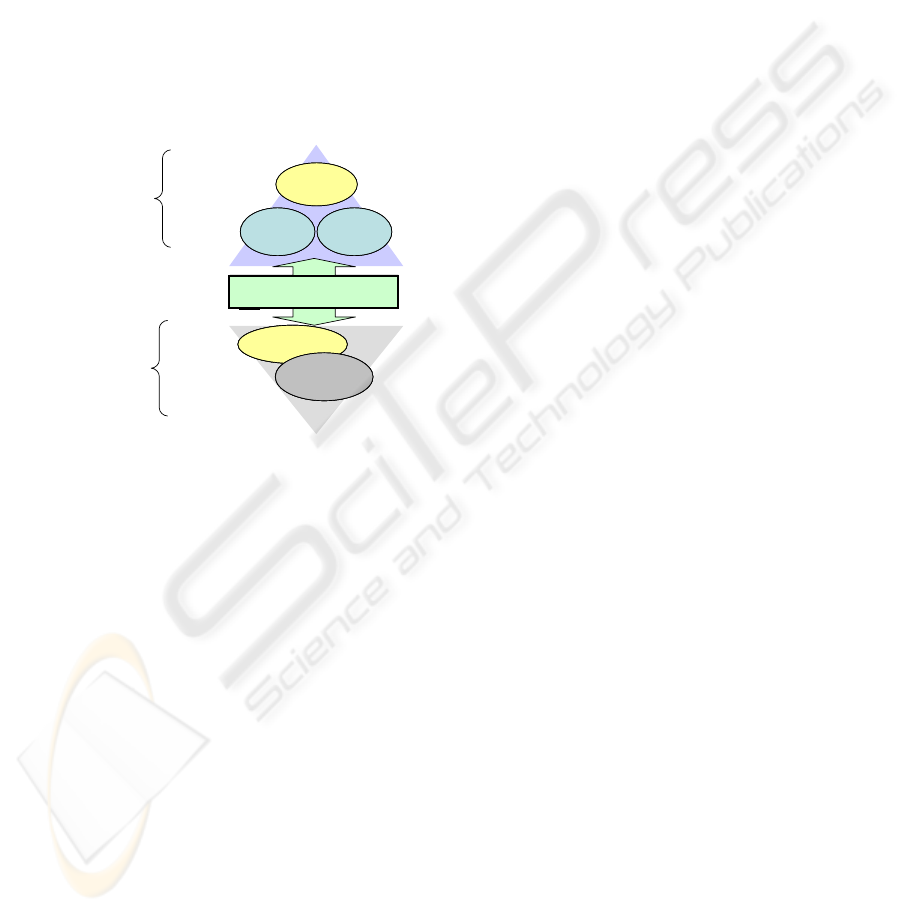

Figure 2: Product centric approach.

In this paper, we define a holon based approach

in order to synchronise views in the business world

and in the physical manufacturing world using the

holon concept. The paper continues by presenting

the usability of the concept of holon in ensuring

interoperability enterprise context. Section 2

presents the bases of our holonic process modelling

concepts (Morel, et al., 2003) that use the product as

a centric entity in process models. Section 3 of the

paper gives a brief introduction to interoperability in

the enterprise and explains how holons can be used

as a means for enterprise applications

interoperability. In Section 4, an implementation of

the holon is proposed. Section 5 gives conclusions

and perspectives for this work.

2 A MODELLING CONCEPT FOR

PRODUCT REPRESENTATION

In this section, we introduce the holon as a

modelling concept. Afterwards, we will show how

this concept can be exploited in order to facilitate

taking into account interoperability concerns in

modelling phase. Existing solutions for

interoperability in enterprise environment focus

mainly on enterprise processes interoperability and

interconnection. Throughout product lifecycle,

coordination needs to be established between the

reality in the physical world where the product

evolves as a physical object and the “electronic”

world handled by manufacturing information

systems where the virtual image of the product

evolves as an informational object. Our work aims to

provide a product centric approach for enabling

interoperability between information systems in the

manufacturing environment in order to establish the

coherence between the physical products and their

informational representations. To take into account

this duality (physical things/ informational things),

we propose an adaptation of the concept of holon

(Koestler, 1967) to this specific problem.

The word Holon is a combination of the Greek

word holos, meaning whole, and the suffix on

meaning particle or part. A holon is an identifiable

part of a system that has a unique identity, yet is

made up of sub-ordinate parts and in turn is part of a

larger whole. A Holon has two main features,

autonomy and cooperation. Several adaptations of

the holon concept have been proposed in several

fields. In the manufacturing context, a Holonic

Manufacturing System (HMS) is an autonomous and

co-operative building block of a system for

transforming, transporting, storing and/or validating

information and physical objects (Mc Farlane and

Bussmann, 2000; Seidel and Mey, 1994). In this

paper, we adapt the holon concept definition to solve

the problem of synchronisation between physical

views and informational views of the same objects.

We define the holon then as an aggregation of an

information part and a physical part.

In Holonic Process Modelling (Valckenaers,

2001; Morel, et al., 2003; Baïna, et al., 2005),

holons are used to represent products; the physical

part of the holon represents the material part (also

called physical view) of the product and the

informational part of the holon represents the

informational part (informational view) of the

product. Characteristics of holon are distinguished

into two categories;

- Attributes describing the current state of the holon.

The state of a holon contains three kinds of

attributes: space attributes, shape attributes, and

time attributes (Panetto and Pétin, 2005);

ERP

CRMERP

CRM

Business world

MES

SCE

MES MES

SCESCE

Product (Good/Service)

Manufacturing world

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

- Properties related to the holon but which do not

correspond to any of the three types of properties;

space, shape or time.

Holons can be classified into two categories; (i)

elementary holons and (ii) composite holons:

(i) Elementary holons are the combination of a

single informational part and a single physical

part.

(ii) Composite holons are the result of the processing

and treatment of one or more other holons, this

processing can be the aggregation of a set of

holons (composite or elementary) in order to

compose a new holon or a transformation of one

composite holon to obtain a new one.

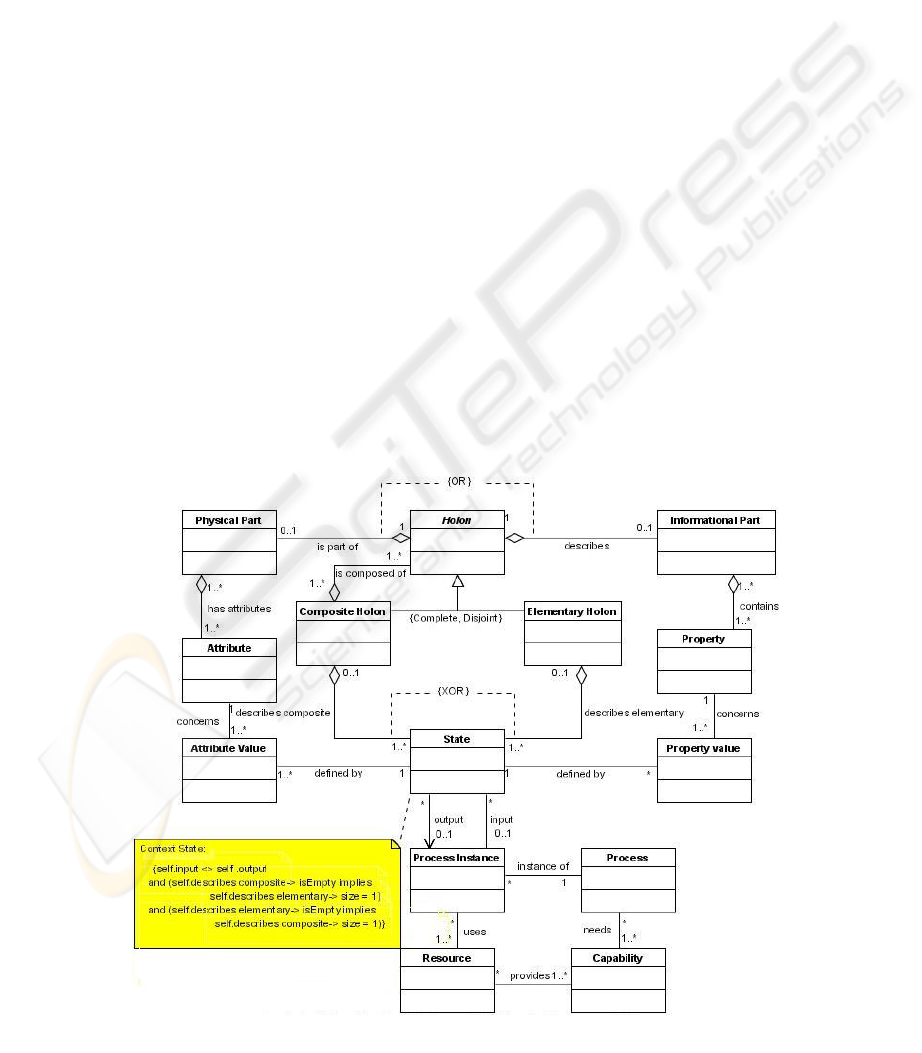

Figure 3 represents the UML class diagram

defining the holon concept meta-model. In order

save place and limit the complexity, in this meta-

model, we have not represented the many constraints

that apply between classes and that are specified

using the OCL language as defined in UML

specifications (UML, 2005).

Here is a brief description of this class diagram: The

Class Holon defines basic attributes for both

composite and elementary holons. A Physical Part

is a reference to the physical part encapsulated in a

holon. An Elementary Holon is defined as a holon

with no indication about his lifecycle. For example a

product, produced by external manufacturing

systems does not give information about the

processes needed for its manufacturing. A

Composite Holon is a holon that has been obtained

by either by assembling existing holons, or by

disassembling existing holons into new ones.

The state class defines the different states that

have been observed during the processing phase of

the holon. Every manipulation of a holon through a

process (Process Instance) implies a change in the

state of the processed holon. A Property of a holon

contains information that can not be handled only

using its state. The Process instance refers to the

execution of a process on a single holon, this class

enables description of the execution of the process

with high level of detail (e.g.: elapsed time, start and

end of the treatment, used equipment, needed

personal). A Process instance input is a holon state

A Process describes an internal process that is

performed inside the studied domain. The Resource

class describes resources needed to perform a

process instance. A resource can be a material

resource, a software resource or a human resource.

Each resource provides a set of capabilities, and

each process needs some capabilities to be

performed.

3 HOLONS AND

INTEROPERABILITY

The ISO/IEC 23821 Information Technology

Vocabulary defines interoperability as “the

Figure 3: Class diagram for the Holon model.

A PRODUCT ORIENTED MODELLING CONCEPT - Holons for Systems Synchronisation and Interoperability

capability to communicate, execute programs, or

transfer data among various functional units in a

manner that requires the user to have little or no

knowledge of the unique characteristics of those

units.” The IEEE STD 610.122 standard defines

interoperability as “the ability of two or more

systems or components to exchange and use

information”. In this paper, interoperability

definition is adapted from the two previous

definitions as:

Definition 1: Interoperability is the ability to

communicate, to cooperate and to exchange models

between two or more applications despite

differences in the implementation languages, the

execution environments, or the models abstraction

(Kalfoglou and Schorlemmer , 2004)

Interoperability can be classified into two

categories considering the enterprise hierarchy

model:

”Horizontal Interoperability” is the interoperability

between applications from the same conceptual level

in the enterprise. This first category of

interoperability aims to synchronise models that

were created in different enterprises even those

managed by different modelling systems (e.g.:

enabling organisational interoperability between two

systems used in two different organisations).

”Vertical interoperability” is the interoperability

between applications from different enterprise

levels. The objective of this category of

interoperability is to maintain coherence between

information that is handled in two different level of

the enterprise (e.g.: ensuring coherence between

organisational models of the enterprise and the

process models used at shop floor level).

The following introduces the Levels of

Conceptual Interoperability Model (LCIM). Similar

to the technical approaches, five levels of

interoperability are defined (Tolk and Muguira,

2003). The focus lies on the data to be interchanged

and the interface documentation, which is available.

The layers are defined as follows:

Level 0 - System Specific Data: No interoperability

between two systems. Data is used within each

system in a proprietary way with no sharing. The

component (or application) is a black box.

Level 1 – Documented Data: Data is documented

using a common protocol and is accessible via

interfaces. The component is a black box with an

interface.

Level 2 – Aligned Static Data: Data is documented

using a common reference model based on a

common ontology, i.e., the meaning of the data is

unambiguously described. This is also possible by

using metadata standards or by using standard

reference models. The component is a black box

with a standard interface.

Level 3 – Aligned Dynamic Data: The use of the

data within the federate/ component is well defined

using standard software engineering methods such

as UML. This shows the use of data within the

otherwise unknown “black box behind the

interface,” also known as white box.

Level 4 – Harmonized Data Semantic:

connections between data that are not related

concerning the execution code is made obvious by

documenting the conceptual model underlying the

component.

In order to take into account interoperability

requirements during modelling phase in the context

of manufacturing systems, we introduce, in this

section, the holonic modelling approach for

interoperability. Existing interoperability standards

and most of existing techniques that enable business

process or workflow interoperability are based on a

message exchange paradigm (e.g. Wf-XML,

BizTalk, FIPA ACL.). These solutions resolve only

the particular case of syntactic interoperability

(messages vocabulary, messages format, data types,

etc). In this section, we show how the holon concept

can be used as a means for resolving interoperability

issues. First, we will show the use of the holon to

handle horizontal interoperability concerns at

modelling time. Second, the case of vertical

interoperability is studied.

3.1 Holons for Horizontal

Interoperability

Horizontal interoperability problem occurs when

two or several systems or applications from the same

level in the enterprise hierarchy (see figure 1) need

to exchange information or data in order to perform

a common objective. For example, we consider the

case of a manufacturing shop-floor where several

manufacturing systems need to cooperate in order to

achieve a common goal, the release of the final

product to be specific. In this section, we show how

the use of the holon concept in the modelling phase,

enables considering vertical interoperability

concerns at modelling time; in the aim to facilitate

resolving interoperability problems during

engineering phase.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

To model manufacturing shop-floor, we use a

minimal business process meta-model composed of

four Entities:

Actor: represents a person or a group of persons

that act in someway on processes or in the

information system of the enterprise. An actor can

be internal or external to the enterprise.

Process: a value chain that provides a good or a

service to an internal or external customer.

Site: a geographic place where the enterprise is

established. Sites can express a special kind of

places such as agency, office and factory, or can also

express precise geographic places.

Flow: a set of elements (data, information, energy,

material ...) that are exchanged between processes

To those entities, we add the notions of Holon

which represents products instances. As we see in

section 2, a holon is described by properties and

attributes that are mandatory for controlling the

execution of a process on the holon. To manipulate

those pieces of information we assume that each

process is indeed composed of two interdependent

sub-processes: (i) An informational process is

responsible of manipulating, updating and

controlling the information concerning the product

(holon), this informational process can be

implemented by an application that is performed on

the information contained in the product, (ii) a

physical process that performs all physical

transformations on the material of the product.

Those two sub-processes are performed in an atomic

operation (both are executed or none). Two types of

relationships between a process and a piece of

information (property or attribute) have been

identified: production and consumption;

- Production: we say that a process produces an

attribute (or property) when the attribute did not

exist before the execution of the process;

- Consumption: a process is said to be consumer of

an attribute (or property) when it uses the

attribute (or property) or updates it.

The specification of relationships between

processes and pieces of information during

modelling phase enables defining the interfaces of

processes at modelling time. The interface of a

process defines its inputs and outputs.

Using those interfaces, interoperability of

processes using can then be defined as explained in

the following:

Definition 2: A process P is said interoperable with

a system S (composed of processes) iff each input of

P is declared as an output of one of his predecessors

in S.

The precedence relation between processes is

defined as following:

Definition 3: The relation of precedence is partial

order between processes; we say that a process P1

precedes a process P2 (P1 <

Pred

P2) if it exists a path

composed of flows and processes that leads from P1

to P2. In the case cyclic systems, occurrences of

execution of processes should be considered;

example P1

Pred

the i

execution of P1 occurs

before the i

execution of P2.

Using the holonic modelling concepts in

manufacturing context, enables the considered

process interoperability to be concerned at

modelling time and not during the engineering

phase. This interoperability is a vertical integration

of processes, since all process (informational and

physical) involved in the studied system are from the

same enterprise level, the process control level to be

specific. The obtained interoperability is categorised

into level 1 of the LCI model (see section 3), it

defines interfaces for shop floor process, that are

seen as black boxes, since the designer does not

know in advance their internal structure and

characteristics.

3.2 Vertical Interoperability with

the MDA Approach

In this section, we introduce an approach for

interoperability based in a model driven architecture

(MDA) (Breton and Bézivin, 2001; Mellor, et al.,

2004). The main objective of this section is to show

how models based on the holon concept defined in

section 2, could be expressed and transformed into

models based on existing data exchange standards

and other unified languages.

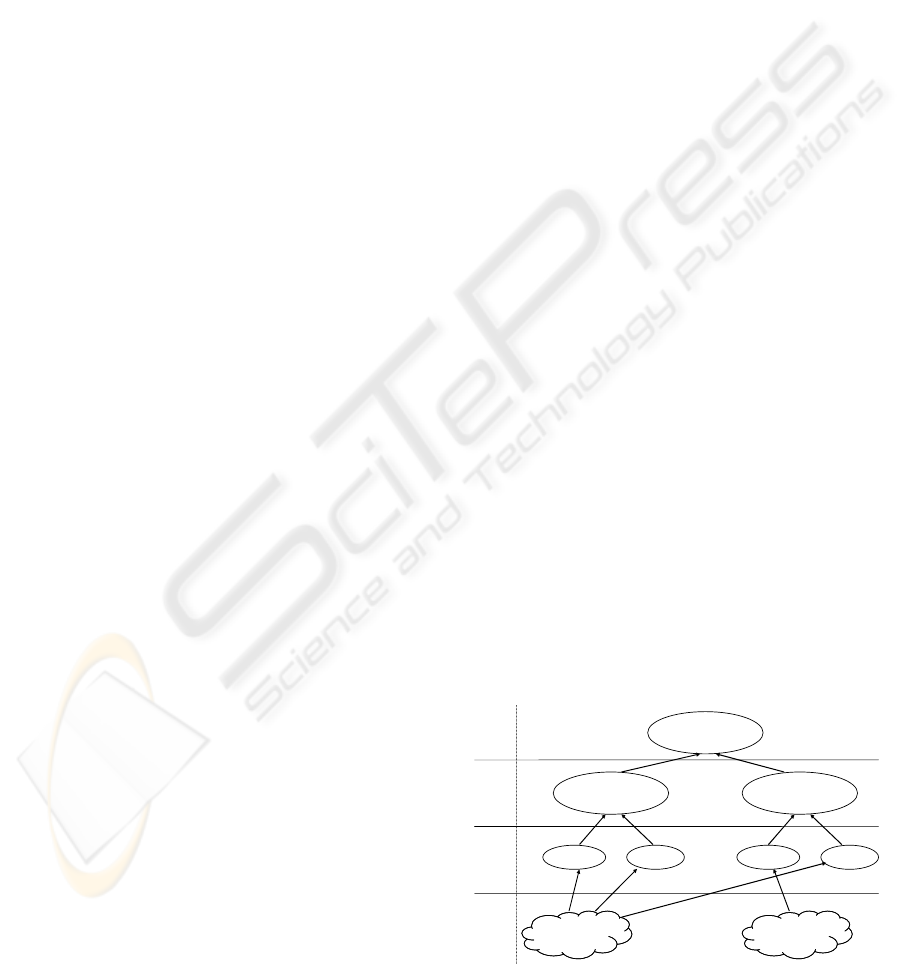

Figure 4 shows the four-level ontological

approach levels for modelling that are used in the

MDA.

Universe of

discourse 1

Universe of

discourse 1

…

Meta-Meta-Model

Meta-Model 1 Meta-Model p

Model 1

Model k

Model 1

Model m

Level M

Universe of

discourse n

Universe of

discourse n

…

Figure 4: The four-level ontological approach.

A PRODUCT ORIENTED MODELLING CONCEPT - Holons for Systems Synchronisation and Interoperability

As it is explained in (Naumenko and Wegmann,

2003), the lowest level M

presents different subjects

for modelling, called universe of discourse. The level

contains different models of each universe of

discourse. The next level M

presents domain

specific meta-models: one meta-model for each of

the domains of interest relevant for the M

models.

And finally, M

level presents a meta-meta-model

designed to allow the definition of all the existing in

the scope of the meta-models. In this context,

applications interoperability may be solved by a top-

down approach based on the four levels of the MDA.

Indeed the MDA approach for interoperability relies

on meta-models mapping to determine, establish and

measure interoperability between applications.

Several research works have been done in order to

resolve meta-models mappings, more generally

ontology mappings problems (Kalfoglou and

Schorlemmer, 2004).

R Lemesle, in (Lemesle, 1998), explains how

models transformation can be resolved by

establishing transformation rules between meta-

models. Those transformation rules define a mapping

that guides model transformations from the instances

of the source meta-model to instances of the target

meta-model. Those mappings are the bases for

applications interoperability. In the MDA approach

for applications interoperability, we consider that

each application is based on a specific meta-model;

Let us consider two applications A and B: A and B

are interoperable, if and only if there is a mapping

from the meta-model of A (M

) to the meta-model

of B (M

) and a mapping form M

to M

Those

mappings ensure that we can build a model

compatible with A from a model used by B (and vice

versa).

In Order to use the MDA approach for

interoperability in the holonic context, we need to

define roles played by the holon in this structure,

and to position the holonic modelling approach in

terms of models, meta-models and universe of

discourse: M2, M1 and M0. In the holonic context,

the universe of discourse M0 concerns "The

Manufacturing Enterprise Product Universe", to

describe this universe of discourse we use holonic

models (M1) that are instantiations of the holonic

meta-model defining holons and their relationships

with other entities in their environment (M2).

Defining interoperability mappings between the

holonic meta-model and other meta-models that

handle product information enables the holonic

meta-model to play the role of a gateway between

those meta-models. Indeed, the holonic meta-model

can be seen as a reference model for product

representation.

In the next section, an implementation of the

holonic model and the interoperability mappings is

proposed. This implementation relies on a

commercial computer assisted software engineering

(CASE) tool.

4 IMPLEMENTATION

To experiment the holonic approach defined above

in real case we have implemented this approach into

a CASE tool named MEGA Suite

. MEGA is an

enterprise process modelling environment that

contains a business process analysis and process

modelling and design tools. MEGA has its own

meta-model that described all concepts and objects

ready to use in MEGA, and all relationships that

exist between those concepts. This meta-model can

be customized and specialised for specific users

needs. MEGA Suite can be used to define, describe

and exploit several kinds of diagrams (e.g: Business

process Diagrams, UML Diagrams, Workflows). In

our contribution, we focus only on business process

diagrams; indeed they seem to be the most adequate

choice for holon integration. Business Process

diagrams in MEGA are based on a meta-model

inspired from BPMN

. MEGA offers tools that

enable customizing the meta-model; we used these

tools to embed our own holon meta-model into the

existing meta-model of MEGA in order to test the

usability of our proposal.

The example presented in Figure 5 shows an

example of models that can be designed using the

holon modelling concept to represent products in a

manufacturing process model. For the sake of

simplicity, this example contains only one single

process that takes a holon flow as input, and

produces a holon flow as output.

In this example, we show using the implementation

of the holonic concepts in MEGA, how a process

can be connected to information and data concerning

holons (inputs or outputs). The holons in this

example represent products (finished or not).

MEGA Suite, MEGA International, www.mega.com

Business Process Modelling Notation, www.bpmn.org

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

To experiment the holon models interoperability

with other enterprise modelling frameworks using

the MDA approach, two examples have been

chosen; UEML and B2MML. UEML (Berio, et al.,

2003; Panetto, et al., 2004) is the Unified Enterprise

Modelling Language, it is used at the organisational

level of the enterprise. B2MML (2003) is an

implementation of the part 1 of the IEC FDIS 62264

standard (IEC 62264, 2002) developed for

interfacing the manufacturing control and execution

systems with higher level systems. According to the

MDA interoperability approach defined in section

3.2, we now define an example of mappings from

the holonic meta-model to The UEML and B2MML

meta-models.

Mapping Holon with the Unified Enterprise

Modelling Language. The Unified Enterprise

Modelling Language (UEML) is the result of the

UEML project (UEML, 2003). The UEML is an

Interlingua between Enterprise Modelling tools. The

meta-model of UEML1.0 (Panetto, et al., 2004)

defines the set of most relevant concepts and notions

for Enterprise modelling.

Mapping with the B2MML language and the IEC

62264 standard. Business to Manufacturing Mark-up

Language (B2MML) is an XML implementation of

the IEC 62264 part 1. This standard is composed of

six different parts designed for defining the models

and interfaces between enterprise activities and

control activities. Each model concerns a particular

view of the integration problem. Those models show

increasing detail level in the manufacturing system.

The detail of those mappings has been published

in other papers, for further information see Baïna, et

al (2005). Vertical interoperability that is established

by using those mappings is classified in the Level 2

of the LCI model. (see section 3).

To implement the mappings from the holonic

models designed in MEGA and the other formats,

we first define an extraction format that expresses

data extracted from MEGA holon models in order to

reuse it in other tools and frameworks based on other

meta-models (UEML, B2MML, etc.). To represent

the extracted data, we choose the XML language

(

XML, 2002); since it is considered as the standard

application data exchange language by the W3C.

MEGA Suite enables XML files generation in

respect to a specific structure. XML structures for

UEML (Berio et al., 2003), and B2MML (B2MML,

2003) are used to transform the mappings defined

below into XSLT rules that can be applied on the

files generated by MEGA in order to restructure

them into files that respects the UEML structure or

the B2MML structure.

5 CONCLUSION

In this paper, we defined an approach for specifying

the holon modelling concept, it enables maintaining

synchronisation between the physical objects and

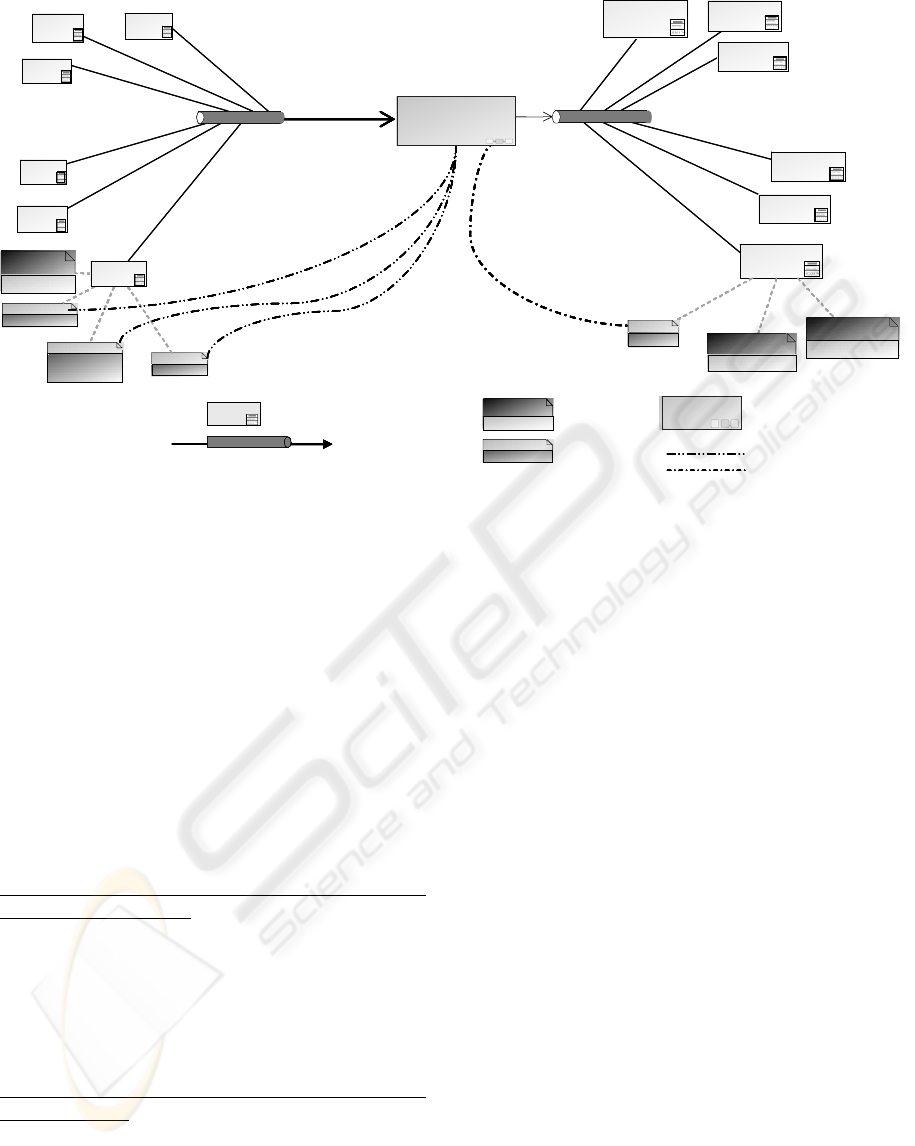

Figure 5: An example of models containing holons.

InPutInPut

OutPut

Prod 01,09

Prod 60,10

Prod 60,08,09Prod 60,08,09

Prod 01,11,10

Prod 60,08,11,10

Prod 01,11,08,09

P01

P10

P09

P60

P11

property

Client

attribute

couleur

attribute

Date fabrication

attribute

Matiere

P08

property

num piece

property

Client

Assembling

attribute

Prod

HolonHolon

Holon FlowHolon Flow

Holon representation

Holon flow: transporting

holon instances

Holon property

Holon attribute

Process

Assembling

Consumption

Production

InPutInPut

OutPut

Prod 01,09

Prod 60,10

Prod 60,08,09Prod 60,08,09

Prod 01,11,10

Prod 60,08,11,10

Prod 01,11,08,09

P01

P10

P09

P60

P11

property

Ref Client

attribute

Color

attribute

Manufacturing

Date

attribute

Matiere

P08

property

Ref piece

property

Ref Client

Assembling

attribute

HolonHolon

Holon FlowHolon Flow

Holon representation

Holon flow: transporting

holon instances

Holon property

Holon attribute

Process

Assembling

Consumption

Production

Manuf Date

Property

property

Client

property

Property name

attribute

Matiere

Attribute

Attribute name

A PRODUCT ORIENTED MODELLING CONCEPT - Holons for Systems Synchronisation and Interoperability

their informational views in manufacturing

environment. Then, we introduced how the holon

approach can be used for enterprise interoperability

issues. Afterwards, an implementation of our

approach in a commercial CASE tool is presented.

We also establish a translation mechanism based on

meta-model mappings that enables applications

using the holonic meta-model to exchange models

with other applications based on different meta-

models, this mechanism is based on the MDA

approach for interoperability.

Ongoing works handle experimentation of the

overall approach in an industrial case study, this

work is used to verify usability and limits of the

approach in real larger scale experiments. Tests are

organised into two classes, testing the modelling

approach in a real industrial environment and testing

the interoperability issues; results are to be published

in future papers.

ACKNOWLEDGEMENTS

This work was funded by the European Commission

IST 6th framework programme within the

framework of the Network of Excellence INTEROP.

The authors would like to thank the entire INTEROP

core.

REFERENCES

B2MML, 2003 The World Batch Forum. Business To

Manufacturing Markup Language, version 2.0, 2003.

Baïna.S, H. Panetto and G. Morel, 2005. A holonic

approach for application interopearbility in

manufacturing systems environment. In Proc of the

IFAC World Congress, Prague, July 4-8, 2005.

Berio G., et al. 2003 D3.2: Core constructs, architecture

and development strategy, UEML TN IST – 2001 –

34229, March 2003.

Breton E and Bézivin, J (2001) “Model-Driven Process

Engineering”, 25th Annual International Computer

Software and Applications Conference

(COMPSAC’01), Chicago, Illinois, Etats-Unis,

Octobre 2001.

IEC 62264, 2002. IEC FDIS 62264-1:2002. Enterprise-

control system integration, Part 1. Models and

terminology, IEC, Geneva.

Kalfoglou, Y. and Schorlemmer, M., 2004. Formal

Support for Representing and Automating Semantic

Interoperability. In Proceedings of 1st European

Semantic Web Symposium (ESWS'04), pp. 45-61,

Heraklion, Crete, Greece.

Kalfoglou, Y. and Schorlemmer, M. 2003. « Ontology

Mapping: The State of The Art. ». The Knowledge

Engineering Review, 18: 1-31. 2003. Cambridge

University Press

Koestler, A., 1967. The Ghost in the Machine Arkana,

London.

Lemesle, R., 1998. Transformation Rules Based on Meta-

Modelling. EDOC'98, La Jolla, California, 3-5

November 1998, p. 113-122.

Mc Farlane, D and Bussmann, S. (2000) Developments in

holonic production planning and control, International

Journal of Production Plannig and Control, Vol. 11,

N° 6, pp. 522-536

Morel G., H. Panetto H., M.B. Zaremba and F. Mayer

2003. Manufacturing Enterprise Control and

Management System Engineering: paradigms and

open issues. IFAC Annual Reviews in Control. 27/2,

199-209, December.

Mellor S.J., Kendall S., Uhl A. and Weise D. 2004. Model

Driven Architecture, Addison-Wesley Pub Co, March,

ISBN: 0201788918.

Naumenko, A., Wegmann, A., 2003. Two Approaches in

System Modelling and Their Illustrations with MDA

and RM-ODP. In ICEIS’03, 5th International

Conference on Enterprise Information Systems.

Panetto H., Berio, G., Benali, K., Boudjlida, N. and Petit,

M., 2004. A Unified Enterprise Modelling Language

for enhanced interoperability of Enterprise Models.

Proceedings of IFAC INCOM 2004 Symposium, April

5th-7th, Bahia, Brazil.

Panetto H. and Pétin, J.F., 2005. Metamodelling of

production systems process models using UML

stereotypes, International Journal of Internet and

Enterprise Management, 3/2, 155-169 - Inderscience

Publisher, ISSN: 1476-1300, 2005.

Seidel, D. and Mey, M. 1994, IMS - Holonic

Manufacturing Systems: Glossary of Terms, In Seidel

D. and Mey M. (eds), IMS - Holonic Manufacturing

Systems: Strategies Vol. 1, March, IFW, University of

Hannover, Germany.

Tolk, A. and Muguira J. A. (2003). The Levels of

Conceptual Interoperability Model. Simulation

Interoperability Workshop Orlando, USA, Sept 2003.

UML. 2005. Unified Modeling Language, UML2 OCL

specification, document ptc/05-06-06, OMG.

Valckenaers, P. (2001), Special issue: Holonic

Manufacturing Systems, Computer In Industry, 46 (3),

pp. 233-331.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
