OWL-BASED KNOWLEDGE DISCOVERY USING

DESCRIPTION LOGICS REASONERS

Dimitrios A. Koutsomitropoulos, Dimitrios P. Meidanis, Anastasia N. Kandili

and Theodore S. Papatheodorou

High Performance Information Systems Laboratory,School of Engineering, University of Patras, Buidling B,

26500 Patras-Rio, Greece

Keywords: Inference, OWL, Semantic Web, Reasoning, Description Logics.

Abstract: The recent advent of the Semantic Web has given rise to the need for efficient and sound methods that

would provide reasoning support over the knowledge scattered on the Internet. Description Logics and DL-

based inference engines in particular play a significant role towards this goal, as they seem to have

overlapping expressivity with the Semantic Web de facto language, OWL. In this paper we argue that DLs

currently constitute one of the most tempting available formalisms to support reasoning with OWL. Further,

we present and survey a number of DL based systems that could be used for this task. Around one of them

(Racer) we build our Knowledge Discovery Interface, a web application that can be used to pose intelligent

queries to Semantic Web documents in an intuitive manner. As a proof of concept, we then apply the KDI

on the CIDOC-CRM reference ontology and discuss our results.

1 INTRODUCTION

Regarding the success of the Semantic Web, it may

be encouraging that relevant applications and

systems that utilize its standardized “toolkit” of

languages and specifications tend to proliferate day

by day. Even these very specifications are subject to

ongoing research that attempts to push the limits of

the current Semantic Web idea some steps further.

Nevertheless, measuring the success of the Semantic

Web could also be regarded by the point of view of

the goals achieved so far: Web knowledge

management; semantic resource description; and

distributed knowledge discovery, as one of the most

prominent. In order for this promise not to be failed,

Semantic Web surely could only benefit from

efficient and sound methods that would provide

reasoning support for its underlying knowledge.

Description Logics and DL-based inference

engines in particular play a significant role towards

this goal, as they seem to have overlapping

expressivity with the Semantic Web de facto

language, OWL (Bechhofer et al. 2003). In addition,

implemented algorithms and reasoning systems for

DLs already exist that could be used to provide

knowledge discovery facilities on the Semantic

Web. Combined, these two facts make the use of

DLs one of the most tempting available formalisms

to typically support reasoning with OWL.

In this paper we first compare DL-based systems

with alternatives based on other formalisms, like

rule based systems and theorem provers, and argue

that DLs are currently the most suitable means to

build reasoning services for the Semantic Web.

Then, we present and survey four popular systems

from the DLs world and evaluate them in terms of

their availability, expressivity and ability to reason

with individuals (ABox support): Cerebra, FaCT,

FaCT++ and RACER. In order to demonstrate the

ability to perform Semantic Web reasoning using

DL based systems, we have chosen one of the

inference engines above as the core of our

Knowledge Discovery Interface (KDI). The KDI is a

web application that can be used to pose intelligent

queries to Semantic Web documents in an intuitive

manner. In order to answer these queries, the KDI

relies on the reasoning services provided by the

underlying inference engine. Finally we construct

and use some instances of the CIDOC-CRM

ontology, which we then feed in to the KDI and

discuss the results from a series of intelligent queries

posed.

A. Koutsomitropoulos D., P. Meidanis D., N. Kandili A. and S. Papatheodorou T. (2006).

OWL-BASED KNOWLEDGE DISCOVERY USING DESCRIPTION LOGICS REASONERS.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - SAIC, pages 43-50

DOI: 10.5220/0002441400430050

 SciTePress

The rest of this paper is organized as follows: In

section 2 we review and discuss some previous work

on information retrieval and knowledge discovery

on the Web. Then, in section 3, we compare

available reasoning formalisms, survey the DL-

based systems and explain our evaluation criteria.

The KDI is presented in section 4; we describe its

functionality and architecture followed by some

experimental results on the CIDOC-CRM ontology

that demonstrate its capabilities. Finally, section 5

summarizes the conclusions from our work.

2 APPROACHES TOWARDS

KNOWLEDGE DISCOVERY ON

THE WEB

Even though the idea of the Semantic Web has only

recently begun to standardize, the need for inference

extraction and intelligent behaviour on the Internet

has long been a research goal. As expected, there

have been some efforts in that direction. Such efforts

include ontology description languages, inference

engines and systems and implementations, based on

them.

SHOE (Heflin et al. 1998), was initially

developed as an extension to HTML. It enables web

page authors to annotate their web documents with

machine-readable knowledge. In that way, these

documents can be more efficiently retrieved by

knowledge-based search engines and then

manipulated by agents. Although SHOE has a

number of features, some of which are not present in

other languages (e.g. n-ary relations), it lacks the

expressiveness needed by the Semantic Web (for

example see Gomez-Perez & Corcho 2002).

Knowing the constraints of knowledge discovery

in a random environment like the Internet, and

taking in to account the advantages of information

retrieval, recent research has tried to combine these

two approaches. OWLIR (Mayfield & Finin 2003)

for instance, is a system conducting retrieval of

documents that are enriched with markup in RDF,

DAML+OIL or OWL. A text editing and extraction

system is used to enrich the documents, based on an

upper level ontology. This extra information is

processed by a rule-based inference system. Search

is conducted using classical retrieval methods;

however, the results are refined using the inference

system results.

The TAP framework (Guha & McCool 2003)

seeks as well to improve the quality of search results

by utilizing the semantic relationships of web

documents and entities. However, no inference takes

place here. Instead, the RDF / OWL documents are

treated as structured metadata sets. These sets can be

represented as directed graphs, whose edges

correspond to relations, and vertices correspond to

existing internet resources. This representation is

conducted based on the information of a local

knowledge base.

The growth and maintenance of a knowledge

base is a strenuous procedure, often demanding a

great extent of manual intervention. The Artequakt

system (Alani et al. 2003) tries to overcome this

obstacle following an automated knowledge

extraction approach. Artequakt applies natural

language processing on Web documents in order to

extract information and uses CIDOC-CRM as its

knowledge base conceptual schema. Nevertheless, it

should be noted that no inference - and thus

knowledge discovery - takes place.

The Wine Agent system (Hsu & McGuinness

2003) was developed as a demonstration of the

knowledge discovery capabilities of the Semantic

Web. This system uses a certain domain ontology

written in DAML+OIL / OWL and performs

inferences on it. The Wine Agent employs a first

order logic theorem prover (JTP).

The need for formal querying methods with

induction capabilities, has led to DQL (Fikes et al.

2002), as well as OWL-QL (Fikes et al. 2003a).

DQL and OWL-QL play an important role in terms

of interoperability, expansion and enablement of

intelligent systems on the Semantic Web.

Nevertheless, they do not provide a direct answer to

the knowledge discovery issue. Instead, they serve

mainly as communication protocols between agents.

3 INFERENCE SYSTEMS FOR

THE SEMANTIC WEB

In this section we first briefly compare some

inference methods for the Semantic Web, alternative

to DLs, with DL-based systems. We present the

formal relation of DLs with OWL and then discuss a

number of systems based either on full First Order

Logic (FOL) or rule-based systems. Next we review

and evaluate four inference engines that are based on

Description Logics and could be used to provide

reasoning services in OWL ontologies. Our most

important criteria for this evaluation include the

expressivity supported by these systems, as well as

their ability to reason with the ontology instance

space as well. As reasoning in OWL Full is

ICEIS 2006 - SOFTWARE AGENTS AND INTERNET COMPUTING

undecidable, we at least seek a system that could

properly support OWL DL.

3.1 Available Formalisms

Choosing an underlying logical formalism for

performing reasoning is crucial, as it will greatly

determine the expressiveness to be achieved. In this

subsection we will attempt to examine some

available formalisms, as well as a number of existing

tools for each of them.

Description Logics (DLs) form a well defined

subset of First Order Logic (FOL). OWL Lite and

OWL DL are in fact very expressive description

logics, using RDF syntax (Horrocks et al. 2003).

Therefore, the semantics of OWL, as well as the

decidability and complexity of basic inference

problems in it, can be determined by existing

research on DLs. OWL Full is even more tightly

connected to RDF, but its typical attributes are less

comprehensible, and the basic inference problems

are harder to compute (because OWL Full is

undecidable). Inevitably, only the examination of the

relation between OWL Lite/DL with DLs may lead

to useful conclusions. On the other hand, even the

limited versions of OWL differ from DLs, in certain

points, including the use of namespaces and the

ability to import other ontologies.

It has been shown (Horrocks & Patel-Schneider

2003) that OWL DL can be reduced in polynomial

time into SHOIN(D), while there exists an

incomplete translation of SHOIN(D) to SHIN(D).

This translation can be used to develop a partial,

though powerful reasoning system for OWL DL. A

similar procedure is followed for the reduction of

OWL Lite to SHIF(D), which is completed in

polynomial time as well. In that manner, inference

engines like FaCT and RACER can be used to

provide reasoning services for OWL Lite/DL.

The selection of a DL system to conduct

knowledge discovery is not the only option. A fairly

used alternative are inference systems that achieve

reasoning using applications based in FOL

(theorem provers). Such systems are Hoolet, using

the Vampire theorem prover, Surnia, using the

OTTER theorem prover and JTP (Fikes et al. 2003b)

used by the Wine Agent. Inference takes place using

axioms reflecting the semantics of statements in

OWL ontologies. Unfortunately, these axioms often

need to be inserted manually. This procedure is

particularly difficult not only because the modeling

axioms are hard to conceive, but also because of

their need for thorough verification. In fact, there are

cases where axiom construction depends on the

specific contents of the ontology (Hsu &

McGuinness 2003).

Another alternative is given by rule based

reasoning systems. Such systems include

DAMLJessKB (Kopena & Regli 2003) and

OWLLisaKB. The first one uses Jess rule system to

conduct inference on DAML ontologies, whereas the

second one uses the Lisa rule system to conduct

inference on OWL ontologies. As in the case of

theorem provers, rule based systems demand manual

composition of rules that reflect the semantics of

statements in OWL ontologies. This can also be a

possible reason why such systems can presently

support inference only up to OWL Lite.

Rule based inference services are also included in

the Jena framework (McBridge 2002), developed by

Hewlett-Packard. Jena provides a programming

environment for web ontologies and supports

inference up to OWL Lite level. IBM’s

corresponding solution is the SNOBASE ontology

management system, featuring similar reasoning

capabilities. The popular Protégé environment is

also capable of processing ontology documents.

Protégé’s recent support for OWL enables its

interconnection with inference systems, but only to

provide classification and subsumption services in

the class hierarchy.

On the other hand, neither the currently available

Description Logic systems nor the algorithms they

implement, support the full expressiveness of OWL

DL. Even if such algorithms are implemented, their

efficiency will be doubtful, since the corresponding

problems are solved in non deterministic exponential

time.

Nevertheless, DLs seem to constitute the most

appropriate available formalism for ontologies

expressed in DAML+OIL or OWL. This fact also

derives from the designing process of these

languages. In fact, the largest decidable subset of

OWL, OWL DL, was explicitly intended to show

well studied computational characteristics and

feature inference capabilities similar to those of

DLs. Furthermore, existing DL inference engines

seem to be powerful enough to carry out the

inferences we need.

3.2 DL Systems Evaluation

Having discussed the pros and cons of DLs as the

underlying reasoning formalism for the Semantic

Web we will now examine four inference engines

based on DLs: Cerebra, FaCT, FaCT++ and

RACER. Our evaluation, summarized in Table 1, is

carried out in terms of their availability,

expressiveness, support for OWL, reasoning about

ABox and interconnection capabilities provided.

OWL-BASED KNOWLEDGE DISCOVERY USING DESCRIPTION LOGICS REASONERS

3.2.1 Cerebra

Cerebra, by Cerebra Inc. (formerly Network

Inference) is a recent commercial system, providing

reasoning as well as ontology management features.

Cerebra differs from traditional DL based systems,

in that it provides some extra features that may be

desirable in a production environment. Nevertheless,

its expressive power is by no means exceedingly

different.

Indeed, one interesting feature of Cerebra is the

ability to add persistency to the knowledge bases

that is able to process. Cerebra can load OWL

documents either from the local file system or

directly from the Web, provided the corresponding

URL. The ontology information is stored, following

an internal data model, in a relational database and

can then be reloaded if needed.

Cerebra provides for connecting with client

applications written in Java or .NET. Further, any

web service may use its functionality through its

SOAP interface. Clients written in Java can connect

to the system either through RMI or SOAP, by using

the classes provided by Cerebra for this purpose. For

.NET, Cerebra provides a .dll library which can be

used to connect with the SOAP interface. In both

cases there is an API that provides for processing,

managing and posing queries to ontologies. Query

composition, especially when involving instances,

follows to some extent the XQuery standard.

To our knowledge, there is no formal

documentation for Cerebra’s expressive power. It is

known however that Cerebra’s internal semantic

model for conducting inferences is based on DLs.

Our experimental evaluation of the system has

shown that, for the taxonomic part of the ontology

(the TBox), Cerebra supports nearly all constructors

and axioms for classes and roles (including set-

theoretic operations) that would normally classify it

to OWL DL expressiveness level. However, further

experimentation with the system has revealed the

following:

 Symmetric roles cannot be recognized. This

was confirmed as a system’s bug.

 Minimum cardinality greater than 1 cannot

be expressed (e.g. minCardinality=2), which

is especially useful when modelling number

restrictions.The most important, inference

based on instances (ABox) is not supported.

One possible exception is the

instanceProperty function. However, given a

class and a role, instanceProperty returns all

the instance pairs that are inferred to be

related through the given role, and its left

argument comes from the given class.

The above rank Cerebra’s expressiveness at SHIQ

level, at most. On the other hand, the relational

model used by Cerebra allows the submission of

very powerful instance-retrieval queries, based on

XQuery syntax. These queries may involve data

types as well, like strings and numbers, as well as

operands between them (equation, comparison).

Still, the results are based only on the explicitly

expressed information of the ontology, and not on

information that could be inferred.

3.2.2 FaCT

FaCT (Horrocks & Sattler 2002) is a freely available

reasoning software, that is being developed at

Manchester University under Prof. Ian Horrocks.

Initially, FaCT supported the SHF DL and then

evolved to include SHIF and finally SHIQ. FaCT’s

latest versions allow its interconnection with other

applications following the client – server model

through a CORBA interface. Furthermore, they

support the DIG/1.0 standard, which prescribes a

simple communication protocol through the

exchange of XML requests and responses over

HTTP.

FaCT implements optimized complete and sound

algorithms to solve the subsumption problem in the

Description Logics mentioned. Even though a

pioneering system in its age, whose performance

used to rank it very high among other traditional DL

systems, FaCT’s lack of support for inference in the

ABox renders it inappropriate for OWL. Indeed,

during our evaluation we attempted to convert a

simple OWL ontology to the intermediate form

supported by FaCT. This conversion has been

Availability Connectivity

Reasoning

Strength

Native OWL

support

(syntax)

Reasoning with

instances (ABox)

Cerebra

Commercial RMI, SOAP SHIQ Yes No

FaCT

Free

CORBA,

DIG/1.0

SHIQ No No

FaCT++

Free DIG/1.1 SHIN(D) No No

RACER Free(before 1.8) TCP, DIG/1.0 SHIQ(D) Yes Yes

Table 1: Com

arison summar

of some DL-

ased inference en

ines.

ICEIS 2006 - SOFTWARE AGENTS AND INTERNET COMPUTING

achieved using a tool available through the

WonderWeb IST project, under which the next

version of the system (FaCT++) is also developed.

This conversion had the following results:

 Individuals are transformed into primitive

concepts.

 Relations between individuals are not

preserved.

 The new concepts that were created to

represent individuals are now subsumed by

the concepts the individuals initially

belonged to.

Besides the lack of support for ABox and data

types (concrete domains), the system is also

syntactically incompatible with OWL. Apart from

the intermediate, lisp-like knowledge base format,

FaCT also supports ontologies in XML format,

following a proprietary schema. Naturally however,

the transition to and from OWL would result in

significant information loss.

3.2.3 FaCT++

Many of FaCT’s disadvantages are being coped with

in the system’s next version, FaCT++ (Tsarkov &

Horrocks 2003), which is developed as a part of the

Wonderweb project. FaCT++ differs from FaCT in

many aspects. It is a re-implementation of FaCT in

C++, featuring however greater expressivity, aiming

ulimately to support OWL DL.

Specifically, full support for concrete domains is

added, while the underlying logic is SHIF(D). OWL

syntax is not supported; however a transformation

tool to the Lisp intermediate form supported by

FaCT++ is provided. Individuals (and thus

nominals) survive this transformation, but they are

not yet fully supported, as they are all approximated

as primitive concepts.

FaCT++ document version could only run in

Linux and provides no communication interface

with other applications. Further it can be used only

in “batch mode”: The user has first to include in a

configuration file information about the inp`t

ontology and the requested inferences, along with

preferred parameters and then let it to be processed

by the system. System’s next version however (ver.

0.99) appears to support DIG/1.1 plus unqualified

number restrictions.

3.2.4 RACER

RACER (Haarslev & Möller 2003) is an inference

engine for very expressive DLs. It is the first system

in its category to support reasoning in ABox as well

as TBox, and this is its main asset in comparison to

the other inference engines.

RACER is being developed by profs. Volker

Haarslev and Ralf Moeller in Concordia University

and Hamburg Technical University respectively. It is

freely available for research purposes, while only

recently a corporation has been established for the

commercial exploitation of the system (Racer v1.8+

aka RacerPro).

RACER’s communication with other applications

is achieved through the TCP/IP interface provided or

through HTTP, since the system supports the

DIG/1.1 standard. For TCP communication there are

APIs available in C++ as well as in Java. In addition,

RACER can been run in “file mode”, where the

ontology and queries files are given as parameters in

the command line.

Apart from the lisp-like knowledge base format,

RACER can load and process natively ontologies

written in XML, RDF, RDFS, DAML+OIL and

finally OWL (since version 1.7.7). The underlying

DL is SHIQ(D), including instances (ABox). In fact,

RACER expressiveness is superior to OWL DL as

regards to qualified number restrictions and concrete

domains.

Indeed, RACER implements algorithms for

conducting inferences based on min/max relations

between integers, linear polynomial equalities and

inequalities of reals, non-linear polynomial

equations of complex numbers and string

comparison. On the other hand, OWL allows only

expressing equality between an individual and an

instance of the concrete domain.

However, OWL semantics are more expressive

than the RACER language as far as nominals are

concerned, because they are not supported by the

system. This seems to be the main problem that

prevents full compatibility with OWL DL. RACER

deals with nominals by creating a new concept for

each of them and making the corresponding

individual an instance of this new concept.

Despite these limitations RACER seems to be

closer to the expressiveness needed by the Semantic

Web mostly because of its enhanced support for

OWL and its clear ability to reason about the ABox.

Its utilisation in the KDI produced a number of

interesting results, some of which are presented in

subsection 4.2.

4 DL-BASED KNOWLEDGE

DISCOVERY

In this section we demonstrate the use of DLs for

knowledge discovery on the Semantic Web. First we

give a general description of the KDI and the main

technologies that were used, along with a brief

description of its functionality. Then, using the KDI,

OWL-BASED KNOWLEDGE DISCOVERY USING DESCRIPTION LOGICS REASONERS

we present two experimental inferences on CIDOC-

CRM instances expressed in OWL DL, and their

results.

4.1 The Knowledge Discovery

Interface

The KDI is a web application, providing intelligent

query submission services on Web ontology

documents. We use the word Interface in order to

emphasize the fact that the user is offered a simple

and intuitive way to compose and submit queries. In

addition, the KDI interacts with RACER to conduct

inferences. The interface design follows the

traditional 3-tier model, with an important variation:

Where a database server would be typically used, we

now use a knowledge base management system

(Figure 1). Note that each of the three levels may be

physically located on different computer systems.

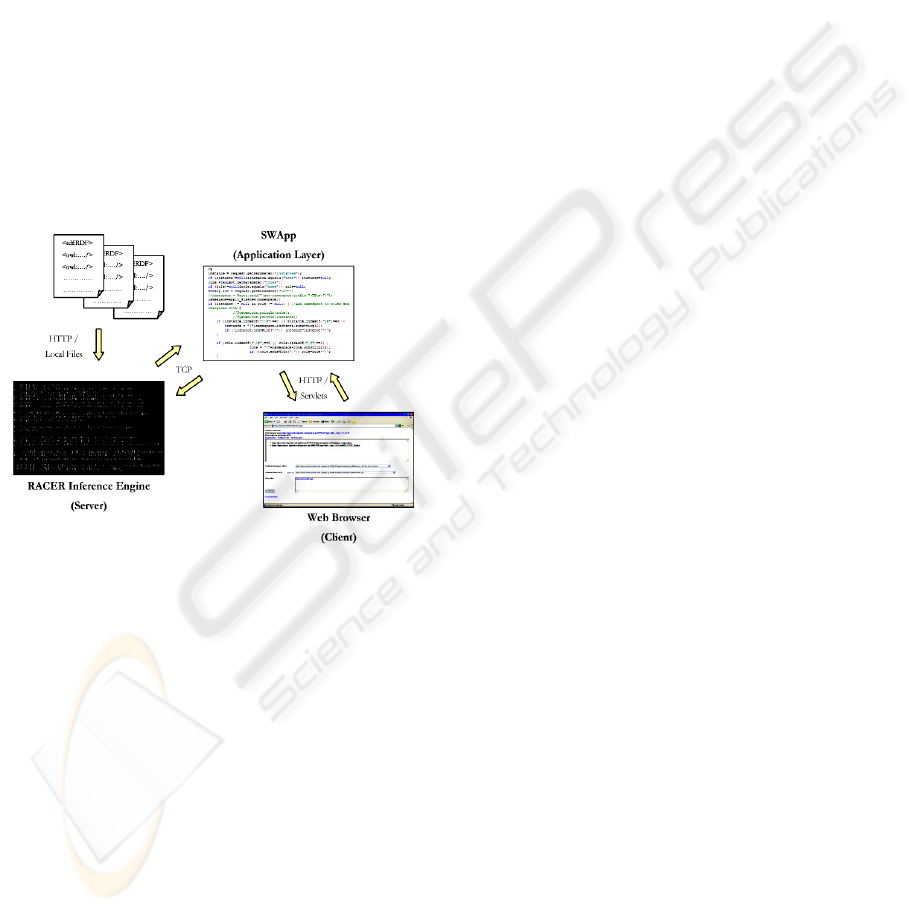

Figure 1: The three levels of the Knowledge Discovery

Interface.

The interface can load OWL documents that are

available either on the local file system, or on the

Internet. A temporary copy of every document is

stored locally on the application server and is then

loaded by the knowledge base server (RACER).

RACER creates and stores in memory an internal

model for each ontology that it classifies.

Classification takes place once for each ontology,

during its initial loading. Furthermore, other

documents imported by the ontology may be loaded

too.

The Interface business logic was implemented

using the Java programming language, as well as

JSP, JavaBeans and Java Servlets technologies.

Tomcat (version 5.0) was used as an application

server. Business logic is mostly responsible for

document loading, proper rendering of the

ontological information to the user, composition and

submission of queries and formulation and

formatting of results. Ontological data and reasoning

results are fetched by interacting with RACER over

the TCP/IP protocol. This interaction is greatly

facilitated through the JRacer API. The latter has

been modified in places, mainly in regard to the

processing of web documents links and to the

processing of synonym concepts.

The user interacts with the client level, where the

appropriate JSP pages are rendered by his browser.

Communication with the application layer is

conducted over the HTTP protocol, using forms. At

the same time, servlets are used for the

administration of multiple user requests and for

controlling simultaneous access. Furthermore, when

a loaded ontology is not used any more, it is erased

from memory, in order to improve the utilisation of

system resources.

After connection to RACER has successfully

been established, the ontology is loaded and its

information is shown on the browser. The user may

navigate through the concept hierarchy, which is

visualised in a tree form, and select any of the

available classes. Upon selection, the page is

reloaded, now containing in two drop down menus

all of the instances of the selected class, as well as

all of the roles whose domain is in this class. The

user is able to select an instance and a role and then

submit his query by pressing a button. Note that an

option is available to invert the selected role, thus

resulting in a different query.

The Interface helps the user compose a query by

selecting a concept, an instance and a role in a user

friendly manner. After the query is composed, it is

decomposed into several lower level functions that

are then submitted to RACER. This procedure is

transparent to the user, withholding the details of the

knowledge base actual querying.

4.2 Results

In the following we present the results from two

different inference actions performed using the KDI,

so as to demonstrate its capabilities as well as its

limitations. In order to conduct these inferences we

use the CIDOC Conceptual Reference Model (Crofts

et al. 2003) as our knowledge base.

Firstly, we ported version 3.4 of the CRM to

OWL format. Secondly we semantically enriched

and extended CRM with concrete instances and

more expressive structures, available only in OWL

(like cardinality restrictions, inverse roles, existential

and universal quantifications and so on). We then

created a document named mondrian.owl that

includes CRM concept and role instances which

model facts from the life and work of the Dutch

painter Piet Mondrian. In this document we also

ICEIS 2006 - SOFTWARE AGENTS AND INTERNET COMPUTING

∃R.{i

}

∃R.I

∀R.D

included axiom and fact declarations that OWL

allows to be expressed, as well as new roles and

concepts making use of this expressiveness.

Figure 2: Inference Example using Value Restriction.

The following code is a fragment from

mondrian.owl stating that a “Painting_Event” is in

fact a “Creation_Event” that “has_created”

“Painting” objects only:

<owl:Class rdf:ID="Painting_Event">

<rdfs:subClassOf rdf:resource=

"&crm;E65.Creation_Event"/>

<rdfs:subClassOf>

<owl:Restriction>

<owl:onProperty rdf:resource=

"&crm;P94F.has_created"/>

<owl:allValuesFrom

rdf:resource="#Painting"/>

</owl:Restriction>

</rdfs:subClassOf>

</owl:Class>

<Painting_Event rdf:ID=

"Creation of Mondrian's composition">

<crm:P94F.has_created rdf:resource=

"#Mondrian's composition"/>

</Painting_Event>

The above fragment is graphically depicted in the

left part of Figure 2.

“Creation of Mondrian’s Composition” (i

) is an

explicitly stated “Painting_Event” that

“has_created” (R) “Mondrian’s composition” (i

Now, asking the KDI to infer “what is a painting?” it

infers that i

is indeed a painting (right part of Figure

2), correctly interpreting the value restriction on role

Let’s now examine another example that involves

the use of nominals. The following fragment from

mondrian.owl states that a “Painting” is a “Visual_

Item” that its “Type” is “painting_composition”.

<owl:Class rdf:ID="Painting">

<owl:subClassOf rdf:resource=

"&crm;E36.Visual_Item"/>

<owl:equivalentClass>

<owl:Restriction>

<owl:onProperty rdf:resource=

"&crm;P2F.has_type"/>

<owl:hasValue rdf:resource=

"#painting_composition"/>

</owl:Restriction>

</owl:equivalentClass>

</owl:Class>

<crm:E55.Type rdf:ID=

"painting_composition"/>

<Painting rdf:ID=

"Mondrian's composition" />

The above fragment is graphically depicted in the

left part of Figure 3.

Top Concept: Τ

P2F.has_type: R

Painting_Composition: i

Mondrian’s Composition: i

Figure 3: Inference Example using Existential

Quantification and Nominals.

“Mondrian’s Composition” (i

) is explicitly

declared as a “Painting” instance which in turn is

defined as a hasValue restriction on “has_type” (R).

“Painting_composition” (i

) is declared as a “Type”

object. While the fact that “Mondrian’s

Composition” “has_type” “Painting” is

straightforward, the KDI is unable to infer so and

returns null when asked “what is the type of

Mondrian’s composition?”

This example clearly demonstrates the inability of

RACER as well as every other current DL based

system to reason about nominals. Given the {i

}

nominal, RACER creates a new synonym concept I

and makes i

an instance of I

. It then actually

replaces the hasValue restriction with an existential

quantifier on concept I

and thus is unable to infer

that R(i

) really holds.

5 CONCLUSIONS

In this paper we have primarily argued about how a

well-studied logical formalism, Description Logics,

can be utilized in order to enable intelligent querying

Top Concept: Τ

P94F.has_created: R

Painting_Event: C

Painting: D

Creation of Mondrian’s Composition: i

Mondrian’s Composition: i

OWL-BASED KNOWLEDGE DISCOVERY USING DESCRIPTION LOGICS REASONERS

of Semantic Web documents. In order to achieve

this, a key step was the review of available AI

formalisms and system families that could be used to

ground reasoning services upon. As the scene is

currently set, DL-based systems appear to be the

most promising choice to achieve streamlined

inference results even in the short term. At the same

time, DLs show adequate compatibility and

corresponding systems tend to exploit the greatest

part out of the Semantic Web ontological formalism

expressiveness, as it is now standardized in OWL.

We believe that our hands-on experimentation

with a number of state-of-the-art DL inference

engines has produced at least two lessons learned:

First, the need for instance-based reasoning, which

we have shown to be of crucial importance for the

Semantic Web environment, is not self-evident in

the majority of the systems reviewed; second, we

confirmed that even the most advanced DL-systems

have problems fully supporting OWL’s decidable

expressivity.

The potential as well as the limits of the DL-

based approach are clearly demonstrated through our

“wrapper prototype”, the KDI: On the one hand, we

have succeeded in demonstrating tangible and

meaningful knowledge discovery results on

Semantic Web documents. On the other hand, we

found that the KDI is greatly hampered by the

limited expressiveness and scalability of current DL

inference engines, regarding the use of nominals and

the processing of large ontology documents

respectively. We trust though that at the near future

most of the difficulties and incompatibilities

identified throughout our work would be overridden

by the evolution of systems and the refinement and

possibly enrichment of the Ontology Web Language.

REFERENCES

H. Alani, S. Kim, D. E. Millard, M. J. Weal, W. Hall, P.

H. Lewis and N. R. Shadbolt. Automated Ontology-

Based Knowledge Extraction from Web Documents.

IEEE Intelligent Systems, 18(1): 14-21, 2003.

S. Bechhofer, F. van Harmelen, J. Hendler, I. Horrocks, D.

L. McGuinness, P. F. Patel-Schneider and L. A.

Stein. OWL Web Ontology Language Reference.

W3C Recommendation, 2004. http://www.w3.org/

TR/owl-ref/

N. Crofts, M. Doerr and T. Gill. The CIDOC Conceptual

Reference Model: A standard for communicating

cultural contents. Cultivate Interactive, issue 9, 2003.

http://www.cultivate-int.org/issue9/chios/

R. Fikes, P. Hayes and I. Horrocks. DQL - A Query

Language for the Semantic Web. KSL TR 02-05,

2002.

R. Fikes, P. Hayes and I. Horrocks. OWL-QL: A

Language for Deductive Query Answering on the

Semantic Web. KSL TR 03-14, 2003.

R. Fikes, J. Jenkins, and F. Gleb. JTP: A System

Architecture and Component Library for Hybrid

Reasoning. In Proc. of the 7

World Multiconference

on Systemics, Cybernetics, and Informatics, 2003.

A. Gomez-Perez and O. Corcho. Ontology Languages for

the Semantic Web. IEEE Intelligent Systems,

17(1):54-60, 2002.

R. Guha, R. McCool. TAP: A Semantic Web Platform.

Computer Networks, 42(5):557-577, 2003.

V. Haarslev and R. Möller. Racer: A Core Inference

Engine for the Semantic Web. In Proc. of the 2nd

International Workshop on Evaluation of Ontology-

based Tools (EON2003), pp. 27-36, 2003.

J. Heflin, J. Hendler and S. Luke. Reading between the

Lines: Using SHOE to Discover Implicit Knowledge

from the Web. In AI and Information Integration:

Papers from the 1998 Workshop, pp.51-57. AAAI

Press, 1998.

I. Horrocks and P. F. Patel-Schneider. Reducing OWL

entailment to description logic satisfiability. In D.

Fensel, K. Sycara, and J. Mylopoulos (eds.): Proc. of

the 2

Int. Semantic Web Conference (ISWC 2003),

pp. 17-29. Springer, 2003.

I. Horrocks, P. F. Patel-Schneider, and F. van Harmelen.

From SHIQ and RDF to OWL: The making of a web

ontology language. Journal of Web Semantics,

1(1):7-26, 2003.

I. Horrocks and U. Sattler. Optimised reasoning for SHIQ.

In Proc. of the 15th Eur. Conf. on Artificial

Intelligence (ECAI 2002), pp. 277-281, 2002.

E. Hsu and D. McGuinness. Wine Agent: Semantic Web

Testbed Application. In Proc. Of Workshop on

Description Logics, 2003.

J. Kopena and W. C. Regli. DAMLJessKB: A tool for

reasoning with the Semantic Web. IEEE Intelligent

Systems, 18(3): 74-77, 2003.

J. Mayfield and T. Finin. Information retrieval on the

Semantic Web: Integrating inference and retrieval. In

Proc. of SIGIR Workshop on the Semantic Web,

2003.

B. McBridge. Jena: A Semantic Web Toolkit. IEEE

Internet Computing, 6(6):55-59, 2002.

D. Tsarkov and I. Horrocks, Reasoner Prototype:

Implementing new reasoner with datatype support.

IST-2001-33052 WonderWeb Del. 13,

http://wonderweb. semanticweb.org

ICEIS 2006 - SOFTWARE AGENTS AND INTERNET COMPUTING
