SECURE INFORMATION SYSTEMS DEVELOPMENT

Based on a Security Requirements Engineering Process

Daniel Mellado

Ministry of Labour and Social Affairs, Information Technology Center of the National Social Security Institute,

Madrid, Spain

Eduardo Fernández-Medina, Mario Piattini

Alarcos Research Group, Information Systems and Technologies Department, UCLM-Soluziona Research and

Development Institute, University of Castilla-La Mancha

Paseo de la Universidad 4, 13071 Ciudad Real, Spain.

Keywords: Security Requirements, Security Requirements Engineering, Common Criteria.

Abstract: Integration of security into the early stages of the system development is necessary to build secure systems.

However, in the majority of software projects security is dealt with when the system has already been

designed and put into operation. This paper will propose an approach called SREP (Security Requirements

Engineering Process) for the development of secure software. We will present an iterative and incremental

micro-process for the security requirements analysis that is repeatedly performed at each phase. It integrates

the Common Criteria into the software lifecycle model as well as it is based on the reuse of security

requirements, by providing a security resources repository. In brief, we will present an approach which

deals with the security requirements at the early stages of software development in a systematic and

intuitive way, and which also conforms to ISO/IEC 17799:2005.

1 INTRODUCTION

In the last years we have observed more and more

organizations becoming heavily dependent on

Information Systems (IS). However, software

applications are increasingly ubiquitous,

heterogeneous, mission-critical and vulnerable to

unintentional or intentional security incidents

(CERT; Kemmerer 2003), so that it is absolutely

vital that IS are properly ensured from the very

beginning (Baskeville 1992; McDermott and Fox

1999), due to the potential losses faced by

organizations that put their trust in all these IS.

A very important part in the software

development process for the achievement of secure

software systems is that known as Security

Requirements Engineering. Which provides

techniques, methods and norms for tackling this task

in the IS development cycle. It should involve the

use of repeatable and systematic procedures in an

effort to ensure that the set of requirements obtained

is complete, consistent and easy to understand and

analyzable by the different actors involved in the

development of the system (Kotonya and

Sommerville 1998).

After having performed a comparative analysis

of several relevant proposals of IS security

requirements, as those of (Toval, Nicolás et al.

2001), (Popp, Jürjens et al. 2003), (Firesmith 2003),

(Breu, Burger et al. 2004), etc., in (Mellado,

Fernández-Medina et al. 2006), we concluded that

those proposals did not reach the desired level of

integration into the development of IS, nor are

specific enough for a systematic and intuitive

treatment of IS security requirements at the first

stages of software development. Therefore, in this

poster we will present the Security Requirements

Engineering Process (SREP), which describes how

to integrate security requirements into the software

engineering process in a systematic and intuitive

way. In order to achieve this goal, our approach is

based on the integration of the Common Criteria

(CC) into the software lifecycle model, because the

CC helps us deal with the security requirements

along all the IS development lifecycle, together with

467

Mellado D., Fernández-Medina E. and Piattini M. (2006).

SECURE INFORMATION SYSTEMS DEVELOPMENT - Based on a Security Requirements Engineering Process.

In Proceedings of the International Conference on Security and Cryptography, pages 467-470

DOI: 10.5220/0002098004670470

 SciTePress

the reuse of security requirements which are

compatible with the CC Framework subset. In

addition, in order to support this method and make it

easy the treatment and specification of the security

requirements, assets, security objectives and threats,

we will propose the use of several concepts and

techniques: a security resources repository (with

assets, threats, requirements, etc), the use of

UMLSec (Popp, Jürjens et al. 2003), misuse cases

(Sindre, Firesmith et al. 2003), threat/attack trees,

and security uses cases (Firesmith 2003). These

latter techniques will be used following the criteria

of effectiveness, and they allow us to integrate

security aspects from the beginning into an IS

development process, for example by expressing

security-related information within the diagrams in a

UML system specification, thanks to UMLSec.

The remainder of the paper is set out as follows:

in section 2, we will outline an overview of our

Security Requirements Engineering Process. Lastly,

our conclusions and further research are set out in

section 3.

2 A GENERAL OVERVIEW OF

SREP

The Security Requirements Engineering Process

(SREP) is an asset-based and risk-driven method for

the establishment of security requirements in the

development of secure Information Systems.

Basically, this process describes how to integrate the

CC into the software lifecycle model together with

the use of a security resources repository to support

reuse of security requirements (modelled with

UMLSec, or expressed as security use cases or as

plain text with formal specification), assets, threats

(which can be expressed as misuse cases,

threat/attack trees, UMLSec diagrams) and

countermeasures. The focus of this methodology

seeks to build security concepts at the early phases

of the development lifecycle.

As it is described in

Figure 1, the Unified Process

(UP) (Booch, Rumbaugh et al. 1999) lifecycle is

divided into a sequence of phases, and each phase

may include many iterations. Each iteration is like a

mini-project and it may contain all the core

workflows (requirements, analysis, design,

implementation, and test), but with different

emphasis depending on where the iteration is in the

lifecycle. Moreover, the core of SREP is a micro-

process, made up of nine activities which are

repeatedly performed at each iteration throughout

the iterative and incremental development, but also

with different emphasis depending on what phase of

the lifecycle the iteration is in. Thus, the model

chosen for SREP is iterative and incremental, and

the security requirements evolve along the lifecycle.

At the same time, the CC Components are

introduced into the software lifecycle, so that SREP

uses different CC Components according to the

phase, although the Software Quality Assurance

(SQA) activities are performed along all the phases

of the software development lifecycle. And it is in

these SQA activities where the CC Assurance

Requirements might be incorporated into, according

to (Kam 2005).

In addition, it facilitates the requirements

reusability. The purpose of development with

requirements reuse is to identify descriptions of

systems that could be used (either totally or

partially) with a minimal number of modifications,

thus reducing the total effort of development

(Cybulsky and Reed 2000). Moreover, reusing

security requirements helps us increase their quality:

inconsistency, errors, ambiguity and other problems

can be detected and corrected for an improved use in

subsequent projects (Toval, Nicolás et al. 2001).

Thereby, it will guarantee us the fastest possible

development cycles based on proven solutions.

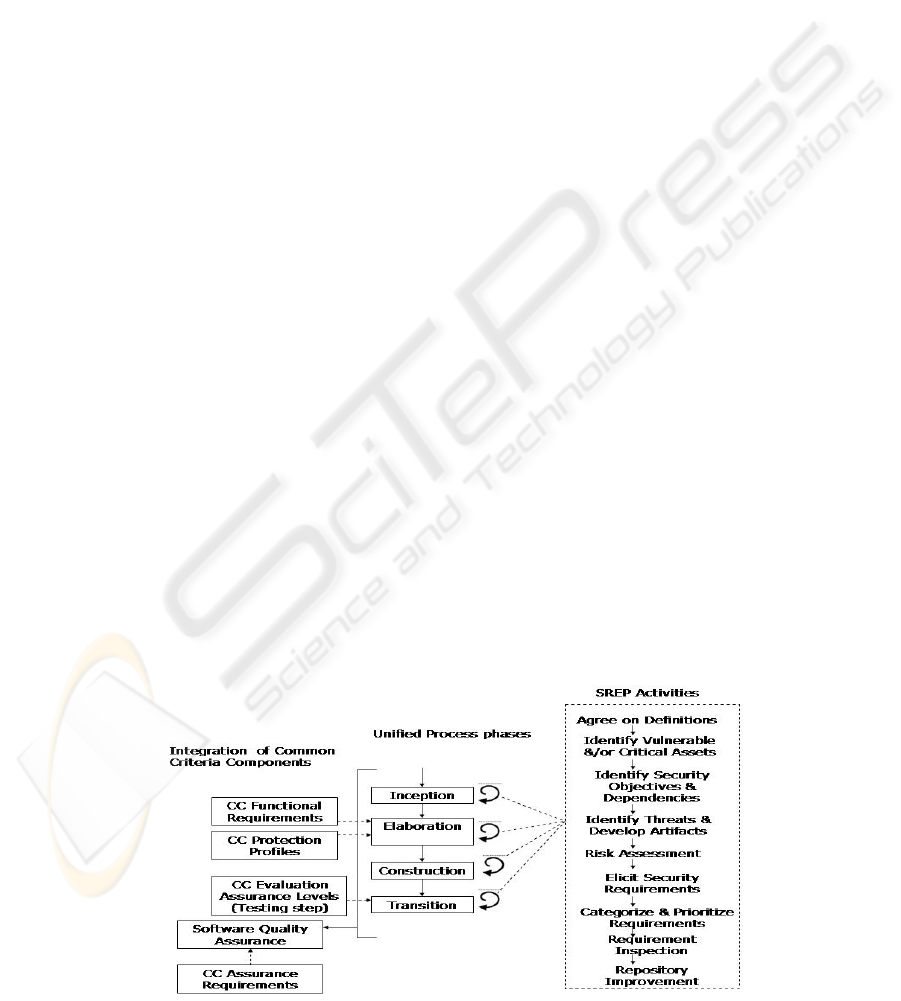

Figure 1: SREP overview.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

468

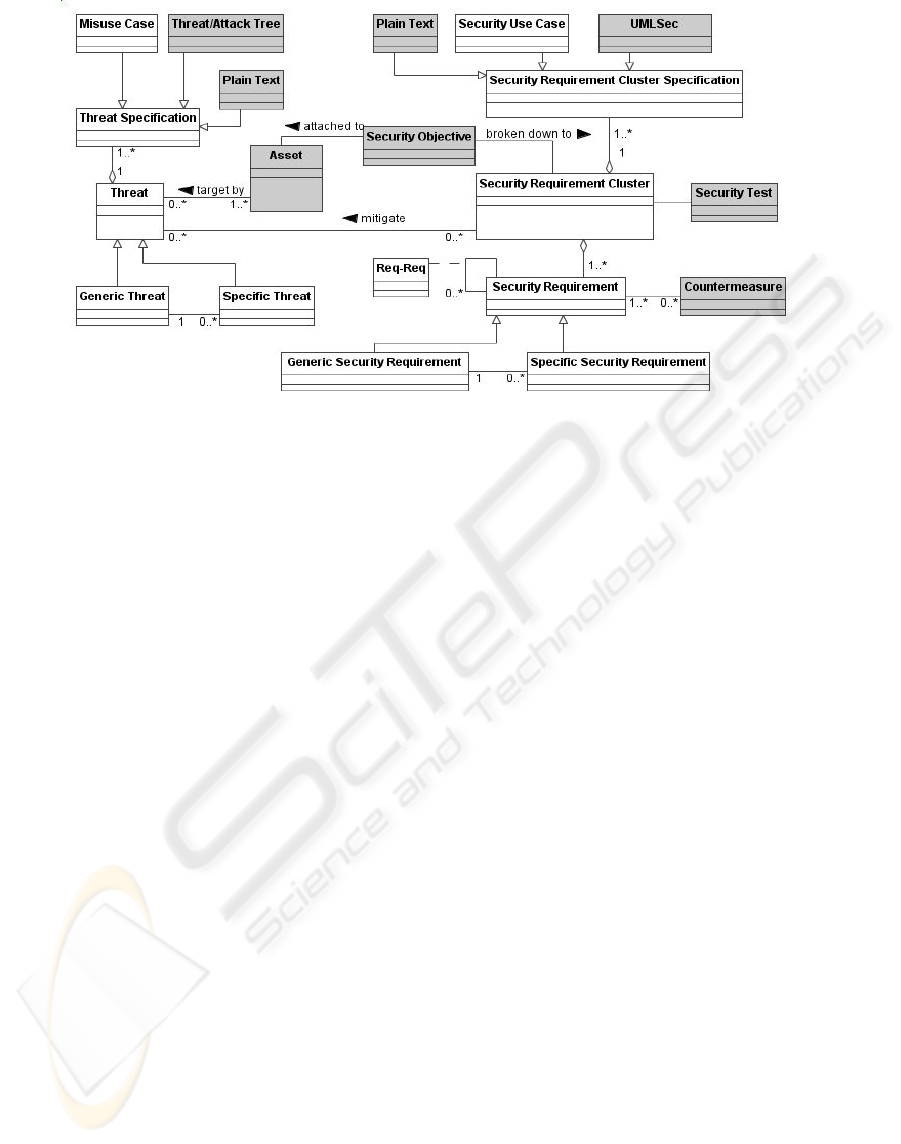

Figure 2: Meta-model for security resources repository.

2.1 The Security Resources

Repository

We propose a Security Resources Repository (SRR),

which stores all the reusable elements. The

repository, as SIREN (Toval, Nicolás et al. 2001)

approach, supports the concepts of domains and

profiles. We propose to implement the domains and

profiles by taking advantage of the CC concepts of

packages and Protection Profiles (PP). Thus, the

requirements are stored as standardized subsets of

specific security requirements together with its

related elements of the SRR (threats, etc.). In brief,

each domain or profile is a view of the global SRR.

A meta-model, which is an extension of the

meta-model for repository proposed by (Sindre,

Firesmith et al. 2003), showing the organization of

the SRR is exposed below in Fig. 2. The dark

background in the objects represents our

contribution to the meta-model.

Finally, according to ISO/IEC 17799:2005, we

propose to include legal, statutory, regulatory, and

contractual requirements that the organization, its

trading partners, contractors, and service providers

have to satisfy, and their socio-cultural environment.

After converting these requirements into software

and system requirements format, these requirements

along with the CC security functional requirements

would be the initial subset of security requirements

of the SRR.

3 CONCLUSIONS

In our present so-called Information Society the

Information Security is usually only tackled from a

technical viewpoint at the implementation stage,

even though it is an important aspect. We believe it

is fundamental to deal with security at all stages of

IS development, especially in the establishment of

security requirements, since these form the basis for

the achievement of a robust IS.

Consequently, we present an approach that deals

with the security requirements at the first stages of

software development in a systematic and intuitive

way, which is based on the reuse of security

requirements, by providing a Security Resources

Repository (SRR), together with the integration of

the Common Criteria into software lifecycle model.

Moreover, it conforms to ISO/IEC 15408 and

ISO/IEC 17799:2005. Starting from the concept of

iterative software construction, we propose a micro-

process for the security requirements analysis, made

up of nine activities, which are repeatedly performed

at each iteration throughout the iterative and

incremental development, but with different

emphasis depending on where the iteration is in the

lifecycle. Finally, one of the most relevant aspects is

the fact that this proposal integrates other

approaches, such as UMLSec (Popp, Jürjens et al.

2003), security use cases (Firesmith 2003) or misuse

cases (Sindre, Firesmith et al. 2003).

Further work is also needed to provide a CARE

(Computer-Aided Requirements Engineering) tool

which supports the process, as well as a refinement

of the theoretical approach by proving it with a real

SECURE INFORMATION SYSTEMS DEVELOPMENT - Based on a Security Requirements Engineering Process

469

case study in order to complete and detail more

SREP.

ACKNOWLEDGEMENTS

This paper has been produced in the context of the

DIMENSIONS (PBC-05-012-2) Project of the

Consejería de Ciencia y Tecnología de la Junta de

Comunidades de Castilla- La Mancha along with

FEDER and the CALIPO (TIC2003-07804-CO5-03)

and RETISTIC (TIC2002-12487-E) projects of the

Dirección General de Investigación del Ministerio

de Ciencia y Tecnología.

REFERENCES

Baskeville, R. (1992). "The development duality of

information systems security." Journal of

Management Systems 4(1): 1-12.

Booch, G., J. Rumbaugh and I. Jacobson (1999). The

Unified Software Development Process, Addison-

Wesley.

Breu, R., K. Burger, M. Hafner and G. Popp (2004).

"Towards a Systematic Development of Secure

Systems." Proceedings WOSIS 2004: 1-12.

CERT http://www.cert.org.

Cybulsky, J. and K. Reed (2000). "Requirements

Classification and Reuse: Crossing Domains

Boundaries." ICSR'2000: 190-210.

Firesmith, D. G. (2003). "Security Use Cases." Journal of

Object Technology: 53-64.

Kam, S. H. (2005). "Integrating the Common Criteria Into

the Software Engineering Lifecycle." IDEAS'05: 267-

273.

Kemmerer, R. (2003). "Cybersecurity." Proc. ICSE'03-

25th Intl. Conf. on Software engineering: 705-715.

Kotonya, G. and I. Sommerville (1998). Requirements

Engineering Process and Techniques,

McDermott, J. and C. Fox (1999). Using Abuse Case

Models for Security Requirements Analysis. Annual

Computer Security Applications Conference, Phoenix,

Arizona.

Mellado, D., E. Fernández-Medina and M. Piattini (2006).

"A Comparative Study of Proposals for Establishing

Security Requirements for the Development of Secure

Information Systems." The 2006 International

Conference on Computational Science and its

Applications (ICCSA 2006), Springer LNCS 3982 3:

1044-1053.

Popp, G., J. Jürjens, G. Wimmel and R. Breu (2003).

Security-Critical System Development with Extended

Use Cases. 10th Asia-Pacific Software Engineering

Conference: 478-487.

Sindre, G., D. G. Firesmith and A. L. Opdahl (2003). A

Reuse-Based Approach to Determining Security

Requirements. Proc. 9th International Workshop on

Requirements Engineering: Foundation for Software

Quality (REFSQ'03), Austria.

Toval, A., J. Nicolás, B. Moros and F. García (2001).

Requirements Reuse for Improving Information

Systems Security: A Practitioner's Approach.

Requirements Engineering Journal. 6: 205-219.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

470
