HUMAN BODY TRACKING BASED ON PROBABILITY

EVOLUTIONARY ALGORITHM

Shuhan Shen, Weirong Chen

School of Electrical Engineering, Southwest Jiaotong University, Chengdu, China

Keywords:

Tracking, Human Tracking, Probabilistic evolutionary algorithm.

Abstract: A novel evolutionary algorithm called Probability Evolutionary Algorithm (PEA), and a method based on

PEA for visual tracking of human body are presented. PEA is inspired by the Quantum computation and the

Quantum-inspired Evolutionary Algorithm, and it has a good balance between exploration and exploitation

with very fast computation speed. The individual in PEA is encoded by the probabilistic compound bit,

defined as the smallest unit of information, for the probabilistic representation. The observation step is used

in PEA to obtain the observed states of the individual, and the update operator is used to evolve the

individual. In the PEA based human tracking framework, tracking is considered to be a function

optimization problem, so the aim is to optimize the matching function between the model and the image

observation. Then PEA is used to optimize the matching function. Experiments on synthetic and real image

sequences of human motion demonstrate the effectiveness, significance and computation efficiency of the

proposed human tracking method.

1 INTRODUCTION

With the fast developments of computer science and

technology, visual analysis of human motion in

image sequences interests more and more

researchers from both laboratory and industry.

Human motion analysis has many potential

application areas such as intelligent visual

surveillance, advanced human-computer interface,

virtual reality, etc. Human tracking is a particularly

important issue in human motion analysis. How to

track human accurately and fast is a challenging task,

and it has been a popular topic in the research of

computer vision.

Tracking can be considered to be equivalent to

establishing coherent relations of image features

between frames with respect to position, velocity,

shape, texture, color, etc (Hu et al., 2004). Tracking

can be divided into region-based tracking

(Haritaoglu et al., 2000; Collins et al., 2000), feature

-based tracking (Breit et al., 2003), active-counter

-based tracking (Zhong et al., 2000; Paragio et al.,

2000), and model-based tracking. Model-based

tracking can provide abundant information of human

motion, but the increasing of subparts of the human

model would potentially incur high dimensionality

and make tracking a difficult task. To solve the

problem, many approaches have been investigated.

Gavrila et al. (Gavrila et al., 1996) split human

model into torso-head and limb partitions, and then

matching is implemented in the partitioned search

space. The Pfinder developed by Wren et al. (Wren

et al., 1997) employ a multi-class statistical model of

color and shape to obtain a 2D representation of

head and hands in a wide range of viewing

conditions. Isard et al. (Isard et al., 1998) propose

Condensation algorithm, which is a conditional

density propagation method for visual tracking.

Condensation is a useful approximate method for

nonlinearity and non-gaussianity posterior

probability within the Bayesian framework.

Condensation has various versions, and these

algorithms have been widely used now. Deutscher et

al. (Deutscher et al., 2001) present an Annealed

Particle Filtering (APF) method combined with

hierarchical search strategy and crossover operator.

Wu et al. (Wu et al., 2003) proposed a tracking

approach using mean field Monte Carlo (MFMC)

algorithm. In the approach, the subparts of human

model are considered to be independent and a set of

low dimensional particle filters interact with each

other to solve the high dimensional problem

collaboratively. Zhao et al. (Zhao et al., 2003)

303

Shen S. and Chen W. (2006).

HUMAN BODY TRACKING BASED ON PROBABILITY EVOLUTIONARY ALGORITHM.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 303-309

DOI: 10.5220/0001362603030309

Copyright

c

SciTePress

employ a 3D elliptical human model and segment

human body in crowed situations using Data-Driven

Markov Chain Monte Carlo (DDMCMC) algorithm.

In their further work (Zhao et al., 2004), Markov

chain Monte Carlo (MCMC) was used to tracking

segmented human in sequences.

Different from using particle filters within the

Bayesian framework, human tracking is considered

to be a function optimization problem in this paper,

so the aim is to optimize the matching function

between the model and the observation. Function

optimization is a typical application area of Genetic

Algorithms (GAs), but canonical genetic algorithms

is hard to be used here due to the high

dimensionality of human model and the requirement

of computation speed. In this paper, we present a

novel evolutionary algorithm called Probability

Evolutionary Algorithm (PEA) which is inspired by

the Quantum computation (Nielsen et al., 2000; Hey,

1996) and Quantum-inspired Evolutionary

Algorithm (QEA) (Han et al., 2002; Kim et al.,

2003), and then the PEA based human body tracking

is proposed in which PEA is used to optimize the

matching function. PEA has a good balance between

exploration and exploitation with very fast

computation speed, and it is suitable for human

tracking and other real-time optimization problems.

The rest of the paper is organized as follows.

Section 2 contains the Probabilistic Evolutionary

Algorithm (PEA). Section 3 describes the PEA

based human body tracking. Section 4 shows the

experimental results of our proposed tracking

algorithm. Finally, the conclusion follows in section

5.

2 PROBABILISTIC

EVOLUTIONARY ALGORITHM

Probabilistic Evolutionary Algorithm (PEA) is

inspired by the Quantum computation and the

Quantum-inspired Evolutionary Algorithm (QEA).

QEA is characterized by the representation of

quantum-bit, the observation step and the update

step with quantum gate. QEA performs well in the

function optimization and the knapsack problems.

For the full details of QEA, one can peruse Ref.

(Han et al., 2002; Kim et al., 2003). Considering that

QEA has only two observed states (0,1), it is more

suitable for the problem use binary coding than

multi-nary coding. Although multi quantum-bit can

be used to obtain multi observed states, this need to

use multi quantum gate which is extraordinarily hard

to design, and this shortcoming confines the

application area of QEA (Nielsen et al., 2000; Hey,

1996). To overcome the disadvantage, we present

the probability evolutionary algorithm (PEA).

2.1 The Individual’s Representation

in PEA

In PEA, the individual is encoded by the

probabilistic superposed bit, which is defined as the

smallest unit of information in PEA, as below.

Definition 1: A probabilistic superposed bit is a

vector that consists of the observation probabilities,

as:

1,

10

1

0

=+++

⎥

⎥

⎥

⎥

⎦

⎤

⎢

⎢

⎢

⎢

⎣

⎡

k

k

ppp

p

p

p

L

M

(1)

Where P

0

, P

1

, … P

k

give the probability that a

probabilistic superposed bit will be observed in the

‘0’ state, the ‘1’ state, …, and the ‘k’ state,

respectively. So a probabilistic superposed bit is a

linear superposition of the states 0 to k.

In PEA, an individual is defined as a string of the

probabilistic superposed bits. The individual is no

longer a deterministic state, but a linear

superposition of all kinds of states.

Definition 2: An individual p is a string of m

probabilistic superposed bits, as:

mjppp

ppp

ppp

ppp

j

k

jj

m

kkk

m

m

,,2,1,1,

10

21

1

2

1

1

1

0

2

0

1

0

KL

L

MMM

L

L

==+++

⎥

⎥

⎥

⎥

⎥

⎥

⎦

⎤

⎢

⎢

⎢

⎢

⎢

⎢

⎣

⎡

=p

(2)

Where m is the length of the string. A PEA

individual can represent a linear superposition of

(k+1)

m

deterministic states probabilistically. For

example: for an individual with m=3 and k=9, the

probability to represent the state “123” is

p

1

1

×p

2

2

×p

3

3

, and the probability to represent the state

“709” is p

7

1

×p

0

2

×p

9

3

, etc. In the initialization of the

individual, all p

i

j

,i=0,1,…,k, j=1,2,…,m, are set to

1/(k+1), so the initial individual represents the linear

superposition of all possible states with the same

probability.

2.2 The Observation in PEA

The individual p in PEA can’t be used in the fitness

function directly, and an observation step should be

used to get the observed individual s. For p with

length m, it’s observed individual s=[s

1

,s

2

,…,s

m

],

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

304

where s

i

(i=0,1,…,m) is a deterministic k-nary value

and s is a deterministic k-nary string.

For the i-th probabilistic superposed bit [p

0

p

1

…p

k

]

T

in p, its observed value s

i

is obtained by the

following step. First, a random number r is

generated from the range [0,1]. Second, if P

0

+…+

P

v-1

<r< P

v

+…+ P

k

, s

i

is set to v.

Figure 1 shows an example of the observation

step when k=4, r=0.6 and the i-th probabilistic

superposed bit in p is [0.25, 0.125, 0.375, 0.125,

0.125]

T

, here the observed value is s

i

= 2.

Figure 1: Observation.

2.3 The Update in PEA

The update operator is the only evolutionary

operator in PEA which can increase the observation

probabilities of some states, and decrease the

observation probabilities of some other states, in

order to make the high fitness state be observed

more likely.

Let s be the observed individual of p, and b be

the best solution of p at current generation. The

update value Δp of the i-th probabilistic superposed

bit [p

0

p

1

…p

k

]

T

in p can be formed from s and b, and

it can be found in Table 1.

s

i

=b

i

f(s)≥f(b) Δp

false false δ

true true 0

false true 0

true false 0

The update process is described in equation 3.

⎪

⎩

⎪

⎨

⎧

Δ+←

Δ−←

ppp

ppp

ii

ii

bb

ss

(3)

Considering that the observation probability can

not be negative, and to ensure the decreased

probability will not attenuate too fast, we make the

change value δ adaptively change according to the

decreased observation probability, as:

10, <<×= dpd

i

s

δ

(4)

Where d is the update rate that controls the

convergence speed of PEA. A bigger d leads a rapid

convergence speed but a rough search in the search

space, a smaller d has the opposite effect.

Figure 2 shows an example of the update step

when k=4, s

i

=2, b

i

=0 and Δp=0.05, here p

2

decrease,

p

0

increase, p

1

, p

3

and p

4

have no change.

Figure 2: Update.

2.4 The Procedure of PEA

The procedure of PEA is described in the following.

Begin

t←0

Initialization: Initialize population P(0)

Observation: Obtain the observed population S(0)

by observing P(0)

Evaluation: Calculate the fitness of the observed

individuals in S(0)

Store: Store S(0) into B(0)

While Termination-condition = false

t←t+1

Observation: Obtain the observed population S(t)

by observing P(t-1)

Evaluation: Calculate the fitness of the observed

individuals in S(t)

Update: Obtain the population P(t) by update

P(t-1)

Store: Store the best solution among B(t -1) and

S(t) into B(t), Store the best solution in B(t)

into gb

If Migration-condition = true

Migrate individuals in B(t) Locally or globally

End If

End While

End Begin

P(t) is the population, P(t)={p

1

t

,p

2

t

,…, p

n

t

}. p

j

t

is

the j-th individual at the t-th generation, where n is

the population size. In the initial population P(0), all

possible states in the search space should be

observed with the same probability.

Table 1: Lookup table of Δp, where f(·) is the fitness

function, s

i

and b

i

are the i-th bits of s and b,

ti l

HUMAN BODY TRACKING BASED ON PROBABILITY EVOLUTIONARY ALGORITHM

305

S(t) is the observed population,

S(t)={s

1

t

,s

2

t

,…,s

n

t

}. s

j

t

is the observed individual of

p

j

t

, and it is obtained by the observation step

described in section 2.2.

B(t) is the best solution population, B(t)=

{b

1

t

,b

2

t

,…,b

n

t

}. b

j

t

is the best solution of p

j

t

at the

t-th generation. gb is the global best solution. When

the local migration condition is satisfied, the best

solution among some of the solutions in B(t) is

migrated to them. When the global migration

condition is satisfied, the global best solution gb is

migrated to B(t).

Update operator generates the update position

and update value according to s

j

t

and b

j

t

, and evolves

p

j

t-1

to p

j

t

by the update step described in section 2.3.

3 PEA BASED HUMAN BODY

TRACKING

3.1 The Framework of PEA Based

Tracking

Different from tracking human using particle filters

within the Bayesian framework, tracking is

considered to be a function optimization problem in

this paper. We denote the human model by X, and

denote the observation associate with X by Z. The

function f(X,Z) represents the matching degree

between X and Z. Assume that we have known that

the model at time instance t-1 is X

t-1

, so the model X

t

at time instance t can be get by equation 5.

X

t

=X

t-1

+ΔX (5)

Here, ΔX is the change of the model X

t-1

. After

we get X

t

, the matching function f(X

t

,Z

t

) can be

calculated. Since X

t

is associated with ΔX, the

matching function can be written as:

f(X

t

,Z

t

) = g (ΔX) (6)

So tracking at time instance t is to optimize g

(ΔX) in ΔX’s search space. Generally, g (ΔX) is a

multi-modal function with many local best solutions,

and conventional optimization methods are difficult

to get the global best solution, so we use PEA to

optimize g (ΔX).

3.2 Search Strategy

Human model always has high dimensionality, and

search space partition is a useful strategy to change

the high dimensional problem into some low

dimensional problems and improve the matching

results (Gavrila et al., 1996; Deutscher et al., 2001;

Chen et al., 2005). Here we split the human model

into five partitions including the trunk-head partition

and four limb partitions. First, PEA is used to match

the trunk-head partition. Then, keeping the best

matched parameters of the trunk-head partition

constant, and PEA is used to math the four limb

partitions respectively.

In PEA based tracking, the model for the

previous frame only gives the initial position for the

current frame, so even if there are some matching

errors at the previous frame, the matching is easy to

be recovered in the following frames as long as the

search space of ΔX is enough.

3.3 Human Model

We employ a 10-part articulated human body model

which consists of 10 parts and each pairs of neighbor

parts are connected by the joint point, as shown in

Figure3.

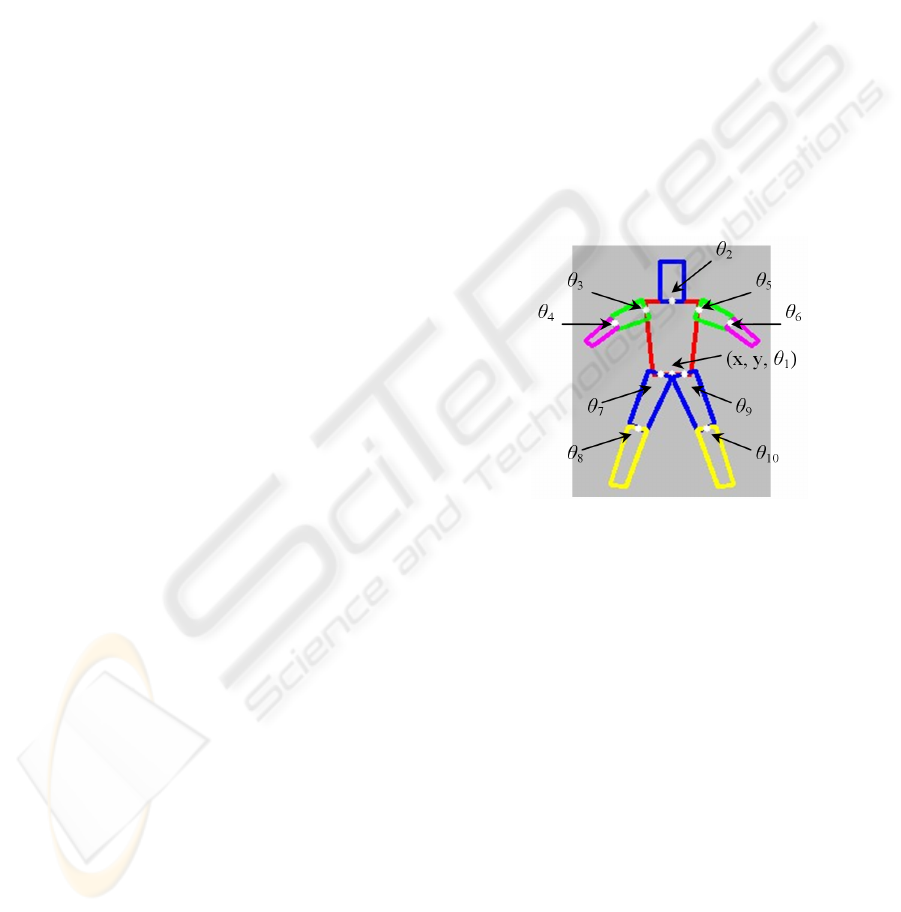

Figure 3: 2D human body model.

The model has 10 joints, and the root joint is at

the middle bottom of the trunk. The root joint has 3

degrees, and each of the other 9 joints has 1 degree.

The model X can be written as:

X = {x, y, θ

1

, θ

2

, …θ

10

} (7)

Here, x and y represent the location of the root

joint, and θ

1

,θ

2

…θ

10

represent the swiveling angles

of the 10 joints. ΔX can be written as:

ΔX={Δx, Δy, Δθ

1

, …Δθ

10

} (8)

Human motion is a gradually changed movement,

so ΔX can be limited in a logical small scope. This

scope can be learned or man-made. For example, Δx

and Δy are in the range [-19,19] (integral pixel),

θ

1

,θ

2

…θ

10

are in the range [-29,29] (integral degree).

Apparently, ΔX is suitable for decimal encoding

here, so the initial PEA individual of the trunk-head

partition and that of the limb partitions are shown in

Figure 4 and Figure 5 respectively.

In the observation step, the probabilistic

superposed bits corresponding with Δx and Δy can

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

306

be observed as {0,1,…39}, and subtracting 20

from these values give the true values of Δx and Δy.

The probabilistic superposed bits corresponding with

θ

1

,θ

2

…θ

10

can be observed as {0,1,…59}, and

subtracting 30 from these values give the true values

of θ

1

,θ

2

…θ

10

.

Figure 4: Initial PEA individual of the trunk-head

partition.

Figure 5: Initial PEA individual of the limb partition.

Here, we have a comparison of PEA with QEA.

If we use QEA here, ΔX should be encoded in

binary. For the same range of ΔX mentioned above,

the lengths of QEA’s individuals for trunk-head

partition and limb partitions are 24 and 12

respectively, and those lengths of PEA’s individual

are 8 and 4 respectively. In PEA and QEA, the most

intensive computation is the observation and the

update for each bit in the individual, so the shorter

length of individual make PEA run much faster than

QEA.

4 EXPERIMENTAL RESULTS

Two image sequences are used here to demonstrate

the effectiveness of PEA. Sequence 1 is a synthetic

image sequence generated by Pose software which

consists of 100 frames. Sequences 2 is a real image

sequence which consists of 325 frames. The

observation Z is also an important factor in tracking.

Here we use two types of visual cues: edge and

intensity. We compared the tracking results from

PEA with Annealed Particle Filtering (APF). All the

algorithms run on a 2.4GHz PC without code

optimization.

4.1 Parameters Setting

In APF based tracking, 200 particles are used, and

the particles are annealed for 8 times.

In PEA based tracking, we test two population

sizes. The population sizes of PEA1 and PEA2 are

set to 1 and 4, respectively. In PEA2, the local

migration occurs every generation between each pair

of neighboring individuals, and the global migration

occurs every 100 generations. The maximum

number of generations is 200.

4.2 Results

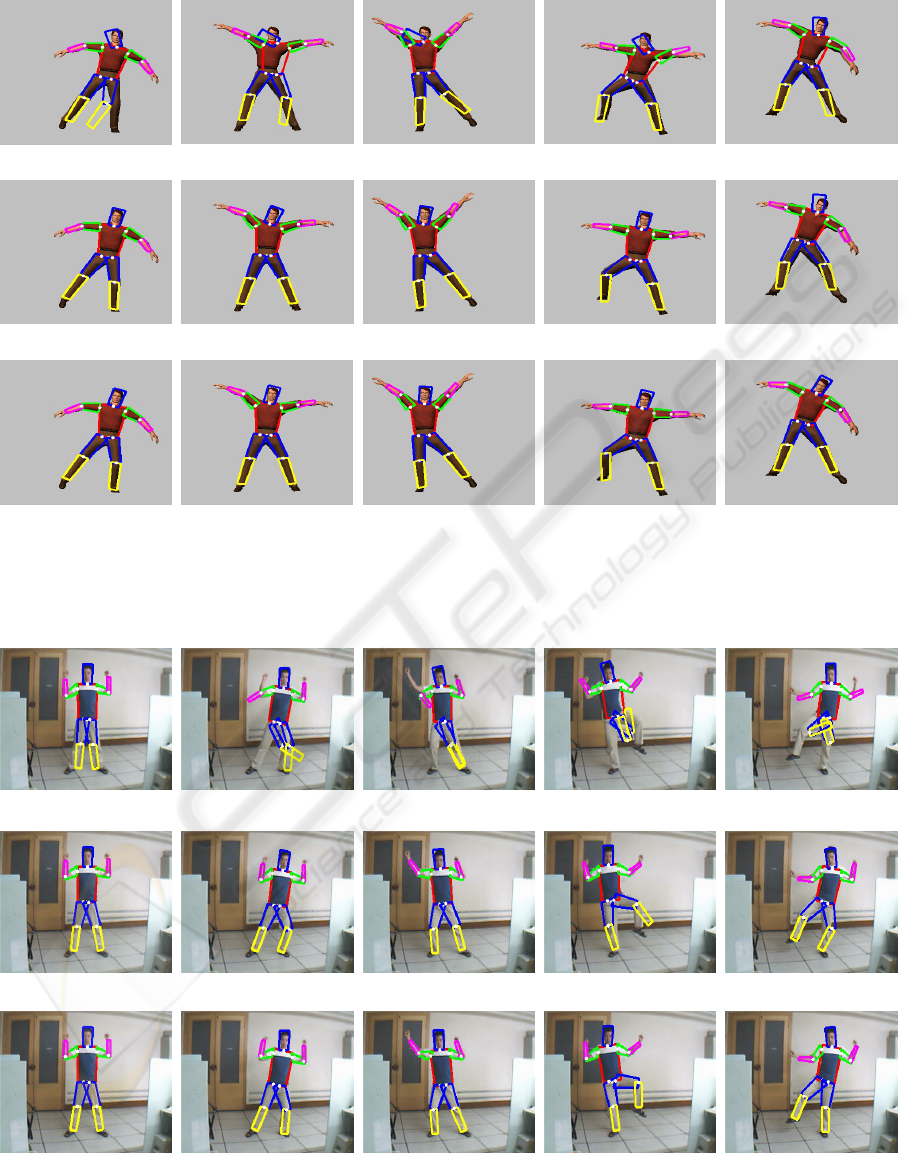

Some tracking results of PEA and APF for sequence

1 and sequence 2 are shown in Figure 6 and Figure 7

respectively. The average computation time for one

frame of PEA and APF are shown in table 2.

Algorithm

Particles or

Population size

second/frame

APF 200 3.77s

PEA2 4 1.62s

PEA1 1 0.41s

The results show that the PEA based tracking

algorithm yields more stable results than APF, and

run much faster than APF.

In some frames, PEA1 has some matching errors,

this is because there is only one individual in the

population and the premature convergence is

happened sometimes. PEA2 generates very stable

results in all the experiments.

In the experiments we also found that, when the

population size is bigger than 10, the tracking result

can not be improved further, so we suggest that the

population size is set to 2 to 8 in applications in

order to get a balance between the tracking accuracy

and the computation time.

Table 2: Avera

g

e com

p

utation time for one frame.

HUMAN BODY TRACKING BASED ON PROBABILITY EVOLUTIONARY ALGORITHM

307

5 CONCLUSIONS AND FURTHER

WORK

Model-based human tracking is a challenging

problem, since the human model has high

dimensionality. Different from tracking human using

particle filters, we consider tracking to be a function

optimization problem, and a novel evolutionary

algorithm called Probabilistic Evolutionary

Algorithm (PEA) is proposed to optimize the

matching function between the model and the

observation. PEA has a good balance between

exploration and exploitation with very fast

computation speed. Experiments on synthetic and

real image sequences of human motion demonstrate

the effectiveness, significance and computation

efficiency of the PEA based human body tracking

algorithm.

This paper mainly concerned to 2D tracking, but

the PEA based tracking method is easy to be

extended to 3D tracking, and our further work is to

extend our algorithm to 3D and combine more

observed cues such as motion and color. Our further

work also includes the further improving of the

searching ability and the computation speed of PEA.

REFERENCES

Breit, H. and Rigoll, G., 2003. A flexible mulitimodel

object tracking system. In Proceedings of International

Conference on Image Processing.

Chen, R., Liu, G.Y., Zhao, G.Y., et al, 2005. 3D human

motion tracking based on sequential monte carlo

method. Journal of Computer-aided Design &

Computer Graphics, vol. 17, no. 1, pp. 85-92.

Collins, R.T., Lipton, A.J., Kanade, T., et al, 2000. A

system for video surveillance and monitoring.

Carnegie Mellon Univ., Pittsburgh, PA, Tech. Rep.,

CMU-RI-TR- 00-12.

Deutscher, J., Davidson, A. and Reid, I., 2001. Articulated

partitioning of high dimensional search spaces

associated with articulated body motion capture. In

IEEE Proceedings of International Conference on

Computer Vision and Pattern Recognition, Hawaii.

Gavrila, D. and Davis, L., 1996. 3D model based tracking

of humans inaction: A multiview approach. In IEEE

Proceedings of International Conference on Computer

Vision and Pattern Recognition, San Francisco,

California.

Han, K.H. and Kim, J.H., 2002. Quantum-Inspired

Evolutionary Algorithm for a Class of Combinatorial

Optimization. IEEE Trans. on Evolutionary

Computing, vol. 6, no. 6, pp. 580-593.

Haritaoglu, I., Harwood, D., and Davis, L.S., 2000. W

4

:

real-time survei llance of people and their activities.

IEEE Trans. on Pattern Analysis Machine Intelligence,

vol. 22, no. 8, pp. 809-830.

Hey, T., 1996. Quantum computing: An introduction.

Computing & Control Engineering Journal, vol. 10, no.

3, pp. 105-121.

Hu, W.M, Tan, T.N, Wang, L., and Maybank, S.J., 2004.

A survey on visual surveillance of object motion and

behaviors. IEEE Trans. on System Man and

Cybernetics, vol. 34, no. 3, pp. 334-351.

Isard, M. and Blake, A., 1998.

CONDENSATION-conditional density propagation

for visual tracking. vol. 29, no. 1, pp. 5-28,

International Journal of Computer Vision.

Kim, K.H., Hwang, J.Y., Han, K.H., et al, 2003. A

Quantum-Inspired Evolutionary Algorithm for disk

allocation method. IEICE Trans. on Information &

Systems, vol. 86, no. 3, pp. 645-649.

Nielsen, M.A. and Chuang, I.L., 2000. Quantum

Computation and Quantum Information, Cambridge

University Press. Cambridge.

Paragio, N. and Deriche, R., 2000. Geodesic active

contours and level sets for the detection and tracking

of moving objects. IEEE Trans. on Pattern Analysis

and Machine Intelligence, vol. 22, no. 3, pp. 266-280.

Wren, C., Azarbayejani, A., Darrell, T. and Pentland, A.P.,

1997. Pfinder: Real-Time Tracking of the Human

Body. IEEE Trans. on Pattern Analysis and Machine

Intelligence, vol. 19, no. 7, pp.780-785.

Wu, Y., Hua, G. and Yu, T., 2003. Tracking Articulated

Body by Dynamic Markov Network. In Proceedings

of the Ninth IEEE International Conference on

Computer Vision.

Zhao, T. and Nevatia, R., 2003. Bayesian Human

Segmentation in Crowded Situations. In IEEE

Proceedings of International Conference on Computer

Vision and Pattern Recognition.

Zhao, T. and Nevatia, R., 2004. Tracking Multiple

Humans in Crowded Environment. In IEEE

Proceedings of International Conference on Computer

Vision and Pattern Recognition.

Zhong, Y., Jain, A., and Dubuisson, J.M., 2000. Object

tracking using deformable templates. IEEE Trans. on

Pattern Analysis and Machine Intelligence, vol. 22, no.

5, pp. 544-549.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

308

(a)

(b)

(c)

Figure 6: Some tracking results of sequence 1. (a) Tracking based on APF. (b) Tracking based on PEA with population size

1 (PEA1). (c) Tracking based on PEA with population size 4 (PEA2).

(a)

(b)

(c)

Figure 7: Some tracking results of sequence 2. (a) Tracking based on APF. (b) Tracking based on PEA with population size

1 (PEA1). (c) Tracking based on PEA with population size 4 (PEA2).

HUMAN BODY TRACKING BASED ON PROBABILITY EVOLUTIONARY ALGORITHM

309
