DEVELOPMENT OF A COMPUTER PLATFORMFOR OBJECT

3D RECONSTRUCTIONUSING COMPUTER VISION

TECHNIQUES

Teresa Azevedo

INEGI – Inst. de Eng. Mecânica e Gestão Industrial, LOME – Lab. Óptica e Mecânica Experimental

FEUP – Faculdade de Engenharia da Universidade do Porto

Rua Dr. Roberto Frias s/n, 4200-465 Porto, Portugal

João Manuel R. S. Tavares, Mário A. Vaz

INEGI / LOME, FEUP

Rua Dr. Roberto Frias s/n, 4200-465 Porto, Portugal

Keywords: Computer Vision, Active Vision, 3D Reconstruction, Structure from Motion.

Abstract: In this paper we describe the development of a Computer Platform, whose goal is to recover the three-

dimensional (3D) structure of a scene or the shape of an object, using Structure From Motion (SFM)

techniques. SFM is an Active Computer Vision technique, which doesn’t need contact or energy projection.

The main objective of this project is to recover the 3D shape of an object or scene using the camera(s)’s or

object’s movement, without imposing any kind of restrictions to it. Starting with an uncalibrated sequence

of images, the referred movement is extracted, as well as the camera(s) parameters, and finally, the 3D

geometry of the object or scene is inferred. Shortly, in the first section of this paper the goals are defined; in

the second, the computer platform is presented, as well as some experimental results; in the third and last

section, the conclusions relative to the study and work done are drawn and, finally, some perspectives of

future work are given.

1 INTRODUCTION

Computer Vision is continuously trying to develop

theories and methods for automatic extraction of

useful information from images, in a way as similar

as possible to the complex human visual system.

Contactless techniques to recover the 3D

geometry of an object are usually divided in two

classes: active techniques, that require some kind of

energy projection or the camera’s or object’s

movement to obtain information about the object’s

shape, and passive techniques, that only use ambient

light and so, usually, the extraction of 3D

information becomes more difficult.

The main goal of this work is to obtain 3D

models of objects using a Structure From Motion

(SFM) methodology, which is a Active Vision

technique (Pollefeys, 1998). Along time, SFM

technique has received several contributions and

diverse approaches. In the present case, we do not

want to impose any kind of restrictions to the

movement involved: starting from an uncalibrated

image sequence of an object, we intend to extract the

referred movement (camera(s)’s or object’s), to

calibrate the camera(s) used, and finally to obtain the

3D geometry of the object in cause.

To help accomplishing our goals, a modular

computer platform has been developed, with a

graphical interface, into which functions, from

several libraries of public domain, are being

integrated.

The functions already integrated enclose several

Computer Vision techniques, such as: feature points

extraction and matching between images, epipolar

geometry determination, rectification and dense

matching (Azevedo, 2005). These techniques are

usually used in 3D shape extraction of objects

starting from an image sequence (Figure 1).

383

Azevedo T., Manuel R. S. Tavares J. and A. Vaz M. (2006).

DEVELOPMENT OF A COMPUTER PLATFORMFOR OBJECT 3D RECONSTRUCTIONUSING COMPUTER VISION TECHNIQUES.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 383-388

DOI: 10.5220/0001360003830388

 SciTePress

Figure 1: Adopted methodology for 3D reconstruction

of objects from a sequence of images.

2 COMPUTER PLATFORM

The computer platform has been being developed in

, with the tool Microsoft Visual Studio, using

MFC libraries (Microsoft Foundation Classes). It

has a graphical interface and a modular structure

allowing the user to comparatively analyse the

performance of each function.

Several functions for 3D reconstruction are

already available, integrated from five software

programs and one computational library, all open

source (for more information about them see

(Azevedo, 2005)). Further on, these entities will be

referred generically as Programs 1 to 6:

1. Peter’s Matlab Functions for Computer Vision

and Image Analysis (Kovesi, 2004): Matlab

functions for image processing and analysis and

3D Vision;

2. Torr’s Matlab Toolkit (Torr, 2002): Matlab

software with a graphical interface, that applies

some SFM techniques between two images;

3. OpenCV (2004): C

functions library which

implement the most common algorithms in the

Computer Vision domain;

4. Kanade-Lucas-Tomasi (KLT) Feature Tracker

(Birchfield, 2004): functions in C that implement

the KLT algorithm for feature points extraction

and matching in sequences of images;

5. Projective Rectification without Epipolar

Geometry (Isgrò, 1999): functions in C that

perform rectification in stereo images pairs,

without previous determination of the epipolar

geometry;

6. Depth Discontinuities by Pixel-to-Pixel Stereo

(Birchfield, 1999): C program that returns

disparity and discontinuity maps between two

rectified images.

In order to integrate them conveniently into the

computer platform, programs originally written in

Matlab were ported to C, using the Matlab Compiler

toolbox.

In the referred computer platform, for each

available Active Vision technique, the user can

easily choose the algorithm to use (Figure 2), as well

as conveniently define its parameters (Figure 3).

Figure 2: For each platform menu item,

several algorithms are available.

Figure 3: Example of setting the parameters for

the program OpenCV matching algorithm.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

384

3 EXPERIMENTAL RESULTS

For experimental results, stereo images where used,

with dimensions

540 612× pixels, obtained from

several real objects, captured with an off-the-shelf

digital camera.

Some of the experimental results obtained are

presented here following the sequence indicated in

Figure 1.

3.1 Feature Points Detection

Feature or interesting points are those who reflect

the relevant discrepancies between their intensity

values and those of their neighbours. Usually, these

points represent vertices of objects, and their

detection allows posterior matching between the

images of the sequences.

Only programs 1 to 4 have algorithms for feature

points detection. As an example, in Figure 4 are

some results obtained with these programs, using

one of the test images. It is possible to observe that,

in this case, program 2 presents the weakest results,

especially because there are some areas with high

density of detected feature points. This happens

because this technique does not ensure a minimal

distance between detected feature points, as happens

with programs 3 and 4.

3.2 Matching

Matching is the 2D points association between

sequential images, which are the projection of the

same 3D object point. Automatic detection of

matching points between images can be achieved

using several matching measures (Azevedo, 2005).

Again, only programs 1 to 4 have algorithms for

feature points matching. Experimental results,

obtained using the matching techniques integrated

into the computer platform, are shown in Figure 5.

It is possible to observe that matching is a critical

stage in 3D Vision. For all techniques, there are

correlation mismatches, where program 2 is again

the one that presents the weakest results.

3.3 Epipolar Geometry

Epipolar geometry corresponds to the geometrical

structure between two distinct points of view and

expresses itself mathematically by the fundamental

matrix

, of size 3x3 : 0

mFm

′

= , where m and

′

are the matching points.

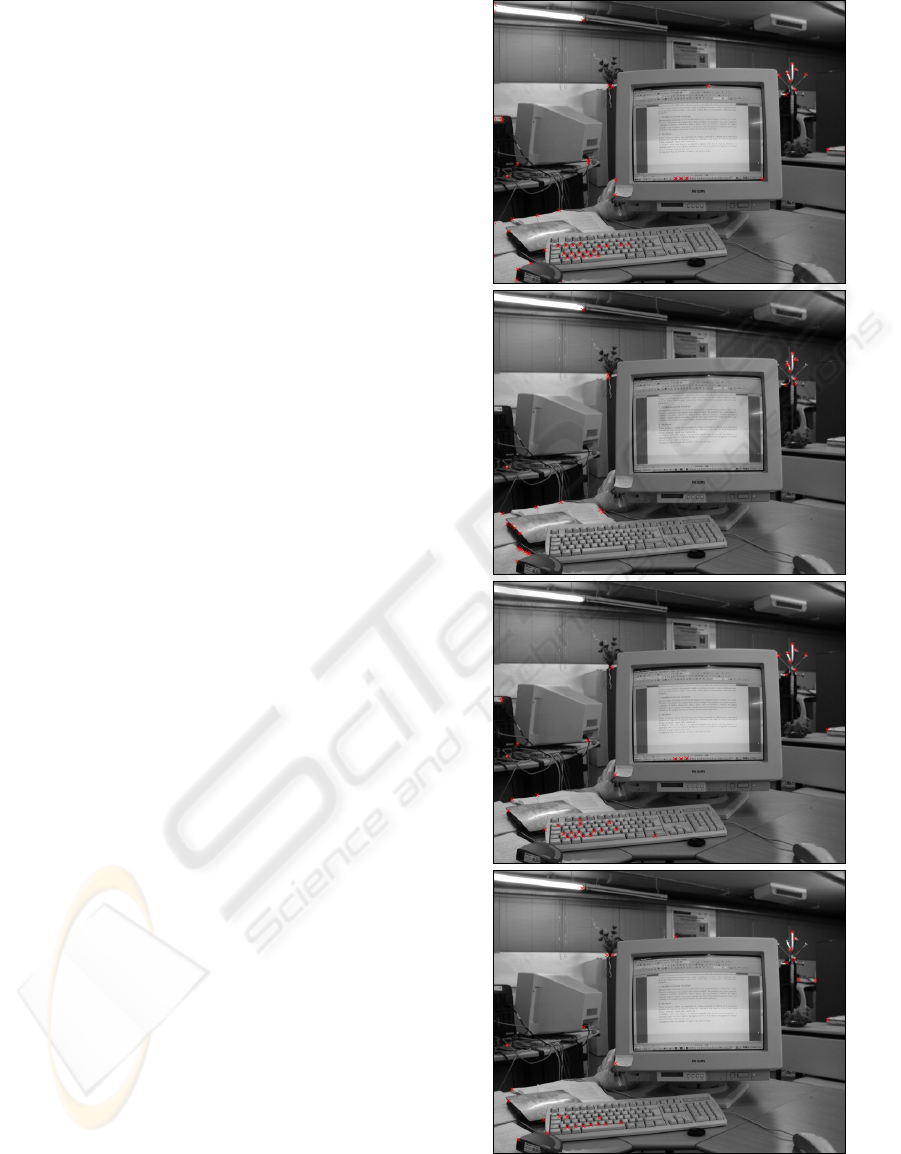

Figure 4: Results of feature points detection in one

image out of the stereo pair: red crosses are the

detected interesting points (top to bottom:

results from programs 1 to 4).

DEVELOPMENT OF A COMPUTER PLATFORMFOR OBJECT 3D RECONSTRUCTIONUSING COMPUTER

VISION TECHNIQUES

385

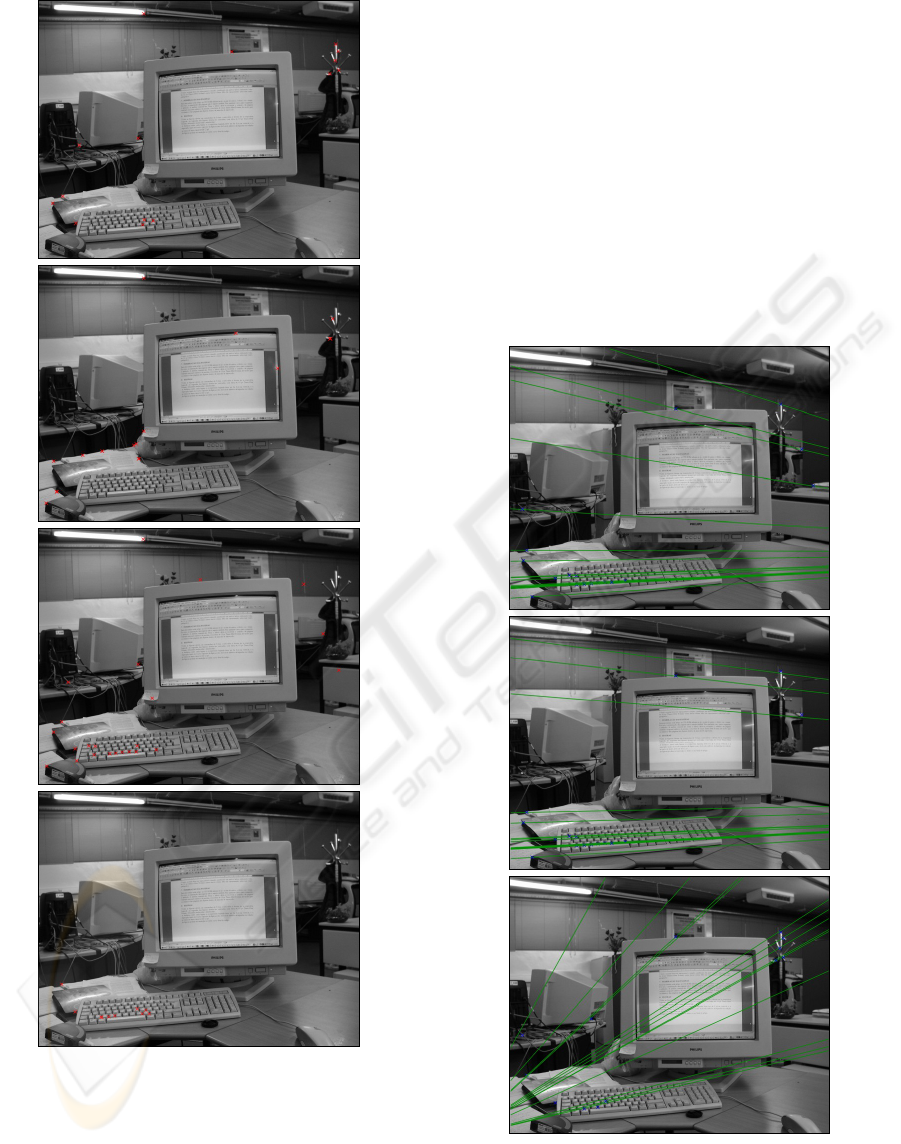

Figure 5: Red crosses are the matched interesting

points in the other image of the stereo pair (top

to bottom: results from programs 1 to 4).

Determining the epipolar geometry means

getting relative pose information between two

different views (images) of an object. That

information allows also eliminating some previous

wrong matches (outliers), as well as to make it easier

to get new matching points (dense matching).

Only programs 2 and 3 have algorithms for this

purpose. Some experimental results obtained by the

techniques integrated in our computer platform are

given in Figure 6. Because of the weak results

obtained in the prior step and presented in the

previous subsection, it was not possible to determine

the epipolar geometry by using program 2, because

the number of outliers was considerably higher than

the inliers’s. Program 3 (OpenCV) performs this

step very well, although it is very important to get

good matching points to correctly estimate the

epipolar geometry.

Figure 6: Epipolar lines (green) and inliers (blue) in the

first image of the stereo pair, after epipolar geometry

determination; top to bottom: program’s 1 result using

Ransac algorithm (Fischler, 1981), program 1’s

result using LmedS algorithm.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

386

3.4 Rectification

The operation of changing two stereo images, in

order to make them coplanar is usually known as

Rectification. Performing this step makes dense

matching much easier to obtain.

Program 5 is the only one that makes

rectification, without previous determination of the

epipolar geometry. The results from the referred

program are shown in Figure 7.

It is possible to observe that the quality of the

results is proportional to the quality of the epipolar

geometry determination.

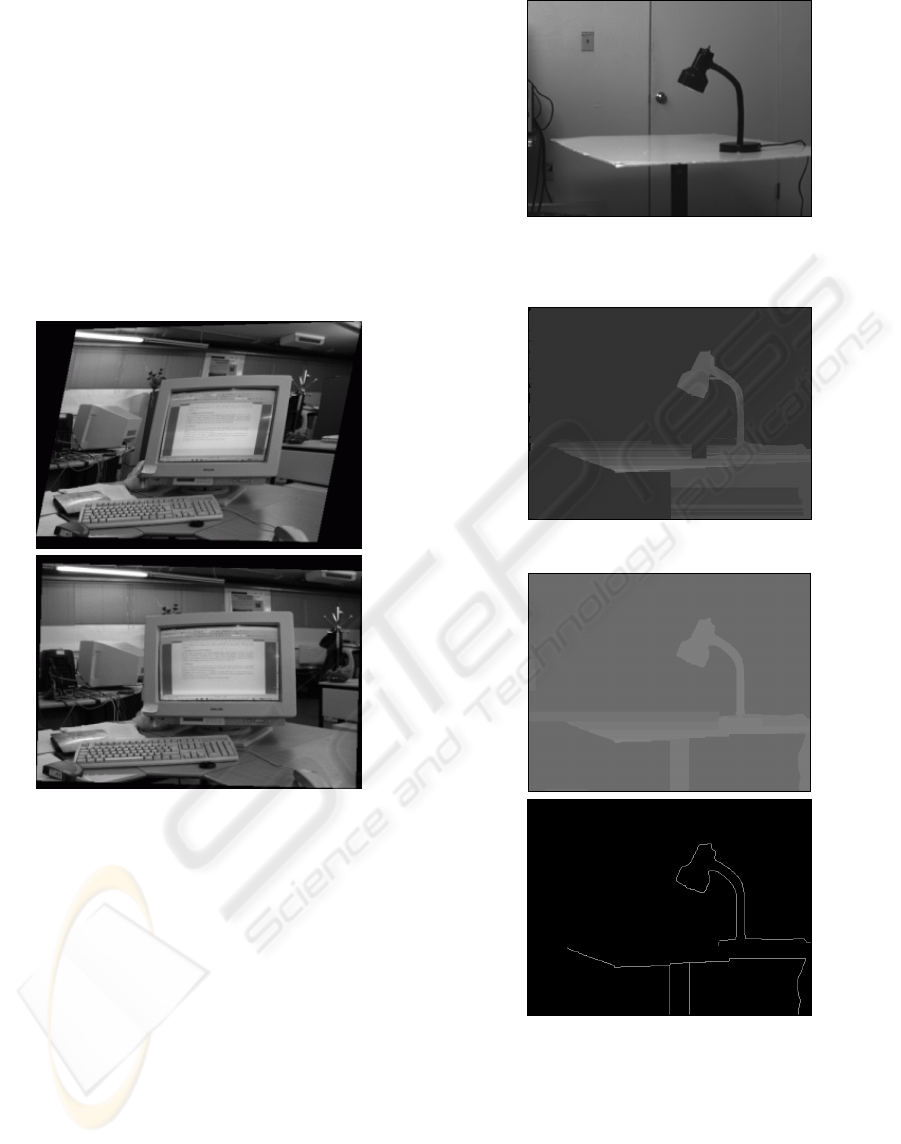

Figure 7: Rectification result obtained with program 5.

3.5 Disparity Map

A disparity map codifies the distance between the

object and the camera(s): closer points will have

maximal disparity and farther points will get zero

disparity. For short, a disparity map gives some

perception of discontinuity in terms of depth.

Only programs 3 and 6 perform this operation,

with the difference that program 6 also returns a

discontinuity map.

This step was tested with already rectified

images included in the package of the program 6

(Figure 8). The results obtained are presented in

Figure 9 and Figure 10. Given two rectified images,

it is possible to observe that both program 3 and 6

perform very well on the determination of the

disparity map.

Figure 8: One of the original images used by

programs 3 and 6 to obtain the disparity map

(associated to dense matching).

Figure 9: Disparity map, obtained by program 3.

Figure 10: Disparity (top) and discontinuity

(bottom) maps, obtained by program 6.

4 CONCLUSIONS

Along this work, the developing of a computer

platform was initiated, with an appropriated

graphical interface and a modular design, to allow

DEVELOPMENT OF A COMPUTER PLATFORMFOR OBJECT 3D RECONSTRUCTIONUSING COMPUTER

VISION TECHNIQUES

387

the application and study of several techniques of

3D Active Vision, with the final goal of object 3D

reconstruction. In short, the functions already

integrated in the referred computer platform and

experimentally analysed, obtain good results when

applied to objects with strong characteristics. From

the same used results, it is possible to conclude that

low quality results are strongly correlated with

strong points detection and matching, as the

functions in the further steps of the 3D

reconstruction methodology adopted (Figure 1) are

based on those points.

5 FUTURE WORK

The next steps of this work will focus on improving

the results obtained when the objects to be

reconstructed have smooth and continuous surfaces.

To do so, the approach will be:

o inclusion of space carving techniques for object

reconstruction (see for example, (Kutulatos, 1998),

(Sainz, 2002), (Montenegro, 2004));

o the strong points to use in the 3D space object

definition will be detected with the use of a

reduced number of markers added on the object;

o inclusion of a camera calibration technique, as

well as pose and motion estimation algorithms;

some of the techniques to consider are (Meng,

2000) and (Zhang, 2000).

Finally, the computer platform will be used in

3D reconstruction and characterization of 3D

external human shapes.

ACKNOWLEDGMENTS

This work was partially done in the scope of the

project "Segmentation, Tracking and Motion

Analysis of Deformable (2D/3D) Objects using

Physical Principles", reference POSC/EEA-

SRI/55386/2004, financially supported by FCT -

Fundação de Ciência e Tecnologia in Portugal.

REFERENCES

M. Pollefeys, R. Koch, M. Vergauwen, L. V. Gool,

Flexible acquisition of 3D structure from motion,

Proceedings of the IEEE Workshop on Image and

Multidimensional Digital Signal Processing, Alpbach,

Austria, pp. 195-198, 1998.

T. Azevedo, J. M. R. S. Tavares, M. Vaz, Obtenção da

Forma 3D de Objectos usando Metodologias de

Reconstrução de Estruturas a partir do Movimento,

Congreso de Métodos Numéricos en Ingeniería,

Granada, Espanha, 2005.

P. Kovesi, MATLAB Functions for Computer Vision and

Image Analysis,

http://www.csse.uwa.edu.au/~pk/Research/MatlabFns,

2004.

P. H. S. Torr, A Structure and Motion Toolkit in Matlab,

http://wwwcms.brookes.ac.uk/~philiptorr/Beta/torrsam

.zip, 2002.

OpenCV - Open Computer Vision Library, beta 4,

http://sourceforge.net/projects/opencvlibrary, 2004.

S. Birchfield, KLT: An Implementation of the Kanade-

Lucas-Tomasi Feature Tracker,

http://www.ces.clemson.edu/~stb/klt/index.html, 2004.

F. Isgrò, E. Trucco, Projective rectification without

epipolar geometry, Proceedings of the IEEE

International Conference on Computer Vision and

Pattern Recognition, Fort Collins (Colorado), USA,

vol. 1, pp. 94-99, 1999.

S. Birchfield, Depth Discontinuities by Pixel-to-Pixel

Stereo, International Journal of Computer Vision, vol.

35, no. 3, pp. 269-293,

http://vision.stanford.edu/~birch/p2p/, 1999.

M. A. Fischler, R. Bolles, RANdom SAmpling Consensus:

a paradigm for model fitting with application to image

analysis and automated cartography, Communications

of the Association for Computing Machinery, vol. 24,

no. 6, pp. 381-395, 1981.

K. N. Kutulatos, S. M. Steiz, A Theory of Shape by Space

Carving, Technical Report TR692, Computer Science

Department, University of Rochester, New York,

USA, 1998.

M. Sainz, N. Bagherzadeh, A. Susin, Carving 3D Models

from Uncalibrated Views, Proceedings of the 5th

IASTED International Conference Computer Graphics

and Imaging, Hawaii, USA, pp. 144-149, 2002.

A. Montenegro, P. Carvalho, M. Gattass, L. Velho, Space

Carving with a Hand-Held Camera, Proceedings of

the SIBGRAPI'2004 - International Symposium on

Computer Graphics, Image Processing and Vision,

Curitiba, Brasil, 2004.

X. Meng, H. Li, Z. Hu, A New Easy Camera Calibration

Technique Based on Circular Points, Proceedings of

the British Machine Vision Conference, University of

Bristol, UK, pp. 496-501, 2000.

Z. Zhang, A Flexible New Technique for Camera

Calibration, IEEE Transactions on Pattern Analysis

and Machine Intelligence, vol. 22, no. 11, pp. 1330-

1334, 2000.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

388
