SIMPLE AND FAST RAY TRACING OF POINT-BASED

GEOMETRY

Nordin Zakaria

Universiti Teknologi Petronas, Perak, Malaysia

Bahari Belaton, Abdullah Zawawi Hj Talib

School of Computer Science,Universiti Sains Malaysia,Penang, Malaysia

Keywords: Ray Tracing, Point Primitives.

Abstract: We discuss in this paper a framework for simple and fast ray tracing of point-based geometry. Our solution

requires neither implicit surface definition nor the use of non-simple rays. Points are simply treated as disk

primitives. To prevent shading artifacts due to the use of disk representation, each ray is intersected with a

few disks, and the intersection results interpolated. Further, to speed up the ray-object search, we adapt the

KD-tree with bounding spheres structure applied in the QSplat point splatting system (Rusinkiewicz and

Levoy 2000). Our prototype implementation is generally competitive compared to previous point set ray

tracers. Further it demonstrates considerable speedup over a point set ray tracer based on a conventional

KD-tree, while producing images with acceptable ray-traced quality.

1 INTRODUCTION

A point-based geometry is a geometric model

represented as a set of discrete points. Each point

stores information such as color, position and

normal value. Unlike in a triangle mesh, there is no

connectivity information stored together with the

points. Recent advances in 3D scanning

technologies, as evident in the Digital Michelangelo

project (Levoy et al 2000), have led to the creation

of models each represented by millions to hundreds

of millions of points. Due to the size, it is nontrivial

to convert such data set to polygon-based or other

geometric representation schemes. Hence, directly

using the sampled point set for rendering and

modeling purposes is an alternative pursued by

several research groups in recent years.

The approach more commonly used to directly

view a point-based geometry is splatting (Pfister et

al 2000, Zwicker et al 2001). In splatting, the basic

idea is to iterate through the points in the point set

and compute its projection onto the screen. A

splatting-based point set viewer, examples of which

include QSplat (Rusinkiewicz and Levoy 2000) and

Pointshop (Zwicker et al 2002), can typically run at

an interactive frame rate on a computer system with

more recent consumer graphics hardware. While, it

is fast and easy to view a point-sampled geometry

using splatting, it is nontrivial and expensive, using

the technique, to create advanced accurate lighting

effects such as shadows and self-shadowing,

reflection, and global illumination. On the other

hand, ray tracing, being based on the simulation of

light rays through a 3D environment, can quite

easily model such effects. Further, ray tracing is

easy to parallelize and has been shown to scale well

with increasing data size (Wald et al 2001). Such

scalability is not true for splatting.

However, there is a fundamental issue in

applying ray tracing to a point set. A point,

mathematically, has neither volume nor area. A ray

is thin. Hence, the chance of a thin ray hitting a

mathematical point is practically nil. To the best of

our knowledge, there have been four major works

that investigate the ray tracing of point-based

geometry and dealt with this problem. Adamson et al

(2003) and Wald and Seidel (2005) blend individual

points within a small neighborhood to form local

implicit surfaces. Wand et al (2003) use cone ray

instead of thin ray. Schaufler and Jensen (2000)

trace cylinders (instead of thin ray), and compute the

intersection depending on the local density of the

points along the "ray". We do not use local implicit

293

Zakaria N., Belaton B. and Zawawi Hj Talib A. (2006).

SIMPLE AND FAST RAY TRACING OF POINT-BASED GEOMETRY.

In Proceedings of the First International Conference on Computer Graphics Theory and Applications, pages 293-298

DOI: 10.5220/0001352702930298

 SciTePress

surface as this would be a sort of conversion from

points to another data structure. In other words, the

data structure and the intersection process would not

be simple anymore. Also, we choose not to use cone

rays and cylindrical rays as they are both more

expensive than thin rays. Further, the outcome of

cylindrical-ray intersection test with a point set to

some extent depends on the ray direction.

Another issue in applying ray tracing to a point-

based geometry is the sheer size of typical point-

based data set. A spatial data structure needs to be

imposed on the point set. Schaufler and Jensen

(2000) reported on the use of octree for their ray

tracing of point-based geometry. Wand et al (2003)

discuss on a multiresolution hierarchy that contains

both points and triangles. Wald and Seidel (2005) go

in depth into the KD-tree data structure that they use

for their own work. The advantage of using KD-tree,

as noted by Havran (2001), is that it adapts

particularly well to a scene that contains large

sections of empty space, such as one composed of

surface-represented or point-sampled objects.

Hence, it is natural to consider this data structure for

our work here.

Given the issues involved in applying ray tracing

to point-based geometry, the research questions we

wish to address in this paper can be formulated as

follows:

- Is there a better method for intersecting a

ray with point primitives? Such a method

would have these properties: simple to

implement, and fast.

- Can KD-Tree, being the data structure we

consider most appropriate for our work

here, be adapted for faster ray traversal of

point set?

Our contribution in this paper is a framework for

ray tracing of point-based geometry that addresses

both of the above research questions. The

framework attempts to answer the first question by

refining the approach adopted by Schaufler and

Jensen (2000). Specifically, it eliminates the need

for cylindrical rays, but follows much of the rest of

their approach. Further, the framework attempts to

answer the second research question by adapting the

KD-tree with bounding spheres as applied in the

QSplat point-splatting system. In all, our framework

maintains the discrete nature of point-based

geometry, is easy to implement, and has a

performance competitive with that reported in

previous works.

2 APPROACH

We start with the assumption that we have only a

few point primitives, P

..P

, to intersect the ray with.

When many more points are actually available to

intersect with, we use a spatial data structure to

reduce the number of intersection tests required.

Each point, being derived from a scanning process,

actually represents a small area. Hence, we consider

each point, P

, to be a disk, the center of which is at

position p

. The disk has a certain radius, r

, and a

certain normal, N

. Typically this normal is acquired

from the scanning process. It could also be

computed as described in (Pauly 2002).

2.1 Ray-Point Intersection

A disk representing a point P has a certain plane

associated with it. The equation of a plane is given

by:

DzNyNxN

zyx

The parametric form of a ray r is given by:

≤

ttdotr 0,)(

where o is the ray's origin, d the direction

vector, and t the parameter

The standard ray-plane intersection calculation

computes t as follows:

≤

ttdotr 0,)(

Substituting t into the parametric form of the ray,

we obtain a positional value, I. We check the

distance, s, between I and p

. If s > r

, there is no

intersection with the disk representing the point P.

If we stop at the first disk that the ray hit, we’ll

have the same problem encountered by Wald and

Seidel (2005). They reported that their first attempt

has been to intersect a thin ray with disk-represented

point primitives. Disks were seen sticking out,

especially at curved area. We note that the cause of

this problem is that the area representing each point

actually overlaps, as shown in Figure 1.

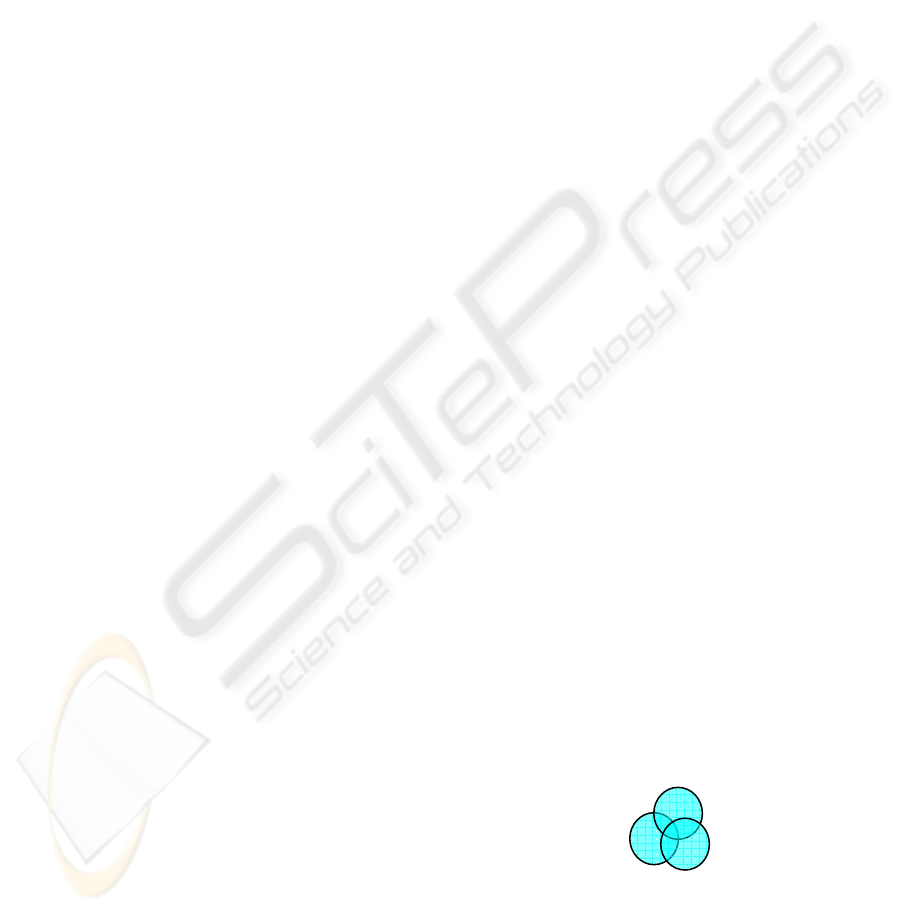

Figure 1: Points as overlapping disks.

To solve the problem, we intersect the ray with

each of the point primitives, P

…P

. We then

interpolate the intersection results (eg. position,

normal) according to the following weighing scheme

used by Schaufler and Jensen (2000):

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

294

Our intersection algorithm can successfully

display a point-sampled geometry such that it

appears to comprise of continuous surfaces. Two

example images are shown in Figure 2. More images

are in Figure 9.

Of course, a point-sampled geometry typically

consists of millions of points, not just a few. In this

paper, we use a tree data structure to cut down on

the number of points a ray actually needed to be

tested against.

Figure 2: Ray Tracing of Point-Sampled Dragon and

Statue.

2.2 Ray Traversal

For efficient ray traversal, we adapt the bounding

sphere hierarchy used in Rusinkiewicz and Levoy

(2000). This data structure is basically just a KD-

tree; the fundamental distinction from the usual KD-

tree being that a bounding sphere is computed at

each node in the tree and used for backface culling

and level of detail (LoD) selection in the context of

point splatting.

There has been other works on multiresolution

point representations, notably that by Chen and

Nguyen (2001) and (Wand et al 2003). However, the

approach in QSplat is closest to the approach

presented in this paper.

We use the same algorithm as used in QSplat to

build up the bounding sphere hierarchy. As the tree

is built up, properties at interior nodes are set to the

average of these properties in the subtrees. As in

QSplat, in our current implementation, tree

construction is based on axis-aligned bisections;

hence currently the resulting tree is not guaranteed

to be complete and balanced.

Our tree-traversal algorithm has a structure

similar to that used in the QSplat. Figure 3 shows

both algorithms. However, there is a fundamental

difference in the detail; when the projection of a

bounding sphere onto an image plane is small

enough, we intersect our ray not against a single

splat or disk centered at the current node. Instead, to

Figure 3 : a) QSplat's traversal algorithm, b) our traversal

algorithm.

avoid disk-related rendering artifacts, we intersect it

against the children in the node and interpolate the

intersection results as discussed in section 2.1.

2.2.1 Optimizing using LoD and Backface

Culling

QSplat bases tree recursion decision on projected

sphere size of current node. A node is subdivided if

the area of its bounding sphere when projected onto

the image plane is greater than a threshold. Hence,

Level of Detail (LoD) generation is automatic with

different viewpoint. We adapt this idea for our ray

tracer. Key to efficient implementation of this

optimization technique is fast computation of the

projected size of a sphere on the image plane. To do

this computation, we assume the viewing setup as

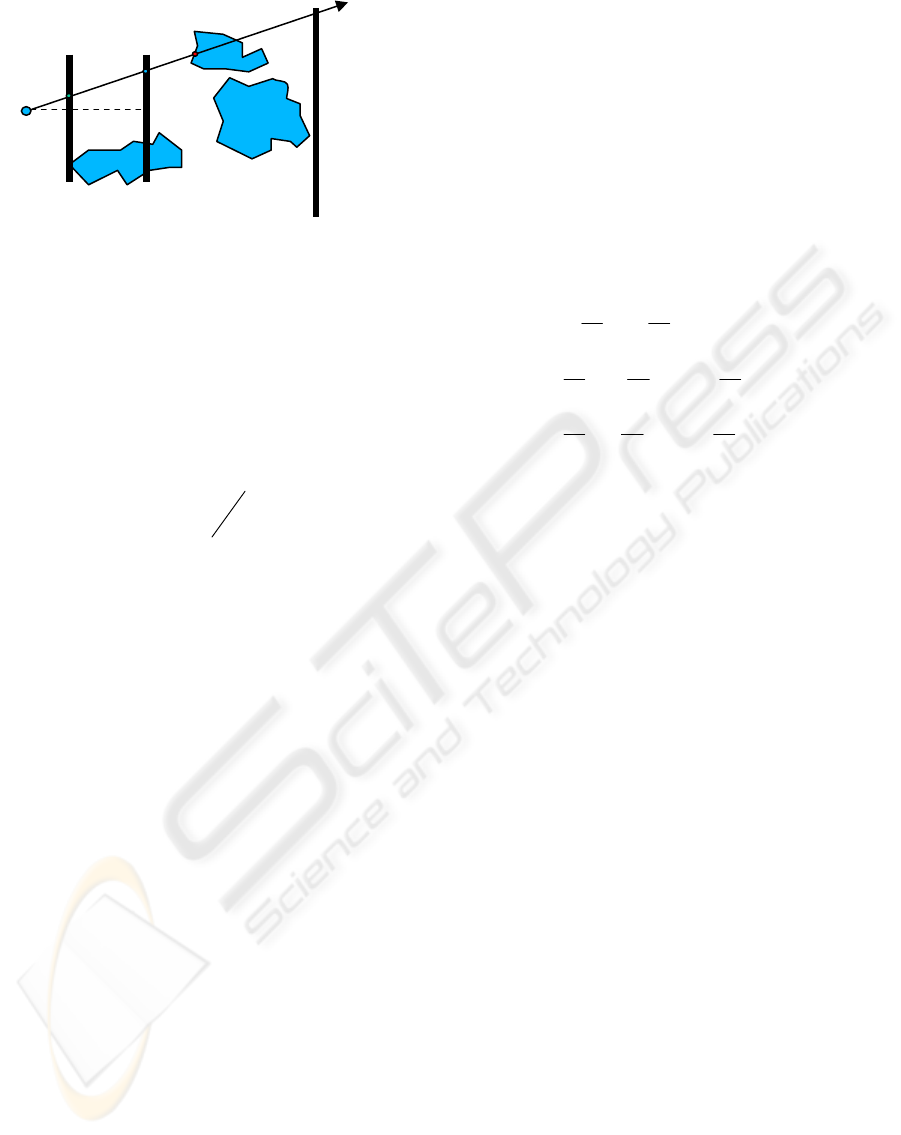

shown in Figure 4 for our ray tracer.

a) TraverseHierarchy(node) {

if (node not visible)

skip this branch of the tree

else if (node has no grandchildren)

draw all primitives in node as splats

else if (benefit of recursing further is

low)

draw a splat

else

for each child in children (node)

TraverseHierarchy(child)

}

b) TraverseHierarchy(node) {

if (node not visible)

skip this branch of the tree

else if (node has no grandchildren)

intersect ray against point primitives

in the node

else if (benefit of recursing further is

low)

intersect ray against children of

current node

else

for each child in children (node)

TraverseHierarchy(child)

}

∑

−

pIattrib

attrib

||||

SIMPLE AND FAST RAY TRACING OF POINT-BASED GEOMETRY

295

Figure 4: Viewing setup.

We compute the projected size of a bounding

sphere as follows: For a given ray, we first intersect

it with the image plane to find t

, the ray parameter

at the intersection. Next, when we reach a node in

our tree data structure, we compute the projection, t

of the bounding sphere center onto the ray. Let the

diameter of the sphere be L. Using similar triangle,

we then compute the projection size, L

, of the

sphere on the image plane as follows:

is then scaled according to the resolution of

the screen device, and is used to determine whether

a bounding sphere is far enough so as not to warrant

further recursion.

As in QSplat, we use the normal and normal

cone information stored in a node in our tree to

determine whether the entire subtree represented by

the node can be eliminated. If cone faces entirely

away from the viewer, the node and its subtree are

discarded. And if for a node, its cone points entirely

towards the viewer, there is no need to test its

children for backface culling.

2.2.2 Optimizing by Using Bounding Box

Instead of Using Bounding Sphere

A sphere-shaped bounding volume is natural for

point set rendering with LoD. But we would only

process a bounding sphere directly as a terminating

node when the sphere projection is small enough.

This would only happen, for camera-object distances

below a certain limit, when we are low enough in the

tree. Generally, however, a bounding box is tighter.

The intuition here, is hence, to use a tighter

bounding volume closer to the top of the tree. A

simple informal analysis strengthens the basis of this

intuition.

Consider a binary tree. Let A be an interior node.

Let the children nodes be B and C. Let the children

nodes of B be D and E, and that of C be F and G.

The overall cost, t

, of intersecting a ray against the

node A is

where c

is the cost of traversing node A, and t

and t

are the cost of processing node B and C

respectively and p

and p

are the probabilities that

the ray passes through the nodes B and C

respectively.

From geometric probability, since a sphere is a

convex volume,

where s

, s

, and s

are surface areas of sphere

A, B and C respectively.

Let N

and N

are the number of children in B

and in C respectively. Expanding (1),

What we can intuitively infer after a few lines of

expansion is that the ray shooting cost is dominated

by the cost of shooting the ray against higher-level

nodes of the tree. Hence, it suffices to use bounding

boxes at higher levels in the tree. This should lead to

better performance. In fact, we confirm on this in the

next section.

3 IMPLEMENTATION AND

RESULTS

We implemented our code in C++ as a plug-in for a

modified PBRT, an educational freeware ray tracer

(Pharr and Humphreys 2004). Compilation was on a

Pentium PC running on Linux with the O2 flag used.

However, our actual coding stands to be further

optimized, especially to take advantage of memory

cache optimization or CPU-specific SIMD

instructions as has been done by Wald and Seidel

(2005).

The primary point-sampled models that we play

with for the data in this section are the dragon and

statue shown in Figure 1. The dragon comprises of

3,609,600, while the statue comprises of 4,999,996

points. It takes 700 ms to build the hierarchy for the

ray.direction

ay.origin

far plane

image plane

pixel

camera

intersecti

LL =

)1(⋅⋅⋅++=

ccbBAA

tptpct

ACC

ABB

ssACpp

ssABpp

/)|(

...)()(

...))()((

)()(

++++=

++=

∑∑

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

296

dragon model, and 1,022 ms for the statue model.

The resulting hierarchy data structure comprises of

5,365,234 points for the dragon, and 7,468,783

points for the statue, implying a nodes-to-points

ratio of approximately 1.4. The maximum depth in

both trees is 17.

For the actual rendering, we look for

performance advantage from the use of the bounding

sphere hierarchy. We employ for each run a total of

665,911 and we use an image resolution of 400 by

400 pixels to generate the images as shown in Figure

1. As shown in Figure 5, with a conventional KD-

tree, tree traversals takes approximately 420 s for the

statue model, and 110 s for the dragon model. With

the inclusion of codes for LoD, traversal time for the

statue drops to about 220 s, while that for the dragon

drops to about 60 s. With inclusion of backface

culling, traversal time for the statue drops to about

200 s, while that for the dragon drops to about 50 s.

Finally with the inclusion of box-shape bounding

volume higher in the tree, the traversal time for the

statue drops to 160s and that for the dragon drops to

about 32s. Hence, the overall improvement from a

standard KD-tree, for the data set that we experiment

with, is in the range between 60% and 70%. Note

that due to the limited number of data set that we

experimented with, this number is only rough.

However, it does indicate the performance

improvement that one can expect from the bounding

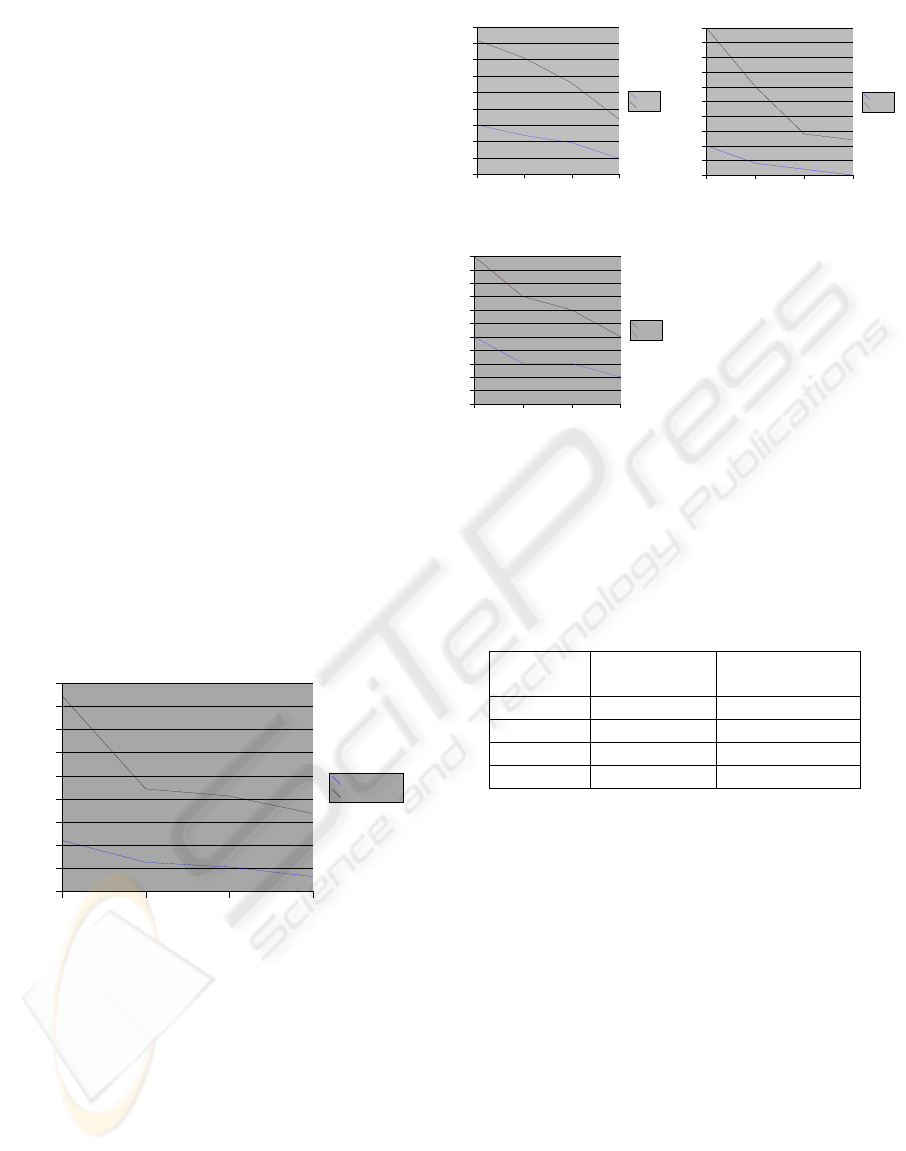

Figure 5: Ray traversal time.

sphere hierarchy algorithm outlined in this paper.

The drop in traversal time follows the drop in the

average number of nodes visited, average number of

disk-ray intersections and the average maximum

depth traversed by a ray. The decrease in these

numbers are shown in Figure 6. Overall drop in

average number of node visited by a ray is between

60% and 70%. The drop in the average number of

ray-disk intersections is about 70%, while the drop

in the average maximum depth traversed by a ray is

in the range between 50% and 60%.

Figure 6: Graphs showing drop in avg # nodes visited,

avg. # disk-ray intersection and max depth visited.

Taking our experimentation further, we perform

a sequence of rendering of the dragon model with

increasing distance from the camera. We do the

rendering sequence twice, once with LoD on and

once with LoD off. As shown in Figure 7, the result

using our hierarchy structure is consistently better

compared to that using just a KD-tree.

Distanc

Time (s)

with No LoD

Time (s)

with LoD

350 158.1 126

550 146.0 69.4

750 103.2 45.1

1500 80.1 20.1

Figure 7: Traversal time for dragon with varying distance.

We note, however, despite the drop in traversal

time, traversal still takes up about 85% of the

rendering time. Hence, more work should be done to

further improve the performance of the algorithm.

The performance data reported in this paper is,

of course, not entirely comparable with that reported

in other papers; there are differences in coding,

camera viewpoint, CPU, data sets, ray generation

policy, image resolution, etc. We can however make

a (very) rough comparison. Schaulfler and Jensen

(2000) ray traced a 543,652-points Buddha model in

36 s. Anderson and Alexa (2003) takes “several

hours” even for a 150,000-points data set. We render

a 3,609,600-points Dragon model in full view in

under 32 s. Still then, Wald and Seidel (2005),

however, using highly-tuned SIMD memory-

optimized code and dual processors, achieve 5

frames per second for a 1,309,059 Dragon model.

Hence, one conclusion that we can make here is that

OnlyKDTree Lod LoD+Culling LoD+Culling+

BBox

Average # Disk

Dragon

Statue

OnlyKDTree Lod LoD+Culling LoD+Culling+

BBox

100

125

150

175

200

225

Average # Nodes

Dragon

Statue

OnlyKDTree Lod LoD+Culling LoD+Culling+

BBox

Average Maximum Depth

Dragon

Statue

OnlyKDTree Lod LoD+Culling LoD+Culling+B

Box

100

150

200

250

300

350

400

450

Traversal Time (s)

Time (Dragon)

Time (Statue)

SIMPLE AND FAST RAY TRACING OF POINT-BASED GEOMETRY

297

our implementation performance is competitive

compared to that of other single-CPU

implementations.

Apart from performance aspects, we consider as

well rendering quality. Despite the discrete nature of

the surface representation, rendering quality is quite

high. Artifacts where visible along the silhouette are

due primarily to the multisampling code that we use

in our program, rather than due to the representation

or the algorithm that we use. Figure 8 shows 2

images of the dragon model, one with LoD on and

the other off.

Figure 8: Rendering with and without LoD.

4 CONCLUSION

We have discussed a framework for ray tracing of

point-based geometry. The framework addresses two

issues: how to intersect a ray with a point set, and

how to accelerate the ray-object search. Our solution

is simple to implement, as it requires neither

conversion to implicit surfaces nor tracing of non-

simple ray. Further, it shows a performance

competitive with that of other point-set ray tracer,

and produces images with acceptable ray-traced

quality.

Of course, more work remains to be done to

strengthen the research presented in this paper. We

would like to do more analysis on the optimizations

that we have presented in this paper. One particular

question we would like to have answered is: how to

determine the level in the hierarchy starting from

which we should use sphere-shape bounding volume

(rather than box-shape volume). We would also like

to investigate ways to improve memory usage and

memory cache performance, and to investigate

alternative ways, apart from looking at projected

sphere size, to decide on whether or not to recurse

further in the ray traversal of the hierarchy structure.

REFERENCES

Adamson A., Alexa M: Ray Tracing Point Set Surfaces. In

SMI’03:Proceedings of the Shape Modeling

International 2003 (2003), pp.272.

Chen B., Nguyen M.X. Pop: A Hybrid Point and Polygon

Rendering System for Large Data. In IEEE

Visualization 2001 (2001), pp. 45-52.

Coconu L., Hege H.-C.: Hardware-Accelerated Point-

Based Rendering of Complex Scenes. In Proceedings

of the 13

Eurographics Workshop on Rendering

(2002), pp. 43-52.

Havran V.: Heuristic Ray Shooting Algorithms. PhD

thesis, Faculty of Electrical Engineering, Czech

Technical University in Prague, 2001.

Levoy M., Pulli K., Curless B., Rusinkiewicz S., Koller

D., Pereira L., Ginzton M., Anderson S., Davis J.,

Ginsberg J., Shade J., Fulk D.: The Digital

Michelangelo Project: 3D Scanning of Large Statues.

In Proc. Of ACM SIGGRAPH (2000), pp. 131-144.

Pauly M. Gross M.: Efficient Simplification of Point-

Sampled Surfaces. In Proceedings of the Conference

on Visualization '02 (2002), pp. 163-170.

Pfister H., Zwicker M., van Baar J., Gross M.: Surfels:

Surface Elements as Rendering Primitives. In Proc. Of

ACM SIGGRAPH (2000), pp. 335-342.

Pharr M., Humphreys G.: Physically Based Rendering:

From Theory to Implementation., 2004, Elsevier.

Rusinkiewicz S., Levoy M.:QSplat: A Multiresolution

Point Rendering System for Large Meshes, In Proc.

Of ACM SIGGRAPH (2000), pp. 343-352.

Schaufler G., Jensen H.W.: Ray Tracing Point Sampled

Geometry. In Proceedings of the Eurographics

Workshop on Rendering Techniques (2000), pp. 319-

328.

Wald I.: Realtime Ray Tracing and Interactive Global

Illumination. PhD thesis, Computer Graphics Group,

Saarland University, 2004.

Wald I., Seidel H.-P., Interactive Ray Tracing of Point-

Based Models, In Proceedings of Symposium on Point

Based Graphics, 2005.

Wand M., Strasser W.: Multi-Resolution Point-Sample

Raytracing. In Graphics Interface 2003 Conference

Proceedings (2003).

Zwicker M., Pfister H., van Baar J., Gross M.: Surface

Splatting. In Proc. Of ACM SIGGRAPH (2000), pp.

371-378.

Zwicker M., Pauly M., Knoll O., Gross M.: Pointshop

3D: An Interactive System for Point-Based Surface

Editing. In Proc. Of ACM SIGGRAPH (2002), pp.

322-329.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

298
