ADDING MORE SUPPORT FOR ASSOCIATIONS TO THE

ODMG OBJECT MODEL

Bryon K. Ehlmann

Department of Computer Science, Southern Illinois University Edwardsville, Edwardsville, IL 62026, USA

Keywords: ODMG Object Model, OODB systems, Constraint management, Object Relations

hip Notation (ORN).

Abstract: The Object Model defined in the ODMG standard for object data management systems (ODMSs) provides

referential integrity support for one-to-one, one-to-many, and many-to-many associations. It does not, how-

ever, provide support that enforces the multiplicities often specified for such associations in UML class dia-

grams, nor does it provide the same level of support for associations that is provided in relational systems

via the SQL references clause. The Object Relationship Notation (ORN) is a declarative scheme that pro-

vides for the specification of enhanced association semantics. These semantics include multiplicities and are

more powerful than those provided by the SQL references clause. This paper describes how ORN can be

added to the ODMG Object Model and discusses algorithms that can be used to support ORN association

semantics in an ODMG-compliant ODMS. The benefits of such support are improved productivity in devel-

oping object database systems and increased system reliability.

1 INTRODUCTION

An object data management system (ODMS) allows

objects created and manipulated in an object-ori-

ented programming language to be made persistent

and provides traditional database capabilities like

concurrency control and recovery to manage access

to these objects. An object database management

system (ODBMS), one type of ODMS, stores the ob-

jects directly in an object database. An object-to-

database mapping (ODM), another type of ODMS,

stores the objects in another database system repre-

sentation, usually relational (Cattel et al., 2000).

The de facto standard for ODMSs is ODMG 3.0

(Cattel et al., 20

00), which was defined by the Ob-

ject Data Management Group (ODMG) consisting of

representatives from most of the major ODMS ven-

dors. This standard defines an Object Model to be

supported by ODMG-compliant ODMSs. The model

defines the kinds of object semantics that can be

specified to an ODMS. These semantics deal with

how objects can be named and identified and the

properties and behavior of objects. They also deal

with how objects can relate to one another, which is

the focus of this paper.

In addition to supporting generalization-

speci

alization relationships, the Object Model sup-

ports one-to-one, one-to-many, and many-to-many

binary relationships between object types. These are

the non-inheritance, or structural, types of relation-

ships, which are termed associations in the Unified

Modeling Language (UML) (OMG, 2005), . For ex-

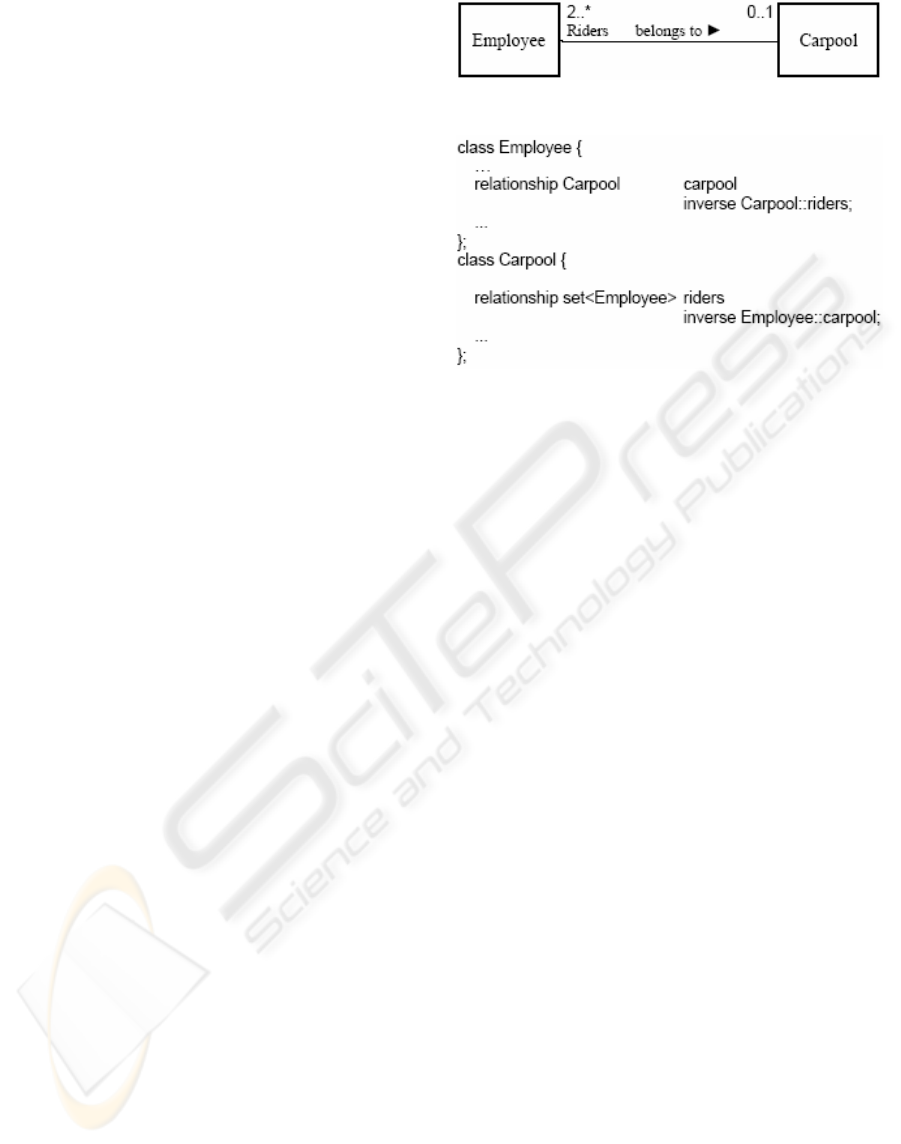

ample, a one-to-many association between carpools

and employees can be defined in the Object Model.

A carpool object is defined so that it can reference

many employee objects, and an employee object is

defined so that it can reference at most one carpool.

The Object Model prescribes that the ODMS

tomatically enforce referential integrity for all de-

fined associations. This means that if an object is de-

leted, all references to that object that maintain asso-

ciations involving that object must also be deleted.

This ensures that there are no such references in the

database that lead to nonexistent objects.

What has just been described is the extent of

support for as

sociations in the Object Model. What

is lacking is some additional, easily implementable

support for associations that could significantly im-

prove the productivity of developing object database

systems and the reliability of those systems.

For example, the Object Model, like the rela-

tio

nal model, does not support the specification of

precise multiplicities. Such association constraints

are almost always present in the diagrams used to

model databases—the traditional Entity-Relationship

K. Ehlmann B. (2006).

ADDING MORE SUPPORT FOR ASSOCIATIONS TO THE ODMG OBJECT MODEL.

In Proceedings of the First International Conference on Software and Data Technologies, pages 5-12

DOI: 10.5220/0001312600050012

 SciTePress

Diagram (ERD) (Chen, 1976), where multiplicities

are termed cardinality constraints, and the UML

class diagram (OMG, 2005). For example, the mul-

tiplicity for the Employee class in the carpool–

employee association may be given as 2..* in a class

diagram, meaning that a carpool must be related to

two or more employees. Such association semantics,

documented during conceptual database design, are

sometimes lost during logical database design unless

supported by the logical data model, e.g., the Object

Model. If not supported, to survive, they must be

resurrected by the programmer during implementa-

tion and for object databases translated into cardinal-

ity checks on collections and into exception handling

code within relevant create and update methods.

The Object Model also does not support associa-

tion semantics that are equivalent to those supported

in standard relational systems via the

references…on

delete clause of the create table statement in SQL

(ANSI, 2003). Such semantics would, for instance,

allow one to declare an association between objects

such that if an object is deleted, all related objects

would be automatically deleted by the ODMS, i.e.,

on delete cascade. For example, if an organiza-

tion in a company were deleted, all subordinate or-

ganizations would be implicitly deleted. Such an as-

sociation semantic is required for an ODMS to pro-

vide support for composite objects.

Object Relationship Notation (ORN) was devel-

oped to allow these kinds of semantics, and others

often relevant to associations, to be better modeled

and more easily implemented in a DBMS (Ehlmann

et al., 1996, 2000, 2002). ORN is a declarative

scheme for describing association semantics that is

based on UML multiplicities.

In this paper we give a brief overview of ORN

and show how the ODMG Object Model can be ex-

tended to include ORN. We also discuss and illus-

trate algorithms that are available and can be used by

an ODMG-compliant ODMS to implement the asso-

ciation semantics as specified by ORN. The exten-

sion is very straightforward, and the algorithms are

relatively simple. The end-result is an enhanced Ob-

ject Model that supports more powerful association

semantics—in fact, more powerful than those sup-

ported by relational systems without having to code

complex constraints and triggers (Ehlmann and Ric-

cardi, 1996). By extending models with ORN and

providing the required mappings between them—

UML class diagram to Object Model to ODMS im-

plementation—we facilitate a model-driven devel-

opment approach and gain its many advantages

(Mellor et al., 2003).

The specific benefits here are a significant im-

provement in the productivity of developing object

database applications and an increase in their reli-

ability. Productivity is improved when translations

from class diagram models into object models are

more direct and when programmers do not have to

develop code to implement association semantics.

Currently, many developers working on many data-

base applications must implement, test, and maintain

custom code for each type of association, often “re-

inventing the wheel.” Reliability is increased when

the ODMS is responsible for enforcing association

semantics. Currently, developers sometimes fail to

enforce these semantics or inevitably introduce er-

rors into database applications when they do.

The remainder of this paper is organized as fol-

lows: section 2 gives a brief overview of ORN and

related work, section 3 shows how the ODMG Ob-

ject Model can be extended with the ORN syntax

and describes ORN semantics in terms of this model,

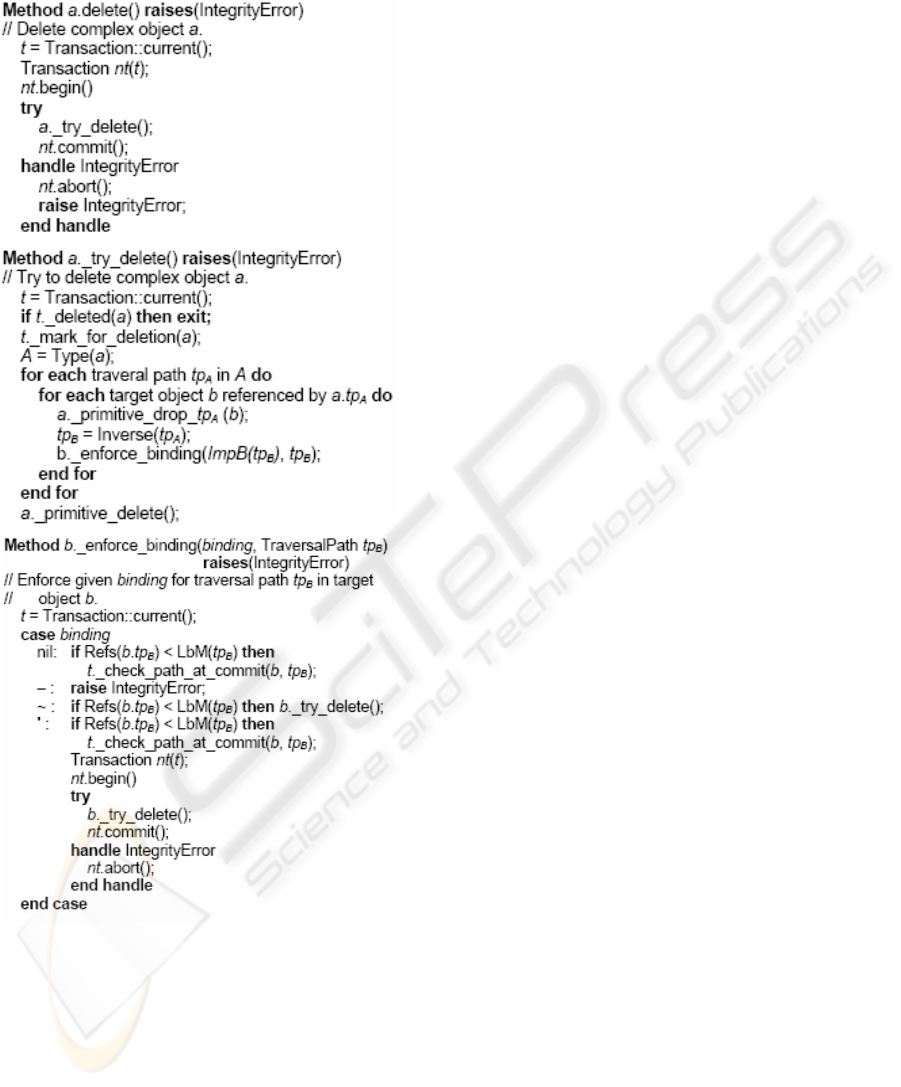

section 4 discusses and illustrates algorithms that

can be used to implement ORN semantics in an

ODMS that is based on the extended Object Model,

and section 5 provides concluding remarks. A com-

plete set of ORN-implementing algorithms is avail-

able on the author’s website (Ehlmann, 2006).

2 ORN AND RELATED WORK

ORN describes association semantics at both the

conceptual, i.e., data modeling, and logical, i.e., data

definition, levels of database development, and can

be compared to other declarative schemes.

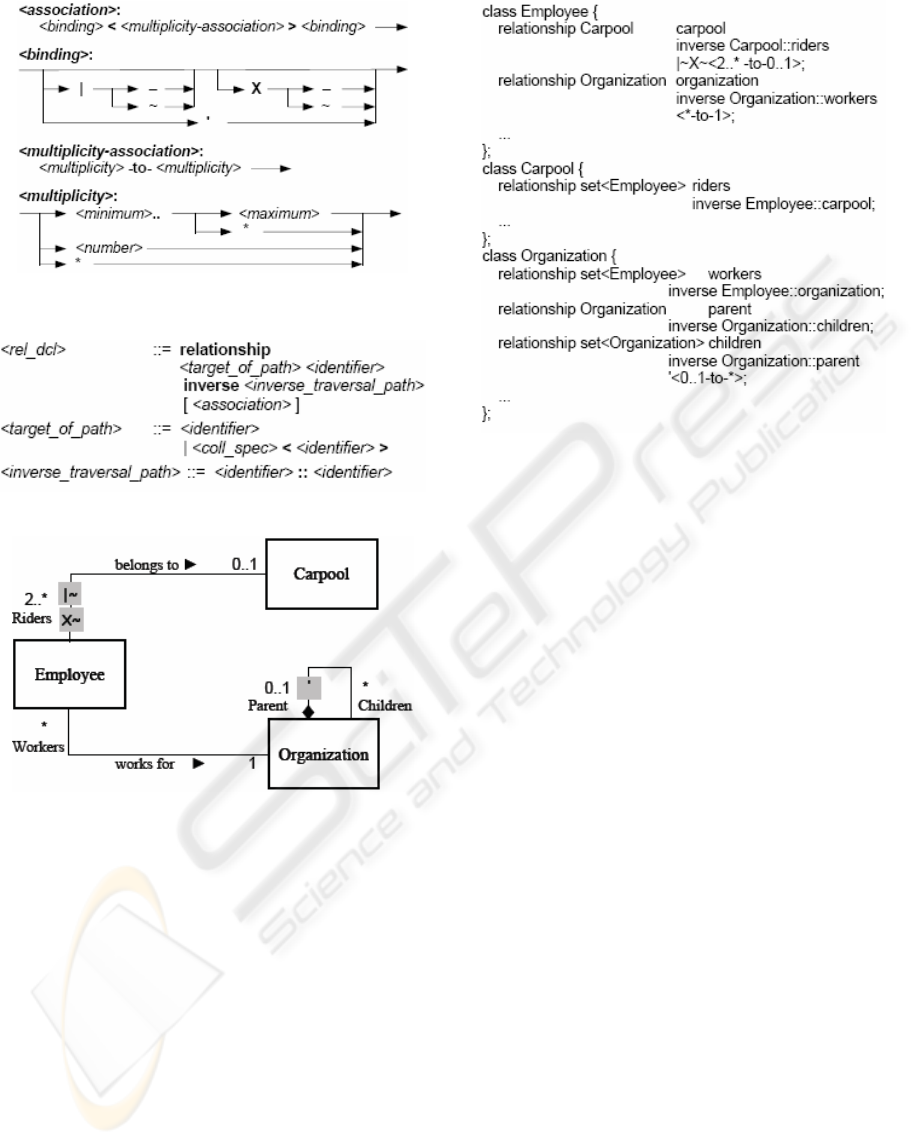

For data modeling, ORN has been integrated into

ERDs and UML class diagrams (Ehlmann and Yu,

2002). ORN extends a class diagram by allowing

binding symbols to be given with multiplicity nota-

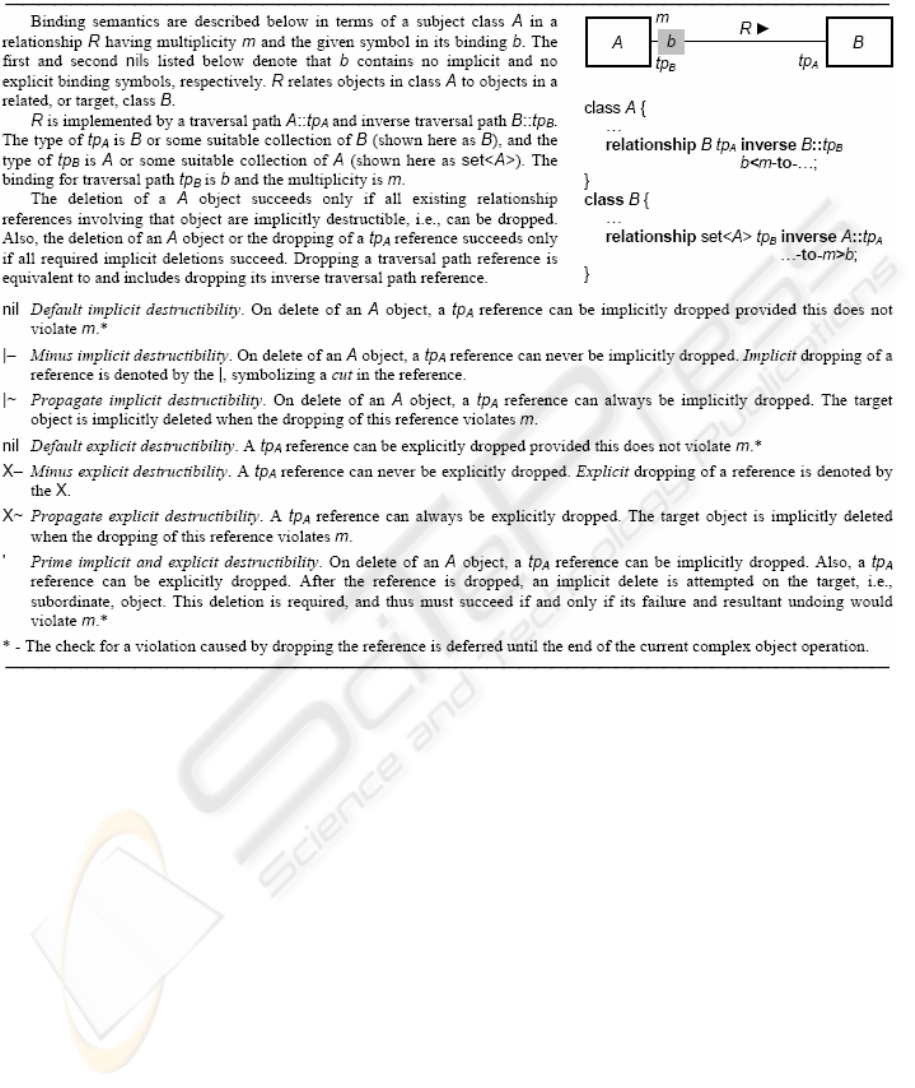

tions. The bindings indicate what should happen

when links between related objects are destroyed, ei-

ther implicitly because of object deletions or explic-

itly. They indicate, for instance, what action the

DBMS should take when destroying a link would

violate the multiplicity at one end of an association.

The binding symbols (or the lack of them) provide

important semantics about the relative strength of

linkage between related objects and define the scope

of complex objects. For example, the association be-

tween a carpool, a complex object, and its riders can

be specified in an ORN-extended class diagram to

indicate that if the number of riders falls below two,

either because an employee leaves the company (an

employee object is deleted) or just leaves the carpool

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

(a link between an employee and a carpool is de-

stroyed), the carpool should be deleted.

For database definition, ORN has been imple-

mented within the Object Database Definition Lan-

guage (ODDL). ODDL is a language used to define

classes, attributes, and relationships to a prototype

ODMS named Object Relater Plus (OR+) (Ehlmann

and Riccardi, 1997). OR+ closely parallels ODMG

and is built on top of Object Store (Progress Soft-

ware, 2006). The integration of ORN into ODDL al-

lows a direct translation of association semantics

from an ORN-extended class diagram into the data-

base definition language and enables these semantics

to be automatically maintained by the DBMS. Using

ORN, the semantics for an association between em-

ployees and carpools as previously described can be

both modeled and implemented by the notation

|~X~<2..*-to-0..1>. No programming is needed.

In Ehlmann and Riccardi (1996), the power of

ORN in describing association semantics is com-

pared to that of other declarative notations proposed

for various object models and to that of the

refer-

ences

clause of SQL. The comparison reveals that

the most unique aspect of ORN, and what accounts

for its ability to specify a larger variety of associa-

tion types, is that it provides for the enforcement of

upper and lower bound multiplicities and allows de-

lete propagation to be based on these multiplicities.

It also provides a declarative scheme at a conceptual

level of abstraction that is independent of database

type, object or relational. ORN can also be com-

pared to extensions to the ER model that others have

suggested to specify or enforce association seman-

tics, or structural integrity constraints (Balaban and

Shoval, 2002) (Bouzeghoub and Metais, 1991)

(Lazarivic and Misic, 1991). These extensions, how-

ever, are more procedural in nature.

3 ADDING ORN TO ODL

3.1 Associations in ODL

In the ODMG Object Definition Language (ODL),

which defines the ODMG Object Model, an associa-

tion is defined by declaring a relationship traversal

path for each end of the association. A traversal path

provides a means for an object of one class to refer-

ence and access the related objects of a target class

(which is the same class in a recursive relationship).

Access to many target class objects requires the tra-

versal path declaration to include an appropriate

collection type, usually a set or list, that can contain

Figure 1: Class diagram for employee–carpool association.

Figure 2: ODL for employee–carpool association.

references of target class type. Access to at most one

target class object requires the declaration to include

a reference of target class type. A traversal path dec-

laration must also include the name of its inverse tra-

versal path. For example, the one-to-many relation-

ship between carpools and employees, discussed ear-

lier and modeled by the class diagram in Fig. 1,

would be declared in ODL as shown in Fig. 2. The

2..* multiplicity given in the class diagram must be

implemented by application code.

3.2 Adding ORN Syntax

Adding ORN to the Object Model is relatively

straightforward. Essentially, ODL is extended to al-

low an

<association> to be given for each declared

relationship. The syntax for an

<association>, which

is the syntax for ORN, is given in Fig. 3, and the

ORN-extended ODL syntax is given in Fig. 4.

To illustrate the syntax and semantics of ORN in

the context of the Object Model, a database contain-

ing the employee–carpool association as well as two

other associations is modeled by the ORN-extended

class diagram given in Fig. 5. In such a diagram, the

ORN bindings for a class (or role) in an association

are given as stereotype icons at the association end

corresponding to that class (or role). When no bind-

ing symbols are given for an association end (or

role), default bindings are assumed, the semantics of

which will be defined later.

The database modeled in Fig. 5 is implemented

by the ORN-extended ODL given in Fig. 6.

If an

<association> is not given for a relationship

in ODL (see Fig. 4), the default

<association> is

<0..1-to-0..1> for a one-to-one relationship, <0..1-to-

*> for a one-to-many, and <*-to-*> for a many-to-

ADDING MORE SUPPORT FOR ASSOCIATIONS TO THE ODMG OBJECT MODEL

Figure 3: ORN syntax diagrams.

Figure 4: Updated BNF for a relationship in ODL.

Figure 6: ODL for class diagram shown in Fig. 5.

multiplicity given for a traversal path in an <asso-

ciation>

implies “many,” then the type of that tra-

versal path must be a collection.

The last issue to address in extending ODL is as-

sociation inheritance. In the Object Model, a rela-

tionship can be inherited by a class via the

extends

relationship. For example, the declaration

class

SalesPerson extends Employee { ... } would mean

that the

SalesPerson class inherits the attributes, re-

lationships, and behavior of the

Employee class.

Thus, the

carpool traversal path as declared in the

Employee class in Fig. 6 would be inherited by the

SalesPerson class, allowing sales people to join car-

pools. When a relationship is inherited by a class, all

of the semantics defined by its

<association>, given

or defaulted, are also inherited.

Figure 5: ORN-extended UML class diagram.

many. These defaults give relationships the same

semantics as they have in the existing Object Model.

And, of course, the semantics of all <associa-

tion>

s defined in the ODL—defaulted, given, or in-

herited—must be maintained by the ODMS.

<association> given for a relationship need

only to be given for one of the traversal paths. If

given for both traversal paths, the

<association>s

must be inverses of each other. For example, an

<association>, if given for riders in Fig. 6, must be

given as

<0..1-to-2..*> |~X~.

3.3 ORN Semantics in ODL Context

The semantics of the <multiplicity>s in an <associa-

tion>

are identical to those of the multiplicities de-

fined in UML (OMG, 2005). The semantics of the

<binding>s are given in Table 1.

When an <association> is given for a traversal

path

tp in class C, the multiplicity and binding given

after the

-to- apply to tp and to the target class, the

multiplicity and binding given before the

-to- apply

to the inverse

tp and to class C. For example, in Fig.

6, the multiplicity

0..1 and default bindings apply to

the traversal path

carpool and the target class Car-

pool

, and the multiplicity 2..* and binding |~X~ apply

to the traversal path

riders and class Employee. If the

Previous papers have described ORN semantics

conceptually in terms of ER and class diagrams, e.g.

Ehlmann et al. (2002). The reader may review these

papers for a more detailed discussion of ORN. Here,

we focus more on describing ORN semantics in

terms of the Object Model, or ODL. Thus, instead of

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

Table 1: ORN binding semantics for the Object Model.

“association links” being conceptually “created” and

“destroyed,” “relationship references” (or, alterna-

tively, “traversal path references”) are “formed” and

“dropped.” Dropping a relationship or traversal path

reference also means dropping the corresponding in-

verse reference (in the inverse traversal path). Also,

bindings and multiplicities are now associated with

traversal paths as well as with the related classes.

This is convenient for identifying bindings and mul-

tiplicities in recursive relationships since the subject

class and related class, now called the “target class,”

are the same. Traverse path names can be equated to

role names given in UML class diagrams. In Table

1, traversal path names

and tp

are also role

names in the class diagram for relationship

As indicated in Table 1, association semantics

are derived from multiplicity semantics and the se-

mantics of the given bindings. For example, in the

|~X~<2..*-to-0..1> association between employees

and carpools, the

|~ symbol in the <binding> for the

Employee class means (from Table 1): on delete of

an Employee object, a

carpool reference (see Fig. 6)

can always be implicitly dropped, and the target

Carpool object is implicitly deleted when dropping

this reference violates the multiplicity

2..*. The X~

symbol means: a

carpool reference can always be

explicitly dropped, and the target Carpool object is

implicitly deleted when dropping this reference vio-

lates the multiplicity

2..*. The multiplicity 2..* is vio-

lated when a reference to one of just two employees

in a carpool, i.e., one of just two references in the set

riders, is dropped. The default <binding> for the Car-

pool class means (again, from Table 1): on delete of

a Carpool object, a reference in

riders (see Fig. 6)

can be implicitly dropped provided this does not vio-

late the multiplicity

0..1, and a reference in riders

can be explicitly dropped provided this does not vio-

late the multiplicity

0..1. A 0..1 multiplicity is never

violated by dropping a reference in

riders (or a car-

pool reference for that matter).

Below are more of the association semantics that

are modeled in Fig. 5 and implemented in Fig. 6.

They are described both conceptually and, within

brackets, in terms of Object Model.

ADDING MORE SUPPORT FOR ASSOCIATIONS TO THE ODMG OBJECT MODEL

• If an employee [Employee object] is deleted, the

link to the employee’s organization is implicitly

destroyed [the object’s

organization reference to

its target Organization object is implicitly

dropped] (default binding and

* multiplicity).

• If an organization [Organization object] is de-

leted, all descendant organizations [Organization

objects recursively referenced via

children] are

implicitly deleted (

' binding); however, an or-

ganization is not deleted if it has any employees

[if

workers references any Employee objects]

(default binding and

1 multiplicity).

• If a link between organizations is destroyed [if a

children reference (or its inverse parent refer-

ence) is dropped], the child organization and all

descendant organizations [Organization objects

recursively referenced via

children] are implicitly

deleted (

' binding); however, again, an organiza-

tion is not deleted if it has any employees (de-

fault binding and

1 multiplicity).

4 IMPLEMENTING ORN

The implementation of ORN semantics in an

ODMG-compliant ODMS is described by giving the

algorithms required to create and delete objects and

form and drop relationship references. These opera-

tions become complex object operations in the con-

text of ORN. This means they may no longer in-

volve just one object or relationship reference but

may involve many objects, relationships, and rela-

tionship references in the scope of a complex object.

In Ehlmann (2006), we give the algorithms for

these operations by providing all related pseu-

docode, with commentary, for the

ObjectFac-

tory::new()

and Object::delete() methods, which are

associated with an object, and the

C::form_tp() and

C::drop_tp() methods, which are associated with a

declared traversal path

tp in a user-declared class C.

These methods are defined as part of the Object

Model (see Chapter 2 of Cattel and Douglas(2000)).

In this section, due to space constraints, we dis-

cuss these algorithms in general and illustrate them

by giving the algorithm for just the

Object::delete()

method. The pseudocode shown in this section is

about one quarter of that given in Ehlmann (2006).

The algorithms have been developed by reverse

engineering the code for implementing ORN within

OR+. This is the same code executed when one uses

the ORN Simulation, a web-based, prototype model-

ing tool (Ehlmann, 2000). Thus, the algorithms are

well-tested but have a slightly different wrapping.

Their implementation of ORN semantics is un-

ambiguous in the presence of association cycles as

long as

<association>s do not contain a |– binding

for just one end of the association. By unambiguous,

we mean that the results of a complex object opera-

tion are independent of the order in which traversal

paths and the references in these paths are processed.

This property of ORN is discussed in detail and

proven in Ehlmann et al. (2002).

As stated in the introduction, the algorithms are

relatively simple; however, they depend on the

ODMS implementation supporting a nested transac-

tion capability. Nested transactions are needed to

implement the semantics of the

' (prime) binding and

are desirable so that the system can check multiplic-

ity violations at the end of a complex object opera-

tion, undoing the operation upon any exception and

thus making the complex object operation atomic.

The Object Model defines a Transaction Model,

which does not provide nested transactions. So, be-

fore giving the algorithms for the complex object

operations in Ehlmann (2006), we extend the Trans-

action Model to support nested transactions, at least

for the purpose of implementing the ODMS. We as-

sume such support for nested transactions and give

algorithms for transaction methods, focusing on the

actions required to support ORN semantics.

All methods are assumed to execute in the con-

text of a opened database

d, and methods new(), de-

lete(), form_tp ()

, and drop_tp ()

are assumed to exe-

cute within the scope of a user-defined transaction.

The pseudocode that expresses the algorithms is

some mixture of ODL, C++, Java, and English. We

have tried to stick as close as possible to the conven-

tions of ODL. Indention indicates control structure,

with appropriate

end’s often used to terminate com-

pound statements. The

try...handle...end handle con-

trol structure for exception handling is similar to

Java’s

try {...} catch {...}. Methods for a class are in-

troduced with a header of the form

Method <vari-

able>

.<method name>( ... ), where the <variable> is

used in the body of the method to refer to the object

on which the method is invoked, i.e., the implicit pa-

rameter and

this object in C++ and Java. A <method

name> begins with an underscore if it is to be in-

voked only by the ODMS implementation.

The algorithms are expressed using the variables

defined in Table 1.

Fig. 7 gives the

delete() method and two methods

that it uses,

_try_delete() and _enforce_binding().

The given

delete() replaces the primitive delete()

method as currently defined in the Object Model.

The remainder of this section briefly explains the

pseudocode in Fig. 7. For a more detailed explana-

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

tion and for the pseudocode of all methods invoked

by the

delete() algorithm, see Ehlmann (2006).

Figure 7: Method delete() in interface Object.

The algorithm for delete() uses these functions:

Type(o) – the type, or class, of object o, which is the

most specific type of

o in any type hierarchy.

LbM(tp) – the lower bound multiplicity for tp in the

<association> for the relationship represented by

traversal path

tp.

ImpB(tp) – the implicit destructibility binding for tp

(minus any

| symbol) in the <association> for the

relationship represented by traversal path

tp.

Inverse(tp) – the inverse traversal path of tp.

Refs(o.tp) – the number of references in o.tp, which,

tp is a collection, is the cardinality of the col-

lection, i.e.,

o.tp.cardinality() and, if tp is a refer-

ence, is

0 if nil and 1 if not.

The

delete() method provides a nested transac-

tion that embeds the complex object operation, per-

mitting its effects on the database to be undone if an

exception occurs.

The

_try_delete() method is an indirectly recur-

sive method that may result in the implicit deletion

of many objects that are related directly or indirectly

to the object upon which it is invoked, designated

here as

a. Its invocation on an object must be dy-

namically bound to the method on the class repre-

senting the object’s most specific type. This ensures

that

_try_delete() processes all traversal path in-

stances involving the object.

The method first checks that object

a has not al-

ready been marked for deletion by invoking the

_deleted() method on the current transaction. If it

has,

_try_delete() simply exits. If not, it marks object

a for deletion by invoking _mark_for_deletion().

The outer for each loop traverses every traversal

path

defined in (or inherited by) class A. For each

such path in object

a, the inner for each traverses all

references in the traversal path. The purpose here is

to attempt to implicitly drop each reference to a tar-

get object

b (including the inverse reference to a) so

that object

a can be deleted. The code first drops

each such reference by invoking the

_primitive_drop_tp

method on a, which drops

a.tp

’s reference to b and b.tp

’s reference to a. It

then invokes the method

_enforce_binding() on the

target object

b to enforce the implicit destructibility

binding

ImpB(tp )

for the inverse traversal path tp

The last step of

_try_delete() actually deletes the

object but only if none of the

_enforce_binding() in-

vocations raise an exception.

The _enforce_binding() method is assumed for

simplicity to be defined in the interface

Object. The

method for one class in a relationship must be acces-

sible to the other class. The method enforces the de-

structibility binding semantics specified in Table 1.

Here,

b denotes the implicit parameter and tp

de-

notes the explicit parameter since

_enforce_binding()

is invoked on a target object to enforce the binding

for the inverse traversal path in that target object. It

is invoked after a reference to target object

b and its

inverse reference in the traversal path

have been

dropped by the caller. The

case statement executes

the appropriate code for the given

binding. The

method

_check_path_at_commit() is invoked to en-

sure that a lower bound constraint is rechecked at the

ADDING MORE SUPPORT FOR ASSOCIATIONS TO THE ODMG OBJECT MODEL

end of the complex object operation, i.e., within

commit() of the current, nested transaction.

5 CONCLUSION

In this paper, we have proposed adding ORN to the

ODMG Object Model and have referenced, illus-

trated, and discussed algorithms for implementing

ORN semantics in an ODMS. The shortcomings of

our proposal are that the Object Model is made

slightly more complex and ODMS implementations

must include a nested transaction capability. Despite

these shortcomings and regardless of whether or not

ORN is added to the ODMG standard, we believe

that vendors should strongly consider including

ORN as an extended feature to their ODMSs. We

conclude by summarizing the reasons:

• ORN is a simple notation that allows the data-

base developer to specify a variety of association

semantics, which define the scopes of complex

and composite objects.

• The extended ODL would facilitate a straight-

forward mapping of association semantics from a

conceptual database model, expressed as an

ORN-extended UML class diagram, to the logi-

cal database model, expressed in the ODL.

• The ODMS would provide the same support for

associations that is provided by relational

DBMSs via the

SQL references clause plus sup-

port even more powerful association semantics.

• If no

<association> is given for a traversal path,

the default

<association> corresponds to current

system capabilities. Thus, adding ORN is a pure

extension requiring no changes to the underlying

Object Model capabilities.

• The implementation of this extension is rela-

tively simple as shown by the algorithms we

have made available and their implementation in

OR+.

• The benefits are increased database development

productivity and improved database integrity as

much less code needs to be developed and main-

tained by database application developers.

ACKNOWLEDGEMENTS

This work was partially supported by the NSF co-

operative agreement HRD-9707076.

REFERENCES

Balaban, M. and Shoval, P., 2002. MEER – A EER model

enhanced with structure methods. Information Sys-

tems, 27 (4), 245-275.

Bouzeghoub, M. and Metais, E., 1991. Semantic modeling

and object oriented databases. In Proc. 17

Int’l VLDB

Conference, Barcelona, Spain. 3-14.

Cattel, R.G.G., Barry, D.K., Berler, M., Eastman, J., Jor-

dan, D., Russell, C., Schadow, O, Stanienda, T., and

Velez, F., 2000. The Object Database Standard:

ODMG 3.0. San Mateo, CA: Morgan Kaufmann.

Chen, P.P., 1976. The entity-relationship model: towards a

unified view of data. ACM Transactions on Database

Systems, 1(1), 1-36.

ANSI, 2003. Information technology - Database lan-

guages - SQL, Parts 1-4, New York, NY: American

National Standards Institute (ANSI). Available from:

www.ansi.org.

Ehlmann, B.K. and Riccardi, G.A., 1996. A comparison of

ORN to other declarative schemes for specifying rela-

tionship semantics. Information and Software Tech-

nology, 38 (7), 455-465.

Ehlmann, B.K. and Riccardi, G.A., 1997. Object Relater

Plus: A Practical Tool for Developing Enhanced Ob-

ject Databases. In Proc. 13

Int’l Conference on Data

Engineering, Birmingham, England. 412-421.

Ehlmann, B.K., Rishe, N., and Shi, J., 2000. The formal

specification of ORN semantics. Information and

Software Technology, 42 (3), 159-170.

Ehlmann, B.K., Riccardi, G.A., Rishe, N., and Shi, J.,

2002. Specifying and enforcing association semantics

via ORN in the presence of association cycles, IEEE

Transactions on Knowledge and Data Engineering, 14

(6), 1249-1257.

Ehlmann, B.K. and Yu, X., 2002. Extending UML class

diagrams to capture additional association semantics.

In Proc. 20

IASTED Int’l Conf. on Applied Informat-

ics, Innsbruck, Austria. 395-401.

Ehlmann, B.K., 2002. A data modeling tool where asso-

ciations come alive. In Proc. 21

IASTED Int’l Conf.

on Modelling, Identification, and Control, Innsbruck,

Austria. 66-72. Available at www.siue.edu/~behlman.

Ehlmann, B.K., 2006. Algorithms for the implementation

of ORN in an ODMG-compliant ODMS. Available

from:

www.siue.edu/~behlman.

Mellor, S.J., Clark, A.N., and Futagami, T., 2003. Guest

editor’s introduction: Model-Driven Development.

IEEE Software, 20 (5), 19-25.

Lazarevic, B., Misic, V., 1991. Extending the entity-

relationship model to capture dynamic behavior.

European Journal of Information Systems, 1 (2), 95-

106.

Progress Software, 2006. ObjectStore Interprise. Bedford,

MA: Progress Software. Available from:

www.objectstore.com/datasheet/index.ssp.

OMG, 2005. Unified Modeling Language (UML) Specifi-

cation. Version 2.0. Object Management Group

(OMG). Available from:

www.uml.org.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES
