COMBINING METAHEURISTICS FOR THE JOB SHOP

SCHEDULING PROBLEM WITH SEQUENCE DEPENDENT SETUP

TIMES

Miguel A. Gonz

´

alez, Mar

´

ıa R. Sierra, Camino R. Vela, Ramiro Varela, Jorge Puente

Artiﬁcial Intelligence Center, Dept. of Computing, University of Oviedo,

Campus de Viesques, 33271 Gij

´

on, Spain

Keywords:

Metaheuristics, Genetic Algorithms, Local Search, Job Shop Scheduling.

Abstract:

The Job Shop Scheduling (J SS) is a hard problem that has interested to researchers in various ﬁelds such

as Operations Research and Artiﬁcial Intelligence during the last decades. Due to its high complexity, only

small instances can be solved by exact methods, while instances with a size of practical interest should be

solved by means of approximate methods guided by heuristic knowledge. In this paper we confront the Job

Shop Scheduling with Sequence Dependent Setup Times (SDJSS). The SDJSS problem models many

real situations better than the JSS. Our approach consists in extending a genetic algorithm and a local search

method that demonstrated to be efﬁcient in solving the JSS problem. We report results from an experimental

study showing that the proposed approaches are more efﬁcient than other genetic algorithm proposed in the

literature, and that it is quite competitive with some of the state-of-the-art approaches.

1 INTRODUCTION

The Job Shop Scheduling Problem with Sequence De-

pendent Setup Times (SDJSS) is a variant of the

classic Job Shop Scheduling Problem (JSS) in which

a setup operation on a machine is required when the

machine switches between two jobs. This way the

SDJSS models many real situations better than the

JSS. The SDJSS has interested to a number of re-

searchers, so we can ﬁnd a number of approaches in

the literature, many of which try to extend solutions

that were successful to the classic JSS problem. This

is the case, for example, of the branch and bound al-

gorithm proposed by Brucker and Thiele in (Brucker

and Thiele, 1996), which is an extension of the well-

known algorithms proposed in (Brucker et al., 1994),

(Brucker, 2004) and (Carlier and Pinson, 1994), and

the genetic algorithm proposed by Cheung and Zhou

in (Cheung and Zhou, 2001), which is also an ex-

tension of a genetic algorithm for the JSS. Also,

in (Zoghby et al., 2005) a neighborhood search with

heuristic repairing is proposed that it is an extension

of the local search methods for the JSS.

In this paper we apply a similar methodological

approach and extend a genetic algorithm and a local

search method that we have applied previously to the

JSS problem. The genetic algorithm was designed

by combining ideas taken from the literature such

as for example the well-known G&T algorithm pro-

posed by Gifﬂer and Thomson in (Gifﬂer and Thom-

son, 1960), the codiﬁcation schema proposed by Bier-

wirth in (Bierwirth, 1995) and the local search meth-

ods developed by various researchers, for example

Dell’ Amico and Trubian in (Dell’ Amico and Tru-

bian, 1993), Nowicki and Smutnicki in (Nowicki and

Smutnicki, 1996) or Mattfeld in (Mattfeld, 1995). In

(Gonz

´

alez et al., 2006) we reported results from an

experimental study over a set of selected problems

showing that the genetic algorithm is quite competi-

tive with the most efﬁcient methods for the JSS prob-

lem.

In order to extend the algorithm to the SDJSS

problem, we have ﬁrstly extended the decoding al-

gorithm, which is based on the G&T algorithm.

Furthermore, in our local search method, we have

adapted the neighborhood structure termed N

1

in

the literature to obtain a neighborhood that we have

termed N

S

1

.

The experimental study was conducted over the

set of 45 problem instances proposed by Cheung and

Zhou in (Cheung and Zhou, 2001) and also over the

set of 15 instances proposed by Brucker and Thiele

in (Brucker and Thiele, 1996). We have evaluated the

genetic algorithm alone and then in conjunction with

211

A. González M., R. Sierra M., R. Vela C., Varela R. and Puente J. (2006).

COMBINING METAHEURISTICS FOR THE JOB SHOP SCHEDULING PROBLEM WITH SEQUENCE DEPENDENT SETUP TIMES.

In Proceedings of the First International Conference on Software and Data Technologies, pages 211-218

DOI: 10.5220/0001312402110218

Copyright

c

SciTePress

local search. The results show that the proposed ge-

netic algorithm is more efﬁcient than the genetic al-

gorithm proposed in (Cheung and Zhou, 2001) and

that the genetic algorithm combined with local search

improves with respect to the raw genetic algorithm

when both of them run during similar amount of time.

Moreover, the efﬁciency of the genetic algorithm is

at least comparable to the exact approaches proposed

in (Brucker and Thiele, 1996) and (Artigues et al.,

2004).

The rest of the paper is organized as it follows.

In section 2 we formulate the SDJSS problem. In

section 3 we outline the genetic algorithm for the

SDJSS. In section 4 we describe the extended lo-

cal search method. Section 5 reports results from the

experimental study. Finally, in section 6 we summa-

rize the main conclusions.

2 PROBLEM FORMULATION

We start by deﬁning the JSS problem. The clas-

sic JSS problem requires scheduling a set of N jobs

J

1

, . . . , J

N

on a set of M physical resources or ma-

chines R

1

, . . . , R

M

. Each job J

i

consists of a set of

tasks or operations {θ

i1

, . . . , θ

iM

} to be sequentially

scheduled. Each task θ

il

having a single resource re-

quirement, a ﬁxed duration pθ

il

and a start time stθ

il

whose value should be determined.

The JSS has two binary constraints: precedence

constraints and capacity constraints. Precedence con-

straints, deﬁned by the sequential routings of the tasks

within a job, translate into linear inequalities of the

type: stθ

il

+ pθ

il

≤ stθ

i(l+1)

(i.e. θ

il

before θ

i(l+1)

).

Capacity constraints that restrict the use of each re-

source to only one task at a time translate into dis-

junctive constraints of the form: stθ

il

+pθ

il

≤ stθ

jk

∨

stθ

jk

+ pθ

jk

≤ stθ

il

. Where θ

il

and θ

jk

are opera-

tions requiring the same machine. The objective is to

come up with a feasible schedule such that the com-

pletion time, i.e. the makespan, is minimized.

In the sequel a problem instance will be represented

by a directed graph G = (V, A ∪ E). Each node in

the set V represents a operation of the problem, with

the exception of the dummy nodes start and end,

which represent operations with processing time 0.

The arcs of the set A are called conjunctive arcs and

represent precedence constraints and the arcs of set

E are called disjunctive arcs and represent capacity

constraints. Set E is partitioned into subsets E

i

with

E = ∪

i=1,...,M

E

i

. Subset E

i

corresponds to resource

R

i

and includes an arc (v, w) for each pair of oper-

ations requiring that resource. The arcs are weighed

with the processing time of the operation at the source

node. The dummy operation start is connected to the

ﬁrst operation of each job; and the last operation of

θ

θ

θ

θ

θ

θ

θ

θ

θ

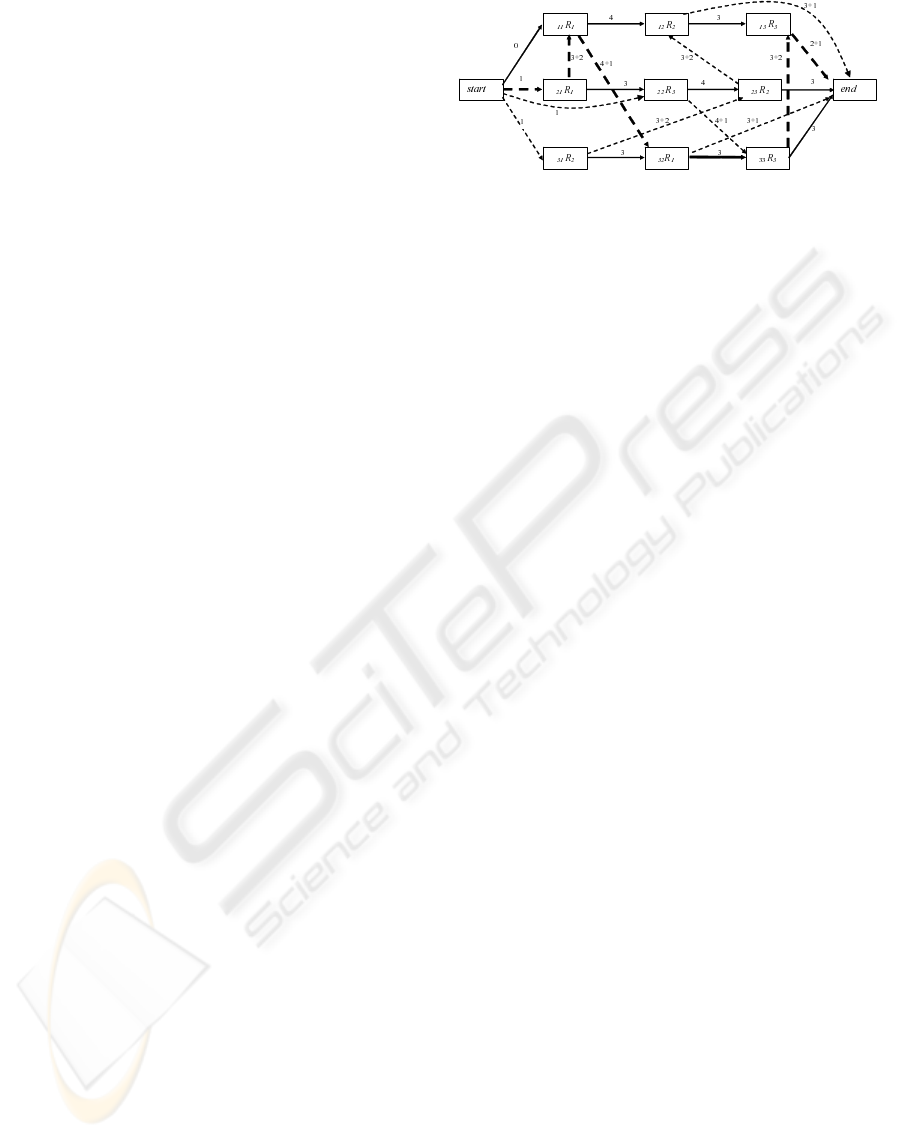

Figure 1: A feasible schedule to a problem with 3 jobs and 3

machines. Bold face arcs show a critical path whose length,

i.e. the makespan, is 22.

each job is connected to the node end.

A feasible schedule is represented by an acyclic

subgraph G

s

of G, G

s

= (V, A ∪ H), where H =

∪

i=1..M

H

i

, H

i

being a hamiltonian selection of E

i

.

Therefore, ﬁnding out a solution can be reduced to

discovering compatible hamiltonian selections, i.e.

orderings for the operations requiring the same re-

source or partial schedules, that translate into a solu-

tion graph G

s

without cycles. The makespan of the

schedule is the cost of a critical path. A critical path

is a longest path from node start to node end. The crit-

ical path is naturally decomposed into subsequences

B

1

, . . . , B

r

called critical blocks. A critical block

is a maximal subsequence of operations of a critical

path requiring the same machine.

In the SDJSS, after an operation v of a job leaves

machine m and before entering an operation w of an-

other job on the same machine, a setup operation is

required with duration S

m

v w

. The setup operation can

be started as soon as operation v leaves the machine

m, hence possibly in parallel with the operation pre-

ceding w in its job sequence. The setup time S

m

v w

is

added to the processing time of operation v to obtain

the cost of each disjunctive arc (v, w). S

m

0v

is the setup

time of machine m if v is the ﬁrst operation scheduled

on m and S

m

v0

is the cleaning time of machine m if v

is the last operation scheduled on m.

Figure 1 shows a feasible solution to a problem

with 3 jobs and 3 machines. Dotted arcs represent the

elements of set E included in the solution, while con-

junctive arcs are represented by continuous arrows.

3 GENETIC ALGORITHM FOR

THE SDJSS PROBLEM

The JSS is a paradigm of constraint satisfac-

tion problems and was confronted by many heuris-

tic techniques. In particular genetic algorithms

(Bierwirth, 1995),(Mattfeld, 1995),(Varela et al.,

2003),(Gonz

´

alez et al., 2006) are a promising ap-

proach due to their ability to be combined with other

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

212

Algorithm 1 Conventional Genetic Algorithm.

input: a JSS problem P

output: a schedule H for problem P

1. Generate the Initial Population;

2. Evaluate the Population;

while No termination criterion is satisﬁed do

3. Select chromosomes from the current popula-

tion;

4. Apply the Crossover and Mutation operators

to the chromosomes selected at step 3. to gener-

ate new ones;

5. Evaluate the chromosomes generated at step

4;

6. Apply the Acceptation criterion to the set of

chromosomes selected at step 3. together with

the chromosomes generated at step 4.;

end while

7. Return the schedule from the best chromosome

evaluated so far;

techniques such as tabu search and simulated anneal-

ing. Moreover genetic algorithms allow for exploit-

ing any kind of heuristic knowledge from the problem

domain. In doing so, genetic algorithms are actually

competitive with the most efﬁcient methods for JSS.

As mentioned above, in this paper we consider a

conventional genetic algorithm for tackling the JSS

and extend it to the SDJSS. This requires mainly the

adaptation of the decoding algorithm. Additionally

we consider a local search method for the JSS and

adapt it to the SDJSS.

Algorithm 1 shows the structure of the genetic al-

gorithm we have considered. In the ﬁrst step the ini-

tial population is generated and evaluated. Then the

genetic algorithm iterates over a number of steps or

generations. In each iteration a new generation is built

from the previous one by applying the genetic opera-

tors of selection, crossover, mutation and acceptation.

In principle, these four operators can be implemented

in a variety of ways and are independent each one to

the others. However in practice all of them should

be chosen considering their effect on the remaining

ones in order to get a successful convergence. The

approach taken in this work is the following. In the se-

lection phase all chromosomes are grouped into pairs,

and then each one of these pairs is mated and mutated

accordingly to the corresponding probabilities to ob-

tain two offsprings. Finally a tournament selection is

done among each pair of parents and their offsprings.

To codify chromosomes we have chosen permu-

tations with repetition proposed by C. Bierwirth in

(Bierwirth, 1995). In this scheme a chromosome

is a permutation of the set of operations, each one

being represented by its job number. This way a

job number appears within a chromosome as many

times as the number of operations of its job. For

example, the chromosome (2 1 1 3 2 3 1 2 3)

actually represents the permutation of operations

(θ

21

θ

11

θ

12

θ

31

θ

22

θ

32

θ

13

θ

23

θ

33

). This permutation

should be understood as expressing partial schedules

for every set of operations requiring the same ma-

chine. This codiﬁcation presents a number of inter-

esting characteristics; for example, it is easy to eval-

uate with different algorithms and allows for efﬁcient

genetic operators. In (Varela et al., 2005) this cod-

iﬁcation is compared with other permutation based

codiﬁcations and demonstrated to be the best one for

the JSS problem over a set of 12 selected problem

instances of common use. For chromosome mating

we have considered the Generalized Order Crossover

(GOX) that works as it is shown in the following ex-

ample. Let us consider that the two following chro-

mosomes are selected as parents for crossover

Parent1 (1 2 3 3 2 1 1

3 2) Parent2 (3 3 2 3 1 1 2 2 1)

Firstly, a substring is selected from Parent1 and in-

serted in the Offspring at the same position as in this

parent. Then the remaining positions of the Offspring

are completed with genes from Parent2 after having

removed the genes selected from Parent1. If the se-

lected substring from Parent1 is the one marked with

underlined characters, the resulting Offspring is

Offspring (3 2 3 3 2 1 1 1 2).

By doing so, GOX preserves the order and posi-

tion of the selected substring from Parent1 and the

relative order of the remaining genes from Parent2.

The mutation operator simply selects and swaps two

genes at random. In practice the mutation would not

actually be necessary due to the GOX operator has

an implicit mutation effect. For example the second 3

from Parent1 is now the third one in the Offspring.

3.1 Decoding Algorithm

As decoding algorithm we have chosen the well-

known G&T algorithm proposed by Gifﬂer and

Thomson in (Gifﬂer and Thomson, 1960) for the JSS

and then we have made a natural extension for the

SDJSS. The G&T algorithm is an active schedule

builder. A schedule is active if one operation must

be delayed when you want another one to start ear-

lier. Active schedules are good in average and, what

is most important, it can be proved that the space of

active schedules contains at least an optimal one, that

is, the set of active schedules is dominant. For these

reasons it is worth to restrict the search to this space.

Moreover, the G&T algorithm is complete for the

JSS problem. Algorithm 2 shows the G&T algo-

rithm for the JSS.

In order to adapt the G&T algorithm for the

SDJSS we consider an extension termed EG&T .

COMBINING METAHEURISTICS FOR THE JOB SHOP SCHEDULING PROBLEM WITH SEQUENCE

DEPENDENT SETUP TIMES

213

Algorithm 2 The decoding Gifﬂer and Thomson al-

gorithm for the JSS problem .

input: a chromosome C and a problem P

output: the schedule H represented by chromo-

some C for problem P

1. A = set containing the ﬁrst operation of each job;

while A 6= ∅ do

2. Determine the operation θ

′

∈ A with the ear-

liest completion time if scheduled in the current

state, that is stθ

′

+ pθ

′

≤ stθ + pθ, ∀θ ∈ A;

3. Let R be the machine required by θ

′

, and B

the subset of A whose operations require R;

4. Remove from B every operation that cannot

start at a time earlier than stθ

′

+ pθ

′

;

5. Select θ

∗

∈ B so that it is the leftmost opera-

tion of B in the chromosome sequence;

6. Schedule θ

∗

as early as possible to build the

partial schedule corresponding to the next state;

7. Remove θ

∗

from A and insert the succeed-

ing operation of θ

∗

in set A if θ

∗

is not the last

operation of its job;

end while

8. return the built schedule;

EG&T can be derived from the algorithm EGT A1

developed by Ovacik and Uzsoy in (Ovacik and Uz-

soy, 1993), by simply taking into account the setup

times in Algorithm 2. So, the step 4 of Algorithm 2 is

exchanged by

4. Remove from B every operation θ that stθ ≥

stθ

′

+ pθ

′

+ S

R

θ

′

θ

for any θ

′

∈ B;

In Algorithm 2, stθ refers to the maximum comple-

tion time of the last scheduled operation on the ma-

chine required by operation θ and the preceding op-

eration to θ in its job. Hence the algorithm can be

adapted to the SDJSS problem by considering stθ

as the maximum completion time of the preceding

operation in the job and the completion time of the

last scheduled operation in the machine plus the cor-

responding setup time. It is easy to demonstrate that

EG&T is not complete. In (Artigues et al., 2005)

two more extensions of the G&T schedule genera-

tion scheme are proposed, one of them is not com-

plete either, and the other is complete but it is very

time consuming due to it needs to do backtracking.

In any case, the lack of completeness of a decoding

algorithm is not a serious problem in the framework

of GAs due to a GA itself is not complete. More-

over, the local search schema outlined in the next sec-

tion gives to any chromosome the chance of being

reached, so in any way the lack of completeness of

the decoding algorithm is compensated.

Algorithm 3 The Local Search Algorithm.

input: a chromosome C and a JSS problem P

output: a (hopefully) improved chromosome

1. Evaluate chromosome C (Algorithm 2) to obtain

schedule H;

while No termination criterion is satisﬁed do

2. Generate the neighborhood of H with some

method N, N(H);

3. Select H

′

∈ N (H) with the selection crite-

rion;

4. Replace H by H

′

if the acceptation criterion

holds;

end while

5. Rebuild chromosome C from schedule H;

6. return chromosome C;

4 LOCAL SEARCH

Conventional genetic algorithms, like the one de-

scribed in the previous section, often produce moder-

ate results. However meaningful improvements can

be obtained by means of hybridization with other

methods. One of such techniques is local search, in

this case the genetic algorithm is called a memetic al-

gorithm. Hybridization of a genetic algorithm with

local search is carried out by applying the local search

algorithm to every chromosome just after this chro-

mosome is generated, instead of simply applying the

Algorithm 2 as it is done in the simple genetic algo-

rithm. Algorithm 3 shows the typical strategy of a

local search.

Roughly speaking local search is implemented by

deﬁning a neighborhood of each point in the search

space as the set of chromosomes reachable by a given

transformation rule. Then a chromosome is replaced

in the population by one of its neighbors, if any of

them satisﬁes the acceptation criterion. The local

search from a given point completes either after a

number of iterations or when no neighbor satisﬁes the

acceptation criterion.

In this paper we consider the neighborhood struc-

ture proposed by Nowicki and Smutnicki in (Now-

icki and Smutnicki, 1996), which is termed N

1

by D.

Mattfeld in (Mattfeld, 1995), for the JSS. As other

strategies, N

1

relies on the concepts of critical path

and critical block. It considers every critical block of

a critical path and made a number of moves on the op-

erations of each block. After a move inside a block,

the feasibility must be tested. Since an exact proce-

dure is computationally prohibitive, the feasibility is

estimated by an approximate algorithm proposed by

Dell’ Amico and Trubian in (Dell’ Amico and Tru-

bian, 1993). This estimation ensures feasibility at the

expense of omitting a few feasible solutions. In (Mat-

tfeld, 1995) the transformation rules of N

1

are deﬁned

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

214

as follows.

Deﬁnition 1 (N

1

) Given a schedule H with partial

schedules H

i

for each machine R

i

, 1 ≤ i ≤ M, the

neighborhood N

1

(H) consist of all schedules derived

from H by reversing one arc (v, w) of the critical path

with (v, w) ∈ H

i

. At least one of v and w is either

the ﬁrst or the last member of a block. For the ﬁrst

block only v and w at the end of the block are con-

sidered whereas for the last block only v and w at the

beginning of the block must be checked.

The selection strategy of a neighbor and the ac-

ceptation criterion are based on a makespan estima-

tion, which is done in constant time as it is also de-

scribed in (Dell’ Amico and Trubian, 1993), instead

of calculating the exact makespan of each neigh-

bor. The estimation provides a lower bound of the

makespan. The selected neighbor is the one with

the lowest makespan estimation whenever this value

is lower than the makespan of the current chromo-

some. Notice that this strategy is not steepest descen-

dent because the exact makespan of selected neigh-

bor is not always better than the makespan of the

current solution. We have done this choice in the clas-

sic JSS problem due to it produces better results than

a strict steepest descent gradient method. (Gonz

´

alez

et al., 2006).

The Algorithm stops either after a number of iter-

ations or when the estimated makespan of selected

neighbor is larger than the makespan of the current

chromosome.

This neighborhood relies on the fact that, for the

JSS problem, reversing an arc of the critical path al-

ways maintains feasibility. Moreover, the only possi-

bility to obtain some improvement by reversing an arc

is that the reversed arc is either the ﬁrst or the last of

a critical block.

However, things are not the same for SDJSS

problem due to the differences in the setup times. As

can we see in (Zoghby et al., 2005), feasibility is not

guaranteed when reversing an arc of the critical path,

and reversing an arc inside a block could lead to an

improving schedule. The following results give suf-

ﬁcient conditions of no-improving when an arc is re-

versed in a solution H of the SDJSS problem. In

the setup times the machine is omitted for simplicity

due to all of them refers to the same machine.

Theorem 1 Let H be a schedule and (v, w ) an arc

that is not in a critical block. Then reversing the arc

(v, w) does not produce any improvement even if the

resulting schedule is feasible.

Theorem 2 Let H be a schedule and (v, w) an arc in-

side a critical block, that is there exist arcs (x, v) and

(w, y) belonging to the same block. Even if the sched-

ule H

′

obtained from H by reversing the arc (v, w) is

feasible, H

′

is not better than H if the following con-

dition holds

S

xw

+ S

wv

+ S

v y

≥ S

xv

+ S

v w

+ S

wy

(1)

Theorem 3 Let H be a schedule and (v, w ) an arc

in a critical path so that v is the ﬁrst operation of the

ﬁrst critical block and z is the successor of w in the

critical path and M

w

= M

z

. Even if reversing the

arc (v, w) leaves to a feasible schedule, there is no

improvement if the following condition holds

S

0w

+ S

wv

+ S

v z

≥ S

0v

+ S

v w

+ S

wz

(2)

Analogous, we can formulate a similar result if w is

the last operation of the last critical block.

Hence we can ﬁnally deﬁne the neighborhood strat-

egy for the SDJSS problem as it follows

Deﬁnition 2 (N

S

1

) Given a schedule H, the neigh-

borhood N

S

1

(H) consist of all schedules derived from

H by reversing one arc (v, w) of the critical path pro-

vided that none of the conditions given in previous

theorems 1, 2 and 3 hold.

4.1 Feasibility Checking

Regarding feasibility, for the SDJSS it is always re-

quired to check it after reversing an arc. As usual, we

assume that the triangular inequality holds, what is

quite reasonable in actual production plans, that is for

any operations u,v and w requiring the same machine

S

uw

≤ S

uv

+ S

v w

(3)

Then the following is a necessary condition for no-

feasibility after reversing the arc (v, w).

Theorem 4 Let H be a schedule and (v, w) an arc in

a critical path, P J

w

the operation preceding w in its

job and SJ

v

the successor of v in its job. Then if re-

versing the arc (v, w) produces a cycle in the solution

graph, the following condition holds

stP J

w

> stSJ

v

+ duSJ

v

+ S

min

(4)

where

S

min

= min{S

kl

/(k, l) ∈ E, J

k

= J

v

}

and J

k

is the job of operation k.

Therefore the feasibility estimation is efﬁcient at

the cost of discarding some feasible neighbor.

4.2 Makespan Estimation

For makespan estimation after reversing an arc, we

have also extended the method proposed by Taillard in

(Taillard, 1993) for the JSS. This method was used

also by Dell’Amico and Trubian in (Dell’ Amico and

Trubian, 1993) and by Mattfeld in (Mattfeld, 1995).

COMBINING METAHEURISTICS FOR THE JOB SHOP SCHEDULING PROBLEM WITH SEQUENCE

DEPENDENT SETUP TIMES

215

This method requires calculating heads and tails. The

head r

v

of an operation v is the cost of the longest

path from node start to node v in the solution graph,

i.e. is the value of stv. The tail q

v

is deﬁned so as the

value q

v

+p

v

is the cost of the longest path from node

v to node end.

For every node v, the value r

v

+ p

v

+ q

v

is the

length of the longest path from node start to node end

trough node v, and hence it is a lower bound of the

makespan. Moreover, it is the makespan if node

v belongs to the critical path. So, we can get a lower

bound of the new schedule by calculating r

v

+p

v

+q

v

after reversing (v, w).

Let us denote by P M

v

and SM

v

the predecessor

and successor nodes of v respectively on the machine

sequence in a schedule. Let nodes x and z be PM

v

and SM

w

respectively in schedule H. Let us note that

in H

′

nodes x and z are P M

w

and SM

v

respectively.

Then the new heads and tails of operations v and w

after reversing the arc (v, w) can be calculated as the

following

r

′

w

= max(r

x

+ px + S

xw

, r

P J

w

+ pP J

w

)

r

′

v

= max(r

′

w

+ pw + S

wv

, r

P J

v

+ pP J

v

)

q

′

v

= max(q

z

+ pz + S

v z

, q

SJ

v

+ pSJ

v

)

q

′

w

= max(q

′

v

+ pv + S

v w

, q

SJ

w

+ pSJ

w

)

From these new values of heads and tails the

makespan of H

′

can be estimated by

C

′

max

= max(r

′

v

+ pv + q

′

v

, r

′

w

+ pw + q

′

w

)

which is actually a lower bound of the new

makespan. This way, we can get an efﬁcient

makespan estimation of schedule H

′

at the risk of

discarding some improving schedule.

5 EXPERIMENTAL STUDY

For experimental study we have used the set of prob-

lems proposed by Cheung and Zhou in (Cheung and

Zhou, 2001) and also the benchmark instances taken

from Brucker and Thiele (Brucker and Thiele, 1996).

The ﬁrst one is a set of 45 instances with sizes (given

by the number of jobs and number of machines N ×

M) 10 × 10, 10 × 20 and 20 × 20, which is organized

into 3 types. Instances of type 1 have processing times

and setup times uniformly distributed in (10,50); in-

stances of type 2 have processing times in (10,50)

and setup times in (50,99); and instances of type 3

have processing times in (50,99) and setup times in

(10,50). Table 1 shows the results from the genetic al-

gorithm termed GA

SP T S reported in (Cheung and

Zhou, 2001). The data are grouped for sizes and types

and values reported are averaged for each group. This

algorithm was coded in FORTRAN and run on PC

Table 1: Results from the GA

SP T S.

ZRD Size Type Best Avg StDev

Instance N × M

1-5 10 × 10 1 835,4 864,2 21,46

6-10 10 × 10 2 1323,0 1349,6 21,00

11-15 10 × 10 3 1524,6 1556,0 35,44

16-20 20 × 10 1 1339,4 1377,0 25,32

21-25 20 × 10 2 2327,2 2375,8 46,26

26-30 20 × 10 3 2426,6 2526,2 75,90

31-35 20 × 20 1 1787,4 1849,4 57,78

36-40 20 × 20 2 2859,4 2982,0 93,92

41-45 20 × 20 3 3197,8 3309,6 121,52

Table 2: Results from the GA EG&T .

ZRD Size Type Best Avg StDev

Instances N × M

1-5 10 × 10 1 785,0 803,0 8,76

6-10 10 × 10 2 1282,0 1300,2 9,82

11-15 10 × 10 3 1434,6 1455,4 12,87

16-20 20 × 10 1 1285,8 1323,0 15,38

21-25 20 × 10 2 2229,6 2278,2 22,24

26-30 20 × 10 3 2330,4 2385,8 23,91

31-35 20 × 20 1 1631,6 1680,4 17,99

36-40 20 × 20 2 2678,0 2727,8 23,60

41-45 20 × 20 3 3052,0 3119,6 29,33

Table 3: Results from the GA EG&T LS.

ZRD Size Type Best Avg StDev

Instances N × M

1-5 10 × 10 1 778,6 788,5 6,70

6-10 10 × 10 2 1270,0 1290,4 9,16

11-15 10 × 10 3 1433,8 1439,8 6,71

16-20 20 × 10 1 1230,2 1255,5 12,74

21-25 20 × 10 2 2178,4 2216,8 18,61

26-30 20 × 10 3 2235,2 2274,0 19,32

31-35 20 × 20 1 1590,0 1619,8 15,90

36-40 20 × 20 2 2610,2 2668,0 27,48

41-45 20 × 20 3 2926,0 2982,2 26,32

486/66. The computation time with problem sizes

10 × 10, 10 × 20 and 20 × 20 are about 16, 30 and 70

minutes respectively. Each algorithm run was stopped

at the end of the 2000th generation and tried 10 times

for each instance.

Tables 2 and 3 reports the results reached by

the genetic algorithm alone and the genetic algo-

rithm with local search, termed GA

EG&T and

GA

EG&T LS respectively, proposed in this work.

In the ﬁrst case the genetic algorithm was parameter-

ized with a population of 100 chromosomes, a num-

ber of 140 generations, crossover probability of 0.7,

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

216

0.99

1

1.01

1.02

1.03

1.04

1.05

1.06

1.07

0 5 10 15 20 25 30 35 40 45

GA_EG&T / GA_EG&T_LS

Figure 2: Comparison of the raw genetic algorithm with

the memetic algorithm. The graphic shows for each prob-

lem the quotient of the mean makespan of the best solutions

reached in all 30 trials by the raw GA and the GA with local

search.

and mutation probability of 0.2. For the experiments

combining the genetic algorithm with local search,

we have parameterized the genetic algorithms with 50

chromosomes in the population and 50 generations in

order to have similar running times.

The rest of the parameters remain as in previous

experiments. The genetic algorithm was run 30 times

and reported the values of the best solution reached,

the average of the best solutions of the 30 runs and the

standard deviation. The machine was a Pentium IV at

1.7 Ghz. and the computation time varied from about

1 sec. for the smaller instances to about 10 sec. for the

larger ones. As we can observe both algorithms im-

proved the results obtained by the GA

SP T S. More-

over algorithm GA

EG&T LS has outperformed

GA

EG&T . Figure 2 shows the relative improve-

ment of GA

EG&T LS over GA EG&T in all

problems. The improvement is clear in almost all

cases.

Regarding the benchmark from Brucker and Thiele

(Brucker and Thiele, 1996), these instances are de-

ﬁned from the classical JSS instances, proposed by

Lawrence (Lawrence, 1984), by introducing setup

times. There are 15 instances named t2

ps01 to

t2

ps15. Instances t2 ps01 to t2 ps05 are of type

10×5 (small instances). Instances t2

ps06 to t2 ps10

are of type 15 × 5 (medium instances). Instances

t2 ps11 to t2 ps15 are of type 20×5 (large instances).

Table 4 shows results from two state-of-the-art meth-

ods: the branch and bound algorithms proposed by

Brucker and Thiele (Brucker and Thiele, 1996) (de-

noted as BT 96) and Artigues et al. in (Artigues et al.,

2004) (denoted as ABF 04). In the results reported

in (Brucker and Thiele, 1996) and (Artigues et al.,

2004) the target machine was Sun 4/20 station and

Pentium IV at 2.0 GHz. in both cases the time limit

for the experiments was 7200 sec. In this case, our

Table 4: Comparison between BT 96, ABF 04 and

GA

EG&T LS.

Problem Size BT 96 ABF 04 GA EG&T LS

Instance N × M

t2 ps01 10 × 5 798 798 798

t2

ps02 10 × 5 784 784 784

t2

ps03 10 × 5 749 749 749

t2

ps04 10 × 5 730 730 730

t2

ps05 10 × 5 691 691 693

t2 ps06 15 × 5 1056 1026 1026

t2

ps07 15 × 5 1087 970 970

t2

ps08 15 × 5 1096 1002 975

t2

ps09 15 × 5 1119 1060 1060

t2

ps05 15 × 5 1058 1018 1018

t2 ps06 20 × 5 1658 - 1450

t2

ps07 20 × 5 1528 1319 1347

t2

ps08 20 × 5 1549 1439 1431

t2

ps09 20 × 5 1592 - 1532

t2

ps05 20 × 5 1744 - 1523

values in bold are optimal

memetic algorithm was parameterized as the follow-

ing: population size = 100 for small and medium in-

stances and 200 for larger instances, and the number

of generations has been 100 for small instances, 200

for medium instances, and 400 for larger instances.

The rest of the parameters remain as in previous ex-

periments. We run the algorithm 30 times for each

instance, and the computation time for the larger in-

stances was 30 sec. for each run, i.e. 900 sec. of

running time for each instance.

As we can observe, GA

EG&T LS is able to

reach optimal solutions for the smaller instances, as

BT 96 and ABF 04, with only one exception. For

the medium and large instances reaches solutions that

are better or equal than ABF 04 and much better that

BT 06. Unfortunately, for the larger instances, re-

sults from only two instances are reported in (Artigues

et al., 2004).

6 CONCLUSION

In this work we have confronted the Job Shop

Scheduling Problem with Sequence Dependent Setup

Times by means of a genetic algorithm hybridized

with local search. As other approaches reported in

the literature, we have extended a solution developed

for the classic JSS problem. We have reported re-

sults from an experimental study on the benchmark

proposed in (Cheung and Zhou, 2001) showing that

the proposed genetic algorithms produce better results

than the genetic algorithm proposed in (Cheung and

Zhou, 2001), mainly when these algorithms are hy-

COMBINING METAHEURISTICS FOR THE JOB SHOP SCHEDULING PROBLEM WITH SEQUENCE

DEPENDENT SETUP TIMES

217

bridized with local search. Here it is important to re-

mark that the running conditions of both genetic algo-

rithms are not strictly comparable. Also we have ex-

perimented with the benchmark proposed by Brucker

and Thiele in (Brucker and Thiele, 1996), and com-

pare our memetic algorithm with two state-of-the-art

exact branch and bound approaches due to Brucker

and Thiele (Brucker and Thiele, 1996) and Artigues

et al. in (Artigues et al., 2004) respectively. In this

case the results shown that our approach is quite com-

petitive.

As future work we plan to look for new exten-

sions of the G&T algorithm in order to obtain a com-

plete decoding algorithm and more efﬁcient opera-

tors. Also we will try to extend other local search

algorithms and neighborhoods that have been proved

to be very efﬁcient for the JSS problem.

ACKNOWLEDGEMENTS

We would like to thank Waiman Cheung and Hong

Zhou, and Christian Artigues for facilitating us the

benchmarks used in the experimental study. This re-

search has been supported by FEDER-MCYT under

contract TIC2003-04153 and by FICYT under grant

BP04-021.

REFERENCES

Artigues, C., Belmokhtar, S., and Feillet, D. (2004). A New

Exact Algorithm for the Job shop Problem with Se-

quence Dependent Setup Times, pages 96–109. LNCS

3011. Springer-Verlag.

Artigues, C., Lopez, P., and P.D., A. (2005). Schedule

generation schemes for the job shop problem with

sequence-dependent setup times: Dominance proper-

ties and computational analysis. Annals of Opera-

tional Research, 138:21–52.

Bierwirth, C. (1995). A generalized permutation approach

to jobshop scheduling with genetic algorithms. OR

Spectrum, 17:87–92.

Brucker, P. (2004). Scheduling Algorithms. Springer-

Verlag, 4th edition.

Brucker, P., Jurisch, B., and Sievers, B. (1994). A branch

and bound algorithm for the job-shop scheduling

problem. Discrete Applied Mathematics, 49:107–127.

Brucker, P. and Thiele, O. (1996). A branch and

bound method for the general-job shop problem with

sequence-dependent setup times. Operations Re-

search Spektrum, 18:145–161.

Carlier, J. and Pinson, E. (1994). Adjustment of heads and

tails for the job-shop problem. European Journal of

Operational Research, 78:146–161.

Cheung, W. and Zhou, H. (2001). Using genetic algorithms

and heuristics for job shop scheduling with sequence-

dependent setup times. Annals of Operational Re-

search, 107:65–81.

Dell’ Amico, M. and Trubian, M. (1993). Applying tabu

search to the job-shop scheduling problem. Annals of

Operational Research, 41:231–252.

Gifﬂer, B. and Thomson, G. (1960). Algorithms for solving

production scheduling problems. Operations Reseach,

8:487–503.

Gonz

´

alez, M., Sierra, M., Vela, C., and Varela, R. (2006).

Genetic Algorithms Hybridized with Greedy Algo-

rithms and Local Search over the Spaces of Active and

Semi-active Schedules. LNCS (to appear). Springer-

Verlag.

Lawrence, S. (1984). Resource constrained project

scheduling: an experimental investigation of heuris-

tic scheduling techniques (supplement). Technical re-

port, Graduate School of Industrial Administration,

Carnegie Mellon University.

Mattfeld, D. (1995). Evolutionary Search and the Job Shop.

Investigations on Genetic Algorithms for Production

Scheduling. Springer-Verlag.

Nowicki, E. and Smutnicki, C. (1996). A fast taboo search

algorithm for the job shop problem. Management Sci-

ence, 42:797–813.

Ovacik, I. and Uzsoy, R. (1993). Exploiting shop ﬂoors sta-

tus information to schedule complex jobs. Operations

Research Letters, 14:251–256.

Taillard, E. (1993). Parallel taboo search techniques for the

job shop scheduling problem. ORSA Journal of Com-

puting, 6:108–117.

Varela, R., Serrano, D., and M., S. (2005). New Codiﬁca-

tion Schemas for Scheduling with Genetic Algorithms,

pages 11–20. LNCS 3562. Springer-Verlag.

Varela, R., Vela, C., Puente, J., and A., G. (2003). A

knowledge-based evolutionary strategy for scheduling

problems with bottlenecks. European Journal of Op-

erational Research, 145:57–71.

Zoghby, J., Barnes, J., and J.J., H. (2005). Modeling the

re-entrant job shop scheduling problem with setup for

metaheuristic searches. European Journal of Opera-

tional Research, 167:336–348.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

218
