OPTIMIZED CSS ENGINE

Alessandro Cogliati and Petri Vuorimaa

Telecommunications Software and Multimedia Laboratory , Helsinki University of Technology,

P.O. Box 5400, FI-02015 HUT, Finland

Keywords: CSS, XML, optimization, browser.

Abstract: Future Web applications will be based on XML platform. CSS is a tool used to create different XML

presentations’ layouts in the heterogeneous set of client devices, which often have limited resources. In this

paper, design and implementation of an optimized CSS engine are described. At first, the optimization

algorithm is explained, and then the implementation of the CSS engine and its integration within an XML

browser are described. Measurements taken with real Web XML documents styled with CSS style sheets

show performance improvements of the optimization.

1 INTRODUCTION

Many open standards and the focus on

communication among people and applications have

created an environment where Web services are

becoming the platform for building interoperable

distributed applications. Extensible Markup

Language (XML) (Yergeau, F. et al., 2004) is the

basic format for representing data on the Web

services platform. As consequence, application

development is moving towards browser-based

clients, eliminating the high costs of deploying

applications to different environments. (Wolter , R.,

2001)

In order to suit the needs of diverse applications,

World Wide Web Consortium (W3C) (Jacobs, I.,

2005) has been working on standard XML

vocabularies to define individual XML languages.

Some of these languages are meant only for

structuring data, conveying the semantic meaning of

documents; others are designed also to provide

presentations, describing visual content that

browsers can display. In addiction, W3C has been

developing Cascading Style Sheets (CSS) ( Bos, B.

et al., 1998): a mechanism that allows authors to

modify the default visual properties of those target

XML languages, and where the target language is

pure XML, CSS allows to define these visual

characteristics from the ground up.(Didier,M., 2000)

CSS is used to add value to rendering layouts,

offering many advantages to Web application

developers. It reduces complexity of XML

documents, moving style attributes to CSS

documents, which are easy to utilize because of the

simple grammar syntax and semantic. Also, it gives

consistency to XML documents of same application,

since a unique CSS style sheet can be shared. But,

the most important features that make CSS one of

the most used Web design tool are mainly two:

I. It permits to create different layouts for different

devices such as PDAs, cell phones, and digital

television set-top boxes. And, it makes this

procedure robust, since style adaptation on devices

takes place on client side after all the content is

delivered, without needing extra protocols.

II. Interoperability with every kind of XML

languages such as XHTML (Pemberton, S. et al.,

2002), SVG (Ferraiolo, J., 2001), XForms

(Dubinko, M. at al., 2003), SMIL (Ayars, J. et al.,

2001), etc.

Programs supporting CSS have been developed

by several companies, as well as by many open

source projects. Some of them are applications

running in normal personal computer, but many of

them are used in the limited resources devices. It

becomes critical to develop CSS engines with

advanced functionalities but minimal memory

consumption.

The aim of this paper is to explain design and

implementation of an optimized CSS engine,

focusing on the optimization algorithm. The

engine’s architecture is based on an efficient method

to cache CSS style properties that apply to many

elements of same XML documents. Those properties

206

Cogliati A. and Vuorimaa P. (2006).

OPTIMIZED CSS ENGINE.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 206-213

DOI: 10.5220/0001242502060213

 SciTePress

are organized in a lexicographic search tree that

helps their sharing.

This paper is organized as follows. In Section 2,

requirements are defined. In Section 3, two different

CSS engine designs are described, trying to explain

the differences between the optimized and the basic

version. In Section 4, an implementation in real

environment is described, and also the integration

within an XML user agent. In Section 5,

optimization results are reported, while in Section 6,

comparisons with related works are discussed.

Finally, in Section 7, conclusions are given.

2 REQUIREMENTS

Based on the aim of this paper, the objectives are

mainly two with respective requirements. The first

one is:

I. Find an algorithm that optimizes CSS engine

processing.

The purpose is to abstract a general algorithm

that optimizes time and memory consumption, from

the most intuitive and simplest algorithm usually

used to process CSS style sheets documents. The

optimization algorithm should improve

performances especially in processing large XML

documents.

The second one is:

II. Implement the optimization algorithm as stand-

alone CSS engine. Without changing its structure,

such engine can be used by any user agent based

on any XML languages.

The CSS engine implementation should be

accessed through standard interface, and should

respect CSS behaviour rules. Both these

requirements are retrieved from CSS specifications,

developed by W3C. At the moment W3C CSS

Working Group is developing CSS Level 3, the third

generation of CSS specifications (Bos, B. et al.,

2005). Diverse aspects are considered: I. Grammar

definition for creating an efficient parser, II.

Interfaces definition for accessing stored data, III.

Behavior definition for processing, and IV. Style

attributes definition for layout rendering.

Considering the second objective, only points II and

III will be regarded as requirements at this moment,

whereas points I and IV will be briefly brought up in

the Section concerning integration of CSS engine

within a precise client program application.

In next two Sub-Sections, points II and III will

explained deeply for a better comprehension of the

rest of the paper.

2.1 CSS Interfaces

W3C provides standard interfaces’ specifications for

CSS engine implementations: DOM Level 2 CSS

(CSSOM) (Wilson, C. et al., 2000) and Simple API

for CSS (SAC) (Bos, B. et al., 2000). Those two

groups of interfaces complete one another, fulfilling

the different ways to access the data (as SAX and

DOM (Apparao, V. et al., 1998) for XML

applications).

The CSSOM interfaces are designed with the

goal of exposing CSS constructs to object model

consumers, giving the possibility to easily

manipulate the “cascade” of style sheets, their rules

and their respective properties. They also make the

interaction with other object model interfaces easier,

for example, DOM. (Wilson, C. et al., 2000)

Whereas SAC is a proposal for a standard API for

event-based CSS parsing, meant to allow

interoperability between the different CSS parsers.

(Bos, B. et al., 2000)

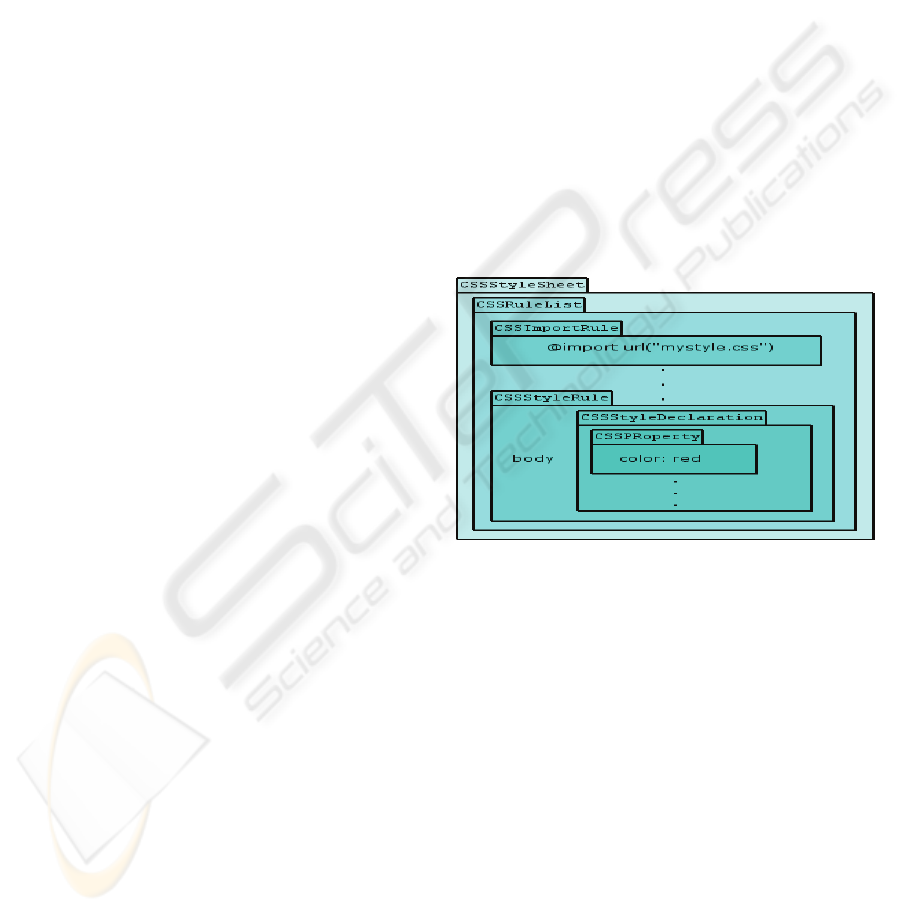

Figure 1: CSSOM interfaces structure.

Figure (1) shows the most common CSSOM

interfaces, organized as a logical structure. Other

important interfaces are the API for CSS selectors

and the API for CSS property’s values, both

provided by SAC.

2.2 CSS Behaviour

A CSS style sheet is a series of rules that describe

how XML elements are to be displayed by the client

applications.

CSS classifies several categories of rules. CSS

style rules are the core of CSS style sheets: they

directly define a style for the matched XML

elements. Other kinds of rules instead are needed to

add supplementary functionalities: for example,

CSS @import rule, used to import other CSS style

sheets, or Media Queries, used to create specific

presentations for different kinds of output devices.

OPTIMIZED CSS ENGINE

207

Task of a CSS engine is to determine, which

subset of CSS style rules applies to a XML element.

This process depends on two factors: Media Queries

and CSS style rules’ weight.

2.2.1 Media Queries

A Media Query is a mechanism to adapt a CSS style

to certain devices. It is used to determine a sub set of

CSS style sheets in the “cascade” and a sub set of

CSS style rules inside each CSS style sheets (

Glazman, D. et al., 2002). A Media Query consists

of a media type and one or more expressions

involving media features. For example:

@media screen and (color){

BODY {font-size: medium;

background: silver ;}

P#8 {font-size: 18pt; color: black;}

}

Expresses that those CSS style rules apply only

to devices with color screen, otherwise they are

ignored.

2.2.2 CSS Style Rules’ Weight

A weight is calculated for each CSS style rule. When

several rules apply to the same XML element, the

one with the greatest weight takes precedence.

Basically, the weight is characterized by “cascading

order” and “specificity”. According to CSS

specifications, many CSS style sheets can affect a

XML document at the same time. Cascading is a

method that allows importing CSS style rules from

other CSS style sheets. Rules in imported style

sheets have lower weight than rules in the style sheet

from where they are imported. Imported style sheets

can themselves import and override other style

sheets, recursively.( Bos, B. et al., 1998)

Inside every CSS style sheet, CSS style rules’

weights are formulated by their specificities, which

are relied exclusivity on their CSS selectors. The

selectors are patterns matching rules that determine

which CSS style rules apply to elements in the XML

document. More specific selectors override more

general ones like in the example below:

LI {}

/* a=0 b=0 c=1 -> specificity = 1 */

UL OL LI.red {}

/* a=0 b=1 c=3 -> specificity = 13 */

LI.red.level {}

/* a=0 b=2 c=1 -> specificity = 21 */

#x34y {}

/* a=1 b=0 c=0 -> specificity = 100 */

Where “a” is the number of ID attributes in the

selector, “b” is the number of classes or other

attributes, and “c” is the number of element names.

In this simplified example, values set of “a”,”b”, and

”c” is {0…9}, but, usually, it is much bigger.

3 CSS ENGINE

ARCHITECTHURES

The CSS engine described below is a component

built to provide the processing of CSS files

embedded in Web documents written in any XML

language.

Two architectures are explained. The first can be

considered basic or more intuitive, because it simply

follows the W3C conformance directives. The

second is a development of the first one and is based

on an optimization algorithm.

There is no particular programming language

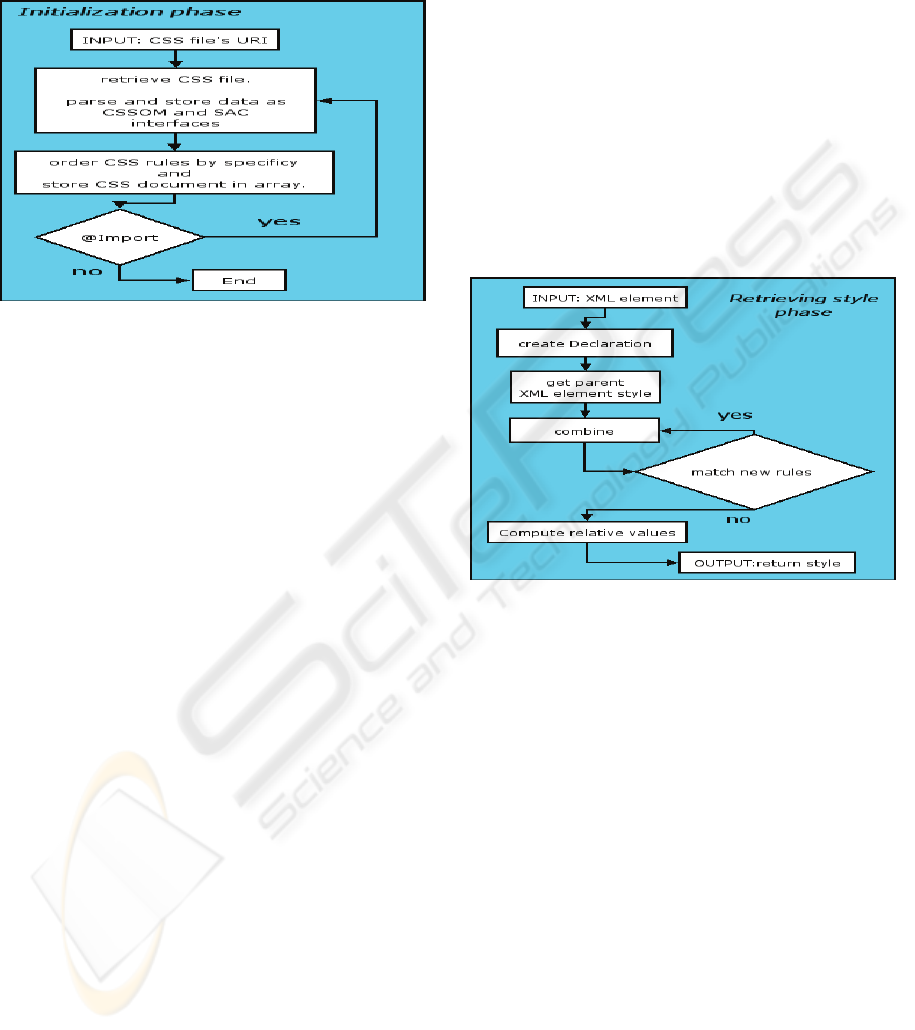

used in this Section. Most of the algorithms are

presented with flow charts and the structure of the

program is exemplified with general classes’ objects.

3.1 Basic Algorithm

Processing of CSS files is done in two phases. In the

first phase, CSS files are retrieved and parsed, and

the contained CSS style rules are ordered according

to their weight. In the second phase, CSS style

properties are combined and passed as set of

attributes to each element of XML document,

according to the matching policy.

3.1.1 Initialization

In this phase of initialization, the implemented CSS

engine orders style sheets and relative style rules so

that, in the second phase, combining all the

attributes will be easier.

As explained in Section 2.2, more than one CSS

style sheet can influence a document presentation

simultaneously. The CSS @import rule allows

authors or users to import style rules from other style

sheets. Since it is impossible to know whether a

style sheet imports other style sheets before parsing

it, it is useful to use a recursive solution in the

implementation.

As shown in figure (2), applications that use this

CSS package extrapolate and pass the CSS file’s

URI embedded in XML document. The CSS engine

retrieves and parses the respective CSS style sheet,

checks whether there are some @import rules and

eventually extracts from those the URI of the

WEBIST 2006 - INTERNET TECHNOLOGY

208

imported style sheet. It retrieves the individual style

sheet and parses it in the same way. This recursive

procedure continues until there are no style sheets to

be imported left.

Figure 2: Initialization phase of the basic algorithm.

CSS style sheets cascade can be seen as a tree.

Every element of the tree is an imported style sheet

and the root element is the style sheet linked in

XML document. Every right sub-tree overrides

every left sub-tree, and every root of a sub-tree

overrides its children. Consequently, this virtual tree

can be traversed using a Post-order traversal

technique. Thus, all the style sheets are stored in one

array following the origin overriding order: the style

sheet with less weight is the first element of the

array, the root is the last one. An instance of

CSSRuleList is the object of the module that orders

the rules of each style sheet according to their

specificities. Once the specificity for every selector

is calculated, the style rules are ordered using an

algorithm based on QuickSort, which has time

complexity O(nlog(n)).

Media Queries, if present, are evaluated either

before importing a CSS style sheet or before

ordering CSS style rules.

3.1.2 Style Retrieving

Style Retrieving is the phase, in which all the

stylistic properties, contained in CSS style rules that

apply to an XML element, are combined together

according to the CSS specifications. The set of the

resulting properties are then associated to the

matching element.

As shown in figure (3), the first step is to get the

XML element that has to be styled. An instance of

CSSStyleDeclaration interface implementation class

is the object used as container of CSS properties. A

new instance of it is created for each XML element.

The first CSS properties copied inside it are the ones

inherited by the XML parent element’s style.

The second step is to sequentially traverse all the

ordered CSS style rules in the ordered cascade of

CSS style sheets to analyze, which of those rules

applies to the given element. This operation is done

using CSS SAC Selectors, comparing those

interfaces with the element name and its attributes.

All the style rules matched are combined

together respecting the overriding rules. This

procedure consists of taking the CSS properties

contained in each rule’s CSSStyleDeclaration and

checking, one by one, which property has to be

copied into the actual CSSStyleDeclaration, because

none is present yet, or the new property overrides

the existing one.

Figure 3: Style retrieving phase of the basic algorithm.

Successively, the engine computes the relative

property’s values that depend on XML parent

element style (e.g., “font-size: smaller”). The

relative values depending instead on layout values,

cannot be calculated at this stage (e.g., “background-

position: center”). Finally, the CSSStyleDeclaration

containing all CSS properties is returned as style to

the respective XML element.

3.2 Optimized Algorithm

The optimization is based on the fact that many

elements of XML documents often match the same

attributes of the embedded CSS style sheets. CSS

engine implementation may take advantage of this

circumstance to optimize time and memory

consumption.

The proposed algorithm is based on the data

structure shown in figure (4): the RuleTree. For each

XML element the recursive building process starts

always from the empty root node, which is created at

the beginning, and will be the same for all the

OPTIMIZED CSS ENGINE

209

periods, in which the algorithm is running. Every

time a new CSS rule is matched, two actions may

occur:

I. If one of the children of the actual node has a

reference to that matched rule, that child becomes

the actual node.

II. Otherwise, a new child node is created, and it

becomes the actual node.

Every new node of the tree has a reference to

CSS style rule matched by the element and a new

instance of the CSSStyleDeclaration implementation

class that will be called in the rest of the paper with

the name of CombinedDeclaration. In fact, in that

CSSStyleDeclaration are combined all the CSS

properties present in all the CSS rules matched from

that node up until the root. Eventually, if the node is

the last created for an XML element, a reference to

that element is saved.

Figure (4), with XML and CSS source below

show an example. As emphasized, XML element

“” matches in order

CSS style rules with selectors “*”, “p”, “”p.c2” and

“p.c2#warning”. As also shown, CSS style rules

matched in same order from different elements are

shared: rule with selector “*” is common for all the

element of the given document, and rule with

selector “p” applies to all XML “” elements, etc.

XML Document:

...

<html>

<body>

</body>

<html>

CSS Document:

* {font-size: 12pt;}

html {color: black;}

body {background-color: yellow;}

p {font-weigth: bold;}

p.c1 {margin: 2pt; font-weight: normal;}

p.c2 {font-size: 14 pt;}

p.c3 {border-style: solid;}

p.c2#warning {font-size:18pt;}

span {color: blue; border-width: 10pt;}

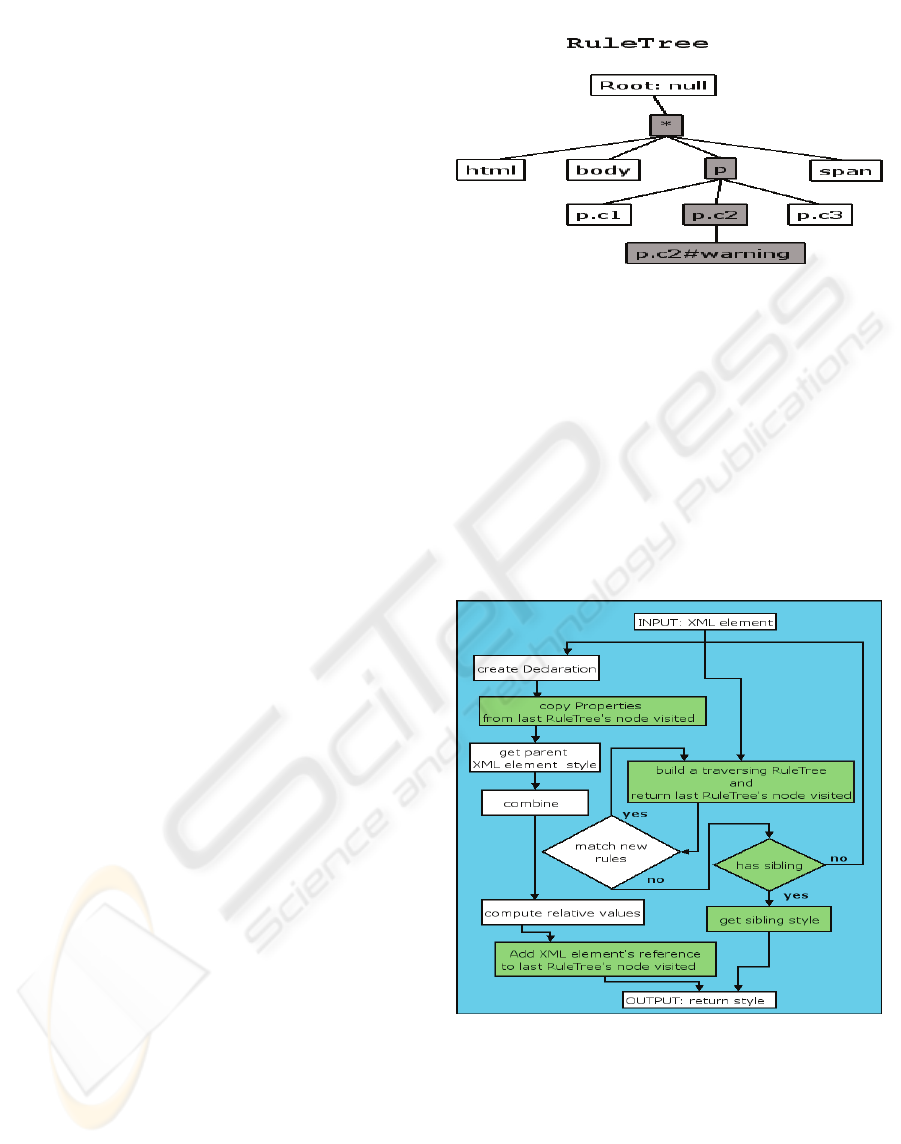

Figure 4: The resulting RuleTree.

3.2.1 Optimized Style Retrieving

The optimization takes place exclusively in the Style

Retrieving phase.

Figure (5) is the flow chart of the process, and

shows the differences from the unoptimized

algorithm of figure (3) (The rectangles with white

background represent processes that were used also

by the basic algorithm. The rectangles with colored

background represent steps that are added by the

optimizing algorithm).

Figure 5: Style retrieving phase of the optimized

algorithm.

The main difference is that there is no need to

create a new CSSStyleDeclaration object for each

XML element, but, in many cases, just share the

existing one. The idea is that if two XML elements

match the same CSS style rules (i.e., they arrive

from root to the same RuleTree node) and their

XML parent element’s style is the same (i.e. they

inherit the same CSS properties) then they will have

WEBIST 2006 - INTERNET TECHNOLOGY

210

the same CSS style (i.e., same

CSSStyleDeclaration).

As shown in figure (5), first step is to create or

traverse the branch of RuleTree compound of CSS

style rules matched by the given XML element. This

is the point where the most important part of the

optimization happens. Action called “has sibling” in

the flow chart has two tasks:

I. Check whether the last RuleTree node visited,

has a reference to some other XML element that

has visited as well that node as last.

II. Check whether the parent’s style of that eventual

XML element is the same of the parent’s style of

the XML element that is actually retrieving style.

If the previous conditions are satisfied, the

CSSStyleDeclaration object of the “sibling” element

is returned as style without any other changes.

Otherwise, a new CSSStyleDeclaration instance is

created and last visited RuleTree node’s

CombinedDeclaration’s CSS properties are copied

into it. Those style attributes are then combined with

parent’s style and relative values are computed, in

the same way as in the non-optimized algorithm. In

the end, before returning the final version of the

CSSStyleDeclaration instance, in the last visited

RuleTree node is saved as a reference to this XML

element, so that in the future it can be taken in

account as possible “sibling” element.

3.2.2 Benefits

This algorithm allows three levels of optimization:

I. For XML elements that match in same order CSS

style rules already matched, there is not needed to

recombine all the CSS properties, but just traverse

the RuleTree and take the style of the last node

visited. Sometimes, when RuleTree is rather flat

and wider than deep, it is faster to combine few

rules than traverse it, though.

II. Sharing CSSStyleDeclaration object for XML

elements that match same CSS style rules and

inherits same attributes. Usually, large XML

documents have many elements of the same kind.

III. For those XML elements that share the same

CSSStyleDeclaration object, applications may

easily cache rendering objects (e.g., Fonts and

Color).

4 INTEGRATION WITHIN THE

X-SMILES USER AGENT

The CSS engine implemented following the

optimizing algorithm was integrated within a more

comprehensive client program application: X-Smiles

(Vuorimaa, P. et al., 2002). It is a Java based XML

browser intended for embedded devices. It is

composed of several modules: the XML parser and

the Browser Core are always used for every XML

document, whereas the rendering process is

committed to different modules for each XML

languages supported.

The integrated CSS module contains the CSS

parser and the CSS engine.

In order to parse CSS files, Steady State

Software's CSS Parser was used (Schweinsberg, D.,

2004). It was implemented as a package of Java

classes, that inputs Cascading Style Sheets source

text and outputs structured interfaces. New classes

were created and many extensions were made, in

order to support new CSS3 features. The parser was

created using Java Compiler Compiler (JavaCC)

(Javacc Project home, 2005) tool, so many

modifications were made to the JavaCC's grammar

file. JavaCC is a parser generator that generates

parsers in Java. This software program accepts a

syntax specification as input, in this case a grammar

file, and generates a parser for that syntax as output.

Since the content of files written in CSS language

are seen as a sequence of tokens, the input grammar

file is compound of productions of diverse

grammars: context-free grammar production to

describe the structure of the tokens and regular

expressions to define them. (LOOKAHEAD

MiniTutorial, 2005)

The generated parser contains the core

components of CSS language compiler, which

includes a lexical analyzer and a syntax analyzer.

The parser was implemented so that the data parsed

is available through the standard interfaces CSSOM

and SAC.

The parser was used as the core of the CSS

engine. It has the structure and uses the algorithm

explained in the previous Section, with the exception

that the general classes’ objects are substituted by a

real programming language like Java. The CSS

module communicates with the XML modules of the

browser through DOM and CSSOM interfaces.

Since DOM’s basic functionalities are the same for

every XML language, interaction with CSS module

occurs always in the same way, satisfying the

requirements identified in Section 2.

As already discussed, the rendering process is

done by separate modules. Anyway the browser

provides a layout for general XML language’s

documents, styled with CSS. The layout is based on

an own tree data structure, where the nodes are

called Views, and are created according to styled

DOM elements. Everything is painted in a container

within browser window.

OPTIMIZED CSS ENGINE

211

5 RESULTS

In this Section, the performance of the CSS module

is evaluated.

Time and memory consumption of X-Smiles to

process and display XHTML files with embedded

CSS file was measured. This procedure was repeated

several times, always with the same CSS file, but

each time with a XHTML file of different

dimensions: one, two, four, and eight times the

original source. The documents used are located at

http://www.csszengarden.com and the author is Petr

Stanciek. Four series of data were created trying to

separate CSS module’s performance from general

performance of the browser and to demonstrate

optimized versions’ improvements from basic

version.

The computer used for this test had a Pentium 4

processor with 2.80 GHz and 1.00 GB of RAM and

Windows XP operating system.

Time consumption

0.2

0.4

0.6

0.8

1.2

1.4

12345678

document size

seconds

1.X-Smiles

2.X-Smiles optimized

3.CSS module

4.CSS module optimized

Figure 6: Performances- Time consumption.

In figure (6), series “1.X-Smiles” and “2.X-

Smiles optimized” represents the time consumption

for all the processes of the browser. Both series

grow linearly, but with different angular coefficient.

With the biggest document tested, optimized version

is 26% faster. Series “3.CSS module” and “4.CSS

module optimized” represents the time consumed by

the browser only to parse and store the XHTML

documents with embedded CSS style sheet and add

style for each element of the DOM tree (using the

CSS module). Also, in this case the two series grow

linearly: the optimized version of CSS module takes

always less time, arriving to be 45% faster with the

biggest document tested.

In figure (7), the series concerning memory’s

utilization are reported. For every document, the

XML parser and the non-optimized DOM

implementation take the largest percentage of

memory, so this consumption is subtracted from

every series, trying to better illustrate the

improvements. The most remarkable aspect is that

“4.CSS module optimized” series does not grow, but

remain constant, independently of the XHTML

document’s dimensions rising. With the biggest

document tested, the optimized version of CSS

module uses 85% less memory.

Memory consumption

500

1000

1500

2000

2500

3000

3500

12345678

document size

1.X-Smiles

2.X-Smiles optimized

3.CSS module

4.CSS module optimized

Figure 7: Performances- Memory consumption.

6 RELATED WORK

Nowadays, many CSS engine implementations are

available. Since this paper is focused on an

optimization algorithm, comparisons are possible

only with those applications that publish their source

code.

Mozilla Web browser is an open-source software

project that supports many XML languages and CSS

as well. Its CSS engine uses the same data structure

used by the optimization algorithm explained: the

lexicographic search tree that helps the sharing of

the computed CSS styles objects (Baron , D., 2005).

Meanwhile the processing algorithm is dissimilar:

for each node of the search tree is not stored any

CombinedDeclaration computed from the root until

the actual node, but, at opposite, the CSS properties

are recalculated every time from the actual node to

the root.

Konqueror Web browser (Konqueror, 2005) is

based on a HTML rendering engine called KHTML.

It supports CSS specifications and its CSS engine is

based on a processing algorithm that is pretty similar

to the “basic algorithm” explained. It has other kinds

of optimizations (e.g., it parses only

CSSStyleDeclarations of the matched CSS style

rules) that are not in contrast with the “optimization

algorithm”, but they can be complementary.

Squiggle (The Apache Software Foundation,

2005) is the browser of the Batik project. It is meant

WEBIST 2006 - INTERNET TECHNOLOGY

212

for SVG documents style by CSS style sheets. As a

consequence, its CSS engine is specifically

optimized to be used within SVG applications (e.g.,

it gives priority of computation to those CSS

properties that are most used within SVG

documents). Anyway, also in this case, the

“optimization algorithm” could be added without

modifying the existing optimizations.

7 CONCLUSIONS

In this paper, implementation of an optimized CSS

engine was discussed.

It can be used for every XML applications that

need to adapt the layout of their Web services

depending on different devices that often have

limited environments.

The focus was on an optimization algorithm that

reduces memory and time consumption to process

CSS documents. The idea for the optimization was

that usually in a XML document, many elements

match the same set of CSS style rules, so the final

set of CSS style properties can be cached and

shared, and not recalculated every time. This

algorithm is based on a search tree data structure of

matched CSS style rules. It was described both with

flow charts and general classes’ objects, in order to

emphasize the algorithm processes independently of

the implementation chosen.

This algorithm allows three levels of

optimization (cf. Section 3.2.2); two are intrinsic in

the CSS engine and in its structure and one

depending on the XML applications' layout engines.

Based on the optimizing algorithm, the CSS

engine was implemented in a real environment,

using Java as programming language. To evaluate

such optimization, a browser was used, that supports

many XML languages such as XHTML, SVG,

XForms and SMIL. In order to enable a

straightforward integration, the CSS parser exposes

the CSS data through standards interfaces (i.e.,

CSSOM and SAC).

Considering the innumerable factors that could

be taken in account, no minimum threshold of

performances requirements were defined. For the

tests we used common well formatted XML

documents styled with CSS style sheets found at site

“CSS Zen Garden”. The optimization results are

remarkable: measurements show that with largest

document used, the optimized CSS engine can be

45% faster and spare 85% of the memory.

REFERENCES

Apparao, V. et al., 1998. Document Object Model (DOM)

level 1 specification – version 1.0, W3C

Recommendation.

Ayars, J. et al., 2001.Synchronized Multimedia Integration

Language (SMIL 2.0), W3C Recommendation.

Baron , D., 2005. Mozilla Style System Documentation

available online at

http://www.mozilla.org/newlayout/doc/style-

system.html.

Bos, B. et al., 1998. Cascading Style Sheets, level 2 CSS2

Specification, W3C Recommendation.

Bos, B. et al., 2000. SAC: Simple API for CSS,” W3C

Note.

Bos, B. et al., 2005. CSS Level 3, available

http://www.w3.org/Style/CSS/current-work.

Didier, M., 2000. A Family Affair, O'Reilly XML.com.

Dubinko, M. at al., 2003. XForms 1.0, W3C

Recommendation.

Ferraiolo, J., 2001. Scalable Vector Graphics (SVG) 1.0

Specification, W3C Recommendation.

Glazman, D. et al., 2002. Media Queries, W3C Candidate

Recommendation.

Jacobs, I., 2005. About the World Wide Web Consortium

(W3C) available online at

http://www.w3.org/Consortium/, referred Jun. 2005

Javacc Project home, 2005, available at

https://javacc.dev.java.net/.

Konqueror, 2005. available at http://www.konqueror.org

LOOKAHEAD MiniTutorial, 2005, available at

https://javacc.dev.java.net/doc/lookahead.html.

Pemberton, S. et al., 2002. XHTML™ 1.0 The Extensible

HyperText Markup Language (Second Edition), W3C

Recommendation.

The Apache Software Foundation, 2005, Squiggle the

SVG browser, available at

http://xml.apache.org/batik/svgviewer.html

Schweinsberg, D., 2004. CSS Parser, available at

http://cssparser.sourceforge.net.

Vuorimaa, P. et al., 2002. A Java based XML browser for

consumer devices. In the 17th ACM Symposium on

Applied Computing, Madrid, Spain.

Wilson, C. et al., 2000. Document Object Model (DOM)

Level 2 Style Specification Version 1.0, W3C

Recommendation.

Wolter , R., 2001. XML Web Services Basics, Microsoft

Corporation.

Yergeau, F. et al., 2004. Extensible Markup Language

(XML) 1.0 (Third Edition) W3C Recommendation.

OPTIMIZED CSS ENGINE

213
