Maria Virvou, Nineta Polemi, Katerina Kabassi
Department of Informatics, University of Piraeus, 80 Karaoli &Dimitriou Str., 18534 Piraeus, Greece
Keywords: e-Learning, Public Key Infrastructure, WS-Security.
Abstract: This paper describes a user modelling agent for a web-based learning system that provides personalised and
secure interaction with its users (learners). The system involves user modelling in order to provide tutoring
that is dynamically tailored to the individual learner’s needs. It constantly observes the user silently and
processes the observations so that it may generate hypotheses about the user’s level of domain knowledge,
current goals and possible problems. Personalised Web-based learning requires the gathering of a lot of
personal data concerning the user and thus security and privacy issues are raised. Information about the user
is maintained centrally on a User modelling Server and concerns each individual learner. Each user model is
available to any client application of the system that requests it through Web Services. PKI and WS-security
technologies have been used in order to embed security in the F-SMILE system and offer basic security
There have been educational software technologies
that have been particularly effective at personalising
tutoring such as Intelligent Learning Environments
(ILEs). ILEs base the generation of personalised
teaching on their user modelling components. User
modelling involves the construction of a detailed
representation of the student’s cognitive state and
behaviour regarding existing background knowledge
about a domain. Information about the user ranges
from relatively long-term facts such as areas of
interest or expertise to quite short term facts such as
the problem that the user is currently trying to solve.
In view of this, there is a distinction between long-
term and short-term user models. A long-term user
model consists of information about the user that has
been gathered during past interactions. This
information may involve the user’s level of
knowledge of the domain, his/her common errors
etc. A short-term user model consists of the user’s
beliefs at a very specific time and is the output of the
reasoning of the system. Ideally, both models should
exist in an ILE and should exchange information
between them.
It is evident that personalised tutoring requires
the gathering of a lot of personal information about
the user so that the system may adapt to his/her
needs. Moreover, data gathering is mostly performed
in an unobtrusive manner and often without users
awareness; this is done to avoid distracting users
from their tasks (Kobsa 2002). Thus personalised
systems pose privacy and security problems.
Indeed, security can be a very crucial issue in
electronic personalised learning systems, since it
often involves quite sensitive and critical data
(psychological, behavioural learners’ characteristics)
where any modification, exposal to unauthorised
persons or loss may reveal risks. In this respect, it is
essential to ensure data integrity and availability,
since these data may form the basis for critical
decisions on the learners’ progress, confidentiality of
personal, behavioural, academic and administrative
information due to possible social, ethical and
psychological impacts, as well as accountability and
non-repudiation of data origin, receipt and use.
Despite the above-mentioned strong
requirements and needs, data security, is usually
underestimated or completely ignored during e-
learning information systems and applications
design, making relevant later enhancements an
almost impossible task.
In view of the above, we have developed Web F-
SMILE (Web File-Store Manipulation Intelligent
Learning Environment) which is an interoperable,
Virvou M., Polemi N. and Kabassi K. (2006).
In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Society, e-Business and
e-Government / e-Learning, pages 293-298
DOI: 10.5220/0001238102930298
personalised learning system operating securely over
the Web. In particular, Web F-SMILE is an ILE for
novice users of a GUI that manipulates files, such as
the Windows Explorer. Our approach concerning the
operation of the system over the Web is based on
Web Services. The main characteristic of Web
Services is that they interact with the applications
that invoke them, using web standards such as
WSDL (Web Service Definition Language), SOAP
(Simple Object Access Protocol) and UDDI
(Universal Description, Discovery and Integration).
Basing user modelling on web standards has the
advantage of enabling the dynamic integration of
applications distributed over the Internet,
independently of their underlying platforms.
PKI and WS-security technologies have been
used in order to embed security in the F-SMILE
system and offer basic security services.
Personalised tutoring over the Web poses many
functional and non-functional requirements that have
to be met by the developed systems. The issue of
personalisation over the Web raises many
requirements concerning the architecture and
operation of the resulting system. Moreover, the
need for privacy and security of the personal data
about the users to be collected has to be ensured.
2.1 Requirements for Web-based
User Modelling for Educational
Important requirements that arise in web based
personalised educational systems:
Availability of the personalisation functionality
at any place and at any time. This means that the
system should be able to work fully, whether the
user accesses the application from a computer at a
lab, or a PC from his/her home or elsewhere.
Preferably, the personalisation functionality should
be available both online (when the user is connected
to the Web) and offline so that the student’s work on
a PC is not disrupted in case a Web connection is
temporarily unavailable for some reason. To have
the personalisation functionality both online and
offline two copies of current user models are needed,
one on the server (for the online case) and one on the
user’s PC (for the offline case).
Accuracy and completeness of user models. The
accuracy and completeness of user models ensure
that the personalisation addresses the real needs of a
particular user. If the user model is not accurate or
incomplete then the system will probably generate
the wrong hypotheses about the user and it will
adapt tutoring and help in the wrong way. In such
cases the system’s adaptivity may result in the user’s
frustration or even irritation and it will lose its
credibility. To ensure the accuracy and
completeness, the user models have to contain all the
information about the user collected locally from the
PCs-clients and centrally from the server.
Availability of long term information about the
user. The student’s history record is important while
making hypotheses about his/her current cognitive
state. To ensure that all past information exists in
one place that contains the whole picture about the
user, the long term user model should preferably
reside on a Web server that is frequently updated by
the clients and passes the long term information
about the user to the clients that request it.
Guaranteed and timely update of long term
information about the user. The long term
information about the user is always needed for the
system to be able to generate plausible hypotheses
about the current state of the user. If the long term
user model resides on a server, there has to be a
guaranteed way of its update from information on
local PCs even in cases when the PC works offline
locally for some time.
2.2 Security Requirements
There are various security requirements that arise in
web based personalised educational systems:
Authentication of origin ensures that students are
really the ones who they claim to be. Authentication
of the student engaged in an e-learning action is
necessary for the learning environment to uniquely
and irrevocably identify the parties involved in any
action and particularly for the authentication of the
centralised learners’ models. This requirement can
be addressed by the application of XML digital
signatures in combination with tamper resistant
cryptographic modules such as smart cards.
Integrity of the content of the learning material
and student model ensures that they cannot be
altered intentionally or accidentally during
transmission or storage. Thus, the involved parties
can be confident with respect to the content of the
transacting e-documents. A cryptographic hash
function (Nash, 2001) provides message integrity
checks and can be used either separately or as part of
the digital signature process.
Confidentiality and privacy ensures that no one
other than the sender and the designated recipients
can read the data. XML Encryption as specified in
the W3C Recommendation (Eastlake, 2002) and the
Web Services Security recommendation for
encryption in SOAP messages (Hartman, 2002)
provide confidentiality.
Integrity of the sequence of the data assists in
avoiding any gaps occurring in the transactions and
in strengthening the performance of the system.
This requirement is implementation specific and can
be fulfilled by enforcing a tight sequence issuance
scheme for the reference number embedded in each
Availability ensures that the students can use the
e-learning service at any time without disruption.
On one hand, the system should be robust and
protected against intrusion and hacking, which can
be ensured by standard network elements such as
intrusion detection systems, antivirus and firewalls.
On the other hand, some form of public directory
usage for publishing the offered services will foster
services dissemination.
Electronic Storage of files. The conditions for
electronic storage of e-files e-objects and the
technical requirements of the electronic storage
system are integral components of the security
requirements concerning e-learning. Authenticity,
integrity and readability should be guaranteed
throughout the storage period. A native XML
database can ensure that XML files/objects are
stored exactly in the original format in which they
were received for the correct creation of the
students’ model or any future audit. Furthermore, the
combination of XAdES and such a database can
guarantee the secure long-term archiving of e-
learning data.
Secure Sections. Secure sections allow temporary
replacement of the current security execution
context, so that the enclosed code executes on behalf
of the new principal. The new context remains in
scope within the section and propagates between
virtual machines, if necessary. For example, if a
remote client with limited rights invokes a simple
database query service, it may not have the required
privileges to perform the query. If the query was
executed on behalf of a second (intermediate) user
with sufficient privileges, the client could then
retrieve the necessary result set without having been
explicitly granted the necessary permissions. These
new rights or privileges only remain in effect inside
the scope of the secure section.
Privilege Delegation. Privilege delegation occurs
when a calling entity authorizes an intermediate
entity to perform a task using a set of the rights
granted to the calling entity. For delegation, the
underlying security mechanisms must be notified
that a boundary has been crossed, that the calling
entity (principal) is no longer in scope. This occurs
only when entering a secure section.

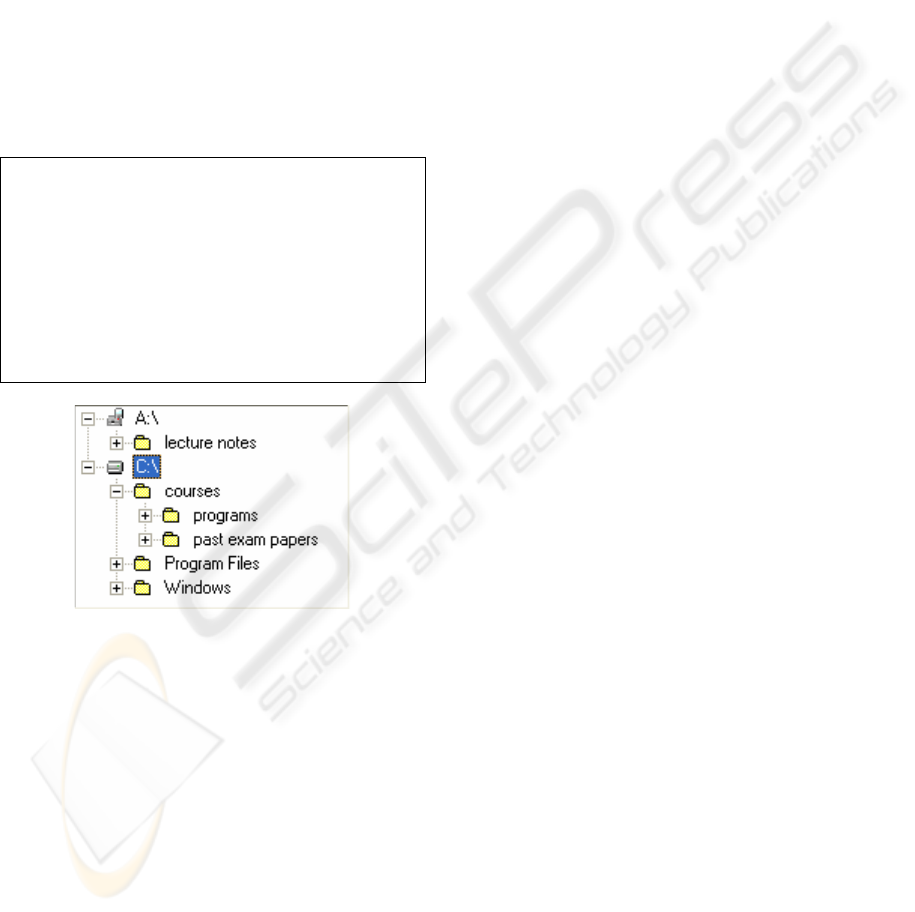

Web F-SMILE (File-Store Manipulation Intelligent
Learning Environment) is an intelligent learning
environment for novice users of a GUI (Graphical
User Interface) that manipulates files. It works in a
similar way as Windows 98/NT Explorer (Microsoft
Corporation, 1998) but additionally it can
dynamically adapt its interaction to individual
learners for helping and tutoring them. For this
purpose, Web F-SMILE silently observes the
students while they are actively engaged in their
usual activities for their file manipulation. If Web F-
SMILE judges that a student has been involved in a
problematic situation (as indicated by the user
modelling component) it provides individualised
advice and tutoring at its own initiative.
The system can work both as a Web-based
application and as a standalone application when the
learner’s computer is not connected to the Internet.
The system keeps two copies of user models, one on
the Server and one on the user’s PC so that the
system may work both online and offline. When the
system works online, information about the learner
is stored on a User modelling Server and is given to
any client of the application that requests it. When
the system works offline information about the
learner is stored on the PC. Web F-SMILE uses Web
Services for the interaction of the components of the
system with the Web Server.
A simple example of the system’s operation
taken from a real interaction of a user with Web F-
SMILE is presented in Table 1. The learner's initial
file store state of the floppy disk is illustrated in
figure 1. The learner’s final intention is to format the
floppy disk A. However, the floppy disk contains a
folder with some lecture notes which apparently are
useful. Therefore, the learner wants to move this
folder to a safe place (the hard disk of his/her
In order to achieve his/her goal the user issues a
cut command (action 1) in order to move the folder
‘lecture notes’. However, it appears that the learner
does not know how to complete this plan because in
the second action, s/he falsely uses a ‘copy’
command instead of a ‘paste’ command. Web F-
SMILE finds this action suspect because if it was
executed it would delete the content of the clipboard
before this was used anywhere. Therefore, the
system tries to generate alternative actions that the
learner may have meant to issue instead. In order to
select the most appropriate advice, the system uses
the information about the learner that is available on
the user model. The alternative action that is
considered by Web F-SMILE as more likely to have
been intended is the action ‘paste(C:\Courses\)’ for
several reasons. First, it uses effectively the content
of the clipboard. Moreover, the commands ‘copy
and ‘paste’ are considered quite similar because they
both involve the clipboard. Thus the user may have
confused them.
Table 1: An example of a learner's interaction.
1. cut(A:\lecture notes\)
2. copy(C:\courses\)
Web F-SMILE's reasoning: Suspect
Suggestion: paste(C:\courses\)
Additional tutoring themes:
Copying Objects,
Moving Objects.
3. paste(C:\courses\)
4. format(A:\)
Figure 1: The learner’s initial file store state.
The system also produces additional tutoring
concerning the topic of copying and moving objects.
The information of the user model indicates that the
particular user has not sufficient experience in
copying and moving objects and that in the past s/he
had repeatedly made mistakes due to lack of
knowledge on the topic. Indeed, the learner finds the
system’s advice very helpful and, therefore, adopts
its suggestion in action 3. Then, in action 4, the
learner formats the floppy disk, which was his/her
final goal. In case the learner had used a standard
file manipulation program, his/her error in command
2 would not have been recognised and the learner
would have formatted the floppy disk and would
have lost useful information.
Web F-SMILE’s architecture consists of six
components, namely, Short Term User modelling
(STUM) component, Long Term User modelling
(LTUM) component, Advising component, Tutoring
component, Domain Representation component and
the user interface. The architecture of Web F-
SMILE is illustrated in Figure 2. The components
cooperate in order to provide individualised advice
and tutoring in case this is considered necessary.
Advice is provided to learners who have made an
error with respect to their hypothesised intentions.
All these components work locally on the learner’s
computer and only the LTUM component is
responsible for the interaction with a Web Server for
user modelling.
Every time the learner issues a command, the
STUM component, which works on the client side,
reasons about the command in terms of the learner’s
goals and possible problems. The Short Term User
modelling (STUM) has two underlying reasoning
mechanisms: one performs goal recognition based
on the effects of users’ commands and the other one
performs error diagnosis (Virvou & Kabassi 2002).
The two reasoning mechanisms are independent
of each other in the way they function. However, the
compatibility of the hypotheses generated from these
two mechanisms increases the certainty degree of
these hypotheses. When an action is issued by the
user, it is first examined by the goal recognition
mechanism and in case it is believed that it
contradicts the user’s goals, the error diagnoser is
used to generate similar alternative commands that
the user may have intended to issue instead of the
one issued which was problematic.
As soon as the alternative actions are generated,
they are sent to the Advising component, which is
responsible for selecting the alternative action that
the learner was more likely to have intended.
Furthermore, in case the STUM Component thinks
that the learner's misconception was due to the
learner's lack of knowledge, it informs the Tutoring
Component about it. The Tutoring Component is
responsible for forming an adaptive presentation of
the lesson to be taught to the learner. The Advising
and the Tutoring Component request information
about the learner from the STUM Component. This
is done so that they may adapt the advice and/or the
lesson produced to the needs and the interests of
each individual learner. The Advising and the
Tutoring Component, however, do not need to
communicate with the Server, directly since their
reasoning mechanisms reside on the client.
Both the Advising Component and the Tutoring
Component send their results to the user interface,
which is also located on the client. The user
interface is responsible for the overall
communication with the learner. This usually
involves the collection of the learner’s queries and
the presentation of advice and tutoring in case the
learner is diagnosed to have been in a problematic

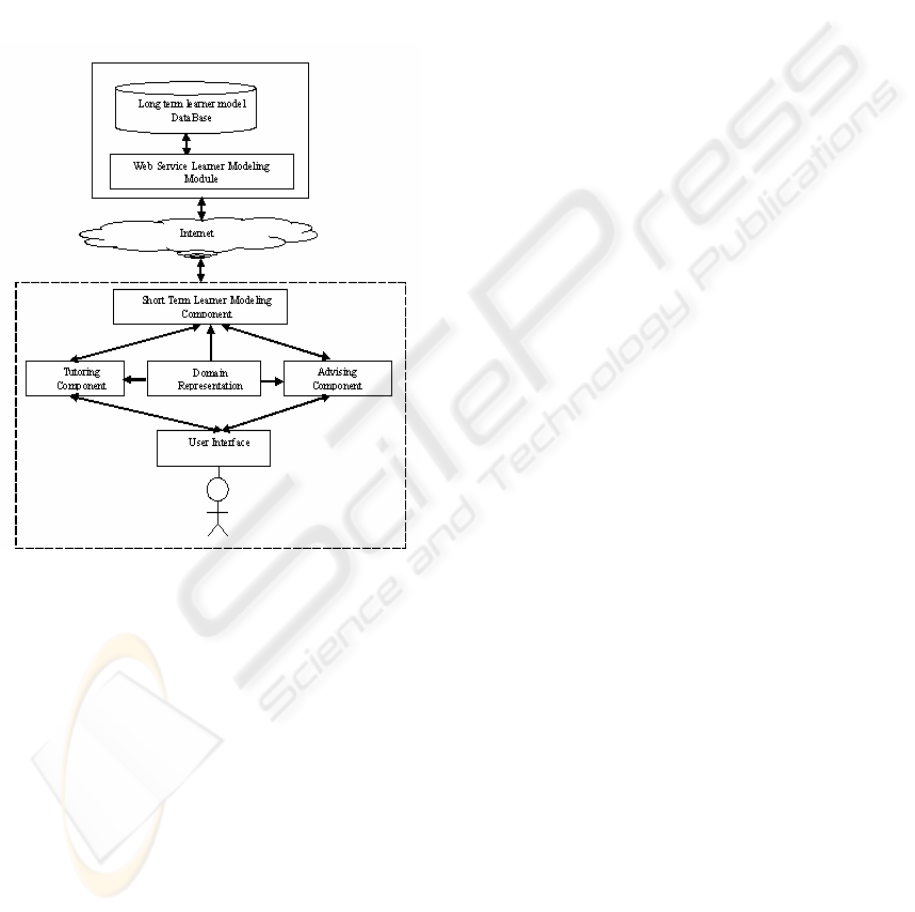

Figure 2: Web F-SMILE's architecture.
Every time the STUM Component acquires new
information about the learner that interacts with the
system, it sends it to the LTUM Component.
Generally, the LTUM Component, maintains and
manages the learner profiles and provides relevant
information to the STUM Component whenever this
is considered necessary. Furthermore, the LTUM
Component is responsible for the interaction with
the Web Service User modelling (WS-UM) Server
in order to maintain and update the information
stored in user models, both on the Web Service
Server and the client.
F-SMILE design adopts the most advanced and
widely adopted standards for secure interoperable
service provision. F-SMILE relies on XML and Web
Services for security and interoperability, a fact
which enables smooth integration with existing
accounting software that organisations may use, as
well as stand-alone operation of the service. This is
achieved by publishing the provided service in
UDDI (Universal Description, Discovery and
Integration Protocol) based directories from which
the service description can be retrieved formulated
as specified by WSDL (Web Services Description
Language). This enables other Web Services
conforming to the appropriate message formats to
interact with the F-SMILE Web Service.
The User Interface is a Signed Java Applet
running on a standard web browser. The user
interacts with the system through this interface to
create, manage and send e-files/objects. The
interface is able to produce XAdES signatures
according to the hosting organization signature
policy. It communicates with five other entities:
The user’s smart card for authentication and
signing purposes. The communication protocol
uses the PKCS#11 standard (Nash 2001).
The F-SMILE e-learning system to deliver e-
learning data. The communication is performed
through the use of SOAP over HTTP.
The CA (Certification Authority) to request
certificate status information. The protocol
used is OCSP (Online Certificate Status
The TSA (Time Stamping Authority) to request
time stamps. This communication uses an
implementation of the standard time stamping
The XML database to retrieve e-learning
specific information (existing files, contact
details etc.). The communication protocol is

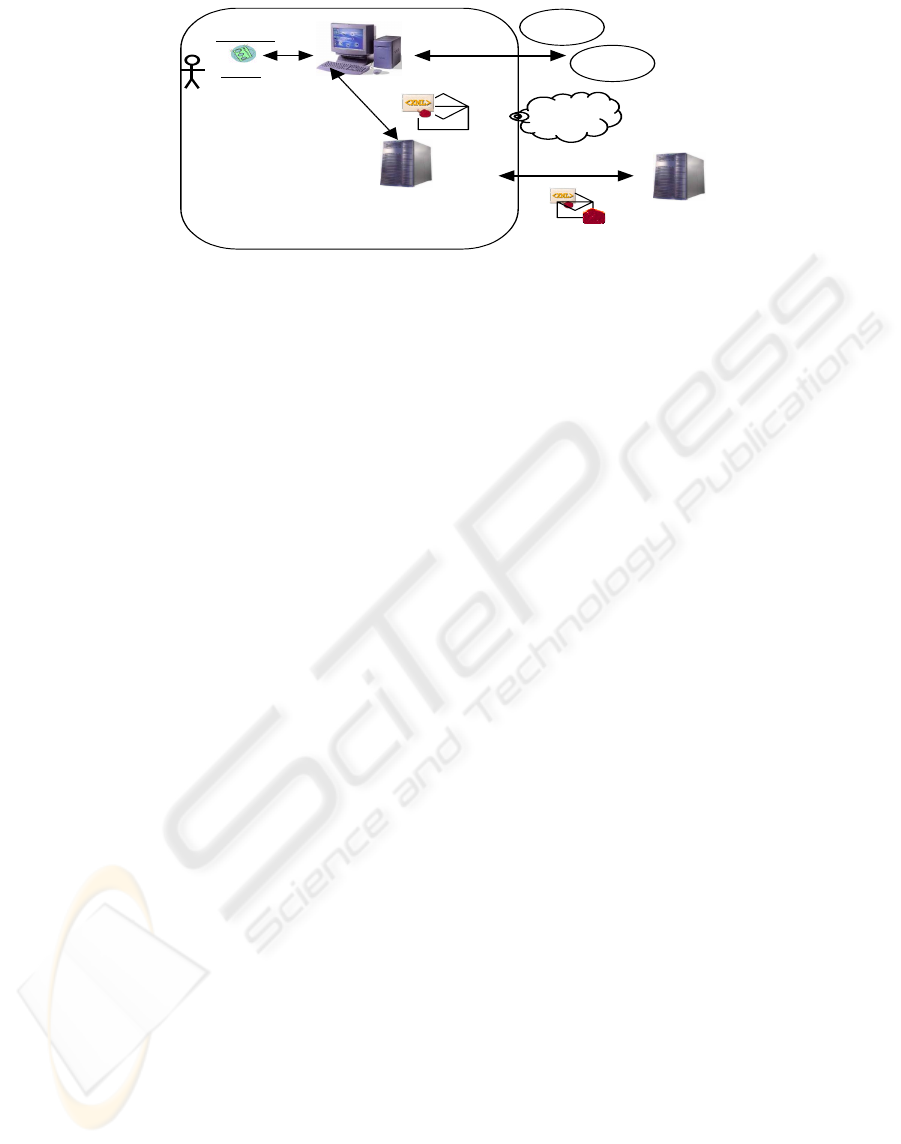

All entities are depicted in Figure 3.
The actors that take part are:
a) Educational Organisation. This organization
hosts the F-SMILE infrastructure. It takes the
appropriate steps to deploy the service and publish it
in the Registry, so that other organizations may find
it. It also communicates with the TTP to get the
proper security credentials.
b) The Learner. The Receiver organization (or
individual) may be hosting the same F-SMILE
service or another implementation of a service,
which understands the SOAP messages with WS
security extensions. In the latter case, the Receiver
will have to search for the description of the F-
SMILE Web Service in the UDDI and be configured
to understand its messages. The Receiver
organization will also have to communicate with the
TTP to get its proper security credentials.
c) The TTP. Before any secure messaging can take
place, all participants need to have established an
adequate security framework with Trusted Third
Parties (TTPs)(Adams 1999). The required TTPs in
our solution are at a minimum a Certification
Authority (CA) and a Registration Authority (RA)
offering the PKI services of registration, certification
and revocation status information with OCSP, as
well as a Time Stamping Authority (TSA) offering
standard based time stamping services.
d) UDDI directory operator. This operator hosts a
public UDDI directory where Web Services can be
published and become publicly available.
In this paper, we have described a personalised
learning environment that helps users learn how to
operate their file store. The personalisation and
adaptivity of learning depends on information about
users such as the learners’ prior knowledge, abilities
and needs which are kept in the long-term and short-
term user models. For this reason complete and
accurate user models are needed for each user.
This problem is addressed in Web F-SMILE with
the incorporation of Web Services for user
modelling and the use of smart cards (for
authentication purposes) with which the learners can
use any PC. Web services are used in Web F-SMILE
for the interaction of the agents of the system with a
User modelling Server (WS-UM). WS-UM
maintains a central database of all user models. In
addition, Web F-SMILE keeps for every learner one
user model centrally on WS-UM and one user model
in each computer that the user uses to interact with
Web F-SMILE. In this way, Web F-SMILE
overcomes possible problems that may arise due to
possible communication failures between a learner’s
PC and the Server.
The proposed Web Service architecture ensures
better accuracy, completeness, security and
interoperability of the user models as compared to
other traditional architectures that have been used
for the deployment of ILEs over the Web
Adams, C., Lloyd. (1999) Understanding Public-Key
Infrastructure – Concepts, Standards and Deployment
Considerations, 1st Edition, Macmillan Technical
Eastlake,D. , Reagle, J. (editors). (2002). “XML
Encryption Syntax and Processing”, W3C
Hartman, B., Flinn, D., Beszosov, K., & Kawamoto, S.
(2003). Mastering Web Services Security, Wiley
Kobsa, A. (2002). Personalized hypermedia and
international privacy. Communications of the ACM
45(5), 64-67.
Microsoft Corporation, Microsoft® Windows® 98
Resource Kit, Microsoft Press, 1998.
Nash, A., Duane, B., Brink, B., Joseph, C. (2001). PKI:
Implementing & Managing E-Security, McGraw-Hill
Osborn Media Publishing.
Virvou, M. & Kabassi, K. (2002). Reasoning about Users’
Actions in a Graphical User Interface. Human-
Computer Interaction, 17(4), 369-399.
Smart Card
Figure 3: Security components of F-SMILE.
