FORMAL SPECIFICATION AND REFINEMENT FOR AN

INTERACTIVE WEB EXAMPLE

Ingrid van Coppenhagen

School of Computing, University of South Africa (Florida Campus), Private Bag X6, Florida, South Africa, 1710

Barry Dwolatzky

School of Electrical & Information Engineering, University of the Witwatersrand, Private Bag 3, Wits, South Africa, 2050

Keywords: Implementation, interactive, refinement, specification, Web, XML, Z.

Abstract: This paper provides a small interactive Web example (the Car1 example) that illustrates parts of the

software life cycle processes of specification, refinement and implementation in an object-oriented

environment. Part of the software system is specified in Z, data- and operation refined and then

implemented into HTML, XML, XSD and JavaScript. Short descriptions of the refinement processes

comprising data refinement, operation refinement and operation decomposition are given. The main focuses

of the study are to firstly investigate how effective (or not) a formal specification is for an interactive Web

system, and secondly to illustrate a selection control structure in the refinement process.

1 INTRODUCTION

This paper evaluates the specification of a part of a

small interactive Web system (the Car1 example) in

Z, the subsequent data and operation refinement, and

then the implementation into HTML, XML, XSD

and JavaScript.

One of the aims of the paper is to evaluate how

effective a formal specification is for the Car1

example, with particular emphasis on the use of a

selection control structure. This control structure has

been specified and refined formally and in detail.

In sections 2, 3, and 4 the concepts of

specification, refinement, and control structures are

described respectively. From Section 5 the Car1

example is presented, with the previous three

concepts included. In Section 9 some conclusions

are drawn. Following Section 9 are the references,

Appendix A which contains the programs of the

Car1 example and Appendix B which explains some

Z notation.

2 SPECIFICATION

The Z notation uses mathematical concepts,

particularly set theory, to specify data and

operations. This allows for reasoning about systems,

for example checking the consistency of the data and

the various operations, as well as verifying the

correctness of subsequent system development

during refinement (Ratcliff, 1994, Lightfoot, 2001,

Smith, 2000, Woodcock, 1996, Jacky, 1997).

3 REFINEMENT

The two main stages of refinement are data

refinement and operation refinement. Data and

operation refinement can be looked at as that part of

the development process that corresponds to the

design phase of the traditional software life cycle.

Ways to represent the abstract data structures that

will be more amenable to computer processing are

chosen, as well as the translation of abstract

operations into corresponding concrete operations.

The concrete operations are, however, still expressed

in the language of schemas (using Z) and describe

only the relationship among the components of

before and after stages. This does not indicate how

van Coppenhagen I. and Dwolatzky B. (2006).

FORMAL SPECIFICATION AND REFINEMENT FOR AN INTERACTIVE WEB EXAMPLE.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 89-96

DOI: 10.5220/0001237100890096

 SciTePress

such changes of state are to be expressed in an

implementation computer language (Ratcliff, 1994,

Jacky, 1997, Derrick, 2001).

In operation refinement the process of

conversions of descriptions of state changes can be

carried into executable instruction sequences.

4 CONTROL STRUCTURES

All programs can be written in terms of only three

control structures, namely the sequence structure,

the selection structure and the repetition structure.

The if structure is called a single-selection structure,

because it selects or ignores a single action. The

if/else structure is called a double-selection

structure, because it selects between two different

actions (or groups of actions) (Deitel, 2002).

5 THE CAR1 EXAMPLE

In brief, in the Car1 example, the information of 6

cars is given in an XML document car1.xml. This

information is used to display the Web site

demonstrated in Figure 2. The make, model number,

year, price and picture of each car are given. The

price of some cars is more than R200000.00 and

some are less. The user can choose either one to get

a display of the make, model number, year and price

for the relevant cars. This if selection structure in the

JavaScript program constitutes the crux of the

discussion regarding the refinement of the

specifications of the programs.

6 Z SPECIFICATIONS

Basic types, sets, data, constants, choices and

messages: Basic types (given sets):

[MAKE, MODEL, YEAR, PRICE, IMAGE, X]

Refer to figures 1. The following are these sets:

X = {01, 02, 03, 04, 05, 06} e N This represents

the record counter for the data.

MAKE = {(01, Peugeot), (02, Audi), (03, Citroën),

(04, Mazda), (05, Mercedes), (06, Mercedes)} e X

ß MAKE

MODEL = {(01, 307CC), (02, A6), (03, C5), (04,

1.6), (05, E-class), (06, SLRMcLaren)} e X ß

MODEL

YEAR = {(01, 2004), (02, 2004), (03, 2004), (04,

2004), (05, 2002), (06, 2004)} e X ß YEAR

PRICE = {(01, 250000.00), (02, 340000.00), (03,

150000.00), (04, 170000.00), (05, 540000.00), (06,

640000.00)} e X ß PRICE

IMAGE = {(01, car(01).jpg), (02, car(02).jpg), (03,

car(03).jpg), (04, car(04).jpg), (05, car(05).jpg), (06,

car(06).jpg)} e X ß IMAGE

STR::= Price| Year| Model| Over| Under; N: Natural

numbers; ∅: Empty set; maxSize: N; n: N The

number of cars. For this example n = 6.

Table 1: Car1 data file (given in car1.xml).

(recor

counte

make model year img price

01 Peugeot 307CC 2004 car(01).jpg 2500

00.0

02 Audi A6 2004 car(02).jpg 3400

00.0

03 Citroën C5 2004 car(03).jpg 1500

00.0

04 Mazda 1.6 2004 car(04).jpg 1700

00.0

05 Mercedes E-class 2002 car(05).jpg 5400

00.0

06 Mercedes SLRMcLaren 2004 car(06).jpg 6400

00.0

»_Car_System

_________________

___

Æ»____________________

ÆÆcar1.html (User Interface)

ÆÆcar1.js; car1.xml; car1.xsd

Æ–____________________

–__________________________

Figure 1a: The Z Car system.

»_car1.html

__________________

___

ÆDisplay Welcome page; On click: car1.js [Detail of this

Æspecification not relevant to the discussion]

–__________________________

Figure 1b: The Car1.html file (User Interface).

»_car1.xml_____________________

Æx: P X [X is not a field in the record, it is used

Æonly in the schema as a record counter]

Æmake: Xß MAKE; model: Xß MODEL;

Æyear: Xß YEAR; img: Xß IMAGE;

Æprice: Xß PRICE; n: N; car1.xsd;

«_______________

Æ (x = dom make; dom model; dom year; dom

Æ img; dom price); n = 6

–__________________________

Figure 1c: car1.xml.

»_car1.xsd_____________________

Æ X car1.xml

Æ[Information not relevant to the discussion of this paper]

–__________________________

Figure 1d: car1.xsd.

WEBIST 2006 - INTERNET TECHNOLOGY

»__car1.js_____________________

Æ »__________________

Æ ÆX car1.html; X car1.xml; X car1.xsd

Æ Æmake!; model!; price!; img!; year!

Æ Æn: N; n = 6; str?: STR

Æ –____________________

Æ »_Init_________________

Æ Æx' = 0

Æ –____________________

Æ »_showPix()______________

Æ Æ(Ai:0..(n-1)• make(i)! ¶

model(i)! ¶ img(i)!)

Æ –____________________

Æ »_range(str)___________ ___

Æ Æ(str? = 'Over') ﬁ (E i:0..(n-1) • price(i) > 200000

Æ Æ¶ make(i)! ¶ model(i)! ¶ price(i)! ¶ year(i)! ¶

Æ Æimg(i)!)

Æ Æ(str? = 'Under') ﬁ (E i:0..(n-1)

• price(i) < 200000

Æ Æ¶ make(i)! ¶ model(i)! ¶ price(i)! ¶ year(i)! ¶

Æ Æimg(i)!)

Æ –____________________

Æ »_ListAll(str)______________

Æ Æ[Information not relevant to the discussion of this

Æ Æ paper]

Æ –____________________

–__________________________

Figure 1e: car1.js.

7 VERIFICATION AND

REFINEMENT (Z)

The Z data specifications for the schema Car1.xml

data types and operation specifications for the

schema range(str) can be refined as follows:

7.1 Verifying Consistency of Global

Definitions

For the axiomatic description

ÆGlobalDeclarations

«_____________

ÆGlobalPredicates

it must be established that there exists values for

GlobalDeclarations that satisfy GlobalPredicates.

For example from the type definitions, the state

variables can be defined as follows:

Æx: PX; make: X ß MAKE; model: X ß MODEL

«_______________________

Æ(x = dom make; dom model)

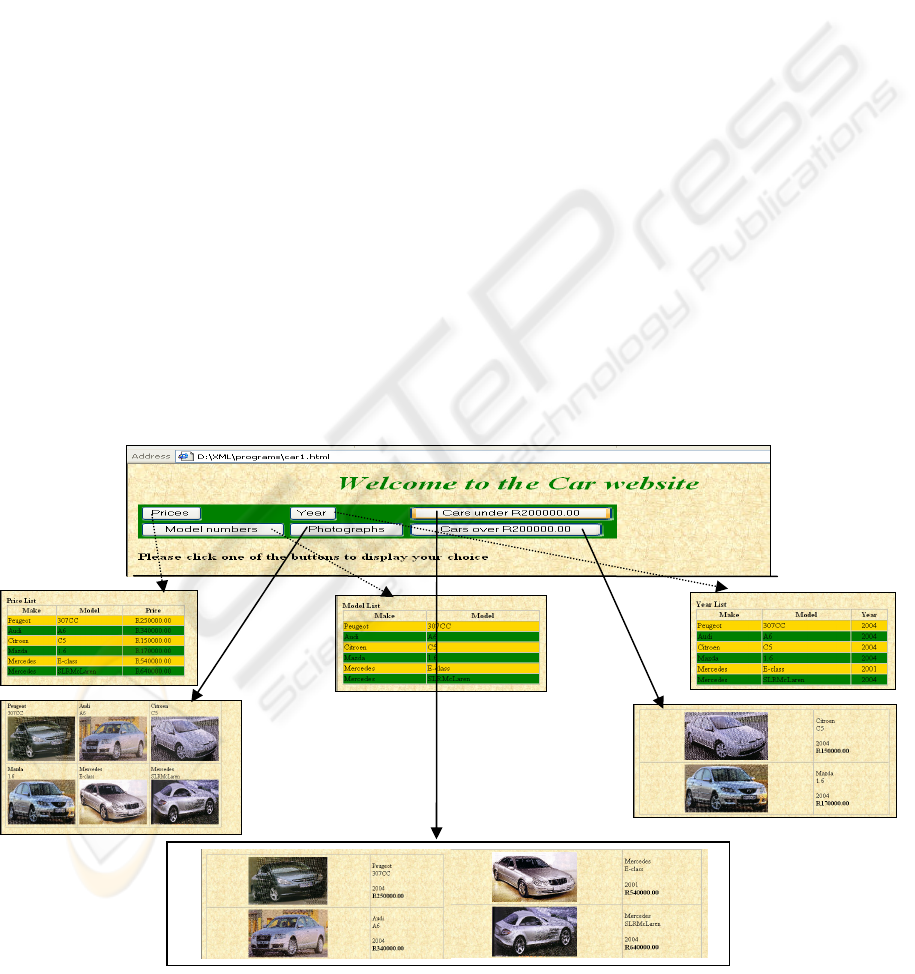

Figure 2: The Car Website.

FORMAL SPECIFICATION AND REFINEMENT FOR AN INTERACTIVE WEB EXAMPLE

Suppose x = {03} and make = {Citroën}.

Therefore x = dom make. Therefore H∃ x: PX ∧

∃ make: X ß MAKE • true. By a simple property of

logic H true. Also

Æmake: MAKE (declaration of constant)

«______________

Æmake = Citoën (value of constant)

This description is consistent because it does not

contradict x's declaration.

A number of consistency checks can be

performed on the state space of Figure 1c.

Æx: X; make: MAKE

«______________

Æx = 03; make = Citroën

This axiomatic description is also a verification

of the consistency of the global definitions or H

∃ Car1.xml' • x'

X ∧ make' ∈ MAKE which for the

axiomatic description is true, therefore H

∃ Car1.xml' • true and by a simple property of logic

H true. This satisfies the verification for global

definitions, which can also serve as part of a data

refinement because a concrete data type was

constructed that simulates the abstract one.

7.2 Verifying Consistency of an

Initial State

A check must be done to ensure that a consistent

initial state exists. This check can be expressed as

the initialisation theorem which has the following

general form: H ∃ State' • InitStateSchema which can

be extended to H ∃ State'; Inputs? • InitStateSchema

if there are input variables for the initial state

schema InitStateSchema.

The concrete initial state for Car1.js is:

»_init _____________________

Æx' = ∅

–________________________

To show that it is consistent:

H ∃ x': PX; ∃ make': X ß MAKE • x' = dom make'.

If dom make' = ∅ then x' = ∅ which implies that

there is a state Car1.js' of the state definition schema

that satisfies the initial state description.

The above mentioned checks can also serve as

data refinement where it must be determined

whether every abstract state has at least one concrete

representative and there exists a consistent initial

state.

7.3 Verifying Consistency of

Operations

For an operation that is defined as:

OperationDeclarations | OperationPredicates, the

consistency theorem is H ∃ OperationDeclarations •

OperationPredicates.

Calculating its precondition can check an

operation’s consistency. If the operation is

inconsistent, its precondition will be false. A false

precondition strongly suggests a defect in the

operation description (Ratcliff, 1994).

The consistency theorem for the operation

range(str) will be: (str? = ‘Over’) ﬁ (E i:0..(n-1) •

price(i) > 200000 ¶ make(i)! ¶ model(i)! ¶ price(i)!

¶ year(i)! ¶ img(i)!).

Now assume that (str? = 'Over') ﬁ false

then (Ei:0..(n-1) • price(i) < 200000 ¶ make(i

)! ¶

model(i)! ¶ price(i)! ¶ year(i)! ¶ img(i)!).

But according to the second statement in

range(str) (Figure 1e): if (str? = ‘Under’) ﬁ (E

i:0..(n-1) • price(i) < 200000 ¶ make(i)! ¶ model(i)!

¶ price(i)! ¶ year(i)! ¶ img(i)!).

Then according to a simple property of logic H

(str? = ‘Over’) ﬁ (E i:0..(n-1) • price(i

) < 200000 ¶

make(i)! ¶ model(i)! ¶ price(i)! ¶ year(i)! ¶ img(i)!)

• false and then according to a simple property of

logic H false. This means that the assumption was

false, and that the sequent predicate is not a

contradiction, hence that range(str) is consistent.

This means that the assumption was false, and

that the sequent predicate is not a contradiction,

hence that range(str) is consistent.

7.4 Data Refinement

Refer to Figure 1c, the abstract state Car1.xml,

with an initial state:

»_init_Car1.xml__________________

ÆCar1.xml'

«____________________

Æx' = ∅

–_________________________

WEBIST 2006 - INTERNET TECHNOLOGY

and with (for example) an abstract operation on the

data being the operation schema range(str) (from

Figure 1e).

We plan to implement this system into a

programming language that supports arrays and lists.

We decide to refine the abstract specification to a

detailed design based on sequences because we

expect this will be easier to map into the target

programming language. The reason for this is

because sequences are sorted lists.

For the refinement the concrete representation of

Car1.xml is not a set but a sequence Car2.xml of

elements of type X, X ß MAKE, X ß MODEL, X

ß YEAR, X ß IMAGE and X ß PRICE.

The concrete representative x is not a set but a

sequence x1. The state set Car1.xml is re-expressed

as:

»_Car2.xml____________________

Æx1: seq X; make1: seq (X ß MAKE);

Æmodel1: seq (X ß MODEL); year1: seq (X ß YEAR);

Æimg1: seq (X ß IMAGE); price1: seq (X ß PRICE);

«____________________

Æ(# ran x1 = # ran make1; # ran model1; # ran year1; #

Æran img1; # ran price1)

–_________________________

Here is the concrete selection control structure

operation of range(str):

»_range1(str)____________________

Æ(str? = 'Over') ﬁ (E i:0..(n-1) • price1(i) > 200000 ¶

Æmake1(i)! ¶ mode1l(i)! ¶ price1(i)! ¶ year1(i)! ¶

Æimg1(i)!)

Æ(str? = 'Under') ﬁ (E i:0..(n-1) • price1(i) < 200000 ¶

Æmake1(i)! ¶ mode1l(i)! ¶ price1(i)!

¶ year1(i)! ¶

Æimg1(i)!)

–__________________________

The sequence should always hold the same

elements as the set. A sequence is a function from

natural numbers to elements, so the elements stored

in the sequence are the range of this function. The

range of the sequence must be the same as the set.

x = ran x1 ∧ x' = ran x1' also price = ran price1

∧ price' = ran price1', etc..therefore (E i:0..(n-1) •

price(i) > 200000 ⇔ (E i:0..(n-1) • ran price1(i) >

200000).

This must be true before and after any operation,

so equations appear for unprimed and primed (')

variables. We now form the implication that

expresses the refinement. The predicate of the

abstract operation range(str) appears on the right of

the implication arrow, and the predicate of the

concrete operation range1(str) is on the left, along

with the equations relating make, make1, model,

model1, year, year1, img, img1, price and price1.

When (

str? = 'Over') then (E i:0..(n-1) • price1(i)

> 200000) ¶ price = ran price1 ¶ price' = ran

price1'. Also when (str? = 'Under') then (E i:0..(n-

1) • price1(i) < 200000) ¶ price = ran price1 ¶

price' = ran price1'

7.5 Proof of the Selection Control

Structure Refinement

When (str? = 'Over') ﬁ then (Ei:0..(n-1) • price1'(i)

> 200000) = (Ei:0..(n-1) • price1(i) > 200000) ¶

price = ran price1 ¶ price' = ran price1' ﬁ price' =

price.

¤ (Ei:0..(n-1) • price'(i) > 200000)

[Assume

antecedent]

¤ (Ei:0..(n-1) • ran price1'(i) > 200000)

[Antecedent price' = ran price1']

¤ (Ei:0..(n-1) • ran price1(i) > 200000) [Given]

¤ (Ei

:0..(n-1) • price(i) > 200000)

[Antecedent price = ran

price1]

¤ true

An equivalent proof for when (str? = 'Under').

7.6 Verifying the Correctness of the

Concrete Initial State

The concrete initial state must not describe initial

states that have no counterpart in the abstract model

(Ratcliff, 1994, Jacky, 1997, Derrick, 2001). A

theorem of the following form is to be proved:

Given the retrieve relation then: InitConcState H

InitAbsState which says that ‘for each concrete

initial state, there is a corresponding abstract one’.

Refer to the following schema definitions:

»_init_Car1.xml___________________

ÆCar1.xml'

«____________________

Æx' = ∅

–__________________________

and from the Data refinement the Car2.xml schema

and

FORMAL SPECIFICATION AND REFINEMENT FOR AN INTERACTIVE WEB EXAMPLE

»_Car2.xml'_____________________

Æx1': seq X; make1': seq (X ß MAKE);

Æmodel1' : seq (X ß MODEL); year1': seq (X ß YEAR);

Æimg1': seq (X ß IMAGE); price1': seq (X ß PRICE);

«____________________

Æ(# ran x1' = # ran make1'; # ran model1'; # ran year1';

Æ# ran img1'; # ran price1')

–__________________________

and

»_init_ Car2.xml_________________

ÆCar2.xml'

«____________________

Æx1' = 〈〉

–_________________________

and from the Data refinement the Car1.xml schema

and

»_CARel_____________________

ÆCar1.xml; Car2.xml

«____________________

Æx = ran x1

–_________________________

and

»_CARel'

____________________

ÆCar1.xml'; Car2.xml'

«____________________

Æx' = ran x1'

–_________________________

It must be proved that there is a state CARel' of

the general model CARel (concrete to abstract

relation) that satisfies the following: init_ Car1.xml H

init_ Car2.xml.

CARel' acts as an extra hypotheses (given

CARel'). The declarative part of the right-hand side

schema text is just Car1.xml' which is provided by

CARel' on the left. The sequent is then unfolded into

CARel'; Car2.xml' ⎥ x1' = 〈〉 H x' = ∅ which holds

because x1' = 〈〉 on the left and x' = ran x1' in

CARel'.

By substitution x' = ran 〈〉, and x' = ∅

immediately follows.

7.7 The concrete State Must be

Consistent

It has to be shown in general that

H ∃ ConcState' • InitConcState (InitConcState

represents the initial concrete state) or for our

example: H ∃ Car3.xml' • init_Car2.xml

Car3.xml' is a state of the general model Car3.xml.

From the Data refinement it is concluded that the

state sets x: PX; make: X ß MAKE; model: X ß

MODEL; year: X ß YEAR; img: X ß IMAGE;

price: X ß PRICE; are implemented as arrays with

an index variable: x1: array [0..(maxSize-1)];

make1: array[0..(maxSize-1)]; model1: array

[0..(maxSize-1)]; year1: array[0..(maxSize -1)];

img1: array[0..(maxSize-1)]; price1:

array[0..(maxSize-1)]; n: 0..(maxSize-1).

It is assumed that the n elements of the x1 array

are sorted in ascending sequence to ensure that no

duplicates are kept in the array and to facilitate fast

lookup of the array. For all the n elements of the x1

array, the corresponding elements in the make1,

model1, year1, img1, and price1 arrays have the

same element number as the number of the x1 array.

For example, make1(3) is the car make of the car

represented by x1(3).

Add the following to Car1.xml: ⎥ maxSize: N to

give:

»_car3.xml_____________________

Æx: P X; make: Xß MAKE; model: Xß MODEL;

Æyear: Xß YEAR; img: Xß IMAGE;

Æprice: Xß PRICE; n: N; car1.xsd

«_______________

Æ(x = dom make; dom model; dom year; dom img; dom

Æprice); #x¯ maxSize -1; n = 6

–__________________________

»_Car4.xml_____________________

Æx1: seq X; make1: seq (X ß MAKE)

Æmodel1 : seq (X ß MODEL); year1: seq (X ß YEAR);

Æimg1: seq (X ß IMAGE); price1: seq (X ß PRICE);

Æn = 0..(maxSize -1)

«____________________

Æ(# ran x1 = # ran make1; # ran model1; # ran year1;

Æ#ran img1; # ran price1); #x1 = n

ÆAi,j: dom x1 • i < j ﬁ x1(i) < x1(j); n' = n

–__________________________

»_Car4.xml'_____________________

x1': seq X; make1': seq (X ß MAKE);

Æmodel1' : seq (X ß MODEL); year1': seq (X ß YEAR);

Æimg1': seq (X ß IMAGE); price1': seq (X ß PRICE);

Æn = 0..(maxSize -1)

«____________________

Æ(# ran x1' = # ran make1'; # ran model1'; # ran year1';

Æ# ran img1'; # ran price1'); #x1' = n''

ÆAi,j: dom x1' • i < j ﬁ x1'(i) < x1'(j); n' = n

–__________________________

To show that it is consistent: Refer to Car4.xml':

H ∃ x1': seq X; n': 0..(maxSize-1); ∀i, j: dom x1' • i <

j ⇒ x1'(0) < x1'(1) < x1'(2), < .. x1'(maxSize-1);

WEBIST 2006 - INTERNET TECHNOLOGY

#x1' = n'. If n' = 0 then x1' = 〈〉 that implies that there

is a state (Car4.xml') of the general model Car4.xml

that satisfies the initial state description init_

Car2.xml.

7.8 Determine Whether Every

Abstract State Has at Least One

Concrete Representative

This can be achieved by determining if each abstract

variable can be derived or ‘retrieved’ from the

concrete variables by writing down equalities of the

form: AbsVar = Expr(ConcVars) where AbsVar

represents an abstract variable of the abstract state,

Expr an expression and ConcVars the concrete

variable of the concrete state representing the

abstract state.

For the example the predicate x = ran x1 will be

referred to as the ‘retrieve relation’ CARel (concrete-

to-abstract relation) that brings together the abstract

and the concrete states:

»_CARel____________________

ÆCar1.xml; Car2.xml

«____________________

Æx = ran x1

–________________________

The equality means that CARel is in effect a total

function when viewed as ‘calculating’ the abstract

state from the concrete one. Being total means that

every concrete state maps to some abstract state.

This implicit property of the retrieve relation being

functional and total, characterises the fact that a

simplified form of data refinement is discussed

(Ratcliff, 1994).

Suppose, however, the ‘sorted’ invariant was

removed from Car2.xml so that the array element

order was immaterial. Assume that no duplicates are

stored in the array. The design will now include

some redundancy in that each non-empty, non-

singleton set in the abstract state would have more

than one concrete representation (Ratcliff, 1994).

For example, the abstract state

〈model ⇛ {307CC, A6, C5, 1.6, E-class,

SLRMcLaren}〉 will have 6! concrete representatives

(of which two are shown): 〈model1 ⇛ 〈1.6,

307CC,.., C5〉, n ⇛ 6〉 and 〈model1 ⇛ 〈C5,

1.6,..A6〉, n ⇛ 6〉

In general, assuming no duplicates, there would

be n! concrete representatives for a single abstract

state. The implicit functionality of a retrieve relation

such as CARel is not compromised because the

relation expresses a calculation from concrete to

abstract (Ratcliff, 1994).

7.9 Operation Refinement

Refer to range1(str) from the Data refinement with

n' and n added:

»_range1(str)____________________

Ærange1(str)

Æn' = n

–__________________________

This is a data-refined operation because the

abstract range(str) operation is re-expressed as the

concrete operation range1(str). range1(str) is

refined into range2(str):

»_range2(str)____________________

Æ(str? = 'Over') ﬁ ((E i:0..(n-1) • price1(i) > 200000) ¶

Æ(θCar4.xml' = θCar4.xml) ¶((i)@ make1)! ¶ ((i)@

Æmodel1)! ¶ ((i)@ price1)! ¶ ((i)@ year1)! ¶ ((i)@ img1)!)

Æ(str? = 'Under') ﬁ ((E i:0..(n-1) •

price1(i) < 200000) ¶

Æ(θCar4.xml' = θCar4.xml) ¶((i)@ make1)! ¶

Æ((i)@ model1)! ¶ ((i)@ price1)! ¶ ((i)@ year1)! ¶ ((i)@

Æ img1)!)

Æ n' = n

–_________________________

((i) @ make1) extracts the ith element of array make1.

range2(str) can be refined into the following

algorithm: (Let n be the number of Cars).

[lookFor(str?, range(str))]

[Send str to the function range(str) (in car1.js)]

for i = 0..(n-1)

if str = 'Over' and price(i) > 200000.00

[Check for car prices > 200000]

display make(i), model(i), year(i), img(i), price(i);

[Display the values on the

website]

else

if str = 'Under' and price(i) < 200000.00

[Check for car prices < 200000]

display make(i), model(i), year(i), img(i), price(i);

[Display the values on the

website]

endif

endFor

This algorithm is implemented by the range(str)

function of the car1.js program (refer to Appendix

A).

FORMAL SPECIFICATION AND REFINEMENT FOR AN INTERACTIVE WEB EXAMPLE

8 IMPLEMENTATION

The programs are provided in Appendix A. The

programs include a car1.html program that provides

the user interface, the car1.xml and its corresponding

schema program car1.xsd provide the data input, and

car1.js is a javascript program that does the

calculations. This aids in the understanding of the

process of refinement if the end product (the

programs) are given to indicate where the algorithms

of the refinement are leading to. The output of the

programs should correspond with the results of the

data refinements and the instantiations. This serves a

dual purpose in that the output can be verified

against the instantiations, and the instantiations

against the output. Therefore the implementation

serves to verify that the specifications are correct,

and the specifications serve to verify that the

implementation is correct (Dong, 2004, Sun, 2002,

Woodcock, 1996, Deitel, 2002, Doke, 2002,

McGrath, 2002).

9 CONCLUSION

From the extensive refinement of the selection

control structure used on the data file, it can be

concluded that such a detailed specification and

refinement as illustrated in this paper will definitely

reduce errors in the coding of the programs. The

application of formal specifications and refinements

also serves a dual purpose in that the code can be

verified against the specifications, and the

specifications can be verified against the code.

REFERENCES

Ratcliff, B., 1994. Introducing Specification using Z.

McGraw-Hill Book Company.

Dong, J.S., 2004. Semantic Web and Formal

Specifications. Short version of ICSE'04 tutorial.

Computer Science Department, National University of

Singapore.

Sun, J., Song Dong, J., Liu, J., Wang, H., 2002. A Formal

Approach to the Design of ZML. Annals of Software

Engineering 13, 329-356.

Lightfoot, D., 2001. Formal Specifications using Z.

Palgrave.

Smith, G., 2000. The Object-Z specification language.

Kluwer Academic Publishers.

Woodcock, J., and Davies, J., 1996. Using Z Specification,

Refinement and Proof. Prentice Hall.

Deitel, H. M., Deitel, P. J., and Nieto, T. R., 2002. Internet

& World Wide Web How to Program. Prentice Hall.

Jacky, J., 1997. The Way of Z. Cambridge University

Press.

Derrick, J., and Borten, E., 2001. Refinement in Z and Z.

Foundations and Advanced Applications, Springer-

Verlag London.

Doke, E., Satzinger, J. W., and Williams, S. Rebstock,

2002. Object-Oriented Application using Java. Course

Technology, Thomson Learning.

McGrath, M., 2002. XML in easy steps. Computer Step.

APPENDIX A

http://www.unisa.ac.za/contents/colleges/col_science_eng

_tech/docs/ingrid/AppendixA.doc

APPENDIX B

Z NOTATION

http://www.unisa.ac.za/contents/colleges/col_science_eng

_tech/docs/ingrid/AppendixB.doc

WEBIST 2006 - INTERNET TECHNOLOGY
